Endress+Hauser Cerabar M PMC41 User manual

BA201P/00/en/06.08
71064502
Valid from software version:
1.1/1.2
Operating Instructions
Cerabar M PMC41/45, PMP41/45/46/48
Process pressure measurement
6
12
+–
3
Zero
Damping
on off
Span
Display
0,753
IO

Overview of documentation Cerabar M HART
2Endress+Hauser
Overview of documentation
Device Documentation Contents
Cerabar M 4 to 20 mA HART Technical Information TI399P Technical data
Operating Instructions BA201P – Identification
– Installation
– Wiring
– Operation
– Commissioning
– Maintenance
– Troubleshooting and spare parts
– Appendix: illustration of menus

Cerabar M HART Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Notes on safety conventions and icons . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 CE mark, Declaration of Conformity . . . . . . . . . . . . 8
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 8
3 Installation . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Incoming acceptance and storage . . . . . . . . . . . . . . . 9
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Installation instructions . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 17
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Connecting the DXR375 handheld terminal . . . . . . 20
4.3 Connecting Commubox FXA191/FXA195 . . . . . . . 21
4.4 Connecting the measuring unit . . . . . . . . . . . . . . . 21
4.5 Potential equalization . . . . . . . . . . . . . . . . . . . . . . 22
4.6 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 22
5 Operation . . . . . . . . . . . . . . . . . . . . . . 23
5.1 Onsite display (optional) . . . . . . . . . . . . . . . . . . . . 23
5.2 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . 24
5.3 Operation via Endress+Hauser operating program . 25
5.4 Operation via Universal HART Communicator DXR375
27
6 Commissioning. . . . . . . . . . . . . . . . . . 28
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.2 Onsite commissioning . . . . . . . . . . . . . . . . . . . . . 28
6.3 Commissioning via communication . . . . . . . . . . . 30
6.4 Locking/unlocking operation . . . . . . . . . . . . . . . . . 34
6.5 Information on the measuring point . . . . . . . . . . . 34
7 Maintenance. . . . . . . . . . . . . . . . . . . . 35
7.1 Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8 Troubleshooting . . . . . . . . . . . . . . . . . 35
8.1 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.3 Error codes in V2H0 and V2H1 . . . . . . . . . . . . . . . 36
8.4 Current simulation . . . . . . . . . . . . . . . . . . . . . . . . 37
8.5 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.6 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.7 Repair of Ex-certified devices . . . . . . . . . . . . . . . . . 39
8.8 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
8.9 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.11 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9 Technical data . . . . . . . . . . . . . . . . . . . 41
10 Operating matrix . . . . . . . . . . . . . . . . . 42
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Safety instructions Cerabar M HART
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Cerabar M is a pressure transmitter for measuring pressure and level.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than that
designated.
1.2 Installation, commissioning and operation
The device is designed to meet state-of-the-art safety requirements and complies with applicable
standards and EC regulations. If used incorrectly or for anything other than the designated use, the
device can, however, be a source of danger e.g. product overflow due to incorrect installation or
configuration. Consequently, installation, connection to the electricity supply, commissioning,
operation and maintenance of the measuring system must be carried out by trained, qualified
specialists authorized to perform such work by the facility's owner-operator. The specialists must
have read and understood these Operating Instructions and must follow the instructions they
contain. Modifications and repairs to the device are permissible only if they are expressly approved
in the manual. Pay particular attention to the information and instructions on the nameplate.
1.3 Operational safety
1.3.1 Hazardous areas (optional)
Devices for use in hazardous areas are fitted with an additional nameplate (→ see from Page 6,
Section 2.1.1 "Nameplates"). If the measuring system is to be used in hazardous areas, applicable
national standards and regulations must be observed. The device is accompanied by separate
"Ex documentation", which is an integral part of this documentation. The installation regulations,
connection values and safety instructions listed in this Ex document must be observed. The
documentation number of the related safety instructions is also indicated on the additional
nameplate.
• Ensure that all personnel are suitably qualified.

Cerabar M HART Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and icons
In order to highlight safety-specific or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding icon in the margin.
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to
serious personal injury, a safety hazard or the destruction of the device.
"Caution!
A caution highlights actions or procedures which, if not performed correctly, may lead to
personal injury or the incorrect operation of the device.
!Note!
A note highlights actions or procedures which, if not performed correctly, can have an
indirect effect on operation or trigger an unexpected response on the part of the device.
0Explosion-protected, type-examined equipment
If the device has this symbol embossed on its nameplate, it can be used in a hazardous area
or a non-hazardous area, depending on the approval.
-Hazardous area
Symbol used in drawings to indicate hazardous areas.
– Devices used in hazardous areas must possess an appropriate type of protection.
.
Safe area (non-hazardous area)
Symbol used in drawings to indicate non-hazardous areas.
– Devices used in hazardous areas must possess an appropriate type of protection. Cables
used in hazardous areas must meet the necessary safety-related characteristic quantities.
%Direct current
A terminal to which DC voltage is applied or through which direct current flows.
&Alternating current
A terminal to which alternating voltage (sine-wave) is applied or through which alternating
current flows.
)Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded by means of a
grounding system.
*Protective ground terminal
A terminal which must be connected to ground prior to establishing any other connections.
+Equipotential connection
A connection that has to be connected to the plant grounding system: this may be a
potential equalization line or a star grounding system depending on national or company
codes of practice.

Identification Cerabar M HART
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplates
!Note!
• The MWP (maximum working pressure) is specified on the nameplate. This value refers to a
reference temperature of 20°C (68°F), or a temperature of 100°F for ANSI flanges.
• The pressure values permitted at higher temperatures can be found in the following standards:
– EN 1092-1: 2001 Tab. 181)
– ASME B 16.5a – 1998 Tab. 2-2.2 F316
– ASME B 16.5a – 1998 Tab. 2.3.8 N10276
– JIS B2230
• The test pressure corresponds to the overpressure limit (OPL) of the device = MWP x 1.52).
• The Pressure Equipment Directive (EC Directive 97/23/EC) uses the abbreviation "PS". The
abbreviation "PS" corresponds to the MWP (maximum working pressure) of the measuring
device.
Nameplate of the aluminum housing
P01-PMx4xF18-18-xx-xx-xx-000
Fig. 1: Nameplate for Cerabar M with aluminium housing
➀Order code
See the specifications on the order confirmation for the meanings of the individual letters and digits.
➁Serial number
➂Nominal measuring range
➃Minimum/maximum span
➄MWP (Maximum working pressure)
➅Electronic version (output signal)
➆Supply voltage
➇Wetted materials
➈Wetted materials
➉Wetted materials
Maximum pressure for oxygen applications (optional for devices, suitable for oxygen applications)
Maximum temperature for oxygen applications (optional for devices, suitable for oxygen applications)
ID number of notified body with regard to Pressure Equipment Directive (optional)
ID number of notified body with regard to ATEX (optional)
SIL-symbol for devices with SIL2/IEC 61508 Declaration of conformity (optional)
Degree of protection
CRN number (optional)
1) With regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under 13EO in EN 1092-1 Tab. 18. The chemical
composition of the two materials can be identical.
2) The equation does not apply for PMP41, PMP45 and PMP48 with a 100 bar measuring cell.
p
Mat.
Order Code:
Ser.-No.:
Span
M.W.P.:
Bei Sauerstoffeinsatz
for oxygen service
D-79689 Maulburg
Cerabar M Made in Germany,
1
15
2
3
4
6
7
10
11
12
13
14
5
16
17
89
5
6
7

Cerabar M HART Identification
Endress+Hauser 7
Nameplate of the stainless steel housing
P01-PMx4xF15-18-xx-xx-xx-000
Fig. 2: Nameplate for Cerabar M with stainless steel housing
➀Order code
See the specifications on the order confirmation for the meanings of the individual letters and digits.
➁Serial number
➂Nominal measuring range
➃Minimum/maximum span
➄MWP (maximum working pressure)
➅Electronic version (output signal)
➆Supply voltage
➇Wetted materials
➈Wetted materials
➉Wetted materials
Maximum pressure for oxygen applications (optional for devices, suitable for oxygen applications)
Maximum temperature for oxygen applications (optional for devices, suitable for oxygen applications)
Degree of protection
CRN number (optional)
ID number of notified body with regard to ATEX (optional)
ID number of notified body with regard to Pressure Equipment Directive (optional)
A3 symbol for devices with A3 (optional)
SIL-symbol for devices with SIL2/IEC 61508 Declaration of conformity (optional)
Additional nameplate
Devices for use in hazardous areas are fitted with an additional nameplate.
p
Order Code:
Ser.-No.:
Span
M.W.P.:
D-79689 Maulburg
Cerabar M Made in Germany,
Mat.
Bei Sauerstoffeinsatz
for oxygen service
15
1
2
3
4
6
7
10
11 12
13
14
5
16
17 18
8 9
5
6
7
8

Identification Cerabar M HART
8Endress+Hauser
2.2 Scope of delivery
The scope of delivery comprises:
• Cerabar M pressure transmitter
• Optional accessories
Documentation supplied:
• Operating Instructions BA201P (this document)
• Final inspection report
• Optional: factory calibration certificate
• Devices that are suitable for use in hazardous areas:
additional documentation such as Safety Instructions, Control or Installation Drawings
2.3 CE mark, Declaration of Conformity
The devices are designed to meet state-of-the-art safety requirements, have been tested and left the
factory in a condition in which they are safe to operate. The devices comply with the applicable
standards and regulations as listed in the EC Declaration of Conformity and thus comply with the
statutory requirements of the EC Directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ, VITON, TEFLON
Registered trademarks of E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP
Registered trademark of Ladish & Co., Inc., Kenosha, USA
HART
Registered trademark of the HART Communication Foundation, Austin, USA
GORE-TEX®
Registered trademark of W.L. Gore & Associates, Inc., USA

Cerabar M HART Installation
Endress+Hauser 9
3 Installation
3.1 Incoming acceptance and storage
3.1.1 Incoming acceptance
• Check the packaging and the contents for damage.
• Check the shipment, make sure nothing is missing and that the scope of supply matches your
order.
3.1.2 Storage
The device must be stored in a dry, clean place and protected against damage from impact
(EN 837-2).
Storage temperature range:
• –40 to +100°C (–40 to +212°F)
• Onsite display: –40 to +80°C (–40 to +176°F)
3.2 Installation conditions
3.2.1 Dimensions
→ For dimensions, please refer to the Technical Information for Cerabar M TI399P, "Mechanical
construction" section.
3.3 Installation instructions
!Note!
• Due to the orientation of the Cerabar M, there may be a shift in the zero point, i.e. when the
container is empty, the measured value does not indicate zero. The position-dependent zero point
shift can be corrected directly at the device via 2 keys → see Page 29, Section 6.2.5 "Position
adjustment - only display (bias pressure)" (onsite operation) or via communication → see Page 33,
Section 6.3.7 "Position adjustment - only display (bias pressure)".
• For PMP46 and PMP48, please pay attention to Page 13, Section 3.3.2 "Installation instructions
for devices with diaphragm seals – PMP46, PMP48".
• The onsite display can be rotated in 90° stages.
• Endress+Hauser offers a mounting bracket for installation on pipes or walls.
(→ See Page 16, Section 3.3.4 "Wall and pipe-mounting (optional)").

Installation Cerabar M HART
10 Endress+Hauser
3.3.1 Installation instructions for devices without a diaphragm seal –
PMC41, PMC45, PMP41, PMP45
!Note!
• If a heated Cerabar M is cooled during a cleaning process (e.g. by cold water), a vacuum develops
for a short time, whereby moisture can penetrate the sensor through the pressure compensation
➀. If this is the case, mount the Cerabar M with the pressure compensation ➀pointing
downwards.
• Keep the pressure compensation and GORE-TEX®filter ➀free from dirt.
• Cerabar M devices without diaphragm seals are mounted as per the norms for a manometer
(DIN EN 839-2). We recommend the use of shutoff devices and siphons. The orientation depends
on the measuring application.
• Do not clean or press the diaphragm with hard or pointed objects.
Pressure measurement in gases
P01-PMx4xxxx-11-xx-xx-xx-002

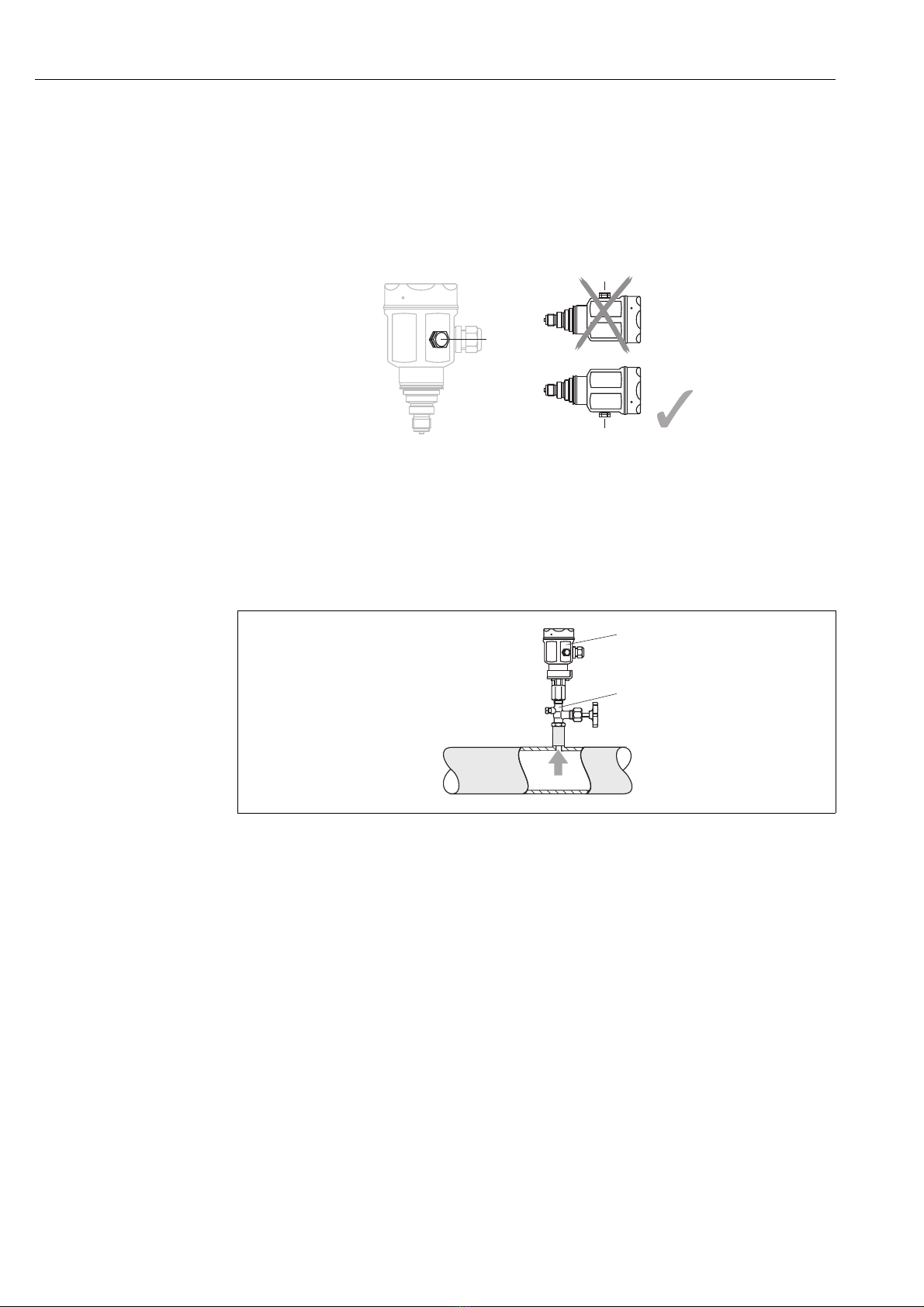

Fig. 3: Measuring arrangement for pressure measurement in gases
➀Cerabar M
➁Shutoff device
• Mount Cerabar M with shutoff device above the tapping point so that the condensate can flow
into the process.
➀
➀
➀
➁
➀

Cerabar M HART Installation
Endress+Hauser 11
Pressure measurement in steam
P01-PMx4xxxx-11-xx-xx-xx-003
Fig. 4: Measuring arrangement for pressure measurement in steam
➀Cerabar M
➁Shutoff device
➂U-shaped siphon
➃Circular siphon
• Mount Cerabar M with siphon above the tapping point.
The siphon reduces the temperature to almost ambient temperature.
• Fill the siphon with liquid before commissioning.
Pressure measurement in liquids
P01-PMx4xxxx-11-xx-xx-xx-004
Fig. 5: Measuring arrangement for pressure measurement in liquids
➀Cerabar M
➁Shutoff device
• Mount Cerabar M with shutoff device below or at the same level as the tapping point.
➁
➂
➃
➀
➁
➀
➁
➀

Installation Cerabar M HART
12 Endress+Hauser
Level measurement
P01-PMx4xxxx-11-xx-xx-xx-005

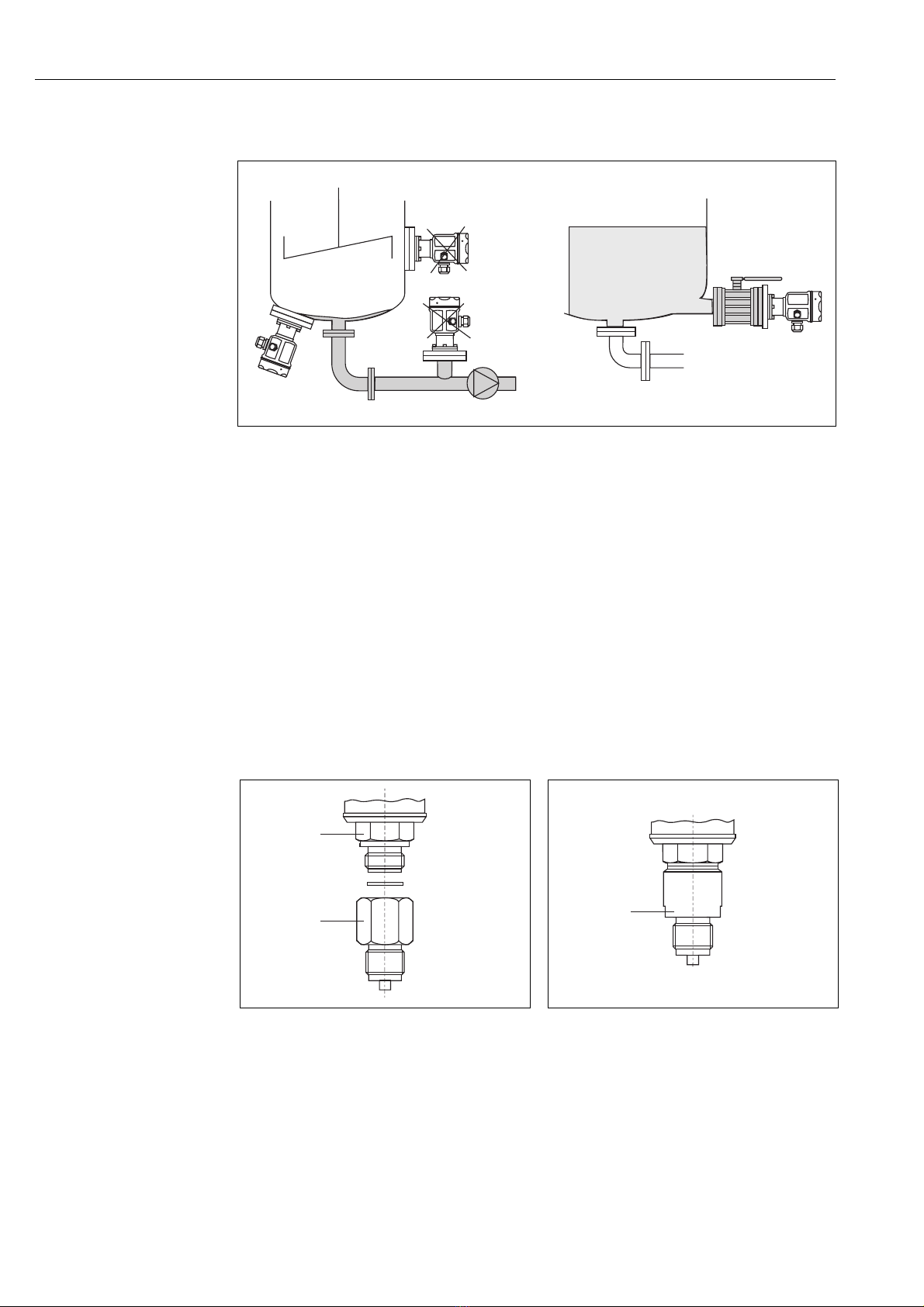

Fig. 6: Measuring arrangement for level
• Always mount Cerabar M below the lowest measuring point.
• Do not mount the device at the following positions:
In the filling curtain, in the tank outlet or at a point in the tank which could be affected by pressure
pulses from an agitator.
• Do not mount the device in the suction area of a pump.
• The calibration and functional test can be carried out more easily if you mount the device after a
shutoff device.
PMP41 mounting
PMP41 is available with a flush-mounted diaphragm or an adapter and an internal diaphragm. The
adapter can be screwed on or welded in. A seal is enclosed depending on the version and material
used.
Threaded version:
P01-PMP41xxx-06-09-xx-xx-004
Fig. 7: The flush-mounted version is screwed together
with the adapter using a torque of 50 Nm. Screw
the complete device into the process thread with
max. 80 Nm (at AF 32).
Welded version:
P01-PMP41xxx-06-09-xx-xx-005
Fig. 8: Screw the complete device into the process
thread with max. 80 Nm (at AF 25).
SW 32
SW 27
SW 25

Cerabar M HART Installation
Endress+Hauser 13
Threaded connection, flush-mounted diaphragm
P01-PMP41xxx-06-09-xx-xx-001
Fig. 9: The flush-mounted version is screwed into the process thread with max. 50 Nm ± 5 Nm (at AF 27).
3.3.2 Installation instructions for devices with diaphragm seals –
PMP46, PMP48
!Note!
• The Cerabar M with a diaphragm seal is screwed in, flanged or clamped, depending on the type
of diaphragm seal.
• Together, a diaphragm seal and the pressure transmitter form a closed, calibrated system which
is filled with oil. The filling hole is sealed and should not be opened.
• Do not clean or press the diaphragm of the diaphragm seals with hard or pointed objects.
• Do not remove diaphragm protection until shortly before installation.
• When using a mounting bracket, sufficient strain relief must be ensured for the capillaries in order
to prevent the capillary from buckling (bending radius ≥ 100 mm).
• Please note that the hydrostatic pressure of the liquid columns in the capillaries can cause zero
point shift. You can correct this zero point shift → see Page 29, Section 6.2.5 "Position adjustment
- only display (bias pressure)" (onsite operation) or via communication → see Page 33,
Section 6.3.7 "Position adjustment - only display (bias pressure)".
• Please note the application limits of the diaphragm seal filling oil as detailed in the Technical
Information for Cerabar M TI399P, "Planning instructions for diaphragm seal systems" section.
In order to obtain more precise measurement results and to avoid a defect in the device, mount the
capillaries as follows:
• Vibration-free (in order to avoid additional pressure fluctuations)
• Not in the vicinity of heating or cooling pipes
• Insulate if the ambient temperature is below or above the reference temperature
• With a bending radius of ≥100 mm.
21
G½
ø26
G½
ø50
13
21
max.Druckfestigkeit
100 bar
–Einschweißadapter
Bestell-Nr.:52002643
–mit3.1 Abnahmeprüfzeugnis
Bestell-Nr.:52010172
Viton-Dichtung
O-Ring 14 x1,78
Viton oder NBR
SW 27

Installation Cerabar M HART
14 Endress+Hauser
Vacuum application
For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter
below the diaphragm seal. This prevents a vacuum load of the diaphragm seal caused by the
presence of filling oil in the capillaries.
When the pressure transmitter is mounted above the diaphragm seal, the maximum height
difference H1 - as illustrated in the diagram below left - must not be exceeded. The maximum
height difference depends on the density of the filling oil and the lowest pressure that is permitted
to occur at the diaphragm seal (empty tank), see the following illustration.
Mounting with temperature isolator
P01-PMP4xxxx-11-xx-xx-xx-006
Endress+Hauser recommends the use of temperature isolators in the event of constant extreme fluid
temperatures which lead to the maximum permissible electronics temperature of +85°C (+185°F)
being exceeded. To minimize the influence of rising heat, Endress+Hauser recommends the device
be mounted horizontally or with the housing pointing downwards.
The additional installation height also brings about a zero point shift of approx. 21 mbar due to the
hydrostatic column in the temperature isolator. You can correct this zero point shift → see Page 29,
Section 6.2.5 "Position adjustment - only display (bias pressure)" (onsite operation) or via
communication → see Page 33, Section 6.3.7 "Position adjustment - only display (bias pressure)".
P01-PMP4xxxx-11-xx-xx-xx-001
Fig. 10: Installation above the diaphragm
seal
P01-PMx7xxxx-05-xx-xx-xx-011
Fig. 11: Diagram of maximum installation height above the
diaphragm seal for vacuum applications as a function of
the pressure at the diaphragm seal
H1
max. 115

Cerabar M HART Installation
Endress+Hauser 15
Mounting with capillary tube
The housing of the Cerabar M can be mounted with a capillary tube to one side of the measuring
point to protect from high temperatures, moisture or vibration, or in cases where the mounting
point is not easily accessible.
A bracket for mounting on a wall or pipe is available for this purpose.
P01-PMx4xxxx-11-xx-xx-xx-006

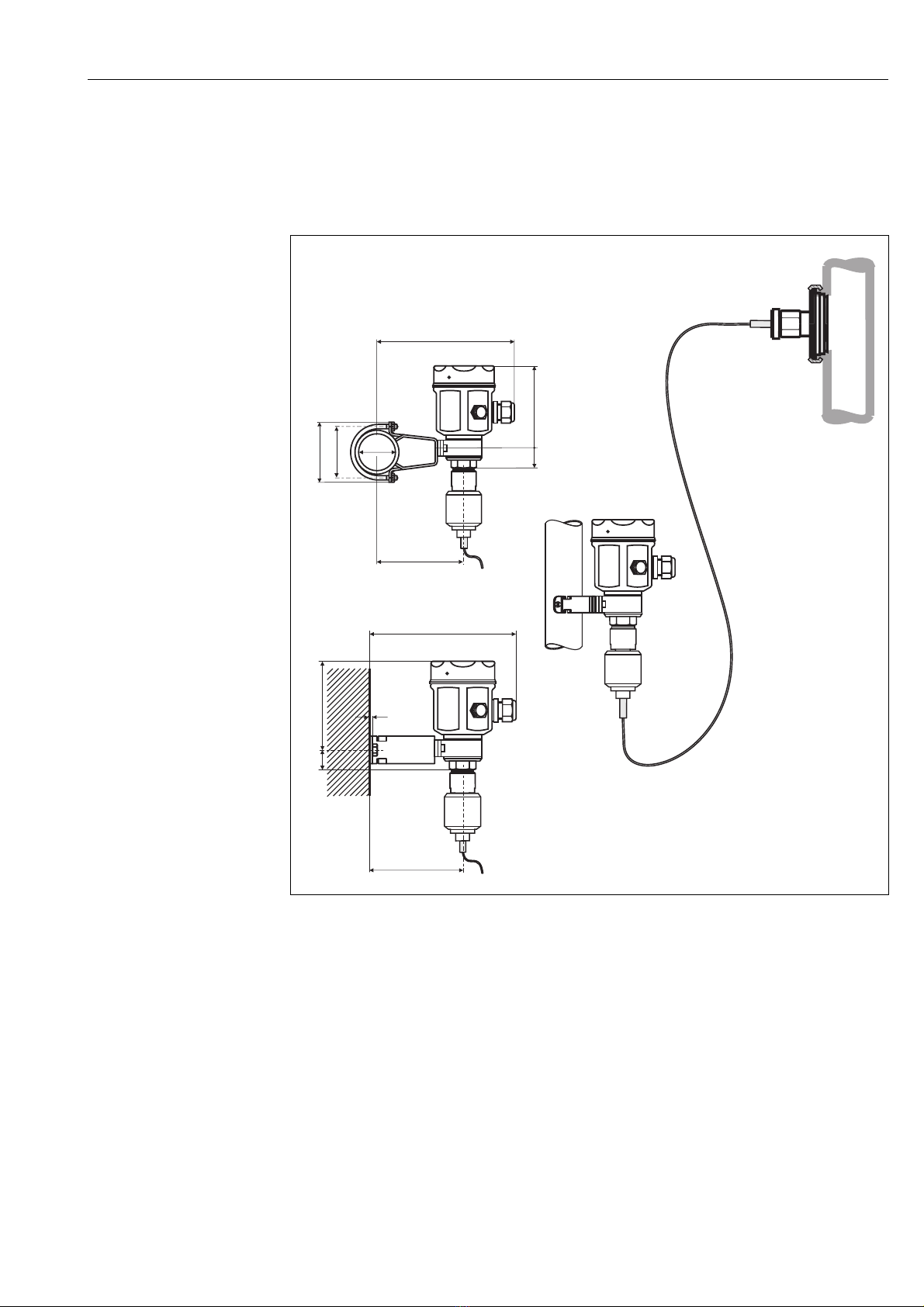

Fig. 12: Mounting with capillary tube and bracket away from the measuring point. Values in brackets apply to devices
with a raised cover.
➀Mounting location away from the measuring point.
➁Measuring point: very humid, hot, with strong vibrations or difficult to access
184.5
60.3
81
119.5
26 101 (121)
70
102.5
167
101 (121)
26
3
➁
➀

Installation Cerabar M HART
16 Endress+Hauser
3.3.3 Seal for flange mounting
P01-FMD7xxxx-11-xx-xx-xx-002

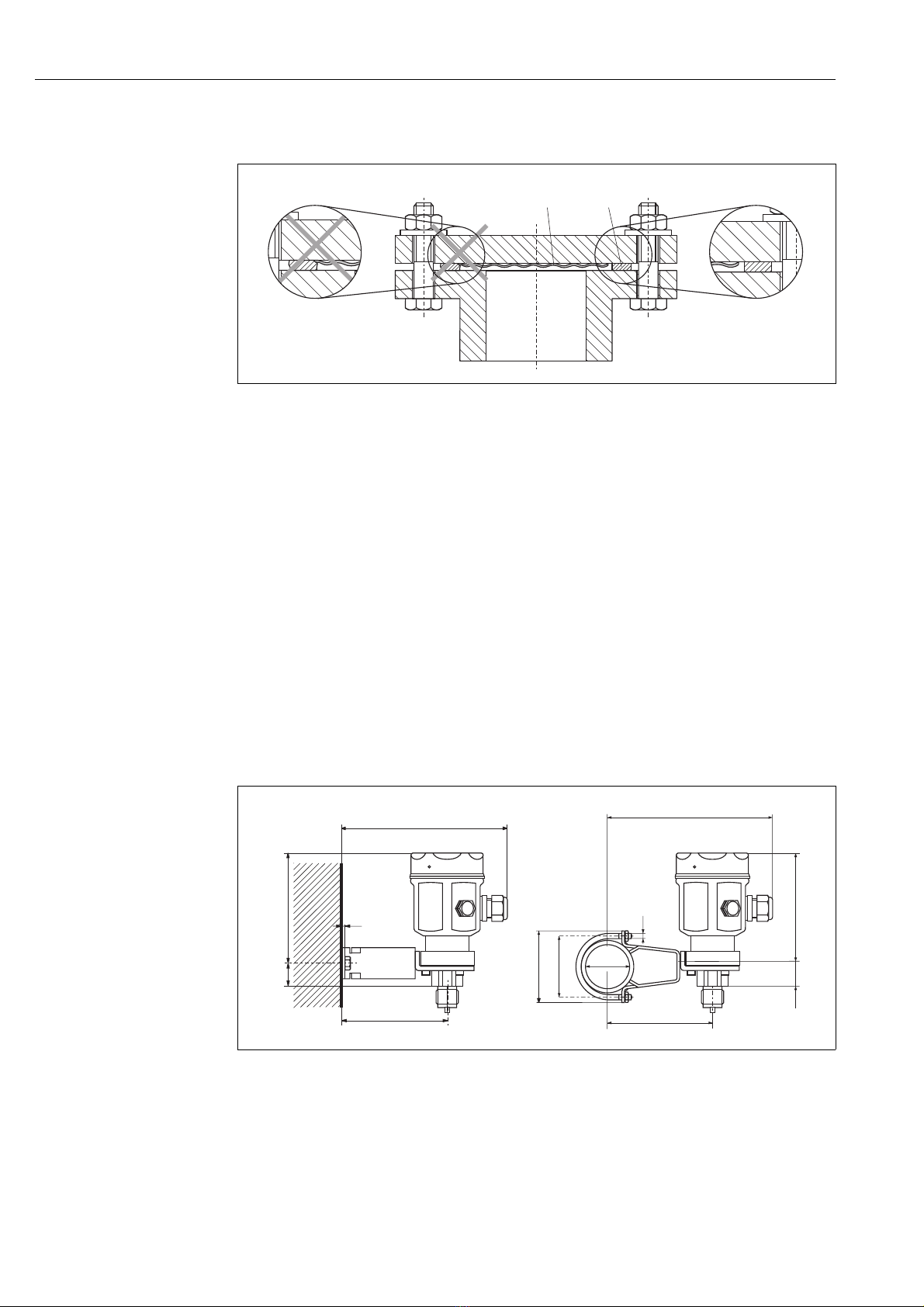

Fig. 13: Mounting the versions with flange or diaphragm seal
➀Diaphragm
➁Seal
#Warning!
The seal is not allowed to press down on the diaphragm as this could affect the measurement result.
3.3.4 Wall and pipe-mounting (optional)
Endress+Hauser offers a mounting bracket for installing on pipes or walls for PMC41, PMP41,
PMP46 and PMP48. You can order the mounting brackets either via the order code or separately
as an accessory.
PMC41
• Order number: 919806-0000
• Material: AISI 304 (1.4301)
PMP41, PMP46 and PMP48
• Order number: 52001402
• Material: AISI 304 (1.4301)
P01-PMC41xxx-17-xx-xx-xx-000
Fig. 14: Wall and pipe-mounting PMC41
➁➀
159
125 (140)
20
94
3
162.2
115 (135)
176
60.3
81
111
29
6
106 (126)
70
179.2
115 (129)

Cerabar M HART Installation
Endress+Hauser 17
P01-PMP41xxx-17-xx-xx-xx-000
Fig. 15: Wall and pipe-mounting PMP41
The dimensions in brackets apply to housings with a raised cover (for optional display). Dimensions
written in italics apply to devices with an aluminum housing.

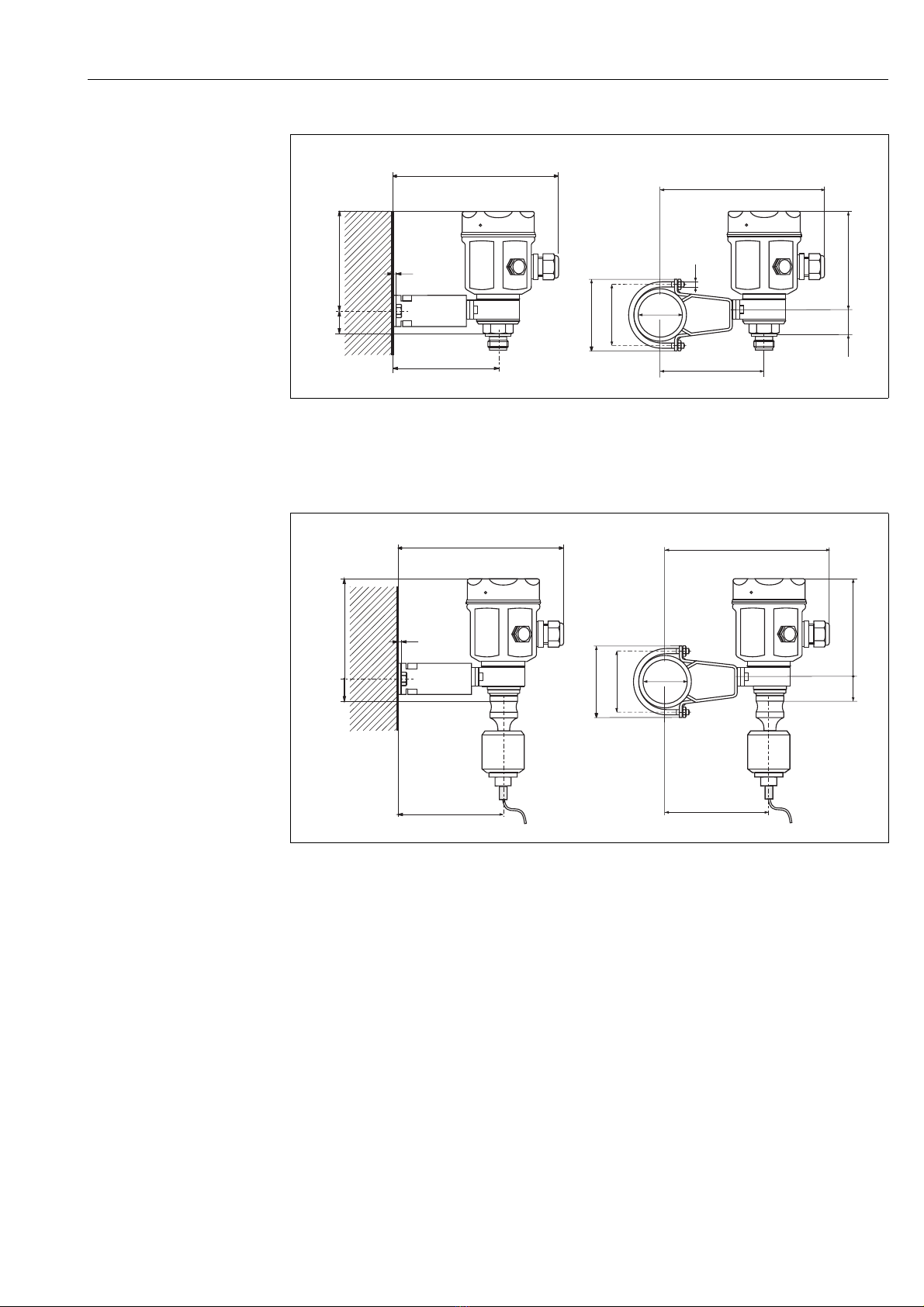

P01-PMP4xxxx-17-xx-xx-xx-000
Fig. 16: Wall and pipe-mounting PMP46/PMP48
The dimensions in brackets apply to housings with a raised cover (for optional display). Dimensions
written in italics apply to devices with an aluminum housing.
3.4 Post-installation check
After installing the device, carry out the following checks:
• Are all the screws firmly tightened?
• Are the housing covers screwed down tight?
184.5
60.3
81
119.5
26 99 (119)
70
6
187.6
108 (122)
167.5
99 (119)
26
102.5
3
170.7
108 (122)
184.5
187.6
60.3
81
119.5
26 99 (119)
108 (122)
70
102.5
167.5
170.7
108 (122)
99 (119)
26
3

Wiring Cerabar M HART
18 Endress+Hauser
4 Wiring
4.1 Connecting the device
!Note!
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
• Protective circuits to prevent reverse polarity, HF influences and overvoltage peaks are installed.
• The shield or grounding (if present) must always be connected to the internal ground terminal p
in the housing.
• The supply voltage must match the power supply on the nameplate (→ see Page 6, Section 2.1.1
"Nameplates").
• Switch off the supply voltage before connecting the device.
• Unscrew the housing cover.
• If present, remove the retaining ring with the onsite display.
– Push up the latch with the arrow until the grip of the retaining ring is audibly released.
– Release the retaining ring carefully to prevent damage to the display cables. The connector of
the display can remain plugged in.
• Guide the cable through the gland. Preferably use twisted, shielded two-wire cable.

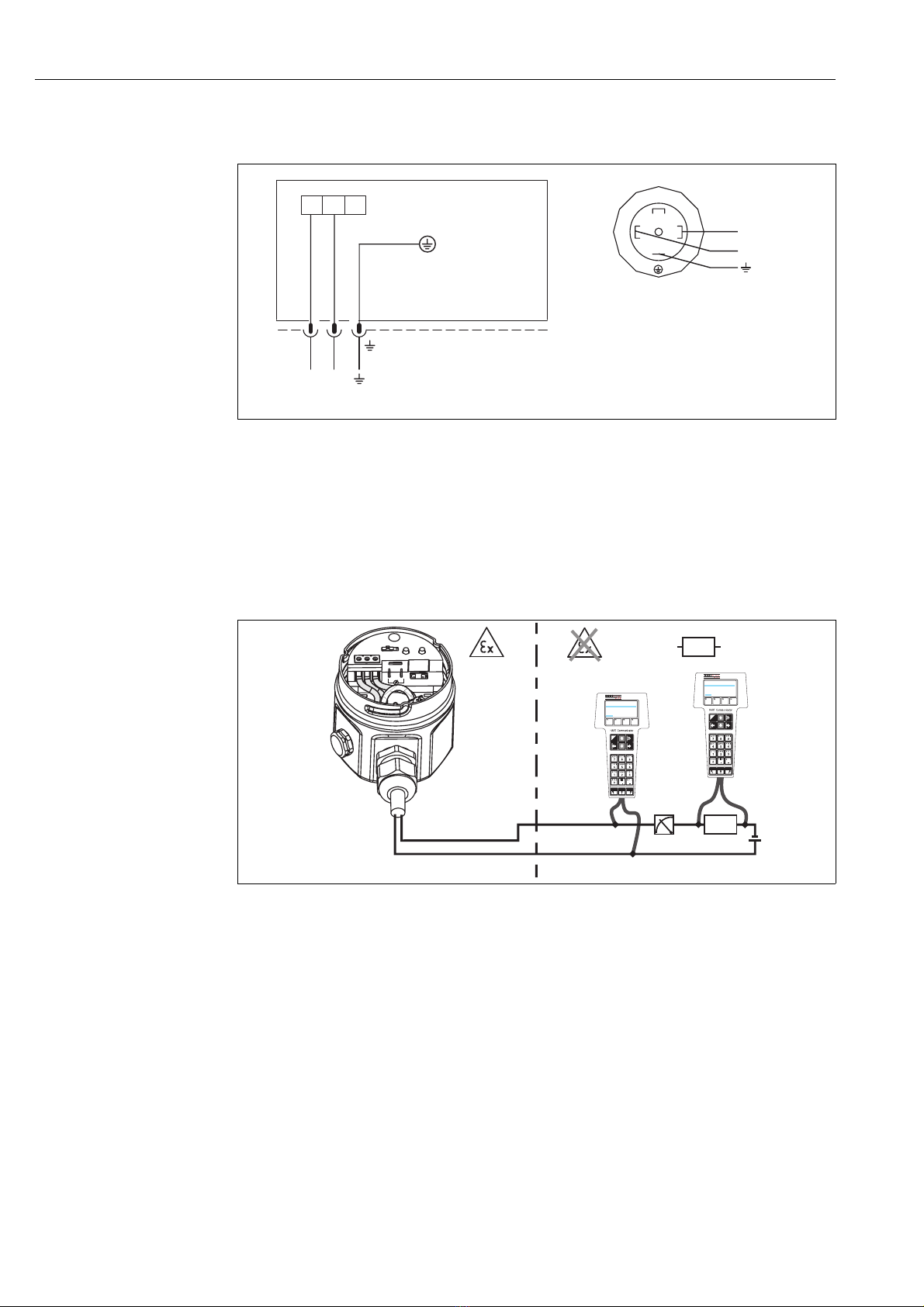

• Connect the device in accordance with the following diagram.
• Where applicable, refit the retaining ring with the onsite display. The grip of the retaining ring
clips in with an audible click.
• Screw down housing cover.
• Switch on supply voltage.
P01-PMx4xxxx-04-xx-xx-xx-013
Fig. 17: Electrical connection 4 to 20 mA
➀Disassembling the onsite display: To release the retaining ring from the electronic insert, push up the latch with
the arrow.
➁The terminal non the electronic insert is for grounding and is already wired internally. If the connecting cable
also has a shielding or ground cable within it, then this may only be connected to the internal ground terminal p
of the housing, not to terminal n. The terminals are designed to take one wire each.
➂4 to 20 mA test signal: you can take a 4 to 20 mA test signal via the terminal lugs without interrupting the
measurement.
➀
123
+–
➁3
4
+
+
–
–
Zero
Damping
on off
Span
Display

Cerabar M HART Wiring
Endress+Hauser 19
4.1.1 Connecting devices with Harting connector Han7D
P01-PMx4xxxx-04-xx-xx-xx-003
Fig. 18: Left: electrical connection for devices with Harting connector Han7D
Right: view of the connector at the device
4.1.2 Connecting devices with M12 connector
P01-PMx4xxxx-04-xx-xx-xx-004
Fig. 19: Left: electrical connection for devices with M12 connector
Right: view of the connector at the device
4.1.3 Connecting the cable version
P01-PMx4xxxx-04-xx-xx-xx-010
Fig. 20: rd = red, bk = black, gnye = green-yellow
Han7D
–
+
+–
Cerabar M
–
+
15
4
6
7
8
2
3
M12
–
+
+–
Cerabar M
–+
–
+
+
PE
–
rd
bk
gnye
4...20mA

Wiring Cerabar M HART
20 Endress+Hauser
4.1.4 Connecting the valve connector M16, ISO4400
P01-PMx4xxxx-04-xx-xx-xx-009
Fig. 21: BN = brown, BU = blue, GNYE = green/yellow
4.2 Connecting the DXR375 handheld terminal
• For a Cerabar M with an FM or CSA certificate, perform the electrical connection in accordance
with the "control drawing" (provided in the packaging for Cerabar M).
• To transfer the communication signal without errors, there must be a communication resistor of
at least 250 Ωbetween the connection points and the power supply.
P01-PMx4xxxx-04-xx-xx-xx-014
Fig. 22: ➀Any connection devices.
The handheld terminal can be connected anywhere along the 4 to 20 mA cable. Use an intrinsically safe voltage
source in Ex ia areas (e.g. RN221N).
123
12
+
-
BNBUGNYE
Cerabar M
4...20mA
4...20mA
1
2
3
4...20mA
+
-
4...20 mA min. 250W
IO
FMD 230:LIC0001
Online
1 >Group Select
2 PV 20 mbar
HELP IO
FMD 230:LIC0001
Online
1 >Group Select
2 PV 20 mbar
HELP
1 2
+ –
3
Zero
Damping
on off
Span
Display
➀
