Endress+Hauser RID14 User manual

BA282R/09/en/12.09
71092446
Operating Instructions
RID14
Field Indicator
with FOUNDATION Fieldbus™- protocol

RID14
2Endress+Hauser
Brief overview
For quick and easy commissioning:
Safety instructions →ä4
Æ
Installation instructions →ä7
Æ
Wiring →ä11
Æ
Display and operating elements →ä20
Information on configuration and operating programs from other
manufacturers.
Information about setting the hardware write protection, device address, etc.
for FOUNDATION Fieldbus communication
Æ
Commissioning →ä26
Commissioning via the FOUNDATION Fieldbus interface - quick start for
device configuration for standard operation

RID14 Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning, operation . . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Notes on safety conventions and icons . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 6
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 7
3 Installation . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Incoming acceptance, transport, storage . . . . . . . . . . 7
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Mounting instructions . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 10
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 Connecting the cable to the field indicator . . . . . . . 11
4.2 Connection to the FOUNDATION Fieldbus™ . . . . 13
4.3 FOUNDATION Fieldbus™ cable specification . . . . 15
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 18
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 18
5 Operating the field indicator . . . . . . . 19
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Display and operating elements . . . . . . . . . . . . . . . 20
5.3 FOUNDATION Fieldbus™ technology . . . . . . . . . 20
5.4 Configuration of the indicator and FF
functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.5 Hardware settings . . . . . . . . . . . . . . . . . . . . . . . . . 25
6 Commissioning. . . . . . . . . . . . . . . . . . 26
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2 Switching on the indicator . . . . . . . . . . . . . . . . . . . 26
6.3 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Maintenance. . . . . . . . . . . . . . . . . . . . 29
8 Accessories. . . . . . . . . . . . . . . . . . . . . 29
9 Trouble-shooting . . . . . . . . . . . . . . . . 30
9.1 Troubleshooting instructions . . . . . . . . . . . . . . . . . 30
9.2 Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.3 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.6 Software history and overview of compatibility . . . 33
10 Technical data . . . . . . . . . . . . . . . . . . . 34
11 Operation via FOUNDATION Fieldbus™
41
Index . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Safety instructions RID14
4Endress+Hauser
1 Safety instructions
1.1 Designated use
• The device is a configurable field indicator with fieldbus connection.
• The device is designed for installation in the field.
• The manufacturer does not accept liability for damage caused by improper or non-designated use.
• Safe operation is only guaranteed if the Operating Instructions are observed and adhered to.
• Only operate the device in the permitted temperature range.
1.2 Installation, commissioning, operation
Note the following points:
• Mounting, electrical installation, commissioning and maintenance of the device must only be
carried out by trained technical personnel authorised to perform such work by the owner-
operator. They must have read and understood these Operating Instructions and must follow the
instructions they contain.
• The device must be operated by persons authorised and trained by the facility's owner-operator.
Strict compliance with the instructions in these Operating Instructions is mandatory.
• The installer must ensure that the measuring system is correctly wired in accordance with the
wiring diagrams.
• Invariably, local regulations governing the opening and repair of electrical devices apply.
1.3 Operational safety
The measuring system complies with the general safety requirements in accordance with EN 61010
and the EMC requirements of EN 61326 and NAMUR Recommendations NE 21.
Hazardous area
Measuring systems for use in hazardous environments are accompanied by separate “Ex
documentation”, which is an integral part of these Operating Instructions. Strict compliance with
the installation instructions and connection values as stated in this supplementary documentation
is mandatory.
1.4 Return
To reuse later or in case of repair, the device must be packed in protective packaging, preferably the
original packaging. Repairs must only be carried out by your supplier's service organisation or
specially trained personnel.
Enclose a note describing the fault and the application when sending the unit in for repair.
Please inform the haulier and the supplier if the goods are damaged in transport.

RID14 Safety instructions
Endress+Hauser 5
1.5 Notes on safety conventions and icons
The safety instructions in these Operating Instructions are labelled with the following safety icons
and symbols:
#Warning!
This symbol indicates an action or procedure which, if not performed correctly, can result in injury,
a safety hazard or the destruction of the device.
"Caution!
This symbol indicates an action or procedure which, if not performed correctly, can result in
incorrect operation or the destruction of the device.
!Note!
This symbol indicates an action or procedure which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.
Explosion protected, type-examined equipment
If this sign is on the nameplate of the device, the device can be used in a hazardous area.
Safe area (non-hazardous area)
In the drawings in these Operating Instructions, this symbol indicates the non-hazardous area.
Devices in the non-hazardous area must also be certified if connecting cables lead into the
hazardous area.
ESD - Electrostatic discharge
Protect the terminals against electrostatic discharge. Failure to comply with this instruction can
result in the destruction of parts or malffunction of the electronics.

Identification RID14
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
The right device?
Compare the order code on the nameplate of the device to that on the delivery papers.
a0012565
Fig. 1: Nameplate of the field indicator (example)
1 Designation, order code and serial number of the device
2 Degree of protection and approvals
3 Power supply
4 Ambient temperature
5 Approvals
6 Firmware version and device revision
2.2 Scope of delivery
The scope of delivery of the field indicator comprises:
• Field indicator
• Brief operating instructions as hardcopy
• Operating instructions on CD-ROM
• ATEX Safety Instructions for deploying a device permitted for use in hazardous areas, optional
• Accessories (eg. pipe mounting kit), see chapter ’Accessories’
2.3 Certificates and approvals
CE mark, declaration of conformity
The field indicator is designed to meet state-of-the-art safety requirements, has been tested and left
the factory in a condition in which it is safe to operate.
The device meets the relevant standards and directives as per EN 61 010 "Safety requirements for
electrical equipment for measurement, control and laboratory use".
The device described in these Operating Instructions thus meets the legal requirements of the EU
directives. The manufacturer confirms that the device has been tested successfully by affixing the
CE mark.
Recognized component to UL 3111-1 (pending).
CSA General Purpose (pending).

RID14 Installation
Endress+Hauser 7
2.3.1 Certification Foundation Fieldbus™
The field indicator has successfully passed all the tests and is certified and registered by the Fieldbus
Foundation. The device meets all the requirements of the following specifications:
• Certified in accordance with FOUNDATION Fieldbus™ specification
• FOUNDATION Fieldbus™ H1
• Interoperability Test Kit (ITK), revision status 5.2.0 (device certification number available on
request): the device may also be operated using certified devices from other manufacturers
• Physical Layer Conformance Test of the Fieldbus FOUNDATION™ (FF-830 FS 1.0)
2.4 Registered trademarks
FOUNDATION FieldbusTM
Registered trademark of the Fieldbus Foundation Austin, Texas, USA
3 Installation
3.1 Incoming acceptance, transport, storage
The permitted ambient and storage conditions must be observed. The precise specifications can be
found in Section "Technical data".
3.1.1 Incoming acceptance
On receipt of the goods, check the following points:
• Are the packaging or contents damaged?
• Is anything missing from the delivery? Compare the scope of delivery with the information you
specified in the order. See also section 2.2 "Scope of delivery".
3.1.2 Transportation and storage
Note the following points:
• Pack the device so that is protected against impact for storage and transportation. The original
packaging provides optimum protection.
• The permitted storage temperature range is -40 to +80°C (-40 to +176 °F); it is possible to store
the device in the limit temperature ranges for a limited period (maximum 48 hours).
3.2 Installation conditions
The process indicator is designed to be used in the field.
The orientation is determined by the readability of the display. Cable entries are located on the
bottom of the device.
Operational temperature range:
-40 to +80 °C (-40 to +176 °F)
"Caution!
If the device is operated in the upper temperature limit range, this reduces the operating life of the
indicator.
!Note!
The display may react slowly at temperatures below -20 °C (-4 °F).
Readability of the display cannot be guaranteed at temperatures below -30 °C (-22 °F).

Installation RID14
8Endress+Hauser
3.2.1 Dimensions
a0011152
Fig. 2: Installation dimensions; dimensions in mm (dimensions in inches in brackets)
3.2.2 Installation location
Information on conditions that must be present at the installation location to mount the device
correctly can be found in Section 'Technical data'. These include the ambient temperature, degree
of protection, climate class etc.
3.3 Mounting instructions
The device can be mounted directly on the wall. A mounting bracket is available for pipe mounting
(→å5). The illuminated display can be mounted in four different positions (→å3).
3.3.1 Rotating the display
a0011256
Fig. 3: Field indicator wall mounting, 4 display positions, can be plugged in in stages of 90°

RID14 Installation
Endress+Hauser 9
a0011257
Fig. 4: Rotating the display
The display can be turned in stages of 90°. First remove the cover clamp (1) and the housing cover
(2). Then remove the display (3) from the electronics unit (4). For configuration purposes, the
ribbon cable between the display and electronics unit has to be plugged in.
Turn the display to the desired position and then attach it to the electronics unit.
3.3.2 Direct wall mounting
Proceed as follows to mount the device directly on the wall:
• Drill 2 holes
• Attach the device to the wall with 2 screws (∅5).
3.3.3 Pipe mounting
The mounting bracket is suited for pipes with a diameter between 1.5" - 3.3".
Proceed as follows to mount the device on a pipe:
• Attach the mounting bracket to the pipe
• The additional mounting plate must be used for pipes with a diameter of 1.5" to 2.2".
• Fix the device to the mounting bracket with the two screws supplied. The mounting plate is not
needed for pipes with a diameter of 2.2" - 3.3".

Installation RID14
10 Endress+Hauser
a0011258
Fig. 5: Mounting the field indicator on a pipe with mounting bracket for pipe diameter 1.5-2.2"
Mounting kit, consisting of:
1: Mounting plate
2: Mounting bracket
3: 2 nuts M6
3.4 Post-installation check
After installing the device, always run the following final checks:
Device condition and specifications Notes
Is the device damaged? Visual check
Is the sealing ring undamaged? Visual check
Is the device fixed securely to the wall or mounting plate? -
Is the front cover fixed tightly? -
Does the device comply with the measurement point
specifications, e.g. ambient temperature etc.?
See Section 'Technical data'

RID14 Wiring
Endress+Hauser 11
4 Wiring
"Caution!
• Switch off power supply before installing or connecting the device. Failure to observe this may
result in destruction of parts of the electronics.
• When installing Ex-approved devices in a hazardous area please take special note of the
instructions and connection schematics in the respective Ex documentation added to these
Operating Instructions. The local E+H representative is available for assistance if required.
• The 4-pin post connector is only designed for connecting the associated display. Connecting other
devices can destroy parts of the electronics.
Devices can be connected to the FOUNDATION Fieldbus™ in two ways:
• Connection via conventional cable gland →Chap. 4.2.1
• Connection via fieldbus connector (optional, can be purchased as an accessory) →Chap. 4.2.2
4.1 Connecting the cable to the field indicator
For wiring a field indicator, proceed as follows:
a0012568
Fig. 6: Opening the housing of the field indicator
1. Open the cable entry or remove cable entry when using a fieldbus connector (available as an
option).
2. Remove cover clamp.
3. Remove housing cover.
4. Remove display.
5. Remove screws from electronics unit.
6. Remove electronics unit.
7. Feed cables through cable entry or screw fieldbus connector into housing.
8. Connect cable to terminal block according to →å7.
9. Assembly of device in reverse order.

Wiring RID14
12 Endress+Hauser
4.1.1 Quick wiring guide
Terminal assignment
a0012569
Fig. 7: Terminal assignment
ESD - electrostatic discharge
Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction
or malfunction of parts of the electronics.
Terminal Terminal assignment
+FOUNDATION Fieldbus™ connection (+)
-FOUNDATION Fieldbus™ connection (-)

RID14 Wiring
Endress+Hauser 13
4.2 Connection to the FOUNDATION Fieldbus™
Devices can be connected to the FOUNDATION Fieldbus™ in two ways:
• Connection via conventional cable gland →Chap. 4.2.1
• Connection via fieldbus connector (optional, can be purchased as an accessory) →Chap. 4.2.2
"Caution!
• Switch off power supply before installing or connecting the field indicator. Failure to observe this
may result in destruction of parts of the electronics.
• Grounding via one of the grounding screws (terminal head, field housing) is recommended.
• Risk of damaging the fieldbus cable!
– If the shielding of the fieldbus cable is grounded at more than one point in systems without
additional potential matching, power supply frequency equalizing currents can occur that
damage the cable or the shielding. In such cases the shielding of the fieldbus cable is to be
grounded on only one side, i.e. it must not be connected to the ground terminal of the housing
(terminal head, field housing). The shield that is not connected should be insulated!
– We recommend that the fieldbus not be looped using conventional cable glands. If you later
replace even just one measuring device, the bus communication will have to be interrupted.
4.2.1 Cable glands or entries
!Note!
Please also observe the general procedure on →ä11.
a0012571

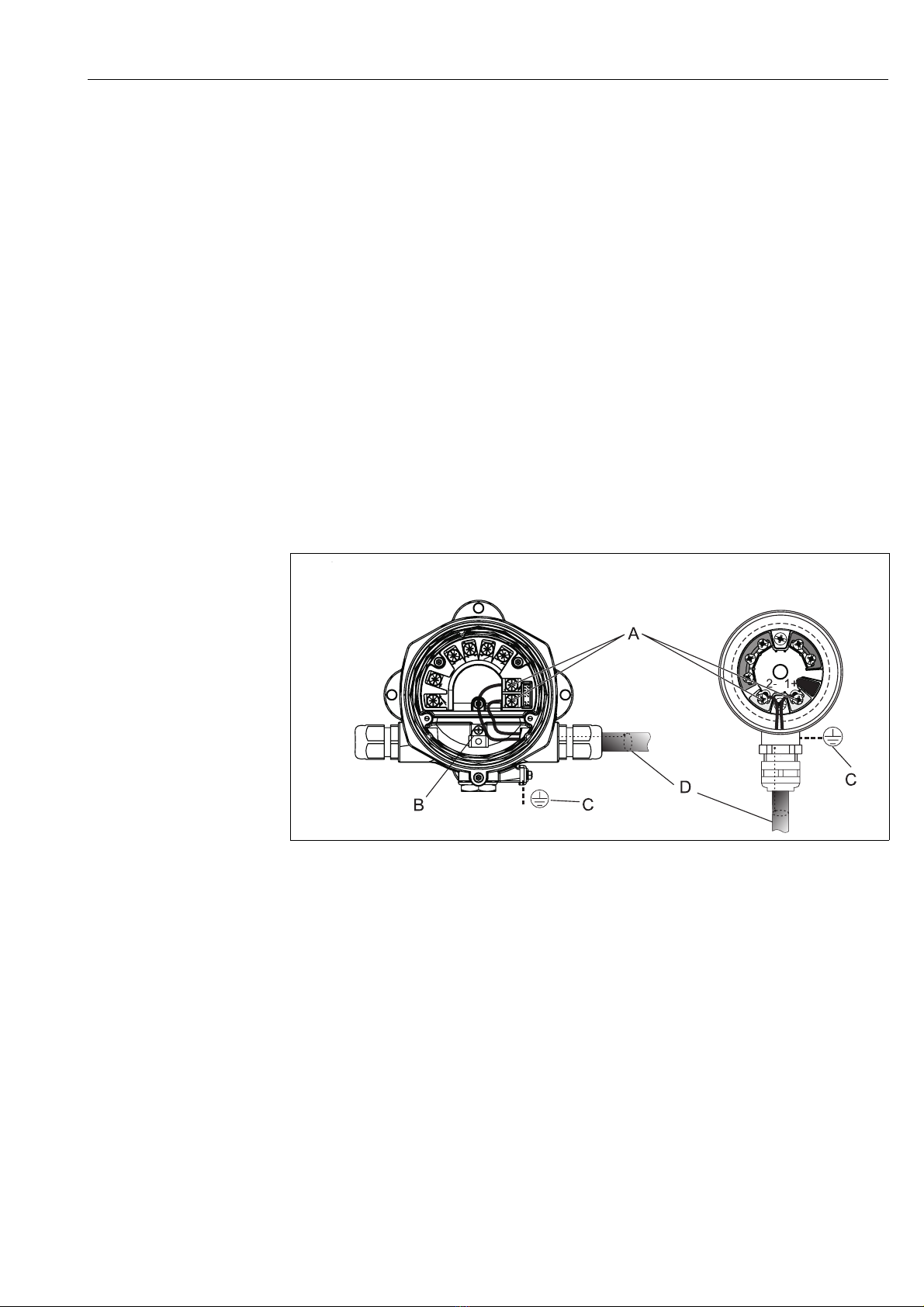

Fig. 8: Connection to the FOUNDATION Fieldbus™ fieldbus cable - installed in the field housing on the left, and in
the terminal head on the right
A FF terminals - fieldbus communication and power supply
B Inner ground terminal
C Outer ground terminal
D Shielded fieldbus cable (FOUNDATION Fieldbus™)
!Note!
• The terminals for the fieldbus connection (1+ and 2-) are not polarity sensitive.
• Conductor cross-section:
– Max. 2.5 mm2for screw terminals
• A shielded cable must be used for the connection.

Wiring RID14
14 Endress+Hauser
4.2.2 Fieldbus connector
Optionally, a fieldbus connector can be installed in field housing instead of a cable gland. Fieldbus
connectors can be ordered from Endress+Hauser as an accessory (see Section 8 'Accessories').
The connection technology of FOUNDATION Fieldbus™ allows measuring devices to be
connected to the fieldbus via uniform mechanical connections such as T-boxes, junction boxes, etc.
This connection technology using prefabricated distribution modules and plug-in connectors offers
substantial advantages over conventional wiring:
• Field devices can be removed, replaced or added at any time during normal operation.
Communication is not interrupted.
• Installation and maintenance are significantly easier.
• Existing cable infrastructures can be used and expanded instantly, e.g. when constructing new
star distributors using 4-channel or 8-channel distribution modules.
a0012573

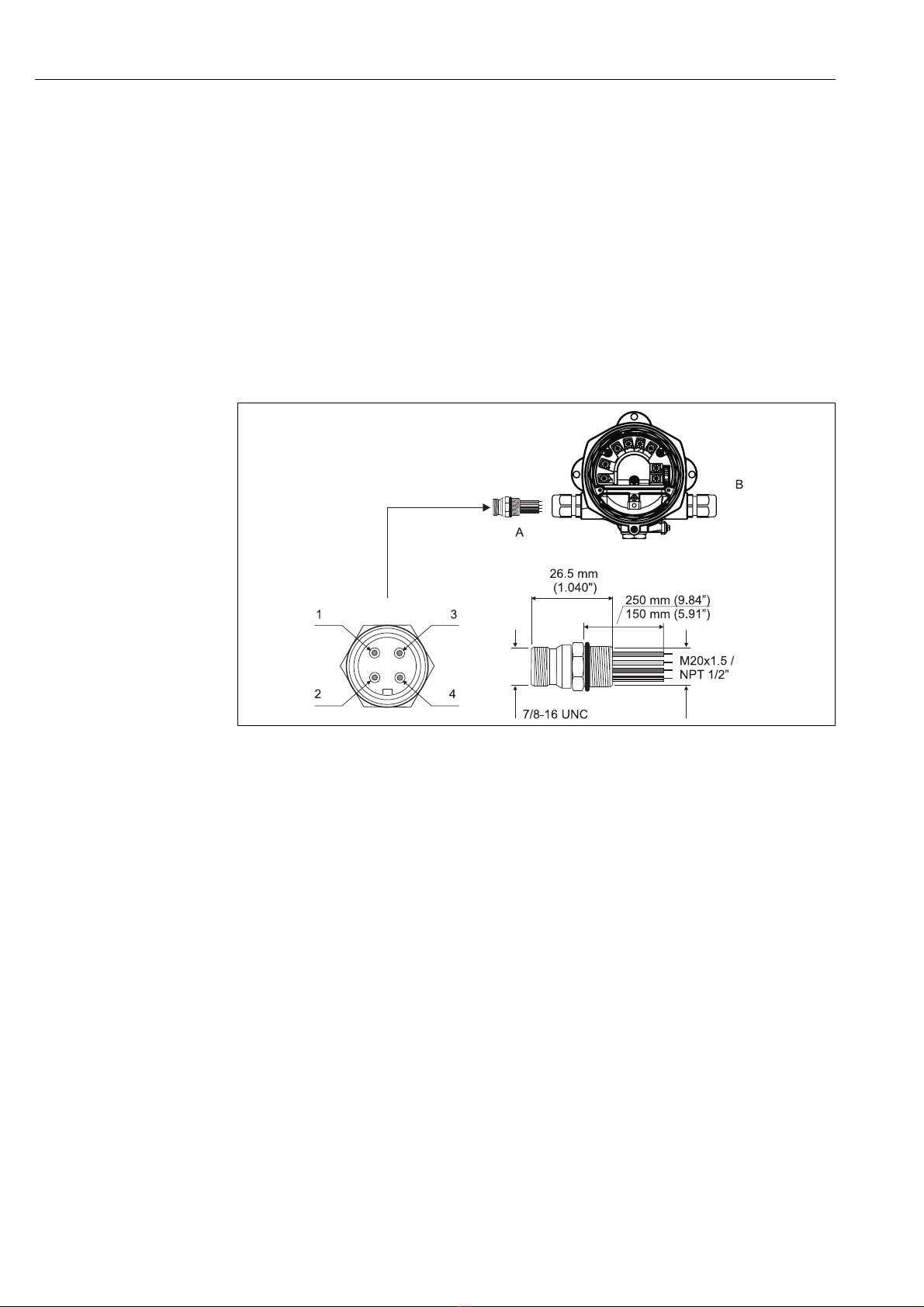

Fig. 9: Connectors for connecting to the FOUNDATION Fieldbus™
A Fieldbus connector
– 1 Blue wire: FF– (terminal 2)
– 2 Brown wire: FF+ (terminal 1)
– 3 Gray wire: shielding
– 4 Green/yellow wire: ground
B Field indicator
Connector technical data:
• Degree of protection IP 67 (NEMA 4x)
• Ambient temperature range: –40 to +105 °C (–40 to +221 °F)

RID14 Wiring
Endress+Hauser 15
4.3 FOUNDATION Fieldbus™ cable specification
4.3.1 Cable type
Twin-core cables are required for connecting the device to the FOUNDATION Fieldbus™ H1.
Following IEC 61158-2 (MBP), four different cable types (A, B, C, D) can be used with the
FOUNDATION Fieldbus™, only two of which (cable types A and B) are shielded.
• Cable types A or B are particularly preferable for new installations. Only these types have cable
shielding that guarantees adequate protection from electromagnetic interference and thus the
most reliable data transfer. In the case of cable type B, several field buses (same degree of
protection) may be operated in one cable. No other circuits are permissible in the same cable.
• Practical experience has shown that cable types C and D should not be used due to the lack of
shielding, since the freedom from interference generally does not meet the requirements
described in the standard.
The electrical data of the fieldbus cable have not been specified but determine important
characteristics of the design of the fieldbus, such as distances bridged, number of users,
electromagnetic compatibility, etc.
Suitable fieldbus cables (type A) from various manufacturers for non-hazardous areas are listed
below:
• Siemens: 6XV1 830-5BH10
• Belden: 3076F
• Kerpen: CeL-PE/OSCR/PVC/FRLA FB-02YS(ST)YFL
4.3.2 Maximum overall cable length
The maximum network expansion depends on the type of protection and the cable specifications.
The overall cable length combines the length of the main cable and the length of all spurs (>1 m/
3.28 ft). Note the following points:
• The maximum permissible overall cable length depends on the cable type used.
• If repeaters are used, the maximum permissible cable length is doubled. A maximum of three
repeaters are permitted between user and master.
Type A Type B
Cable structure Twisted pair, shielded One or more twisted pairs, fully
shielded
Wire size 0.8 mm2(AWG 18) 0.32 mm2 (AWG 22)
Loop-resistance (direct current) 44 Ω/km 112 Ω/km
Characteristic impedance at 31.25
kHz
100 Ω± 20% 100 Ω± 30%
Attenuation constant at 39 kHz 3 dB/km 5 dB/km
Capacitive asymmetry 2 nF/km 2 nF/km
Envelope delay distortion (7.9 to 39
kHz)
1.7 ms/km *
Shield coverage 90% *
Max. cable length (incl. spurs >1 m) 1900 m (6233 ft) 1200 m (3937 ft)
* Not specified

Wiring RID14
16 Endress+Hauser
4.3.3 Maximum spur length
The line between the distribution box and field device is described as a spur.
In the case of non-Ex applications, the max. length of a spur depends on the number of spurs (>1
m/3.28 ft):
4.3.4 Number of field devices
In accordance with IEC 61158-2 (MBP), a maximum of 32 field devices can be connected per
fieldbus segment. However, this number is restricted under certain conditions (explosion
protection, bus power option, field device current consumption). A maximum of four field devices
can be connected to a spur.
4.3.5 Shielding and grounding
Optimum electromagnetic compatibility (EMC) of the fieldbus system can only be guaranteed if the
system components and, in particular, the lines are shielded and the shield forms as complete a
cover as possible.
• To ensure an EMC protective effect, connect the shield as often as possible to the reference
ground.
• For reasons of explosion protection, you should refrain from grounding however.
To comply with both requirements, the FOUNDATION Fieldbus™ basically allows three different
types of shielding:
• Shielding at both ends
• Shielding at one end on the feed side with capacitance connection to the field device
• Shielding at one end on the feed side
Experience shows that the best results with regard to EMC are achieved in most cases in
installations with one-sided shielding. Appropriate measures with regard to input wiring must be
taken to allow unrestricted operation when EMC interference is present. These measures have been
taken into account for this device. Operation in the event of disturbance variables as per NAMUR
NE21 is possible with one-sided shielding.
Where applicable, national installation regulations and guidelines must be observed during the
installation!
Where there are large differences in potential between the individual grounding points, only one
point of the shielding is connected directly with the reference ground. In systems without potential
equalization, therefore, cable shielding of fieldbus systems should only be grounded on one side, for
example at the fieldbus supply unit or at safety barriers, →å10
Number of spurs 1 to 12 13 to 14 15 to 18 19 to 24 25 to 32
Max. length per spur 120 m (393 ft) 90 m (295 ft) 60 m (196 ft) 30 m (98 ft) 1 m (3.28 ft)

RID14 Wiring
Endress+Hauser 17
a0012570
Fig. 10: Shielding and one-sided grounding of the fieldbus cable shielding
1 Supply unit
2 Distribution box (T-box)
3 Bus terminator
4 Grounding point for fieldbus cable shielding
5 Optional grounding of the field device, isolated from cable shielding.
"Caution!
If the shielding of the cable is grounded at more than one point in systems without potential
matching, power supply frequency equalizing currents can occur that damage the bus cable or
shielding or have a serious effect on signal transmission. In such cases the shielding of the fieldbus
cable is to be grounded on only one side, i.e. it must not be connected to the ground terminal of the
housing (terminal head, field housing). The shield that is not connected should be insulated!
4.3.6 Bus termination
The start and end of each fieldbus segment are always to be terminated with a bus terminator. With
various junction boxes (non-Ex), the bus termination can be activated via a switch. If this is not the
case, a separate bus terminator must be installed. Note the following points in addition:
• In the case of a branched bus segment, the device furthest from the Fieldbus power supply
represents the end of the bus.
• If the fieldbus is extended with a repeater, then the extension must also be terminated at both
ends.
4.3.7 Further information
General information and further points on wiring can be found on www.fieldbus.org, the Web site
of the Fieldbus Foundation or in the Operating Instructions "FOUNDATION Fieldbus™ Overview"
which can also be found on the CD-ROM. (Additional sources: →www.endress.de →Download).

Wiring RID14
18 Endress+Hauser
4.4 Degree of protection
The devices fulfill all the requirements for IP 67 degree of protection. Compliance with the
following points is mandatory following installation or servicing in order to ensure that IP 67
protection is maintained:
• The housing seal must be clean and undamaged when inserted into the seal groove. The seal may
have to be cleaned, dried or replaced.
• The cables used for connection must be of the correct specified outside diameter (e.g. M16 x 1.5,
cable diameter from 5 to 10 mm).
• Replace any unused cable entries with dummy plugs.
• The grommet used should not be removed from the cable entry.
• The housing cover and the cable entry must be well tightened.
• Install the device upright in such a way that the cable entries point downwards.
4.5 Post-connection check
After the electrical installation of the device, always perform the following final checks:
Device condition and specifications Notes
Are the indicator or the cables damaged (visual check)? -
Electrical connection Notes
Does the supply voltage match the specifications on the nameplate? 9 to 32 V DC
Do the cables used comply with the specifications? Fieldbus cable, →ä15
Do the cables have adequate strain relief? -
Are the power supply cables correctly connected? →Chap. 4.1.1
Are all the screw terminals well tightened? →ä15
Are all the cable entries installed, tightened and sealed?
Cable run with "water trap"?
Are all the housing covers installed and tightened?
Electrical connection of FOUNDATION Fieldbus™ Notes
Are all the connecting components (T-boxes, junction boxes, connectors, etc.)
connected with each other correctly?
-
Has each fieldbus segment been terminated at both ends with a bus terminator? -
Has the max. length of the fieldbus cable been observed in accordance with the
FOUNDATION Fieldbus™ specifications?
→ä15Has the max. length of the spurs been observed in accordance with the
FOUNDATION Fieldbus™ specifications?
Is the fieldbus cable fully shielded (90%) and correctly grounded?

RID14 Operating the field indicator
Endress+Hauser 19
5 Operating the field indicator
5.1 Quick operation guide
You have a number of options for configuring and commissioning the device:
1. Configuration programs
The configuration of FF functions and device-specific parameters is done via the fieldbus interface.
You can obtain special configuration and operating programs from various manufacturers for these
purposes.→ä24
2. Miniature switches (DIP switches) for diverse hardware settings
You can make the following hardware settings for the FOUNDATION Fieldbus™ interface using
miniature switches (DIP switches) inside the field indicator housing →ä25:
• Switching the hardware write protection on/off
a0011638
Fig. 11: Field indicator hardware configuration
5.1.1 Listener mode
The field indicator will analyze the active devices on the bus. Those will be listed and for up to 8
channels the according device can be chosen by its address. For this device the published values will
be reported and the value to be shown on the display can be chosen.
5.1.2 Function block connection mode
In function block connection mode, a published value that is subscribed by a function block within
the field indicator can be displayed. This can be IN and OUT parameters in the function blocks.

Operating the field indicator RID14
20 Endress+Hauser
5.2 Display and operating elements
5.2.1 Display
a0012574
Fig. 12: LC display of the field indicator
Item 1: bar graph display in increments of 10% with indicators for underranging (item 1a) and overranging (item 1b)
Item 2: measured value display, digit height 26 mm (1.02"), status indication "Bad measured value status"
Item 3: 14-segment display for units and messages
Item 4: 'Communication' symbol
Item 5: 'Parameters cannot be modified' symbol
Item 6: '%' unit
Item 7: 'Uncertain measured value status' symbol
The backlit LCD display contains a bargraph (0-100) and arrows to indicate measurements above
or below the measurement range. Analog process values, digital status and failure codes will be
displayed in the 7-segment area. Here up to 8 values can be displayed with a alternating time
between 2 to 20 seconds. Plain text can be displayed in the 14-segment area (text is limited to up
to 16 characters and will be scrolled if needed).
The indicator also displays the quality of the measured value. In case the status of the displayed
value is 'Good' (a value equal to or above 0x80), no symbol is lit and the indicator works in normal
operation. If the status of the displayed value is 'Uncertain' (value between 0x40 and 0x7F), the
'Uncertain measured value status' symbol is lit. If the status of the displayed value is 'Bad' (value
below 0x40), the display will show within the 7-segment area "bad-" and the channel number
where the bad value is published. This channel number can also be found in the 14-segment area.
5.3 FOUNDATION Fieldbus™ technology
The FOUNDATION Fieldbus™ (FF) is a purely digital, serial communication system that connects
fieldbus devices (sensors, actuators), automation and process control systems with each other. As a
local communications network (LAN) for field devices the FF was primarily designed for the
requirements of process technology. The FF thus forms the basic network throughout the hierarchy
of a communication system.
Please refer to Operating Instructions BA 013S/04/en “FOUNDATION Fieldbus Overview:
Installation and Commissioning Guidelines” for configuration information.
5.3.1 System architecture
The following figure shows an example of a FOUNDATION Fieldbus™ network with the associated
components.
