Operating Instructions
RIA452
Panel meter
with pump control
BA00265R/09/EN/14.16
71349719
Valid from version
02.01.xx (device software)

RIA452 Table of contents
Endress+Hauser 3
Table of contents
1 Document information .............. 4
1.1 Document conventions ................... 4
2 Safety instructions .................. 6
2.1 Requirements for the personnel ............ 6
2.2 Designated use ........................ 6
2.3 Operational safety ...................... 6
2.4 Product safety ......................... 7
3 Incoming acceptance and product
identification ....................... 8
3.1 Product identification .................... 8
3.2 Scope of delivery ....................... 8
3.3 Storage and transport ................... 8
4 Installation ........................ 9
4.1 Installation conditions ................... 9
4.2 Mounting the display unit ................ 9
5 Electrical connection .............. 10
5.1 Universal input option .................. 11
5.2 Connecting the device .................. 12
5.3 Post-connection check .................. 14
6 Operability ........................ 15
6.1 Overview of operation options ............ 15
6.2 Structure and function of the operating
menu .............................. 16
6.3 Access to the operating menu via the local
display ............................. 17
7 Commissioning .................... 20
7.1 Function check ....................... 20
7.2 Switching on the measuring device ......... 20
7.3 Device configuration ................... 20
8 Maintenance ...................... 43
9 Accessories ....................... 43
9.1 Device-specific accessories ............... 43
10 Troubleshooting .................. 44
10.1 Troubleshooting instructions ............. 44
10.2 Process error messages ................. 44
11 Return ............................ 47
12 Disposal .......................... 47
13 Technical data .................... 48
13.1 Input ............................... 48
13.2 Output ............................. 49
13.3 Power supply ......................... 51
13.4 Performance characteristics .............. 52
13.5 Installation .......................... 54
13.6 Environment ......................... 54
13.7 Mechanical construction ................ 55
13.8 Operability .......................... 56
13.9 Certificates and approvals ............... 57
13.10 Supplementary documentation ............ 57
14 Appendix ......................... 58
14.1 Flow conversion ....................... 58
Index .................................. 59

Document information RIA452
4 Endress+Hauser
1 Document information
1.1 Document conventions

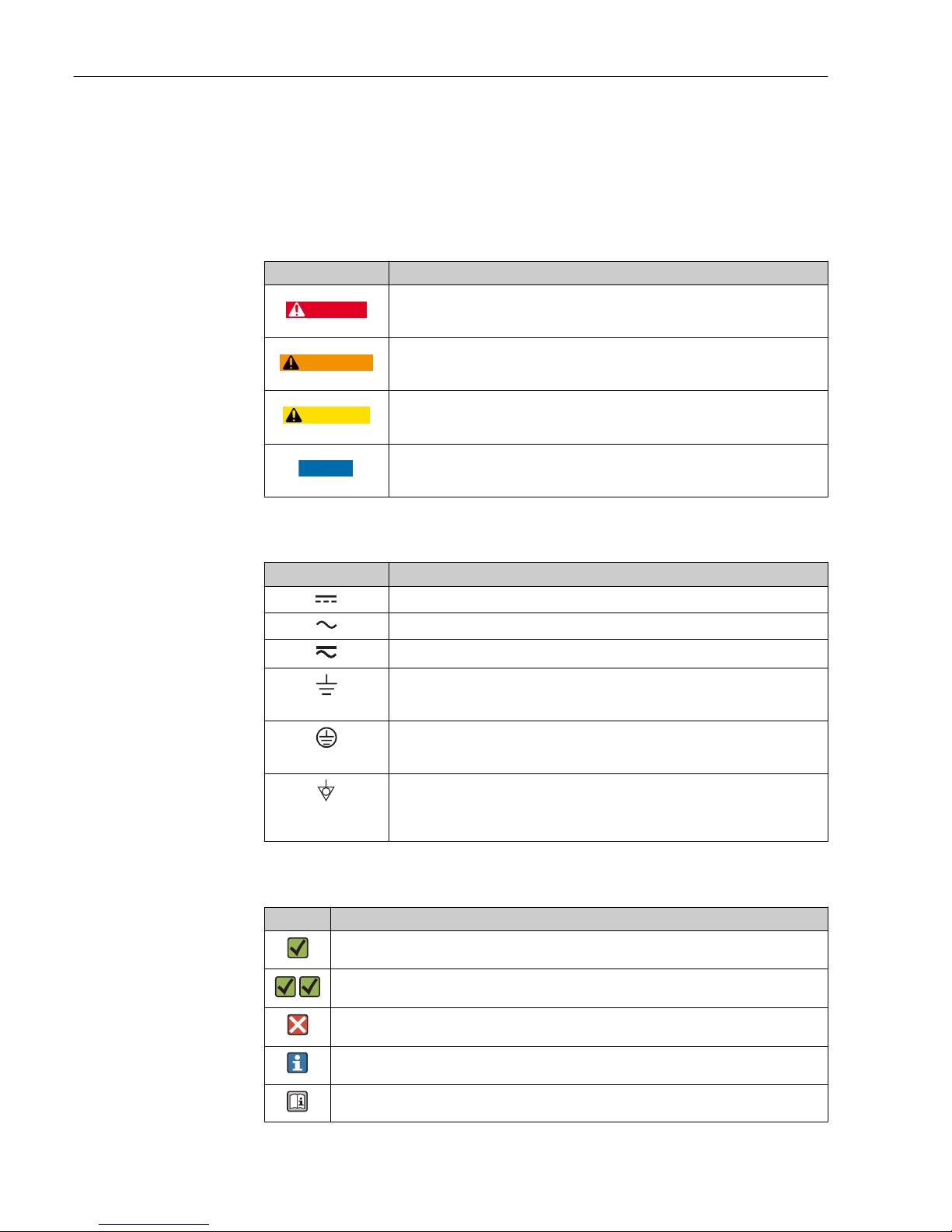

1.1.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Electrical symbols
Symbol Meaning
Direct current
Alternating current
Direct current and alternating current
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a
grounding system.
Protective ground connection
A terminal which must be connected to ground prior to establishing any other
connections.
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a
potential equalization line or a star grounding system depending on national or
company codes of practice.
1.1.3 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation

RIA452 Document information
Endress+Hauser 5
Symbol Meaning
Reference to page
Reference to graphic
,… ,
Series of steps
Result of a step
Help in the event of a problem
Visual inspection
1.1.4 Registered trademarks
HART®
Registered trademark of the HART Communication Foundation, Austin, USA
Applicator®, FieldCare®, Field Xpert™, HistoROM®
Registered or registration-pending trademarks of the Endress+Hauser Group

Safety instructions RIA452
6 Endress+Hauser
2 Safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the
application).
‣Follow instructions and comply with basic conditions.
The operating personnel must fulfill the following requirements:
‣Are instructed and authorized according to the requirements of the task by the facility's
owner-operator.
‣Follow the instructions in this manual.
2.2 Designated use
The process display unit analyzes analog process variables and depicts them on its
multicolored display. Processes can be monitored and controlled using outputs and limit
relays. The device provides the user with a wide range of software functions for this
purpose. Power can be supplied to 2-wire sensors with the integrated transmitter power
supply.
• The device is seen as an associated electrical apparatus and may not be installed in
hazardous areas.
• The manufacturer does not accept liability for damage caused by improper or non-
designated use. The device may not be converted or modified in any way.
• The device is designed for installation in a panel and may only be operated in an
installed state.
2.3 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from Endress+Hauser only.

RIA452 Safety instructions
Endress+Hauser 7
2.4 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser
confirms this by affixing the CE mark to the device.

Incoming acceptance and product identification RIA452
8 Endress+Hauser
3 Incoming acceptance and product
identification
3.1 Product identification
3.1.1 Nameplate
Compare the nameplate on the device with the following figure:
1
2
3
5
4
6
A0031242
 1 Nameplate of the process display unit (example)
1 Order code and serial number of the device
2 Power supply
3 Software version number
4 Ambient temperature
5 Power consumption
6 Name and address of manufacturer
3.2 Scope of delivery
The scope of delivery of the process display unit comprises:
• Process display unit for panel mounting
• Multilanguage Brief Operating Instructions as hard copy
• CD-ROM with PC configuration software and interface cable RS232 (optional)
• Fixing clips
• Sealing ring
Please note the device accessories in Section 'Accessories' →  43.
3.3 Storage and transport
Storage temperature
–30 to +70 °C (–22 to +158 °F)

RIA452 Installation
Endress+Hauser 9
4 Installation
4.1 Installation conditions
The permitted ambient conditions must be observed during installation and operation (see
the "Technical data" section of the Operating Instructions). The device must be protected
from exposure to heat.
4.1.1 Installation dimensions
Required panel cutout 92 mm (3.62 in)x92 mm (3.62 in). Ensure an installation depth of
150 mm (5.91 in) for the device plus cable. For additional dimensions, see →  2,  9
and the "Technical data" section of the Operating Instructions.
4.1.2 Mounting location
Installation in a panel (according to EN 60529). The mounting location must be free from
vibrations.
4.1.3 Orientation
Horizontal, ±45 ° in every direction.
4.2 Mounting the display unit
92 (3.62)
92 (3.62)
145 (5.71)
1
2
3.
4.
1.
2.
2.
3.
A0031247
 2 Installation in a panel
Mounting the display unit
1. Push the device with the sealing ring (item 1) through the panel cutout from the
front.
2. Hold the device level and clip the fastening clips (item 2) into the openings provided.
3. Tighten the screws of the fastening clips uniformly using a screwdriver.

Electrical connection RIA452
10 Endress+Hauser
4. Remove the protective foil from the display.
5 Electrical connection
+
-
+
-
+
-
+
-
+
+
-
-
-
+
+
-
1
2
3
4
5
6
7
8
A0031253

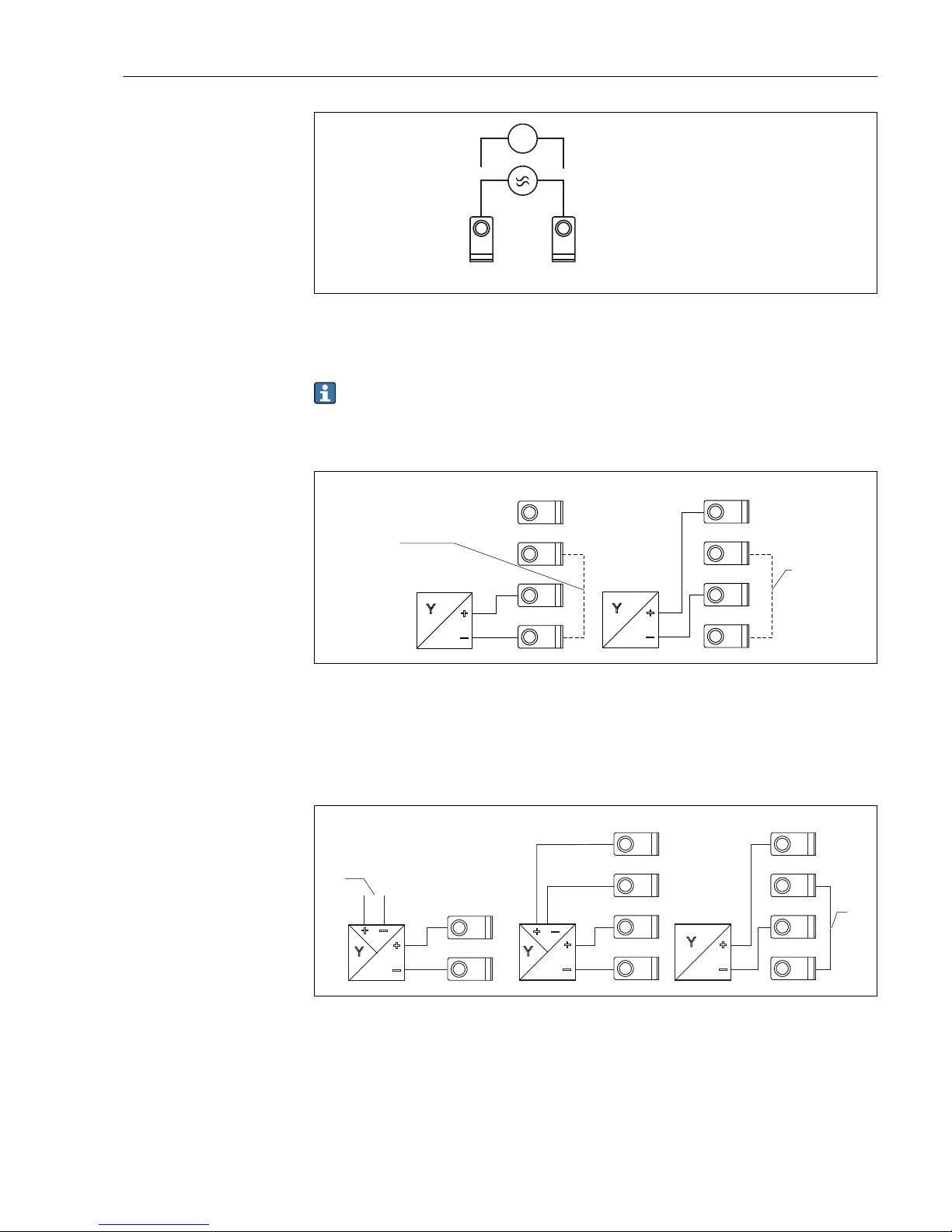

 3 Terminal assignment of the process display unit. Internal circuits represented by dashed lines.
1 Current input, terminals 12 and 82 are internally
bridged.
6 Digital output, passive open collector, max. 28 V,
200 mA
2 Current loop transmitter power supply max.
22 mA current input
7 Digital inputs as per DIN 19240; voltage level:
–3 to 5 V low, 12 to 30 V high, input current
typically 3 mA (with overload and reverse polarity
protection), input voltage max. 34.5 V, sampling
frequency max. 10 Hz
3 Current input 0 to 20 mA
4 Analog output 0 to 20 mA, 0 to 10 VDC
5 Transmitter power supply, 24 V, ≤250 mA. 8 Relay output: Relays 1-8; 250 VAC/30 VDC, 3 A
Terminal Terminal assignment Description
L/L+ L for AC
L+ for DC
Power supply
N/L- N for AC
L- for DC
NC Not connected
J1 Jumper for locking device operation via hardware. If the
jumper is set to J1, the configuration cannot be
modified.
The device can always be configured with
the PC software via RS232 even if the
jumper is set to J1.
J2 Not connected
11 +0/4 to 20 mA Current input

RIA452 Electrical connection
Endress+Hauser 11
Terminal Terminal assignment Description
12 Signal ground (current)
81 24 V sensor power supply 1 Transmitter power supply (optionally
intrinsically safe)
82 Ground, sensor power supply 1
41 Normally closed (NC) Relay 1
42 Common (COM)
43 Normally open (NO)
51 Normally closed (NC) Relay 2
52 Common (COM)
53 Normally open (NO)
44 Normally closed (NC) Relay 3
45 Common (COM)
46 Normally open (NO)
54 Normally closed (NC) Relay 4
55 Common (COM)
56 Normally open (NO)
141 Normally closed (NC) Relay 5
142 Common (COM)
143 Normally open (NO)
151 Normally closed (NC) Relay 6
152 Common (COM)
153 Normally open (NO)
144 Normally closed (NC) Relay 7
145 Common (COM)
146 Normally open (NO)
154 Normally closed (NC) Relay 8
155 Common (COM)
156 Normally open (NO)
96 Ground for digital status inputs Digital inputs
97 + digital status input 1
197 + digital status input 2
297 + digital status input 3
397 + digital status input 4
31 + analog output Analog output (optional)
32 Ground, analog output
33 + digital output Digital output (optional)
34 Ground, digital output
91 24 V sensor power supply 2 Transmitter power supply
92 Ground, sensor power supply 2
5.1 Universal input option
The device can be optionally equipped with a universal input instead of a current input.

Electrical connection RIA452
12 Endress+Hauser
+
-
+
-
+
-
19
17
15
13
11
12
+
-
1
2
3
4
5
6
A0031256
 4 Universal input terminal assignment
1 Current input 0/4 to 20 mA 4 Thermocouples
2 Voltage input ±1 V 5 Resistance thermometers, 4-wire
3 Voltage input ±30 V 6 Resistance thermometers, 3-wire
Terminal Terminal assignment
11 +0/4 to 20 mA signal
12 Signal ground (current, voltage, temperature)
13 +1 V, + thermocouples, - resistance thermometer signal (3-/4-wire)
15 + resistance thermometer signal (4-wire)
17 +30 V
19 + resistance thermometer supply (3-/4-wire)
5.2 Connecting the device
LWARNING
Danger! Electric voltage!
‣The entire connection of the device must take place while the device is de-energized.
5.2.1 Connecting the power supply
• Before wiring the device, ensure that the supply voltage corresponds to the specification
on the nameplate.
• For the 90 to 250 VAC (power supply connection) version, a switch marked as a
separator, as well as an overvoltage organ (rated current ≤10 A), must be fitted in the
supply line near the device (easy to reach).

RIA452 Electrical connection
Endress+Hauser 13
N/L- L/L+
20...28 VAC 50/60 Hz
90..250 VAC 50/60 Hz
20...36 VDC
=
A0031259
 5 Connecting the power supply
5.2.2 Connecting external sensors
Active and passive sensors with analog, TC, resistance and RTD sensors can be
attached to the device.
Current input 0/4 to 20 mA
12
11
82
81
+
-
Y
12
11
82
81
+
-
Y
A B
1
1
A0031272
 6 Connection of the two-wire sensor to the current input 0/4 to 20 mA
A Active sensor
B Passive sensor
1 Terminals 12 and 82 internally bridged
Universal input
12
11
+
-
Y
12
11
92
91
+
-
Y
+
-
+
-
12
11
92
91
+
-
Y
A B C
1
2
A0031273
 7 Connection of the four-wire sensor, transmitter power supply and universal input
A Active sensor, 4-wire
1 Power supply
B Passive sensor, 4-wire
C Passive sensor, 2-wire
2 Terminals 12 and 92 externally bridged

Electrical connection RIA452
14 Endress+Hauser
5.3 Post-connection check
Device condition and specifications Notes
Is the device or cable damaged (visual inspection)? -
Electrical connection Notes
Does the supply voltage match the specifications on the nameplate? 90 to 250 VAC (50/60 Hz)
20 to 36 VDC
20 to 28 VAC (50/60 Hz)
Are all of the terminals firmly engaged in their correct slots? Is the coding
on the individual terminals correct?
-
Are the mounted cables strain relieved? -
Are the power supply and signal cables correctly connected? See wiring diagram on the housing
Are all screw terminals firmly tightened? -

RIA452 Operability
Endress+Hauser 15
6 Operability
6.1 Overview of operation options
6.1.1 Display and operating elements
Remove the protective film from the display as this would otherwise affect the
readability of the display.
1
2
3
4
5
6
7
8
9
A0031274
 8 Display and operating elements
1 Operational indicator, green, is lit when supply voltage is applied
2 Fault indicator, red, flashes in the event of a sensor or device error
3 Limit indicator: the symbol is displayed if a relay is energized.
4 Status of digital inputs: green indicates ready for operation, yellow indicates a signal is pending
5 Bar graph, yellow, 42-part, with overranging and underranging in orange/red
6 7-digit, 14-segment display, white for measured values
7 9x77 dot matrix display, white, for texts, units and menu icons
8 Key and padlock symbols, indicate whether device operation is locked (see Section 5.3.3)
9 Jog/shuttle dial for local display operation
6.1.2 Display
For troubleshooting information, see the "Troubleshooting" section →  44.
Range Display Relay Analog output Totalization
Input current is below
lower error limit
Display Fault state Configured failsafe mode No totalization
Input current above
lower error limit and
below lower limit of
validity
Display Normal limit
value behavior
Normal behavior with max.
10% overrange. No output
< 0 mA/0 V possible
Normal behavior
(negative totalization
not possible)
Input current in valid
range
Display scaled
measured
value
Normal limit
value behavior
Normal behavior with max.
10% overrange. No output
< 0 mA/0 V possible
Normal behavior
(negative totalization
not possible)
Input current below
upper error limit and
above upper limit of
validity
Display Normal limit
value behavior
Normal behavior with max.
10% overrange. No output
< 0 mA/0 V possible
Normal behavior
(negative totalization
not possible)
Input current above
upper error limit
Display Fault state Configured failsafe mode No totalization

Operability RIA452
16 Endress+Hauser
Relay indicator
• Relay not energized: nothing indicated
• Relay energized: (symbol is lit)
Status display for digital inputs
• Digital input configured: (green)
• Signal at digital input: (yellow)
6.2 Structure and function of the operating menu
M1 Analog input
INPUT
Signal type Type of connection* Curve Signal damping
Signal type Connection Curve Damp
Dimension Decimal point 0% value 100% value
Dimension Dec. point 0% value 100% value
Offset Reference
temperature*
Fixed reference
temperature*
Open circuit
detection
Offset Comp. temp. Const. temp. Open circ.
M2 Anzeige
DISPLAY
Assign numerical
display
Alternating display Assign bargraph Decimal point
bargraph
Ref. num. Displ. sw. Ref. bargraf Dec. point
Bargraph 0% value Bargraph 100%
value
Assign bargraph
Bar 0% Bar 100% Ref. bargraf
M3 Analog output*
ANALOG OUT
Assignment Damping Output range Decimal point
Ref. num. Out damp Out range Dec. point
0% value 100% value Offset Output in the event
of a fault
Out 0% Out 100% Offset Fail mode
Value in the event
of a fault
Simulation mA Simulation Volt
Fail value Simu mA Simu V
M5 Digital input 1-4
DIGITAL INP
Function digital
input 1-4
Active level 1-4 Pump monitoring
sampling time
Function Level Sampl. time
M10-
M17
Limit 1-4 (8)*
LIMIT
Assignment Function 1-4 (8) Decimal point Switch point A Switch point B
Ref. num Function Dec. point Setpoint A Setpoint B
Hysteresis or
switchback gradient
Switching delay 1-4
(8) in seconds
Alternate function
1-4
Delay for 1st switch-
on every 24 h
Switch-on period for
switch-on every 24
h
Hysterese Delay Alternate Sw. delay Sw. period
Display runtime 1-8 Display switching
frequency 1-8
Reset switching
frequency and
runtime
Relay simulation
Runtime Count Reset Simu Relais
M18 Integration*
Integration
Signal source for
integration
Precounter Integration base Decimal point factor Conversion factor
Ref. Integr. Pre-counter Integr. base Dec. factor Factor
Dimension totalizer Decimal point
totalizer
Set pre-counter Set preliminary
alarm
Display totalizer

RIA452 Operability
Endress+Hauser 17
Dimension Dec. point T Set count A Set count B Totalizer
Reset totalizer Flow calculation Dimension of input
signal
Dimension of
linearized value
Decimal point for
formula
Reset total Calc flow Dim. Input Dim. flow Dec. flow
Decimal point for
display
Alpha value Beta value Gamma value C value
Dec. point Alpha Beta Gamma C
Khafagi- Venturi
channels
Venturi channels as
per British Standard
Venturi channels as
per British Standard
Parshall channels Parshall- Bowlus
channels
Kha Venturi Iso-Venturi BST-Venturi Parshall Parshall-Bow
Rectangular weirs Rectangular weirs
with constriction
Rectangular weirs
as per NFX
Rectangular weirs
as per NFX with
constriction
Trapezoid. weirs
Rect. WTO Rect. WThr NFX Rect. WTO NFX Rect. WThr Trap. WTO
Triangular weirs Triangular weirs as
per British Standard
Triangular weirs as
per NFX
Width
V. weir BST V. weir NFX V. weir width
M19 Pulse output*
PULSE OUT
Decimal point pulse
value
Pulse value Pulse width Simulation pulse
output
Dec value Unit Value Pulse width Sim pulseout
M20 Min/Max memory
MIN/MAX
Signal source for
Min/Max
Decimal point Display minimum
value
Ref. Min/Max Dec. point Min. value
Display maximum
value
Reset minimum
value
Reset maximum
value
Max. value Reset min Reset max
M21 Linearization table
LIN-TABLE
Number of support
points
Dimension of
linearized value
Decimal point Y-axis Delete all support
points
Display all support
points
Counts Dimension Dec. Y value Del points Show points
M23-
Mxx
Lin. support points
NO 01 NO 32
X-axis Y-axis
X value Y value
M55 Operating
parameters
PARAMETERS
User code Limit value lock Program name Program version Pump alternation
function
User code Limit lock Prog. name Version Func. alt.
Relay lock time Relay failsafe mode Time for gradient
evaluation
Failsafe mode 4-20
mA input
Error limit 1
Lock time Rel. Mode Grad. Time Namur Range 1
Error limit 2 Error limit 3 Error limit 4 Display contrast
Range 2 Range 3 Range 4 Contrast
M56 SERVICE Only for service staff. The service code must be entered.
M57 EXIT Exit the menu. If you have changed parameters, you are asked whether you want to save the changes.
M58 SAVE Changes are saved and you exit the menu.
*) Only available if the option in question is installed in the device
6.3 Access to the operating menu via the local display
Press the jog/shuttle dial for longer than 3 seconds to activate the operating menu.

Operability RIA452
18 Endress+Hauser
6.3.1 Operation via the jog/shuttle dial

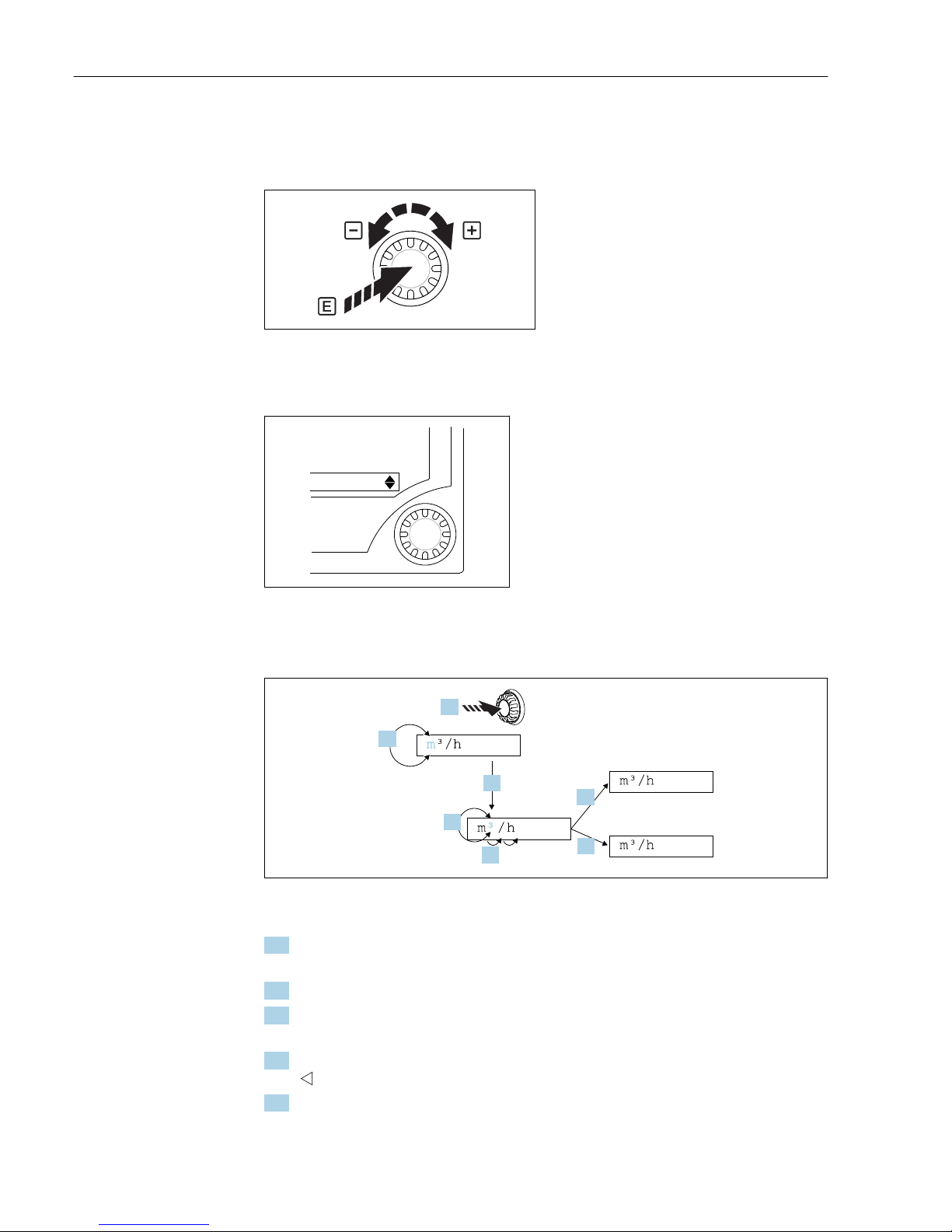

A) 3-key function
A0031352
 9 Operation via the jog/shuttle dial
• Press = "Enter"
• Rotate in clockwise direction = "+"
• Rotate in counterclockwise direction = "-"
B) Selection from list
A0031353
 10 Selection from list via the jog/shuttle dial
▾ Arrow pointing down:
Option is at the top of the picklist. The other entries
become visible when the jog/shuttle is turned in the
clockwise direction.
▴
▾
Both arrows visible:
User is in the middle of the picklist.
▴ Arrow pointing up:
The end of the picklist is reached. The user moves back
towards the start when the jog/shuttle is turned in the
counterclockwise direction.
6.3.2 Entering text
1.
2.
3.
4.
5. 6.
7.
A0031359
 11 Texteingabe am Prozessanzeiger
1. Press jog/shuttle dial for longer than 3 s.
 The first digit flashes.
2. In order to alter the character turn the jog/shuttle dial to the left or right.
3. Press jog/shuttle dial briefly.
 The character is accepted and the next one flashes.
4. In order to alter the character turn the jog/shuttle dial to the left or right. Select the
" " symbol to go back to the previous digit.
5. Press jog/shuttle dial briefly.
 The character is accepted and the next one flashes.

RIA452 Operability
Endress+Hauser 19
6. Set / change all digits in this way. At the last digit, press the jog/shuttle dial briefly.
 The input is accepted.
7. Alternatively press the jog/shuttle dial for longer than 1 s at any position and release
it.
 Input is cancelled.
Possible characters
The following characters can be entered:
Blank
+ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789/\%
°23+-.;:*() (go back)
6.3.3 Disabling the programming mode
User code
The configuration can be protected against unintentional access by means of a four-digit
code. This code is defined in menu item 55 "Parameter/user code". All the parameters
remain visible but can only be changed after entering the user code.The "key" symbol is
shown on the display.
If the limit values are also to be locked, the "Limit code" must be set to "On" in menu item
55. Limit values can then only be changed after entering the user code. If the limit code is
set to "Off", limit values can be changed without entering the user code. All the other
parameters are locked, however.
Hardware locking
In addition, configuration can also be locked using a connector on the rear of the device
(→  12,  19). This is indicated by the "padlock" symbol on the display.
To hardware-lock the measuring device, insert the jumper into position J1 in the top
righthand corner on the rear of the device.
A0031364
 12 Position of the jumper on the rear of the device
The hardware lock does not affect the PC operating software.

Commissioning RIA452
20 Endress+Hauser
7 Commissioning
7.1 Function check
Make sure that all post-connection checks have been carried out before you commission
your device:
Checklist connection check →  14
Remove the protective strip from the display as this restricts display legibility
otherwise.
7.2 Switching on the measuring device
Once the operating voltage is applied, the green LED indicates that the device is
operational.
• When the unit is delivered, the device parameters are used as per the factory settings.
• When commissioning a device already configured or preset, measuring is immediately
started as per the settings. The limit values only switch once the first measured value
has been determined.
• The limit values are only activated as per their configuration once a valid measured value
is present.
7.3 Device configuration
This section describes all the configurable instrument parameters with the associated
value ranges and factory settings (default values, marked in bold).
