Smartec CLD18 Table of contents
Endress+Hauser 3
Table of contents
1 Document information ......... 4
1.1 Warnings ........................... 4
1.2 Symbols used ........................ 4
1.3 Symbols on device .................... 5
2 Basic safety instructions ....... 5
2.1 Requirements for the personnel ........ 5
2.2 Designated use ...................... 5
2.3 Occupational safety .................. 5
2.4 Operational safety ................... 7
2.5 Product safety ....................... 7
2.6 IT security .......................... 7
3 Product description ............. 8
3.1 Product design ....................... 8
4 Incoming acceptance and
product identification .......... 9
4.1 Incoming acceptance ................. 9
4.2 Product identification ................. 9
4.3 Scope of delivery .................... 10
4.4 Certificates and approvals ............ 11
5 Installation .................... 11
5.1 Installation conditions ............... 11
5.2 Mounting the compact device ......... 17
5.3 Post-installation check ............... 17
6 Electrical connection .......... 17
6.1 Connecting the transmitter ........... 17
6.2 Ensuring the degree of protection ..... 21
6.3 Post-connection check ............... 21
7 Operation options ............. 22
7.1 Overview of operating options ........ 23
7.2 Structure and function of the operating
menu ............................. 24
8 Commissioning ................ 25
8.1 Switching on the measuring device .... 25
8.2 Display settings (Display menu) ....... 25
8.3 Configuring the measuring device ..... 26
8.4 Advanced settings .................. 26
8.5 Calibration (Calibration menu) ........ 31
9 Diagnostics and
troubleshooting ............... 34
9.1 General troubleshooting ............. 34
9.2 Trouble shooting instructions ......... 34
9.3 Pending diagnostic messages ......... 35
10 Maintenance .................. 38
10.1 Maintenance tasks .................. 38
11 Repairs ......................... 39
11.1 General notes ...................... 39
11.2 Return ............................ 39
11.3 Disposal ........................... 39
12 Accessories .................... 40
12.1 Calibration solutions ................ 40
13 Technical data ................. 40
Index ................................. 47

Document information Smartec CLD18
4 Endress+Hauser
1 Document information
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious injury.
LWARNING
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious injury.
LCAUTION
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
If necessary, Consequences of non-
compliance (if applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to property.
1.2 Symbols used
Symbol Meaning
Additional information, tips
Permitted or recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
 Result of a step

Smartec CLD18 Basic safety instructions
Endress+Hauser 5
1.3 Symbols on device
Symbol Meaning
Reference to device documentation
2 Basic safety instructions
2.1 Requirements for the personnel
• Installation, commissioning, operation and maintenance of the measuring system may be
carried out only by specially trained technical personnel.
• The technical personnel must be authorized by the plant operator to carry out the specified
activities.
• The electrical connection may be performed only by an electrical technician.
• The technical personnel must have read and understood these Operating Instructions and
must follow the instructions contained therein.
• Faults at the measuring point may only be rectified by authorized and specially trained
personnel.
Repairs not described in the Operating Instructions provided must be carried out only
directly at the manufacturer's site or by the service organization.
2.2 Designated use
The compact measuring system is used for inductive conductivity measurement in liquids with
medium to high conductivity.
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
NOTICE
Applications outside specifications!
Incorrect measurements, malfunctions and even measuring point failure could result
‣Use the product only in accordance with the specifications.
‣Pay attention to the technical data on the nameplate.
2.3 Occupational safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations

Basic safety instructions Smartec CLD18
6 Endress+Hauser
Electromagnetic compatibility
• The product has been tested for electromagnetic compatibility in accordance with the
applicable European standards for industrial applications.
• The electromagnetic compatibility indicated applies only to a product that has been
connected in accordance with these Operating Instructions.

Smartec CLD18 Basic safety instructions
Endress+Hauser 7
2.4 Operational safety
Before commissioning the entire measuring point:
1. Verify that all connections are correct.
2. Ensure that electrical cables and hose connections are undamaged.
3. Do not operate damaged products, and protect them against unintentional operation.
4. Label damaged products as defective.
During operation:
‣If faults cannot be rectified:
products must be taken out of service and protected against unintentional operation.
2.5 Product safety
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
European standards have been observed.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.

Product description Smartec CLD18
8 Endress+Hauser
3 Product description
3.1 Product design
1
2
3
4
5
6
7
A0019184
 1 Elements
1 Temperature sensor
2 Process connection
3 Leakage bore (offset by 90° in relation to the flow direction)
4 Removable housing cover
5 Window for display
6 Cable glands (M12)
7 Flow opening of sensor

Smartec CLD18 Incoming acceptance and product identification
Endress+Hauser 9
4 Incoming acceptance and product identification
4.1 Incoming acceptance
1. Verify that the packaging is undamaged.
 Notify the supplier of any damage to the packaging.
Keep the damaged packaging until the issue has been resolved.
2. Verify that the contents are undamaged.
 Notify the supplier of any damage to the delivery contents.
Keep the damaged goods until the issue has been resolved.
3. Check that the delivery is complete and nothing is missing.
 Compare the shipping documents with your order.
4. Pack the product for storage and transportation in such a way that it is protected
against impact and moisture.
 The original packaging offers the best protection.
Make sure to comply with the permitted ambient conditions.
If you have any questions, please contact your supplier or your local Sales Center.
Technical data→  40
4.2 Product identification
4.2.1 Nameplate
The nameplate provides you with the following information on your device:
• Manufacturer identification
• Order code
• Extended order code
• Serial number
• Firmware version
• Ambient and process conditions
• Input and output values
• Measuring range
• Safety information and warnings
• Protection class
‣Compare the information on the nameplate with the order.

Incoming acceptance and product identification Smartec CLD18
10 Endress+Hauser
4.2.2 Product identification
Product page
www.endress.com/CLD18
Interpreting the order code
The order code and serial number of your product can be found in the following locations:
• On the nameplate
• In the delivery papers
Obtaining information on the product
1. Open the product website.
2. At the top of the page, select the link Services.
 An additional sidebar opens up.
3. Select Online Tools followed by Access device specific information.
 An additional window opens.
4. Enter the order code from the nameplate into the search field. Then select Show
details.
 Details of each feature (selected option) of the order code are displayed.
Manufacturer's address
Endress+Hauser Conducta GmbH+Co. KG
Dieselstraße 24
D-70839 Gerlingen
4.3 Scope of delivery
The delivery comprises:
• A Smartec CLD18 measuring system in the version ordered
• Operating Instructions BA01149C/07/EN

Smartec CLD18 Installation
Endress+Hauser 11
4.4 Certificates and approvals
4.4.1 Declaration of conformity
The product meets the requirements of the harmonized European standards. As such, it
complies with the legal specifications of the EU directives. The manufacturer confirms
successful testing of the product by affixing to it the  mark.
4.4.2 Hygiene
FDA
All materials in contact with the product are FDA-listed materials (apart from the PVC process
connections).
EHEDG
Certified cleanability according to EHEDG Type EL Class I.
When using the sensor in hygienic applications, please note that the cleanability of the
sensor also depends on the way the sensor is installed. To install the sensor in a pipe, use
the appropriate and EHEDG-certified flow vessels for the particular process connection.
3-A
Certified according to 3-A Standard 74- ("3-A Sanitary Standards for Sensor and Sensor
Fittings and Connections Used on Milk and Milk Products Equipment").
EC Regulation No. 1935/2004
The sensor meets the requirements of EC Regulation No. 1935/2004 on materials and articles
intended to come into contact with food.
4.4.3 Pressure approval
Canadian pressure approval for pipes according to ASME B31.3
5 Installation
5.1 Installation conditions
5.1.1 Installation instructions
For a 3-A compliant installation, the following must be noted:
After the instrument is installed its hygienic integrity shall be maintained. The
instrument shall be installed with the leakage detection at the lowest point of the
assembly. Furthermore all process connections must be 3-A compliant.
Orientations
The sensor must be completely immersed in the medium. Avoid air bubbles in the area of the
sensor.

Installation Smartec CLD18
12 Endress+Hauser
> 1 (3.3)
A0017691
 2 Orientation of conductivity sensors. Engineering unit: m (ft)
If the flow direction changes (after pipe bends), turbulence in the medium can result.
‣Install the sensor at a distance of at least 1 m (3.3 ft) downstream from a pipe bend.
The product should flow along the hole of the sensor (see the arrows on the housing). The
symmetrical measuring channel allows flow in both directions.
In confined installation conditions, the walls affect the ionic
current in the liquid. This effect is offset by what is referred to
as the installation factor. The installation factor can be entered
in the transmitter for the measurement or the cell constant is
corrected by multiplying by the installation factor.
The value of the installation factor depends on the diameter
and the conductivity of the pipe nozzle as well as the distance a
between the sensor and the wall.
The installation factor can be disregarded (f = 1.00) if the
distance to the wall is sufficient (a > 20 mm, from DN 60).
If the distance to the wall is smaller, the installation factor
increases for electrically insulating pipes (f > 1) and decreases
for electrically conductive pipes (f < 1).
It can be measured using calibration solutions, or a close
approximation can be determined from the following diagram.
a
A0018962
 3 Installation of CLD18
a Wall distance

Smartec CLD18 Installation
Endress+Hauser 13
1
2
a [inch]
010 20 30 40 a [mm]
0.95
1 00.
1.05
f
0.39 0.79 1.18 1.57
A0020517
 4 Relationship between installation factor f and wall distance a
1 Electrically conductive pipe wall
2 Electrically insulating pipe wall
Install the measuring system in such a way that the housing is not exposed to direct
sunlight.

Installation Smartec CLD18
14 Endress+Hauser
28 (1.10)
73.5
(0.91)
86 (3.39)
136.5 (5.37)
101.7 (4.00)
28 (1.10)
78 (3.07)
85 (3.35)
6
53.3
(2.10)
127 (5.00)
69 (2.72)
112 (4.41)
85 (3.35)
114.5 (4.51)
53.3
(2.10)
69
(2.72)
5.2
20.5
(0.81)
123 (4.84)
12.3 (0.49)
17.1 (0.67)
32.8 (1.29)
123 (4.84)
A A
B B
CD
(0.24)
(2.89)
(0.20)
23
A0018942

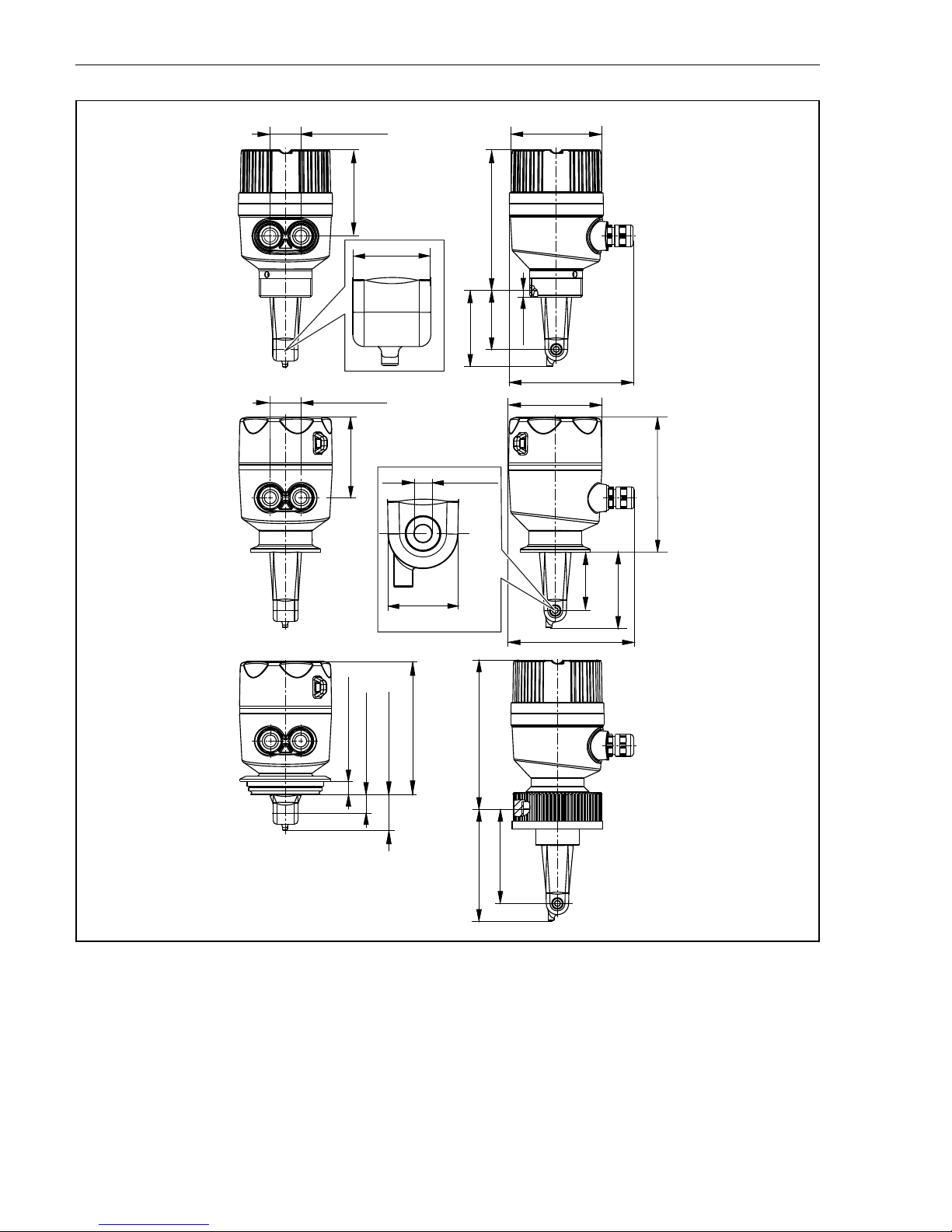

 5 Dimensions and versions (examples). Dimensions: mm (in)
A Plastic housing with thread G 1½
B Stainless steel housing with ISO 2852 clamp 2"
C Stainless steel housing with Varivent DN 40 to 125
D Plastic housing with coupling nut 2¼" PVC

Smartec CLD18 Installation
Endress+Hauser 15
5.1.2 Installation examples
51 (2.01)
Ø 44.3
(1.74)
Ø 48.3
(1.90)
A0019302

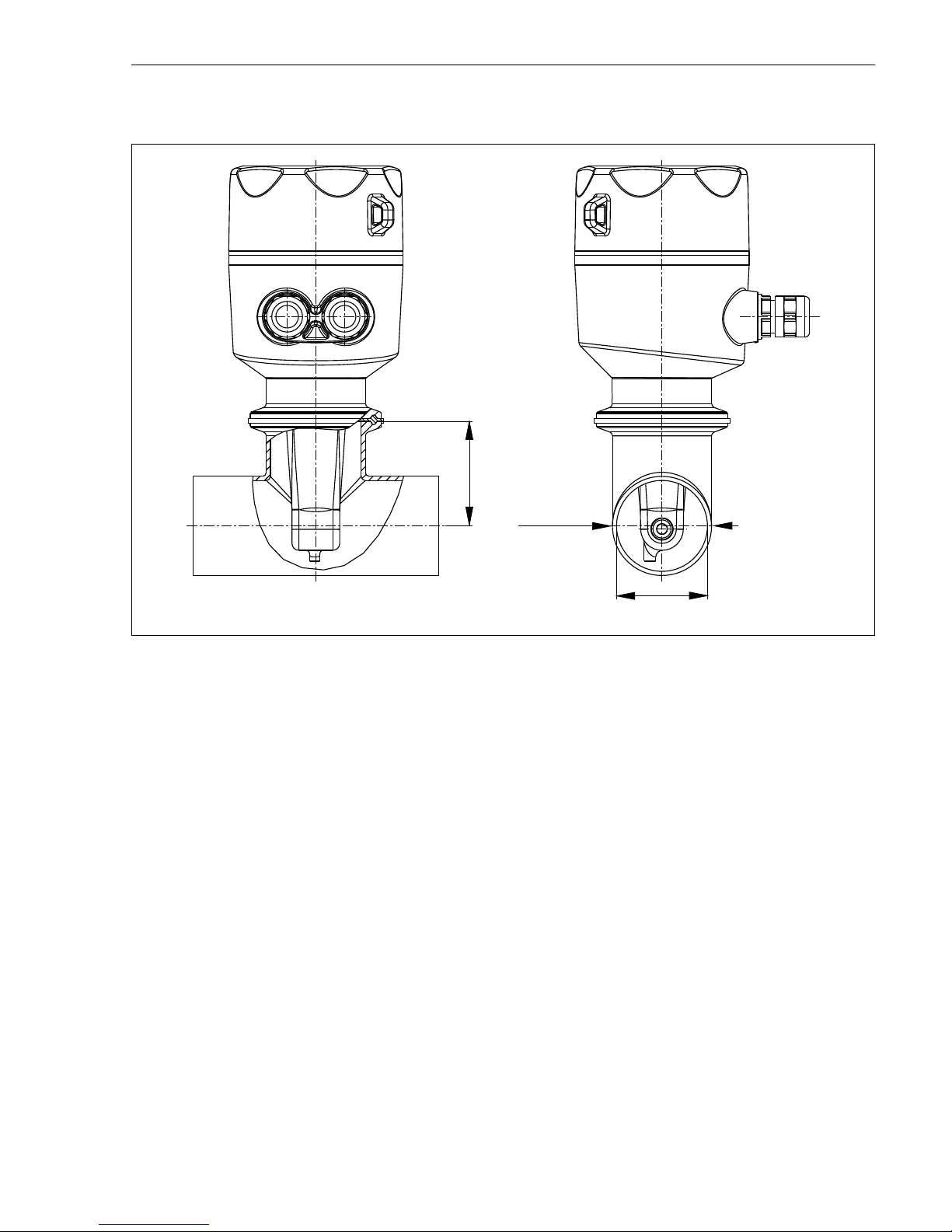

 6 Installation in DN 40 pipe with Tri-Clamp 2" process connection. Dimensions: mm (in)

Installation Smartec CLD18
16 Endress+Hauser
31
(1.22)
Ø 38
(1.50)
Ø 41
(1.61)
A0022166
 7 Installation in DN 40 pipe with Varivent process connection. Dimensions: mm (in)
57.5
(2.26)
Ø 40 (1.58)
Ø 50 (1.97)
A0024073
 8 Installation in DN 40 pipe with 2¼" PVC coupling nut process connection. Dimensions: mm (in)

Smartec CLD18 Electrical connection
Endress+Hauser 17
5.2 Mounting the compact device
‣Choose the installation depth of the sensor in the medium such that the coil body is
completely immersed in the medium.
Pay attention to the information on wall clearance →  11
1. Mount the compact device directly on a pipe nozzle or tank nozzle via the process
connection.
2. For the 1½" threaded connection, use a Teflon tape to seal the connection and an
adjustable pin wrench (DIN 1810, flat face, size 45 to 50 mm (1.77 to 1.97 in)) to
tighten it.
3. When installing, align the compact device in such a way that the medium flows through
the flow opening of the sensor in the direction of medium flow. Use the arrow on the
nameplate to help you align the device.
4. Tighten the flange.
5.3 Post-installation check
1. Following installation, check the compact device for damage.
2. Ensure that the compact device is protected against direct sunlight.
6 Electrical connection
LWARNING
Device is live!
Incorrect connection may result in injury or death!
‣The electrical connection may be performed only by an electrical technician.
‣The electrical technician must have read and understood these Operating Instructions and
must follow the instructions contained therein.
‣Prior to commencing connection work, ensure that no voltage is present on any cable.
6.1 Connecting the transmitter
LWARNING
Risk of electric shock!
‣At the supply point, the power supply must be isolated from dangerous live cables by
double or reinforced insulation in the case of devices with a 24 V power supply.

Electrical connection Smartec CLD18
18 Endress+Hauser
6.1.1 Direct connection of the cables
Lf
mA
mA
X
I ut1O
I ut2O L
MRS
Alarm Out
A0033106

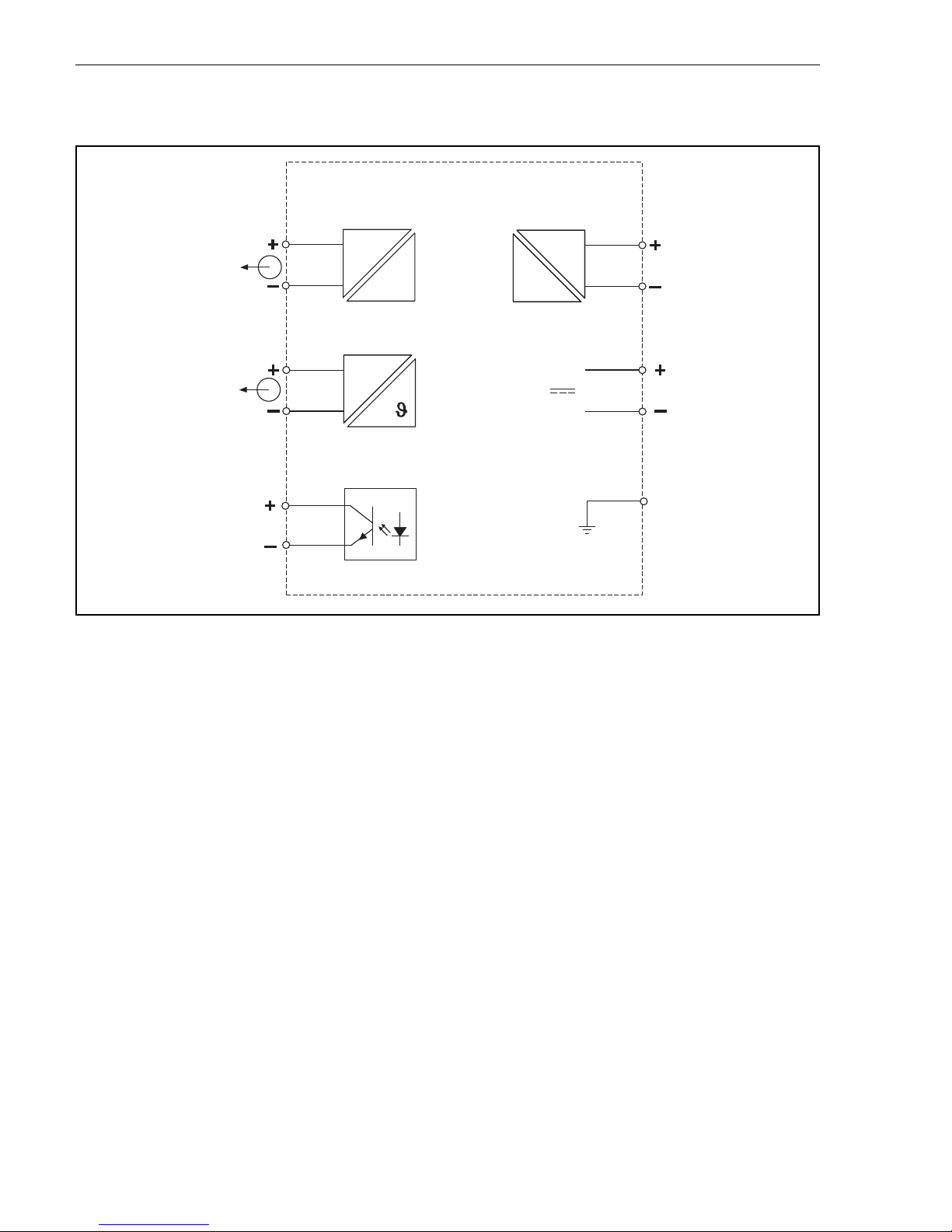

 9 Electrical connection

Smartec CLD18 Electrical connection
Endress+Hauser 19
-
+
L
L
L+
L-
Out+
Out-
MRS+
MRS-
I ut1-O
I ut2+O
I ut1+O
I ut2-O
X
1
2
A0029684

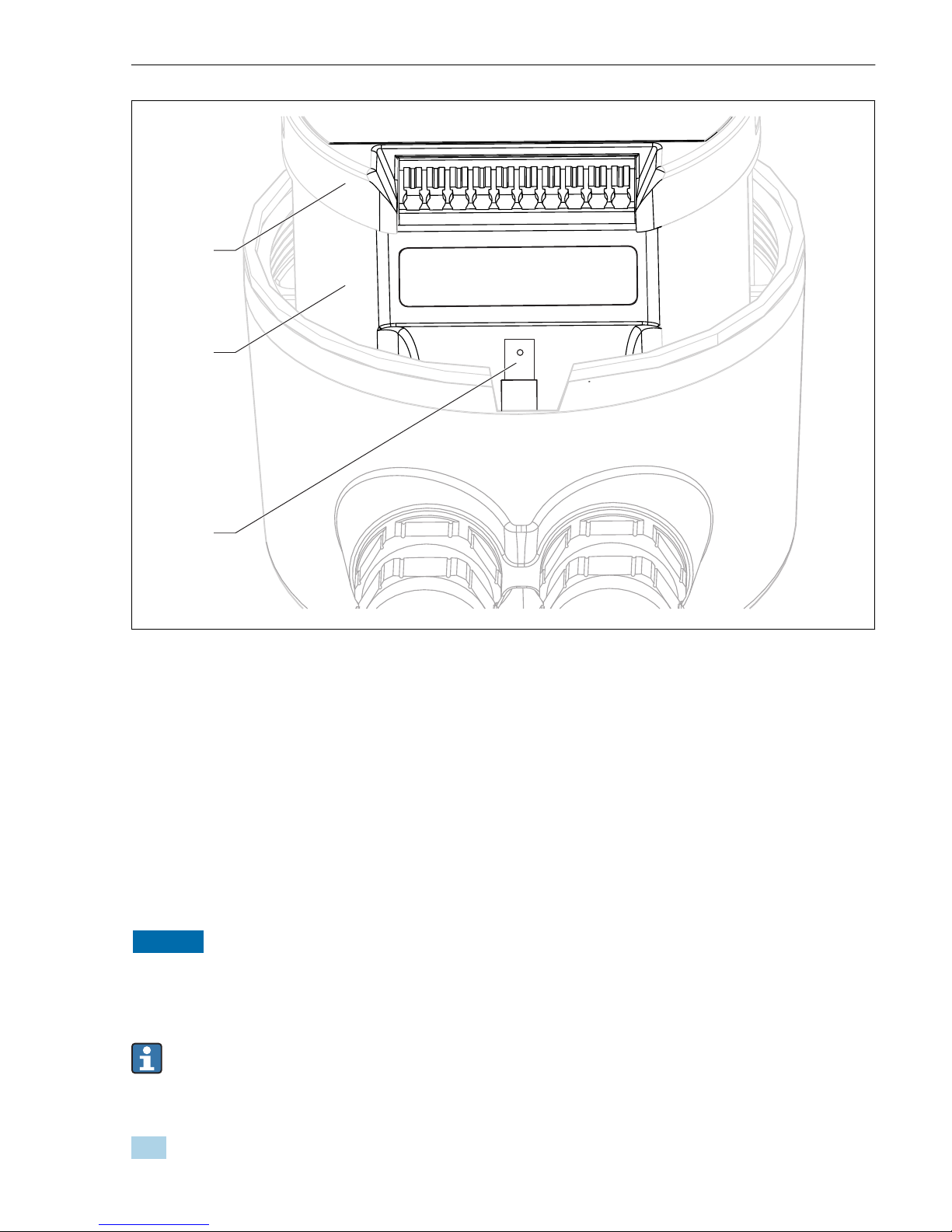

 10 Terminal assignment
IOut1 Current output conductivity (active)
IOut2 Current output temperature (active)
Out Alarm output (open-collector)
MRS Binary input (measuring range switch)
L+/L- Power supply
X Grounding pin (flat male tab 4.8 mm)
1 Cover on electronics box
2 Electronics box
NOTICE
Removing the electronics box will destroy the sensor connection!
‣The electronics box must not be removed under any circumstances.
‣Do not open the cover on the electronics box.
The recommended cable cross-section for the connecting cables is 0.5 mm2. The
maximum cable cross-section is 1.0 mm2.
Connect the transmitter of the compact device as follows:
1. Unscrew the housing cover.

Electrical connection Smartec CLD18
20 Endress+Hauser
2. Guide the connecting cables through the cable glands.
3. Connect the cables as per the terminal assignment diagram.
4. Connect the protective ground to the terminal pin for the housing ground.
6.1.2 Connection via M12 connector
3
2
1
4
A0033108

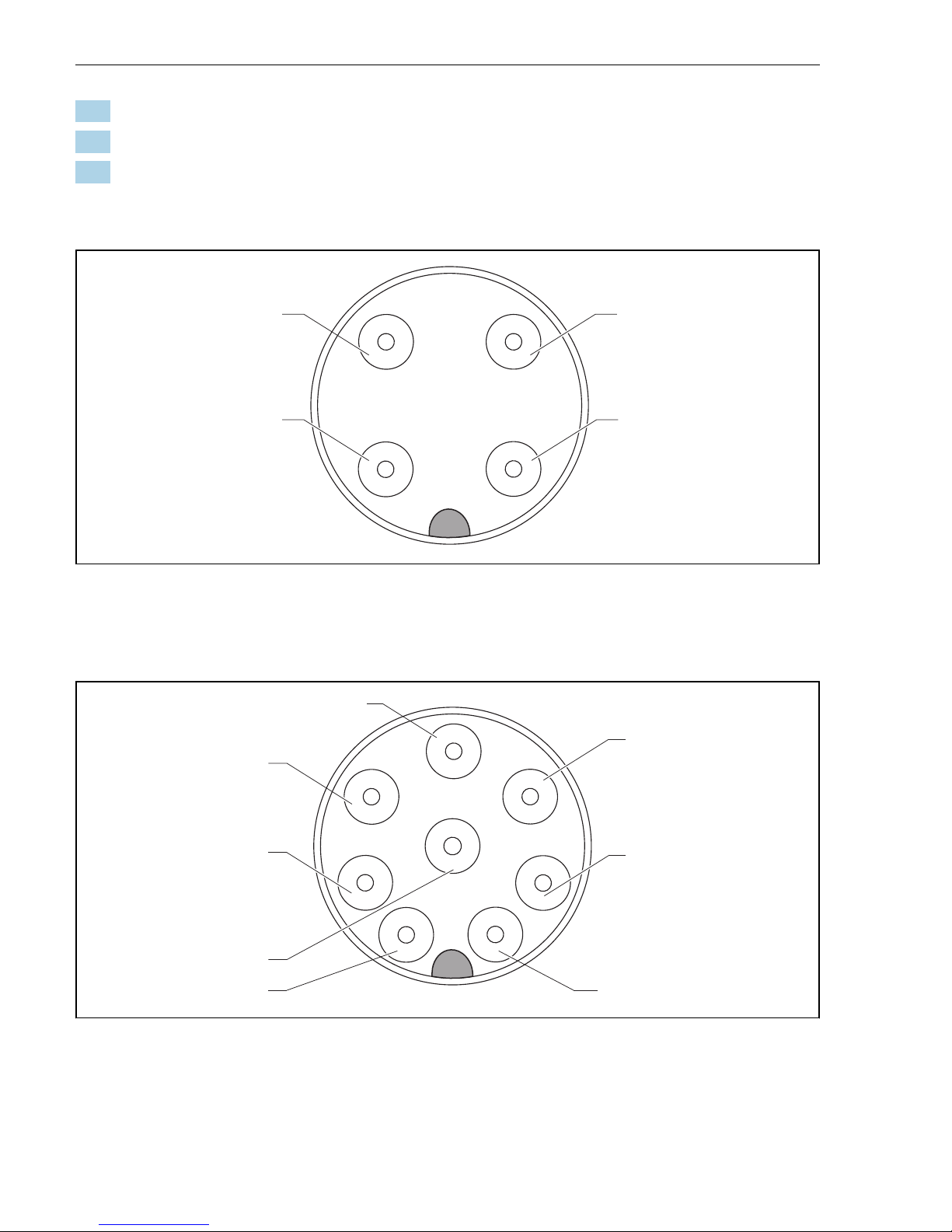

 11 View of connector, 4-pin, data cable (at device)
1 IOUT1+ Conductivity 3 IOUT2- Temperature
2 IOUT2+ Temperature 4 IOUT1- Conductivity
4
3
2
1
7
6
5
8
A0033109
 12 View of connector, 8-pin, power supply/controller (at device)
1 L+ Power supply 5 Out+ Alarm output+
2 L- Power supply 6 Out- Alarm output-
3 MRS+ Binary input 7 GND Functional ground
4 MRS- Binary input 8 GND Functional ground
