Endress+Hauser Stamosens CSM750 User manual

BA305C/07/en/06.05
5150702
Valid as of:
Software version 3.7
Operating Instructions
Stamosens CSM750/CSS70
For measurement of the dissolved organic substances or
the spectral absorption coefficient

Endress+Hauser
Brief overview
How to use these Operating Instructions to commission your system quickly and safely:
Safety instructions
Page 4
Page 5
General safety instructions
Explanation of the warning symbols
You can find special instructions at the appropriate position in the chapter in question. The
positions are indicated with the icons Warning #, Caution "and Note !.
Æ
Installation
Page 10
Page 14
Installation conditions and device dimensions
Installation instructions
Æ
Wiring
Page 15
Page 16
Page 39
Terminal assignment and output configurations
Cleaning unit installation advice
In the "Appendix", you can find examples for the connection of customer-specific cleaning units.
Æ
Commissioning and calibration
Page 19
Page 25
In "Operation": operating elements and setting options.
In "Commissioning": steps for initial commissioning and calibration.
Æ
Maintenance
Page 29 You should carry out maintenance work to ensure good performance. Here, you can find the
maintenance schedule.
Æ
Accessories
Page 31 Accessories and ordering information
Æ
Troubleshooting
Page 34 System checklist
Æ
Æ
Index
Page 44 Use the index to find information quickly.

Stamosens CSM750/CSS70
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Notes on safety icons and symbols . . . . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 7
3 Installation . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Measuring system overview . . . . . . . . . . . . . . . . . . . 8
3.2 Incoming acceptance, transport, storage . . . . . . . . . . 9
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 10
3.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 14
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Inputs and outputs . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Cleaning units . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.5 Serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.6 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 18
5 Operation . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Display and operating elements . . . . . . . . . . . . . . . 19
5.2 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6 Commissioning. . . . . . . . . . . . . . . . . . 25
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2 Switch-on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Maintenance. . . . . . . . . . . . . . . . . . . . 29
7.1 Maintenance schedule . . . . . . . . . . . . . . . . . . . . . . 29
7.2 Cleaning agent . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.3 Checking cables and connections . . . . . . . . . . . . . . 30
8 Accessories. . . . . . . . . . . . . . . . . . . . . 31
9 Troubleshooting . . . . . . . . . . . . . . . . . 34
9.1 Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.2 Replacing the device fuse . . . . . . . . . . . . . . . . . . . . 34
9.3 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10 Technical data . . . . . . . . . . . . . . . . . . . 35
10.1 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
10.2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
10.3 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
10.4 Performance characteristics . . . . . . . . . . . . . . . . . . 35
10.5 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
10.6 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.7 Mechanical construction . . . . . . . . . . . . . . . . . . . . 36
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 37
11.1 Operating matrix . . . . . . . . . . . . . . . . . . . . . . . . . . 37
11.2 Control for a customer-specific cleaning unit . . . . . 39
11.3 Factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Index . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Safety instructions Stamosens CSM750/CSS70
4Endress+Hauser
1 Safety instructions
1.1 Designated use
Sensor CSS70 and transmitter CSM750 form an analytical system for continuous measurement of
the spectral absorption coefficient.
The system is specifically designed to monitor the dissolved organic substances:
• in the wastewater effluent stream and
• in drinking water treatment plants.
Any other use than the one described here compromises the safety of persons and the entire
measuring system and is, therefore, not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
1.2 Installation, commissioning and operation
Please note the following items:
• Installation, commissioning, operation and maintenance of the measuring system must only be
carried out by trained technical personnel.
The technical personnel must be authorized for the specified activities by the system operator.
• Electrical connection must only be carried out by a certified electrician.
• Technical personnel must have read and understood these Operating Instructions and must
adhere to them.
• Before commissioning the entire measuring point, check all the connections for
correctness. Ensure that electrical cables and hose connections are not damaged.
• Do not operate damaged products and secure them against unintentional
commissioning. Mark the damaged product as being defective.
• Measuring point faults may only be rectified by authorized and specially trained
personnel.
• If faults can not be rectified, the products must be taken out of service and secured against
unintentional commissioning.
• Repairs not described in these Operating Instructions may only be carried out at the
manufacturer’s or by the service organization.
1.3 Operational safety
The measuring system has been designed and tested to the highest standards and left the factory in
perfect functioning order.
Relevant regulations and European standards have been met.
As the user, you are responsible for complying with the following safety conditions:
• Installation instructions
• Local prevailing standards and regulations.
Immunity to interference
This instrument has been tested for electromagnetic compatibility in industrial use according to
applicable European standards.
Protection against interference as specified above is valid only for an instrument
connected in accordance with these Operating Instructions.

Stamosens CSM750/CSS70 Safety instructions
Endress+Hauser 5
1.4 Return
If the sensor or the transmitter has to be repaired, please return it cleaned to the sales center
responsible.
Please enclose the completed "Declaration of contamination" (copy the second last page of these
Operating Instructions) with the packaging and the transportation documents.
1.5 Notes on safety icons and symbols
#
Warning!
This symbol alerts you to hazards. They can cause serious damage to the instrument or to persons
if ignored.
"Caution!
This symbol alerts you to possible faults which could arise from incorrect operation.
They could cause damage to the instrument if ignored.
!Note!
This symbol indicates important items of information.

Identification Stamosens CSM750/CSS70
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
Please check the order code from the nameplate with the product structure and with your order.
2.1.2 Product structure
Transmitter
a0004335
Fig. 1: Nameplate of the transmitter (example)
a0004336
Fig. 2: Nameplate of the sensor (example)
Power supply
7 Power supply 80 ... 250 V AC
8 Power supply 24 V AC/DC
9 Special version acc. to customer's specification
Communication / Output
A RS 232 + 0/4 ... 20 mA
Y Special version acc. to customer's specification
Version
1 One-channel version
9 Special version acc. to customer's specification
Additional equipment
A Quality certificate
Y Special version acc. to customer's specification
CSM750 - complete order code
order code / Best.Nr.:
serial no. / Ser.-Nr.:
prot. class / Schutzart:
ambient temp. / Umgebungstemp.:
output 1 / Ausgang 1:
output 2 / Ausgang 2:
mains / Netz:
CSM 750-7A1A
610065C3NI1
0/4-20mA, RS 232
–
80-250V AC, 50/60Hz, 15VA
IP 54
–10°C...+55°C
Stamosens CSM750
order code / Best.Nr.:
serial no. / Ser.-Nr.:
measuring range / Messbereich:
CSS70-B1B4A
6100A5C3NI0
0.3-50 1/m
Stamosens CSS70

Stamosens CSM750/CSS70 Identification
Endress+Hauser 7
Sensor
2.2 Scope of delivery
The scope of delivery comprises:
• a transmitter (device type and version acc. to the nameplate)
• a sensor (sensor type and version acc. to the nameplate)
• a quality certificate
• Operating Instructions (English)
2.3 Certificates and approvals
2.3.1 4approval
Declaration of conformity
The product meets the legal requirements of the harmonized European standards. The
manufacturer confirms compliance with the standards by affixing the 4symbol.
2.3.2 Manufacturer certificate
Quality certificate
With the certificate the manufacturer confirms compliance with all technical regulations and the
successful testing individually for your product.
Cleaning unit
A not selected
B230V
C115V
Y Special version acc. to customer's specification
Measuring range
1 0.3 ... 50 m-1 or 0.4 ... 60 mg/l CSB in reference to KHP
2 15 ... 700 m-1 or 20 ... 900 mg/l CSB in reference to KHP
3 2 ... 250 m-1 or 8 ... 400 mg/l CSB in reference to KHP
9 Special version acc. to customer's specification
Cable length
A2m
B7m
C5m
D15m
Y Special version acc. to customer's specification
Assembly
1 not selected
3 Sea water version
4 Immersion assembly 2 m, 90° offset + pendulum frame w. 250 mm wall spacing
9 Special version acc. to customer's specification
Additional equipment
A Quality certificate
Y Special version acc. to customer's specification
CSS70 - complete order code

Installation Stamosens CSM750/CSS70
8Endress+Hauser
3 Installation
3.1 Measuring system overview
3.1.1 Immersion
A complete measuring system comprises:
• Transmitter CSM750
•SensorCSS70
• An immersion assembly with pendulum frame
Optional:
• Cleaning unit with compressor
• Mounting post and weather protection cover
a0000954
Fig. 3: Complete measuring system
1
2
3
4
5
6
7
8
9
10
Transmitter CSM750
Weather protection cover
Compressor housing
(optional, only with cleaning unit)
Mounting post
Power supply
Signal outputs
Immersion assembly
Pendulum frame
Sensor CSS70
Cleaning unit (optional)
M CE EK
POWER
ON
OFF
1
2
3
4
5
6
7
8
9
10

Stamosens CSM750/CSS70 Installation
Endress+Hauser 9
3.1.2 Flow (bypass)
3.2 Incoming acceptance, transport, storage
• Make sure the packaging is undamaged!
Inform the supplier about damage to the packaging.
Keep the damaged packaging until the matter has been settled.
• Make sure the contents are undamaged!
Inform the supplier about damage to the delivery contents.
Keep the damaged products until the matter has been settled.
• Check that the scope of delivery is complete and agrees with your order and the shipping
documents.
• The packaging material used to store or to transport the product must provide shock protection
and humidity protection. The original packaging offers the best protection. Also, keep to the
approved ambient conditions (see "Technical data").
• If you have any questions, please contact your supplier or your sales center responsible.
a0004451
Fig. 4: Complete measuring system
1
2
3
4
Transmitter CSM750
Sensor wall bracket
Supply of calibration standard/cleaning agent (when
manually calibrating or cleaning)
Free outlet
5
6
7
8
9
Outlet
Flow assembly
Overpressure protection
Sensor CSS70
Power supply / signal output
M CE EK
POWER
ON
OFF
1
7
234
5
6
89

Installation Stamosens CSM750/CSS70
10 Endress+Hauser
3.3 Installation conditions
3.3.1 Design, dimensions
a0000949-en
Fig. 5: Transmitter dimensions
a0000950-en
Fig. 6: Sensor dimensions
241 / 9.49
198 / 7.80
329 / 12.95 185 / 7.28
60 / 2.36
60 / 2.36
69 / 2.72
26 / 1.02
145 / 5.79
15 / 0.59
212 / 8.35
198 / 7.80
145 / 5.71
15 / 0.59
115 / 4.53
mm / inch
Ø 127 / 5.0
G1½
360 / 14.17
mm / inch

Stamosens CSM750/CSS70 Installation
Endress+Hauser 11
a0003231-en
Fig. 7: Compressor of the cleaning unit
3.3.2 Sensor holders
"Caution!
Do not install the sensor suspended from the cable. Use a wall bracket or an immersion assembly
with pendulum frame for sensor mounting.
152 / 5.98
214 / 8.43
308 / 12.13
246 / 9.69
43 / 1.69
mm / inch

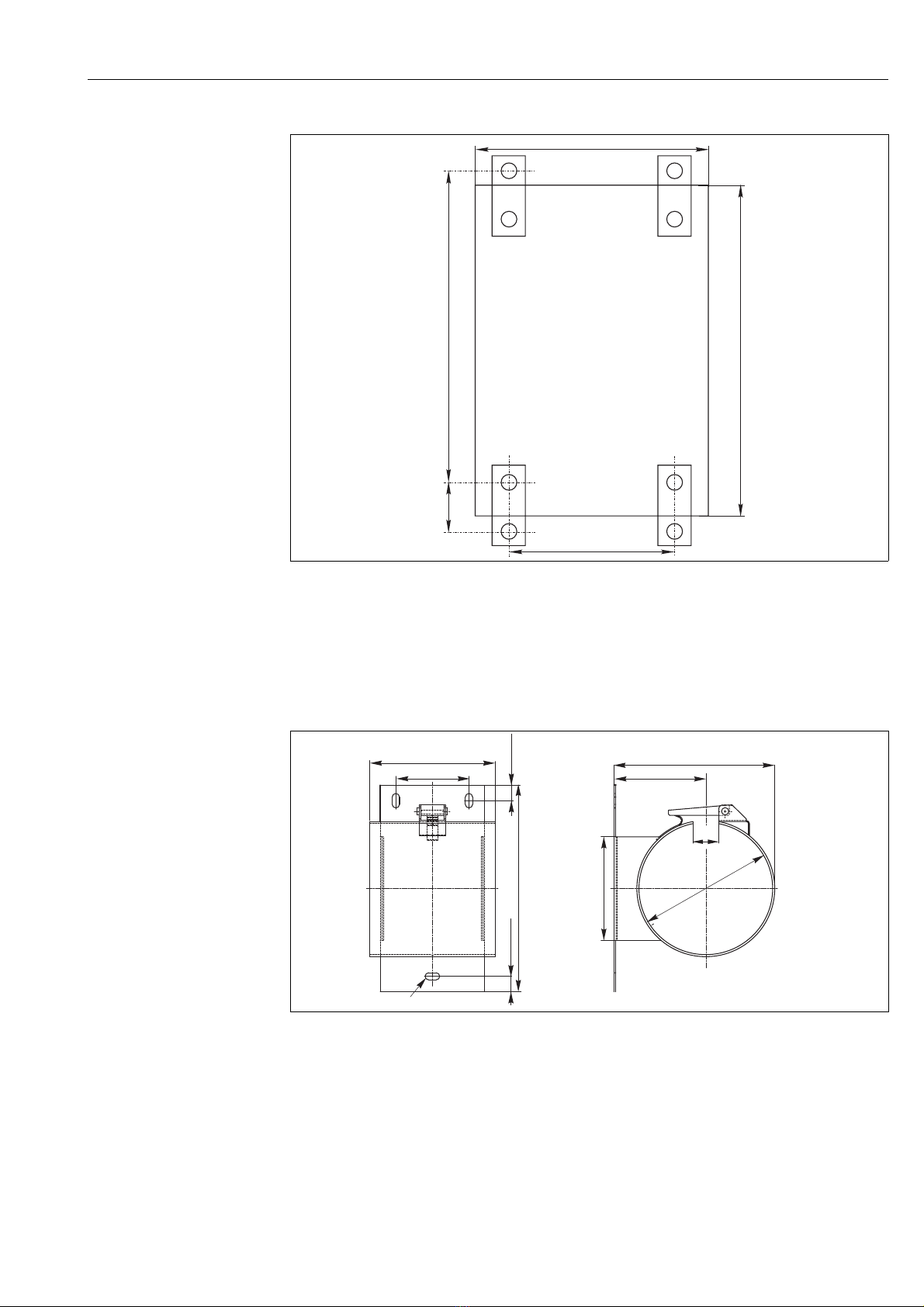

a0000927-en
Fig. 8: Wall bracket for sensor
200 / 7.87
100 / 3.94
15 / 0.59
120 / 4.72 154 / 6.06
70 / 2.76 88 / 3.43
25/
0.98
15 / 0.59
Ø7 x14 / 0.28x0.55
Ø128 / 5.04
mm/inch

Installation Stamosens CSM750/CSS70
12 Endress+Hauser

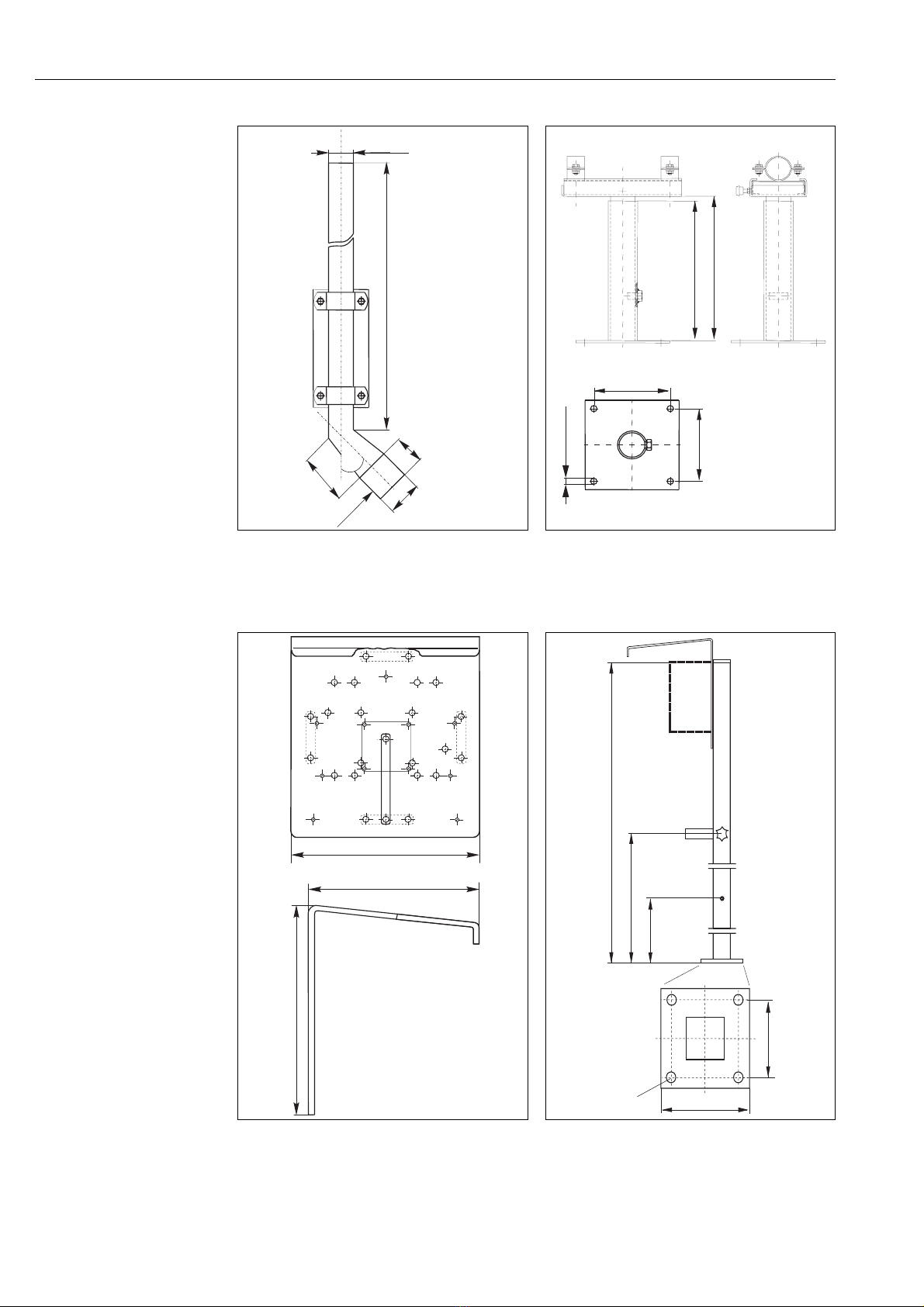

3.3.3 Weather protection cover and round post mount
a0000904-en
Fig. 9: Immersion assembly for sensor
a0000903-en
Fig. 10: Pendulum frame for immersion assembly
a0000928-en
Fig. 11: Weather protection cover CYY 101
a0000929-en
Fig. 12: Round post mount CYY 102
45°
50 /
1.97
55/2.17
R 1 1/2
65/
2.56
2000 / 78.74
Ø 40 / 1.57
mm/inch
130/5.12
130/5.12
258/10.16
250/9.84
Ø 11/0.43
270 / 10.63
320 / 12.60
300 / 11.81
mm / inch
150 / 5.91
120 / 4.72
450 / 17.72
950 / 37.40
1500 / 59.06
4 x Ø12 / 0.47
mm / inch

Stamosens CSM750/CSS70 Installation
Endress+Hauser 13

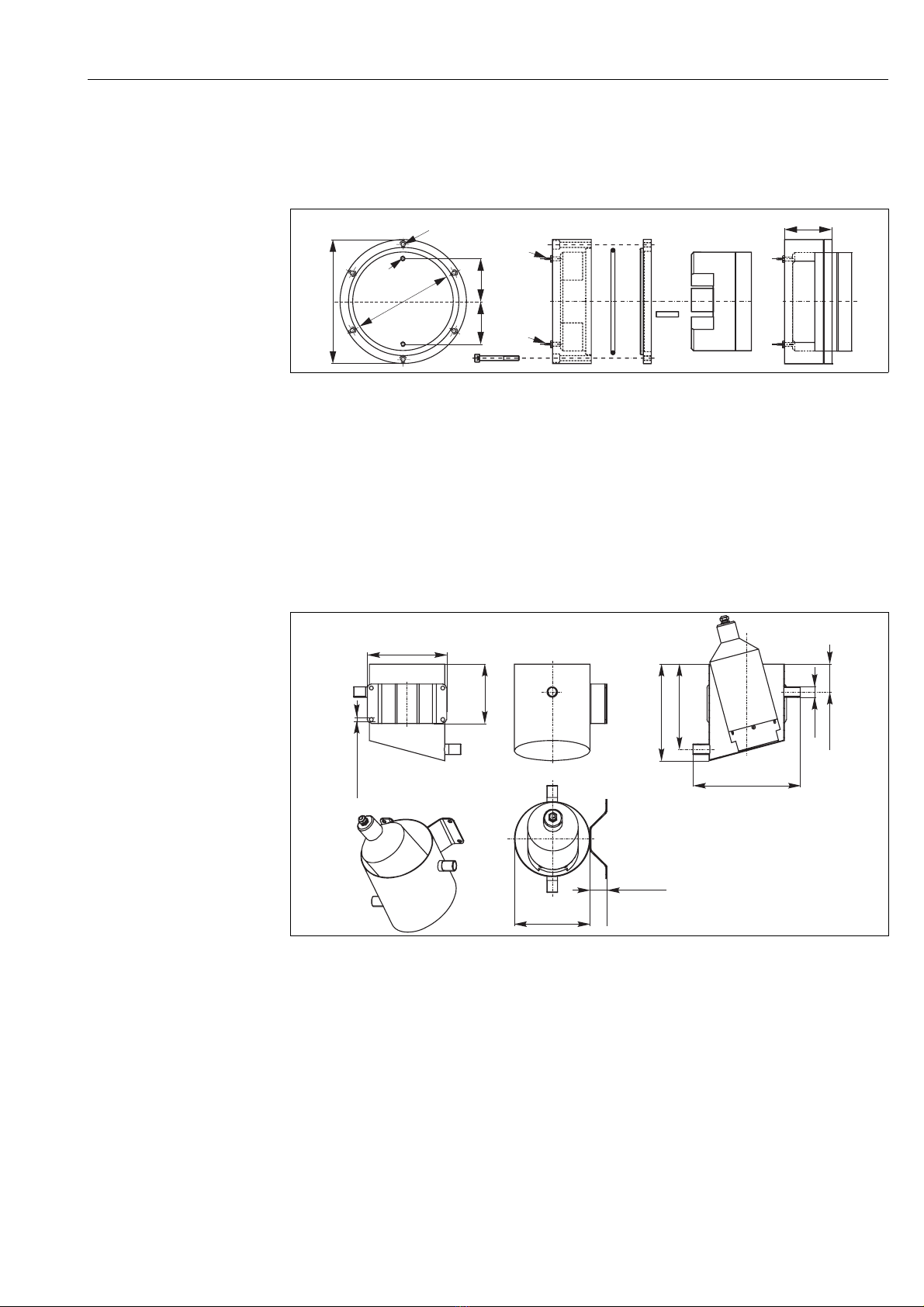

3.3.4 Flow assemblies
• Flow assembly for drinking water application,
with/without reduction of the dead volume, stainless steel 1.4571 (AISI 316 Ti) / PVDF;
a0000946-en
Fig. 13: Flow assembly
A Hose connection inlet
ID 1.6 mm (with dead volume reduction)
ID 6.4 mm (without dead volume reduction)
B Hose connection outlet
ID 1.6 mm (with dead volume reduction)
ID 6.4 mm (without dead volume reduction)
C Split pin for dead volume reduction
•Flowvessel,
open version; with inlet and outlet
a0000943-en
Fig. 14: Flow vessel
B
AC
127 / 5.0
160 / 6.30
50/1.97
G¼
Ø 6.6 / 0.26 60 / 2.36
50/1.97
mm / inch
200 / 7.87
150 / 5.91
4xØ10 / 0.39
244 / 9.61
215 / 8.46
280 / 11.02
R¾
70 / 2.76
40 / 1.57
Ø190 / 7.48 mm / inch

Installation Stamosens CSM750/CSS70
14 Endress+Hauser
• Flow assembly,
– with/without reduction of the dead volume and overpressure protection
– PVDF/PVC, without reduction of the dead volume, with stop valves and overpressure
protection
a0000942-en
Fig. 15: Flow assembly
3.4 Installation
• Select a measuring point where representative measurement can be taken. Do not mount the
sensor where medium flow is turbulent and fast-flowing.
• We recommend fitting the transmitter with a weather protection cover (see "Accessories").
• Attach the sensor to a special extension tube. Due to the weight of the sensor (approx. 5 kg), the
sensor cable does not provide sufficient support. Never carry the sensor by its cable.
• The best fixture is a pendulum frame which holds the sensor vibration-free.
• Install the system at an easily accessible position to prevent danger for the operating personnel
(during commissioning or when carrying out maintenance and cleaning work).
• Route all cable connections to prevent mechanical damage and interference from other lines.
• Install measuring channels of the sensor in the direction of flow to obtain a self-cleaning effect.
• The activated sludge version of the sensor is equipped with a cleaning unit which prevents soiling
or blocking due to particles by compressed air. For other applications with soiling contents, the
cleaning unit is available as an accessory. Install the air outflow of the cleaning unit at the narrow
side of the light slit.
3.5 Post-installation check
• After installation, check that all connections are fitted tightly and are leakage resistant.
• Check that the sensor is secured such that it is free of vibration and tension.
• Check whether all cables have been routed without damage or electromagnetic interference.
1
2
70 / 2.76 92 / 3.62
170 / 6.69
7 / 0.28
130 / 5.12
55/
2.17
DN10
DN10
G¾
179 / 7.05
88 / 3.46
mm / inch

Stamosens CSM750/CSS70 Wiring
Endress+Hauser 15
4 Wiring
4.1 Electrical connection
#Warning!
• The electrical connection must only be carried out by a certified electrician.
• Technical personnel must have read and understood the instructions in this manual and must
adhere to them.
• Ensure that there is no voltage at the power cable before beginning the connection work.
4.2 Terminal assignment
#Warning!
• Ensure before connection that the power supply voltage corresponds with the voltage specified
on the nameplate!
• A clearly marked power supply disconnecting device must be installed in the vicinity of the
instrument.
• Protect the transmitter by a 1 A fuse.
• Only switch the transmitter on when the sensor connector is plugged in and secured.
• Only plug in or remove the sensor connector when the transmitter is switched off.
a0000952
Fig. 16: Electrical connection transmitter with power supply 80 ... 250 V AC
a0000953
Fig. 17: Electrical connection transmitter with power supply 24 V AC/DC
Relais: Load/Last max. 250V~/2A, 30V=/1A
Supply / Netz:
80-250 V~
L
14101619
Shield/
Schirm
NO
NC
COM
713
Alarm 1/
GW 1
Hold
Error/
Störung
Cleaning/
Reinigung
Input /
Eingang
Output /
Ausgang
RS232 Alarm 2/
GW 2
N25111720 GND
22 RxD
814
36121821 CTS
23 TxD
915
T 500 mA
F1
Klemmen führen auch bei ausgeschaltetem Gerät Spannung !!!
51509157
Terminals voltage to ground even when the unit is switched off !!!
Sensor 1
+
-
24
2831
I1 I2
24V DC / 100mA
25
2932
27
+24V
+24V
26
0V
0V
3033
0/4-20 mA
Shield/
Schirm
Duo-
Version:
Sensor 2
+
-
Relais: Load/Last max. 250V~/2A, 30V=/1A
14101619
Shield/
Schirm
NO
NC
COM
713
Alarm 1/
GW 1
Hold
Error/
Störung
Cleaning/
Reinigung
Input /
Eingang
Output /
Ausgang
RS232 Alarm 2/
GW 2
25111720 GND
22 RxD
814
36121821 CTS
23 TxD
915 F1
51509391
Sensor 1
+
-
24
2831
I1 I2
24V DC / 100mA
25
2932
27
+24V
+24V
26
0V
0V
3033
0/4-20 mA
Shield/
Schirm
Duo-
Version:
Sensor 2
+
-
Supply voltage only 24V DC/AC !!!
Versorgungsspannung nur 24V DC/AC !!!
T2A
L
L
+
-

Wiring Stamosens CSM750/CSS70
16 Endress+Hauser
4.3 Inputs and outputs
4.3.1 Control input (+24 V)
!Note!
Use Ua(+24 V, terminal 26) to control the 24 V DC "INPUT". Then connect terminal 27 (0 V) and
terminal 24 (0 V).
4.3.2 Signal outputs
!Note!
Switching contacts are designed for low voltage 30 V DC / 1 A or power supply voltage
230 V AC / 2 A.
4.3.3 Analog output
4.4 Cleaning units
4.4.1 With integrated compressor
The cleaning unit is connected to the power supply. The transmitter is connected to the cleaning
unit according to the following table:
Output Terminals Function
24 V DC "INPUT" 24 / 25 Hold function, i.e. measurement is interrupted and the current
value in the display is frozen
Output Terminals Function
Alarm 1 7 / 8 / 9 Switches when alarm value 1 is exceeded or undershot
Alarm 2 4 / 5 / 6 Switches when alarm value 2 is exceeded or undershot
Hold 10 / 11 / 12 Measurement interrupted, values held
Fault 13 / 14 / 15 Error message can be retrieved via operating menu
Cleaning 16 / 17 / 18 Switch contact to clean sensor
Output Terminals Function
Sensor 1
0/4 mA
20 mA
31 / 32 / 33
Measuring range start
Measuring range end
Transmitter terminal Cleaning unit terminal Function
3 ()) PE Grounding for housing
1 (L) L1 Conductor
2 (N) N Zero conductor
16 1 Fuse
18 2

Stamosens CSM750/CSS70 Wiring
Endress+Hauser 17
#Warning!
Disconnect the device from the power supply before opening it. The connection contacts are live
even when the transmitter is switched off.
a0000951-en

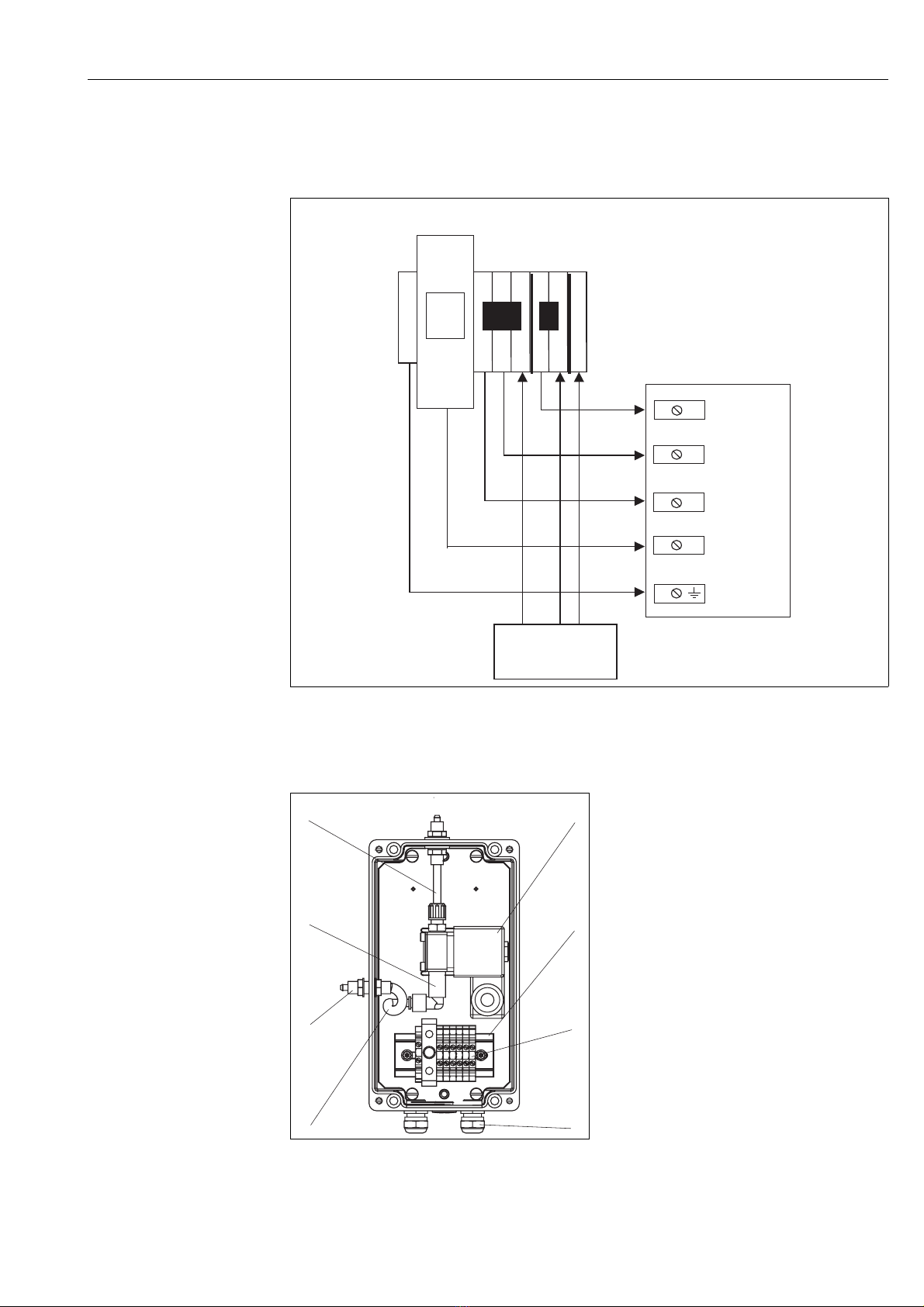

Fig. 18: Connection of the cleaning unit
4.4.2 Terminal housing for external compressed air
PE L1 N PE
T
1A
Transmitter
1
230V AC / 50Hz
115V AC / 60Hz
L
1
16
N2
3
18
Fuse
or
a0004457
Fig. 19: Terminal housing CSS70
1
2
3
4
5
6
7
8
Pneumatic hose, straight, 6/4 mm (0.24/0.16")
Screw-in bracket for pneumatics
Bulkhead gland SCK-PK-4-KU
Pneumatic hose, spiral, 6/4 mm (0.24/0.16")
Pneumatic valve
Mounting rail 80 mm (3.1")
Terminal block
Screw connections PG9
1
2
3
4
5
6
7
8

Wiring Stamosens CSM750/CSS70
18 Endress+Hauser
!Note!
The connection is the same as that of the cleaning unit with integrated compressor. The terminal
assignment can be found in the table or illustration in the previous chapter.
4.5 Serial interface
!Note!
• You need a zero modem cable (not a crossed).
• The interface configuration at the transmitter side is not necessary.
4.6 Post-connection check
RS 232 of the transmitter COM 1/2 at PC
Terminal SUB-D, 9-pin Function Function SUB-D, 9-pin
23 3 TxD RxD 2
22 2 RxD TxD 3
21 8 CTS RTS 7
CTS 8
20 5 GND GND 5
Software protocol: 9600, N, 8, 1
Output format: ASCII
Device status and specifications Note
Is the transmitter or cable externally undamaged? Visual inspection
Electrical connection Note
Does the supply voltage correspond to the data on the nameplate? 230 V AC / 50 Hz 115 V AC / 60 Hz
Are current outputs shielded and connected?
Are the mounted cables relieved of tension?
Cable type properly routed? Guide power supply and signal lines
separately over the entire travel distance.
Separate cable channels are ideal.
Cable routing without scuffing or crossovers?
Are power supply and signal lines connected correctly according to wiring
diagram?
Are all screw terminals tightened?
Are all cable entries mounted, tightened and leak-resistant?
Transmitter protected by a fuse? For specification see "Technical data"
Is a power supply disconnecting device available?

Stamosens CSM750/CSS70 Operation
Endress+Hauser 19
5Operation
5.1 Display and operating elements
a0000948-en
Fig. 20: Display and operating elements
1 LED (measured value)
2 LC display (status)
3Operatingkeys
4 Indicator LEDs
5 Power Supply switch
5.2 Local operation
The operating keys and the integrated indicator LEDs have the following functions:
M CE E K
ON
OFF
POWER
1
45
3
2
Meas. value
18.0 mg/l-N
Key Key function Indicator LED function
H– “Auto measuring” option
– back to the main menu from all sub-menus
Alarm value 1 exceeded
K– backwards in the sub-menu
(horizontal, see Appendix,)
Alarm value 2 exceeded
V– backwards in the main menu (vertical)
–increasevalue
Measuring range exceeded
W– forwards in the main menu (vertical)
–reducevalue
Measuring range undershot
F– select option
– adopt value, forwards in the sub-menu (horizontal)1)
1) By simultaneously pressing the Fkey and the Vor Wkey, the position after the decimal point can be changed.
Retrieve error message
J– selection in the sub-menu
– selection of +/- sign
Cleaning interval running

Operation Stamosens CSM750/CSS70
20 Endress+Hauser
5.2.1 Main menu
Access the main menu by holding down the Hkey until “MEASUREMENT” is displayed.
For the main menu options and information about them, please see the following table.
Option Display Info
MEASUREMENT
• Acquiring and displaying:
– the sensor signal
– the analog current
– the sensor frequency
• Setting the alarm value switches
• Displaying error messages
PARAMETER ENTRY
Setting the default values for:
• Measuring ranges
•Alarmvalues
• Cleaning
CALIBRATION POINTS Defining the number of calibration points
CONC. ENTRY Allocating the concentration values to the calibration
measuring points
FREQUENCY Allocating the frequencies to the measuring points from
the calibration
CONFIGURATION
Setting the default values for:
•Sensortype
• Measuring unit
• Correction factor
• Analog output (with sub-menu)
•Alarmvalues
• Error message
•Date,time
LANGUAGE Selecting menu language
DIAGNOSTICS Displaying error messages
SERVICE
• Manual measurement using a flash for service and test
purposes
• Manual activation of cleaning
DATA MEMORY Last 340 measured values with the time of their storage.
Only for service purposes.
MEASUREMENT
PARAMETER ENTRY
CALIBRATION PTS
FREQUENCY
CONFIGURATION
LANGUAGE
DIAGNOSTICS
SERVICE
DATA MEMORY
