Micropilot FMR50
FOUNDATION Fieldbus
Free space radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
KA01124F/00/EN/03.22-00
71575724
2022-08-01

Associated documentation Micropilot FMR50 FOUNDATION Fieldbus
2 Endress+Hauser
1 Associated documentation

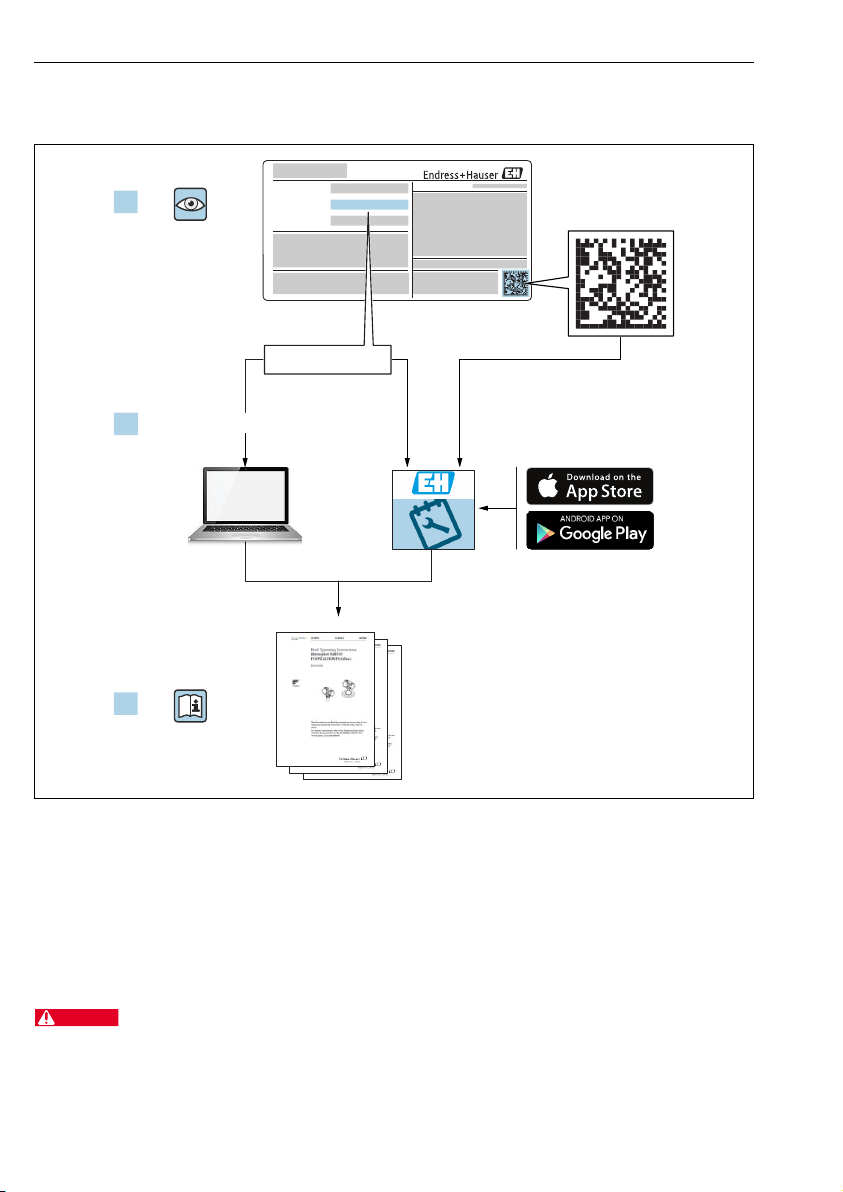

Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555
2 About this document
2.1 Symbols used
2.1.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.

Micropilot FMR50 FOUNDATION Fieldbus About this document
Endress+Hauser 3
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
2.1.2 Electrical symbols
Protective earth (PE)
Ground terminals that must be connected to ground prior to establishing any other
connections.
The ground terminals are located on the inside and outside of the device.
• Interior ground terminal; protective earth is connected to the mains supply.
• Exterior ground terminal; device is connected to the plant grounding system.
2.1.3 Tool symbols
Tool symbols
Flat-blade screwdriver
Allen key
Open-ended wrench
2.1.4 Symbols for certain types of information and graphics
Permitted
Procedures, processes or actions that are permitted
Forbidden
Procedures, processes or actions that are forbidden
Tip
Indicates additional information
Reference to documentation
Reference to graphic
Notice or individual step to be observed

Basic safety instructions Micropilot FMR50 FOUNDATION Fieldbus
4 Endress+Hauser
1.
,
2.
,
3.
Series of steps
Result of a step
Visual inspection
1, 2, 3, ...
Item numbers
A, B, C, ...
Views
3 Basic safety instructions
3.1 Requirements for the personnel
Personnel must meet the following requirements to perform their tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Personnel must be authorized by the plant owner/operator.
‣They must be familiar with national regulations.
‣Before starting work, personnel must read and understand the instructions in the manual
and supplementary documentation as well as the certificates (depending on the
application).
‣They must follow instructions and comply with general policies.
3.2 Intended use
Application and media
The measuring device described in these Operating Instructions is intended for continuous,
non-contact level measurement in liquids, pastes and sludges. Due to its operating frequency
of approx. 26 GHz, a maximum radiated pulsed power of 5.7 mW and an average power
output of 0.015 mW(for the version with advanced dynamics: maximum pulsed power:
23.3 mW; average power output: 0.076 mW), the device can also be used without restrictions
outside closed metal vessels (for example, above basins, open channels or heaps). Operation is
completely harmless to humans and animals.
If the limit values specified in the "Technical data" and the conditions listed in the instructions
and additional documentation are observed, the measuring device may be used only for the
following measurements:
‣Measured process variables: level, distance, signal strength
‣Calculated process variables: volume or mass in vessels of any shape; flow rate through
measuring weirs or channels (calculated based on the level using the linearization
functionality)

Micropilot FMR50 FOUNDATION Fieldbus Basic safety instructions
Endress+Hauser 5
To ensure that the measuring device remains in proper condition for the operation time:
‣Use the measuring device only for media to which the process-wetted materials are
sufficiently resistant.
‣Observe the limit values in the "Technical data".
Incorrect use
The manufacturer is not liable for damage caused by using the device incorrectly or for
purposes for which it was not intended.
Clarification in the case of borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability.
Residual risks
Due to heat transfer from the process as well as power loss in the electronics, the temperature
of the electronics housing and the assemblies contained therein (e.g. display module, main
electronics module and I/O electronics module) may rise up to 80 °C (176 °F). When in
operation, the sensor may reach a temperature close to the medium temperature.
Danger of burns from contact with surfaces!
‣In the event of elevated fluid temperatures, ensure protection against contact to prevent
burns.
3.3 Workplace safety
When working on and with the device:
‣Wear the required personal protective equipment as per national regulations.
3.4 Operational safety
Risk of injury!
‣Operate the device only if it is in proper technical condition, free from errors and faults.
‣The operator is responsible for ensuring trouble-free operation of the device.
Hazardous area
To eliminate danger to persons or the facility when the device is used in the hazardous area
(e.g. explosion protection):
‣Check the nameplate to verify if the device ordered can be put to its intended use in the
hazardous area.
‣Observe the specifications in the separate supplementary documentation that is an integral
part of these instructions.
3.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate. It meets the general safety standards and legal requirements.

Incoming acceptance and product identification Micropilot FMR50 FOUNDATION Fieldbus
6 Endress+Hauser
NOTICE
Loss of degree of protection by opening of the device in humid environments
‣If the device is opened in a humid environment, the degree of protection indicated on the
nameplate is no longer valid. This may also impair the safe operation of the device.
3.5.1 CE mark
The measuring system meets the legal requirements of the applicable EU directives. These are
listed in the corresponding EU Declaration of Conformity together with the standards applied.
The manufacturer confirms successful testing of the device by affixing to it the CE mark.
3.5.2 EAC conformity
The measuring system meets the legal requirements of the applicable EAC guidelines. These
are listed in the corresponding EAC Declaration of Conformity along with the standards
applied.
The manufacturer confirms successful testing of the device by affixing to it the EAC mark.
4 Incoming acceptance and product identification
4.1 Incoming acceptance
Check the following during incoming acceptance:
• Are the order codes on the delivery note and the product sticker identical?
• Are the goods undamaged?
• Does the data on the nameplate match the order specifications on the delivery note?
• Is the DVD with the operating tool present?
If required (see nameplate), have the Safety Instructions (XA) been provided?
If one of these conditions is not met, please contact your Endress+Hauser sales office.
4.2 Storage and transport
4.2.1 Storage conditions
• Permitted storage temperature: –40 to +80 °C (–40 to +176 °F)
• Use original packaging.

Micropilot FMR50 FOUNDATION Fieldbus Incoming acceptance and product identification
Endress+Hauser 7
4.2.2 Transporting the product to the measuring point

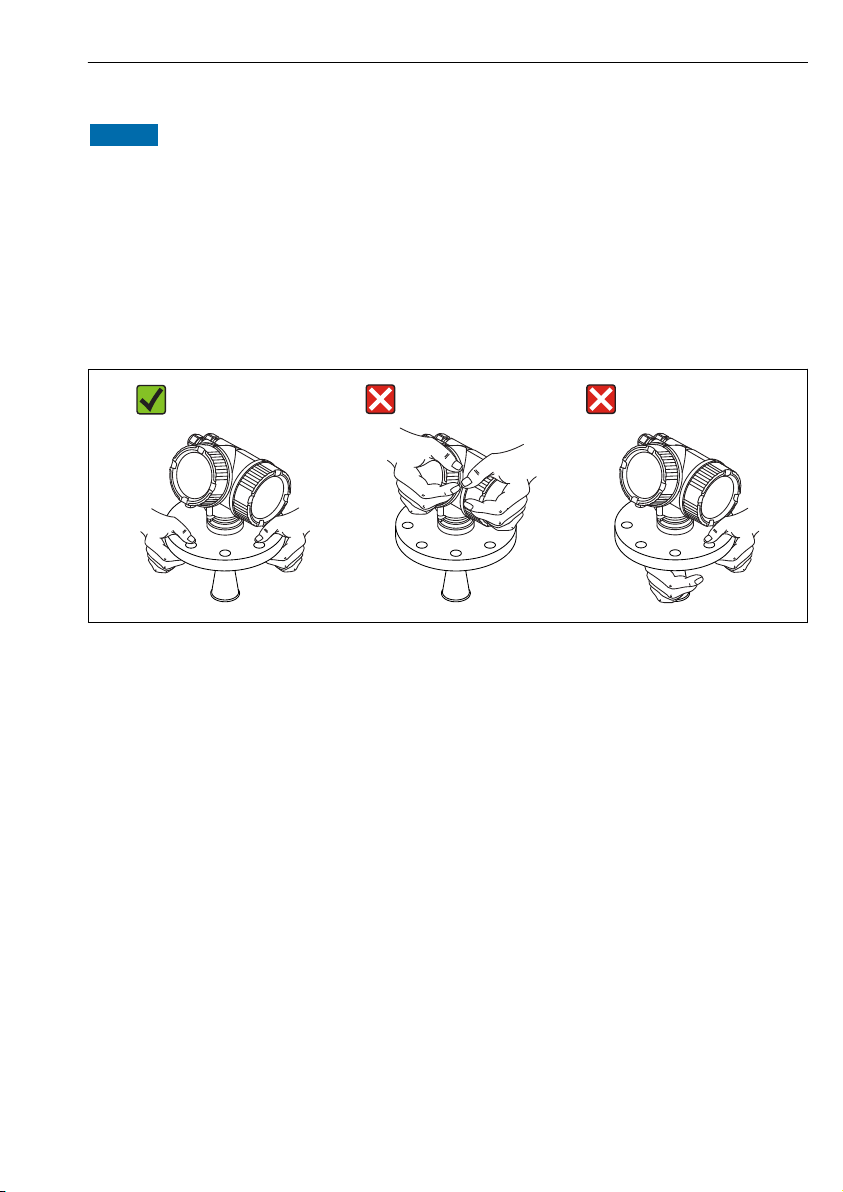

NOTICE
Housing or antenna horn may become damaged or break off.
Risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or by the
process connection.
‣Always secure lifting equipment (slings, eyes, etc.) to the process connection and never to
the electronic housing or antenna horn. Pay attention to the center of gravity of the device
so that it does not tilt or slip unintentionally.
‣Follow the safety instructions and transport conditions for devices over 18 kg (39.6 lbs),
(IEC61010).
A0016875

Mounting Micropilot FMR50 FOUNDATION Fieldbus
8 Endress+Hauser
5 Mounting
5.1 Mounting location
A
123
A0016882
A Recommended distance from wall to nozzle outer edge ~ 1/6 of the vessel diameter. However, the
device must not under any circumstances be mounted closer than 15 cm (5.91 in) to the tank wall.
1 Use of a weather protection cover; protection from direct sunlight or rain
2 Installation in the center, interference can cause signal loss
3 Do not install above the filling curtain

Micropilot FMR50 FOUNDATION Fieldbus Mounting
Endress+Hauser 9
5.2 Orientation
5.3 Internal vessel fittings
α
A0018944

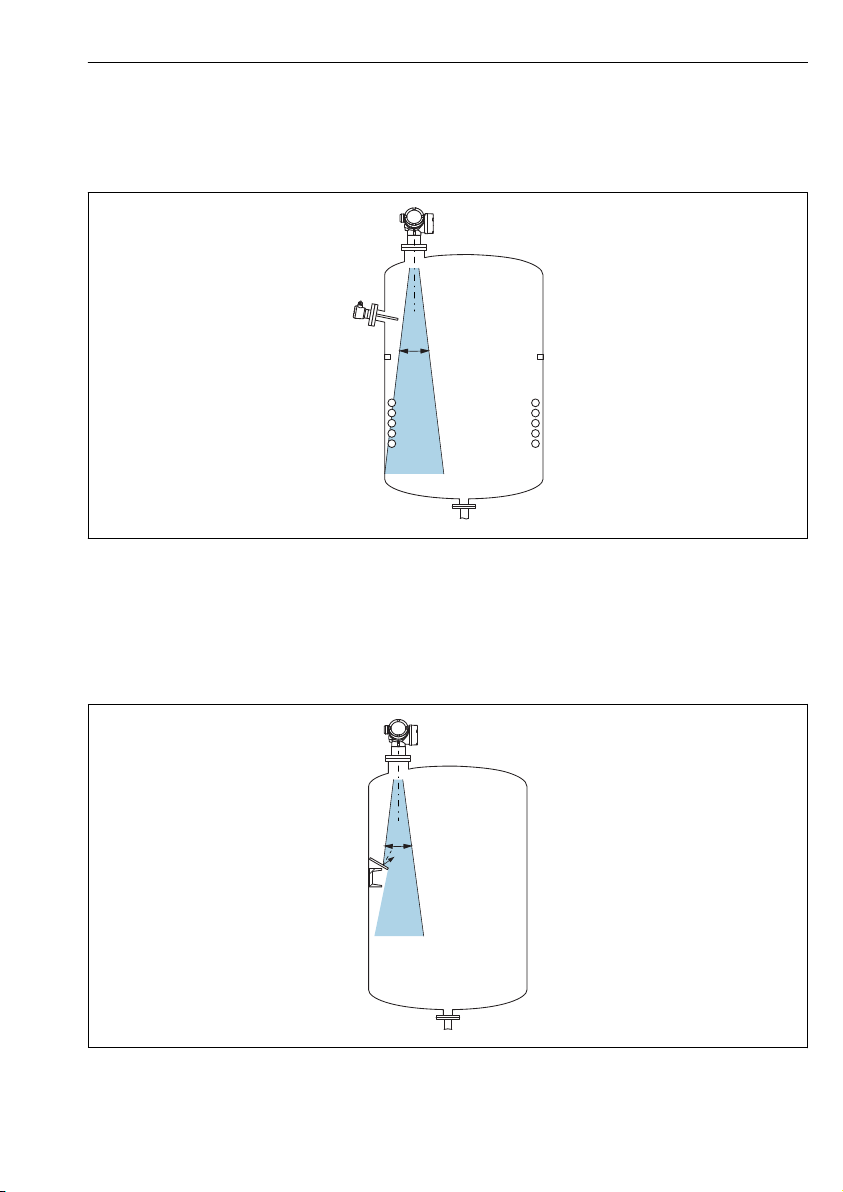

Avoid the location of internal fittings (limit switches, temperature sensors, struts, vacuum
rings, heating coils, baffles etc.) inside the signal beam. Take into account the beam angle.
5.4 Avoiding interference echoes
α
A0016890

Mounting Micropilot FMR50 FOUNDATION Fieldbus
10 Endress+Hauser
Metal orifice plates installed at an angle to scatter the radar signals help prevent interference
echoes.
5.5 Beam angle
The beam angle is defined as the angle α at which the energy density of the radar waves
reaches half the value of the maximum energy density (3dB width). Microwaves are also
emitted outside the signal beam and can be reflected off interfering installations.
a
D
W
a
D_
=2
2. . tan
W
A0016891
 1 Relationship between beam angle α, distance D and beam diameter W
The beamwidth diameter W depends on the beam angle α and the distance D.

Micropilot FMR50 FOUNDATION Fieldbus Mounting
Endress+Hauser 11
FMR50
Antenna size 40 mm (1½ in) 80 mm (3 in) 100 mm (4 in)
Beam angle α 23° 10° 8°
Distance (D) Beam diameter W
3 m (9.8 ft) 1.22 m (4 ft) 0.53 m (1.7 ft) 0.42 m (1.4 ft)
6 m (20 ft) 2.44 m (8 ft) 1.05 m (3.4 ft) 0.84 m (2.8 ft)
9 m (30 ft) 3.66 m (12 ft) 1.58 m (5.2 ft) 1.26 m (4.1 ft)
12 m (39 ft) 4.88 m (16 ft) 2.1 m (6.9 ft) 1.68 m (5.5 ft)
15 m (49 ft) 6.1 m (20 ft) 2.63 m (8.6 ft) 2.10 m (6.9 ft)
20 m (66 ft) 8.14 m (27 ft) 3.50 m (11 ft) 2.80 m (9.2 ft)
25 m (82 ft) 10.17 m (33 ft) 4.37 m (14 ft) 3.50 m (11 ft)
30 m (98 ft) - 5.25 m (17 ft) 4.20 m (14 ft)
35 m (115 ft) - 6.12 m (20 ft) 4.89 m (16 ft)
40 m (131 ft) - 7.00 m (23 ft) 5.59 m (18 ft)
5.6 Free-space installation in vessel

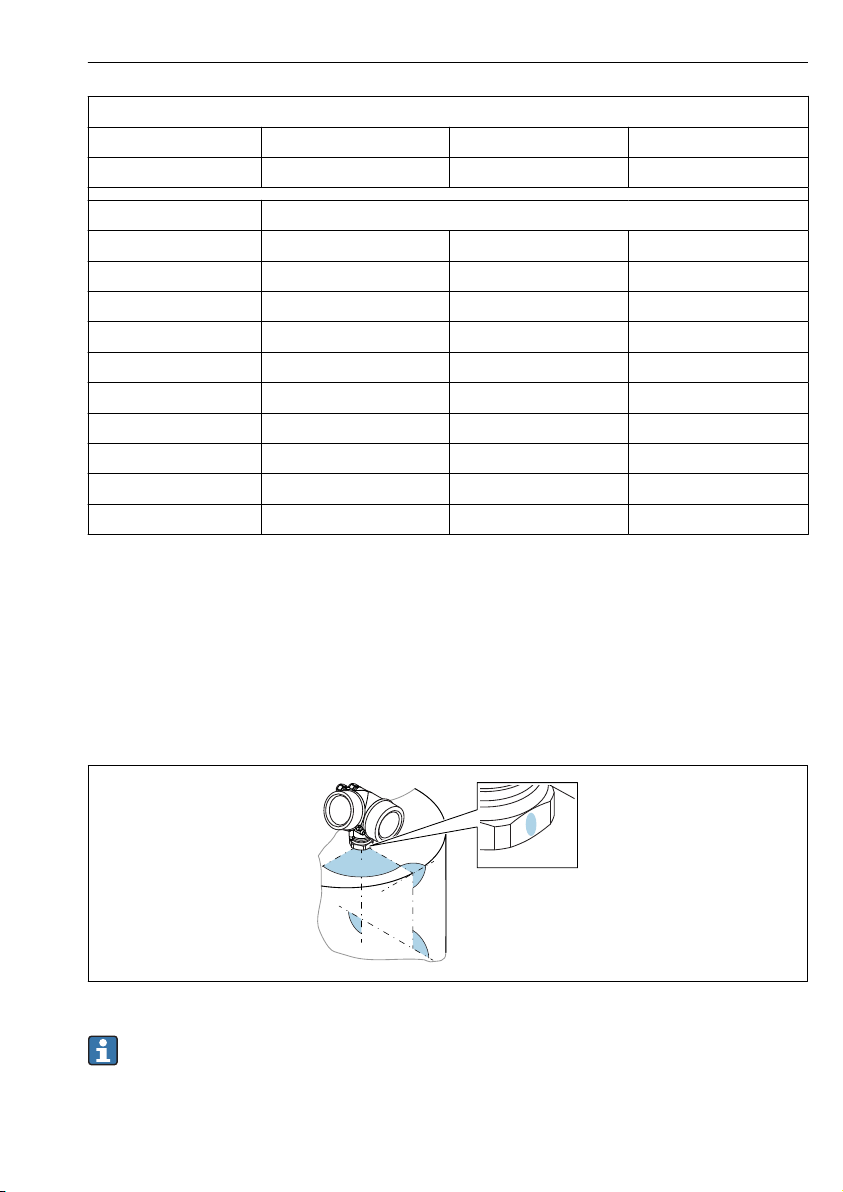

5.6.1 Horn antenna encapsulated (FMR50)
Alignment
• Align the antenna perpendicular to the product surface.
• A marking is provided on the threaded connection to aid the alignment. This marking must
be aligned towards the tank wall as much as possible.
90°
90°
90°
90°
90°
A0019434
Depending on the device version the marking may be a circle or two parallel lines.

Mounting Micropilot FMR50 FOUNDATION Fieldbus
12 Endress+Hauser
Information concerning nozzles
To ensure optimum measurement, the antenna should protrude from the nozzle. The
maximum nozzle height is Hmax = 60 mm (2.36 in).
Hmax
A0016806
 2 Nozzle height with encapsulated horn antenna (FMR50); Hmax = 60 mm (2.36 in)
Conditions for longer nozzles
If the medium has good reflective properties, higher nozzles are also possible. The maximum
nozzle length Hmax depends on the nozzle diameter D:
øD
Hmax
A0023612
D Hmax
40 mm (1.5 in) 200 mm (7.9 in)
50 mm (2 in) 250 mm (9.9 in)
80 mm (3 in) 300 mm (11.8 in)
100 mm (4 in) 400 mm (15.8 in)
150 mm (6 in) 500 mm (19.7 in)
Note the following if the antenna does not project out of the nozzle:
• The end of the nozzle must be smooth and free from burrs. The edge of the nozzle
should be rounded if possible.
• Mapping must be performed.
• Please contact Endress+Hauser for applications with nozzles that are higher than
indicated in the table.

Micropilot FMR50 FOUNDATION Fieldbus Mounting
Endress+Hauser 13
Information concerning threaded connections
• Tighten by the hexagonal nut only.
• Tool: open-ended wrench 50 mm
• Maximum permissible torque: 35 Nm (26 lbf ft)
5.7 Container with heat insulation
1
2
A0032207
If process temperatures are high, the device should be included in the usual container
insulation system (2) to prevent the electronics from heating as a result of thermal radiation
or convection. The insulation should not be higher than the neck of the device (1).
5.8 Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
max. 350°
8 mm
8 mm
2. 3.1.
A0032242
1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or
stainless steel housing).

Mounting Micropilot FMR50 FOUNDATION Fieldbus
14 Endress+Hauser
5.9 Turning the display
5.9.1 Opening the cover
2.
1.
3 mm
A0021430
1. Loosen the screw of the securing clamp of the electronics compartment cover using an
Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
2. Unscrew the electronics compartment cover and check the cover seal; replace it if
necessary.
5.9.2 Turning the display module
1.
2.
A0036401
1. Pull out the display module with a gentle rotational movement.
2. Turn the display module to the desired position: Max. 8 × 45 ° in each direction.
3. Feed the coiled cable into the gap between the housing and main electronics module
and plug the display module into the electronics compartment until it engages.

Micropilot FMR50 FOUNDATION Fieldbus Electrical connection
Endress+Hauser 15
5.9.3 Closing the cover of the electronics compartment
1.
2. 2.5 Nm
3 mm
A0021451
1. Screw down the cover of the electronics compartment.
2. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm),
tighten the screw of the securing clamp on the electronics compartment cover with
2.5 Nm.
6 Electrical connection
6.1 Connecting requirements
6.1.1 Terminal assignment

Electrical connection Micropilot FMR50 FOUNDATION Fieldbus
16 Endress+Hauser
Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
A
1
+
2
-
3
+
4
-
B
1
+
2
-
3
+
4
-
1
3
55
2
4
A0036500
 3 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus
A Without integrated overvoltage protection
B With integrated overvoltage protection
1 Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated
overvoltage protection
2 Connection, switch output (open collector): terminals 3 and 4, without integrated overvoltage
protection
3 Connection, switch output (open collector): terminals 3 and 4, with integrated overvoltage protection
4 Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, with integrated overvoltage
protection
5 Terminal for cable shield
Block diagram PROFIBUS PA / FOUNDATION Fieldbus
+
+
-
-Y
I
23
1
2
3
4
1
4
A0036530
 4 Block diagram PROFIBUS PA / FOUNDATION Fieldbus
1 Cable screen; observe cable specification
2 Connection PROFIBUS PA / FOUNDATION Fieldbus
3 Measuring device
4 Switch output (open collector)
6.1.2 Device plug
In the case of the device versions with a plug, the housing does not need to be opened to
connect the signal cable.

Micropilot FMR50 FOUNDATION Fieldbus Electrical connection
Endress+Hauser 17
4
2
3
1
A0011176
 5 Pin assignment of 7/8" plug
1 Signal -
2 Signal +
3 Not assigned
4 Shielding
6.1.3 Supply voltage
PROFIBUS PA, FOUNDATION Fieldbus
"Power supply; output" 1) "Approval" 2) Terminal voltage
E: 2-wire; FOUNDATION Fieldbus, switch output
G: 2-wire; PROFIBUS PA, switch output
• Non-Ex
• Ex nA
• Ex nA(ia)
• Ex ic
• Ex ic(ia)
• Ex d(ia) / XP
• Ex ta / DIP
• CSA GP
9 to 32 V 3)
• Ex ia / IS
• Ex ia + Ex d(ia) / IS + XP
9 to 30 V 3)
1) Feature 020 in the product structure
2) Feature 010 in the product structure
3) Input voltages up to 35 V do not damage the device.
Polarity-dependent No
FISCO/FNICO compliant
according to IEC 60079-27
Yes

Electrical connection Micropilot FMR50 FOUNDATION Fieldbus
18 Endress+Hauser
6.2 Connecting the device
LWARNING
Explosion Hazard!
‣Observe applicable national standards.
‣Comply with the specifications in the Safety Instructions (XA).
‣Use specified cable glands only.
‣Check to ensure that the power supply matches the information on the nameplate.
‣Switch off the power supply before connecting the device.
‣Connect the potential matching line to the outer ground terminal before applying the
power supply.
Required tools/accessories:
• For devices with a cover lock: Allen key AF3
• Wire stripper
• When using stranded cables: One ferrule for every wire to be connected.
6.2.1 Opening cover
2.
1. 3 mm
A0021490

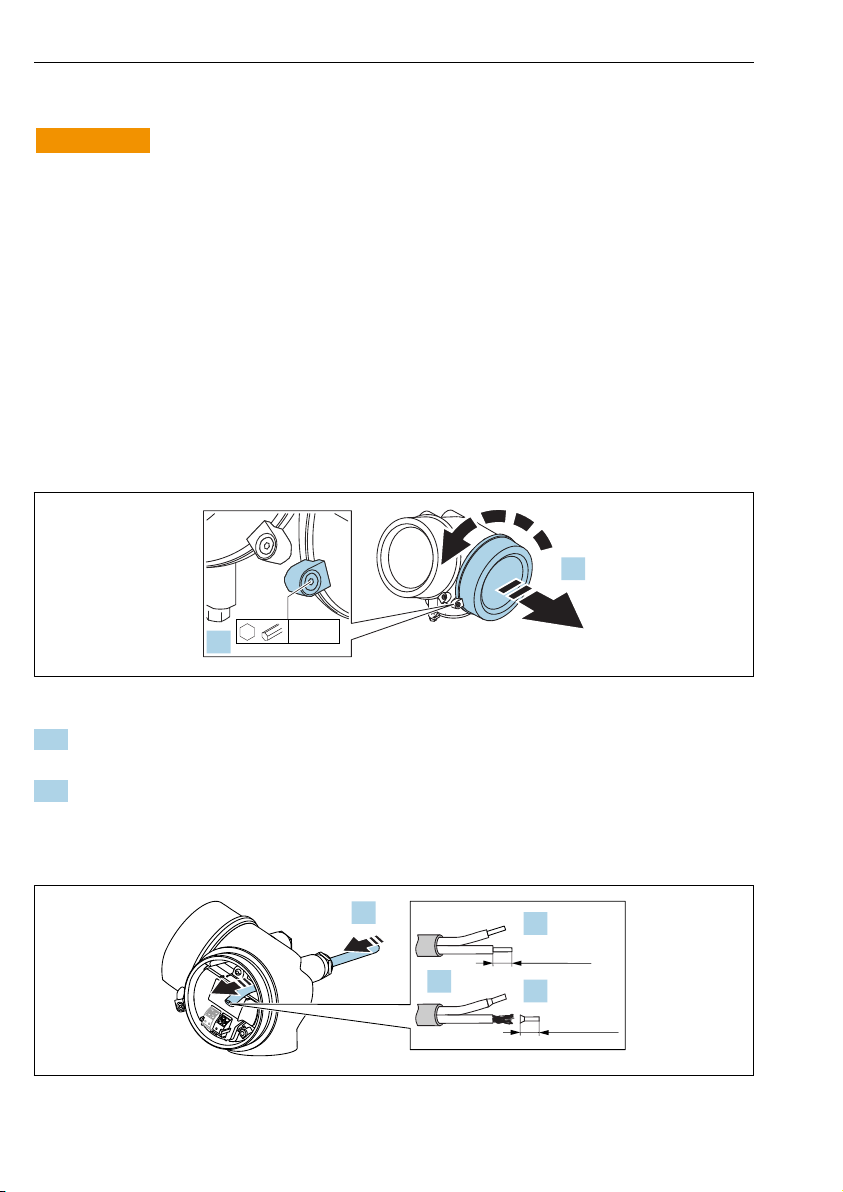

1. Loosen the screw of the securing clamp of the connection compartment cover using an
Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
2. Unscrew the connection compartment cover and check the cover seal; replace it if
necessary.
6.2.2 Connecting
1. 3.
2. 3.
10 (0.4)
10 (0.4)
A0036418
 6 Engineering unit: mm (in)

Micropilot FMR50 FOUNDATION Fieldbus Electrical connection
Endress+Hauser 19
1. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
2. Remove the cable sheath.
3. Strip the cable ends 10 mm (0.4 in). In the case of stranded cables, also fit ferrules.
4. Firmly tighten the cable glands.
5. Connect the cable according to the terminal assignment.

2
1
4
3
2
1
4
3
A0034682
6. If using shielded cables: Connect the cable shield to the ground terminal.
6.2.3 Plug-in spring-force terminals
The electrical connection of device versions without an integrated overvoltage protection is via
plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can be
inserted directly into the terminal without using the lever, and create a contact automatically.
≤ 3 (0.12)
1. 2.
A0013661
 7 Engineering unit: mm (in)
To remove the cable from the terminal again:
1. Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal
holes
2. Simultaneously pull the cable end out of the terminal.

Integration into a FOUNDATION Fieldbus network Micropilot FMR50 FOUNDATION Fieldbus
20 Endress+Hauser
6.2.4 Closing the cover of the connection compartment
1.
2. 2,5 Nm
3 mm
A0021491

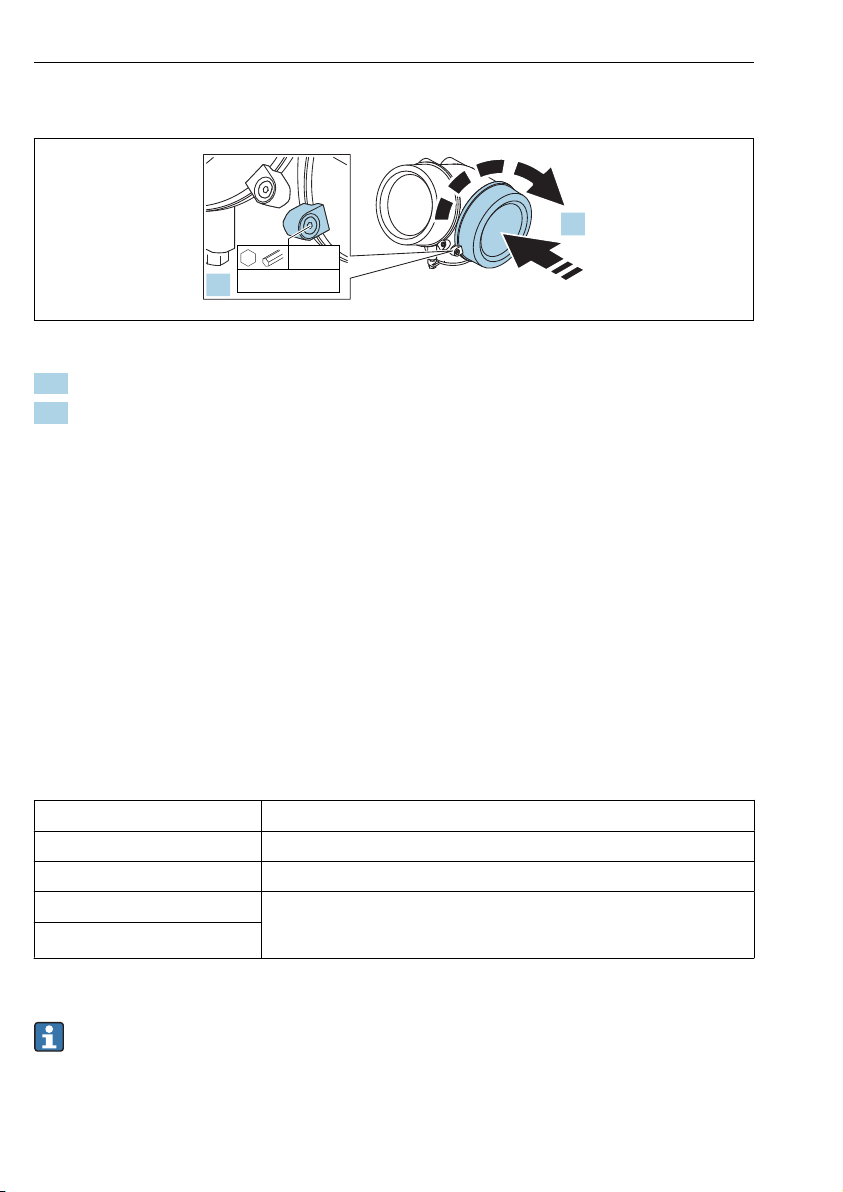

1. Screw down the cover of the connection compartment.
2. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm),
tighten the screw of the securing clamp on the connection compartment cover with
2.5 Nm.
7 Integration into a FOUNDATION Fieldbus network
7.1 Device description file (DD)
You require the following to configure a device and integrate it into an FF network:
• An FF configuration program
• The Cff file (Common File Format: *.cff)
• The device description (DD) is in one of the following formats:
• Device description format 4 : *sym, *ffo
• Device description format 5 : *sy5, *ff5
Data for device-specific DD
Manufacturer ID 0x452B48
Device type 0x1028
Device revision 0x01
DD Revision Information and files available at:
•www.endress.com
•www.fieldcommgroup.org
CFF Revision
7.2 Integration into the FF network
• For more in-depth information on integrating the device into the FF system, see the
description for the configuration software used.
• When integrating the field devices into the FF system, make sure you are using the
right files. You can read out the required version by means of the Device Revision/
DEV_REV and DD Revision/DD_REV parameters in the Resource Block.
