Operating manual
Thermophant T TTR 31, TTR 35
Temperature switch

Thermophant T
2 Endress+Hauser
Table of contents
1 Safety instructions. . . . . . . . . . . 3
1. 1 Designated use . . . . . . . . . . . . . . . . . . . . . . 3
1. 2 Installation, commissioning and operation . . 3
1. 3 Operational safety . . . . . . . . . . . . . . . . . . . . 3
1. 4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Device identification . . . . . . . . . 4
2. 1 Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Installation . . . . . . . . . . . . . . . . 5
3. 1 Incoming acceptance, storage . . . . . . . . . . . 5
3. 2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 5
3. 3 Process connection . . . . . . . . . . . . . . . . . . . 6
3. 4 Installation instructions . . . . . . . . . . . . . . . 7
4 Wiring . . . . . . . . . . . . . . . . . . . . 8
4. 1 DC voltage version with M12 connector . . . 8
4. 2 DC voltage version with valve connector . . 8
5 Operation . . . . . . . . . . . . . . . . . 9
5. 1 On-site operation . . . . . . . . . . . . . . . . . . . . 9
5. 2 Operation with PC and Readwin® 2000 . 16
6 Accessories . . . . . . . . . . . . . . . 18
6. 1 Adapter concept for TTR 35 . . . . . . . . . . . 18
6. 2 Welding bosses and coupling . . . . . . . . . 20
6. 3 Electrical connection . . . . . . . . . . . . . . . . 21
6. 4 Configuration kit . . . . . . . . . . . . . . . . . . . 22
7 Trouble-shooting. . . . . . . . . . . 23
7. 1 Errors and warnings . . . . . . . . . . . . . . . . 23
7. 2 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . 24
7. 3 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7. 4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7. 5 Change status (release) . . . . . . . . . . . . . . . 24
7. 6 Release history . . . . . . . . . . . . . . . . . . . . 24
8 The most important
technical data . . . . . . . . . . . . . 25
8. 1 Power supply . . . . . . . . . . . . . . . . . . . . . . 25
8. 2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8. 3 Operating conditions . . . . . . . . . . . . . . . . 25
9 Dangerous good sheet . . . . . . .27

Thermophant T Safety instructions
Endress+Hauser 3
1 Safety instructions
1. 1 Designated use
The Thermophant T is a temperature switch for monitoring, displaying and regulating process
temperatures. The device has been safely built with state-of-the-art technology and meets the
applicable requirements and EC Directives. It can, however, be a source of danger if used incor-
rectly or for anything other than the designated use.
1. 2 Installation, commissioning and operation
Installation, electrical connection, commissioning, operation and maintenance of the measuring
system must be carried out by trained, qualified specialists authorised to perform such work by
the facility's owner-operator. The specialist must have read and understood these Operating In-
structions and must follow the instructions they contain. The device may only be modified and
repair work carried out if this is explicitly permitted in the Operating Instructions. Damaged de-
vices which could be a source of danger may not be commissioned and must be labelled and
identified as defective.
1. 3 Operational safety
• Functional safety
The Thermophant T temperature switches were developed according to the standards IEC
61508 and IEC 61511-1 (FDIS). The device version with PNP switch output and additional
analog output is equipped with fault detection and fault prevention facilities within the elec-
tronics and software. This device version can therefore be used to monitor temperature up to
SIL 2 (Safety Integrity Level).
• Ex-area
The Thermophant T is not approved for use in Ex-areas.
1. 4 Return
The following procedures must be carried out before a device is returned to Endress+Hauser:
• Always enclose a fully completed “Declaration of Contamination” form with the device. Only
then can Endress+Hauser transport and examine a returned device. A copy of the “Declara-
tion of Contamination” can be found on the second last page of these Operating Instructions.
• Remove all fluid residues. This is particularly important if the fluid is hazardous to health, e.g.
flammable, toxic, caustic, carcinogenic, etc.
#
Warning!
Do not return a measuring device if you are not absolutely certain that all traces of hazardous
substances have been removed, e.g. substances which have penetrated crevices or diffused
through plastic.

Device identification Thermophant T
4Endress+Hauser
2 Device identification
2. 1 Nameplate
To identify your device, compare the complete order code and the version information on the
delivery papers with the data on the nameplate.
T09-TTR31xxx-18-xx-xx-xx-000
Fig. 1: Nameplate for device identification (as example)
!
Note!
• The release number indicates the change status of the device. A change in the last two figures
does not have any affect on the compatibility - see also →Chap. 7.
mOrder code rConnection diagram
nSerial number sMeasuring range
oTAG number tAmbient temperature
pRelease number (change status) uDegree of protection
qConnection values vApprovals

Thermophant T Installation
Endress+Hauser 5
3 Installation
3. 1 Incoming acceptance, storage
• Incoming acceptance:
Check the packaging and the device for damage. Check that the goods delivered are complete
and nothing is missing.
• Storage:
Storage temperature −40 °C to +85 °C.
3. 2 Dimensions
T09-TTR31xxx-06-xx-xx-xx-000
Fig. 2: Dimensions in mm
Version L in 100 and 200 mm, version L* = 50 mm with reduced sensor tip
M 12x1.5 connector as per IEC 60947-5-2
M 16x1.5 or ½ NPT valve plug as per DIN 43650A/ISO 4400

Installation Thermophant T
6Endress+Hauser
3. 3 Process connection
The following table illustrates the versions of Thermophant T.
TTR 31 TTR 35
T09-TTR31xxx-17-xx-xx-xx-000
Field of applica-
tion
Monitoring, display and control of process temperatures Monitoring, display and con-
trol of process temperatures
in hygienic processes
Process connec-
tion
Item A
Version without proc-
ess connection (’w’).
Suitable welding
bosses and coupling
(see Section 6)
Item B
Version with thread
process connection
ANSI ¼" NPT
(m= AF14) and
½" NPT (m= AF27)
Item C
Version with thread
process connection
G ¼A (n= AF14) and
G ½A (n= AF27) as
per ISO 228
Item D
Adapter concept - version
with M24x1.5 thread for
adapters with process con-
nection for hygienic processes
(see Section 6.1.2)
Sensor length L Version L in 100 and 200 mm, version L = 50 mm only with reduced sensor tip
Measuring range -50 °C to +150 °C -50 °C to +150 °C

Thermophant T Installation
Endress+Hauser 7
3. 4 Installation instructions
T09-TTR31xxx-11-00-xx-xx-000
Fig. 3: Possible installation options for temperature monitoring in pipes
mTTR 31
nTTR 35 for use in hygienic processes
Mounting instructions:
• Installation at angle pieces, against the direction of flow (Fig. 3, Item A)
• Installation in smaller pipes, inclined against the direction of flow (Fig. 3, Item B)
• Installation vertical to the direction of flow (Fig. 3, Item C)
• The on-site display can be rotated electronically 180° −see Section 5. 1 "On-site operation"
• The housing can be rotated up to 310°.

Wiring Thermophant T
8Endress+Hauser
4Wiring
4. 1 DC voltage version with M12 connector

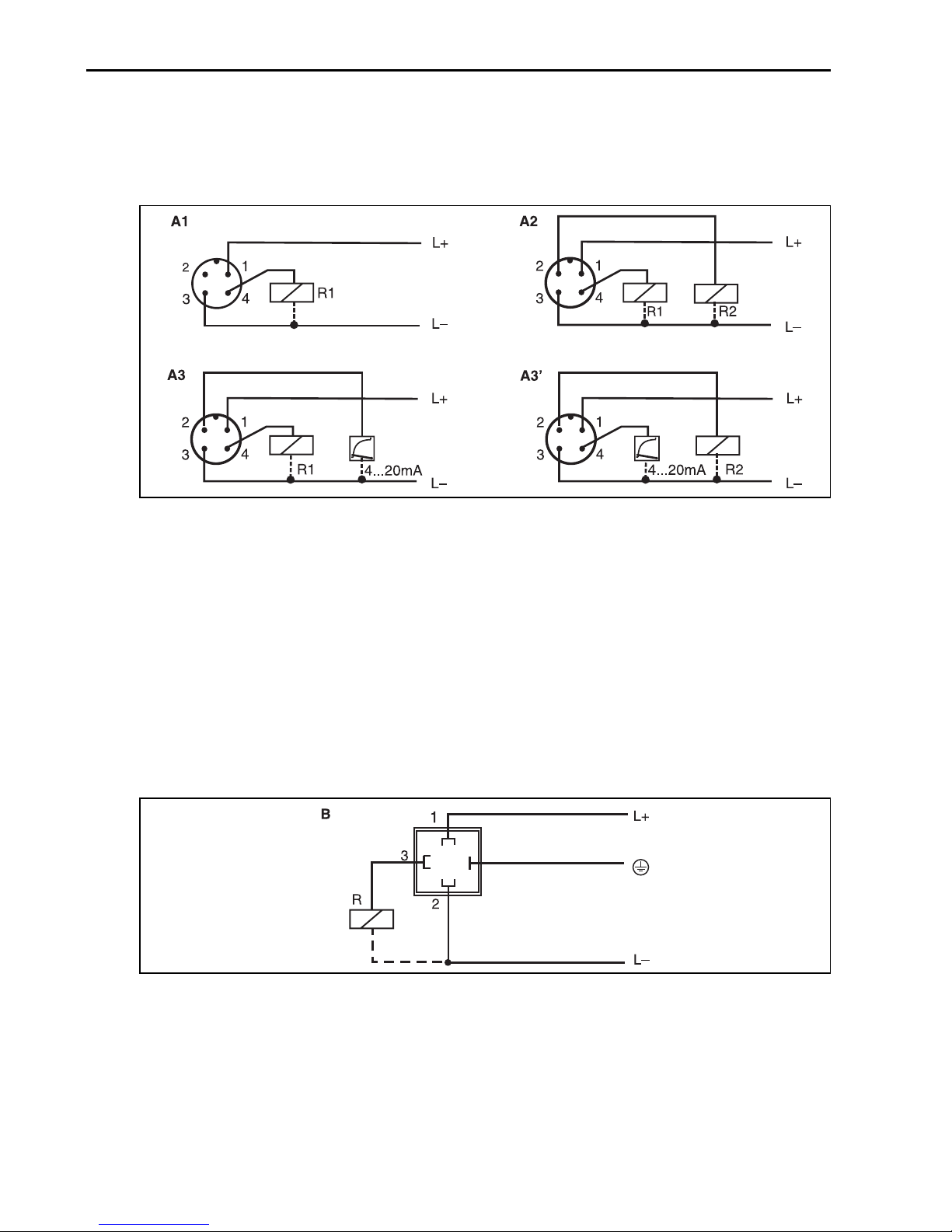

P01-PTx3xxxx-04-xx-xx-xx-002
Fig. 4: Thermophant T with M12x1.5 connector
A1: 1x PNP switch output
A2: 2x PNP switch output
A3: PNP switch output with additional analog output
A3’: PNP switch output with additional analog output (PIN assignment with "DESINA" setting)
!
Note!
DESINA (→Chap. 5.1.3 Basic settings):
R2 = Diagnosis/break contact (more informations about DESINA see www.desina.de)
4. 2 DC voltage version with valve connector
P01-PTx3xxxx-04-xx-xx-xx-003
Fig. 5: Thermophant T with M 16x1.5 or ½ NPT valve plug
B: 1x PNP switch output

Thermophant T Operation
Endress+Hauser 9
5 Operation
5. 1 On-site operation
The Thermophant T is operated by means of three keys. The digital display and the light emitting
diodes (LED) support navigation in the operating menu.
T09-TTR31xxx-19-xx-xx-en-001
Fig. 6: Position of operating elements and possibilities for display
Background illumination of the digital display:
– White = OK status
– Red = error status

Operation Thermophant T
10 Endress+Hauser
5.1.1 Navigating in the operating menu
T09-TTR31xxx-19-xx-xx-xx-002
Fig. 7: Navigating in the operating menu
A Function group selection
B Function selection
m Enter the operating menu
– Press the E key for longer than 3 s
n Select the "Function group" with the + or −key
o Select the "Function" with the E key
p Enter or change parameters with the + or −key
– Then return to "Function" with the E key Note: If software locking is enabled, it must be disabled before
making entries or changes
q Press the E key several times to return to the "Function group"
r Jump back to the measuring position (Home position)
– Press the E key for longer than 3 s
s Query to save data (select "YES" or "NO" with the + or − key)
–ConfirmwiththeEkey
!
Note!
Changes to the parameter settings only become effective if you choose s 'YES' when asked to
save data.

Thermophant T Operation
Endress+Hauser 11
5.1.2 Structure of the operating menu
The structure below shows all the possible fields of the operating menu.
T09-TTR31xxx-19-xx-xx-xx-003
Fig. 8: Operating menu: A function groups, B functions, C settings

Operation Thermophant T
12 Endress+Hauser
5.1.3 Basic settings
Base Basic settings


 

 Technical unit C
CC
C
C6
C6C6
C6



Select technical unit:
°C
°F
K


 Configure zero
point
,M,
,M,,M,
,M, Position adjustment:
within ±10 % of the upper
range limit
7M
7M7M
7M Accept zero point ,M,
,M,,M,
,M, No settings possible


 Damping:
display value, out-
put signal
,M,
,M,,M,
,M, 0...40 s


 Display 











66
6666
66
66
6666
66
PV: measured value dis-
play
PVRO: measured value
display rotated 180°
SP: set switch point dis-
play
SPRO: set switch point
display rotated 180°
OFF: display off
OFFR: display off rotated
180°


 DESINA 





Connection in accord-
ance with DESINA guide-
lines

Thermophant T Operation
Endress+Hauser 13
5.1.4 Output setting
• Hysteresis function
The hysteresis function enables two-point control via a hysteresis. Depending on the temper-
ature T, the hysteresis can be set via the switch point SP and the switch-back point
RSP.
• Window function
The window function enables the monitoring of a process temperature range.
• NO contact or NC contact
This switch function is freely selectable.
• Range of adjustment
LRL = Lower Range Limit
URL = Upper Range Limit
LRV = Lower Range Value
URV = Upper Range Value
T09-TTR31xxx-05-xx-xx-xx-001
Fig. 9: mHysteresis function, nWindow function, oNO contact switch status , pNC contact switch sta-
tusSP Switch point; RSP Switch-back point

Operation Thermophant T
14 Endress+Hauser
OUT/
OUT2
Output/output 2 (optional)



.
..
.
(optional)
6
66
6
6.
6.6.
6.
Switching charac-
teristic












HYNC:
hysteresis/NC contact
WINC:
window/NC contact
WINO:
window/NO contact
HYNO:
hysteresis/NO contact



.
..
.
Switch point value ,M,
,M,,M,
,M, Switch point
-50 °C to 150.5 °C in
increments of 0.1 °C



.
..
.
Switch-back point
value
,M,
,M,,M,
,M, Switch-back point
-50.5 °C to 150 °C
in increments of 0.1 °C



.
..
.
Switch point delay ,M,
,M,,M,
,M, Delay time
0...99 s
in increments of 0.1 s



.
..
.
Switch-back point
delay
,M,
,M,,M,
,M, Delay time 0...99 s
in increments of 0.1 s
0>.,
0>.,0>.,
0>.,
(optional)


 Value for 4 mA
(LRV)
Lower range value in
increments of 0.1 °C


 Value for 20 mA
(URV)
Enter upper range value in
increments of 0.1 °C
7
77
7 Temperature
applied for 4 mA
(LRV)
Take temperature value as
lower range value
7
77
7 Temperature
applied for 20 mA
(URV)
Take temperature value as
upper range value
6
66
6 Error current Current value in event of
error

Thermophant T Operation
Endress+Hauser 15
5.1.5 Service function setting
SERV Service functions


 

 Locking code ,
,,
,Enter the locking code for
enabling the device.


 Change locking
code
,
,,
,Freely selectable code
1...9999.
0 = no locking;
A locking code already
assigned can only be
changed by first entering
the old code for enabling
the device.


 Reset 





Reset all entries to the fac-
tory setting
M
MM
M Revision counter ,
,,
,Increases by 1 with each
configuration
M
MM
M Last device status ,
,,
,Displays the last device
status to occur ≠0



.
..
.
(if output 2
available)
Simulation
output 1 or 2
66
6666
66






/M1
/M1/M1
/M1
(if analog out-
put available)
OFF:
No simulation
OPEN:
Switch output open
CLOS:
Switch output closed
3.5:
Simulation values for ana-
log output in mA
(3.5/4.0/8.0/12.0/16.0
/20.0/21.7)
M
MM
M Max. indicator ,M,
,M,,M,
,M, Display of max. measured
process value
M
MM
M Min. indicator ,M,
,M,,M,
,M, Display of min. measured
process value

Operation Thermophant T
16 Endress+Hauser
5. 2 Operation with PC and Readwin
®
2000
T09-TTR31xxx-04-xx-xx-en-004
Fig. 10: Operation with PC
T09-TTR31xxx-20-00-xx-en-000
Fig. 11: Device configuration with Readwin
®
2000

Thermophant T Operation
Endress+Hauser 17
5.2.1 Additional operating options
In addition to the operating options listed in the previous "On-site operation" section, the Read-
Win
®2000 configuration software provides further information on the Thermophant T:
5.2.2 Operating Instructions for Readwin®2000
Comprehensive information on the ReadWin ®2000 configuration software may be found in
the Operating Instructions BA 137R/09/en.
Function group Description
SERV Number of switch changes for output 1
Number of switch changes for output 2
Device status
Last error to occur
INFO Tag number
Order code
Limit switch serial number
Sensor serial number
Electronics serial number
Device release
(change status)
Hardware version
Software version

Accessories Thermophant T
18 Endress+Hauser
6 Accessories
All dimensions in the drawings are given in mm.
6. 1 Adapter concept for TTR 35
The process connection is an adapter and the sensor module has an adapter thread
(see Section 3. 3, process connection). As a result, the process connection can easily be changed
at a later stage.
6.1.1 Adapter change
The adapter can be changed on TTR 35.
T09-TTR31xxx-17-xx-xx-xx-000
Fig. 12: Changing the adapter
m Sensor module with adapter thread
n Standard O-ring
o Adapter
Please note the following when changing the adapter:
• Use a new O-ring. Diameter 15.54 x 2.62 mm.
With either EPDM 70 Shore FDA or FKM 70 Shore FDA material
• The device (sensor module) can be fixed in place with an open-ended wrench AF 27.
• The adapter can be screwed on with an open-ended wrench AF 28 or AF 32 (depending on
the process connection, (see Section 6.1.2 adapter versions)).
The maximum torque is 80 Nm. The thread can become loose if exposed to severe strain
through pressure and temperature. For this reason, the air-tightness must be checked regu-
larly and the thread tightened if necessary. We recommend using Teflon tape as an additional
thread seal.
• When changing the adapter, make sure that the sensor tube of the sensor is not damaged.

Thermophant T Accessories
Endress+Hauser 19
6.1.2 Adapter versions
TTR 35: order numbers for clamp adapter
versions.
Version DB: order no. 52023994
Version DL: order no. 52023995
P01-PTx3xxxx-06-xx-xx-xx-009
TTR 35: order numbers for hygiene adapter
versions.
Version LB: order no. 52023996
Version LL: order no. 52023997
Version PH: order no. 52023999
Version PL: order no. 52023998
Version HL: order no. 52024000
P01-PTx3xxxx-06-xx-xx-xx-010
Ø50
Ø66
Ø39
Ø56
Ø61,5
Ø66,2
Ø82
Ø100
Ø51
Ø68
LB
PH PL
HL
LL
Ø68
Ø84
18
17
17
18
19

Accessories Thermophant T
20 Endress+Hauser
6. 2 Welding bosses and coupling
6.2.1 Welding boss with sealing taper
6.2.2 Collar welding boss
6.2.3 Coupling with sealing taper
Collar welding boss
Seal, moveable coupling, material of parts in contact with process:
316L, PEEK
Order number: 51004751
T09-TSM470AX-06-09-00-en-000
Material of parts in contact with process: 316L
Order no. 51004752
T09-TSM470BX-06-09-00-en-000
G ½" process connection
Seal, moveable coupling, material of
parts in contact with process: 316L
Order no. 51004753
T09-TSM470AX-06-09-00-en-001
