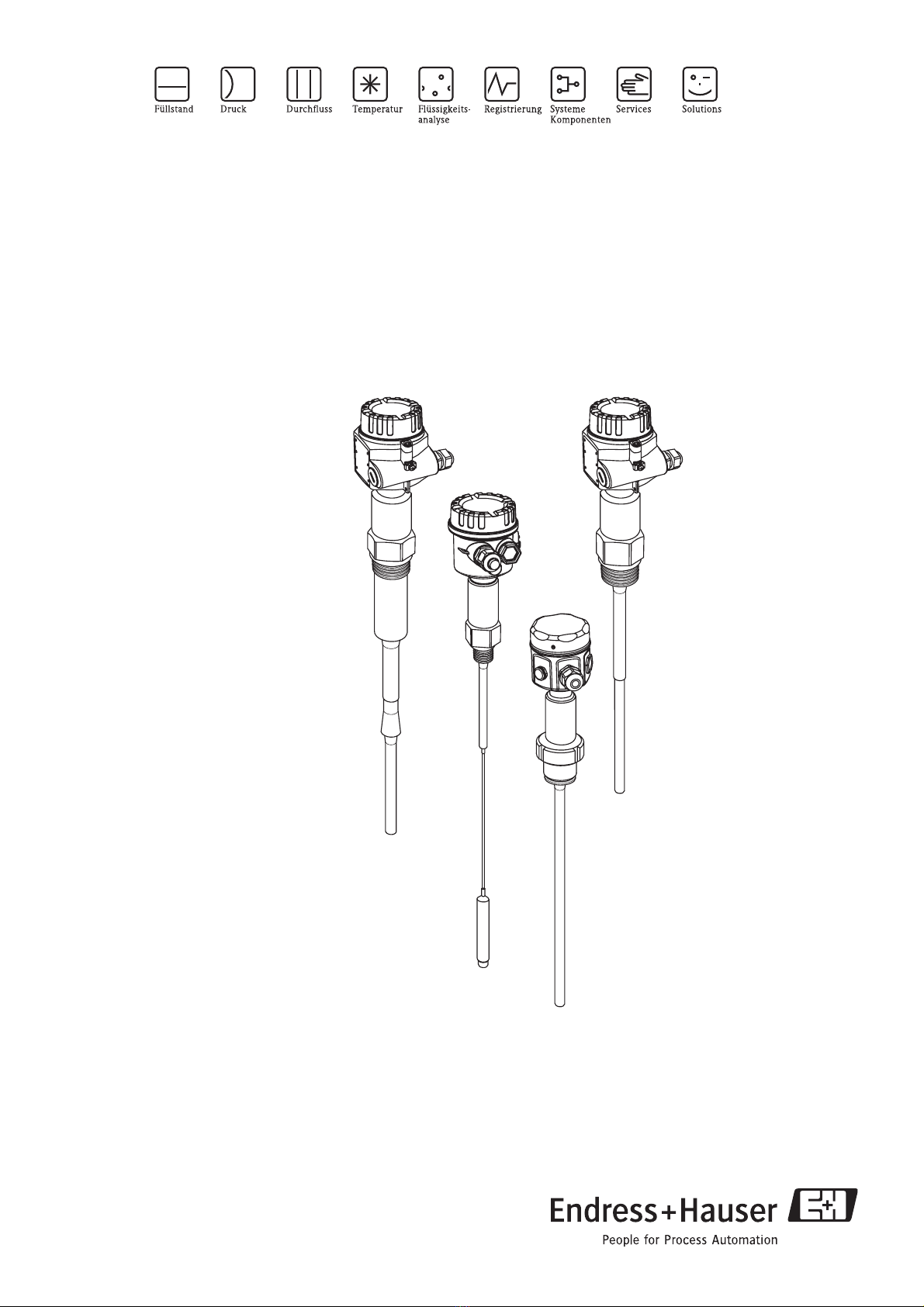

Operating Instructions
Liquicap M FTI51, FTI52
Capacitive level limit switch

Brief overview Liquicap M FTI51, FTI52
2Endress+Hauser
Brief overview
!Note!
These Operating Instructions describe the installation and initial commissioning of the level
measuring device. It considers all of the functions that are necessary for a usual measuring task.
For quick and easy commissioning:
Safety instructions
Explanation of the warning symbols
For special instructions, refer to the corresponding location in the
respective chapter. The priority is indicated by the Warning #, Caution "
and Note !symbols.
→Page 6
Æ
Installation
This section describes the required steps when installing the device
and the installation conditions (such as dimensions).
→Page 17
Æ
Wiring
The device is shipped, for the most part, completely
wired and ready to plug in.
→Page 42
Æ
Display and
operating elements
This section provides an overview of the arrangement of the display and
operating elements of the device.
→Page 53
Æ
Commissioning
The "Commissioning" chapter shows you how to switch on the device and
check its functions.
→Page 56
Æ
Troubleshooting
If faults occur during operation, use the checklist to find the reason.
This section lists measures you can take yourself to remedy any faults that may
occur.
→Page 78

Liquicap M FTI51, FTI52 Brief overview
Endress+Hauser 3

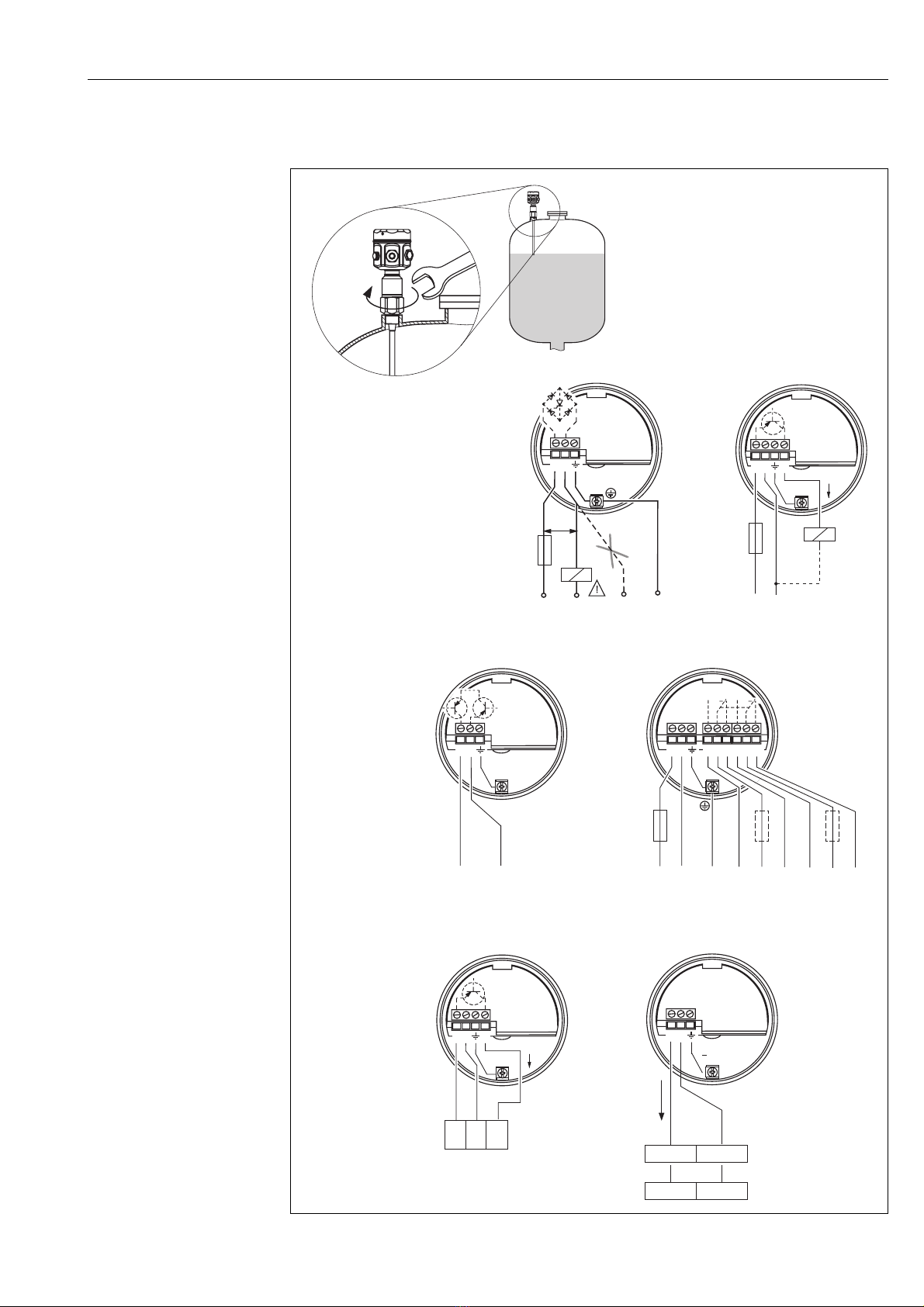

Brief operating instructions
BA299Fen001
11 12 13
–+S
Nivotester FTC325 3-WIRE
12 3
(+)
FEI53
–+
11 12
d4 d2
PFM
12
FEI57S
FTC325
FTC625
FTC470Z
FTC471Z
Nivotester
EEx ia
12
FEI55
–
U– 11…36 V
+
12 3
L+ L–
(+)
–
F
0.5A R
FEI52
U– 10…55 V (DC)
…
U~ 19…253 V U– 19…55 V(AC) / (DC)
L1
L+
a
NO
a
NO
u
C
u
C
r
NC
r
NC
N
L–
PE
(Ground)
F
0.5A
12 678345
FEI54
L1
U~ max.
253 V AC 50/60 Hz
NNPE
(Masse)
1A
min.
19 V
12
R
FEI51
1. Install probe
2. Wiring
3. Connect power supply
e.g. PLC

Brief overview Liquicap M FTI51, FTI52
4Endress+Hauser
4. Switching on the power supply and configuring the device
FEI51, FEI52, FEI54, FEI55
• Green LEDs ( operational status - flashing)
• Red LED ( fault message)
• Yellow LED (✲switching status)
•Key(–)
•Key(+)
• Mode switch (position 1-8)
–1:Operation
– 2: Calibration (empty/full)
– 3: Switch point adjustment
– 4: Measuring range setting
Pump control Δs operating/buildup mode
– 5: Switching delay
–6:Self-test
– 7: Failsafe mode (MIN/MAX)
– 8: Configuration/upload, download
00-FTI5xxxx-07-05-xx-xx-000
!Note!
To execute the functions in question, press
and hold down the key for at least 2 seconds.
BA300Fen002F+
For SIL settings forFEI55seePage66
FEI53, FEI57S
• Green LED ( operational status)
• Red LED ( fault message)
• DIP switch (left),
– Standard: If the measuring range is exceeded,
no alarm is output
– : If the measuring range is exceeded
an alarm is output.
• DIP switch (right), span
– Range 1: 0 to 500 pF
– Range 2: 0 to 1600 pF L00-FTI5xxxx-07-05-xx-xx-002
-
+
+
-
FEI55
8/16mA
11...36V DC
73
5
I=16mA
1
2
3
4
5
6
7
8
_+
Dc
Ds
MIN MAX
Down-
load Upload
0.3 s
1.5 s
5s
10 s
2481632 pf
500
1600
pf
1
73
5
active
Operation
Reset to factory
settings
Empty calibration
Full calibration
Switchpoint
adjustment
Measurement
range, small/big
Two-point control
Switching delay
Minimum/
maximum failsafe
Device self test
(Proof test)
press
for
upload
press
for
download
Mode Key Key
press both keys
for approx. 20 sec.
press
press
press 1 x
press for
<
press for
<
press together
press for
MIN
press for
MAX
LED Signals
Function/Mode
Symbol
press
Up-Download
Sensor EEPROM
press for
>
press for
>
press 2 x Build-up mode
press both keys
for approx. 10 s
Reset: Calibration
Switchpoint adjust.
-+
FEI57S
PFM 0.....500pF
0.....500pF
Standard
Standard
0...1600pF
0...1600pF

Liquicap M FTI51, FTI52 Table of contents
Endress+Hauser 5
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 6
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Installation, commissioning and operation . . . . . . . . 6
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Safety conventions and symbols . . . . . . . . . . . . . . . . 7
2 Identification . . . . . . . . . . . . . . . . . . . . 8
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . 16
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . 16
3 Installation . . . . . . . . . . . . . . . . . . . . . 17
3.1 1. Fully insulated rod probes FTI51 . . . . . . . . . . . . 22
3.2 Installation instructions . . . . . . . . . . . . . . . . . . . . . 26
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 29
3.4 Installation examples . . . . . . . . . . . . . . . . . . . . . . . 31
3.5 With separate housing . . . . . . . . . . . . . . . . . . . . . . 35
3.6 Probe without active buildup compensation . . . . . . 37
3.7 Probe with active buildup compensation . . . . . . . . 39
3.8 Installing bracket for wall and pipe mounting . . . . . 40
3.9 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 41
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 42
4.1 Connection recommendation . . . . . . . . . . . . . . . . . 42
4.2 Wiring in housing F16, F15, F17, F13 . . . . . . . . . . 43
4.3 Wiring in housing T13 . . . . . . . . . . . . . . . . . . . . . . 44
4.4 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 45
4.5 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 45
4.6 Electronic insert FEI51 (AC 2-wire) . . . . . . . . . . . . 46
4.7 Connecting the electronic insert FEI52 (DC PNP) . 47
4.8 Connecting the electronic insert FEI53 (3–WIRE) . 48
4.9 Connecting the electronic insert FEI54 (AC/DC with
relay output) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.10 Connecting the electronic insert FEI55 (8/16 mA;
SIL2/SIL3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
4.11 Connecting the electronic insert FEI57S (PFM) . . . 51
4.12 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 52
5 Operation . . . . . . . . . . . . . . . . . . . . . . 53
5.1 Human interface and display elements for
FEI51, FEI52, FEI54, FEI55 . . . . . . . . . . . . . . . . . 53
5.2 Human interface and display elements for
FEI53, FEI57S . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6 Commissioning. . . . . . . . . . . . . . . . . . 56
6.1 Installation and function check . . . . . . . . . . . . . . . 56
6.2 Commissioning the electronic inserts
FEI51, FEI52, FEI54, FEI55 . . . . . . . . . . . . . . . . . . 56
6.3 Commissioning with electronic inserts
FEI53 or FEI57S . . . . . . . . . . . . . . . . . . . . . . . . . . 72
7 Maintenance . . . . . . . . . . . . . . . . . . . . 75
8 Accessories . . . . . . . . . . . . . . . . . . . . . 76
8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . . 76
8.2 Shortening kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
8.3 Overvoltage protection HAW569 . . . . . . . . . . . . . . 76
8.4 Welding boss for universal adapter . . . . . . . . . . . . . 76
8.5 Welding neck for G ¾ . . . . . . . . . . . . . . . . . . . . . . 77
8.6 Welding neck for G 1 . . . . . . . . . . . . . . . . . . . . . . . 77
9 Troubleshooting . . . . . . . . . . . . . . . . . 78
9.1 Fault diagnostics in the electronic insert . . . . . . . . 78
9.2 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
9.3 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
9.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
9.5 Firmware history . . . . . . . . . . . . . . . . . . . . . . . . . . 80
9.6 Contact addresses at Endress+Hauser . . . . . . . . . . . 80
10 Technical data . . . . . . . . . . . . . . . . . . . 81
10.1 Capacitance values of probe . . . . . . . . . . . . . . . . . . 81
10.2 Additional capacitance . . . . . . . . . . . . . . . . . . . . . . 81
10.3 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
10.4 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
10.5 Performance characteristics . . . . . . . . . . . . . . . . . . 82
10.6 Operating conditions: Environment . . . . . . . . . . . . 83
10.7 Operating conditions: Process . . . . . . . . . . . . . . . . 85
10.8 Other standards and guidelines . . . . . . . . . . . . . . . 88
10.9 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Safety instructions Liquicap M FTI51, FTI52
6Endress+Hauser
1 Safety instructions
1.1 Designated use
The Liquicap M FTI51 and FTI52 are compact capacitive level measuring devices for level limit
detection of liquids.
1.2 Installation, commissioning and operation
The Liquicap M has been safely built with state-of-the-art technology and meets all applicable
standards and EU directives. However, if it is used improperly or if it is not put to its intended use,
it can be a source of application-related dangers, such as product overflow due to incorrect
installation or configuration. Therefore, the installation, electrical connection,commissioning,
operation and maintenance of the measuring device only may be carried out by trained specialist
personnel authorized by the facility's owner/operator for this purpose. The specialist personnel
must have read and understood these Operating Instructions and must follow the instructions they
contain. Modifications or repairs to the device can be carried out only if it is expressly stated in the
Operating Instructions that these are permitted.
1.3 Operational safety
1.3.1 Hazardous areas
If the measuring system is used in hazardous areas, the corresponding national/federal standards
and regulations must be observed. The device is accompanied by separate Ex documentation, which
is an integral part of this documentation. Observe the installation instructions, connection data and
safety instructions provided there.
• Ensure that the specialists are adequately trained.
• Observe the metrological and technical safety requirements for the measuring points.

Liquicap M FTI51, FTI52 Safety instructions
Endress+Hauser 7
1.4 Safety conventions and symbols
We have defined the following safety instructions to indicate safety-related or alternative
procedures. Each instruction is identified by a corresponding pictogram.
Safety instructions
#Warning!
This symbol indicates an action or procedure which, if not performed correctly, can result in serious
injury, a safety hazard or the destruction of the device.
"Caution!
This symbol indicates an action or procedure which, if not performed correctly, can result in injury or
destruction of the device.
!Note!
This symbol indicates an action or procedure which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.
Type of protection
0Explosion-protected, prototype-tested apparatus
If this symbol appears on the nameplate of the device, the device can be used in hazardous or non-
hazardous areas according to its approval.
-Hazardous areas
In the drawings in these Operating Instructions, this symbol identifies hazardous areas. Devices
located in hazardous areas and lines for these devices must have corresponding explosion protection.
.Safe areas (non-hazardous areas)
In the drawings in these Operating Instructions, this symbol identifies non-hazardous areas. Devices
in the non-hazardous area also must be certified if the connecting lines lead into the hazardous area.
Electrical symbols
%Direct current
A terminal at which DC voltage is present or through which DC voltage flows.
&Alternating current
A terminal at which AC voltage (sinusoidal) voltage is present or through which AC flows.
)Ground connection
A grounded terminal which, from the viewpoint of the user, is grounded via a grounding system.
*Protective ground connection
A terminal that has to be grounded before other connections can be made.
+Equipotential connection
A connection that has to be connected to the grounding system of the plant. This can be a potential
equalization line or a radial grounding system depending on national and company codes of practice.
Temperature resistance of the connecting cables
Indicates that the connecting cables must be able to withstand temperatures of at least 85 °C.
t >85°C

Identification Liquicap M FTI51, FTI52
8Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
Refer to the nameplate of the device for the following technical data:
L00-FTI5xxxx-18-00-00-en-001
Information on the Liquicap M nameplate (example)
Z 65.13.xxx
Z 65.13.xxx
SIL
SIL
2
2
5
5
0
0
0
0
0
0
2
2
0
0
7
7
5
5
-
-
A
A
Dat.:
Dat.:
IP65/66/
IP65/66/
NEMA4X
NEMA4X
MWP:
MWP:
Liquicap M
Liquicap M
Order Code.:
Order Code.:
Ser
Ser
.No.:
.No.:
≤
≤
T
T
a
a
≤
≤
+70°C
+70°C
-40°C
-40°C
05/06
05/06
M
M
a
a
d
d
e
e
i
i
n
n
G
G
e
e
r
r
m
m
a
a
n
n
y
y
,
,
D
D
-
-
7
7
9
9
6
6
8
8
9
9
M
M
a
a
u
u
l
l
b
b
u
u
r
r
g
g
30VDC, 4A; 125VDC, 0,2A; 253V
30VDC, 4A; 125VDC, 0,2A; 253V
AC, 4A
AC, 4A
123456789
123456789
L1 = 250
L1 = 250
mm
mm
FEI54
FEI54
FTI51 - CAA2RCJ45A1A
FTI51 - CAA2RCJ45A1A
U: 19-253V
U: 19-253V
AC (50/60Hz), 19-55VDC
AC (50/60Hz), 19-55VDC
25bar
25bar
Pmax.: 1,5W
Pmax.: 1,5W
L
L
= 250
= 250
mm
mm
XA
XA
327 F-
327 F-
A
A
A
A
TEX II 1/2G EEx ia IIC
TEX II 1/2G EEx ia IIC
T6
T6
BVS 06
BVS 06
A
A
TEX E 103 X
TEX E 103 X
Functional
Functional
safety
safety
Order number
Order number
(see ordering information)
(see ordering information)
Approval No.
Approval No.
A
A
TEX
TEX
WHG approval
WHG approval
(German W
(German W
ater
ater
Resources
Resources
Act)
Act)
Safety information
Safety information
Max. permissible pressure
Max. permissible pressure
in t
in t
ank
ank
Serial number
Serial number
Ambient temperature
Ambient temperature
at housing
at housing
Electronic insert
Electronic insert
Active porbe length
Active porbe length
Month and year
Month and year
of production
of production
Protection class
Protection class

Liquicap M FTI51, FTI52 Identification
Endress+Hauser 9
2.1.2 Liquicap M FTI51 (ordering information)
10 Approval:
A Non-hazardous areas
B Non-hazardous areas, WHG (German Water Resources Act)
C ATEX II 1/2 GD EEx ia IIC T6
D ATEX II 1/2 GD EEx ia IIC T6, WHG (German Water Resources Act)
G ATEX II 1/2 GD EEx de (ia) IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
H ATEX II 1/2 GD EEx ia IIC T6,
XA, observe safety instructions (electrostatic charge)!
J ATEX II 1/2 GD EEx ia IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
K ATEX II 1/2 G EEx ia IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
L ATEX II 1/2 G EEx d (ia) IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
M ATEX II 3GD EEx nA/nL/nC II T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
N *CSA General Purpose, C US CSA
P CSA/FM IS Cl. I, II, III Div. 1+2 Gr. A–G
R CSA/FM XP Cl. I, II, III Div. 1+2 Gr. A–G
S TIIS Ex ia IIC T3
T TIIS Ex d IIC T3
Y Special version, to be specified
1 NEPSI Ex ia IIC T6
2 NEPSI Ex d(ia) IIC T6
4 NEPSI Ex nA/nC IIC T6
5 IECEx Ga/Gb Ex ia IIC T6; Ex iaD 20/Ex tD A21
6 IECEx Ga/Gb Ex ia IIC T6
20 Inactive length (L3):
L3: 100 to 2000 mm/4 to 80 inch for 316L
L3: 150 to 1000 mm/6 to 40 inch for PTFE fully insulated
Protection against condensate + bypassing container nozzles
A Not selected
B Not selected + 125mm/5inch
Active buildup compensation
316L
C Not selected + 125mm/5inch
Fully insulated active buildup
compensation
PFA, 316L
Price per 100 mm
1 .... mm 316L
2 .... mm 316L, PTFE fully insulated
Price is irrespective of the length
3 .... mm (<= 500 mm)
+ 125 mm active buildup compensation
316L
4 .... mm (> 500 mm)
+ 125 mm active buildup compensation
316L
Price per one inch
5 .... inch 316L
6 .... inch 316L, PTFE fully insulated
Price is irrespective of the length
7 .... inch (<= 20 inch)
+ 5 inch active buildup compensation
316L
8 .... inch (> 20 inch)
+ 5 inch active buildup compensation
316L
9 Special version, to be specified
30 Active probe length (L1); insulation:
Price per 100 mm/1 inch
L1: 100 to 4000 mm/4 to 160 inch for ∅10 mm, ∅16 mm
L1: 150 to 3000 mm/6 to 120 inch for ∅22 mm (fully insulated)
A mm L1, 10 mm, 316L; PTFE
B mm L1, 16 mm, 316L; PTFE
C mm L1, 22 mm, 316L; PTFE
D mm L1, 16 mm, 316L; PFA
1 mm L1, 14 mm, 316L; PFA
E mm L1, 10 mm, 316L; PTFE + ground tube

Identification Liquicap M FTI51, FTI52
10 Endress+Hauser
F mm L1, 16 mm, 316L; PTFE + ground tube
G mm L1, 16 mm, 316L; PFA + ground tube
H inch L1, 0.4 inch, 316L; PTFE
K inch L1, 0.6 inch, 316L; PTFE
M inch L1, 0.9 inch, 316L; PTFE
N inch L1, 0.6 inch, 316L; PFA
T inch L1, 0.55 inch, 316L; PFA
P inch L1, 0.4 inch, 316L; PTFE + ground tube
R inch L1, 0.6 inch, 316L; PTFE + ground tube
S inch L1, 0.6 inch, 316L; PFA + ground tube
Y Special version, to be specified
40 Insulation (L2)
1 Fully insulated
2 ... mm, partially insulated
3 ... inch, partially insulated
9 Special version, to be specified
50 Process connection:
Threaded connection
GCJ G ½, 316L, 25 bar Thread ISO228
GDJ G ¾, 316L, 25 bar Thread ISO228
GEJ G 1, 316L, 25 bar Thread ISO228
GGJ G 1½, 316L, 100 bar Thread ISO228
RCJ NPT ½, 316L, 25 bar Thread ANSI
RDJ NPT ¾, 316L, 25 bar Thread ANSI
REJ NPT 1, 316L, 25 bar Thread ANSI
RGJ NPT 1½, 316L, 100 bar Thread ANSI
Hygiene connection
GQJ G ¾ 316L, 25 bar, EHEDG Thread ISO228
Accessories installation, welding neck
GWJ G 1 316L, 25 bar, EHEDG Thread ISO228
Accessories installation, welding neck
MRJ DN50 PN40, 316L DIN11851
UPJ Universal adapter, 44 mm 316L, 16 bar, EHEDG
Tri-Clamp connection
TCJ DN25 (1"), EHEDG 316L, Tri–Clamp ISO2852
TDJ DN40-51 (2"), 316L, Tri–Clamp ISO2852
TDK DN40-51 (2"), EHEDG PTFE >316L, 3A Tri–Clamp ISO2852
TJJ DN38 (1½"), EHEDG 316L, Tri–Clamp ISO2852
TJK DN38 (1½"), EHEDG PTFE >316L, 3A Tri–Clamp ISO2852
TNJ DN38 (1½"), 316L, 3A, EHEDG Tri–Clamp ISO2852
Tri–Clamp removable
EN flanges
B0J DN25 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B1J DN32 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B2J DN40 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B3J DN50 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
CRJ DN50 PN25/40 B1, 316L Flange EN1092-1 (DIN2527 C)
DRJ DN50 PN40 C, 316L Flange EN1092-1 (DIN2512 F)
ERJ DN50 PN40 D, 316L Flange EN1092-1 (DIN2512 N)
BSJ DN80 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CGJ DN80 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
DGJ DN80 PN16 C, 316L Flange EN1092-1 (DIN2512 F)
EGJ DN80 PN16 D, 316L Flange EN1092-1 (DIN2512 N)
BTJ DN100 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CHJ DN100 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
PTFE clad
B0K DN25 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B1K DN32 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B2K DN40 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B3K DN50 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
BSK DN80 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
30 Active probe length (L1); insulation:

Liquicap M FTI51, FTI52 Identification
Endress+Hauser 11
BTK DN100 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
ANSI flanges
ACJ 1" 150 lbs RF, 316/316L Flange ANSI B16.5
ANJ 1" 300 lbs RF, 316/316L Flange ANSI B16.5
AEJ 1½" 150 lbs RF, 316/316L Flange ANSI B16.5
AQJ 1½" 300 lbs RF, 316/316L Flange ANSI B16.5
AFJ 2" 150 lbs RF, 316/316L Flange ANSI B16.5
ARJ 2" 300 lbs RF, 316/316L Flange ANSI B16.5
AGJ 3" 150 lbs RF, 316/316L Flange ANSI B16.5
ASJ 3" 300 lbs RF, 316/316L Flange ANSI B16.5
AHJ 4" 150 lbs RF, 316/316L Flange ANSI B16.5
ATJ 4" 300 lbs RF, 316/316L Flange ANSI B16.5
AJJ 6" 150 lbs RF, 316/316L Flange ANSI B16.5
AUJ 6" 300 lbs RF, 316/316L Flange ANSI B16.5
PTFE clad
ACK 1" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ANK 1" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AEK 1½" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AQK 1½" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AFK 2" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ARK 2" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AGK 3" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AHK 4" 150 lbs, PTFE >316/316L Flange ANSI B16.5
JIS flanges
KCJ 10K 25 RF, 316L Flange JIS B2220
KEJ 10K 40 RF, 316L Flange JIS B2220
KFJ 10K 50 RF, 316L Flange JIS B2220
KGJ 10K 80 RF, 316L Flange JIS B2220
KHJ 10K 100 RF, 316L Flange JIS B2220
KRJ 20K 50 RF, 316L Flange JIS B2220
PTFE clad
KCK 10K 25 RF, PTFE >316L Flange JIS B2220
KEK 10K 40 RF, PTFE >316L Flange JIS B2220
KFK 10K 50 RF, PTFE >316L Flange JIS B2220
KGK 10K 80 RF, PTFE >316L Flange JIS B2220
KHK 10K 100 RF, PTFE >316L Flange JIS B2220
YY9 Special version, to be specified
60 Electronics
W Prepared for FEI5x
Y Special version, to be specified
1 FEI51; 2-wire 19-253 V AC
2 FEI52; 3-wire PNP, 10 to 55 V DC
3 FEI53; 3-wire, 3 to 12 V signal
4 FEI54; relay DPDT, 19 to 253 V AC, 19 to 55 V DC
5 FEI55; 8/16mA, 11 to 36 V DC
7 FEI57S;2–wire PFM
70 Housing:
1 F15 316L IP66, NEMA4X
2 F16 polyester IP66, NEMA4X
3 F17 aluminum IP66, NEMA4X
4 F13 Alu + gas-tight probe seal IP66, NEMA4X
5 T13 Alu + gas-tight probe seal
+ separate connection compartment
IP66, NEMA4X
9 Special version, to be specified
80 Cable entry:
A Threaded joint M20 (EEx d > M20 thread)
B Thread G ½
C Thread NPT ½
D Thread NPT ¾
Y Special version, to be specified
50 Process connection:

Identification Liquicap M FTI51, FTI52
12 Endress+Hauser
90 Probe design:
1 Compact
2 2000 mm L4 cable > separate housing
3 ....mm L4 cable > separate housing
4 80 inch L4 cable > separate housing
5 ....inch L4 cable > separate housing
9 Special version, to be specified
100 Additional equipment:
A Basic version
B Cleaned for applications free from paint-wetting impairment substances**
C Finished metal probe rod surface***
D EN10204-3.1 (316L wetted), Inspection certificate
E EN10204-3.1 (316L wetted), NACE
MR0175
Inspection certificate
F SIL Declaration of Conformity
S GL marine approval
Y Special version, to be specified
FTI51 Product designation
* Pending.
** With this option, the complete device is cleaned for applications free from paint-wetting impairment substances
*** With this option, the surface of the probe rod (316L) is passivated and acts as additional corrosion protection.

Liquicap M FTI51, FTI52 Identification
Endress+Hauser 13
2.1.3 Liquicap M FTI52 (ordering information)
10 Approval:
A Non-hazardous areas
B Non-hazardous areas, WHG (German Water Resources Act)
G ATEX II 1/2 GD EEx de (ia) IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
H ATEX II 1/2 GD EEx ia IIC T6,
XA, observe safety instructions (electrostatic charge)!
J ATEX II 1/2 GD EEx ia IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
K ATEX II 1/2 G EEx ia IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
L ATEX II 1/2 G EEx d (ia) IIC T6, WHG (German Water Resources Act)
XA, observe safety instructions (electrostatic charge)!
M ATEX II 3GD EEx nA/nL/nC II T6, WHG
XA, observe safety instructions (electrostatic charge)!
N *CSA General Purpose, C US CSA
P CSA/FM IS Cl. I, II, III Div. 1+2 Gr. A–G
R CSA/FM XP Cl. I, II, III Div. 1+2 Gr. A–G
S TIIS Ex ia IIC T3
T TIIS Ex d IIC T3
Y Special version, to be specified
1 NEPSI Ex ia IIC T6
2 NEPSI Ex d(ia) IIC T6
4 NEPSI Ex nA/nC IIC T6
5 IECEx Ga/Gb Ex ia IIC T6; Ex iaD 20/Ex tD A21
6 IECEx Ga/Gb Ex ia IIC T6
20 Inactive length L3:
Price per 100 mm/1 inch
L3: 100 to 2000 mm/4 to 80 inch for 316L
L3: 150 to 1000 mm/6 to 40 inch for PFA fully insulated
Protection against condensate + bypassing container nozzles
A Not selected
1 ... mm, 316L
2 ... mm, 316L + PFA fully insulated
5 ... inch, 316L
6 ... inch, 316L + PFA fully insulated
9 Special version, to be specified
30 Active length L1; insulation:
Price per 1000 mm/10 inch
L1: 420 to 10000 mm/17 to 400 inch; fully insulated
A ... mm, 316; FEP
B ... mm, 316; PFA
C ... inch, 316; FEP
D ... inch, 316; PFA
Y Special version, to be specified
40 Insulation L2
1 Fully insulated
9 Special version, to be specified
50 Process connection:
Threaded connection
GDJ G ¾, 316L, 25 bar Thread ISO228
GEJ G 1, 316L, 25 bar Thread ISO228
GGJ G 1½, 316L, 100 bar Thread ISO228
RDJ NPT ¾, 316L, 25 bar Thread ANSI
REJ NPT 1, 316L, 25 bar Thread ANSI
RGJ NPT 1½, 316L, 100 bar Thread ANSI
Hygiene connection
GWJ G 1 316L, 25 bar, EHEDG Thread ISO228
Accessories installation, welding neck

Identification Liquicap M FTI51, FTI52
14 Endress+Hauser
MRJ DN50 PN40, 316L DIN11851
UPJ Universal adapter, 44 mm 316L, 16 bar, EHEDG
Tri-Clamp connection
TCJ DN25 (1"), EHEDG 316L, Tri–Clamp ISO2852
TDJ DN40-51 (2"), 316L, Tri–Clamp ISO2852
TDK DN40-51 (2"), EHEDG PTFE >316L Tri–Clamp ISO2852
TJJ DN38 (1½"), EHEDG 316L, Tri–Clamp ISO2852
TJK DN38 (1½"), EHEDG PTFE >316L Tri–Clamp ISO2852
EN flanges
B0J DN25 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B1J DN32 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B2J DN40 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
B3J DN50 PN25/40 A, 316L Flange EN1092-1 (DIN2527 B)
CRJ DN50 PN25/40 B1, 316L Flange EN1092-1 (DIN2527 C)
DRJ DN50 PN40 C, 316L Flange EN1092-1 (DIN2512 F)
ERJ DN50 PN40 D, 316L Flange EN1092-1 (DIN2512 N)
BSJ DN80 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CGJ DN80 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
DGJ DN80 PN16 C, 316L Flange EN1092-1 (DIN2512 F)
EGJ DN80 PN16 D, 316L Flange EN1092-1 (DIN2512 N)
BTJ DN100 PN10/16 A, 316L Flange EN1092-1 (DIN2527 B)
CHJ DN100 PN10/16 B1, 316L Flange EN1092-1 (DIN2527 C)
PTFE clad
B0K DN25 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B1K DN32 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B2K DN40 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
B3K DN50 PN25/40, PTFE >316L Flange EN1092-1 (DIN2527)
BSK DN80 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
BTK DN100 PN10/16, PTFE >316L Flange EN1092-1 (DIN2527)
ANSI flanges
ACJ 1" 150 lbs RF, 316/316L Flange ANSI B16.5
ANJ 1" 300 lbs RF, 316/316L Flange ANSI B16.5
AEJ 1½" 150 lbs RF, 316/316L Flange ANSI B16.5
AQJ 1½" 300 lbs RF, 316/316L Flange ANSI B16.5
AFJ 2" 150 lbs RF, 316/316L Flange ANSI B16.5
ARJ 2" 300 lbs RF, 316/316L Flange ANSI B16.5
AGJ 3" 150 lbs RF, 316/316L Flange ANSI B16.5
ASJ 3" 300 lbs RF, 316/316L Flange ANSI B16.5
AHJ 4" 150 lbs RF, 316/316L Flange ANSI B16.5
ATJ 4" 300 lbs RF, 316/316L Flange ANSI B16.5
AJJ 6" 150 lbs RF, 316/316L Flange ANSI B16.5
AUJ 6" 300 lbs RF, 316/316L Flange ANSI B16.5
PTFE clad
ACK 1" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ANK 1" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AEK 1½" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AQK 1½" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AFK 2" 150 lbs, PTFE >316/316L Flange ANSI B16.5
ARK 2" 300 lbs, PTFE >316/316L Flange ANSI B16.5
AGK 3" 150 lbs, PTFE >316/316L Flange ANSI B16.5
AHK 4" 150 lbs, PTFE >316/316L Flange ANSI B16.5
JIS flanges
KCJ 10K 25 RF, 316L Flange JIS B2220
KEJ 10K 40 RF, 316L Flange JIS B2220
KFJ 10K 50 RF, 316L Flange JIS B2220
KGJ 10K 80 RF, 316L Flange JIS B2220
KHJ 10K 100 RF, 316L Flange JIS B2220
KRJ 20K 50 RF, 316L Flange JIS B2220
PTFE clad
KCK 10K 25 RF, PTFE >316L Flange JIS B2220
KEK 10K 40 RF, PTFE >316L Flange JIS B2220
50 Process connection:

Liquicap M FTI51, FTI52 Identification
Endress+Hauser 15
KFK 10K 50 RF, PTFE >316L Flange JIS B2220
KGK 10K 80 RF, PTFE >316L Flange JIS B2220
KHK 10K 100 RF, PTFE >316L Flange JIS B2220
YY9 Special version, to be specified
60 Electronics
W Prepared for FEI5x
Y Special version, to be specified
1 FEI51; 2-wire 19-253 V AC
2 FEI52; 3-wire PNP, 10 to 55 V DC
3 FEI53; 3-wire, 3 to 12 V signal
4 FEI54; relay DPDT, 19 to 253 V AC, 19 to 55 V DC
5 FEI55; 8/16mA, 11 to 36 V DC
7 FEI57S;2–wire PFM
70 Housing:
1 F15 316L IP66, NEMA4X
2 F16 polyester IP66, NEMA4X
3 F17 aluminum IP66, NEMA4X
4 F13 Alu + gas-tight probe seal IP66, NEMA4X
5 T13 Alu + gas-tight probe seal
+ separate connection compartment
IP66, NEMA4X
9 Special version, to be specified
80 Cable entry:
A Threaded joint M20 (EEx d > M20 thread)
B Thread G ½
C Thread NPT ½
D Thread NPT ¾
Y Special version, to be specified
90 Probe design:
L4: 100 to 6000 mm/12 to 240 inch
1 Compact
2 2000 mm L4 cable > separate housing
3 ....mm L4 cable > separate housing
4 80 inch L4 cable > separate housing
5 ....inch L4 cable > separate housing
9 Special version, to be specified
100 Additional equipment:
A Basic version
D EN10204-3.1 (316L wetted), Inspection certificate
E EN10204-3.1 (316L wetted), NACE
MR0175
Inspection certificate
F SIL Declaration of Conformity
S GL marine approval
Y Special version, to be specified
FTI52 Product designation
* Pending.
50 Process connection:

Identification Liquicap M FTI51, FTI52
16 Endress+Hauser
2.2 Scope of delivery
The scope of delivery consists of:
• The mounted device
• Where applicable, accessories (see Page 76)
Provided documentation:
• Operating Instructions
• Approval documentation, if not included in the Operating Instructions.
2.3 Certificates and approvals
CE mark, Declaration of conformity
The device is designed to meet state-of-the-art operating safety requirements, has been tested, and
has left the factory in a condition in which it is safe to operate. The device meets the relevant
standards and directives listed in the EC Declaration of Conformity and thus fulfills the legal
requirements of the EC Directives. Endress+Hauser confirms that the device has been successfully
tested by applying the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademarks of E.I. Du Pont de Nemours & Co., Wilmington, USA
Tri-Clamp®
Registered trademark of Ladish & Co., Inc., Kenosha, USA

Liquicap M FTI51, FTI52 Installation
Endress+Hauser 17
3 Installation
!Note!
The dimensions on the following pages are indicated in mm.
Overview
L00-FTI5xxxx-03-05-xx-en-001
seperate housing
Polyester housing
F16
Aluminium housing
F17
Stainless steel housing
F15
Aluminium
T13
with a separate connection
compartment and gas-tight
process seal
housing Aluminium
F13
with a
housing
gas-tight
process seal
Rod/rope probe Rod/rope probe
with inactive length
Rod/rope probe
with inactive length
Fully insulated rod/rope probe
with fully insulated inactive length
Tri-Clamp
(DN38 (1½");
DN40-51 (2"))
Clad flanges
(EN, ANSI, JIS) Hose gland
(DN50 PN40)
Thread
(G¾, NPT¾;
G1, NPT1;
G1½, NPT1½)
Flanges
(EN, ANSI, JIS)
Tri-Clamp
(DN25 (1");
DN38 (1½"))
Hygiene
(G¾, G1)
Hose gland
(DN50 PN40)
Thread
(G½, NPT½;
G¾, NPT¾;
G1, NPT1)
Flanges
(EN, ANSI, JIS)
Electronics
Hygiene
(universal adapter)
Hygiene connections
Flush-mounted seal
Hygiene connections
Tri-Clamp
PFTE-clad
Rod probe with
active build-up
compensation
Rod - /
rope probe

Installation Liquicap M FTI51, FTI52
18 Endress+Hauser
Housing
Polyester housing F16
L00-FTI5xxxx-06-05-xx-xx-001
Stainless steel housing F15
L00-FTI5xxxx-06-05-xx-xx-003
Aluminum housing F17
L00-FTI5xxxx-06-05-xx-xx-002
Aluminum housing F13
with gas-tight process seal
L00-FTI5xxxx-06-05-xx-xx-000
Aluminum housing T13
with separate connection
compartment and gas-tight
process seal
L00-FTI5xxxx-06-05-xx-xx-004
ø85
ø85
max. 76
max. 76
~97
~ 97
ø76
ø76
max. 64
max. 64
~95
~ 95
ø80
ø80
max. 60
max. 60
max. 65
max. 65
~ 105
~ 105
ø80
ø80
max. 60
max. 60
max. 65
max. 65
~1
~ 1
18
18
max. 65
max. 65
max. 97
max. 97
~ 135
~ 135

Liquicap M FTI51, FTI52 Installation
Endress+Hauser 19

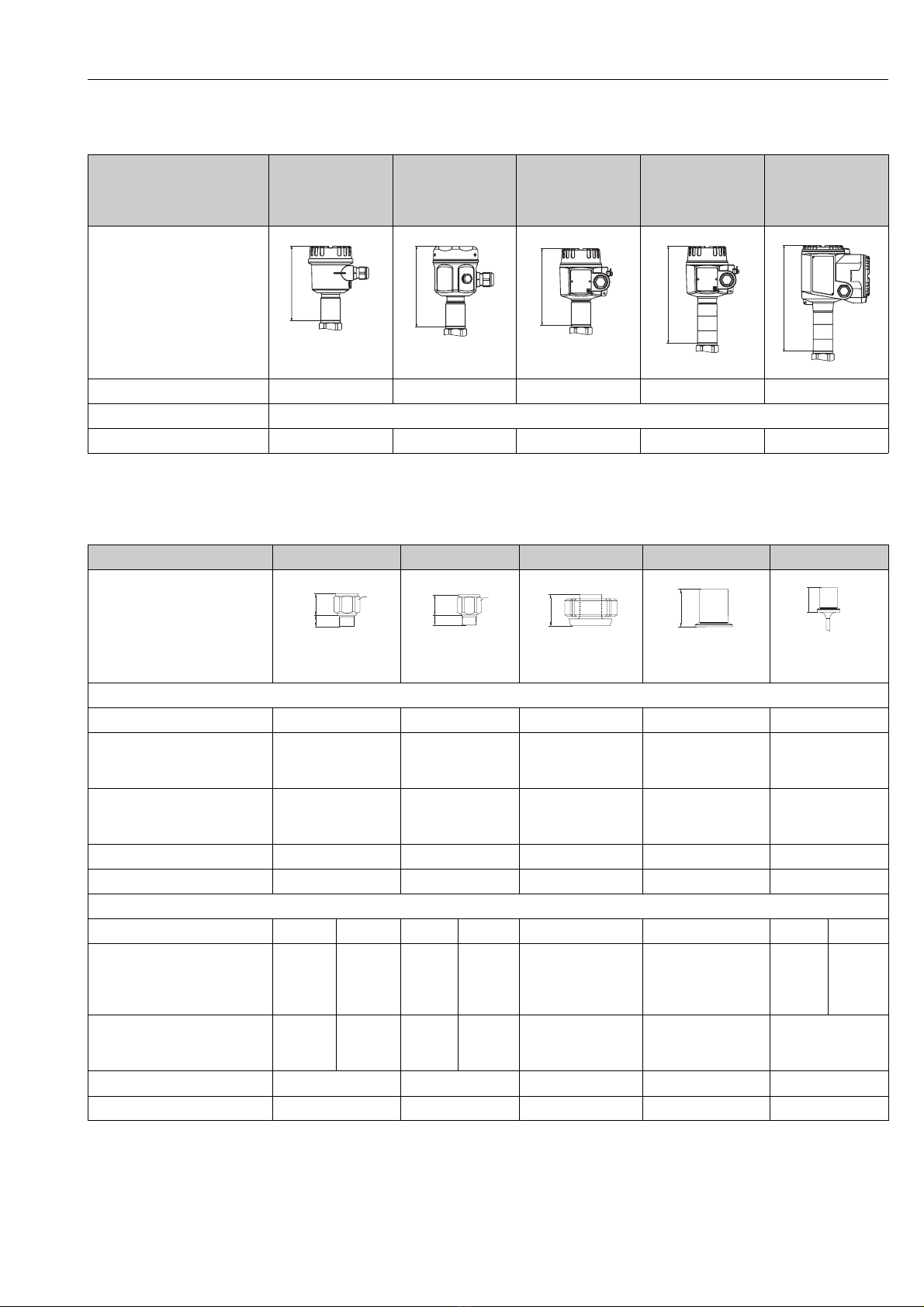

Housing heights with adapter
Process connections
Polyester housing
F16
Stainless steel
housing F15
Aluminum housing
F17
Aluminum housing
F13*
Aluminum housing
with separate
connection
compartment T13*
L00-FTI5xxxx-06-05-xx-xx-044 L00-FTI5xxxx-06-05-xx-xx-046 L00-FTI5xxxx-06-05-xx-xx-045 L00-FTI5xxxx-06-05-xx-xx-048 L00-FTI5xxxx-06-05-xx-xx-047
Ordercode 21345
FTI51, FTI52
H1 144 142 152 194 202
* Housing with gas-tight process seal
H1
H1
H1
H1
H1

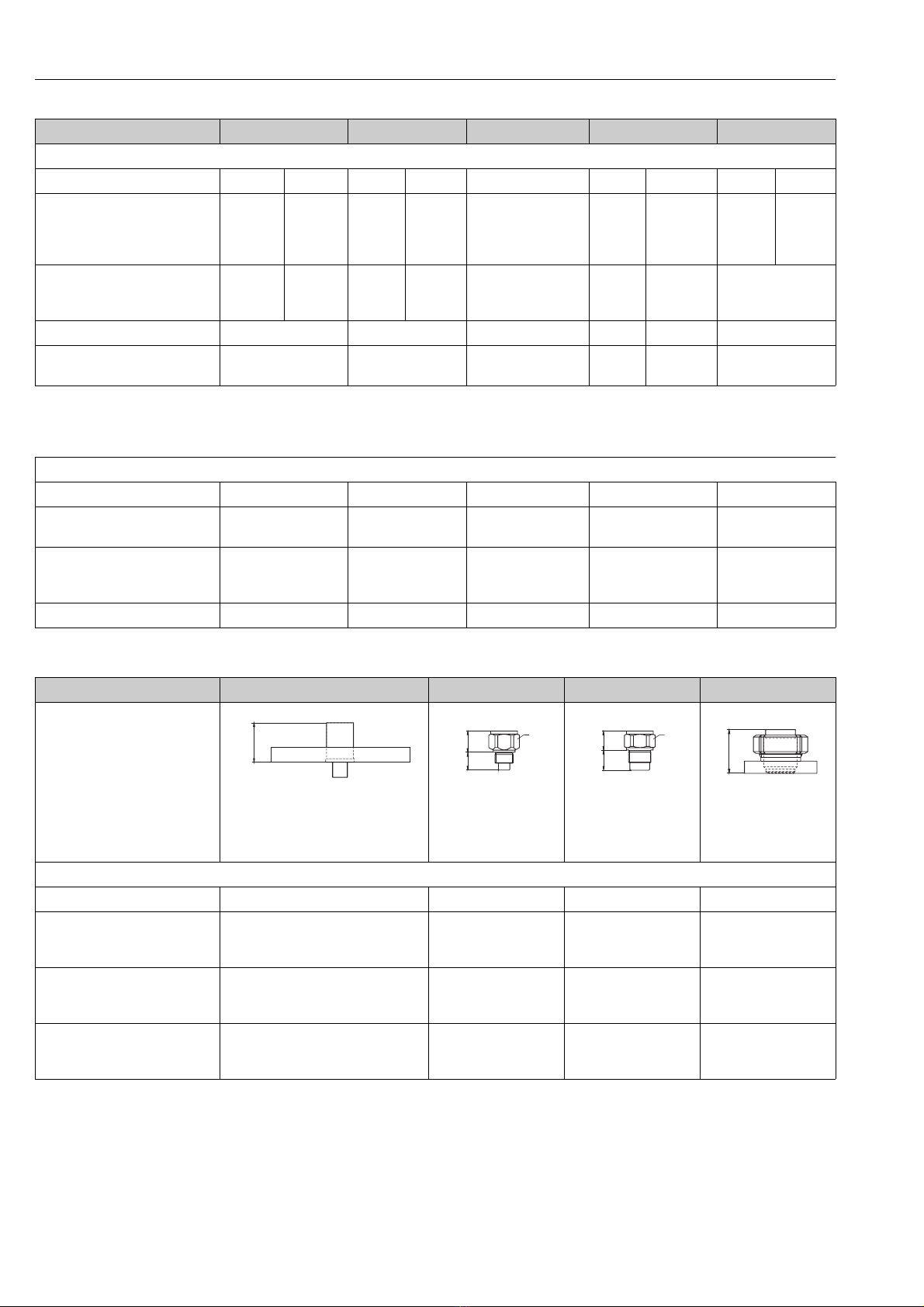

Thread G Thread NPT Threaded pipe joint Tri–Clamp Tri-Clamp clad
L00-FMI5xxxx-06-05-xx-yy-007
(DIN EN ISO228-I)
L00-FMI5xxxx-06-05-xx-yy-008
(ANSI B 1.20.1)
L00-FMI5xxxx-06-05-xx-xx-040
(EN 11851)
L00-FMI5xxxx-06-05-xx-xx-041
(ISO2852)
L00-FMI5xxxx-06-05-xx-xx-069
(ISO2852)
Rod probes ∅10, rope probes
For pressures up to 25 bar 25 bar 25 bar 16 bar** --
Version / order code G ½ / GCJ
G ¾ / GDJ
G 1 / GEJ
NPT ½ / RCJ
NPT ¾/ RDJ
NPT 1 / REJ
DN50 PN40 / MRJ DN25 (1") / TCJ
DN38 (1½") / TJJ
--
Dimensions H2 = 38
H3 = 19
AF = 41
H2 = 38
H3 = 19
AF = 41
H2 = 57 H2 = 57 --
Surface roughness -- -- ≤0.8 μm≤0.8 μm--
Additional information Elastomer flat seal -- -- EHEDG*, 3A* --
Rod probes ∅14, rope probes
For pressures up to 25 bar 25 bar 25 bar 25 bar 25 bar 16 bar** 16 bar** 16 bar**
Version / order code G ¾ / GDJ
G 1 / GEJ
G 1½ /
GGJ
NPT ¾/
RDJ
NPT 1 /
REJ
NPT 1½/
RGJ
DN50 PN40 / MRJ DN25 (1") / TCJ
DN38 (1½") / TJJ
DN40-51 (2") / TDJ
DN38 /
TJK
(1½")
DN40-51
TDK
(2")
Dimensions H2 = 38
H3 = 19
AF = 41
H2 = 41
H3 = 25
AF = 55
H2 = 38
H3 = 19
AF = 41
H2 = 41
H3 = 25
AF = 55
H2 = 66 H2 = 66 H2 = 66
Surface roughness*** -- -- ≤0.8 μm≤0.8 μm≤0.8 μm
Additional information Elastomer flat seal -- -- EHEDG, 3A EHEDG, 3A
* The EHEDG, 3A certificate only applies to probes with a fully insulated probe rod. It does not apply to probes with an inactive length or active buildup
compensation.
** In the event of CRN approval, the maximum permitted process pressure is 11 bar.
*** Does not apply for inactive lengths.
H2
H3
AF
H2H3
AF
H2
H2
H2

Installation Liquicap M FTI51, FTI52
20 Endress+Hauser
Rod probes ∅16, rope probes
For pressures up to 25 bar 100 bar 25 bar 100 bar 40 bar 16 bar** 16 bar** 16 bar** 16 bar**
Version / order code G ¾ / GDJ
G 1 / GEJ
G 1½ /
GGJ
NPT ¾/
RDJ
NPT 1 /
REJ
NPT 1½/
RGJ
DN50 PN40 / MRJ DN38 /
TNJ
(1½")
DN40-51 /
TDJ
(2")
DN38 /
TJK
(1½")
DN40-51
TDK
(2")
Dimensions H2 = 38
H3 = 19
AF = 41
H2 = 41
H3 = 25
AF = 55
H2 = 38
H3 = 19
AF = 41
H2 = 41
H3 = 25
AF = 55
H2 = 66 H2 = 47 H2 = 66 H2 = 66
Surface roughness*** -- -- ≤0.8 μm≤0.8 μm≤0.8 μm≤0.8 μm
Additional information Elastomer flat seal -- -- EHEDG*
3A*
-- EHEDG, 3A
* The EHEDG, 3A certificate only applies to probes with a fully insulated probe rod. It does not apply to probes with an inactive length or active buildup
compensation.
** In the event of CRN approval, the maximum permitted process pressure is 11 bar.
*** Does not apply for inactive lengths.
Rod probes ∅22, rope probes
For pressures up to 50 bar 50 bar -- -- --
Version / order code G 1½ / GGJ NPT 1½/ RGJ -- -- --
Dimensions H2 = 85
H3 = 25
AF = 55
H2 = 85
H3 = 25
AF = 55
-- -- --
Additional information Elastomer flat seal -- -- -- --
Thread G Thread NPT Threaded pipe joint Tri–Clamp Tri-Clamp clad
Flanges Hygiene connection Hygiene connection Hygiene connection
L00-FMI5xxxx-06-05-xx-xx-042
(EN1092-1)
(ANSI B 16.5)
(JIS B2220)
L00-FMI5xxxx-06-05-xx-en-009
With flush-mounted seal
L00-FMI5xxxx-06-05-xx-en-010
With flush-mounted seal
L00-FMI5xxxx-06-05-xx-xx-043
Adapter 44 mm
with flush-mounted seal
Rod probes ø10, rope probes
For pressures up to Max. 25 bar (depends on flange) 25 bar 25 bar --
Version / order code EN / B**
ANSI / A**
JIS /K**
G ¾ / GQJ G 1 / GWJ --
Dimensions H2 = 57 H2 = 31
H3 = 26
AF = 41
H2 = 27
H3 = 30
AF = 41
--
Additional information Also clad (PTFE) Welding neck
see "Accessories"
EHEDG*, 3A*
Welding neck
see "Accessories"
EHEDG*, 3A*
--
* The EHEDG, 3A certificate only applies to probes with a fully insulated probe rod. It does not apply to probes with an inactive length
or active buildup compensation.
** Wildcard for nominal diameter and permitted process pressure
Note! Only use clad flanges for aggressive liquids!
H2
H2
H3
AF
H2
H3
AF
H2
