Endress+Hauser Thermophant T TTR31 User manual

BA229R/09/en/06.09
71098142
Release 01.02
Operating manual
Thermophant®T TTR31, TTR35
Temperature switch

Brief overview
Using the following short form instructions you can commission your system easily and swiftly:
Safety instructions →Page 4
Æ
Installation →Page 6
Æ
Wiring →Page 11
Æ
Operation →Page 12
Display and operating elements
On-site operation
Operation with PC and configuration software
Æ
Trouble-shooting →Page 28

Endress+Hauser 3
TTR31, TTR35
Table of contents
1 Safety instructions . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Device identification. . . . . . . . . 5
2.1 Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Certificates and approvals . . . . . . . . . . . . . 5
3 Installation . . . . . . . . . . . . . . . . 6
3.1 Incoming acceptance, storage . . . . . . . . . . 6
3.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 Process connection . . . . . . . . . . . . . . . . . . 7
3.4 Installation instructions . . . . . . . . . . . . . . . 9
4 Wiring. . . . . . . . . . . . . . . . . . . 11
4.1 DC voltage version with M12x1 connector 11
4.2 DC voltage version with valve connector . 12
5 Operation . . . . . . . . . . . . . . . . 12
5.1 On-site operation . . . . . . . . . . . . . . . . . . . 12
5.2 Operation with PC . . . . . . . . . . . . . . . . . 22
6 Maintenance. . . . . . . . . . . . . . 24
7 Accessories. . . . . . . . . . . . . . . 25
7.1 Welding bosses and coupling . . . . . . . . . 25
7.2 Electrical connection . . . . . . . . . . . . . . . . 26
7.3 Configuration kit . . . . . . . . . . . . . . . . . . . 27
7.4 Configuration software . . . . . . . . . . . . . . 27
8 Trouble-shooting . . . . . . . . . . 28
8.1 Errors and warnings . . . . . . . . . . . . . . . . 28
8.2 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.4 Software history and
compatibility overview . . . . . . . . . . . . . . 29
9 Technical data . . . . . . . . . . . . 31
9.1 Power supply . . . . . . . . . . . . . . . . . . . . . 31
9.2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.3 Operating conditions . . . . . . . . . . . . . . . . 31
10 Dangerous good sheet . . . . . . .34

Safety instructions TTR31, TTR35
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Thermophant®T is a temperature switch for monitoring, displaying and regulating process
temperatures. The device has been safely built with state-of-the-art technology and meets the
applicable requirements and EC Directives. It can, however, be a source of danger if used
incorrectly or for anything other than the designated use.
1.2 Installation, commissioning and operation
Installation, electrical connection, commissioning, operation and maintenance of the measuring
system must be carried out by trained, qualified specialists authorised to perform such work by
the facility's owner-operator. The specialist must have read and understood these Operating In-
structions and must follow the instructions they contain. The device may only be modified and
repair work carried out if this is explicitly permitted in the Operating Instructions. Damaged de-
vices which could be a source of danger may not be commissioned and must be labelled and
identified as defective.
1.3 Operational safety
The measuring device meets the general safety requirements according to EN 61010-1 and the
EMC requirements according to IEC/EN 61326 in addition to the NAMUR recommendations
NE 21, NE 43 and NE 53.
• Functional safety
The Thermophant®T temperature switches were developed according to the standards IEC
61508 and IEC 61511-1 (FDIS). The device version with PNP switch output and additional
analog output is equipped with fault detection and fault prevention facilities within the
electronics and software.
•Ex-area
The Thermophant®T is not approved for use in Ex-areas.
1.4 Return
The following procedures must be carried out before a device is returned to Endress+Hauser:
• Always enclose a fully completed “Declaration of Contamination” form with the device. Only
then can Endress+Hauser transport and examine a returned device. A copy of the “Declara-
tion of Contamination” can be found on the second last page of these Operating Instructions.
• Remove all fluid residues. This is particularly important if the fluid is hazardous to health, e.g.
flammable, toxic, caustic, carcinogenic, etc.
#Warning!
Do not return a measuring device if you are not absolutely certain that all traces of hazardous
substances have been removed, e.g. substances which have penetrated crevices or diffused
through plastic.

TTR31, TTR35 Device identification
Endress+Hauser 5
2 Device identification
2.1 Nameplate
To identify your device, compare the complete order code and the version information on the
delivery papers with the data on the nameplate.
A0008138

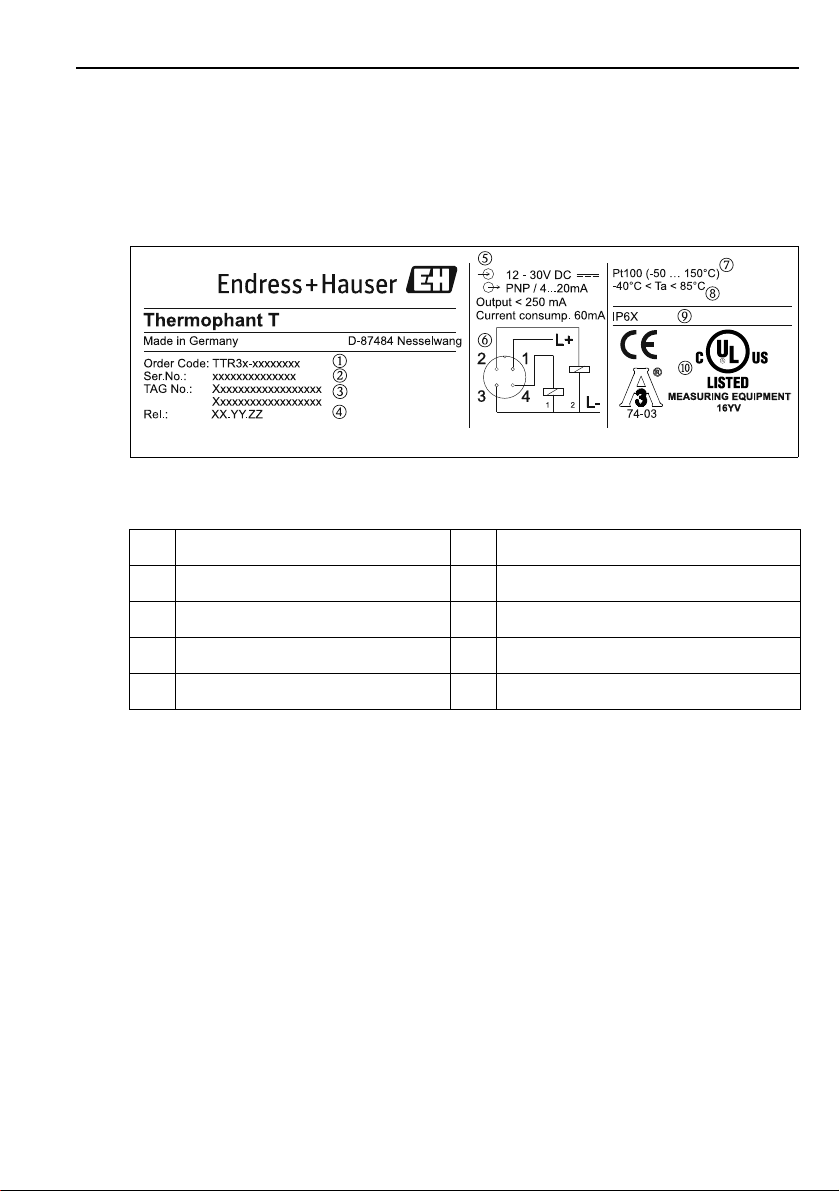

Fig. 1: Nameplate for device identification (as example)
!Note!
The release number indicates the change status of the device. A change in the last two figures
does not have any affect on the compatibility - see also →Chap. 8.
2.2 Certificates and approvals
CE mark, declaration of conformity
On leaving the factory, the device was in perfect condition from the point of view of safety. It
complies with the standards EN 61010 -1 "Protection Measures for Electrical Equipment for
Measurement, Control, Regulation and Laboratory Procedures" and with the EMC requirements
of IEC/EN 61326. The device meets the legal requirements of the EU Directives. The
manufacturer confirms a positive completion of all tests by fitting the unit with a CE mark.
Hygiene standard
The TTR35 temperature switch meets the requirements of Sanitary Standard no. 74-03.
Endress+Hauser confirms this by applying the 3–A symbol (not valid for process connection
conical metal-metal).
mOrder code rConnection diagram
nSerial number sMeasuring range
oTAG number tAmbient temperature
pRelease number (change status) uDegree of protection
qConnection values vApprovals

Installation TTR31, TTR35
6Endress+Hauser
UL listed for Canada and USA
The device was examined by Underwriters Laboratories Inc. (UL) in accordance with the
standards UL 61010B-1 and CSA C22.2 No. 1010.1-92 and listed under the number E225237
UL.
3 Installation
3.1 Incoming acceptance, storage
• Incoming acceptance:
Check the packaging and the device for damage. Check that the goods delivered are complete
and nothing is missing.
•Storage:
Storage temperature -40 °C to +85 °C (-40 °F to +185 °F).
3.2 Dimensions
T09-TTR31xxx-06-xx-xx-en-000
Fig. 2: Dimensions in mm (inches)
L = Insertion length
M12x1 connector as per IEC 60947-5-2
M16x1.5 or NPT ½" valve plug as per DIN 43650A/ISO 4400
ø 42.3 (1.66)
97.1 (3.82)
42.1 (1.66)
38.7 (1.52)
36 (1.42)
24 (0.95)
52 (2.05)
ø 38.5 (1.52)
LL
øø
6 (0.24) 6 (0.24)
L
ø6 (0.24)
ø14 (0.55)
35 (1.38)
L
ø6 (0.24)
14 (0.55)
35 (1.38)
38.7 (1.52)
24 (0.95)
38.7 (1.52)
24 (0.95)
ø
M16x1.5 / NPT ½”
TTR31 M12x1
with neck
TTR35 M12x1
with neck

TTR31, TTR35 Installation
Endress+Hauser 7
3.3 Process connection
3.3.1 TTR31 design, dimensions of the process connections
A0007101
Fig. 3: Process connection versions of TTR31
Item
no.
Version Insertion
length L
Thread length L1Thread length L2
A Without process connection. For suitable
welding boss and coupling see chapter
’accessories’.
50, 100 or
200 mm
(1.97, 3.94
or 7.87 in)
--
B Thread process connection:
•ANSINPT¼"(m= AF14)
•ANSINPT½"(m= AF27)
• 14.3 mm (0.56")
• 19 mm (0.75")
• 5.8 mm (0.23")
• 8.1 mm (0.32")
C Thread process connection cylindrical as per
ISO 228:
•G¼"(n= AF14)
•G½"(n= AF27)
• 12 mm (0.47")
• 14 mm (0.55")
-

Installation TTR31, TTR35
8Endress+Hauser
3.3.2 TTR35 design, dimensions of the process connections
a0011647
Fig. 4: All dimensions in mm (inch).
L = insertion length L
Item no. Process connection versions
Insertion length L = 20, 50, 100 or 200 mm (0.8, 1.97, 3.94 or 7.87 in)
MB Conical metal-metal for hygienic processes, G½" thread, thread length L1 = 14 mm (0.55").
Suitable welding boss available as accessory.
DB Clamp 1"...1½" (ISO 2852) or DN 25...DN 40 (DIN 32676)
DL Clamp 2" (ISO 2852) or DN 50 (DIN 32676)
DP Clamp 2½" (ISO 2852)
LB Varivent F DN25-32, PN 40
LL Varivent N DN40-162, PN 40
HL APV-Inline, DN50, PN40, 316L, B = bores 6 x Ø8.6 (0.34") + 2 x thread M8
PL DIN 11851, DN50, PN40 (including coupling nut)
PG DIN 11851, DN25, PN40 (including coupling nut)
PH DIN 11851, DN40, PN40 (including coupling nut)

TTR31, TTR35 Installation
Endress+Hauser 9
"Caution!
The maximum process pressure for the conical metal-metal process connection
(→Fig. 4, item MB) is 16 bar = 1.6 MPa (232 psi)!
3.4 Installation instructions
"Caution!
Do no thread into process connection by turning housing. Always use a wrench (see table,
→Chap. 3.3) on the process connection flats (→Fig. 5, Pos. 1) to tighten the sensor into the
process connection.
A0011644

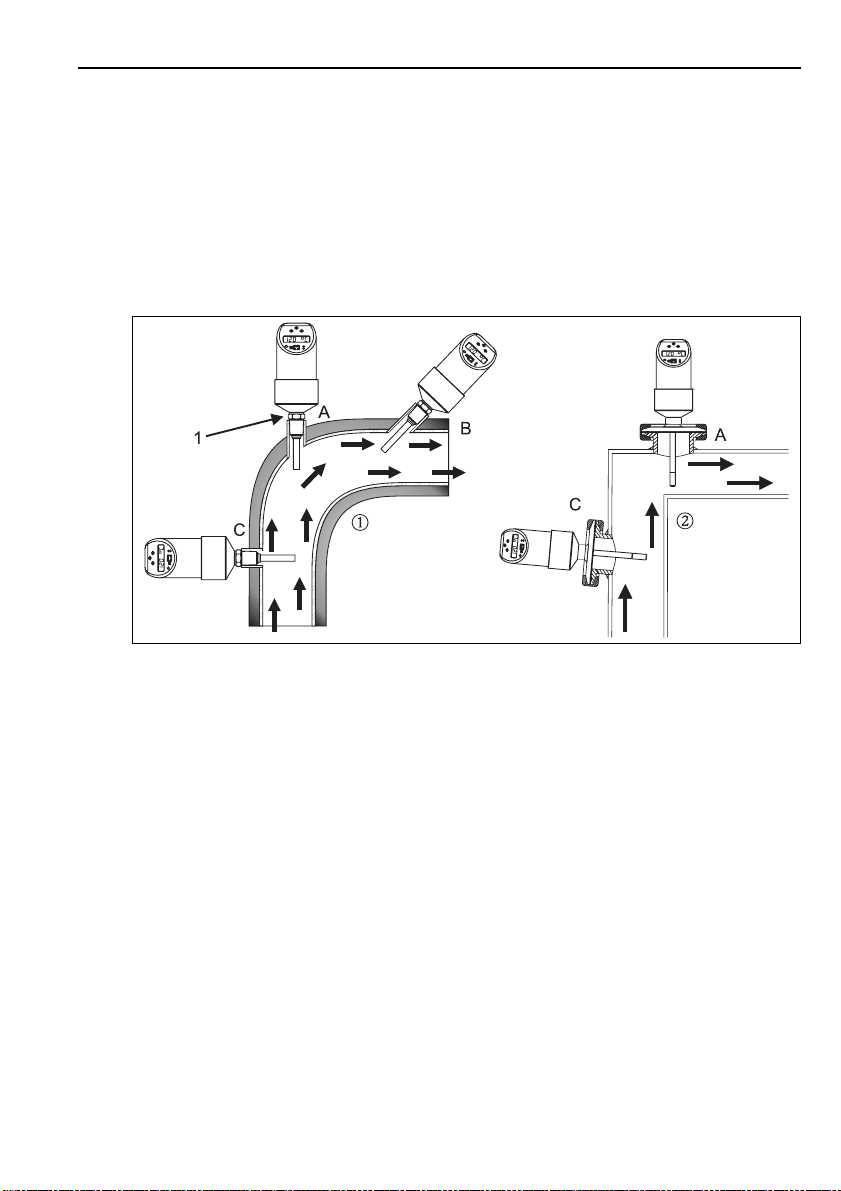

Fig. 5: Possible installation options for temperature monitoring in pipes
mTTR31
nTTR35 for use in hygienic processes
General mounting instructions:
• Installation at angle pieces, against the direction of flow (→Fig. 5, Item A).
• Installation in smaller pipes, inclined against the direction of flow (→Fig. 5, Item B).
• Installation vertical to the direction of flow (→Fig. 5, Item C). Installation of TTR35 by min.
3° inclination, because of self draining.
• The on-site display can be rotated electronically 180° −see section 5.1 "On-site operation".
• The housing can be rotated up to 310°.

Installation TTR31, TTR35
10 Endress+Hauser
Mounting instructions for installation in hygienic processes:
a0011673-en
Fig. 6: Installation in hygienic processes
A Milk pipe connection as per DIN 11851 (connection PL, PG, PH), only in linkage with EHEDG
certified and self centering ring
B Varivent and APV-Inline (connection LB, LL, HL)
C Clamp as per ISO 2852 (connection DB, DL, DP)

TTR31, TTR35 Wiring
Endress+Hauser 11
4 Wiring
!Note!
TTR35: Electrical cables must comply with 3-A standard. They must be smooth, corrosion
resistant and cleanable.
4.1 DC voltage version with M12x1 connector
P01-PTx3xxxx-04-xx-xx-xx-002
Fig. 7: Thermophant® T with M12x1 connector
A1: 1x PNP switch output
A2: 2x PNP switch outputs R1 and m(R2)
A2’: 2x PNP switch outputs R1 and m (diagnosis/break contact with adjustment "DESINA")
A3: 1x PNP switch output and 1x analog output (4 to 20 mA)
A4: 1x analog output (4 to 20 mA) and 1x PNP switch output m(R2)
A4’: 1x analog output (4 to 20 mA) and 1x PNP switch output m
(diagnosis/break contact with adjustment "DESINA")
"Caution!
To avoid the analog input damaging of a PLC, do not connect the active PNP switch output of
the device to the 4...20 mA input of a PLC.
!Note!
More informations about DESINA see www.desina.de (→Chap. 5.1.4 Basic settings).

Operation TTR31, TTR35
12 Endress+Hauser
4.2 DC voltage version with valve connector
P01-PTx3xxxx-04-xx-xx-xx-003
Fig. 8: Thermophant®T with M 16x1.5 or NPT ½" valve plug
B: 1x PNP switch output
5 Operation
5.1 On-site operation
The Thermophant®T is operated by means of three keys. The digital display and the light
emitting diodes (LED) support navigation in the operating menu.
T09-TTR31xxx-19-xx-xx-en-001
Fig. 9: Position of operating elements and possibilities for display

TTR31, TTR35 Operation
Endress+Hauser 13
5.1.1 Navigating in the operating menu
T09-TTR31xxx-19-xx-xx-xx-002

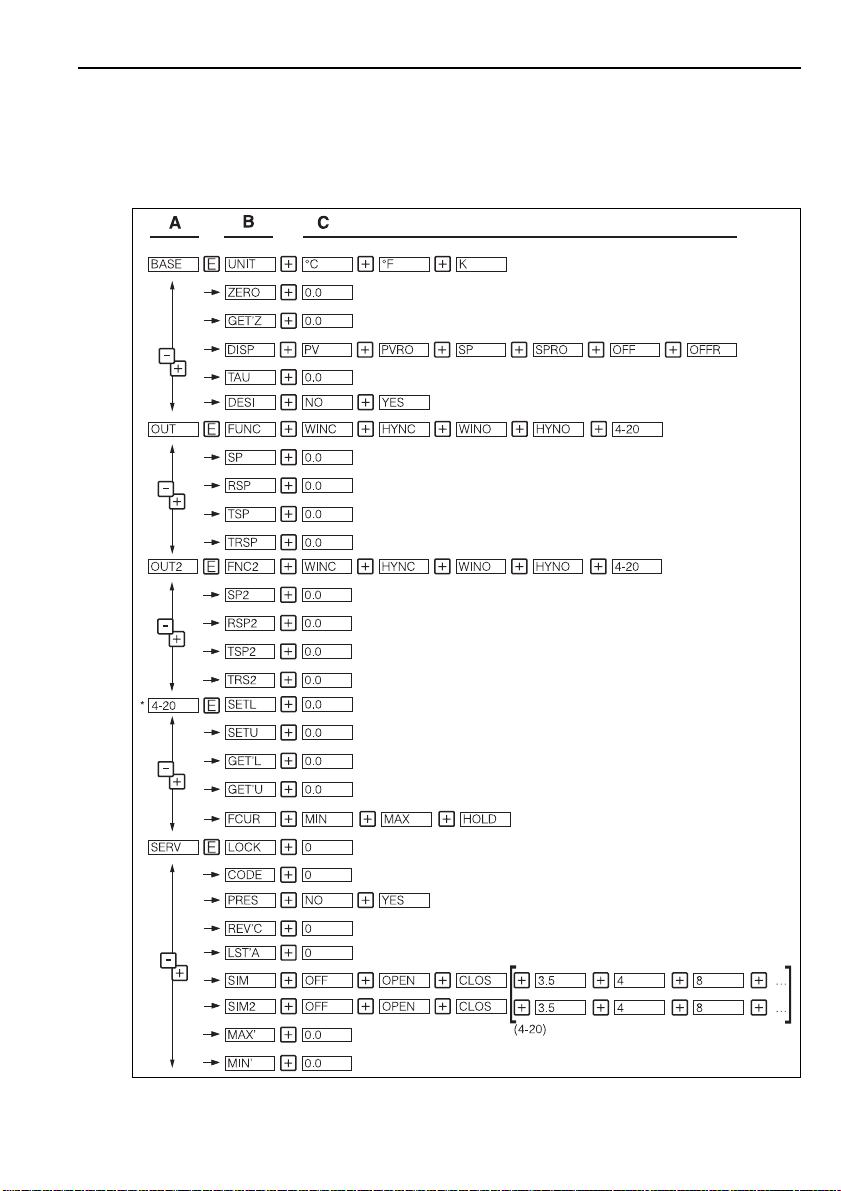

Fig. 10: Navigating in the operating menu
A Function group selection
B Function selection
m Enter the operating menu
– Press the E key for longer than 3 s
n Select the "Function group" with the + or −key
o Select the "Function" with the E key
p Enter or change parameters with the + or −key
– Then return to "Function" with the E key
Note: If software locking is enabled, it must be disabled before making entries or changes
q Press the E key several times to return to the "Function group"
– until the appropriate function group is reached again
r Jump back to the measuring position (Home position)
– Press the E key for longer than 3 s
s Query to save data (select "YES" or "NO" with the + or − key)
– Confirm with the E key
!Note!
Changes to the parameter settings only become effective if you choose s 'YES' when asked to
save data.

Operation TTR31, TTR35
14 Endress+Hauser
5.1.2 Structure of the operating menu for 1x or 2x switch outputs
A0008102
Fig. 11: Operating menu: A function groups, B functions, C settings

TTR31, TTR35 Operation
Endress+Hauser 15
5.1.3 Structure of the operating menu for 1x switch output or
1x analog output (4 to 20 mA)
At devices with analog output both output 1 and output 2 can be configured as an analog output.
Furthermore it is possible to configure both output 1 and output 2 as a switch output.
T09-TTR31xxx-19-xx-xx-xx-003
Fig. 12: Operating menu: A function groups, B functions, C settings

Operation TTR31, TTR35
16 Endress+Hauser
5.1.4 Basic settings
!Note!
The function group 4-20 is only available if the 4 to 20 mA analog output (0>.,) is selected in
the function group  or . under 6 or 6..
Function
group
Function Settings Description
  Technical unit C
C6

Select technical unit:
°C, °F, K
Factory setting: °C
 Configure zero
point
,M, Position adjustment:
within ±10 °C/K
(±18 °F) of the upper
range limit
7@ Accept zero point ,M, No settings possible (not
available in PC software)
 Display 



66
66
PV: measured value
display
PVRO: measured value
display rotated 180°
SP: set switch point
display
SPRO: set switch point
display rotated 180°
OFF: display off
OFFR: display off rotated
180°
Factory setting:
measured value (PV)
 Damping:
display value,
output signal
,M, Measured value damping
with regard to display
value and output: 0 (no
damping) or 9 to 40 s (in
increments of 1 second)
Factory setting: 0 s

TTR31, TTR35 Operation
Endress+Hauser 17
5.1.5 Settings for output - 2x switch output
• Hysteresis function
The hysteresis function enables two-point control via a hysteresis. Depending on the
temperature T, the hysteresis can be set via the switch point SP and the switch-back point
RSP.
• Window function
The window function enables the monitoring of a process temperature range.
• NO contact or NC contact
This switch function is freely selectable.
• Factory setting (if no customer-specific settings have been ordered):
Switch point SP 1: 45 °C (113.0 °F); Switch-back point RSP 1: 44.5 °C (112.1 °F)
Switch point SP 2: 55 °C (131.0 °F); Switch-back point RSP 2: 54.5 °C (130.1 °F)
• Range of adjustment
LRL = Lower Range Limit
URL = Upper Range Limit
LRV = Lower Range Value
URV = Upper Range Value
  DESINA 

PIN assignment of the
M12 connector is in
accordance with the
guidelines of DESINA
Factory setting: NO
!Note!
Configuration DESINA is
only possible, if output 1
and output 2 are
selected.
Function
group
Function Settings Description

Operation TTR31, TTR35
18 Endress+Hauser
T09-TTR31xxx-05-xx-xx-xx-001
Fig. 13: Switch point functions
a: Hysteresis-function
b: Window-function
mWindow - NC contact
nHysteresis - NC contact
oWindow - NO contact
pHysteresis - NO contact
SP switch point; RSP switch-back point
Function
group
Function Settings Description

Output 1
.
Output 2,
as option
6
6.
Switching
characteristic




WINC:
window/NC contact
HYNC:
hysteresis/NC contact
WINO:
window/NO contact
HYNO:
hysteresis/NO contact
Factory setting: HYNO

.
Switch point value ,M, Switch point
-49.5 to 150 °C
(-57.1 to 302 °F)
in increments of 0.1 °C
(0.18 °F)

TTR31, TTR35 Operation
Endress+Hauser 19
5.1.6 Settings for output - 1x switch output and 1x analog output (4 to 20 mA)

Output 1
.
Output 2,
as option

.
Switch-back point
value
,M, Switch-back point
-50 to 149 °C
(-58 to 300 °F)
in increments of 0.1 °C
(0.18 °F)

.
Switch point delay ,M, Delay time
0...99 s
in increments of 0.1 s
Factory setting: 0 s

.
Switch-back point
delay
,M, Delay time 0...99 s
in increments of 0.1 s
Factory setting: 0 s
Min. distance between SP and RSP: 0.5 °C/K (0.9 °F)
Function
group
Function Settings Description

Output 1
.
Output 2,
as option
6
6.
Switching
characteristic




0>.,
WINC:
window/NC contact
HYNC:
hysteresis/NC contact
WINO:
window/NO contact
HYNO:
hysteresis/NO contact
4 - 20: analog output
Factory setting: HYNO

.
Switch point value ,M, Switch point
-49.5 to 150 °C
(-57.1 to 302 °F)
in increments of 0.1 °C
(0.18 °F)
Function
group
Function Settings Description

Operation TTR31, TTR35
20 Endress+Hauser

Output 1
.
Output 2,
as option

.
Switch-back point
value
,M, Switch-back point
-50 to 149 °C
(-58 to 300 °F)
in increments of 0.1 °C
(0.18 °F)

.
Switch point delay ,M, Delay time
0...99 s
in increments of 0.1 s
Factory setting: 0 s

.
Switch-back point
delay
,M, Delay time 0...99 s
in increments of 0.1 s
Factory setting: 0 s
Min. distance between SP and RSP: 0.5 °C/K (0.9 °F)
0>.,
Analog
output
 Value for 4 mA
(LRV)
,M, -50 to 130 °C
(-58 to 266 °F)
Lower range value in
increments of 0.1 °C
(0.18 °F)
Factory setting:
0.0 °C (32.0 °F)
 Value for 20 mA
(URV)
,M, -30 to 150 °C
(-22 to 302 °F)
Enter upper range value
in increments of 0.1 °C
(0.18 °F)
Factory setting:
150 °C (302 °F)
7@ Temperature
applied for 4 mA
(LRV)
,M, Take temperature value
as lower range value
(not via PC software)
7@ Temperature
applied for 20 mA
(URV)
,M, Take temperature value
as upper range value
(not vial PC software)
Function
group
Function Settings Description
