Endress+Hauser cerabar S User manual

BA274P/00/en/08.06
71027249
valid from
Software version 02.10
Hardware version 02.00
Operating Instructions – Description of device functions
Cerabar S/Deltabar S/Deltapilot S
Pressure and Differential pressure transmitters
6

Overview documentation Cerabar S/Deltabar S/Deltapilot S
2
Overview documentation
Device Documentation Content Remarks
Cerabar S
4 to 20 mA HART
Technical Information TI383P Technical data – The documentation is located on the ToF Tool
CD. The CD is enclosed with every device
ordered with the "HistoROM/M-DAT"
option. The "HistoROM/M-DAT" option is
selected in the order code via feature 100
Additional option 1" or 110 "Additional
option 2", version "N".
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Operating Instructions BA271P – Identification
– Installation
– Wiring
– Operation
– Commissioning, Description of
Quick Setup menus
– Maintenance
– Trouble-shooting and spare parts
– Appendix: Illustration of menu
– The documentation is supplied with the
device.
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Operating Instructions BA274P – Examples of configuration for
pressure and level measurement
– Description of parameters
– Trouble-shooting
– Appendix: Illustration of menu
– The documentation is located on the ToF Tool
CD. The CD is enclosed with every device
ordered with the "HistoROM/M-DAT"
option. The "HistoROM/M-DAT" option is
selected in the order code via feature 100
Additional option 1" or 110 "Additional
option 2", version "N".
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Brief Operating Instructions KA218P – Wiring
– Operation without on-site
display
– Description of Quick Setup menus
– Operation HistoROM
®
/M-DAT
– The documentation is supplied with the
device. See cover of the terminal
compartment.
Functional Safety Manual SD190P – Safety function with Cerabar S
– Behaviour in operation and failure
– Commissioning and iterative tests
–Settings
– Technical safety characteristic
quantities
– Management Summary
– The documentation is supplied with the
devices showing version "E" in feature 100
"Additional options 1" or in feature 110
"Additional options 2".
→ See also Technical Information TI383P,
chapter "Ordering information".

Cerabar S/Deltabar S/Deltapilot S Overview documentation
3
Device Documentation Content Remarks
Deltabar S
4 to 20 mA HART
Technical Information TI382P Technical data – The documentation is located on the ToF Tool
CD. The CD is enclosed with every device
ordered with the "HistoROM/M-DAT"
option. The "HistoROM/M-DAT" option is
selected in the order code via feature 100
Additional option 1" or 110 "Additional
option 2", version "N".
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Operating Instructions BA270P – Identification
– Installation
– Wiring
–Operation
– Commissioning, Description of
Quick Setup menus
– Maintenance
– Trouble-shooting and spare parts
– Appendix: Illustration of menu
– The documentation is supplied with the
device.
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Operating Instructions BA274P – Examples of configuration for
pressure, level and flow
measurement
– Description of parameters
– Trouble-shooting
– Appendix: Illustration of menu
– The documentation is located on the ToF Tool
CD. The CD is enclosed with every device
ordered with the "HistoROM/M-DAT"
option. The "HistoROM/M-DAT" option is
selected in the order code via feature 100
Additional option 1" or 110 "Additional
option 2", version "N".
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Brief Operating Instructions KA218P – Wiring
– Operation without on-site
display
– Description of Quick Setup menus
– Operation HistoROM
®
/M-DAT
– The documentation is supplied with the
device. See cover of the terminal
compartment.
Functional Safety Manual SD189P – Safety function with Deltabar S
– Behaviour in operation and failure
– Commissioning and iterative tests
– Settings
– Technical safety characteristic
quantities
– Management Summary
– The documentation is supplied with the
devices showing version "E" in feature 100
"Additional options 1" or in feature 110
"Additional options 2".
→ See also Technical Information TI382P,
chapter "Ordering information".

Overview documentation Cerabar S/Deltabar S/Deltapilot S
4
Device Documentation Content Remarks
Deltapilot S
4 to 20 mA HART
Technical Information TI416P Technical data – The documentation is located on the ToF Tool
CD. The CD is enclosed with every device
ordered with the "HistoROM/M-DAT"
option. The "HistoROM/M-DAT" option is
selected in the order code via feature 100
Additional option 1" or 110 "Additional
option 2", version "N".
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Operating Instructions BA332P – Identification
– Installation
– Wiring
– Operation
– Commissioning, Description of
Quick Setup menus
– Maintenance
– Trouble-shooting and spare parts
– Appendix: Illustration of menu
– The documentation is supplied with the
device.
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Operating Instructions BA274P – Examples of configuration for
pressure and level measurement
– Description of parameters
– Trouble-shooting
– Appendix: Illustration of menu
– The documentation is located on the ToF Tool
CD. The CD is enclosed with every device
ordered with the "HistoROM/M-DAT"
option. The "HistoROM/M-DAT" option is
selected in the order code via feature 100
Additional option 1" or 110 "Additional
option 2", version "N".
– The documentation is also available via the
Internet. → See: www.endress.com →
Download
Brief Operating Instructions KA218P – Wiring
– Operation without on-site
display
– Description of Quick Setup menus
– Operation HistoROM
®
/M-DAT
– The documentation is supplied with the
device. See cover of the terminal
compartment.
Functional Safety Manual SD213P – Safety function with Deltapilot S
– Behaviour in operation and failure
– Commissioning and iterative tests
–Settings
– Technical safety characteristic
quantities
– Management Summary
– The documentation is supplied with the
devices showing version "E" in feature 100
"Additional options 1" or in feature 110
"Additional options 2".
→ See also Technical Information TI416P,
chapter "Ordering information".

Cerabar S/Deltabar S/Deltapilot S Table of contents
5
Table of contents
1 Notes on use . . . . . . . . . . . . . . . . . . . . 6
1.1 Finding parameter description using ID numbers . . . 6
1.2 Finding function group using graphic representation 6
1.3 Finding parameter description using parameter names
(index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Finding parameter description using
ID numbers . . . . . . . . . . . . . . . . . . . . . 7
3 Graphic representation of
function groups . . . . . . . . . . . . . . . . . 12
4 Pressure measurement. . . . . . . . . . . . 13

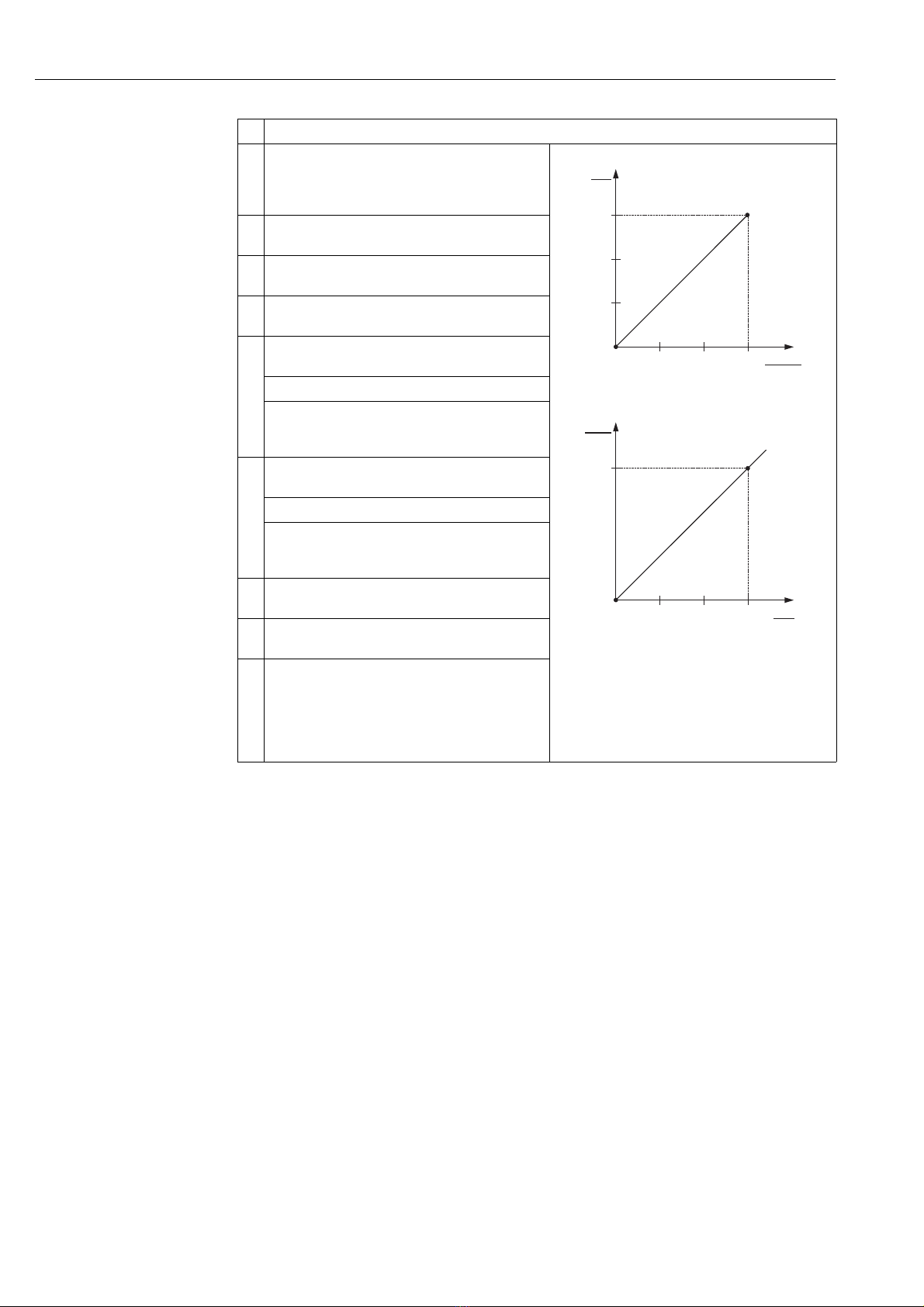

4.1 Calibration with reference pressure . . . . . . . . . . . . 13
4.2 Calibration without reference pressure . . . . . . . . . 14

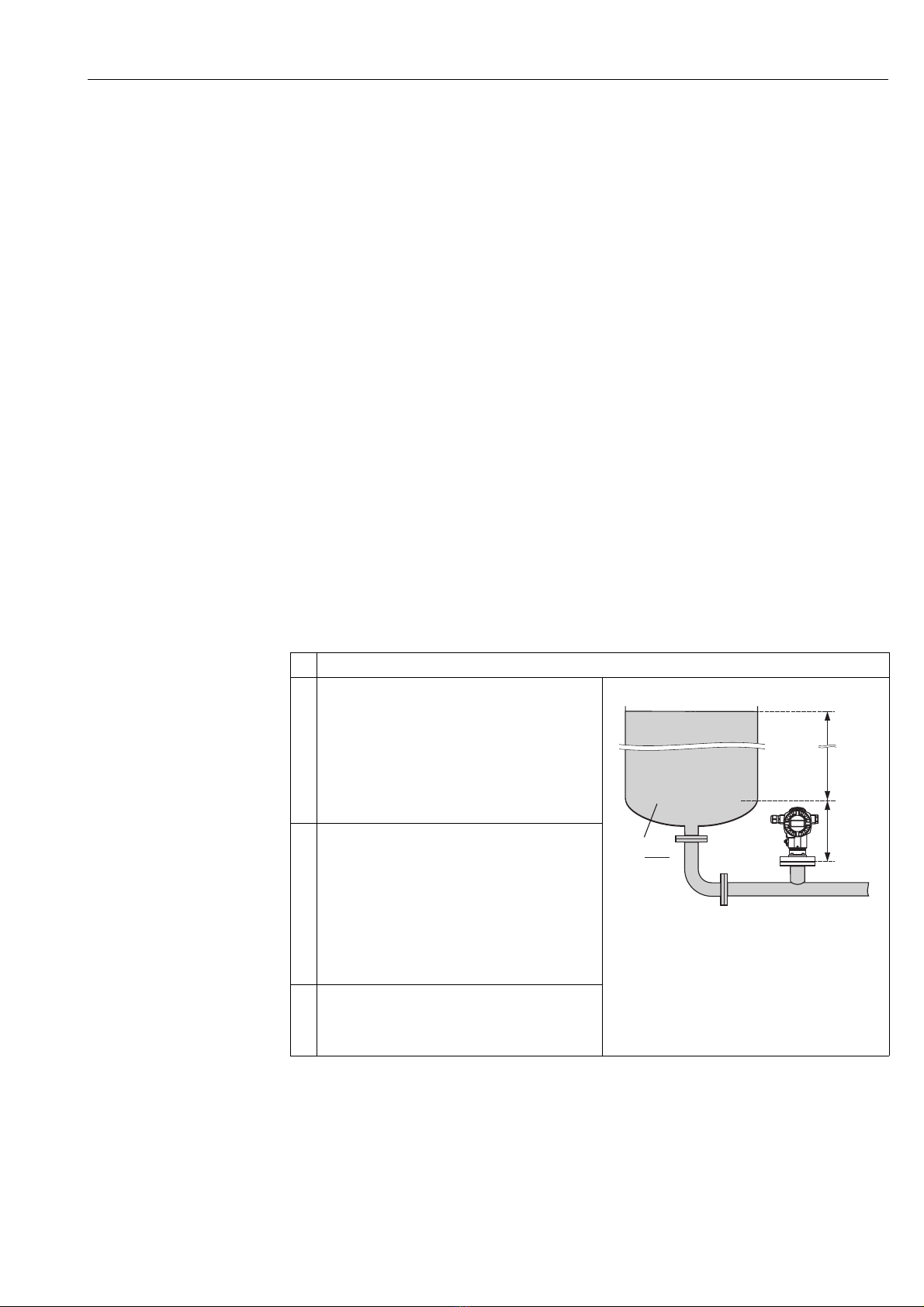

5 Level measurement . . . . . . . . . . . . . . 16
5.1 Overview of level measurement . . . . . . . . . . . . . . 16
5.2 "Level Easy Pressure" level selection . . . . . . . . . . . 17
5.3 "Level Easy Height" level selection . . . . . . . . . . . . . 21
5.4 "Level Standard" level selection,
"Linear" level type . . . . . . . . . . . . . . . . . . . . . . . . 25
5.5 "Level Standard" level selection,
"Pressure Linearized" level type . . . . . . . . . . . . . . 29
5.6 "Level Standard" level selection,
"Height Linearized" level type . . . . . . . . . . . . . . . . 34
6 Flow measurement. . . . . . . . . . . . . . . 41
6.1 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6.2 Totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
7 Description of parameters . . . . . . . . . 44
8 Trouble-shooting . . . . . . . . . . . . . . . 131
8.1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
8.2 Response of outputs to errors . . . . . . . . . . . . . . . . 138
8.3 Confirming messages . . . . . . . . . . . . . . . . . . . . . . 139
9 Appendix . . . . . . . . . . . . . . . . . . . . . 139
9.1 Operating menu for on-site display, ToF Tool,
FieldCare and HART handheld terminal . . . . . . . . 139
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Notes on use Cerabar S/Deltabar S/Deltapilot S
6
1 Notes on use
Section 7 describes all the parameters in order of how they appear in the menu. Sections 4 to 6
provide typical examples of configuration.
Sections 1.1 to 1.3 describe ways of finding a certain parameter description more easily.
1.1 Finding parameter description using ID numbers
Each parameter is shown on the on-site display with a unique identification number (ID). Section 2
lists all the parameters in numerical order. The page reference/link takes you to the parameter in
question.
In the ToF Tool, additional parameters and, to an extent, other parameters are displayed. These
parameters are not listed in Section 2. You can find these parameters by means of the index. →See
also Section 1.3.
1.2 Finding function group using graphic representation
All the function groups are shown in table form in Section 3. The page reference/link takes you to
the function group in question. In Section 7, all the parameters of a function group are compiled in
a table.
1.3 Finding parameter description using parameter names
(index)
The index lists all the parameters in alphabetical order. The page reference/link takes you to the
parameter in question.

Cerabar S/Deltabar S/Deltapilot S Finding parameter description using ID numbers
7
2 Finding parameter description using
ID numbers
ID number Parameter name Description, see page
001 DENSITY UNIT – Level Selection "Level Easy Pressure" 64 or 97
003 HEIGHT UNIT 64
004 FULL CALIB. – QUICK SETUP 51
004 FULL CALIB. – Level Selection "Level Easy Pressure" 61
004 FULL CALIB. – Level Selection "Level Easy Height" 65
005 FULL PRESSURE 61
006 FULL HEIGHT 66
007 ADJUST DENSITY – Level Selection "Level Easy Height" 64 or 97
008 CALIBRATION MODE – Level Selection "Level Easy Pressure" 60
008 CALIBRATION MODE – Level Selection "Level Easy Height" 64
009 EMPTY HEIGHT 65
010 EMPTY CALIB. – QUICK SETUP 50
010 EMPTY CALIB. – Level Selection "Level Easy Pressure" 60 or 61
010 EMPTY CALIB. – Level Selection "Level Easy Height" 65
011 EMPTY PRESSURE 61
012 SET URV – Level Selection "Level Easy Pressure" 61
012 SET URV – Level Selection "Level Easy Height" 66
013 SET LRV – Level Selection "Level Easy Pressure" 61
013 SET LRV – Level Selection "Level Easy Height" 66
014 DOWNLOAD SELECT 125
015 FULL PRESSURE See
1
1) See Safety Manual SD189P for Deltabar S, SD190P for Cerabar S and SD213P for Deltapilot S.
016 EMPTY PRESSURE See
1
017 FULL CALIB. See
1
018 EMPTY CALIB. See
1
020 LEVEL SELECTION 46
021 SET LRV See
1
022 SET URV See
1
023 OUTPUT UNIT – Level Selection "Level Easy Pressure" 60
023 OUTPUT UNIT – Level Selection "Level Easy Height" 64
025 PROCESS DENSITY – Level Selection "Level Easy Pressure" 97
036 PREAMBLE NUMBER 115
042 CURR. TRIM 20mA 130
043 OFFSET 4mA TRIM 130
044 OFFSET 20mA TRIM 130
045 CURR. TRIM 4mA 130
046 ALARM STATUS 127
047 ENTER RESET CODE 125
048 INSERT PIN No 125
050 LEVEL BEFORE LIN 122
055 CUST. TAG NUMBER 116
060 PRESS. ENG. UNIT 56, 59, 63, 67 or 92
075 CUSTOMER UNIT P 56, 59, 63, 67 or 92
079 LANGUAGE 45
245 SET LRV – "Pressure" measuring mode 48 or 56
246 SET URV – "Pressure" measuring mode 48 or 56
247 DAMPING VALUE 48, 51, 53, 57, 61, 66, 77, 81, 90 or 95
250 SENSOR SER. No. 119
251 Pmin SENS. DAMAGE 119
252 Pmax SENS. DAMAGE 119
254 OUTPUT CURRENT 112
264 SOFTWARE VERSION 116
266 HARDWARE REV. 116
270 SIM. CURRENT 127
271 HART MESSAGE 115
272 ADDITIONAL INFO. 116
301 PRESSURE – "Pressure" measuring mode 121
PRESSURE – "Level" measuring mode 121
PRESSURE – "Flow" measuring mode 122
305 LONG TAG NUMBER 116

Finding parameter description using ID numbers Cerabar S/Deltabar S/Deltapilot S
8
ID number Parameter name Description, see page
309 GET LRV 57
310 GET URV 57
311 MAX. FLOW 52 or 95
313 UNIT VOLUME – "Linear" level type 71 or 75
UNIT VOLUME – "Pressure Linearized" level type 79
UNIT VOLUME – "Height Linearized" level type 84
314 EMPTY CALIB. – QUICK SETUP 50
EMPTY CALIB. – "Linear" level type 73
EMPTY CALIB. – "Height Linearized" level type 87
315 FULL CALIB. – QUICK SETUP 51
FULL CALIB. – "Pressure Linearized" level type 74
FULL CALIB. – "Height Linearized" level type 87
316 ADJUST DENSITY – "Linear" level type 74
ADJUST DENSITY – "Height Linearized" level type 88
ADJUST DENSITY– "Level" extended setup 97
317 CUST. UNIT FACT. P 56, 68 or 93
318 TEMP. ENG. UNIT – "Pressure" measuring mode 96
TEMP. ENG. UNIT – "Level" measuring mode 96
TEMP. ENG. UNIT – "Flow" measuring mode 98
319 CALIB. OFFSET 54
323 SET. L. FL. CUT-OFF 99
329 FACT. U. U. TOTAL. 1 108
330 FACT. U. U. TOTAL. 2 109
331 RESET TOTALIZER1 108
332 Pmin ALARM WINDOW 129
333 Pmax ALARM WINDOW 129
334 Tmin ALARM WINDOW 129
335 Tmax ALARM WINDOW 129
336 ALARM DELAY 128
339 DISPLAY CONTRAST 111
342 SET MAX. ALARM 113
343 SET MIN. CURRENT 113
345 BUS ADDRESS 114
350 DEVICE DESIGN. 116
351 DEVICE TYPE, Deltabar S 114
352 CONFIG RECORDER 117
354 DEVICE SERIAL No 116
357 PCB TEMPERATURE 117
358 ALLOWED MIN. TEMP 117
359 ALLOWED MAX. TEMP 117
360 MAT. PROC. CONN. + 118
361 MAT. PROC. CONN. - 118
362 SEAL TYPE 118
363 DIP STATUS 117
365 MAT. MEMBRANE 119
366 FILLING FLUID 120
367 SENSOR TEMP. 121 or 122
368 Tmin SENSOR 120
369 Tmax SENSOR 120
370 TANK CONTENT 122
375 SUPPRESSED FLOW 123
378 MEAS. VAL. TREND 121 or 122
380 COUNTER:P > Pmax 123
382 RESET PEAKHOLD 124
383 MAX. MEAS. PRESS. 123
386 ELECTR. SERIAL No 116
388 OUTPUT FAIL MODE 112
389 MEASURING MODE 45
390 LINEAR/SQROOT 113
391 UNIT FLOW 93
392 CALIBRATION MODE – "Linear" level type 73
CALIBRATION MODE – "Height Linearized" level type 87
397 LIN. EDIT MODE 101
398 TOTALIZER 1 UNIT – "Volume p. cond." flow type 107
399 TOTALIZER 2 UNIT – "Volume p. cond." flow type 108
400 NEG. FLOW TOT. 1 108
401 ACK. ALARM MODE 127

Cerabar S/Deltabar S/Deltapilot S Finding parameter description using ID numbers
9
ID number Parameter name Description, see page
404 COUNTER:T > Tmax 123
409 OPERATING HOURS 125
413 SIMULATION MODE 126
414 SIM. PRESSURE 126
416 NEG. FLOW TOT. 2 109
419 MENU DESCRIPTOR 110
423 ALTERNATE DATA 110
432 MANUFACTOR ID 115
434 CORRECTED PRESS. – "Pressure" measuring mode 121
CORRECTED PRESS. – "Level" measuring mode 122
CORRECTED PRESS. – "Flow" measuring mode 122
442 LOW FLOW CUT-OFF 98
467 COUNTER:P < Pmin 123
469 MIN. MEAS. PRESS. 123
471 MAX. MEAS. TEMP. 123
472 COUNTER:T < Tmin 123
474 MIN. MEAS. TEMP. 123
476 SIM. ERROR NO. 127
480 ALARM DISPL. TIME 128
481 HART DATE 115
482 PROC. CONN. TYPE 117
484 PRESS. SENS LOLIM 119
485 PRESS. SENS HILIM 119
487 SENS H/WARE REV 120
488 PCB COUNT:T > Tmax 123
490 PCB MAX. TEMP. 123
492 PCB COUNT:T < Tmin 123
494 PCB MIN. TEMP. 123
500 ACK. ALARM 128
549 MEASURING TABLE (display) 103
549 EDITOR TABLE, LINE-NUMB (enter values) 102
550 EDITOR TABLE, X-VAL. (enter values) 102
551 EDITOR TABLE, Y-VAL. (enter values) 102, 102
563 POS. INPUT VALUE 48, 50 or 54
564 LAST DIAG. CODE 127
570 Pmax PROC. CONN. 117
571 MASS FLOW UNIT 94
581 SENSOR MEAS.TYPE 119
584 SENSOR PRESSURE – "Pressure" measuring mode 121
SENSOR PRESSURE – "Level" measuring mode 122
SENSOR PRESSURE – "Flow" measuring mode 122
591 MINIMUM SPAN 119
595 SELECT ALARMTYPE 128
597 ALT. CURR. OUTPUT 113
600 SELECT ALARMTYPE 128
603 RESET ALL ALARMS 128
607 CUST. UNIT FACT. V – "Linear" level type 72
CUST. UNIT FACT. V – "Pressure Linearized" level type 79
CUST. UNIT FACT. V – "Height Linearized" level type 85
608 CUSTOMER UNIT V – "Linear" level type 71
CUSTOMER UNIT V – "Pressure Linearized" level type 79
CUSTOMER UNIT V – "Height Linearized" level type 85
609 CUST. UNIT FACT. F 95
610 CUSTOMER UNIT F 94
627 TOT. 1 USER UNIT 108
628 TOT. 2 USER UNIT 109
634 MAX PRESS. FLOW 53 or 95
637 SET LRV – "Flow" extended setup 99
638 SET URV – "Flow" extended setup 99
639 SIM.FLOW VALUE 126
640 FLOW-MEAS. TYPE 93
652 TOTALIZER 1 123
655 TOTAL. 1 OVERFLOW 123
657 TOTALIZER 2 123
658 TOTAL. 2 OVERFLOW 123
660 STD. FLOW UNIT 94
661 NORM FLOW UNIT 93

Finding parameter description using ID numbers Cerabar S/Deltabar S/Deltapilot S
10
ID number Parameter name Description, see page
662 TOTALIZER 1 UNIT – "Mass" flow type 107
663 TOTALIZER 2 UNIT – "Mass" flow type 108
664 TOTALIZER 1 UNIT – "Gas. std. conditions" flow type 107
665 TOTALIZER 2 UNIT – "Gas. std. conditions" flow type 108
666 TOTALIZER 1 UNIT – "Gas. norm conditions" flow type 107
667 TOTALIZER 2 UNIT – "Gas. norm conditions" flow type 108
679 MEASURED VALUE – "Pressure" 121
MEASURED VALUE – "Level" 121
MEASURED VALUE – "Flow" 122
685 POS. ZERO ADJUST 48, 50, 52 or 54
688 MAIN DATA FORMAT 110
694 CURR. CHARACT. – "Pressure" 112
695 CURR. CHARACT. – "Flow" 112
696 CURR. CHARACT. – "Height" 112
699 DEVICE REVISION 115
703 CUST. UNIT FACT. M – "Linear" level type 73
CUST. UNIT FACT. M – "Pressure Linearized" level type 80
CUST. UNIT FACT. M – "Height Linearized" level type 86
704 CUSTOMER UNIT M – "Linear" level type 72
CUSTOMER UNIT M – "Pressure Linearized" level type 80
CUSTOMER UNIT M – "Height Linearized" level type 86
705 CUST. UNIT FACT. H – "Linear" level type 71 or 76
CUST. UNIT FACT. H – "Height Linearized" level type 84 or 89
706 CUSTOMER UNIT H – "Linear" level type 70 or 76
CUSTOMER UNIT H – "Height Linearized" level type 84 or 89
708 HEIGHT UNIT – "Linear" level type 70 or 76
HEIGHT UNIT – "Height Linearized" level type 83 or 88
709 MASS UNIT – "Linear" level type 72
MASS UNIT – "Pressure Linearized" level type 80
MASS UNIT – "Height Linearized" level type 85
710 EMPTY PRESSURE – "Linear" level type 74
EMPTY PRESSURE – "Height Linearized" level type 87
711 FULL PRESSURE – "Linear" level type 74
FULL PRESSURE – "Height Linearized" level type 87
712 LEVEL MAX 86
713 TANK CONTENT MAX 101
714 SIM. LEVEL 126
715 SIM. TANK CONT. 127
717 MEASURING TABLE (selection) 103
718 LEVEL MODE 68
719 SET LRV – "Level" basic setup 77
720 SET URV – "Level" basic setup 77
755 LEVEL MIN 86
759 TANK CONTENT MIN 100
760 ASSIGN CURRENT 113
761 HYDR. PRESS MAX. 81
762 SET LRV – "Level" extended setup 97
763 SET URV – "Level" extended setup 98
764 CURR. CHARACT. – "Tank content" 112
770 EDITOR TABLE (continue entry) 102
775 HYDR. PRESS MIN. 80
802 DEVICE TYPE, Cerabar S 114
804 LIN. MEASURAND 70
805 LINd. MEASURAND 79
806 COMB. MEASURAND 83
808 TABLE SELECTION 101
809 EDITOR TABLE (select table) 101
810 ADJUSTED DENSITY – "Linear" level type 74
ADJUSTED DENSITY – "Height Linearized" level type 87
811 PROCESS DENSITY 97
812 DENSITY UNIT – "Linear" level type 74
DENSITY UNIT – "Height Linearized" level type 88
813 100 % POINT – "Linear" level type 77
100 % POINT – "Height Linearized" level type 89

Cerabar S/Deltabar S/Deltapilot S Finding parameter description using ID numbers
11
ID number Parameter name Description, see page
814 ZERO POSITION – "Linear" level type 77
ZERO POSITION – "Height Linearized" level type 90
815 TANK DESCRIPTION 103
831 HistoROM AVAIL. 125
832 HistoROM CONTROL 126
836 SAFETY LOCKSTATE See
1
1) See Safety Manual SD189P for Deltabar S, SD190P for Cerabar S and SD213P for Deltapilot S.
SAFETY LOCK
838 SAFETY PASSWORD See
1
840 DIGIT SETS 111
841 DIGIT SETS See
1
844 ACK. ALARM MODE See
1
845 MEASURING MODE See
1
847 CALIB. OFFSET See
1
848 MAX. FLOW See
1
849 MAX PRESS. FLOW See
1
850 LOW FLOW CUT-OFF See
1
851 SET. L. FL. CUT-OFF See
1
852 SET LRV See
1
853 SET URV See
1
854 LINEAR/SQROOT. See
1
855 DAMPING VALUE See
1
856 CONF. PASSWORD See
1
858 TANK VOLUME 75
859 TANK HEIGHT 76
875 CURRENT OUTPUT See
1

Graphic representation of function groups Cerabar S/Deltabar S/Deltapilot S
12
3 Graphic representation of function groups
!
Note!
The "Flow" measuring mode is only available for the Deltabar S differential pressure transmitter. The
groups marked with "*" are only displayed for Deltabar S.
1st selection level 2nd selection level (groups) Function groups Description,
see page
LANGUAGE LANGUAGE (079) →45
MEASURING MODE MEASURING MODE (389) →45
QUICK SETUP pressure →47
QUICK SETUP level →49
QUICK SETUP flow* →52
OPERATING MENU (555) →SETTINGS (557) →POSITION ADJUSTMENT →53
→BASIC SETUP pressure →55
→BASIC SETUP level,
"Level Easy Pressure"
→58
→BASIC SETUP level,
"Level Easy Height"
→62
→BASIC SETUP level,
"Level Easy Standard"
→67
→BASIC SETUP flow* →91
→EXTENDED SETUP pressure →96
→EXTENDED SETUP level →96
→EXTENDED SETUP
flow*
→98
→LINEARISATION –
on-site display
→100
→LINEARISATION –
ToF Tool, HART handheld terminal
→103
→TOTALIZER SETUP * →107
→SAFETY CONFIRM. →See
1
→DISPLAY (558) →110
→OUTPUT (559) →112
→TRANSMITTER INFO (560) →HART DATA →114
→TRANSMITTER DATA →116
→PROCESS CONNECTION →117
→SENSOR DATA →119
→PROCESSINFO (561) →PROCESS VALUES pressure →120
→PROCESS VALUES level →121
→PROCESS VALUES flow* →122
→PEAK HOLD INDICATOR →123
→OPERATING →125
→DIAGNOSTICS (562) →SIMULATION →126
→MESSAGES →127
→USER LIMITS →129
→SERVICE (561) →SYSTEM 2 →130
1) See Safety Manual SD189P for Deltabar S, SD190P for Cerabar S and for SD213P Deltapilot S.

Cerabar S/Deltabar S/Deltapilot S Pressure measurement
13
4 Pressure measurement

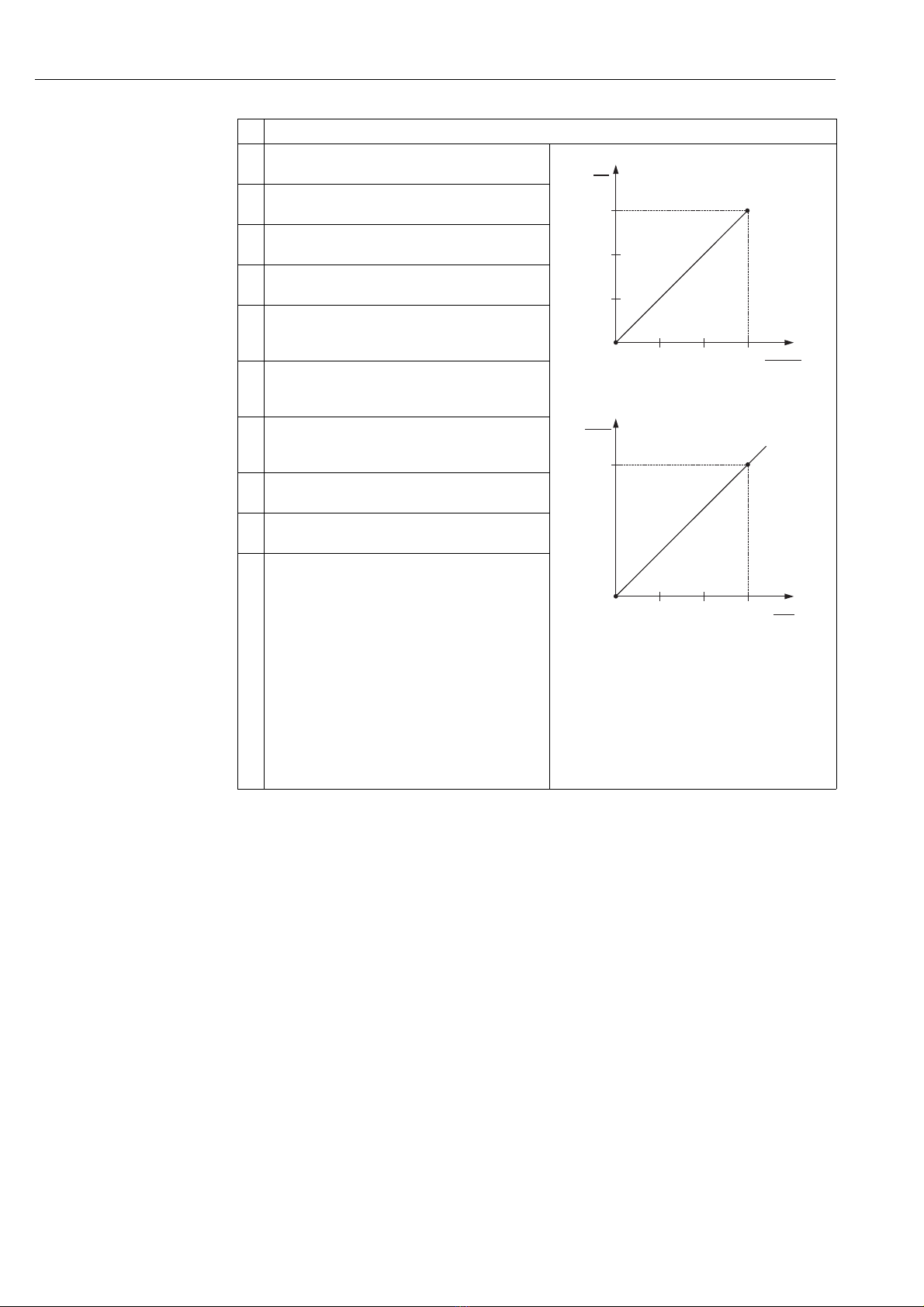

4.1 Calibration with reference pressure
Example:
In this example, a device with a 500 mbar sensor is configured for the 0...+300 mbar measuring
range, i.e. 0 mbar and 300 mbar are assigned to the 4 mA value and 20 mA value respectively.
Prerequisite:
• The pressure values 0 mbar and 300 mbar can be specified. The device is already installed, for
example.
!
Note!
• See also Operating Instructions Deltabar S (BA270P), Section 6.6 "Differential pressure
measurement", Cerabar S (BA271P), Section 6.4 "Pressure measurement" or Deltapilot S
(BA332P), Section 6.5 "Pressure measurement".
• For a description of the parameters mentioned, see
– Page 45, Table 2: MEASURING MODE
– Page 53, Table 6: POSITION ADJUSTMENT
– Page 55, Table 7: BASIC SETUP.
• For a description of further relevant parameters, see
– Page 96, Table 15: EXTENDED SETUP
– Page 120, Table 25: PROCESS VALUES.
Description
1 Deltabar S: before configuring the device for your
application, the pressure piping must be cleaned and
filled with fluid. See Operating Instructions BA270P,
Section 6.6.
P01-PMD75xxx-19-xx-xx-xx-000
P01-xxxxxxxx-05-xx-xx-xx-010
Fig. 1: Calibration with reference pressure
1 See table, step 6.
2 See table, step 7.
2 Carry out position adjustment if necessary. See Page 53,
Table 6: POSITION ADJUSTMENT.
3 If necessary, select the "Pressure" measuring mode via
the MEASURING MODE parameter.
On-site display:
Menu path: GROUP SELECTION → MEASURING
MODE
ToF Tool, FieldCare, HART handheld terminal:
Menu path: OPERATING MENU → SETTINGS →
BASIC SETUP → MEASURING MODE
4On-sitedisplay:
Select BASIC SETUP function group.
Menu path: GROUP SELECTION → OPERATING
MENU → SETTINGS → BASIC SETUP
5 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
6 The pressure for the lower range value (4 mA value) is
present at the device, here 0 mbar for example.
Select GET LRV parameter.
Confirm value present. The pressure value present is
assigned to the lower current value (4 mA).
+–
20
4
I
[mA]
0 300 p
[mbar]
➀
➁

Pressure measurement Cerabar S/Deltabar S/Deltapilot S
14
!
Note!
• You can also specify a customer-specific unit. See parameter description for PRESS. ENG. UNIT
(→ Page 56).
4.2 Calibration without reference pressure
Example:
In this example, a device with a 400 mbar sensor is configured for the 0...+300 mbar measuring
range, i.e. 0 mbar and 300 mbar are assigned to the 4 mA value and 20 mA value respectively.
Prerequisite:
• This is a theoretical calibration, i.e. the pressure values for the
lower range and upper range value are known.
!
Note!
• See also Operating Instructions Deltabar S (BA270P), Section 6.6 "Differential pressure
measurement", Cerabar S (BA271P), Section 6.4 "Pressure measurement" or Deltapilot S
(BA332P), Section 6.5 "Pressure measurement".
• Due to the orientation of the device, there may be a shift in the measured value, i.e. when the
container is empty, the MEASURED VALUE parameter does not display zero. → To perform a
position adjustment see also Page 53, Table 6: Position adjustment.
• For a description of the parameters mentioned, see
– Page 45, Table 2: MEASURING MODE
– Page 53, Table 6: POSITION ADJUSTMENT
– Page 55, Table 7: BASIC SETUP.
• For a description of further relevant parameters, see
– Page 96, Table 15: EXTENDED SETUP
– Page 120, Table 27: PROCESS VALUES.
7 The pressure for the upper range value (20 mA value) is
present at the device, here 300 mbar for example.
Select GET URV parameter.
Confirm value present. The pressure value present is
assigned to the upper current value (20 mA).
8Result:
The measuring range is set for 0...+300 mbar.
Description

Cerabar S/Deltabar S/Deltapilot S Pressure measurement
15
!
Note!
• You can also perform calibration without reference pressure by means of the QUICK SETUP
menu. → See Page 47 ff, Table 3: QUICK SETUP menu.
• You can also specify a customer-specific unit. See parameter description for PRESS. ENG. UNIT
(→ Page 56).
Description
1 If necessary, select the "Pressure" measuring mode via
the MEASURING MODE parameter.
On-site display:
Menu path: GROUP SELECTION → MEASURING
MODE
ToF Tool, FieldCare, HART handheld terminal:
Menu path: OPERATING MENU → SETTINGS →
BASIC SETUP → MEASURING MODE
P01-PMP71xxx-19-xx-xx-xx-000
P01-xxxxxxxx-05-xx-xx-xx-010
Fig. 2: Calibration without reference pressure
1 See table, step 4.
2 See table, step 5.
2On-sitedisplay:
Select BASIC SETUP function group.
Menu path: GROUP SELECTION → OPERATING
MENU → SETTINGS → BASIC SETUP
3 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
4 Select SET LRV parameter.
Enter value, here 0 mbar, for the SET LRV parameter
and confirm. This pressure value is assigned to the lower
current value (4 mA).
5 Select SET URV parameter.
Enter value, here 300 mbar, for the SET URV parameter
and confirm. This pressure value is assigned to the upper
current value (20 mA).
6Result:
The measuring range is set for 0...+300 mbar.
20
4
I
[mA]
0 300 p
[mbar]
➀
➁

Level measurement Cerabar S/Deltabar S/Deltapilot S
16
5 Level measurement
5.1 Overview of level measurement
Measuring task LEVEL
SELECTION/
LEVEL MODE
Measured
variable options
Description Comment Measured value display
The measured variable is
in direct proportion to the
measured pressure.
Calibration is performed
by entering two pressure-
level value pairs.
LEVEL SELECTION:
Level Easy Pressure
Via OUTPUT UNIT
parameter: %, level,
volume or mass
units.
– Calibration with
reference pressure –
wet calibration, see
Page 17, Section 5.2.1
– Calibration without
reference pressure – dry
calibration, see Page 19,
Section 5.2.2
– Incorrect entries are
possible
– SIL mode possible
– Customised units are
not possible
The measured value display
and the LEVEL BEFORE
LIN parameter show the
measured value.
The measured variable is
in direct proportion to the
measured pressure.
Calibration is performed
by entering the density
and two height-level value
pairs.
LEVEL SELECTION:
Level Easy Height
Via OUTPUT UNIT
parameter: %, level,
volume or mass
units.
– Calibration with
reference pressure –
wet calibration, see
Page 21, Section 5.3.1
– Calibration without
reference pressure – dry
calibration, see Page 23,
Section 5.3.2
– Incorrect entries are
possible
– SIL mode not possible
– Customised units are
not possible
The measured value display
and the LEVEL BEFORE
LIN parameter show the
measured value.
The measured variable is
in direct proportion to the
measured pressure.
LEVEL SELECTION:
Level standard/
LEVEL MODE:
Linear
Via LIN.
MEASURAND
parameter:
– % (Level)
–Level
–Volume
–Mass
– Calibration with
reference pressure –
wet calibration, see
Page 25, Section 5.4.1
– Calibration without
reference pressure – dry
calibration, see Page 27,
Section 5.4.2
– Incorrect entries are
rejected by the device
– SIL mode not possible
– Customised level,
volume and mass units
are possible
The measured value display
and the LEVEL BEFORE
LIN parameter show the
measured value.
The measured variable is
not in direct proportion to
the measured pressure as,
for example, with
containers with a conical
outlet. A
linearisation table must be
entered for the calibration.
LEVEL SELECTION:
Level standard/
LEVEL MODE:
Pressure Linearized
Via LINd
MEASURAND
parameter:
–Pressure+%
–Pressure+
Volume
–Pressure+Mass
– Calibration with
reference pressure:
semiautomatic entry of
linearisation table, see
Page 29, Section 5.5.1
– Calibration without
reference pressure:
manual entry of
linearisation table, see
Page 32, Section 5.5.2
– Incorrect entries are
rejected by the device
– SIL mode not possible
– Customised level,
volume and mass units
are possible
The measured value display
and the TANK CONTENT
parameter show the
measured value.
– Two measured variables
are required or
– The container shape is
given by value pairs,
such as height and
volume.
The 1st measured variable
%-height or height must be
in direct proportion to the
measured pressure. The
2nd measured variable
volume, mass or % must
not be in direct proportion
to the measured pressure.
A linearisation table must
be entered for the 2nd
measured variable. The
2nd measured variable is
assigned to the 1st
measured variable by
means of this table.
LEVEL SELECTION:
Level standard/
LEVEL MODE:
Height Linearized
Via COMB.
MEASURAND
parameter:
–Height+Volume
–Height+Mass
–Height+%
–%-Height+
Volume
–%-Height+Mass
–%-Height+%
– Calibration with
reference pressure: wet
calibration and
semiautomatic entry of
linearisation table, see
Page 34, Section 5.6.1
– Calibration without
reference pressure: dry
calibration and manual
entry of linearisation
table, see Page 38,
Section 5.6.2
– Incorrect entries are
rejected by the device
– SIL mode not possible
– Customised level,
volume and mass units
are possible
The measured value display
and the TANK CONTENT
parameter show the 2nd
measured value (volume,
mass or %).
The LEVEL BEFORE LIN
parameter displays the 1st
measured value (%-height
or height).

Cerabar S/Deltabar S/Deltapilot S Level measurement
17
5.2 "Level Easy Pressure" level selection
5.2.1 Calibration with reference pressure – wet calibration
Example:
In this example, the level in a tank should be measured in m
3
. The maximum level is 3 m. The
pressure range is set to 0 to 300 mbar.
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• The tank can be filled or emptied.
!
Note!
• See also Operating Instructions for Deltabar S (BA270P) or Cerabar S (BA271P), Section 6.5
"Level measurement" or Deltapilot S (BA332P), Section 6.4 "Level measurement".
• The values entered for EMPTY CALIB./FULL CALIB. and SET LRV/SET URV must have a
minimum interval of 1% for the "Level Easy Pressure" level mode. The value will be rejected with
a warning message if the values are too close together. Further limit values are not checked; i.e.
the values entered must be appropriate for the sensor and the measuring task so that the
measuring device can measure correctly.
• For a description of the parameters mentioned, see
– Page 45, Table 2: MEASURING MODE
– Page 53, Table 6: POSITION ADJUSTMENT
– Page 58, Table 8: LEVEL SELECTION "Level Easy Pressure"
• For a description of further relevant parameters, see
– Page 96, Table 16: EXTENDED SETUP
– Page 121, Table 28: PROCESS VALUES.
Description
1 Deltabar S: Before you configure the device for your
application, the pressure piping must be cleaned and
filled with medium. See Operating Instructions BA270P,
Section 6.5.1
P01-PMP75xxx-19-xx-xx-xx-008
Fig. 3: Calibration with reference pressure –
wet calibration
1 See Table, Step 9.
2 See Table, Step 10.
2 Carry out position adjustment if necessary. See Page 53,
Table 6: POSITION ADJUSTMENT.
3 If necessary, select the "Level" measuring mode via the
MEASURING MODE parameter.
On-site display:
Menu path: GROUP SELECTION →MEASURING
MODE
ToF Tool, FieldCare, HART handheld terminal
Menu path: OPERATING MENU → SETTINGS →
BASIC SETUP→MEASURING MODE
4 If necessary, select "Level Easy Pressure" level mode
using the LEVEL SELECTION parameter.
On-site display:
Menu path: GROUP SELECTION →MEASURING
MODE "Level" →LEVEL SELECTION
ToF Tool, FieldCare, HART handheld terminal:
Menu path: OPERATING MENU →SETTINGS →
BASIC SETUP → MEASURING MODE "Level" →
LEVEL SELECTION
➀
➁
0 mbar
300 mbar
3 m
0 m

Level measurement Cerabar S/Deltabar S/Deltapilot S
18
!
Note!
1. You can also perform calibration with reference pressure by means of the QUICK SETUP
menu. → See Page 49 ff, Table 4: QUICK SETUP menu.
2. You also have the possibility of specifying customised pressure units via the PRESS. ENG. UNIT
parameter (→ Page 59).
3. For this level mode, the measured variables %, level, volume and mass are available. → See
also parameter description for OUTPUT UNIT, Page 60.
4. For operation using the on-site display, the parameters EMPTY CALIB. (→ Page 61) and FULL
CALIB. (→ Page 61) also show the respective pressure present at the device. For operation
using the ToF Tool und HART handheld terminal, the pressure present at the device is
displayed in the PROCESS VALUES group (menu path: OPERATING MENU→
PROCESSINFO →PROCESS VALUES).
5On-sitedisplay:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION → OPERATING MENU →
SETTINGS → BASIC SETUP
P01-xxxxxxxx-05-xx-xx-xx-011
P01-xxxxxxxx-05-xx-xx-xx-014
Fig. 4: Calibration with reference pressure –
wet calibration
1 See Table, Step 9.
2 See Table, Step 10.
3 See Table, Step 11.
4 See Table, Step 12.
6 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
7 Select a level unit via the OUTPUT UNIT parameter,
here m for example.
8 Select the "Wet" option by means of the CALIBRATION
MODE parameter.
9 Hydrostatic pressure for the lower calibration point is
present at the device, here 0 mbar for example.
Select EMPTY CALIB. parameter.
Enter the level value, here 0 m for example. Confirm the
value to assign the pressure value present to the lower
level value.
10 Hydrostatic pressure for the upper calibration point is
present at the device, here 300 mbar for example.
Select FULL CALIB. parameter.
Enter the level value, here 3 m for example. Confirm the
value to assign the pressure value present to the upper
level value.
11 Set the value for the lower current value (4 mA) by
means of the SET LRV parameter.
12 Set the value for the upper current value (20 mA) by
means of the SET URV parameter.
13 Result:
The measuring range is set for 0 to 3 m.
Description
3
0
h
[m]
0 300 p
[mbar]
➀
➁
20
4
I
[mA]
0.5 4.5 h
[m]
➂
➃

Cerabar S/Deltabar S/Deltapilot S Level measurement
19
5.2.2 Calibration without reference pressure – dry calibration
Example:
In this example, the volume in a tank should be measured in litres (l). The maximum volume is
1000 l (litres), and the maximum height is 4 m. The density of the fluid is
1 kg/dm
3
. The device is mounted below the level lower range value.
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• This is a theoretical calibration i.e. the pressure and volume values for the lower and upper
calibration point must be known.
!
Note!
• See also Operating Instructions for Deltabar S (BA270P) or Cerabar S (BA271P), Section 6.5
"Level measurement" or Deltapilot S (BA332P), Section 6.4 "Level measurement".
• The values entered for EMPTY CALIB./FULL CALIB. and SET LRV/SET URV must have a
minimum interval of 1% for the "Level Easy Pressure" level mode. The value will be rejected with
a warning message if the values are too close together. Further limit values are not checked; i.e.
the values entered must be appropriate for the sensor and the measuring task so that the
measuring device can measure correctly.
• Due to the orientation of the device, there may be a shift in the measured value, i.e. when the
container is empty, the MEASURED VALUE parameter does not display zero. → To perform a
position adjustment see also Page 53, Table 6: Position adjustment.
• For a description of the parameters mentioned, see
– Page 45, Table 2: MEASURING MODE
– Page 58, Table 8: LEVEL SELECTION "Level Easy Pressure"
• For a description of further relevant parameters, see
– Page 96, Table 16: EXTENDED SETUP
– Page 121, Table 28: PROCESS VALUES.
Description
1 Select the "Level" measuring mode via the MEASURING
MODE parameter.
On-site display:
Menu path: GROUP SELECTION →MEASURING
MODE
ToF Tool, FieldCare, HART handheld terminal:
Menu path: OPERATING MENU → SETTINGS →
BASIC SETUP→MEASURING MODE
P01-PMC71xxx-19-xx-xx-xx-000
Fig. 5: Calibration without reference pressure –
dry calibration
1 See Table, Step 10.
2 See Table, Step 11.
3 See Table, Step 12.
4 See Table, Step 13.
2 If necessary, select "Level Easy Pressure" level mode
using the LEVEL SELECTION parameter.
On-site display:
Menu path: GROUP SELECTION →MEASURING
MODE "Level" →LEVEL SELECTION
ToF Tool, FieldCare, HART handheld terminal:
Menu path: OPERATING MENU →SETTINGS →
BASIC SETUP → MEASURING MODE "Level" →
LEVEL SELECTION
3On-sitedisplay:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION →OPERATING MENU →
SETTINGS → BASIC SETUP
1000 l
0.5 m
➁
4 m
0 l
ρ= 1 kg
dm
3
➀

Level measurement Cerabar S/Deltabar S/Deltapilot S
20
!
Note!
1. For this level mode, the measured variables %, level, volume and mass are available. → See
also parameter description for OUTPUT UNIT, Page 60.
2. You also have the possibility of specifying customised pressure units via the PRESS. ENG. UNIT
parameter (→ Page 59).
4 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
P01-xxxxxxxx-05-xx-xx-xx-026
P01-xxxxxxxx-05-xx-xx-xx-028
Fig. 6: Calibration with reference pressure –
wet calibration
1 See Table, Step 7.
2 See Table, Step 8.
3 See Table, Step 9.
4 See Table, Step 10.
5 See Table, Step 11.
6 See Table, Step 12.
5 Select a volume unit via the OUTPUT UNIT parameter,
here l (litres) for example..
6 Select the "Dry" option by means of the CALIBRATION
MODE parameter.
7 Enter the volume value for the lower calibration point
via the EMPTY CALIB. parameter, here 0 l for example.
8 Enter the pressure value for the lower calibration point
via the EMPTY PRESSURE parameter, here 50 mbar for
example.
9 Enter the volume value for the upper calibration point
via the FULL CALIB. parameter, here 1000 l for
example.
10 Enter the pressure value for the upper calibration point
via the FULL PRESSURE parameter, here 450 mbar for
example.
11 Set the value for the lower current value (4 mA) by
means of the SET LRV parameter.
12 Set the value for the upper current value (20 mA) by
means of the SET URV parameter.
13 Result:
The measuring range is set for 0 to 1000 l.
Description
1000
0
V
[l]
50 450 p
[mbar]
➀
➁
➂
➃
20
4
I
[mA]
0 1000 V
[l]
➄
➅
