Eneo IER-25R040004A User manual

EN
User Manual
Netzwerk Video Rekorder, H.264,
ohne HDD, HDMI, PoE
IER-25R040004A
IER-25N080004A
IER-25N160004A

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-
POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is in- tended to
alert the user to the presence of dangerous voltage within the products
enclosure that may be
of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions
in the literature
accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRICSHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFER SERVICINGTO QUALIFIED SERVICE PERSONNEL

4
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful inter
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate
radiofrequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interferenceat his own expense.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil nume
`
rique de la classe A est conforme a
´
la norme NMB-003 du
Canada.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

5
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power source only.
17. ITE is to be connected only to PoE networks without routing to the outside plant.

IER-25Nxxx Seite 1
Table of Contents
Table of Contents.................................................................................................................................1
1. Overview 3
1.1 Package Contents ......................................................................................................................4
1.2 NVR Description.........................................................................................................................4
2. Installation 6
2.1Installing HDD ...........................................................................................................................7
2.2 Starting System .........................................................................................................................7
2.3 Quick Setup...............................................................................................................................8

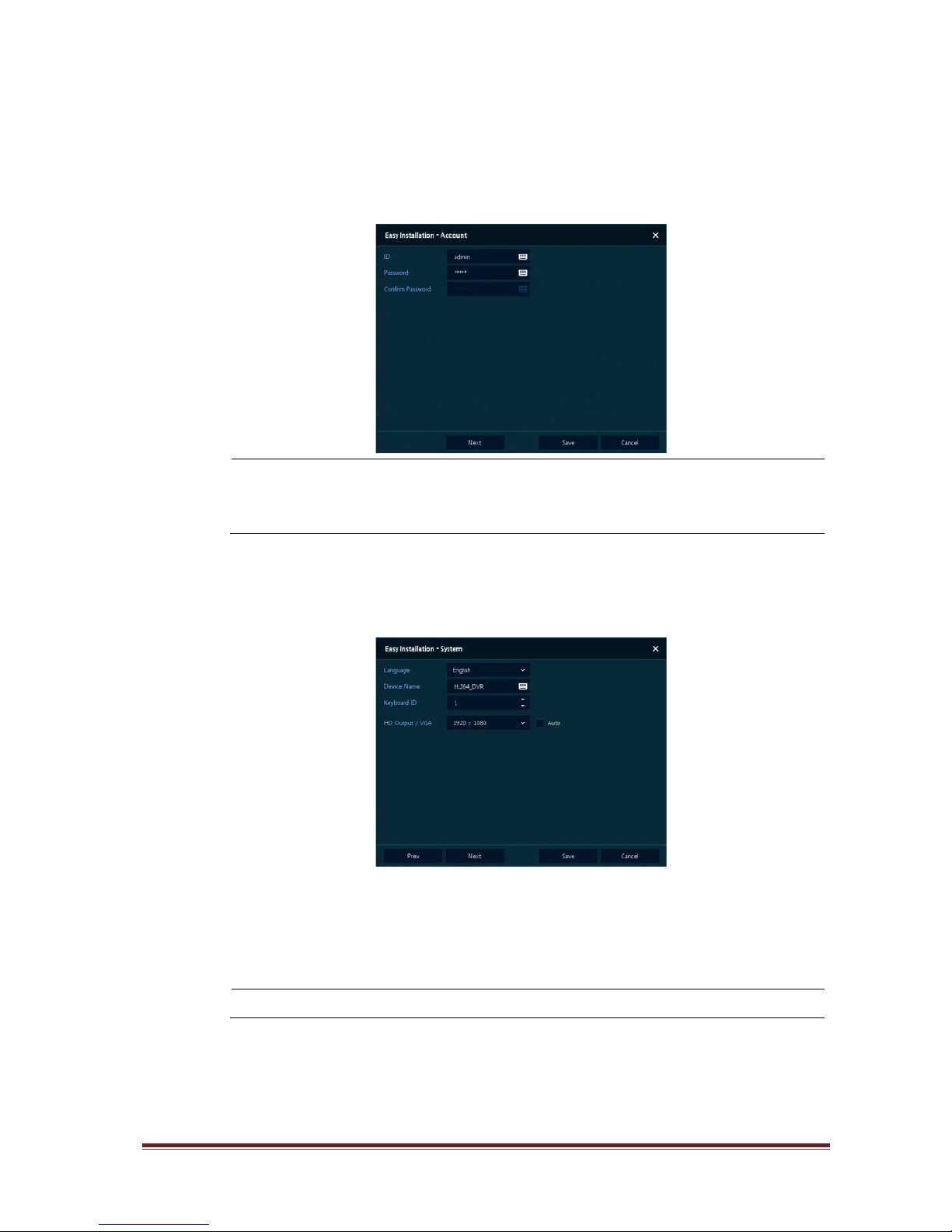

2.3.1 Account........................................................................................................................8
2.3.2 System.........................................................................................................................8

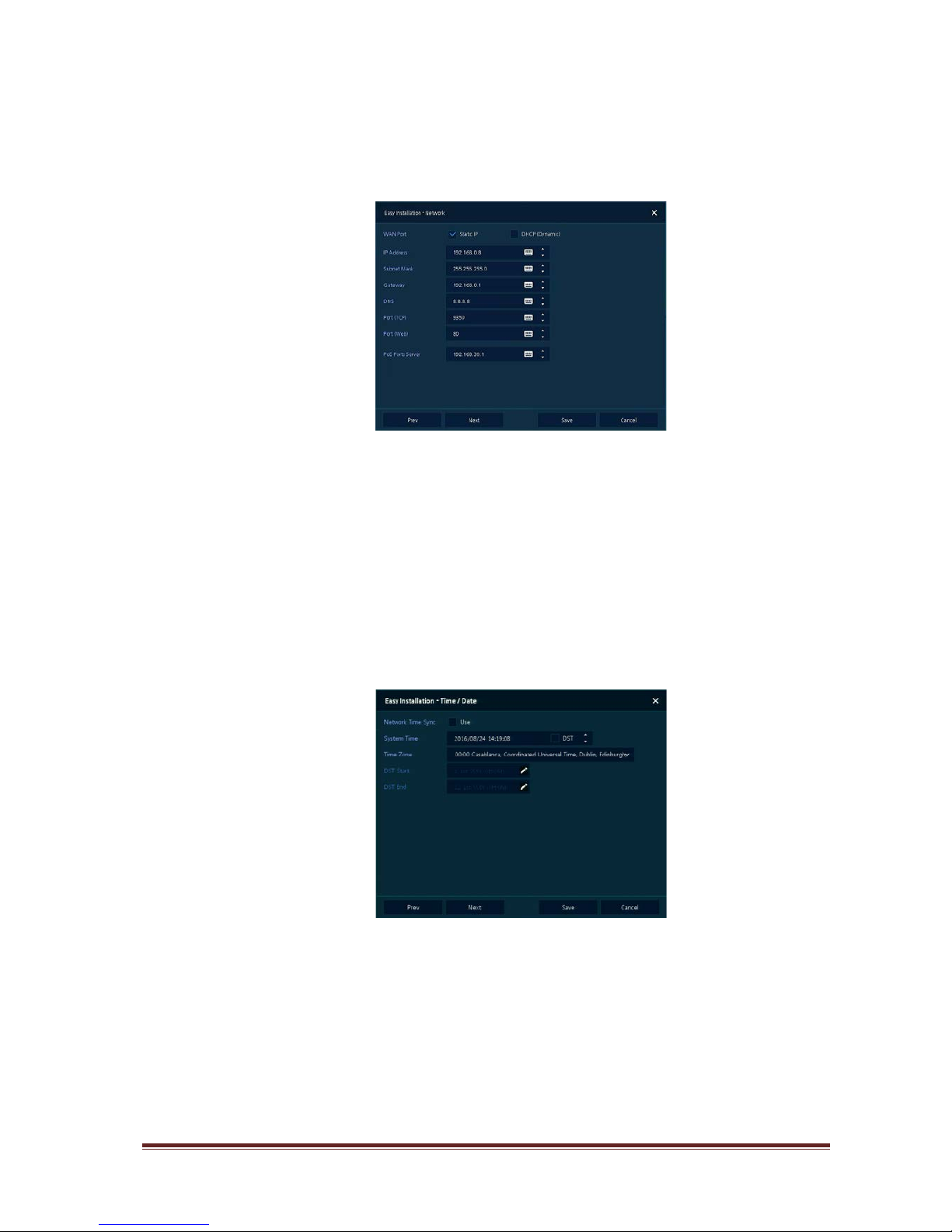

2.3.3 Network.......................................................................................................................9
2.3.4 Time/Date....................................................................................................................9

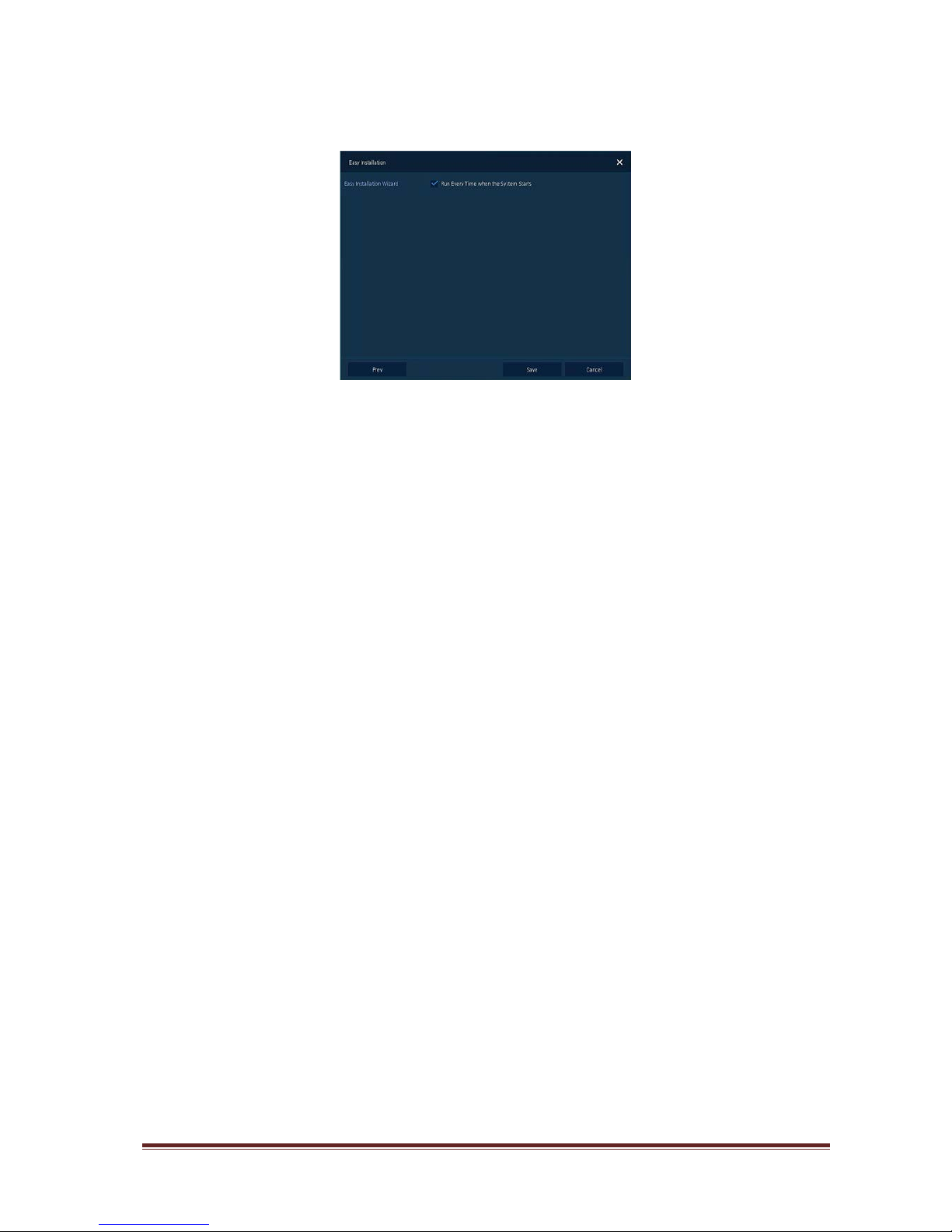

2.3.5 Easy Installation Wizard...............................................................................................10
3. Live Screen Configuration 11

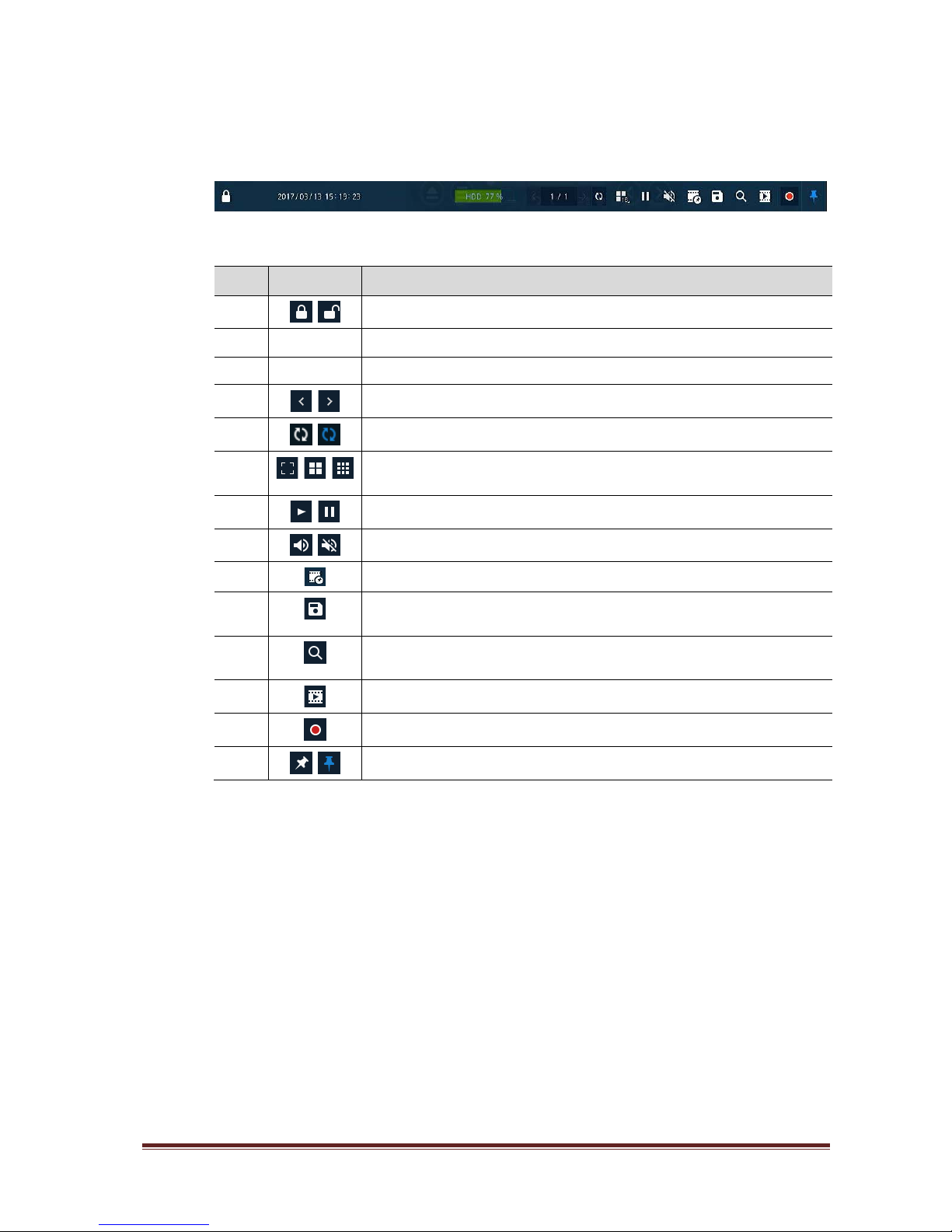

3.1Icons in Live screen..................................................................................................................12
3.2 Live Launcher menu.................................................................................................................13
3.2.1 Backup.......................................................................................................................14
3.3 Quick menu.............................................................................................................................15
3.3.1 PTZ Control................................................................................................................16
3.3.2 Camera Registration....................................................................................................17
3.3.3 Status > System log....................................................................................................19
3.3.4 Status > Event............................................................................................................20
3.3.5 Status > Record..........................................................................................................21
3.3.6 Status > Disk..............................................................................................................22
4. Setup menu 23
4.1 General buttons in Setup menu .................................................................................................25
4.2 SYSTEM ..................................................................................................................................26
4.2.1 System.......................................................................................................................26
4.2.2 Time/Date..................................................................................................................28
4.2.3 Account > User...........................................................................................................31
4.2.4 Configuration (Config).................................................................................................33
4.3 CAMERA..................................................................................................................................35

IER-25Nxxx Seite 2
4.3.1 Basic..........................................................................................................................35
4.3.2 Advanced...................................................................................................................38
4.4 DEVICE...................................................................................................................................39
4.4.1 Display.......................................................................................................................39
4.4.2 Disk > Setup ..............................................................................................................43
4.4.3 PTZ > PTZ .................................................................................................................46
4.4.4 Serial Device > Serial Device........................................................................................47
4.4.5 Text > Text.................................................................................................................48
4.5 RECORD..................................................................................................................................50
4.5.1 Schedule > Schedule...................................................................................................50
4.5.2 Stream.......................................................................................................................53
4.6 EVENT ....................................................................................................................................57
4.6.1 System/Disk ...............................................................................................................57
4.6.2 Alarm In.....................................................................................................................59
4.6.3 Motion.......................................................................................................................62
4.6.4 Video Loss > Setup.....................................................................................................64
4.6.5 Notification.................................................................................................................65
4.7 NETWORK...............................................................................................................................67
4.7.1 Basic..........................................................................................................................67
4.7.2 DVRNS/DDNS.............................................................................................................69
4.7.3 E-Mail ........................................................................................................................71
4.7.4 FTP............................................................................................................................72
4.7.5 Warp .........................................................................................................................73
4.7.6 P2P............................................................................................................................74
4.7.7 Notification Server.......................................................................................................75
5. Search/Play 77
5.1 Search ....................................................................................................................................77
5.2 Playback..................................................................................................................................82
5.2.1 Record Time-Line........................................................................................................82
5.2.2 Playback Quick menu ..................................................................................................83
6. Webviewer 84
7. Appendix 87
7.1 Installing System Keyboard.......................................................................................................87
7.2 Products Specification...............................................................................................................92

IER-25Nxxx Seite 3
1. Overview
This chapter describes NVR overview, components and their terms and features.
This manual introduces a network video recorder (NVR) which monitors or record, controls images via a
network camera.
Multiple users may monitor video at the same time, and many cameras can be controlled simultaneously
by a manager. Also, through a PC or a smartphone, video might be monitored by transmitting video and
audio using a network.
The device features include the following:
Convenient UI from user’s viewpoint
IP camera input 4/8/16 channels
Providing H.264 compression
Up to 5MP real time recording
HDD information and status presentation
HDD overwriting.
High capacity back-up with USB 3.0
Simultaneous recoding and playing of 4/8/16 channels
Various search mode (time, event, thumbnail and Text)
Various recording mode (manual, event, timed recording, panic recording)
Remote monitoring through a network viewer, a web viewer, and a mobile viewer

IER-25Nxxx Seite 4

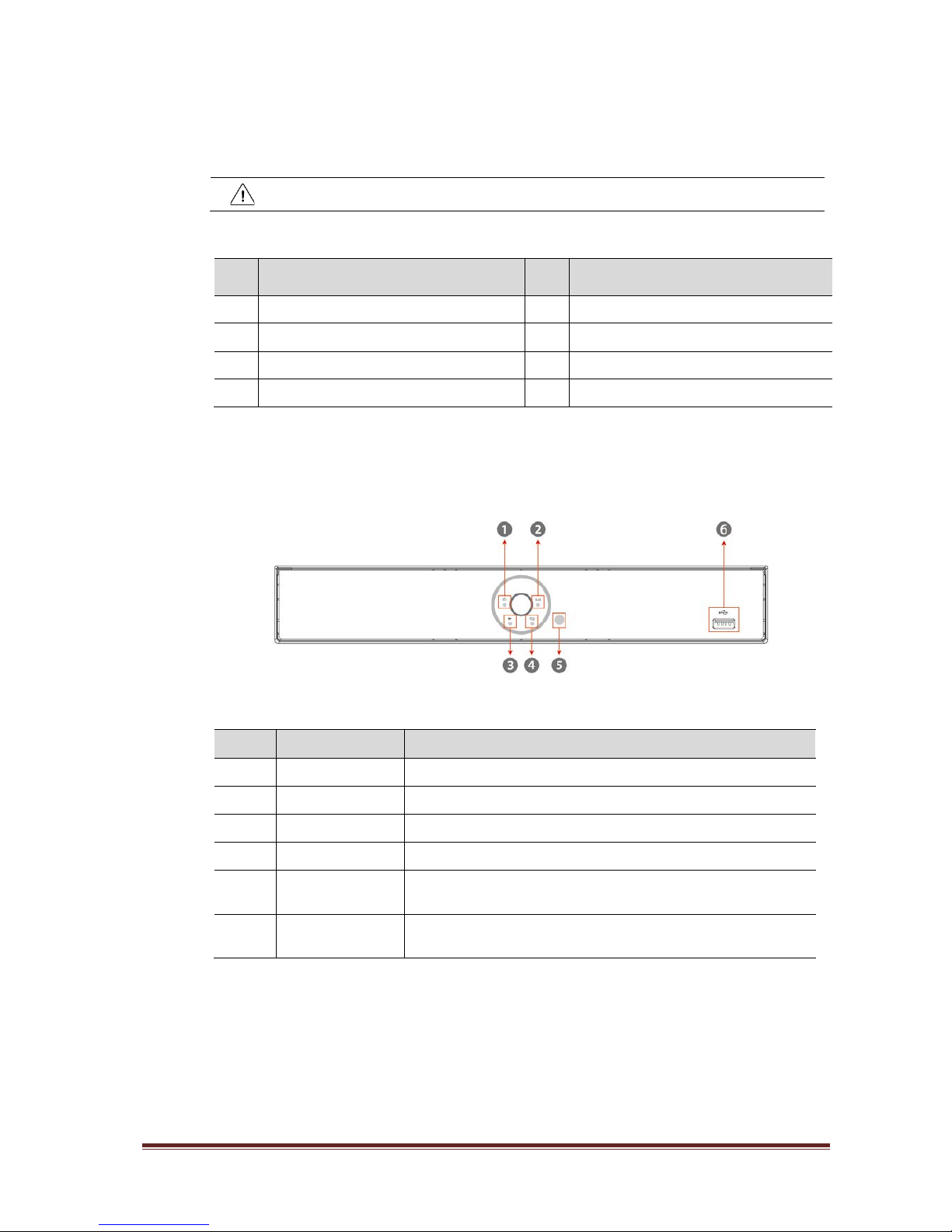

1.1 Package Contents
The device package contents consist of the following:
Note Please check all components involved.
Table 1-1 Package contents
No Name
번호
Name
1 NVR 6 SATA cable
2 DC adapter & Power cord 7 SATA power cable
3 Mouse 8 HDD fixing screw
4 Quick guide 9 Program CD
1.2 NVR Description
Each part is listed in the below:
Figure 1-1 Name and Connection of each front section
Table 1-2 Name and Function of each front section
No. Name Function
1 PWR Pointing out device ON/OFF.
2 REC Pointing out recording in process.
3 PB Pointing out playback in process.
4 NET With a network viewer, pointing out network in connection.
5 IR Remote Control
Sensor Receives all incoming signals from the remote control.
6 USB port USB port is connected for USB mouse or firmware upgrade, and data
back-up.

IER-25Nxxx Seite 5
4ch NVR
8ch NVR
16ch NVR

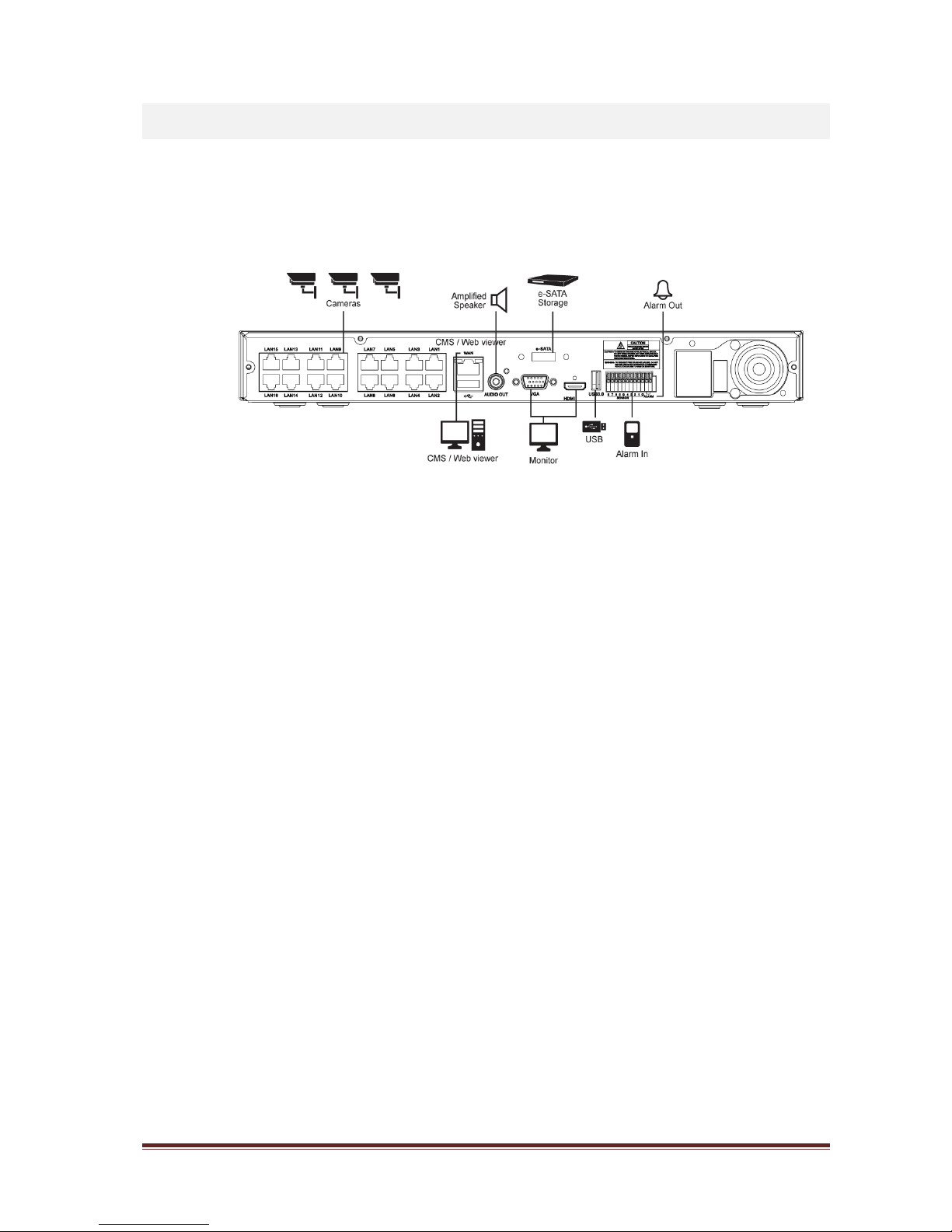

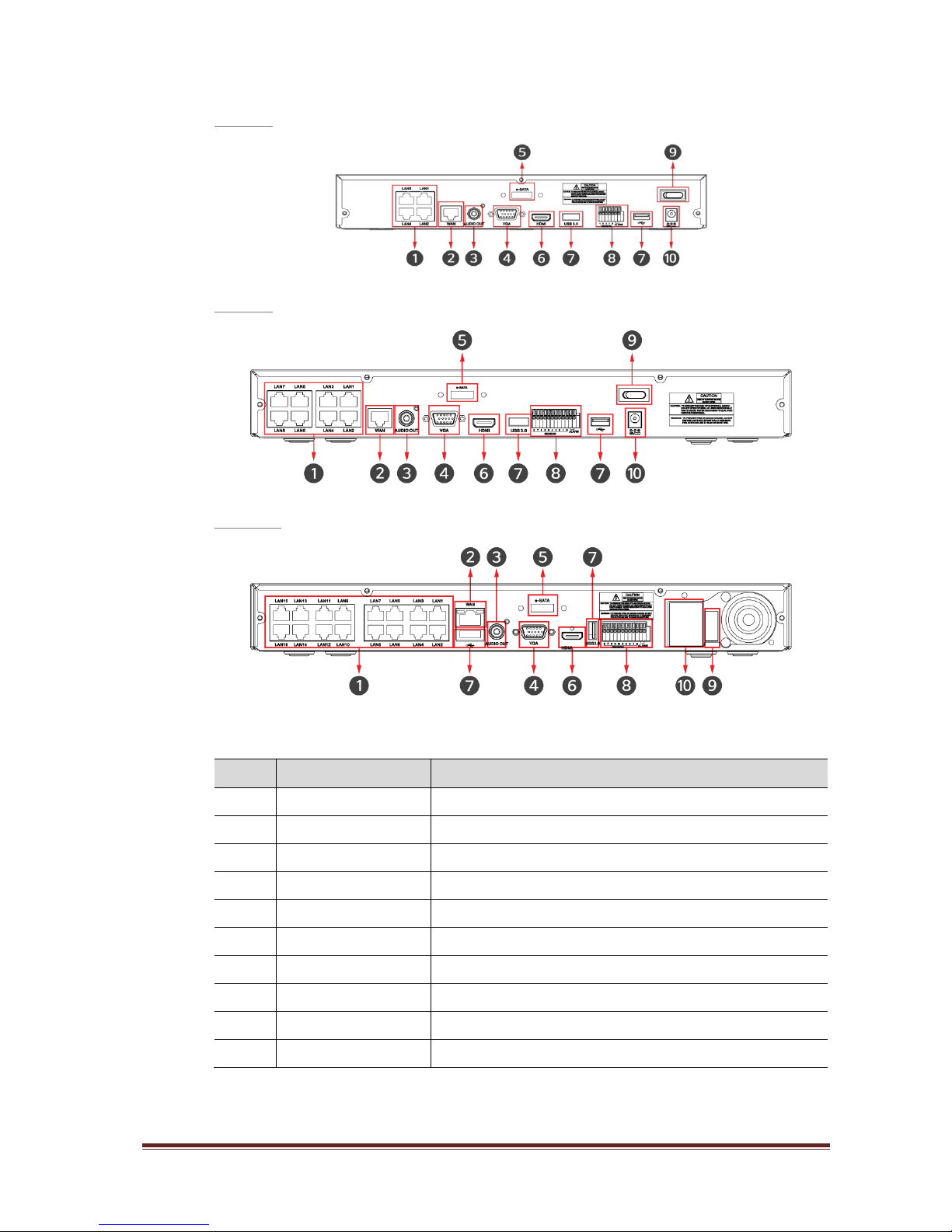

Figure 1-2 Name and Connection of rear section of 4ch, 8ch and 16ch NVR
Table 1-3 Name and Function of rear section of 4ch, 8ch and 16ch NVR
No. Name Function
1 IP CAM / PoE IP camera input port, IEEE802.3af PoE support
2 Network Network connector
3 Audio Out Audio output port
4 VGA VGA output port
5 e-SATA e-SATA storage connection connector
6 HDMI HDMI output port
7 USB USB port is connected for data back-up
8 Alarm In/Out Alarm connector
9 Power Switch On/Off the Power
10 Power Input Connect power supply

IER-25Nxxx Seite 6
2. Installation
This chapter describes the way to install NVR.
When installing a device, connect rear of the device with each port on the basis of below connection map.
Figure 2-1 Connection map
The device starts first like below sequences:
1 Installing HDD
2 Connecting with an exterior device
3 Starting a system
4 Setting an quick setup

IER-25Nxxx Seite 7
2.1 Installing HDD
How to install HDD in the device:
Attention
Withdraw the mains plug before installing HDD to reduce the risk of injury or
electrical shock, or device malfunction.
Make sure to check the compatibility of HDD with the device.
1 Always switch off and unplug the unit.
2 Unscrew with a screw driver (+) and open the unit cover.
3 Install HDD in the bottom case.
4 Connect a data cable and power cable with HDD.
5 Close the cover and tighten screws.

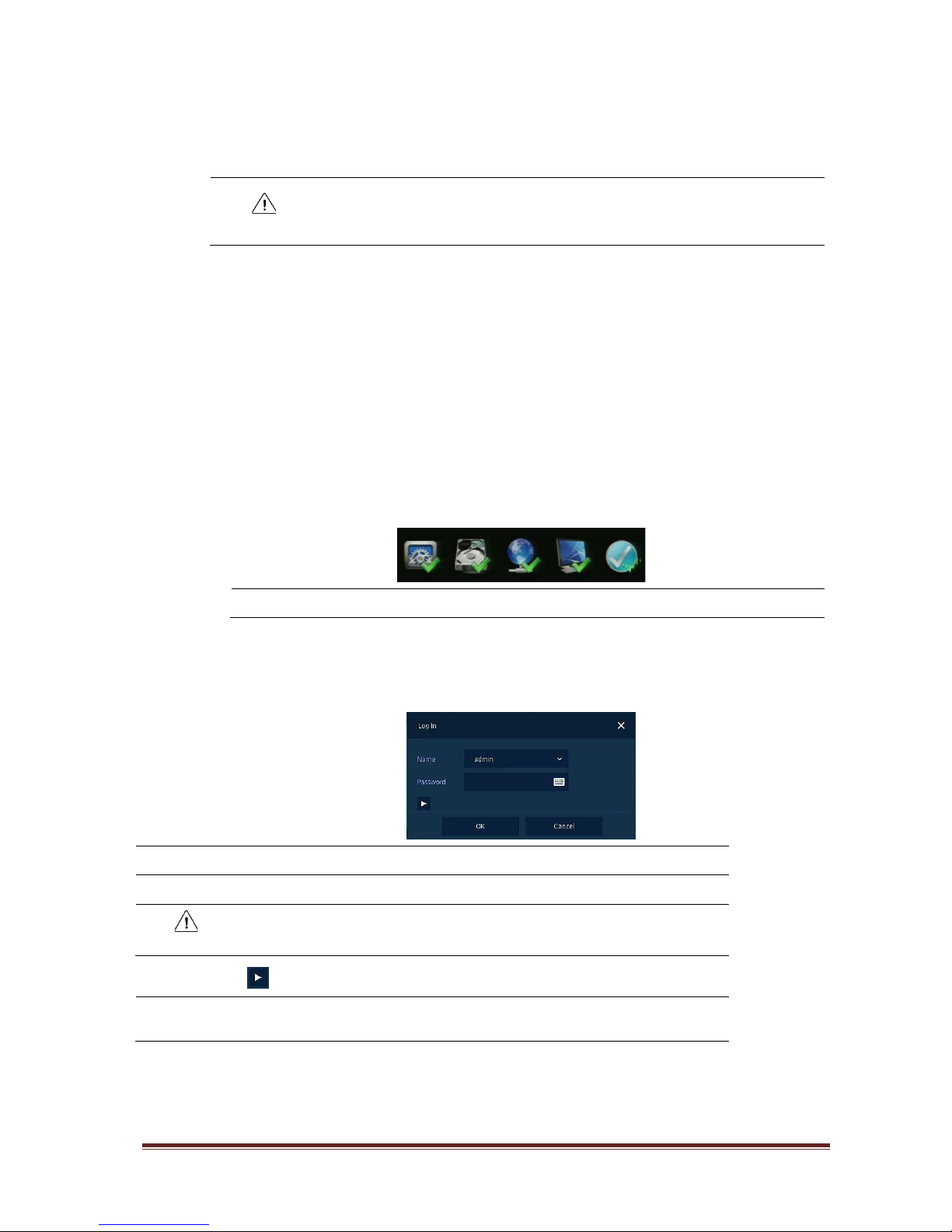

2.2 Starting System
Power supply begins with system operation as follows:
1 Switching on initialize with below icons in order.
Note Installing new HDD might take more initialize time.
2 With buzzer sounds, the start screen is presented.
3 In Log inscreen, enter the ID, Password and press OK.
Note Default ID & Password is admin/admin
Attention Please change password after login due to security.
Click to see the MAC address.
Note If lost password, inform the MAC address to supplier to create temporary
password.

IER-25Nxxx Seite 8
2.3 Quick Setup
2.3.1 Account
1 Click the keyboard icon to set ID and Password users want.
Note
Default ID/Password is admin/admin.
Change the password for security.
Max character length is 16.
2.3.2 System
1 Set each item in System setting screen.
Language: Select system language.
Device Name: Enter the device name.
Keyboard ID: To identify device usages in controlling NVR with RS485 through a keyboard
Selecting the device ID. In case of simultaneous use of equipment, set ID with difference.
Note As for using many NVRs, set ID with difference.
HDMI/VGA: Set resolution of a monitor connected to the device.
2 Press Save button to save set value.
3 Press Next to end System setting and move the next setting phase.

IER-25Nxxx Seite 9
2.3.3 Network
How to set the network of Easy Installation:
1 Set each item in Network setting screen.
WAN Port: Select whether to use static IP or dynamic IP.
IP Address, Subnet Mask, Gateway, DNS, and Port: As for dynamic IP, enter information in each
space.
2 Press Save button to save set value.
3 Press Next to end Network setting and move the next setting phase.
2.3.4 Time/Date
How to set the time/date of Easy Installation:
1 Set each item in Time/Date setting screen.
Network Time Sync: Select network for synchronizing with time server.
System Time: Not for synchronizing with network time server, set the device time; otherwise
(applying for Daylight saving time), select DST.
Time Zone: Select time zone for the system being installed.
DST Start/End: For applying Daylight saving time, set the application period.
2 Press Save button to save set value.
3 Press Next to end Time/Date setting and move the next setting phase.

IER-25Nxxx Seite 10
2.3.5 Easy Installation Wizard
1 Select to run Easy Installation every time when the system start.
2 Press Save button to save set value and end Easy Installation.

IER-25Nxxx Seite 11
3. Live Screen Configuration
UI screen is configured like below figure.
Figure 3-1 UI Screen Configuration
Table 3-1 Items and Description of UI Screen Configuration
No. Item Description
1 Setup menu Setting menu is located in the corner of upper screen. See “4 Setup”
to display detailed information about the setting menu.
2 Live screen Show live video of connected cameras.
3 Launcher menu Launcher menu is located in the corner of below screen. See “3.2 Live
Launcher” to display detailed information about the launcher menu.
4 Quick menu Clicking the right button of a mouse displays Quick menu. See “3.3
Quick menu” to display detailed information about the quick menu.
5 Add to CH Move mouse cursor on the center of window to register IP camera
manually. See”3.3.2 Camera Registration” to display detailed
information about the camera registration.

IER-25Nxxx Seite 12
3.1 Icons in Live screen
Each icon in the live screen displays a present setting status or a function. UI screen consists of like
below.
Note Chosen live screen is marked as a blue frame; mouse-located live screen is marked
as yellow one.
Figure 3-2 Live screen icon
Table 3-2 Live screen icon and its description
No. Icon Description
1 CH1 CAM1 Channel numbers and camera titles.
2 A camera with PTZ function.
PTZ control function in process.
Recording in alarm event mode.
Recording in motion event mode.
Recording in panic recording mode.
Recording in consecutive recording mode.
3 Video loss icon.
4 Mic on/off.
Speaker on/off.
6
Displaying present time and date.

IER-25Nxxx Seite 13
3.2 Live Launcher menu
This chapter describes Launcher menu in the bottom of the screen.
Figure 3-3 Launcher menu
Table 3-3 Launcher menu Item and Description
No. Item Description
1 Log in/out status and logged in ID.
2 Date & Time Displaying present date and time.
3 HDD Displaying HDD capacity in use.
4 Moving to previous/next partition screen.
5 Displaying live screen in order set (toggle).
6 Selecting partition mode to mark in live screen (single screen, 4-, 9-, and 16-
partition).
7 Stopping or replaying selected live screen images (toggle).
8 Audio on or mute chosen live screen (toggle).
9 Instant recording for 10 seconds.
10 Make a backup video of users want. See “3.2.1 Backup ” to display detailed
information about back-up.
11 Searching recording data (time, event, thumbnail, smart search, text and VCA).
See “5.1 Search” to display detailed information about search.
12 Playback recorded data.
13 Starting immediate recording of selected channel.
14 Locking or releasing launcher menu (toggle).

IER-25Nxxx Seite 14
3.2.1 Backup
The device provides a back-up function of live screen.
Figure 3-4 Backup
Table 3-4 Backup Item and Description
No. Item Description
1 Select CH Selecting a channel users want to back-up.
2 Select All/
Unselect All Select or clear all channels.
3 Start Setting back-up start time (Bookmark: bookmark list).
4 End Setting back-up ending time (Bookmark: bookmark list).
5 Time Overlap Selecting time if there are two recorded data in the same time.
6 Backup Mask User can mask selected area. It works H4V format only.
7 Device Selecting the device to save back-up files.
8 Reload Opening the device information.
9 Folder Name Entering a folder name to save back-up files.
10 File format Selecting a file format to back-up.
11 Calculate Calculating data capacity to back-up.
12 Format Formatting the device to back-up.
13 Start Starting back-up.
14 Cancel Closing the backup screen.

IER-25Nxxx Seite 15
3.3 Quick menu
This chapter depicts Quick menu when users click the right button of the mouse in live screen.
Figure 3-5 Quick menu
Table 3-5 Quick menu Item and Description
No. Item Description
1 Screen Mode Selecting the partition mode of live screen (Full, 2X2, 3X3, and 4x4).
2 Zoom in Magnifying selected live screen (Zoom out, 2 times, 4 times, and 8 times).
This menu is shown full screen mode only.
3 Freeze Freezes the video selected live screen images (toggle on/off).
4 Speaker
Output/Mute Turning on/off a sound speaker.
5 PTZ Control Controlling PTZ function. This menu is shown when PTZ camera
connected.
6 Stop Alarm Stopping monitoring alarm output and event.
7 Text Overlay POS text overlay on the screen. This menu is show when enable Text
menu.
8 Playback Playing selected live screen images (before 30 sec, 1 min, 5 min, 10 min,
30 min, 1-hour, Go to last play time, and Go to last record time).
9 Search Searching recording data (time, event, thumbnail, smart search, text and
VCA). See “5.1 Search” to display detailed information about search.
10 Backup Backup video to USB drive. See “0 ” to display detailed information about
back-up.
11 Setup Opens the NVRs main setup menu. For more information about setting
menu, see section “4 Setup”.
12 Warp Monitor and control for remote recorder.
13 Camera
Registration Opens a pop-up menu for IP camera registration.
14 Status Opens a pop-up menu showing device system log, event, and recording
status (system log, event, and record).

IER-25Nxxx Seite 16
No. Item Description
15 Log in/Log out Log in/Log out.
16 Shutdown Shuts down or restarts the device (shutdown, restart).
3.3.1 PTZ Control
The location of images may be moved to monitor with PTZ ball.
Note PTZ Control menu can be displayed if relevant channel’s protocol is set in DEVICE >
PTZ in the upper live screen.
Figure 3-6 Quick menu > PTZ Control
Table 3-6 Quick menu > PTZ Control Item and Description
No. Item Description
1
Moving images with direction buttons.
2 Moving images with PTZ ball.
3 AF Adjusting screen focus automatically.
4 Zoom Out Zoom function of PTZ camera.
5 Zoom In
6 Iris Close Adjust Iris manually.
7 Iris Open
8 Focus Far Adjust focus manually.
9 Focus Near
