Enerdrive Wanderer User manual
POWER SYSTEM SERIES
Installation Guide
Congratulations on the purchase ofTheWanderer power system from Enerdrive. This all-in-one system
was designed for those who want the best charging, power supply and monitoring package in one
compact easy to install package. Your system includes the following individual products:
• Enerdrive DC2DC40+ DC Battery Charger
• Enerdrive ePRO 1600W/60A Combi Inverter Charger
• Simarine Pico Monitor with SC301 Shunt and additional SCQ50 shunt
The following guide is for the installation of the pre-assembled power system, for specics on each
product please refer to the individual product manuals supplied or online at www.enerdrive.com.au.
INSTALLATION GUIDE
Mounting
• Choose the location ofTheWanderer with focus on keeping the battery as close as possible
(less than 1.5m is ideal) to the system. If the distance from the battery toTheWanderer is
greater than 1.5m, larger diameter cable than the supplied 50mm2 will be required.
• Consideration must be given to avoid moisture and excessive dust.
• Firmly fastenTheWanderer by fastening through the black plastic backing panel ofThe
Adventurer to your vehicle using suitable fasteners (not supplied). Ensure the structure you
are securingTheWanderer to is rigid and can support the weight of the power system.
Caution: Ensure any debris from the mounting process is thoroughly removed to prevent damage to
equipment or wiring.
Caution: Ensure that there is adequate spacing for wiring and be sure to check no wiring is in the path of
fasteners when mounting the power system.
Connecting Loads (Appliances)
• Connect the positive wire from your lights, pumps, and other accessories to the system by
connecting to either one of the four switches using insulated female spade crimps or directly
to the appropriately labelled circuit breaker using 4mm ring terminals.
If wiring through a switch you will need to connect a positive wire (same size as the wiring to
your lights, pump or accessory and rated to the circuit breaker value) from the appropriately
labelled circuit breaker to your desired switch. Note the supply is connected to the top
terminal whilst the load is connected to the bottom terminal.

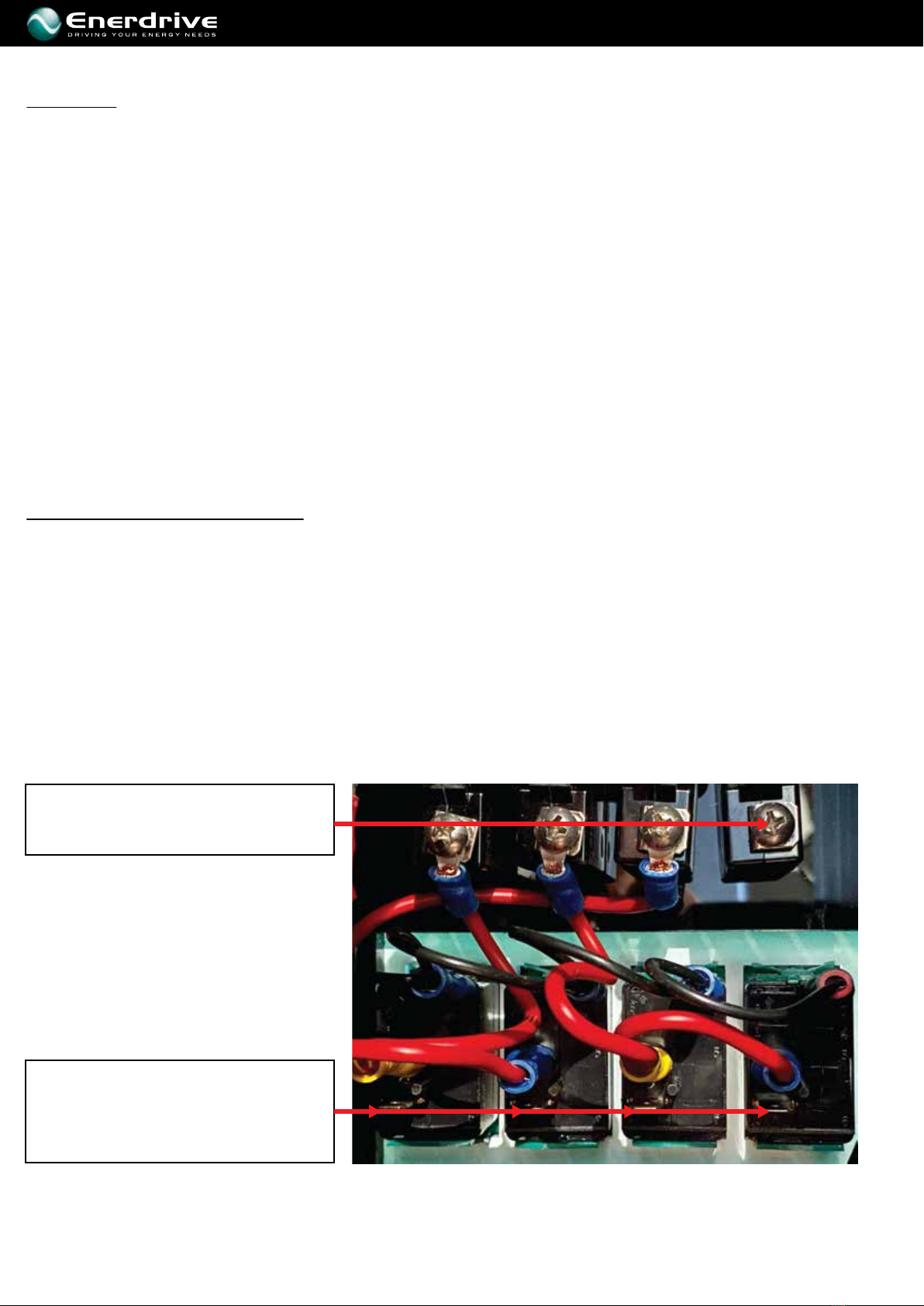

Fridge positive wire to be
connected here
Connect positive wire from
accessories required to be
switched here. (BottomTerminal)
Note: Ensure current ratings of the accessories do not exceed the circuit breaker ratings or the switches,
which are rated at 20A each switch. If larger loads are to be switched use a relay.
Note: Cables must be sized to handle the current rating of the circuit breaker that the load is connected to.
• Connect the negative wire from your lights, pumps, and other accessories to the system by
connecting directly to the negative bus bar using 4mm ring terminals. If you have a larger load
circuit (over 30 amps) we recommend to connect the negative directly to the Main negative
Bar.
Note: No negative connections are to be direct to the battery or on the battery side of the shunt as this will
result in incorrect reading on the Simarine system.
Solar Connection
• If you are tting either xed solar panels or portable solar panels via an Anderson plug,
connect the solar wiring directly to the DC2DC+ as the MPPT regulator is inbuilt. Cabling
should be sized to the rating of solar installed but as a minimum 4mm2 cable is to be used
with 6mm ring terminals connecting to the solar terminals on the DC2DC. Ensure the panels
are disconnected or covered from the sun during connection to the DC2DC.
Connect negative wire from
accessories to this busbar.
INSTALLATION GUIDE
Solar Positive Solar Negative
Connecting to Main (Start) Battery
• Connect the Battery Input terminals of your DC2DC+ to your vehicles main/start battery. A
70A midi fuse located as close as possible to the main/start battery is required. Refer below
cable sizing chart.
Note: Refer to DC2DC manual for information on wiring for vehicles with smart alternators.
Connection to Auxiliary Battery
• Connect your auxiliary (main house battery) battery negative cable, which is to be a minimum
of 50mm2 (0AWG), to the Simarine shunt stud using a 10mm ring terminal, the one with no
cable connected.
Vehicle Positive
Connect main negative cable from
auxiliary battery here.
Vehicle Negative
INSTALLATION GUIDE
DC2DC Connection
Inputs Require Length & Battery Cable Size
DC2DC set to
50A Output
From Start Battery
2 Meters to 5 Meters (2)
6-16mm² @ 12vdc 16-35mm² @ 12vdc
/ 4-8mm² @ 24vdc
Up to 10 Meters (2) Greater than 10 Meters
Not Recommended
/ 8-16mm² @ 24vdc
• Connect your auxiliary battery positive cable, which is to be 50mm2 (0AWG), to the back of
the Inverter circuit breaker on the same side as the copper bus bar using an 8mm ring
terminal.
• Finally connect the positive cable to the battery followed by the negative cable to the battery
using correctly sized ring terminals, in the case of an Enerdrive Lithium battery use 8mm ring
terminals.
Note: No other connections are to be direct to the battery as this will result in incorrect reading on the
Simarine system.
Note: Due to the Inverter requiring grounding it is important to ensure that there is an electrical connection
from the inverter ground terminal to the vehicle’s chassis, this can be made through the main DC cable
connections.
Temperature Sensor
• The supplied temperature sensor, plugged into the Simarine SC301 shunt, can be located in
your desired location such as canopy space, fridge or freezer.
Note: Do not cut or extend the temperature sense cable as this may result in inaccurate readings.
Inverter Input and Output AC Wiring
Caution: AC wiring is only to be performed by a licensed electrician, please check your local state or
territories requirements.
Simarine Settings
Your Simarine will come with basic set up completed, however if you wish to add or customise any settings
please refer to the supplied Simarine manual.
INSTALLATION GUIDE
Connect main positive cable from
auxiliary battery here.
INSTALLATION GUIDE
INSTALLATION GUIDE
INSTALLATION GUIDE
Specications
DC Charger
Inverter/Charger
Output Current Maximum: 40~50A
Output Current Maximum: 60A
General
AC Output: 230V 50Hz
AC Output Power: 1300W Cont (1600W 10 minutes)
Dimensions:760L x 155W x 510H
Weight: 21kg
Solar Input Voltage: 14.5-45VOC
Solar Wattage Maximum: ≤23V Input, 500W (600W allowable),
≥37.5V-45V Input, 750W (800W allowable)
5 Year Warranty
Important Note: Consumer Protections
In the unlikely event that a technical issue arises with an Enerdrive product, customers are
encouraged to initially contact the Enerdrive Support Team on 1300 851 535 or
support.
Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits,
and in normal conditions, as described in the complete Enerdrive Warranty Policy) for up to 5 years from the
date of purchase.
For full terms, conditions and claim process, refer to the Enerdrive website.
https://enerdrive.com.au/warranty/
If you have purchased your product in Australia, you should be aware that:
This warranty is provided in addition to other rights and remedies held by a consumer at law. Our goods
come with guarantees that cannot be excluded under the Australian ConsumerLaw. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of accept-
able quality and the failure does not amount to a major failure.
ENERDRIVE PTY LTD
P.O. Box 9159, Wynnum Plaza, Queensland, Australia 4178
Ph: 1300 851 535 / Fax: 07 3390 6911
Email: support@enerdrive.com.au
Web: www.enerdrive.com.au
