Energenics UV-MAX User manual

1
www.energenics.com
1470 Don Street •Naples,Florida34104 Telephone: [phone]
Fax: [phone]
CustomerService: [phone]
Installation & Operations Manual for Energenics UV-MAX
Mobile Disinfection System
Table of Contents Page 1
Energenics UV-MAX Page 2
Advisories (Purpose/Contents) Page 3
UV-MAX Safe Operation Procedure Page 4
Safety Guidelines Page 5
System Description Page 6
System Delivery Page 7
Operation Overview Page 8
Operation Settings (Default) Page 9
Operation Settings (Customizable) Page 10
Cycle Stop Status Screens Page 11
System Care Page 12
Troubleshooting Page 13
FAQ Pages 14-15

2

3
Advisories
Purpose
The Energenics UV-MAX system has been designed to offer direct disinfection exposure to
surface areas. The system design allows for microbial disinfection control.
The Energenics UV-MAX system was developed as a cleaning device utilizing Ultraviolet Light
(UV) for direct exposure disinfection. The system can disinfect 360 degrees from the system
center.
Contents
This manual will serve as your reference guide for installation, operation, and service of your
UV-MAX system. Reference to all parts, warranty, and support are included.
This manual covers the system/equipment/products listed below:
o Energenics UV-MAX & UV MAX Low Profile
Safety Observation: It is required for the person(s) responsible
for the installation of this equipment, operators of this equipment, and
operation personnel managers to review and understand this manual.
USE OF LISTED SYSTEM / EQUIPMENT MUST COMPLY WITH
INSTRUCTIONS AND SAFETY REQUIREMENTS.

4
UV-MAX Safe Operation Procedure
1. Always wear personal protective equipment (PPE) when operating UV-MAX to limit
exposure to light
2. Place UV-MAX in area to betreated
3. Ensure the PIR Sensors (Passive Infrared) are positioned to the re-entry point. PIR
sensors operations are explained in the FAQ section at the end of this manual.
4. Connect UV-MAX to 120vac plugreceptacle
5. Press start on UV-MAX control and exit treatment area
6. Adhere to recommended safety precautions to avoid potential injury
Safety
1. You should never look directly at a UV lamp inoperation without wearing approved
safety glasses. Safety glasses should be made of any material other than Quartz or
Teflon.
2. The space should be vacant and closed prior to UV-MAXoperation
3. Never command the system on when the treatment space is occupied

5
Safety Guidelines
Long term exposure to ultraviolet light is dangerous. UV-C can produce eye injuries and skin
irritation similar to a sun burn over prolonged exposure. These effects are considered
transient. UV-C may also be carcinogenic but since it has very limited penetrating ability it is
unlikely to cause damage to anything besides the outer layer of skin or other exposed
surfaces.
The Energenics UV-MAX is designed for zero user exposure to UV-C; however, we will
review safety factors regarding UV-C for better knowledge and understanding.
Protective Clothing and Eyewear
It is not recommended that any personnel be subject to direct UV-C exposure. In the event
such exposure is probable, personnel should wear PPE providing full coverage of exposed
skin and appropriate eye protection.
UV-C safety glasses designed to filter UV-C and those of the wrap-around type are recommended.
Safety glasses should be made of any material other than Quartz or Teflon.
OSHA Guidelines for Ultraviolet Exposure
OSHA provides technical guidance regarding protecting employees from ultraviolet light with
respect to laser hazards only.
OSHA has two standards that cover employee exposure to radiation: Nonionizing
Radiation (29 CFR 1910.97) and Ionizing Radiation (29 CFR 1910.1096). You may access a
copy of the OSHA radiation standards from their website at http://www.osha.gov.
The non-ionizing radiation standard only covers the radio frequency region, including
microwaves. The ionizing radiation standard covers alpha, beta, gamma, and X-rays;
neutrons; high-speed electrons and protons; and other atomic particles; but does not
include sound or radio waves, or visible, infrared, or ultraviolet light. Therefore, there are
no OSHA-mandated employee exposure limits to ultraviolet radiation.

6

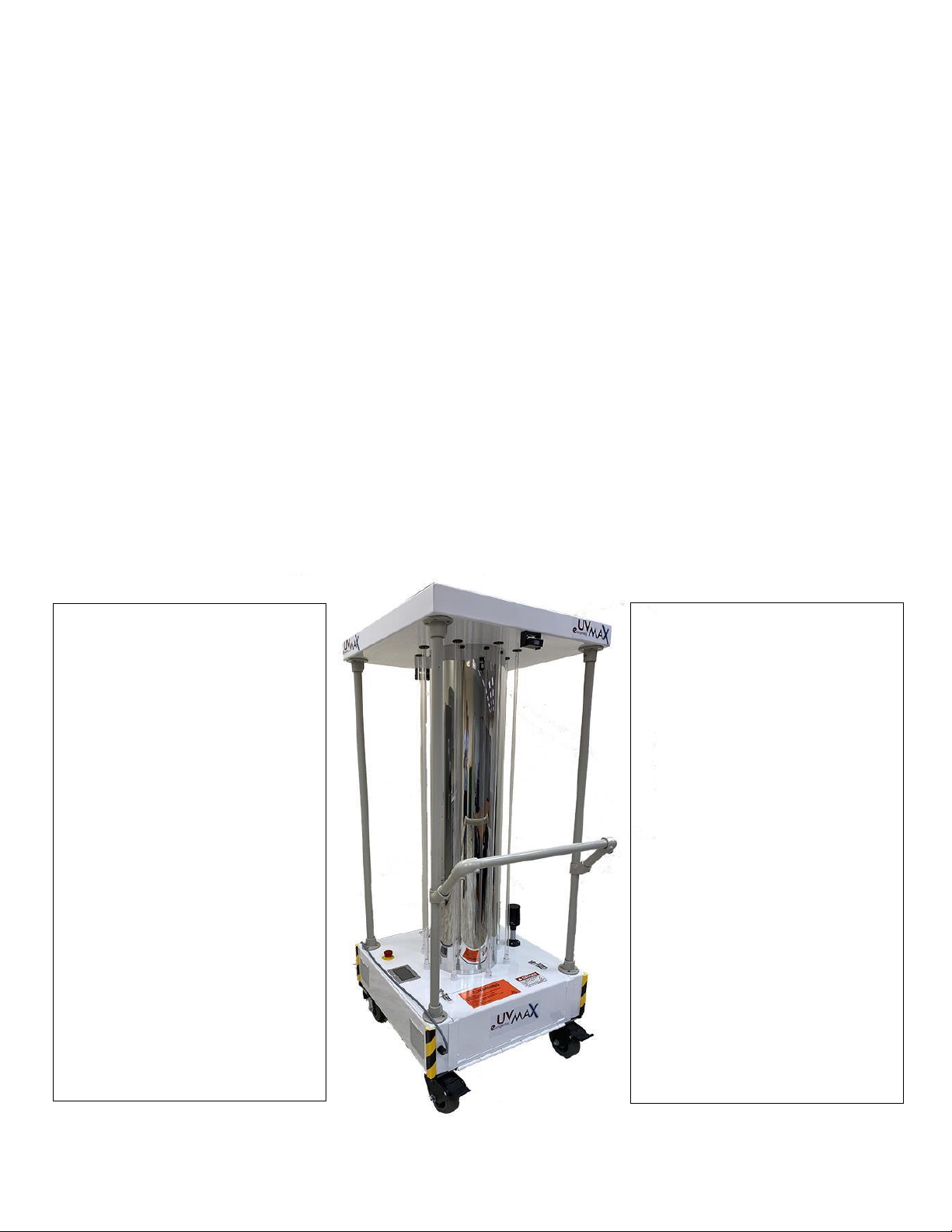

System Description
The Energenics UV-MAX is designed for maximum disinfection through the
shortest exposure time. More UV-C wattage allows shorter exposure times
to surfaces. Exposure times vary based on furthest distance from the UV-
C source. The system design provides the optimum in:
oUV dosage output to footprintserved
oRugged design build
oEase of use controls
oUser safety protection
INDUSTRIAL STRENGTH
FRAME AND STRUCTURE
CORROSION PROOF
CONSTRUCTION
6” INDUSTRIAL CASTERS
HIGH OUTPUT PRE-HEAT
LAMPS FOR LONG RUN
TIME LENGTH
PIR SENSOR DETECTION
SAFETY SHUTOFF
INDIVIDUAL LAMP
FAILURE INDICATOR
LED’S
EMERGENCY STOP
BUTTON
BUILT TO IP56 WATER
AND DUST STANDARDS

7
System Delivery
When you receive your UV-MAX, you will need to unpack and inspect the
system. Please perform the following procedure:
1. Unpack your new system and stand upright
2. Inspect fully for damage
If damage present, contact Energenics prior to use(800) 944-1711
3. Verify secure lampinstallation
4. Plug in system power cord
5. Power on the unit
Your Energenics UV-MAX system is now ready for operation
(See Operation Overview)

8
Operation Overview
The UV-MAX is designed to operate in the following manner:
Start Sequence
1. Locate unit in unoccupied space positioned foroperation
2. Plug system into power supply
3. Review display for “Start Cycle” state
4. Turn on system
5. Evacuate space
Audio and Visual Indicators
1. Audio Alarm
a. Once Started: LONG warning beeps increasing in frequency
b. During Process: SHORT strokebeeps
c. Process Complete: Three short beeps (no beepthereafter)
2. Visual Indicator
a. Red Light –Warning, get out processrunning
b. Green Light –Safe/Processcomplete
3. Display of System
a. Operations
b. Controls
c. Indication of SystemFunctions

9
Operation Settings
Normal operation for factory default settings are covered on this page.
1. Review system forcondition.
a. There should be no physical damage to thesystem
b. Lamps shall be clean
c. System frame shall be in goodcondition
d. Display of system shall beclean
2. Plug in system powercord
3. Ensure all personnel are out oftreatment area
4. Operate system
a. Press START CYCLE
b. The system will enter countdown mode (1min)
c. Once the process is complete, control panelwill
display cycle status
d. Press RESTART CYCLE to return to home screen

10

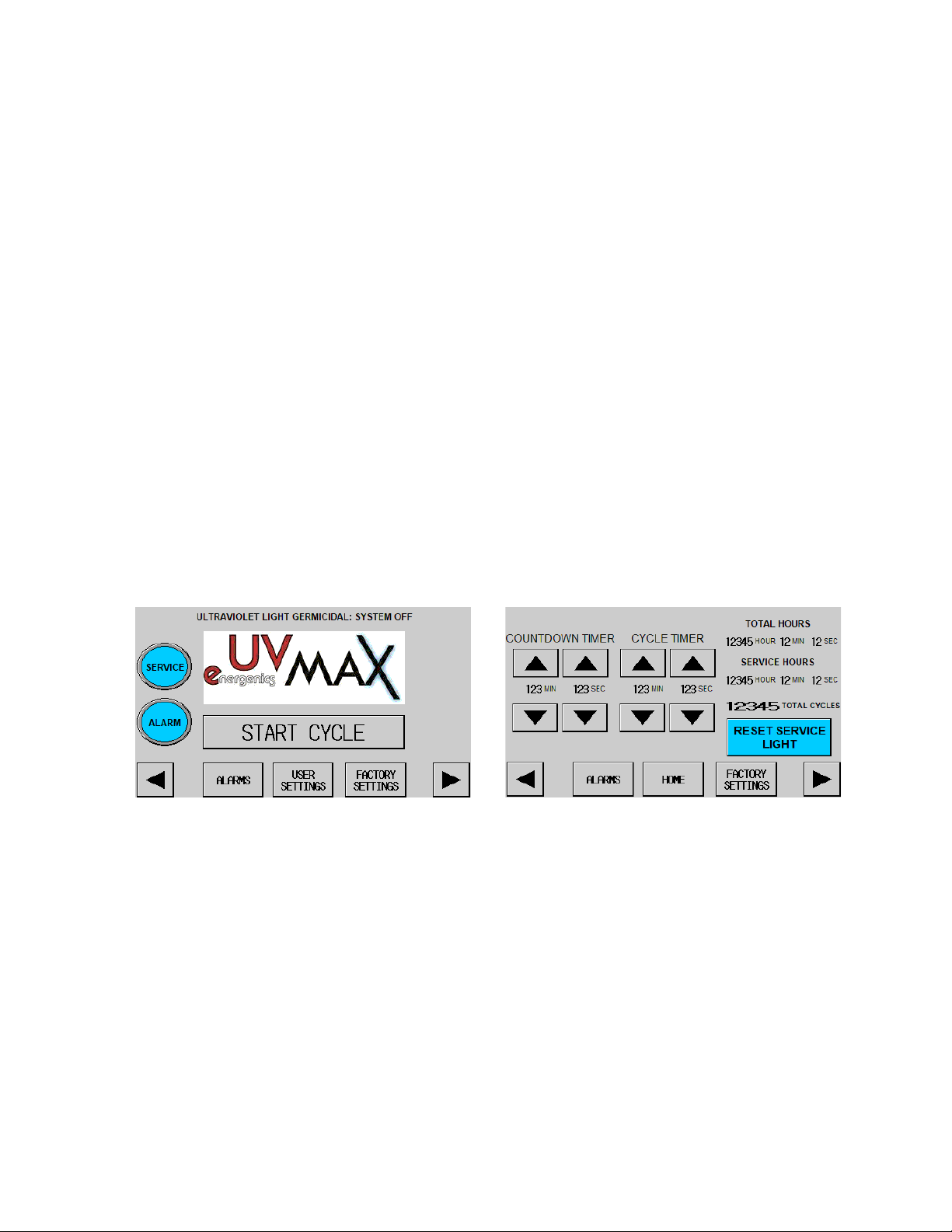

Customizable Operation Settings
Customizing settings for normal operation are covered on this page.
1. From the START CYCLE home screen, press USER SETTINGS button
2. The COUNTDOWN TIMER / CYCLE TIMER screen is displayed and may be used to
modify system variables as follows:
Countdown Timer–control for time delay from when Start Cycle button is pressed to
when system lamps come on
Cycle Timer –control for duration of cycle operation
3. After adjusting to preferred settings, press HOME button to return to StartCycle
4. Press START CYCLE button to begin customized treatment cycle

11
Cycle Stop Status Screens
Cycle stop displays for normal system operation are covered on this page.
Emergency Stop
Should cycle deactivation occur by engagement of the Emergency Stop button, the following
method will be required to reset the system:
1. Observe Emergency Stop Active status on control screen
2. Release Emergency Stop by pulling up on the red knob
3. Select HOME button to return to main screen
4. Press START CYCLE to resume normal operation of system
System Faults
Should cycle deactivation occur by means of a system fault, the following method will be
required to reset the system:
1. Observe the fault status type on the control panel
2. Ensure all system faults have been properly addressed
3. Select HOME button to return to main screen
4. Press START CYCLE to resume normal operation of system

12
System Care
The Energenics UV-MAX system is designed for repeat performance with consistent results.
Based on system designs, minimal maintenance is required. Adherence to the following
regular service of your system should provide years of disinfection.
Each Duty Cycle
1. Inspect the system interior, exterior, and lamps for cleanconditions
2. Clean as needed
Monthly
1. Inspect the system interior, exterior,and lamps for cleanconditions
2. Clean as needed
3. It is recommended to test system performance using an ATPmeter
Bi-Annual
1. Inspect the system interior and exterior lamp for cleanconditions
2. Clean as needed
3. It is recommended to test system performance using an ATPmeter
“Service Machine” Message
1. Every 8 running hours it is recommended that lamps be wiped down with isopropyl or
rubbing alcohol. This will remove any debris that may have accumulated on the lamp.
Once cleaned, you can reset this message by pressing USER SETTINGS button
followed by RESET SERVICE LIGHT
Note: The above steps are listed as the basic level of care, should the system be utilized
in a heavy work environment, further care may be required.

13
Troubleshooting
The below statements are listed as troubleshooting guidelines. Further information is available
through Energenics support.
Q: What should I do if the unit will not turn on?
A: Verify there is power to the system
A: Verify the display is reads correctly
A: Verify the Emergency Stop is not engaged
Q: Why does the unit turn off when I enter the room?
A: Safety features turn off lamps based on detection by the PIR sensor.
Q: My system will turn on, but the lamps will not come on.
A: Verify the start cycle button is pressed
A: Inspect the lamp for age or physicalfailure
A: Contact Energenics Support for further information
Q: My system is running fine, how do I verify the lamp output is correct?
A: The system has a status screen at the end of the cycle
A: Faults will indicate if the system is not performing correctly
Q: The touchscreen has presented a flashing “Service Machine” icon.
What does this mean?
A: Every 8 running hours it is recommended that lamps be wiped
down with isopropyl or rubbing alcohol. This will remove any
debris that may have accumulated on the lamp. Once cleaned,
you can reset this message by pressing USER SETTINGS
button followed by RESET SERVICE LIGHT

14
FAQ
Q: What is a PIR (Passive Infrared) Sensor?
A: Passive InfraRed sensors (PIRs) are electronic devices which are used in some
security alarm systems to detect motion of an infrared emitting source, usually a human
body.
Radiation (energy) is invisible to the human eye but can be detected by electronic
devices designed for such a purpose.
The term 'passive' in this instance means the PIR does not emit any energy of any type
but merely sits 'passive' accepting infrared energy through the 'window' in its housing.
An intruder entering the protected area is detected when the infrared energy emitted
from the intruder's body is focused by a Fresnel lens or a mirror segment and overlaps a
section on the chip which had previously been looking at some much cooler part of the
protected area.
That portion of the chip is now much warmer than when the intruder wasn't there.
As the intruder moves, so does the hot spot on the surface of the chip.
This moving hot spot causes the electronics connected to the chip to de-energize the
relay, operating its contacts, thereby activating the detection input on the alarm control
panel.
Q: Is UV-C disinfection strictly line of sight?
A: Yes, it needs to shine on the surface to disinfect. It will not go around objects or
disinfect shadowed areas.
Q: Does UV-C light reflect off surfaces?
A: Yes, it reflects off many surfaces, but loses intensity dramatically if the surface is not
highly polished like the Stainless Steel center installed on our unit.
Q: Is the UV-C light I can see under the door dangerous?
A: Zero exposure to people is imperative so block it or protect your eyes and skin (please
note: 254nm UV-C wavelength is invisible, what is seen is visible light)

15
FAQ
Q: Does UV-C light go through glass or windows?
A: Standard window glass blocks almost 100% of UV-C light according to the IUVA.
(Normal glass, as used in a window, is transparent to UV radiation to a wavelength of
about 330 nm (UV-A). The transparency is quite high so almost all UV-A light will pass
through glass. Below 330 nm (UV-B and UV-C), almost 100% is blocked by normal
glass.
Q: Can I use an ATP Meter with the UV MAX
A: Yes, it can be used to measure how clean a surface is
Q: Can I use a response card with the UV MAX?
A: Yes, it can be used to indicate the correct dosage (intensity x
time x distance) has been applied to a surface
