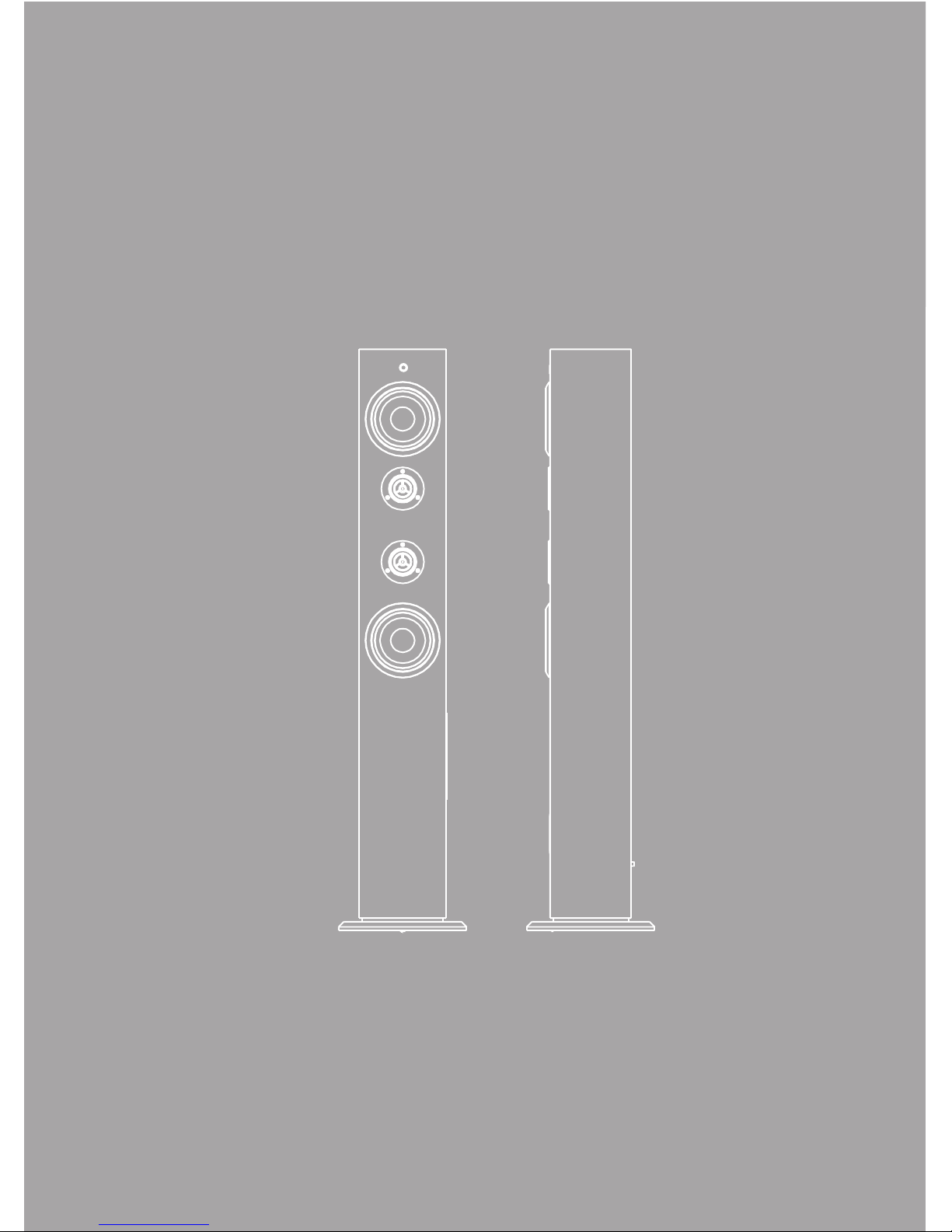

ENERGY SISTEM Energy Tower System TS3 User manual

Manual de usuario / User manual
Manuel de l’utilisateur / Manual do Utilizador
ENERGY
TS3 2.0 Bluetooth
TOWER SYSTEM

15
ESPAÑOL
User Manual

INTRODUCTION
Energy Sistem™ thank you for purchasing this Energy Tower System TS3
2.0 Bluetooth. We hope you will enjoy it.
We recommend you to read the following user manual in order to take
the most advantage from your product, on a safely way and with the best
performance.
CARE AND MAINTENANCE
≥Do not expose your Energy TS3 to impacts, dust or even high
temperatures.
≥Do not use corrosive or abrasive cleaning products.
≥Keep the device clean and without dust.
≥Do not disassemble the device. Any repair should be done by the qualified
staff of Energy Sistem Soyntec, S.A.
≥Keep your Energy TS3 far form water or humidity, that one can be harmful
for both speakers or for the amplifier.
≥Make sure that Energy TS3 is off while you are not using it.

ENGLISH
TECHNICAL CHARACTERISTICS
≥ 2.0 sound system with 2x10W output power.
≥ Bluetooth® v2.1 ClasS 2.
≥ Bluetooth® profiles:Support A2DP V1.2; AVRCP V1.
≥ Frequency: 2.4GHz banda ISM.
≥ Plays MP3 files from SD/SDHC/MMC cards with capacity up to 32 GB.
≥ USB memory decoder: plays MP3 files from USB memory drives with
capacity up to 32 GB.
≥ RMS: 20 W.
≥ Speakes: 4"x2 (main units) + 1,5''x 2 (twitters).
≥ Frequency response: 20-20K Hz.
≥ Wooden cabinet speakers.
≥ Backlit display.
≥ Band width (FM): 88-108MHz.
≥ 3.5mm line-in input.
≥ Power supply: 110-220 V / 50-60 Hz.
≥ PRODUCT CONTENT
≥ Energy Tower System TS3 2.0 Bluetooth.
≥ Audio Cable: 3.5 mm.
≥ Remote Control.

TOP VIEW
1. USB Port.
2. SD / MMC cards port.
3. Line-in input.
4. Display.
5. ON/OFF - SOURCE.
6. Volume -.
7. Volume +.
8. Play / pause / Automatic Search / Preset.
9. Backward.
10. Forward.
BROWSE
4
3
2
1
57
8 10
9
6
12
11
13
ON
BASS
TREBLE
OFF
BACk VIEW
11. Treble EQ.
12. Bass EQ.
13. ON / OFF Switch.

ENGLISH
GENERAL FUNCTIONS
Energy Tower System TS3 2.0 Bluetooth is an integrated music player with
Bluetooth® technology.YoucanplayyoursongsthroughUSB/SD external
memories as well, you can enjoy the FM radio and the Line-in inputs to
connect your MP3 player, mobile phone and other audio devices.
In order to select different functions, press SOURCE (5). This will help you
to select between the available functions of the connecting devices. The
correct switching sequence is: Bluetooth®, “line-in”, Radio FM, USB and
SD/ MMC.
DISPLAY
Energy TS3 has a hidden display on the top of device.
When device is turned on you can see the Energy Sistem™ logo at the top
of the panel. Also, you can see the display with the actual mode or more
information.
BLUETOOTH® FUNCTION
When you start the Energy TS3 you can see “Hi” in the screen. If there
isn’t any connection (USB/SD/Line-in) then you’ll see “no line” text in the
screen. Press the SOURCE mode until the Bluetooth® mode (“blue” text in
the display). After that moment you can pair it with your Bluetooth® audio
device (tablet, smartphone, PC, MAC, etc).
You can view the Energy TS3 as “Energy TS3” in your Bluetooth® device.
Then select and pair it. Maybe you need a pairing code to pair with the
Bluetooth® audio device. In this case you can use “0000”.
When the pairing is done you can start to play your favourite songs without
cables. If you want to change your paired Bluetooth® device, turn off the

Bluetooth® function from your Bluetooth® audio device. Then you can
search and pair with other Bluetooth® audio device.
The Energy TS3 is provided with the Bluetooth profiles A2DP (Advanced
Audio Distribution Profile) that lets you listen to stereo music and the
AVRCP (Audio Video Remote Control Profile) by which you can control the
music from the top panel or from Remote Control.
FM RADIO FUNCTION
Before using radio function, firstly you have to search the available radio
channels and will save them for visualising them later. It is not necessary
to repeat this search unless change of location of modification of the radio
stations’ signal.
To search radio channel, press and keep pressing the play/pause button (8)
during 3 seconds. This will save all stations founded in the internal memory
of the device. This process may take a few minutes.
In order to select between different stations, you just have to press the
forward button (10) or backward button (9). Stations will appear at
the same order as they were saved. If you want to do a manual adjust or
searching, just keep pressed the forward button (10) or backward button
(9) and find the radio station that you want.
LINE-IN FUNCTION
To use the line-in function, connect the audio cable in the line-in port (3) by
one side (you can see “Aux” in the display), and connect the other side to
another audio device, like MP3 player, player, mini music system, etc.

ENGLISH
MP3 FUNCTION WITH EXTERNAL MEMORIES
In order to play MP3 files, insert an external memory such as a USB stick or
aSD/MMC memory cardinthecorresponding slots;(1)and(2)respectively.
If you switch off the Energy TS3 or remove the external memory of your
device, when you insert again the same external memory, the lecture will
continue at the same instant that you ended previously.
To go forward another track, use next (10) and back (9) buttons. This will go
directly to next or previous track.
REMOTE CONTROL
With the Remote Control you can control all possibilities that Energy TS3
offers you:
≥ Turn ON/OFF.
≥ Select your mode (USB, SD, Line-in, Radio FM, Bluetooth®) through the
SOURCE button.
≥ “Mute” function for all modes.
≥ Loudness control, Play and Pause, forward and backward songs or FM
channels (in all modes).
≥ Equalization presets for USB and SD modes.
≥EQ 0: Normal
≥EQ 1: Pop
≥EQ 2: Rock
≥EQ 3: Jazz
≥EQ 4: Classic
≥ Manage your folders in the USB and SD memories with browse button.

≥ Repeat and Random modes for the USB and SD memories with RPT
button.
≥ Numeric buttons to select your song number in USB/SD mode or to select
your favourite FM channel.
PLAYBACk ORDER
Thefoldersincludedinthememoriesarereadinwritingchronologicalorder
and all songs contained in these folders are read in alphabetical order.
For example: if after copying two folders of music called ‘A’ and ‘B’, we can
copy first folder ‘B’ and later folder ‘A’, so the first played song will be first
song in alphabetical order of ‘B’ folder.
Here you have a diagram of the reading order:
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
0
Carpetas:ordencronológico
ArchivosMP3:ordenalfabético

ENGLISH
WARRANTY
Energy Sistem Soyntec SA is liable for any lack of conformity which exists at
the time the goods were purchased during a period of 36 months. Batteries are
excluded from the 36-month warranty, having a warranty period of 12 months.
This warranty covers any defects in workmanship or materials. This warranty
doesn’t cover any failure of the product due to accidents, misuse or alteration
madeby an unauthorized person.
The special 36-months warranty is valid for the European Union. For other
countries,please referto yourspecific legislationor yourlocal distributor.
WARRANTY PROCEDURE
1. Visit the Support section at http://support.energysistem.com
http://support.soyntec.comandselectyourproducttoviewtheFAQ(Frequently
Asked Questions), user manuals, drivers and updates available, as the
possibility to submit a query to the Technical Service or consult the warranty.
You can check the availability of the user manual in your language at
http://www.energysistem.com/en-en/support/manuals.
2. Alternatively, you may prefer to contact the distributor from which you
purchased the product, presenting the purchase receipt or invoice.
Important: This warranty doesn’t cover any damage or loss to any data stored in
theproductmemory,thereforeEnergySistem’sTechnicalServicewillnotassume
any loss of the above mentioned information. Accordingly, it is recommended to
remove any data or personal information from its internal memory before you
sendtheproductorto senditonlywiththeoriginalfactorydefaultvalues.
Specificationsaresubject to change without notice.
Trademarks. All companies, brands and product names are trademarks or
registeredtrademarksoftheirrespectivecompanies.
© 2014 by Energy Sistem Soyntec S.A. All rights reserved.

DECLARATION OF CONFORMITY
Manufacturer Name: Energy Sistem Soyntec S.A.
08/10/2013
Address: Pol. Ind. Finestrat, C/.Calpe, 1 - 03509, Finestrat, Alicante
(Spain)
Tel: [phone]
Fax: [phone]
NIF: A53107488
We declare under our own exclusive responsibility that the product:
Energy Sistem™ Energy Tower System TS3 2.0 Bluetooth.
Manufacturing country:
China
Is in compliance with the essential norms and standards of the Directive
1999/5/EC of the European Parliament and of the Council of March 09th
1999.
