Enerpac ECSE300 User manual

1
1.0 SAFETY
1.1 Introduction
Read all instructions carefully. Follow all recommended
safety precautions to avoid personal injury as well
as damage to the product and/or damage to other
property. Enerpac cannot be responsible for any
damage or injury from unsafe use, lack of maintenance
or incorrect operation. Do not remove warning labels,
tags, or decals. In the event any questions or concerns
arise, contact Enerpac or a local Enerpac distributor for
clarification.
If you have never been trained on high-pressure hydraulic
tool safety, consult your distributor or service center for
information about an Enerpac hydraulic safety course.
This manual follows a system of safety alert symbols,
signal words and safety messages to warn the user of
specific hazards. Failure to comply with these warnings
could result in death or serious personal injury, as well
as damage to the equipment or other property.
The Safety Alert Symbol appears throughout
this manual. It is used to alert you to
potential physical injury hazards. Pay close
attention to Safety Alert Symbols and obey
all safety messages that follow this symbol to avoid the
possibility of death or serious personal injury.
Safety Alert Symbols are used in conjunction with certain
Signal Words that call attention to safety messages or
property damage messages and designate a degree
or level of hazard seriousness. The Signal Words used
in this manual are DANGER, WARNING, CAUTION and
NOTICE.
NOTICE:
DANGER Indicates a hazardous situation that,
if not avoided, will result in death or
serious personal injury
NOTICE:
WARNING
Indicates a hazardous situation that,
if not avoided, could result in death
or serious personal injury.
NOTICE:
CAUTION
Indicates a hazardous situation that,
if not avoided, could result in minor
or moderate personal injury.
NOTICE
Indicates information considered
important, but not hazard related
(e.g. messages relating to property
damage). Please note that the Safety
Alert symbol will not be used with this
signal word.
1.2 Hydraulic Cutter Safety Precautions
NOTICE:
WARNING
Failure to observe and comply with the
following precautions and instructions may result in
death or serious personal injury. Property damage
could also occur.
• Read and completely understand the safety
precautions and instructions in this manual. Always
follow all safety precautions and instructions,
including those that are contained within the
procedures of this manual.
• Read this manual before operating the cutter, or
before performing any adjustments, inspections,
maintenance or repairs.
• Follow all instructions and heed all precautions
stated in this manual.
POWERFUL SOLUTIONS. GLOBAL FORCE.
Instruction Sheet
Cutter / Spreader
Model ECSE300
INDEX
1.0 SAFETY .............................1
2.0 PRODUCT DATA ......................6
3.0 CONFORMANCE TO NATIONAL AND
INTERNATIONAL STANDARDS ...........7
4.0 DESCRIPTION ........................7
5.0 RECEIVING INSTRUCTIONS .............8
6.0 SET-UP .............................8
7.0 POWER REQUIREMENTS ...............9
8.0 MAJOR FEATURES AND COMPONENTS ..9
9.0 CUTTER OPERATION .................10
10.0 MAINTENANCE .....................12
11.0 STORAGE .........................17
12.0 TROUBLESHOOTING ................17
L4304 Rev. B 01/20 EN

2
• Place the tool horizontally on a substantial work
surface. The work surface must have a rated weight
capacity that exceeds the weight of the cutter and of
the material being cut.
• Fragments and splinters may be ejected from the
cutter during normal use. Material being cut could
become projectiles. Stay clear of the cutting head
and surrounding area during operation. Always wear
face and eye protection.
• As needed, remove any foreign objects from
the cutting head that could damage the cutter
and/or injure the operator. Before removing
any foreign objects, always stop the cutter and
disconnect it from AC power supply.
• Avoid touching the cutter’s metal surfaces during
operation and after the cutter has been in use. Be
aware of the risk of burns if the cutter becomes hot.
• Do not use the cutter for activities other than those
it was approved and designed to perform. Refer to
Section 9.1 of this manual for additional information
regarding foreseen use.
• Use the cutter’s built-in handle when lifting or moving
the cutter. Use appropriately rated lifting equipment
if it is necessary to lift or suspend the tool by
mechanical means.
• Do not exceed equipment ratings. Never attempt to
cut an item which exceeds the maximum allowable
parameters for your cutter model. For additional
information, refer to Section 2.1 of this manual.
Overloading may cause equipment failure and
possible personal injury.
• Do not use the cutter in explosive atmospheres
(for example, in the presence of flammable liquids,
gasses or powders).
• Do not use the cutter on live electric lines, on
pressure vessels or ducts, or on vessels containing
corrosive and/or toxic substances.
• If the cutter malfunctions, stop use immediately.
Check for misaligned or jammed moving parts,
broken components and any other condition that
could make the tool operate incorrectly. Place the
cutter back into operation only after the fault has
been identified and the identified repairs and/or
adjustments have been performed.
• Ensure that any repairs are performed only by
trained, qualified and authorized sta using original
equipment replacement parts. For repair service,
contact the Enerpac authorized service center in
your area.
• Use only original equipment Enerpac parts. Enerpac
parts are designed to fit properly and to withstand
high loads. Non-Enerpac parts may break or cause
the product to malfunction.
• Keep cutting tools clean and replace blades when
they become dull. Suitably maintained cutting tools
with sharp edges are less likely to jam and are easier
to control.
• Keep this manual for future reference in a place that
is accessible to all persons operating or servicing the
cutter.
• Always perform a visual inspection of the cutter
before placing it into operation. If any problems are
found, do not use the tool. Make repairs before using
the cutter.
• Do not use the cutter if it is leaking oil. Do not use the
cutter if damaged, altered or in need of repair.
• Do not remove or disable cutter safety devices.
Before using the cutter, make sure that all the safety
devices (guards, etc.) are in place and in good
condition.
• Do not remove the guards installed on the cutter or
on any accessories. Replace any guards immediately
if they develop faults or become damaged.
• Do not alter the calibration of the safety devices,
such as maximum pressure valves (if equipped).
• Allow only authorized, trained, and experienced
personnel to operate the cutter and supervise its use.
• Ensure that all users are trained and qualified to
operate the cutter. Operators must be aware of
all applicable occupational safety laws and must
operate the cutter in accordance with all such laws.
• Keep the work area clean and well illuminated.
• When operating the cutter, do not wear loose
clothing or jewelry that could get caught up in the
cutter during operation. Tie up long hair.
• Always wear and use appropriate personal protective
equipment (PPE) such as non-skid safety shoes,
hard-hat, hearing protection and face and eye
protection. Use of these and other PPE items (used
as appropriate for conditions) will reduce the chance
of personal injuries. The use of these items may also
be required by local regulations or laws.
• Consult your employer concerning specific safety
requirements and the safety equipment required for
use in your country or region.
• Before reaching inside the cutting area for any
reason, always stop the cutter and disconnect it from
the AC power supply.
• Keep others clear of the work area while the tool is
in use. Be sure that all personnel not operating the
cutter remain at a safe distance when the cutter is
in operation.
• Stop the cutter if people and/or animals enter the
work area.
• Ensure that the operator is alert, observant of the
task being performed and that the work is being
done with care.
• Do not allow use of the cutter by persons that are
tired, or under the influence of drugs, alcohol or
medication.
• Do not allow children to operate the cutter or to assist
with its use. Keep children out of the work area.

3
• The tool is designed for noncontinuous use. Allow
suciently long pauses to allow the oil to cool.
Consult Enerpac if prolonged and/or uninterrupted
use is required.
• Do not service or clean the tool while the tool is
operating and/or if tool is connected to AC power
supply.
• Keep electric tools out of the reach of children. Do
not allow inexperienced users or users who have not
read the instructions to operate them. Electric tools
are dangerous in the hands of non-expert users.
• In accordance with the standards indicated and
followed by the manufacturer, the equipment
components that also perform a safety function
(insulators, guards, etc.) must not be repaired, but
must instead be replaced with original spare parts.
1.4 Additional AC Electric Tool Safety Instructions
NOTICE:
WARNING
Failure to observe and comply with
the following precautions and instructions could
result in death or serious personal injury.
1.4.1 Use and Care
• Store the tool indoors. Keep in a secured area to
prevent use by unauthorized personnel.
• Do not clean the tool with a water spray or the like.
• Do not operate the tool with a damaged cord or
plug, or after the tool malfunctions or is dropped or
damaged in any manner.
• Return the tool to the nearest Enerpac authorized
service center for examination, repair, or electrical or
mechanical adjustment.
1.4.2 Disconnecting Power
• Be sure that tool motor is o before removing plug
from electrical outlet.
• Do not unplug the tool by pulling on the cord. To
unplug, grasp the plug, not the cord.
• Remove plug from electrical outlet when the tool is
not in use and before servicing or cleaning the tool.
DANGER High voltage is present inside the tool
even when tool motor is o. Before servicing the
tool, be sure that the tool power cord is disconnected
from the electrical outlet or other electrical power
source.
CAUTION
Failure to observe and comply with the
following precautions and instructions could result
in minor or moderate personal injury. Property
damage could also occur.
• To help ensure proper operation and best
performance, use only Enerpac HF hydraulic oil. Use
of any other oil may result in unsafe operation and/or
damage to tool. The Enerpac product warranty may
also be invalidated.
• Keep hydraulic equipment away from flames and
heat. Excessive heat will soften packings and seals,
resulting in fluid leaks. Heat also weakens hose
materials and packings.
• Protect all hydraulic equipment from weld spatter.
1.3 Safety Precautions - AC Powered Electric Tools
NOTICE:
WARNING
Failure to observe and comply with the
following precautions and instructions could result
in death or serious personal injury. Property damage
could also occur.
• Always be certain that tool is stopped and
disconnected from AC power supply before
performing any tool cleaning, maintenance or repair
procedures.
• Be certain that the tool is disconnected from the AC
power supply before reaching inside the cutting head
to clear jams, or for any other reason.
• Do not leave the tool unattended in the workplace
when connected to AC power supply. Take all
reasonable precautions to avoid unauthorized use.
• Take precautions so that the tool is not switched on
accidentally. Be certain not to rotate the control knob
when picking up the tool or when positioning it.
• If it is not possible to unplug the tool power cord from
the AC power outlet, the power must be turned o
and locked out at the AC power supply.
• Always disconnect the tool from AC power before
transporting it. If electric tools are transported while
the operator’s hand is on the control knob and AC
power is connected, accidents can occur.
• Do not use the tool if it cannot be switched on and
o using the control knob. Any tool that cannot be
controlled with the control knob is dangerous and
must be repaired.
• Remove all wrenches and adjustment tools (if
present) before switching on the tool. A wrench or
adjustment tool attached to a rotating element of an
electric tool can cause personal injury.
• Make sure the cooling vents are unobstructed and
that the cooling surfaces are clean in order to avoid
dangerous overheating.
• Do not expose the tool to heat sources in excess of
158°F [70°C] as this could cause irreversible damage
to cable insulation and other electrical components,
possibly leading to a fire. If tool becomes overheated,
allow tool to cool or remove heat source.

4
1.4.3 Grounding Instructions
DANGER Risk of electric shock! Connect the tool
only to a properly grounded outlet.
The tool is double insulated and equipped with a
polarized power plug.
The plug must be plugged into a polarized electrical
outlet that is properly installed and wired in accordance
with all local codes and ordinances.
• If the cord and/or plug are damaged, do not connect
the tool to a live electrical outlet. Repair or replace
the damaged items and be sure the polarized plug
is correctly wired before reconnecting the tool to
the outlet. Consult a qualified electrician if wiring
procedures are not completely understood or if there
is any doubt as to whether the tool is properly wired.
• Do not modify the plug provided with the tool.
If the plug will not fit in the outlet, have a proper
outlet installed by a qualified electrician. A qualified
electrician should be consulted if there is any doubt
as to whether an outlet box is properly wired.
• All 230V tool models: The tool is for use on a single-
phase circuit, which has a nominal rating of more
than 120 volts and is factory equipped with a specific
electric cord and plug.
• If the tool must be used with a dierent type of
electric socket, the plug should be changed by
a qualified electrician. After the plug is changed,
the tool should comply with all local codes and
ordinances.
1.4.4 Use of Extension Cords
It is important to use the proper size extension cord with
the tool power cord when use of an extension cord is
necessary.
A qualified electrician should be consulted to help
specify and select the proper size extension cord.
DANGER Risk of electric shock! Connect the tool
only to a properly wired outlet.
If an extension cord is used:
1) The marked electrical rating of the extension cord
should be at least as great as the electrical rating of the
tool.
2) The extension cord should have a polarized plug
at one end and a polarized receptacle at the other. It
should be wired for single phase power.
3) A long extension cord should be arranged so that it
will not drape over any working area where it can be
tripped over, snagged, or pulled on unintentionally.
If the tool is to be operated outdoors and an extension
cord is needed, use only an outdoor-use extension cord.
An outdoor-use extension cord will be clearly marked
with the sux letter “W” and the statement “Suitable for
Use with Outdoor Appliances.”
1.4.5 Additional Precautions
NOTICE:
WARNING Do not use electric powered tools in an
explosive atmosphere. Sparks and electrical arcing
could ignite combustible vapors or airborne dust.
NOTICE
To prevent damage to the tool electric motor,
check power specifications on tool data plate. Use of
incorrect outlet will damage the motor.
1.5 Safety Symbols (located on cutter)
WARNING Failure to observe and comply with the
safety symbols axed to the cutter housing could
result in death or serious personal injury.
WARNING
Make sure the safety symbols (decals,
labels, etc.) are securely axed to the tool and that
they are legible. If not, obtain replacements from
Enerpac. Refer to tool repair parts sheet for locations
and part numbers. Failure to maintain safety symbols
on tool could result in death or serious personal
injury.
The following safety symbols are axed to the cutter
housing:
Crush hazard: Keep hands, fingers and other
body parts away from the cutting head during
operation.
Projectile hazard: Objects may be ejected
from the cutter during operation. Stay clear of
cutting area. Wear eye and face protection.
PPE Alert: Wear personal
protective equipment
(PPE) when using or
servicing equipment.
Instruction Manual Alert: Read the
instruction manual before using or servicing
equipment.

5
1.6 Crush Hazard
DANGER
Cutter will start immediately when
connected to AC power supply and the control knob
is rotated.
DO NOT place hands, fingers or other parts of your
body inside the cutting head when cutting, or outside
the jaws when spreading unless cutter is disconnected
from AC power supply. Death or serious personal
injury will result if cutter is started while persons are
working inside the cutting head.
• Never reach into the cutting head while cutter is in
operation.
• Never place body parts between spreading jaws and
objects to be spread while tool is in operation.
• Before reaching inside the cutting head for any
reason, always stop the cutter and disconnect it from
AC power supply.

6
Product specifications are subject to change without notice.
2.0 PRODUCT DATA
2.1 Cutter Maximum Capacities
Cutter
Model
No.
Material to be Cut
Material Maximum
Tensile Strength
Material Maximum
Hardness
psi daN/mm2Rockwell C
ECSE300 Metal tubes, plate, cables and similar materials
during decommissioning or demolition activities 94,275 65 41
NOTICE
Material to be cut must not exceed any of the stated maximum limits shown in this table.
These specifications are independent material limits provided to help prevent premature blade damage. They
should not be considered as an indication of the maximum cutting capacity of the tool.
The tool will not necessarily cut the largest piece of material that will fit between the blades, even if the material
properties are equal to or less than the stated maximum limits.
Cutting performance, including whether a cut can be completed, will depend on the material properties, blade
condition, and the size and shape of the material being cut. If the tool is struggling or failing to make a cut, select
a larger capacity tool.
2.2 General Specifications
Cutter
Model
No.
Spreading Force* Weight Max. Hydraulic
Operating Pressure
Ambient
Operating Temp
Hyd.
Pump
Tons kN lb Kg psi bar °F °C Type
ECSE300B 5.17 46 33 15 7977 550 -40
to
+ 122
-40
to
+ 50
Internal
AC
Electric
ECSE300E 5.17 46 33 15 7977 550
Note:
*25mm from jaw tips with jaws closed.
2.3 Power and Noise Level Specifications
Cutter
Model No. Volts Hz Watts Amps Insulation
Class
Noise Level (typical)
No Load
LWA
†
No Load
Operator
LpAB
ECSE300B 120 60 1200 10.0 II 98 87
ECSE300E 230 50 1100 5.3 II 98 87
Notes:
†Per CEI EN 60745-1 and CEI EN 60745-2-8 [dB]. BPer CEI EN 60745-1 and EN ISO 5349.

7
2.4 External Dimensions
Dimension in mm
A
CB
D
E
A 23.6 600
B 6.0 154
C 9.3 235
D 11.8 302
E 0.6 16
3.0 CONFORMANCE TO NATIONAL AND
INTERNATIONAL STANDARDS
Enerpac declares that this product has been
tested and conforms to applicable standards
and is compatible with all CE requirements.
A copy of an EU Declaration of Conformity is
enclosed with each shipment of this product.
Product specifications are subject to change without notice.
4.0 DESCRIPTION
The Enerpac model ECSE300 is a rotatable head
hydraulic cutter/spreader used for cutting metal
tubes, plate, cables and other similar materials during
decommissioning or demolition activities.
The cutting head can be rotated 180 degrees to access
tight areas. Jaw tips can be inserted between two
objects so that they can be spread apart.
Hydraulic force is provided by an AC-powered electric
motor and an internal hydraulic pump. The pump
provides oil flow to a double-acting hydraulic cylinder,
which opens and closes the cutter jaws.
A hydraulic reservoir with built-in rubber diaphragm
provides a constant supply of oil to the pump, regardless
of tool orientation or the amount of piston extension.

8
5.0 RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage.
Shipping damage is not covered by warranty. If shipping
damage is found, notify carrier at once. The carrier is
responsible for all repair and replacement costs resulting
from damage in shipment.
1
2
3
45
7
8
910
6
11

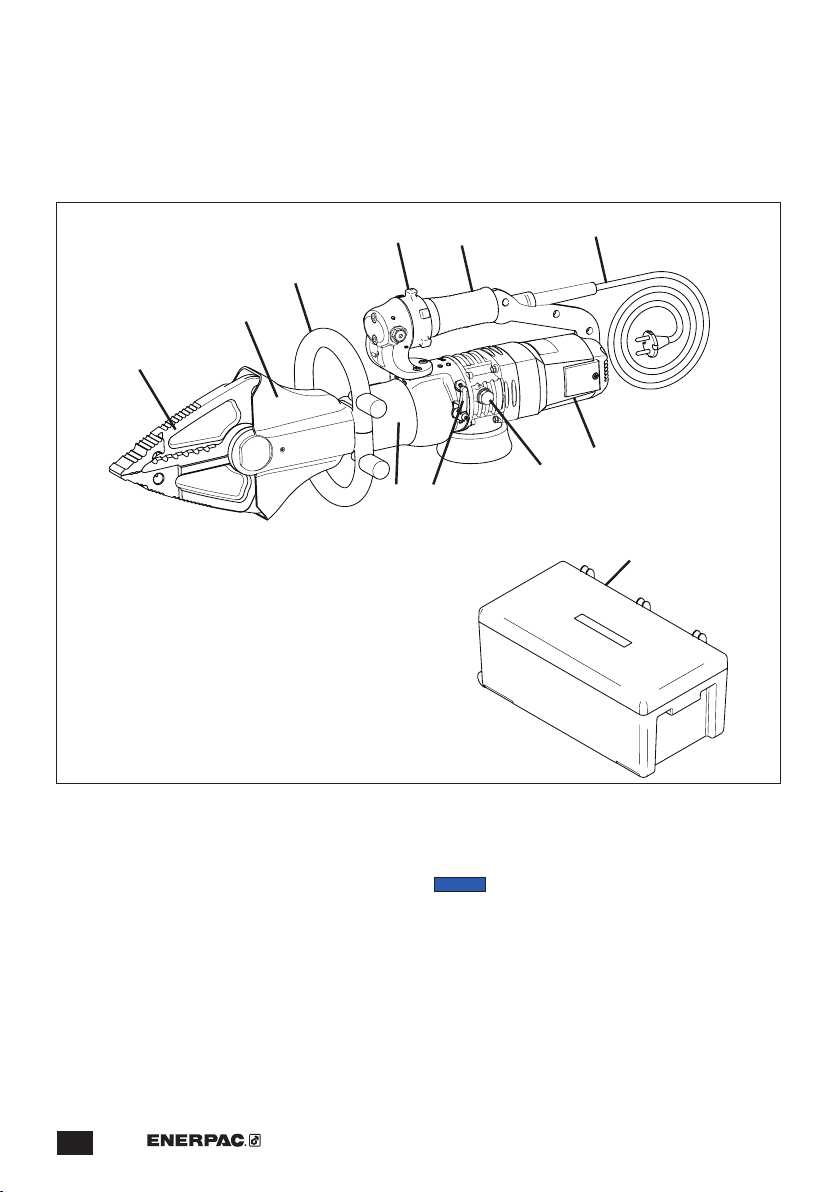

Figure 1, Features and Components
Key:
1. Cutting Blades/Spreading Jaws
2. Cutting Head
3. Positioning Handle
4. Control Knob (open/close)
5. Grip/Handle
6. AC Power Cord
7. Electric Motor
8. Oil Reservoir
9. Manual Release Lever (spreading only)
10. Hydraulic Cylinder
11. Storage Case
6.0 SET-UP
6.1 Delivery and Handling
The cutter and various related items are housed inside a
plastic storage case. The cutter should be stored in this
case when not in use.
Place the cutter on a substantial and stable work
surface. The work surface must be of sucient capacity
to support the weight of the cutter plus the additional
weight of the material to be cut. Refer to Section 2.2 for
cutter weight.
6.2 Before Start-up
• Be sure that the shipment includes all components
and that there is no obvious damage.
• Read the following sections of this manual to become
familiar with cutter features and safety devices.
• Verify that the AC power supply is of the correct
specifications and capacity to power the cutter. Refer
to Section 7.0 of this manual for additional information.
NOTICE
Be sure that cutter jaws are open as far as
possible before removing oil reservoir cap in the next
step. Oil leakage and improper operation may result if
this instruction is not followed.
• Close the cutter jaws as far as possible, disconnect
AC power cord and check the cutter hydraulic oil level.
Add oil if oil level is low. Refer to Section 10.5.2 for
detailed instructions.
• Before first use, remove air from the cutter hydraulic
system. Refer to procedure in Section 9.3.

9
7.0 POWER REQUIREMENTS
The cutter is available in two versions, each with dierent
electrical power requirements:
Model ECSE300B is designed for 120VAC, single-
phase, 60 Hz power. This version contains a USA style
NEMA 6-15 power plug.
Model ECSE300E is designed for 230VAC, single-phase
50 Hz power. This version contains a European style
“Schuko” power plug.
Before connecting electric power to tool, be certain that
the power supply is the proper voltage and Hz for the
cutter version that you are using. Refer to the cutter data
plate.
Also refer to Sections 1.3 and 1.4 of this manual for
important electrical safety information and precautions.
NOTICE:
WARNING
Failure to follow the electrical safety
precautions contained in Sections 1.3 and 1.4 of this
manual could result in electric shock. Death or
serious personal injury could occur.
8.0 MAJOR FEATURES AND COMPONENTS
8.1 Rotatable Cutting Head
NOTICE:
WARNING
If the tool is connected to an AC power
supply, the blades can still be closed, even when
manual release lever is set to the unlocked position.
Do not place hands, fingers or other parts of your
body inside the cutting head unless the cutter is
disconnected from the AC power supply. Failure to
follow these instructions and precautions could
result in death or serious personal injury.
NOTICE:
WARNING
Turning the manual release lever to the
unlocked position when spreading will allow the
jaws to depressurize, allowing objects being spread
to potentially become destabilized or return to their
original position. Death, serious personal injury, or
damage to equipment could result.
NOTICE:
WARNING
Always disconnect the cutter from the
AC power supply before rotating the cutting head.
CAUTION
To prevent possible oil leakage, do not
loosen the manual release lever more than one half
turn counter-clockwise.
NOTICE
The cutting head can be rotated only when
the tool is not pressurized. When the manual release
lever is in the unlocked position, the tool will
depressurize, allowing the head to rotate. When in a
depressurized state, the jaws can be closed, but
cannot be opened.
NOTICE
Operate cutter only when the manual
release lever is in the locked position. Jaws will not
open when the manual release lever is in the
unlocked position.
Be sure that the cutter is disconnected from the AC
power supply. Turn the manual release lever counter-
clockwise to position 2 (down) to release the cutting
head.
Using the positioning handle, rotate the cutting head to
the desired position.
Return the manual release lever to the locked position.
See Figures 2 and 3.
NOTICE
The head can still be rotated with the
manual release lever in the locked position if the tool
is not under load. The head locks when the manual
release lever is in the locked position and the tool is
under load.
1
2

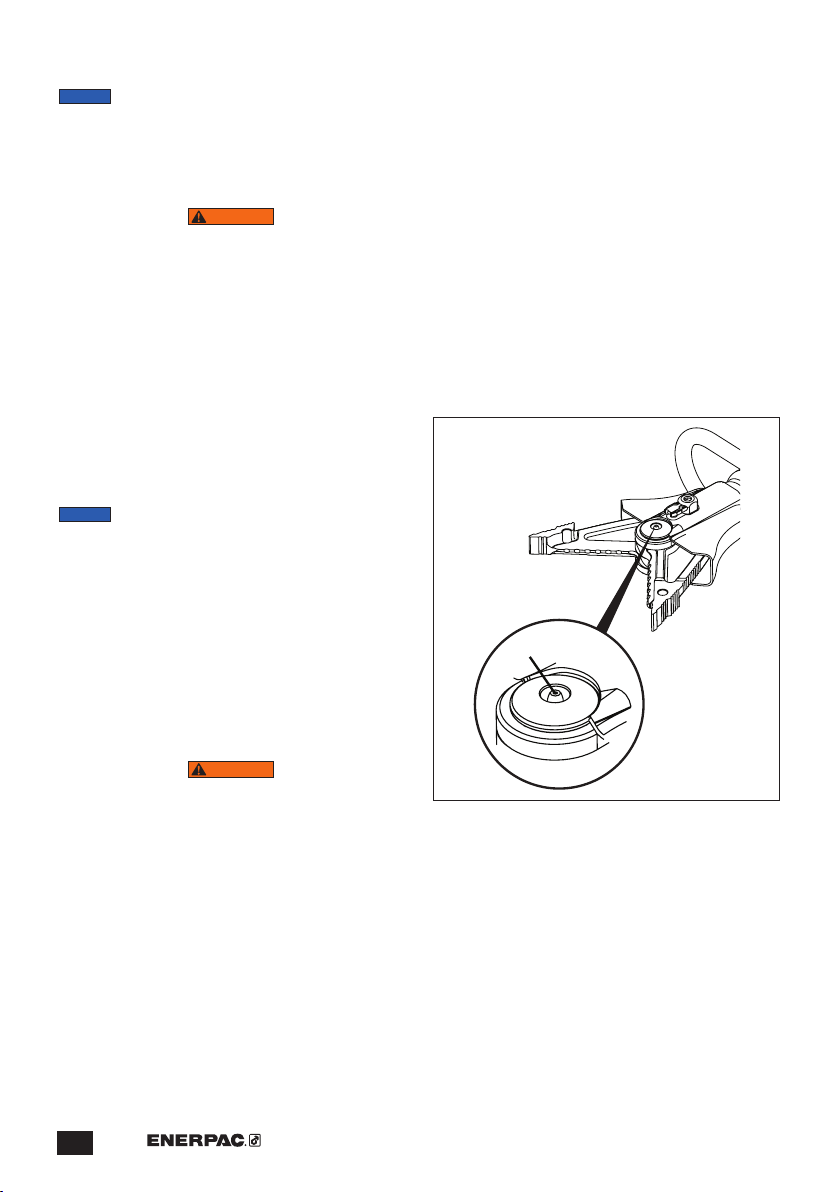

Figure 2, Manual Release Lever
Key:
1. Position 1 (locked)
2. Position 2 (unlocked)
Figure 3, Rotatable Cutting Head

10
9.2 Operating Precautions
NOTICE:
WARNING
Failure to observe the following
precautions and instructions could result in death or
serious personal injury.
• Keep fingers, hands and other body parts clear of
the cutting head. Do not reach into the cutting area
during operation.
• Never place fingers, hands or other body parts
between objects being spread (such as a joint)
during the spreading process.
• When spreading, ensure that the spreading
wedges on the outside tips of the jaws fully engage
with the objects to be spread.
• Do not attempt to reposition the material being
cut while the tool is in operation. If repositioning is
required, stop the cutter.
• After cutting or spreading is complete, material
may fall. Keep body parts and equipment away
from area under and beside the cutter.
• Dangerous projectiles could occur at any
time during cutting. Always wear face and eye
protection. Keep persons away from cutting area.
• Cutter surfaces can become very hot. To prevent
burns, avoid contact with cutter components and
wear appropriate personal protective equipment.
• Refer to additional safety precautions in Section 1.0
of this manual before using the cutter or performing
any maintenance or repair activities.
9.3 Trapped Air Removal
Before placing a new cutter into operation, cycle the
piston several times without load to remove any trapped
air in the hydraulic circuit.
Air is completely purged when the piston advances and
retracts smoothly in both directions, from fully advanced
to fully retracted.
This procedure should be performed after the oil in the
cutter is changed, and after any maintenance or repair
activity in which the oil is drained and replaced.
9.4 Positioning Material to be Cut
Position the material to be cut between the cutter blades
so that it is perpendicular to the blade axis, as shown in
Figure 4. This will provide the best quality cut.
Position the material at the base of the blades. Do not
position the material at the tips of the blades. See Figure 5.
NOTICE
Be certain that the properties of the material to
be cut do not exceed the stated maximum limits
applicable to your cutter model. Refer to Section 2.1 of
this manual for additional information. Failure to observe
the instruction may result in poor cutting performance
and/or damage to the cutter.
9.0 CUTTER OPERATION
9.1 Foreseen Use and Residual Risks
NOTICE:
WARNING Failure to observe and comply with the
instructions and precautions contained in the
following paragraphs could result in death or serious
personal injury.
1. The ECSE-Series Cutter/Spreader must be used
only to cut metal tubes, plate, cables and similar
materials during decommissioning or demolition.
The tool may also be used to spread objects apart
for decommissioning, demolition or maintenance
purposes. When cutting, material specifications
must not exceed the allowable values shown in
Section 2.1 of this manual. When spreading, observe
the rated spreading force indicated in Section 2.2, and
the spreading range indicated in Section 2.4 (item D).
2. The tool may be used only if powered by an electrical
system compliant with legislation and current law
(suitably connected to a grounded electrical system
and protected from current surges and short circuits).
3. Operators must observe the instructions in this
manual in order to minimize the risk of accidents. In
particular, operators must pay attention when working
in conditions that could cause:
• Possible burns from overheated metal parts.
• Injury due to incorrect positioning or inadequate lifting
or moving.
• Injury caused by splinters discharged from the
workpiece.
NOTICE:
WARNING
People remaining in the vicinity of the
tool while it is working are subject to the risk of flying
debris (dangerous objects, etc. ). Serious personal
injury could result.
4. Mechanical vibrations transmitted to the hands and
arms can pose a risk to the health and safety of
workers. The user and/or employer is responsible for
assessing the risk generated by mechanical vibrations
from the tool, and minimizing the possibility of injury.
5. Incorrect use:
• The tool must not be used for purposes other than
indicated in this manual.
• The tool must not be used in areas subject to the risk
of explosion.

11
OK
Figure 4, Positioning Material Inside the Blades
OK
Figure 5, Positioning Material Inside the Blades
9.5 Cutter Controls
The control knob is used to open and close the blades/
jaws. It will remain centered in the neutral position when
it is not being turned. See Figure 6.
• Rotate the knob to the left and hold it to close the
blades/jaws. See Figure 7.
• To stop blade/jaw movement at any time, release the
knob and allow it to return to the neutral position.
• Rotate the knob to the right and hold it to open the
blades/jaws. See Figure 8.
Figure 6, Neutral Position
Figure 7, Blades/Jaws Closed
Figure 8, Blades/Jaws Open

12
9.6 Cutting Procedure (typical)
1. Be certain that the properties of the material to be cut
do not exceed the stated maximum limits applicable
to your cutter model. Refer to the chart in Section 2.1
of this manual.
2. Place the material to be cut between the blades.
Be sure that it is perpendicular to the blade axis, as
shown in Figure 4. Refer to instructions in Section 9.4
for additional information.
NOTICE
Failure to properly position the material in
the blades may result in blade breakage and reduced
cutting eciency.
3. Connect the cutter to the electrical outlet.
4. Turn the control knob to the left and hold it until the
item has been fully cut.
5. Turn the control knob to the right and release it to fully
open the blades. The control knob will return to the
neutral position.
9.7 Spreading Procedure (typical)
1. Turn the control knob to the left to close the jaws.
2. Place the jaws into the area between the two
objects that are to be spread apart. Make sure the
flat spreading wedges on the tips of the jaws are
fully engaged with the objects to be spread, and
properly positioned so they cannot slip out during the
spreading process.
NOTICE:
WARNING Never place fingers, hands or other
body parts between objects being spread (such as a
joint) during the spreading process.
NOTICE:
WARNING
After spreading is complete, material
may fall. Keep body parts and equipment away from
area under and beside the cutter.
3. Turn the control knob to the right to open the jaws and
begin spreading.
4. Once the spreading is complete, turn the control knob
to the left to close the jaws.
5. Remove the cutter from the objects being spread.
10.0 MAINTENANCE
10.1 Preparation for Maintenance
All cutter maintenance procedures must be performed
under the following conditions:
• Material must be removed from the cutting head.
• The cutter must be disconnected from the AC power
supply.
• The cutter must be given time to cool to prevent burns.
• Procedures must be performed in a suitable work
environment in accordance with all current safety
regulations and/or laws in your country or region.
• The cutter must be cleaned thoroughly before
maintenance procedures are performed.
• Suitable personal protective equipment (PPE) must be
used and/or worn while performing any work.
NOTICE:
WARNING
The cutter must sometimes be
operated in order to complete a maintenance or
repair procedure being performed, or to prepare it
for a procedure that is about to be performed.
However, to prevent start-up while persons are
working on the cutter, always disconnect the cutter
from the AC power supply before beginning any
procedure steps that require use of tools and/or
physical contact with the cutter. Failure to observe
this precaution may result in death or serious
personal injury.

13
10.2 Periodic Maintenance Chart
Refer to the Periodic Maintenance Chart (Table 1) for a
list of various routine checks and procedures.
10.3 Cleaning
• Clean the cutter using a dry cloth or compressed air.
For plastic surfaces, use a cloth slightly dampened
with water.
NOTICE:
CAUTION
To prevent possible injury, always wear
safety glasses or face mask when using compressed
air.
• Be sure there are no traces of oil, grease or corrosive
substances on the tool, especially on the grips.
• Use a damp cloth and soapy water to clean plastic
components.
• Do not use gasoline or thinner to clean the tool.
10.4 Fasteners
Periodically check all screws, nuts and other fasteners
for proper tightness. Tighten any loose fasteners.
Replace any worn or damaged fasteners. This should
be performed periodically or every day in the event of
frequent or prolonged cutter operation.
NOTICE
Failure to check and tighten fasteners as
required may result in serious damage to the cutter.
10.5 Cutter Hydraulic System
The cutter contains a small hydraulic pump and an oil
reservoir with a rubber diaphragm. The oil level must be
periodically checked and additional oil must be added if
the oil level is low. In addition, the oil must be completely
changed at the specified interval. Refer to the Periodic
Maintenance Chart (Table 1).
Table 1 - Periodic Maintenance Chart
Time Interval Maintenance Operation Method To be performed by:
Every 8 hours of
operation:
Check the cutter for loose,
damaged or worn parts.
Check for oil leaks. Tighten,
replace or repair as required.
Visual Operator
Clean the cutter exterior. Refer to instructions in
Section 10.3.
Operator
Check the tightening torque
of screws and bolts. Replace
any missing screws or bolts.
Use torque wrench. Refer to
repair parts sheet for complete
torque specifications.
Operator
Every 1600 hours
of operation:
Change the hydraulic oil. Refer to instructions in
sections 10.5.1 - 10.5.3.
Service Center
10.5.1 Hydraulic System Maintenance Precautions
NOTICE:
WARNING
Always disconnect cutter from AC power supply
before performing hydraulic system maintenance.
Failure to observe this precaution could result in
accidental start-up while maintenance procedures
are being performed. Serious personal injury and
damage to cutter may result.
Wait for cutter to cool before performing hydraulic
system maintenance. Hot oil can cause burns.
Be sure that oil reservoir cap is securely tightened
after checking oil level or changing the oil. Leaking
oil can cause short circuits, fire and explosions.
Additional Precautions:
• Do not check oil level or change the oil in dusty areas.
• Be sure that all tools (wrench, screwdriver, etc.) used
to perform maintenance procedures are clean.
• When adding oil and performing oil changes, take every
precaution to prevent impurities from contaminating
the oil or entering the cutter. Impurities can cause
permanent damage to the hydraulic components.
• The hydraulic reservoir contains a rubber diaphragm
that slightly pressurizes the oil. Some oil spillage may
occur when checking the oil level or when changing
the oil. Wear and/or use appropriate personal
protective equipment (PPE) to prevent exposure to
hydraulic oil.
• Use only new Enerpac HF hydraulic oil poured from a
clean container. Use of other oil brands and/or used
oil may damage the cutter and may void the Enerpac
product warranty.

14
10.5.3 Changing the Oil
NOTICE
The oil change procedure will replace most,
but not all, of the oil. It is to be performed for maintenance
purposes. If the oil is contaminated, or if for any other
reason a full oil evacuation is necessary, cylinder
disassembly by an Enerpac authorized service center is
required in addition to the standard oil change
procedure.
NOTICE
The oil change procedure is very detailed and
will take a considerable amount of time. It should only
be performed by a trained technician at an Enerpac
authorized service center. Failure to properly perform
the procedure may result in incomplete filling of the
cutter oil reservoir, which could lead to cavitation, air
entrainment, reduced performance and pump damage.
Change the oil in the cutter hydraulic reservoir as
described in the following steps. Refer to Figures 9A
through 9E:
1. Fill a clean oil dispenser with new Enerpac HF oil. Put
the dispenser aside for later use.
2. Fully close the jaws.
3. Disconnect the cutter from the AC power supply to
prevent accidental motor start-up during the following
steps.
4. Place the cutter in the horizontal position, on a
stable and level work surface, upside down with
the diaphragm cover facing upwards. Place a pan
or suitable container under the cutter to catch any
spilled oil.
5. To prevent contamination, remove any built-up dust
and dirt from the oil reservoir cap, diaphragm cover
and surrounding area.
NOTICE
A small amount of hydraulic oil leakage may
occur when the diaphragm cover is removed in the next
step. Be prepared to catch this oil in a pan or with a
clean rag. Dispose of spilled oil in accordance with all
applicable laws and regulations.
6. Remove the rubber support from the diaphragm
cover.
7. Using an adjustable face spanner wrench, loosen and
remove the diaphragm cover.
8. Remove the diaphragm from the diaphragm opening.
NOTICE
It is not necessary to remove the oil reservoir
cap, as the oil will be drained and filled through the
diaphragm opening.
9. Completely drain all old oil from the cutter through the
diaphragm opening, turning it right-side up and using
a suitable oil extraction system (used oil extraction
pump) if necessary, so that no oil remains in the
cutter reservoir.
NOTICE
Dispose of all used oil in accordance with all
applicable regulations and laws.
10.5.2 Checking Oil Level and Adding Oil
NOTICE
The reservoir contains a flexible rubber
diaphragm that slightly pressurizes the oil. To help
prevent excessive oil leakage when the reservoir cap is
removed, be certain that the piston is advanced as far as
possible and that the jaws are fully closed before
loosening the cap.
Refer to Figures 9A through 9C during the following steps:
1. Operate the cutter and fully close the jaws.
2. Disconnect the cutter from the AC power supply to
prevent accidental motor start-up during the following
steps.
3. Place the cutter in the horizontal position, on a stable
and level work surface, with the oil reservoir cap
facing upwards. Place a pan or suitable container
under the cutter to catch any spilled oil.
4. To prevent contamination, remove any built-up dust
and dirt from the oil reservoir cap and surrounding area.
NOTICE
A small amount of hydraulic oil may leak from
the drain/fill hole when cap is loosened in the next step.
Be prepared to catch this oil in a pan or with a clean rag.
Dispose of spilled oil in accordance with all applicable
laws and regulations.
5. Slowly loosen the oil reservoir cap while watching for
oil flow:
• If oil starts flowing from the oil drain/fill hole as the
cap is loosened, the reservoir is full. Tighten the cap
immediately. To avoid excessive oil spillage, do not
continue loosening the cap if oil flow occurs. Skip
steps 6 through 8 and go on to step 9.
• If no oil flow occurs when the cap is loosened,
fully loosen and remove the cap. Then, check
oil level and add oil (if needed) as described in
steps 6 through 8.
6. Check the oil level in the drain/fill hole. Oil level will be
up to the top of the hole when reservoir is full.
7. If oil level is low, slowly add new Enerpac HF oil
through the oil drain/fill hole, until the oil level is up to
the top of the hole.
8. Remove any residue or metal particles from the oil
reservoir cap (it is magnetic).
9. Install and securely tighten the oil reservoir cap.
10. Using a clean rag, wipe the cutter housing, grip and
motor so that these surfaces are free of oil residue.
11. Connect cutter to AC power supply. Cycle the
piston several times to test for proper operation
before placing the cutter back into service.

15
Figure 9, Hydraulic System Maintenance
Figure 9D, Rubber Support (1)
1
Figure 9B, Oil Reservoir Cap - Loosen (1) and
Tighten (2)
2
1
1
Figure 9C, Adding Oil to Reservoir Fill Hole (1)
1
2
3
4
5
Figure 9E, Rubber Support (1), Diaphragm Housing
Cover (2), Diaphragm (3), Diaphragm Opening (4),
and Reservoir (5)
Figure 9A, Oil Reservoir Cap (1)
1

16
NOTICE
Use only new Enerpac HF oil in the following
step. Use of other oils may damage the cutter and may
invalidate the Enerpac product warranty.
10. Using the oil dispenser prepared in step 1, slowly
add new Enerpac HF oil through the diaphragm
opening until the diaphragm opening is nearly full.
NOTICE:
WARNING
To avoid serious personal injury, stay clear of cutting
head and blades during the following procedures.
Wear rubber gloves to prevent contact with oil. Wear
eye and face protection to avoid injury due to
splashing oil.
11. Connect the cutter to the AC power supply.
12. Cover the diaphragm opening with a rubber-gloved
hand to help prevent oil splashing.
13. Prime the pump by turning the control knob to the
right (open) in short bursts. During this process,
check the oil level in the diaphragm opening and
add oil (as needed) to keep the reservoir filled.
Failure to keep reservoir full may result in cavitation
and pump failure. Pump is primed when jaws start
to open.
NOTICE
During priming, the oil may become entrained
with air and may develop a foamy appearance. This is
normal.
14. Continue turning the control knob to the right (open)
in short bursts until the jaws fully open. During this
process, continue adding oil to keep the reservoir
full.
15. Slowly install the diaphragm in the diaphragm
opening. This should result in some oil leakage from
around the diaphragm.
16. Install and securely tighten the diaphragm cover.
17. Install the rubber support onto the diaphragm
cover.
NOTICE:
WARNING
To avoid serious personal injury, stay clear of cutting
head and blades during the following procedures.
18. Start the cutter and cycle the jaws through several
open and close cycles. Ensure that jaws are fully
closed when done.
19. Disconnect the cutter from the AC power supply.
20. Be sure cutter is positioned so that the oil reservoir
cap is facing upwards. Do not operate cutter for
several hours (preferably overnight) to allow any
remaining air to separate from the oil.
21. Loosen and remove the oil reservoir cap. Recheck
the oil level in the oil drain/fill hole. If oil level has
dropped, add additional Enerpac HF oil until the oil
level is up to the top of the hole.
22. Install and securely tighten the oil reservoir cap.
23. Using a clean rag, wipe the cutter housing, grip and
motor so that surfaces are free of oil residue.
24. Connect the cutter to the AC power supply. Cycle
the piston several times to test for proper operation
before placing the cutter back into service.
10.6 Greasing the Central Pin
Check that the central pin is lubricated periodically or
daily if used frequently.
To grease the pin, use a lithium-based water repellent
grease. Apply several pumps from a hand grease gun
until grease is evident around the pin. Wipe up any
excess grease. See Figure 10.
1
Figure 10, Grease Fitting, Central Pin (1)

17
12.0 TROUBLESHOOTING
Refer to the Cutter Troubleshooting Charts (Tables 2
and 3) for lists of common cutter symptoms, possible
causes and solutions.
For repair service, contact an Enerpac authorized service
center. Inspection and repairs should be performed
only by an Enerpac authorized service center or other
qualified hydraulic tool service facility.
11.0 STORAGE
11.1 Storage Guidelines
If the cutter will be stored for an extended period of time:
• Disconnect cutter from AC power supply.
• Thoroughly clean the cutter. Remove any loose
dust or dirt. Dry the cutter after completing cleaning
procedures.
• Lubricate the cutter metal surfaces using a clean oil-
moistened rag to provide added corrosion protection
during storage.
• Store the cutter in its plastic storage case, in a clean
and dry location, accessible only to authorized
personnel.
11.2 Return to Use (after storage)
Before using the cutter after an extended period of
storage or inactivity, perform the following steps:
• Check the hydraulic oil level and add oil if low. Refer to
instructions in Section 10.5.2.
• Check for oil leaks. Make repairs as required.
• Remove any traces of oil (if present) from the
handle/grip and other parts that can be gripped.
• Remove any oil from cutter metal surfaces.
• Check that the electrical power cord and plug are
undamaged and in good condition.
• Verify that the cutter housing (including the electric
motor) is undamaged.
• Check for any missing, worn or improperly installed
parts.
• Check that all screws, nuts, bolts and other fasteners
are tight. Replace, repair or tighten components as
needed.
• Connect cutter to AC power supply. Cycle the piston
several times to test for proper operation before
placing the cutter back into service.

18
Table 2 - Troubleshooting Chart, Cutter Electrical Components
Symptom Possible Cause Solution Maint. Level
1. Motor will not
start.
No AC electric power. Check the power supply and circuit
breaker or fuses.
Operator
Worn or broken AC power
cord.
Replace old cord with a new cord of the
same specifications.
Service Center
Motor rotor windings
defective.
Replace rotor and commutator
assembly.
Service Center
Motor stator windings
defective.
Replace motor. Service Center
2. Motor overheats. Low voltage. Check AC power supply. Operator
Motor ventilation slots
obstructed.
Clean any dirt or other obstructions
from motor ventilation slots.
Operator
Worn blades. Replace blades if worn or damaged. Service Center
Motor brushes worn. Replace motor brushes if worn
(less than 0.2 inch [5 mm] long).
Service Center
Commutator worn. Replace rotor and commutator
assembly.
Service Center
Motor fan damaged. Replace motor fan. Service Center
Motor windings dirty. Clean dirty windings. Service Center
Motor bearings worn. Replace motor bearings. Service Center
Motor rotor windings
damaged.
Replace rotor and commutator
assembly.
Service Center
Motor stator windings
damaged.
Replace motor. Service Center
3. Electromagnetic
disturbances in
power line.
Fault in EMI filter. Replace EMI filter. Service Center
Motor brushes worn. Replace motor brushes if worn
(less than 0.2 inch [5 mm] long).
Service Center
Commutator worn. Replace rotor and commutator
assembly.
Service Center
(Refer to Table 3 for hydraulic component troubleshooting.)

19
Table 3 - Troubleshooting Chart, Cutter Hydraulic Components
Symptom Possible Cause Solution Maint. Level
1. Blades will not
open or close,
or movement is
jerky.
Low hydraulic oil level. Check oil level. Add oil if low. Operator
Manual release lever open. Move lever to locked position. Operator
Max. pressure valve dirty or
requires replacement.
Clean or replace max. pressure valve. Service Center
Air bubbles in the hydraulic
circuit.
Operate tool through several full cycles
to bleed air. Check oil level and add
oil if low.
Operator
Piston gasket worn. Replace piston gasket. Service Center
Pump malfunction. Repair or replace pump. Service Center
2. Tool operates
with insucient
force.
Max. pressure valve open. Clean or replace max. pressure valve. Service Center
Piston gasket worn. Replace piston gasket. Service Center
Pump malfunction. Repair or replace pump. Service Center
3. Oil leakage from
tank cover.
Reservoir diaphragm faulty. Replace reservoir diaphragm. Service Center
4. Cutting head
will not lock into
place.
Manual release lever is
unlocked or tool is not under
load.
Position manual release lever into
locked position and put the tool under
load.
Operator
(Refer to Table 2 for electrical component troubleshooting.)
