QUICK INSTALL GUIDE (Models ENCHARGE-3-1P-NA and ENCHARGE-10-1P-NA)
Install the Enphase IQ Battery
To install the Enphase IQ Battery 3 or IQ Battery 10 and the Enphase wall-mount bracket, read and follow all warnings and instructions in this guide. Safety
warnings are listed on the back of this guide. These instructions are not meant to be a complete explanation of how to design and install an energy storage
system. All installations must comply with national and local electrical codes and standards. Only qualied electricians shall install, troubleshoot, or replace
the IQ Battery 3 or IQ Battery 10.
The IQ Battery includes the Enphase IQ Battery(ies) with integrated Enphase IQ Microinverters. The Enphase IQ Gateway communication gateway mea-
sures PV production and home energy consumption. The IQ Battery senses when it is optimal to charge or discharge the battery so that energy is stored
when it is abundant and used when scarce. IQ Batteries are capable of providing backup power when an Enphase IQ System Controller is installed at the
site.

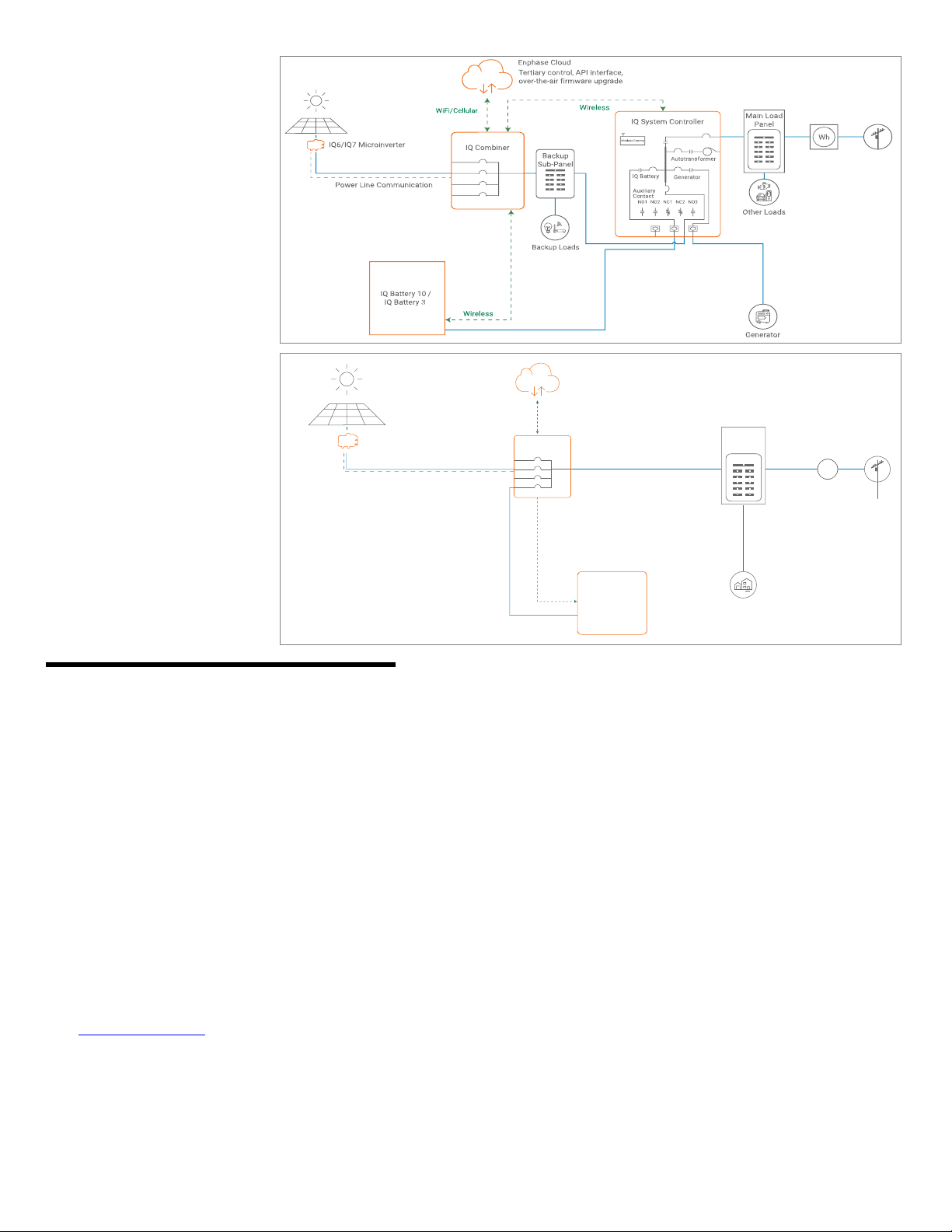

Five unique installation
scenarios are shown:
Whole home backup with IQ System
Controller as service entrance and
PV combiner connected to IQ System
Controller. This is the preferred
conguration for back up of the entire
main load panel. This conguration
supports up to an 80A breaker for
the PV circuit and an 80A breaker for
battery storage.
Whole home backup with IQ System
Controller as service entrance and
PV combiner connected to main
load panel. This is the preferred
conguration when you back up the
entire main load panel, and the size
of the PV combiner circuit is more
than 80A. In this conguration, the PV
combiner circuit connection space
in IQ System Controller is left vacant.
When existing PV combiner circuits
are connected to the main load
panel, and you want to add battery
storage to the system, you can keep
the PV combiner connected to the
main load panel and connect only the
battery storage system to IQ System
Controller.
Partial home backup with main load
panel as service entrance and PV
combiner connected to IQ System
Controller. When PV circuits breaker
size is less than 80A, this is the
preferred conguration for partial
home backup with subpanel.
© 2022 Enphase Energy. All rights reserved. Enphase, the Enphase logo, IQ System Controller, IQ Battery, IQ Gateway, IQ combiner, IQ microinverter, Enphase
Installer App, Enphase Installer Platform, and other trademarks or service names are trademarks of Enphase Energy, Inc. Data subject to change.
Rev10- 03-02-2022
NOTE:
1. For M215/M250 connection to
Ensemble, refer tech brief at https://
enphase.com/en-us/storage-m-series
2. M series microinverters require
Envoy-S metered.

PREPARATION
A ) Inspect the packaging and the IQ Battery(ies) for damage, such as cracks,
dents, or leaking electrolyte. Do not install or use the IQ Battery(ies) if it
has been damaged in any way. If damaged, contact your distributor for
replacement.
B ) Ensure that your kit includes the following IQ Battery components:
• The IQ Battery 10 includes three batteries and two inter-unit raceways,
an IQ Battery 10 triple-width cover, and a triple-width mounting bracket.
• The IQ Battery 3 includes one battery, and single-width cover with
mounting bracket.
NOTE: Check the “Energize By” label on the shipping box to verify that
the IQ Battery(ies) will be installed by the date shown. If the date has
passed, contact your distributor for next steps.
* WARNING: Risk of injury. Take care when lifting. The IQ Battery unit
is heavy (44.2 kg/ 97.4 lbs) and requires two persons to lift.
C ) Ensure you have the following required Enphase items for backup systems:
• An Enphase IQ System Controller with microgrid interconnect device
(MID) functionality and an Enphase IQ Combiner.
• The Enphase IQ Battery system requires an Internet connection
through the IQ Gateway in the IQ Combiner. Failure to maintain
an Internet connection may have an impact on the warranty. See
enphase.com/warranty for full terms.
• Wireless communications kit (COMMS-KIT-01) to be installed at
the IQ Gateway for communications with IQ Battery and IQ System
Controller. Includes USB cable for connection to IQ Gateway / IQ
Combiner and allows wireless communication with IQ Battery and IQ
System Controller.
• IQ Battery lifting handles, two pieces (ENCHARGE-HNDL-R1).
D ) Make sure you also have the following required items:
• Mounting location that is structurally suited to bearing the weight of
the IQ Battery(ies). Total weight for the IQ Battery 3, including the IQ
Battery base unit, cover and wall mount bracket, is 52 kg (114.6 lbs).
Total weight for the IQ Battery 10, including the three IQ Battery
base units, cover, and wall mount bracket, is 154.7 kg (341 lbs).The
wall must contain blocked studs that can bear the battery weight or
can be of masonry or other suitable structure.
• Tools: conduit (with ttings and tting tools), drill, 5/32 inch pilot bit
(or metric equivalent), screwdriver, socket wrench, torque wrench,
level, wire stripper, and stud nder if installing on studs.
• Fasteners for wall mount bracket. Slots are 6.8mm (0.27”). Check
with a structural engineer and local standards for requirements:
Single-wide bracket: Three 1/4” lag bolts or screws, 7.6 cm (3
inches) long (depending on attachment wall).
Triple-wide bracket: Nine 1/4” lag bolts or screws, 7.6 cm (3 inches)
long (depending on attachment wall).
• Washers for use between fastener heads and wall-mount bracket.
• Copper conductors: No. 14 - 8 AWG (11mm/7/16 inch strip length)
copper conductors (rated at 75° C or 90° C) for terminals.
• Conduit ttings: 3/4 inch (left side) and 1/2 inch (right side) hubs
are required for all installations, and NEMA Type 3R conduit ttings
(hubs) are needed when installing out of doors (one for each used
conduit opening). Also needed are conduit plugs to close unused
conduit openings and conduit grounding nuts.
• Over current protection: The overcurrent protection in IQ Battery is not
branch circuit overcurrent protection and cannot be relied upon for that
purpose. The branch circuit overcurrent protection is located in IQ System
Controller or, when combining , in a separate combiner. See the Enphase
IQ System Controller Quick Install Guide for more information.
• Personal protective equipment (PPE) for handling lithium batteries
as required by local safety standards.
E ) Verify that main service is 120/240 VAC, and not 208/120 VAC. IQ Battery
batteries cannot be installed where L1 to L2 measures 208 VAC.
F ) Install the PV system and the IQ Combiner as directed by the Enphase
installation manuals.
Self consumption, no IQ System
Controller. The preferred conguration
when adding battery storage and PV
for self-consumption in a grid-tied
application with no option for backup
during outages. PV and IQ Battery
will not operate when the grid is
unavailable.
Partial home backup with main load
panel as service entrance and PV
combiner connected to subpanel.
This is the preferred connection
conguration for partial home backup
using a subpanel when the PV circuit
breaker size is more than 80A. The
space available in IQ System Controller
for combiner (solar) connection is left
vacant.
M
Enphase Cloud
Tertiary control, API interface,
over-the-air firmware upgrade
WiFi/Cellular
Main
Load Panel
Power Line
Communication
IQ Battery 10/
IQ Battery 3
Storage System
IQ 6/IQ 7 IQ™ Combiner
Home Loads
Wireless

INSTALLATION
Plan a location for the IQ Batteries
The IQ Battery housing is NEMA type 3R and can be installed indoors or out-
doors. The terminal blocks accepts copper conductors of No. 14 - 8 AWG.
A ) Following local standards, choose a well-ventilated location where
the ambient temperature and humidity are within -15° C to 55° C
(5° F to 131° F) and 5% to 100% RH, non-condensing, preferably out
of direct sunlight. The optimum ambient temperature range for
installation location is 0º C to 30º C (32º F to 86º F).
B ) Ensure that the mounting location can sustain the total weight
of the IQ Batteries and mounting bracket. Total weight for the IQ
Battery 3, including the IQ Battery base unit, cover and wall mount
bracket, is 52 kg (114.6 lbs). Total weight for the IQ Battery 10,
including the three IQ Battery base units, cover, and wall mount
bracket, is 154.7 kg (341 lbs).
*WARNING: The installer should install blocking between studs
to ensure that no single stud carries the entire weight load of the
IQ Batteries.
C ) Plan the mounting location to be at least 15cm (six inches) off the
ground and 15cm (six inches) from the ceiling. Keep the IQ Battery
away from falling or moving objects, including motor vehicles.
*WARNING: If mounted in the path of a motor vehicle, we
recommend a mounting height that is 91 cm (36-inch) minimum
above the oor.
D ) Ensure that there are no pipes or electrical wires where you plan to drill.
E ) Plan to maintain at least three feet of clearance in front of each
IQ Battery. Allow at least 15cm (six inches) clearance on top and
bottom of the IQ Battery so that the vents on the top and bottom of
the units are not blocked for air circulation.
F ) Consider the dimensions of the IQ Batteries, easy access, height,
and length of cable when selecting the location.
G ) Select a location where you can interconnect to the Enphase IQ
System Controller.
H ) Follow all local standards.
J ) Review your external conduit plan to determine to which side of the
eld wiring compartment you will connect conduit.
K ) Up to two IQ Battery 10 (or six IQ Battery 3) units can be daisy
chained on a single branch circuit. For installations with more than
this number of units, there must be a separate load center, subpanel,
or circuit combiner with over current protection to combine the
daisy chained circuits, and you must run only one circuit for all
the IQ Battery units to the IQ System Controller (or to Enphase IQ
Combiner for grid-tied-only installations). You must select proper
conductors and circuit breakers for these circuits according to local
codes, standards, and other applicable requirements. IQ System
Controller supports up to a maximum of 80 A breaker for IQ Battery
connection circuit.
The subpanel could be a small, two circuit box with circuit breakers.
The circuit breakers in the box would have to be suitable for
back-feeding, per NEC 408.36(D).
Select the right size subpanel and breakers based on the number of
IQ Battery units being installed. Up to four IQ Battery 10s or twelve IQ
Battery 3s can be safely connected to 80A load center.
To do this, you must purchase an off-the-shelf subpanel and install
as shown in the following image:
* WARNING! Parallel power production sources only. Do not
connect load circuits.

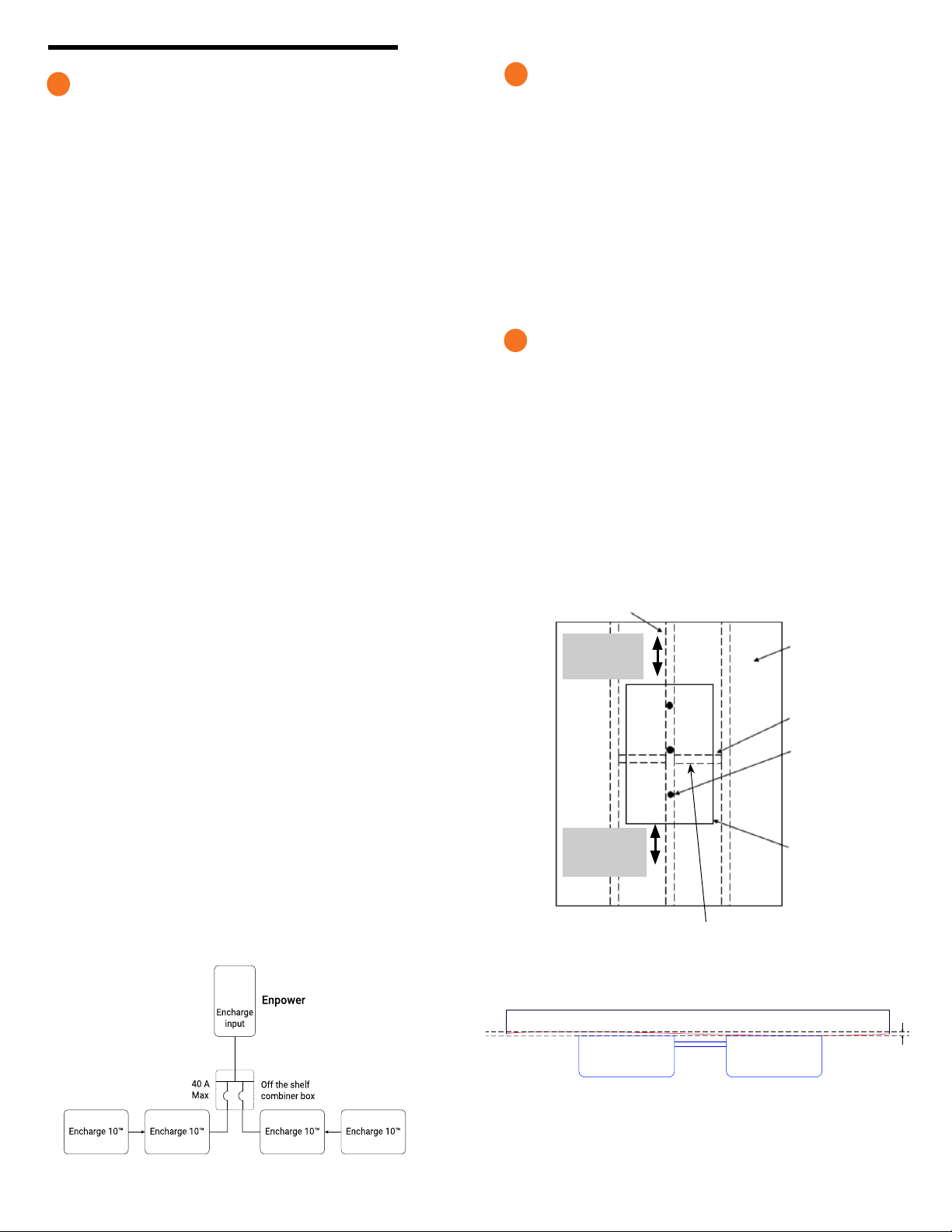

1Install the AC disconnect
Following all local codes and standards:
A ) Install an AC disconnect that can break the maximum rated current
of the branch circuit under load. The AC disconnect must be readily
accessible and located within line-of-sight of IQ Battery, per NEC
2017 706.7(A).
B ) Each IQ Battery unit is suitable for use with up to No. 8 AWG wires
on a maximum 40 A branch circuit. If more than 32 A of IQ Battery
batteries (corresponding to a 40 A branch circuit) are installed, a
separate subpanel must be installed between the IQ Battery units
and IQ System Controller to combine the IQ System Controller
circuits together. All circuit breakers in the subpanel must be
suitable for back-feeding, per NEC 408.36(D).
C ) Verify that AC voltage at the site is within range: single-phase L1 to L2
voltage must measure between 211 and 264 VAC, while L-N should
measure between 106 and 132 VAC.
2
Prepare to install the wall-mount bracket
A ) Make sure that the planned position for the wall-mount bracket
meets clearance requirements as shown. The image depicts a
single bracket, but clearances and requirements are the same for
the triple-width bracket.
B) Ensure that the mounting location can sustan the weight of the
IQ Batteries and mounting bracket. Total weight for the IQ Battery
3 including the mounting brackets and cover is 52 kg (114.6 lbs),
while the total weight for IQ Battery 10 including the mounting
bracket and cover add up to 154.7 kg (341 lbs).
C ) Starting at installation position closest to the power source, mark a
level line on the wall as a guide.
* WARNING! Multiple risks. Make sure not to drill or attach into
electric wiring or pipes that are in the wall!
3
Minimum 15cm
(6 inches) from
ground/next
surface below
Minimum 15cm
(6 inches) from
ceiling/next
surface above
Blocking installed
between studs
Wood screw
7.6 cm (#10x3”)
IQ Battery
Wall
sheathing
Mounted
bracket
Wood stud
Mounting Surface
Flatness (Across
the Installation
width and height)
recommended to
be within 2mm*
NOTE:The above specied surface atness requirment is applicable to all
the combinations of IQ Battery 3 and 10.
* If the difference in atness is more than 2mm, recommend installing a substructure like unistrut for
better alignment of the units.
MOUNTING WALL
ENCHARGE ENCHARGE
Single circuit between combined
Encharge and Enpower

IQ Battery 3 wall mount bracket
Bracket shelf
Mounting holes
Front view Angle view
IQ Battery 3 — single-width bracket
A ) Place the wall-mount bracket on the wall so that the mounting holes
in the middle of the bracket align with the center of the stud.
B ) Use a level to keep the bottom of the wall-mount bracket level.
C ) Use 1/4” screws (or masonry attachments for masonry) to attach
the bracket using one screw and washer for each slot (6.8mm /
0.27”).Tighten all the screws to manufacturer’s specied torque
values.
D ) Verify that the wall-mount bracket is solidly attached to the wall. You
must use four screws in each mounting bracket.
* WARNING! Risk of injury and equipment damage. Do not mount
an IQ Battery 3 on a bracket that is not properly mounted.
E ) If installing additional batteries, install adjacent wall-mount brackets,
as needed. Be sure to align the mounting holes in the wall-mount
bracket to the center of the wall stud. You may install another
row of brackets above the one already installed. Maintain at least
15 cm (six inches) vertical clearance between rows of IQ Battery
installations, and ensure that the wall can support the structural
load (weight) of the installation.
* WARNING! Risk of injury and equipment damage. Do not install
more than three IQ Battery 3 units per 20A branch circuit.
4
Install the IQ Battery 3 (single width) or IQ Battery 10 (triple
width) wall mount bracket
IQ Battery 10 — triple-width bracket
A ) Place the wall-mount bracket on the wall so that the mounting holes
in the middle of the bracket align with the center of the stud, and the
mounting holes on the left and right align with the adjacent studs.
B ) Use a level to keep the bottom of the wall-mount bracket level.
C ) Use 1/4” screws (or masonry attachments for masonry) to attach the
bracket using one screw and washer for each slot (6.8mm / 0.27”).
Use screws in each section of the mounting bracket to support the
three IQ Battery units. There is an array of slots so that you can
choose those that allow you to mount the bracket on studs. Tighten
all the screws to manufacturer’s specied torque values.
D ) Verify that the wall-mount bracket is solidly attached to the wall.
* WARNING! Risk of injury and equipment damage. Do not mount
10 IQ Batteries on a bracket that is not properly mounted.
E ) If installing additional batteries, install adjacent wall-mount brackets,
as needed. Be sure to align the mounting holes in the wall-mount
bracket to the center of the wall stud. You may install another row of
brackets above the one already installed. Maintain at least 15 cm (six
inches) vertical clearance between rows of IQ Battery installations,
and ensure that the wall can support the structural load (weight) of
the installation.
* WARNING! Risk of injury and equipment damage. Do not install
more than one IQ Battery 10 unit per 20A branch circuit.
IQ Battery 10 wall mount bracket
Bracket
shelf
Mounting holes
Front view
Angle view
Vertical +5° Inclination -5° Inclination
Floor
Wall Wall Wall
Allowable tilt from vertical for IQ Battery installation
627 mm
991 mm
6.8 mm
300 mm
627 mm
6.8 mm
Follow the instruction below for the bracket style (single-width or triple-width)
you are installing.
* WARNING! Risk of injury and equipment damage. Attach the wall
mount to the wall so that it is no more than ve percent from vertical. See
the following image for reference:

Mount the IQ Battery(ies) on the wall
* WARNING: Risk of injury. Take care when lifting.
Each IQ Battery base unit is heavy (44.2 kg/ 97 lbs) and re-
quires two persons to lift.
* WARNING! Risk of injury and equipment damage. Avoid
dropping the IQ Battery(ies). Doing so may create a hazard, cause
serious injury, and/or damage the equipment.
* WARNING! Risk of injury and equipment damage. Protect the
IQ Battery(ies) from impact damage and improper use.
A ) Two person together must lift a single IQ Battery base unit from
the packaging and place it right side up on a at surface.

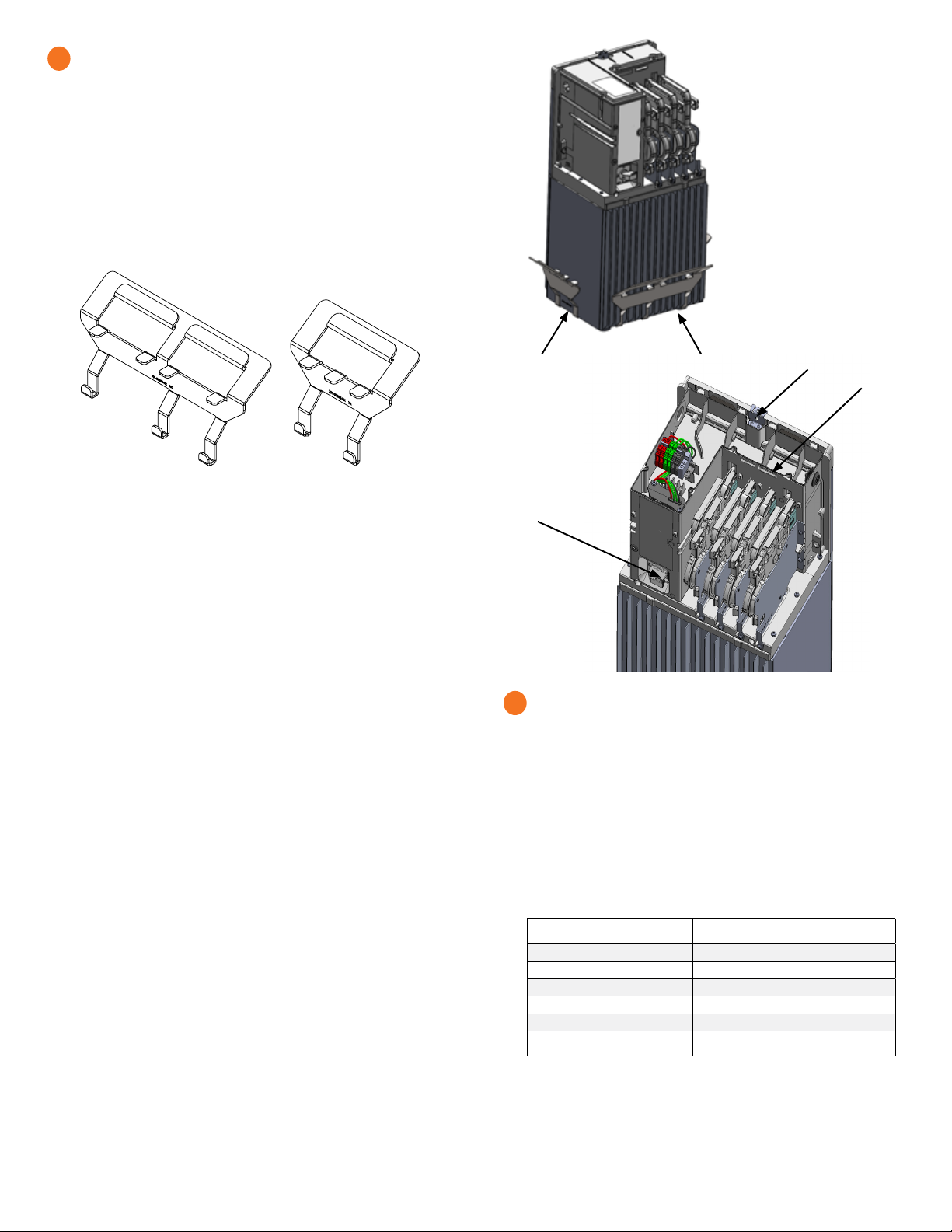

B ) Locate the IQ Battery lifting handles:
C ) If installing multiple battery units, plan to install the IQ Battery
unit located closest to the main supply.
D ) The rst person lifting must slide the longer front handle under
the front edge of the IQ Battery, then tilt the handle up so that
handle tabs engage with the slots on the front side of the
battery.
E ) The second person lifting must slide the shorter side handle
under the left or right side (as needed) of the IQ Battery, and
support the upper back of the IQ Battery with their free hand.
F ) Together, lift the IQ Battery and bring it to the already mounted
bracket.
G ) Hold the IQ Battery at an angle so the top of the unit sets into
the top of the wall-mount bracket.
* WARNING! Risk of injury and equipment damage. Do not
release the IQ Battery unit until you ensure that the IQ Battery
unit is fully seated in the wall-mount bracket shelf.
H ) Once the top of the battery is engaged with the top tabs of the
wall-mount bracket, keep the battery vertical, make sure the
battery is ush against the bracket, and lower the battery down
until fully seated with the wall-mount bracket and set into the
bracket shelf.
I ) Remove the handles and reserve for the next IQ Battery
installation.
J ) Use a Phillips screw driver to loosen the screws securing the
eld wiring compartment cover and remove the cover. Keep the
cover and screws handy as you will need them later.
K ) Attach the battery to the mounting bracket aligning the screw
hole at the top of the battery with the screw hole at the top of
the bracket.
L ) To record the installation of each IQ Battery base unit, scan
the serial number label using Enphase Installer App™ and your
mobile device.
5
Top screw hole
DC Switch
Scannable serial
number label
IQ Battery IQ Battery
IQ Battery front
handle
IQ Battery side
handle
Install conduit and eld wiring
+ DANGER! Risk of electric shock. The DC switch must be in the
Locked position before performing this step.
A ) If not already done, use a Phillips screw driver to loosen the screws securing
the eld wiring compartment cover and remove the cover. Keep the cover and
screws handy as you will need them later.
B ) Remove the sealing plug for entry into the eld wiring compartment. If
installing only one battery or when installing the last battery in the array,
seal up the hole with the supplied sealing plug.
C ) Size the conductors (Lines and Ground) to account for voltage rise and
to conform to the tables below. Design for a voltage rise total of less than
2%. IQ Battery can use any circuit breaker size between 10 A and 40 A.
Breaker rating and wire size are installation dependent.
Number of
IQ Battery E3/E10 units Current (A) Minimum wire size (AWG) Breaker rating (A)
1*E3 5.3 14 10
2*E3 10.7 14 15
3*E3 or 1*E10 16.0 12 20
4*E3 or (1*E10 + 1*E3) 21.3 10 30
5*E3 or (1*E10 + 2*E3) 27.7 8 35
6*E3 or 2*E10 or
(1*E10 + 3*E3) 32.0 8 40
*E3 refers to IQ Battery 3
*E10 refers to IQ Battery 10
In all cases in the table, it is possible to always use larger conductors and
a breaker sized for that conductor or smaller. For Example in row 3, with
3*E3 or 1*E10, it is possible to use:
a) 12 AWG wire with 20 A breaker, or
b) 10 AWG wire with 20 A or 30 A breaker, or
c) 8 AWG wire with 30, 35, or 40 A breaker
6

Install conduit and eld wiring, continued
+ DANGER! Risk of electric shock. Check that the dedicated circuit
breaker protecting the branch where the IQ Battery(ies) will be
connected is turned off before wiring.
* WARNING! Risk of equipment damage. The DC switch must be
OFF before installing, otherwise IQ Battery will try to form a grid.

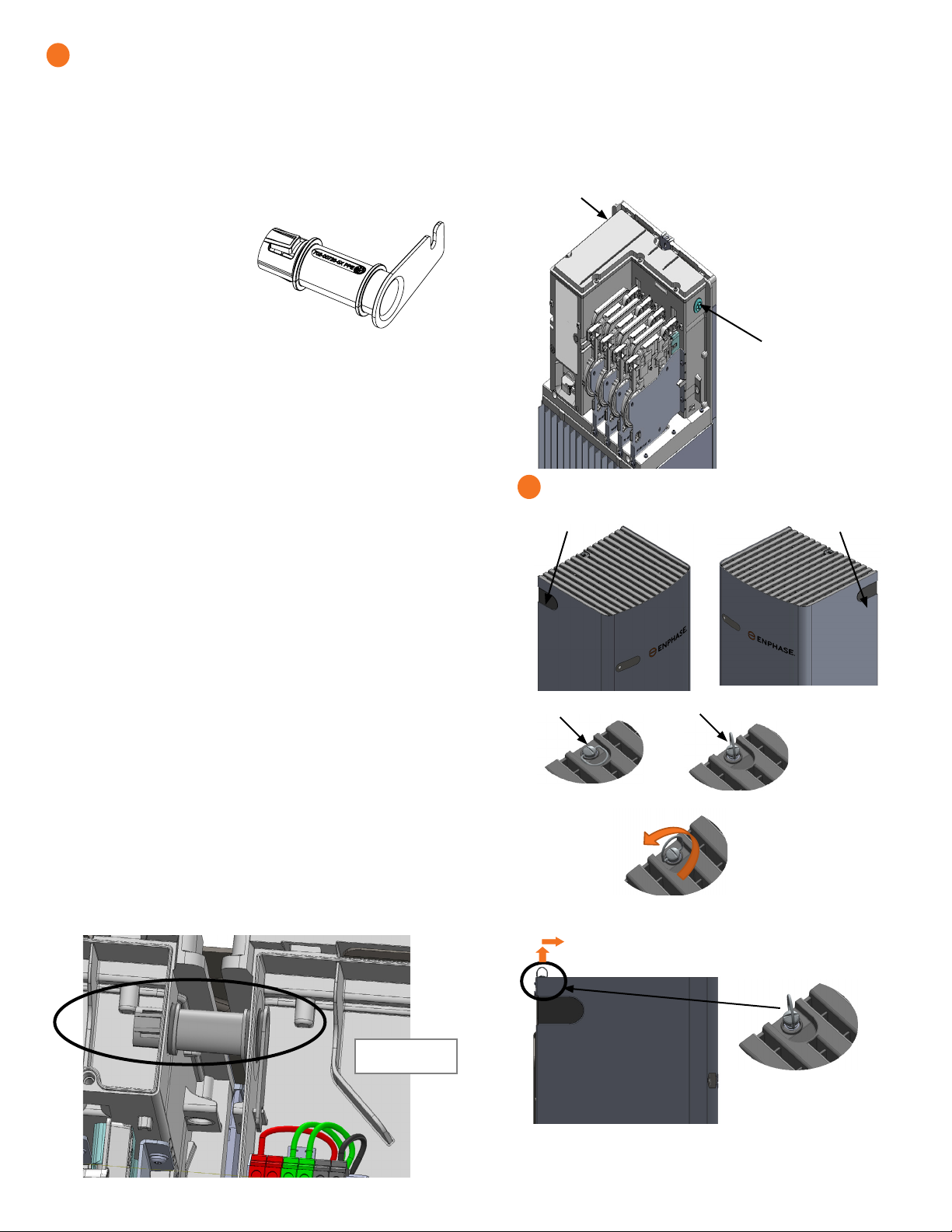

D ) If installing an IQ Battery 10, install the inter-unit raceways. The
left-side and right-side conduit openings are different diameters, so
you must install the raceway in the proper direction.
• Face the fronts of the batteries,
and insert the raceway through
the right-hand unit’s left-side
conduit opening from within
the eld wiring compartment,
with the arm of the raceway
pointing up.
• Push the raceway through the right-hand unit’s left-side conduit
opening and into the left-side unit’s right-side conduit, opening until the
two snap features on the raceway engage the left-side unit’s enclosure.
• Once fully inserted, rotate the “arm” toward you until it stops.
• The left-side conduit opening of each battery unit has a at surface,
without additional features. The larger seal (green) on the raceway
mates with this opening. The right-side conduit opening has a
groove around the hole to t the O-ring (red) of the raceway. Make
sure that the O-ring is captured in the groove between the IQ Battery
enclosure and the raceway ange adjacent to the O-ring.
E ) Using the conductors and suitable conduits, connect the AC dis-
connect and the rst adjacent IQ Battery. Use the conduit openings
provided to connect the conduit and pass the wires through them.
Note that if an Enphase IQ System Controller is in line-of-sight, the
breaker can service as a disconnect.
* WARNING! Risk of equipment damage. Do not modify or rewire
the pre-installed wiring or bonding connections in the eld wiring
compartment.
* WARNING! Risk of equipment damage. Always connect to two
Lines (active) and one ground.
F ) Connect each wire in the eld wiring compartment to its correspond-
ing conductor (Lines and Ground). Each terminal accepts two 14-8
AWG conductors (11mm/7/16 inch strip length). Tighten to 14 lb-in.
G ) If installing an IQ Battery 10, route the wires from the rst IQ Battery
to the adjacent IQ Battery through the inter-unit raceway. There are
two positions for each line and for ground in the terminal block to
allow for daisy-chaining.
* WARNING! Risk of equipment damage. Do not daisy chain more
than six total IQ Battery 3 or two IQ Battery 10 on a single branch
circuit.
H ) After all wires in the eld wiring compartment are connected and
secured, check that there are no exposed conductors.
I ) If connecting additional IQ Batteries, use another conduit and another
set of wires to connect between eld wiring compartments.
J ) Gently arrange all the wires and connectors inside the eld wiring
compartment.
6K ) Plug any unused conduit openings before proceeding.
L ) Replace the eld wiring compartment cover. Use a cross-head
screw driver to tighten the cover screws to 2.3Nn (20.3 Ib-in).
* WARNING! Risk of equipment damage. Ensure that no wires are
pinched before replacing the cover.
+ DANGER! Risk of electric shock. The system is not ready to
be energized! Do not close the circuit breaker or turn on the DC
switch.
Inter-unit
raceway
Correctly installed
inter-unit raceway
Grommet to be installed on the left
side or right side when the hole in the
left side or right side is not used for
cable routing.
(To be used in IQ Battery 3 when no
conduit is used with the hole).
(To be used in Right most Base unit in
IQ Battery 10 when no conduit is used
with the hole).
Dismounting of IQ Battery 3 Cover
A) Remove the conduit covers from either sides of the IQ Battery cover
B) Lift up the ring of the quarter turn screw.
C) Turn the ring in the anticlockwise direction to unlock the screw.
D) After unlocking, hold the ring of the screw and lift the top cover
up slightly and pull it away from the wall in the indicated direction.
E) While pulling out the cover, make sure that the indicated
snaps at the bottom of the unit are being unlocked.
F) Simillarly for dismounting the IQ Battery 10 Cover, please follow the
instructions from A to E.
7

Cover and energize the system
*WARNING: Before energizing, make sure that all IQ Batteries in the
system are properly installed and conductors terminated.
NOTE: Check the box for updates on cover installation instructions.
A ) Check that the eld wiring compartment cover(s) for all IQ Batteries in
the system are closed and secured.
+DANGER: Risk of electric shock. Before continuing, check that IQ
Battery units are properly wired, and ground connection does not have a
L1 or L2 connection, as this introduces a safety hazard.
• Apply AC power to the IQ Battery circuits. Do NOT turn On the DC switch on
IQ Batteries.
• Using a voltmeter measure the IQ Battery chassis metal to ground (e.g.,
grounded conduit) and ensure there is no AC voltage source present. If
wiring is incorrect, a ground fault may exist, and the AC voltage may read
~120VAC. If voltage is present, DO NOT touch the chassis, and immediately
remove AC power from the IQ Battery circuits.
• Remove AC power to the IQ Battery circuits and correct the wiring.
*WARNING: Before commissioning, DC Switch on IQ Battery shall
not be turned on, unless instructed in Enphase Installer App. Turning DC
switch On before it is instructed in Enphase Installer App can damage
IQ Battery.
B ) Connect the AC power (branch circuit protection On) to IQ Battery and
commission the IQ Battery using Enphase Installer App with DC switch
in Off position. Wait for Envoy to update the IQ Battery rmware. Turn DC
switch On only after you see a message in Enphase Installer App asking
to turn it On.
*WARNING: After commissioning, always follow the sequence to supply
the AC power rst and then turn the DC Switch On. The turn Off sequence for
AC power or DC Switch does not matter.
NOTE: Do NOT leave the IQ Battery unit’s DC switch in the On position for
any extended period of time (such as overnight or for more than 24 hours)
unless IQ Battery is commissioned (communicating with Envoy), connected
to AC, and has passed functional testing and is operational. Leaving the DC
switch On without AC connection and communication with the system will
drain the battery and may cause damage to the battery cells such that they no
longer be able to charge. Damage resulting from this improper installation and
misuse is not covered under the product’s limited warranty.
C ) Place enclosure cover(s) over the battery(ies) as follows.
IQ Battery 3 (single-width battery cover)
• Pick up the IQ Battery 3 Battery cover, stand in front of the battery so that
the cover and battery are on a level, and slide the cover over the battery
so that the interior guides of the cover slide easily over the guides on the
battery unit.
• Check that the screw hole on top of the battery cover aligns with that on the
battery.
• Use the included screw to attach the cover to the battery. Tighten the screw
as needed.
IQ Battery 10 (triple-width battery cover)
• The IQ Battery 10 Battery cover in wide and may require two persons to
guide smoothly over the battery units.
• Pick up the IQ Battery 10 Battery cover, stand in front of the battery so that
the cover and battery are on a level, and slide the cover over the battery
so that the interior guides of the cover slide easily over the guides on the
battery units.
• Check that the screw holes on top of the battery cover align with those on
the batteries.
• Use the included screws to attach the cover to the batteries. Tighten the
screws as needed.
8
IQ Battery 10 without cover
A ) Use the Enphase Installer App to commission the IQ Battery(ies).
Once connected to the IQ Gateway, refer to the Enphase Installer
App help topics for more information.
B ) After the IQ Gateway has detected the IQ Battery(ies), the IQ Battery
LEDs operate as described in the following section.
CONFIGURE and ACTIVATE
OPERATION
aLED overview
After being commissioned, the LED ashes yellow while each IQ Battery
boots up. If the LED rapidly ashes green for more than two minutes,
the battery is in trickle charge mode and will remain so until it reaches
a minimum state of charge (up to 30 minutes). After the IQ Battery is
booted up, the LED becomes blue or green depending on the charge
level. If the LED ashes yellow after one hour or changes to a ashing
red state, contact Enphase Customer Support at enphase.com/en-us/
support/contact.
State Description
Uncommissioned
Flashing blue After booting up, when IQ Battery has paired
with an IQ Gateway but has not passed the
commissioning three-way handshake to
conrm that it is an Enphase device.
Flashing green After passing the three-way handshake with
the IQ Gateway.
After commissioning (normal operation)*
Rapidly ashing yellow Starting up / Establishing communications
Red ashes in sequences of 2 Error. See “Troubleshooting”.
Solid yellow Not operating due to high temperature. See
“Troubleshooting”.
Solid blue or green Idle. Color transitions from blue to green as
state of charge increases. You can check
Enphase Installer Platform for charge status.
Slowly ashing blue Discharging
Slowly ashing green Charging
Slowly ashing yellow Sleep mode activated
Off Not operating. See “Troubleshooting”.
* IQ Battery batteries have a one-hour orphan timer. If the IQ Gateway stops
communicating with them, after one hour the IQ Battery batteries return to an
“uncommissioned” state.
bTroubleshooting
If the IQ Battery(ies) are not operating correctly, perform the following
steps. If the issue persists, contact Enphase Customer Support at
enphase.com/en-us/support/contact.
A ) If the IQ Battery(ies) do not operate, check the temperature in the
room and increase cooling and/or ventilation as required. Check
that the front, top, and sides of the IQ Battery batteries have at
least 15cm (six inches) of unobstructed clearance.
B ) If the IQ Battery LED is off, turn off the breaker for the branch
circuit, wait for at least one minute, and turn it back on.
NOTE: During a brownout or blackout, the IQ Battery powers down
automatically. This is normal. When power is restored, it automati-
cally starts up again.
C ) If you do not see IQ Battery information in Enphase Installer
Platform, check that the IQ Gateway and the Internet connection
are working. If the issue persists, contact Enphase Customer
Support at enphase.com/en-us/support/contact.
648 mm
1036 mm
287 mm 345 mm
Limitation of Use :
Your IQ Battery unit is not intended for use as a primary or backup power
source for life-support systems, other medical equipment, or any other use
where product failure could lead to injury, loss of life, or catastrophic prop-
erty damage. Enphase disclaims any and all liability arising out of any such
use of your IQ Battery unit. Further, Enphase reserves the right to refuse to
provide support in connection with any such use and disclaims any and all
liability arising out of Enphase’s provision of, or refusal to provide, support
for your IQ Battery device in such circumstances.

Enphase Customer Support: enphase.com/en-us/support/contact
Safety and Advisory Symbols
+DANGER: This indicates a hazardous situation, which if not avoided, will
result in death or serious injury.
*WARNING: This indicates a situation where failure to follow instructions may
be a safety hazard or cause equipment malfunction. Use extreme caution
and follow instructions carefully.
✓NOTE: This indicates information particularly important for optimal system
operation. Follow instructions carefully.
Safety Instructions
+DANGER: Risk of electric shock. Risk of re. Only qualied electricians should
install, troubleshoot, orreplace the IQ Battery(ies).
+DANGER: Risk of re or explosion. Only qualied personnel, using personal
protective equipment (PPE) should transport or handle the IQ Battery(ies).
+DANGER: Risk of explosion. Do not dispose of IQ Battery(ies) in a re or by
burning. The IQ Battery(ies) can explode.
+DANGER: Risk of re or explosion. This product is designed for stationary
installation only and should be used accordingly. It is not designed for mobile
applications such as installation and on vehicles and trailers and should not
be used in such applications.
+DANGER: Risk of re. During use, when stored, or during transport, keep
the IQ Battery(ies) in an area that is well ventilated and protected from the
elements, where the ambient temperature and humidity are within -15° C to
55° C (5° F to 131° F) and 5% to 100% RH, non-condensing, preferably out
of direct sunlight. Do not install the IQ Battery(ies) at elevations over 2500 m
(8,200 feet) above sea level.
+DANGER: Risk of re. If the IQ Battery(ies) generate smoke, remove AC
power from the Enphase System and turn the DC connect switch to the off
position so that charging/discharging stops.
+DANGER: Risk of electric shock. Risk of re. Do not attempt to repair the IQ
Battery(ies). DO NOT OPEN THE ENCLOSURE -- NO SERVICEABLE PARTS.
Tampering with or opening the IQ Battery(ies) will void the warranty. If the
IQ Battery(ies) fail, contact Enphase Customer Support for assistance at
enphase.com/en-us/support/contact.
+DANGER: Risk of electric shock. Do not use Enphase equipment in a manner
not specied by the manufacturer. Doing so may cause death or injury to
persons, or damage to equipment.
+DANGER: Risk of electric shock. Do not install the IQ Battery(ies) without rst
removing AC power from the photovoltaic system. Disconnect the power
coming from the photovoltaics before servicing or installing.
+DANGER: Risk of electric shock. Always de-energize the AC branch circuit
during an emergency and/or before servicing the IQ Battery(ies). Never
disconnect the DC switch under load.
+DANGER: Risk of electric shock. Risk of high short-circuit current. Observe
the following precautions when working on batteries:
• Remove watches, rings, or other metal objects.
• Use tools with insulated handles.
• Wear insulating gloves and boots.
• Do not lay tools or metal parts on top of batteries.
+DANGER: Risk of electric shock. Risk of re. Do not work alone. Someone
should be in the range of your voice or close enough to come to your aid
when you work with or near electrical equipment.
+DANGER: Risk of re. Do not allow or place ammable, sparking, or explosive
items near the IQ Battery(ies).
+DANGER: Risk of electric shock. In areas where ooding is possible, install
the IQ Battery(ies) at a height that prevents water ingress.
+DANGER: Risk of electric shock. AC voltage is present at the output when the
DC switch is on.
+DANGER: Risk of electric shock. Branch circuit protection must be off before
switching DC power on or off.
+DANGER: Risk of electric shock. The DC switch must locked in the OFF
position for shipping and service.
*WARNING: Risks of electric shock, energy hazard, and chemical hazard. Do
not disassemble.
*WARNING: Risk of equipment damage. During use, storage, transport, or
installation, always keep the IQ Battery(ies) in an upright position.
*WARNING: You must install the IQ Battery(ies) only on a suitable wall using
an Enphase wall-mount bracket.
*WARNING: Before installing or using the IQ Battery(ies), read all instructions
and cautionary markings in this guide and on the equipment.
*WARNING: Do not install or use the IQ Battery(ies) if it has been damaged in
any way.
*WARNING: Do not exceed the maximum number (3) of IQ Batteries in a 20 A
AC branch circuit.
*WARNING: Do not sit on, step on, place objects on, or insert objects into the
IQ Battery(ies).
*WARNING: Do not place beverages or liquid containers on top of the IQ Bat-
tery(ies). Do not expose the IQ Battery(ies) to liquids or ooding.
*WARNING: When placing the IQ Battery(ies) in storage, ensure that AC power
is not present and that the DC switch is in the Locked position. While in
storage, damage to the battery can occur from over-discharge. If the battery
state of charge falls to 0%, the IQ Battery(ies) can be damaged or destroyed.
Because of this, the IQ Battery(ies) must only be stored for a limited amount
of time.
• The IQ Battery(ies) must be installed and energized by the “Must
Energize By” date on the shipping box label.
• The IQ Battery(ies) must have a charge state of no more than 30%
when placed in storage. To do this, the IQ Battery(ies) must be placed
in Sleep Mode.
• If the IQ Battery(ies) is already been installed, it must be placed
into Sleep Mode prior to uninstalling. A battery in Sleep Mode can be
stored a maximum of two months after being placed into Sleep Mode.
✓NOTE: Perform installation and wiring, including protection against lightning
and resulting voltage surge, in accordance with all applicable local electrical
codes and standards.
✓NOTE: Because IQ Battery(ies) are grid forming, you must install signage in
accordance with NEC articles 705, 706, and 710.
✓NOTE: Using unapproved attachments or accessories could result in dam-
age or injury.
✓NOTE: Install properly rated over current protection as part of the system
installation.
✓NOTE: To ensure optimal reliability and to meet warranty requirements, the
IQ Battery(ies) must be installed and/or stored according to the instructions
in this guide.
✓NOTE: The IQ Battery(ies) are compatible only with the IQ Gateway commu-
nications gateway properly tted with USB hub, USB radios, and production
and consumption CTs. The IQ Gateway is required for operation of the IQ
Battery(ies). Earlier versions of the Enphase Envoy communications gateway
are incompatible.
✓NOTE: The Enphase IQ Battery(ies) are intended to operate with an Internet
connection. Failure to maintain an Internet connection may have an impact
on the warranty. See Limited Warranty for full terms and services (enphase.
com/warranty).
✓NOTE: When replacing Enphase IQ Battery(ies), you must replace with an IQ
Battery(ies) of the same type, with the same AC current rating.
✓NOTE: When disconnected and stored, no automatic charge of the battery
is possible.
✓NOTE: Properly mount the IQ Battery(ies). Ensure that the mounting location
is structurally suited to bearing the weight of the IQ Battery(ies).
✓NOTE: During use, storage, and transport, keep the IQ Battery(ies):
• Properly ventilated
• Away from water, other liquids, heat, sparks, and direct sunlight
• Away from excessive dust, corrosive and explosive gases, and oil smoke
• Away from direct exposure to gas exhaust, such as from motor vehicles
• Free of vibrations
• Away from falling or moving objects, including motor vehicles. If mounted
in the path of a motor vehicle, we recommend a 91 cm (36-inch)
minimum mounting height
• At an elevation of lower than 2,500m (8,200 feet) above sea-level
• In a location compliant with re safety regulations
• In a location compliant with local building codes and standards
✓NOTE: Conditions for the IQ Battery installation site apply also to storage
conditions.
SAFETY
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS. This guide contains important instructions that you must follow during installation
and maintenance of the Enphase IQ Battery(ies). Failing to follow any of these instructions may void the warranty (enphase.com/warranty).
In Case of Fire or Other Emergency
In all cases:
• If safe to do so, switch off the AC breaker for the IQ Battery circuit, and if an
isolator switch is present, switch off the AC isolator for the IQ Battery circuit.
• Contact the re department or other required emergency response team.
• Evacuate the area.
In case of re:
• When safe, use a re extinguisher. Suitable types are A, B, and C dry chemical
re extinguishers. Additional extinguishing media include carbon dioxide, or
alcohol-resistant foams.
In case of ooding:
• Stay out of the water if any part of the IQ Battery(ies) or wiring is submerged.
• If possible, protect the system by nding and stopping the source of the
water, and pumping it away.
• If water has contacted the battery, call your installer to arrange a inspection.
If you are sure that water has never contacted the battery, let the area dry
completely before use.
In case of unusual noise, smell or smoke:
• Ensure nothing is in contact with the IQ Battery(ies) or in the venting area of
the IQ Battery(ies).
• Ventilate the room.
• Contact Enphase Customer Support at enphase.com/en-us/support/contact.
Safety Instructions, continued
Environmental Protection
ELECTRONIC DEVICE: DO NOT THROW AWAY. Waste electrical
products should not be disposed of with household waste.
Proper disposal of batteries is required. Refer to your local
codes for disposal requirements.
