Epever MT50 User manual

Remote Meter
User Manual
Model: MT50

Contents
1 Important Safety Instructions ..............................................1
2 General Information............................................................2
2.1 Features............................................................................................................2
2.2 Mainfunctions...................................................................................................2
2.3 Recommendations............................................................................................3
3 Installation..........................................................................4
4 Product Features................................................................7
5 Operation............................................................................12
5.1 Buttons..............................................................................................................12
5.2 Mainmenu........................................................................................................13
5.3 Real-timemonitoring.........................................................................................14
5.4 Deviceinformation............................................................................................16
5.5Testoperation....................................................................................................16
5.6 Control parameter.............................................................................................17
5.7 Loadsetting ......................................................................................................24
5.8 Device parameter .............................................................................................27

5.9 Device password...............................................................................................28
5.10 Factory reset...................................................................................................29
5.11 Failureinformation ..........................................................................................29
5.12 Meter parameter.............................................................................................30
6Technical Specifications......................................................32
Appendix Dimensions............................................................34

1
Important Safety Instructions
SAVE THESE INSTRUCTIONS:
This manual contains important safety, installation, and operating instructions for the
Remote Meter.
General safety information
Please inspect the MT50 thoroughly after it is delivered. If any damage is seen,
please notify the shipping company or our company immediately. A photo of the
damage may be helpful.
Read all instructions and cautions in the manual before starting the installation.
Keep the MT50 away from rain, exposure, severe dust, vibrations, corrosive gas, and
intense electromagnetic interference.
Do not allow water to enter the remote meter.
There are no user-serviceable parts inside the controller. Do not disassemble or
attempt to repair it.

2
1 General Information
1.1 Features
MT50 is a new generation of remote meters designed based on the latest controller
communication protocol and voltage technical standards.
The products have many excellent features:
Automatically identify and display the relevant parameters of controllers;
Large-screen multifunction LCD, real-time dynamic display of system data;
Direct, convenient, and rapid operation of six navigation function keys;
Powered by the controller directly, no need for external power;
Real-time data monitoring, remote controlling, data browsing, and modification of the
related parameters;
Visually failure information, timely notification of warnings and faults
Longer communication distance based on RS485.
1.2 Main functions
Functions like real-time monitoring of system data, browsing and modifying related
parameters, and restoring factory defaults are based on the LCD and functional key

3
operation.
1.3 Recommendations
Applicable Models
Product series
Battery type
Interface
type
Communication
LS-B, GM-N,
VS-BN, Tracer-BN
Battery
RJ45
RS485
ITracer-AD/ND
3.81-4P
Tracer-AN, TRIRON,
XTRA
Battery+ Lithium
battery
RJ45
Note: Please do not install the MT50 in a situation with strong electromagnetic
interference.

4
2 Installation
Frame Mount Dimensions( mm)
Mechanical parameter
Parameter
Overall dimension
114 x 114 x 48.2mm
Mounting dimension
84 x 84mm
Terminal
Φ5

5
Wall mounting
Step1: Locate and drill screw holes
based on the frame mounting dimension
of the base, and erect the plastic
expansion bolts.
Step 2: Use four ST4.2×32 self-tapping
screws to fix the frame.
Step 3: Use four M4×8 pan head screws
to mount the MT50 surface on the frame.
Step 4: Mount the four associated screw
plugs into the screw holes.

6
Surface mounting
Step 1: Locate and drill screw holes based on the installation size of the surface.
Step 2: Use four M4×8 cross recessed pan head screws with M4 nuts to mount MT50
Surface onto the panel.
Step 3: Mount the four associated white screw plugs into the screw holes.
Note: Take full consideration of the plugging/unplugging space of the
communication cable and the cable's length during installation to see if they are
appropriate.

7
3 Product Features

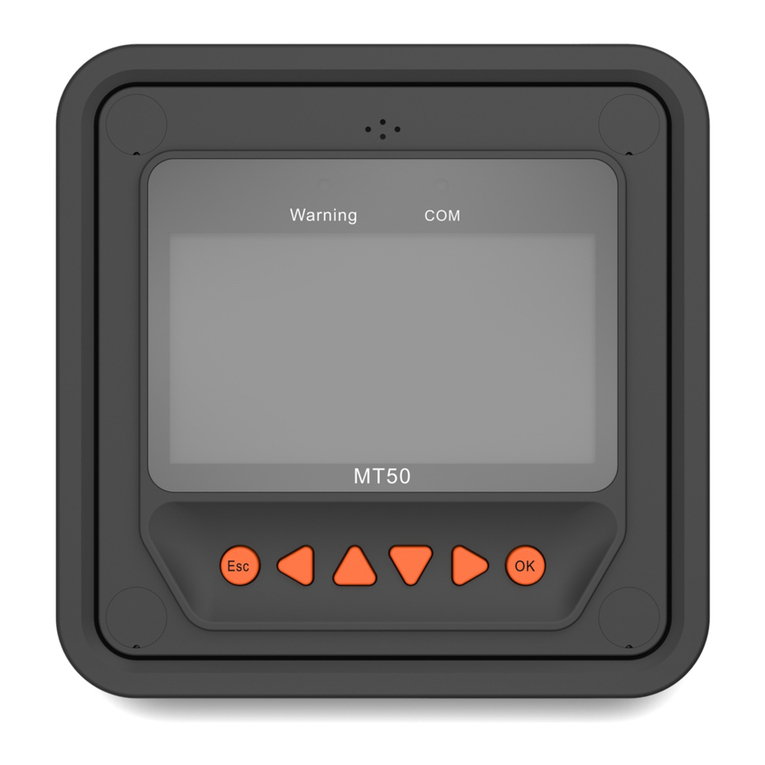

 Front view

8
 Rearview
Module
Function
Failureindicator
Failure indicator flashes in case of failure of the
connected devices. For failure information, please
check the Controller Manual.
Communication
Indicate communication status when MT50 is connected
RJ45 interface

9
indicator
with the controller.
Display screen
Man-machine interaction operation interface.
Buttons
The Meter buttons include four navigation buttons and
two operational buttons. See the specific directions in the
Operational Manual.
RJ45 interface
Connect with the controller; it is used for communication
and power supply.
Note: Please use the communication plug, marked with "MT," to connect MT50.
 Monitoring screen

10
Name
LCD Display
Instruction
Day and night icons
Night
Day
Note: The threshold voltage is
1V. When it goes higher than
1V, it is daytime.
Charge current icon
The icon is dynamically running
if there is a charge current.
Battery icon
The battery capacity is
dynamically displayed.
Note: When the battery is
over-discharged, this icon is
displayed as " ."
Battery status icons
Normal voltage
Under voltage
Over-discharge
Load current icon
The icon is dynamically running
if there is a discharge current.

11
Load status icon
Load On
Load Off
Note: In the Manual Mode,
pressing the "OK" button to
switch on/off the load.
PV vol. and cur. values
Display the PV voltage and
current values.
Battery vol. and cur.
values
Display the battery voltage and
current values.
Load vol. and cur. values
Display the load voltage and
current values.

12
4 Operation
4.1 Buttons
The buttons are respectively (from left to right) "ESC," "Left," "Up," "Down," "Right,"
and "OK "buttons. The operation is described in the schematic operation
diagram below:
The default entry page is the browse mode. Press the button and input the correct
password to enter the modification mode. and buttons could be used to move
the cursor. and buttons could be used to modify the parameter values when
the cursor is located at the current place. and buttons could be finally used to

13
confirm and cancel the modification of the control parameters.
4.2 Main menu
Enter the Main Menu by pressing "Esc." The "Up" and "Down" buttons are respectively
used to move the cursor to select the menu items, "OK," and "ESC" buttons are
respectively used to enter or exit the corresponding pages of the menu items.
1. Monitoring
2. Device Info.
3. Test Operation
4. Control Para.
5. Load Set
6. Device Para
7. Device PSW.
8. Factory Reset
9. Failure Info.
10. Meter Para.

14
4.3 Real-time monitoring
There are 13 pages under real-time monitoring. Please check it as below:
17.5V 13.8V 13.8V
15.2A 5.2A 10.0A
Jan-01-2013
02:34:33
Char. Energy
Day: 0.00kwh
Mon: 0.00kwh
Total: 0.00kwh
DisCh. Energy
Day: 0.00kwh
Mon: 0.00kwh
Total: 0.00kwh
Battery
Charge: NoCharge
Energe: Normal
Fault: No
Battery
Vol: 0.0V
Cur: 0.0A
Battery
Temp.: 22.4℃
Max. Vol: 12.7V
Min. Vol: 12.7V

15
PV
Sta.: DisConnect
Fault: No
Char.: PWM/MPPT
Load
Sta.: OFF
Fault: No
Load Mode
Information
Load
Vol: 0.0v
Cur: 0.0A
Power: 0.0W
PV
Vol: 0.0V
Cur: 0.0A
Power: 0.0W
Controller
Temp.: 25.0℃
Sta.: Normal
Operational tips: Move between rows by pressing the "Up" or "Down" buttons. Move
along a row by pressing the "Right" or "Left" buttons.

16
4.4 Device information
The controllers' parameters are displayed below:
Operational tips: and buttons are respectively used to turn the browse page
upward and downward.
4.5 Test operation
Load switch test operation is conducted on the connection solar controller to see if
the load output is normal. The test operation does not affect the working settings
under actual load, which means that the solar controller will exit from the test mode
when exiting the Test Operation page.
Test Operation
LS****B: OFF
Operational tips: Enter the page and input the correct password; use and
buttons to modify the On/Off status. Press to confirm and press to cancel the
Rate.Vol: 12V
Char.Cur: 10.0A
Disc.Cur: 2.6A
