1. Read all instructions in this manual before
using the strength machine. Use the strength
machine only as described in this manual.
2. It is the purchaser’s responsibility to ensure
that there is enough space around the
strength machine for the intended exercise.
Do not crowd the strength machine.
3. Using the anchor strap to provide maximum
stability, anchor the strength machine to the
floor where required or whenever possible.
4. Use the strength machine only on a level sur-
face. Cover the floor beneath the strength
machine to protect the floor.
5. It is the responsibility of the owner to ensure
that all users of the strength machine are
adequately informed of all precautions, have
read and understood all warning and caution
labels, and are informed of how to use the
strength machine properly.
6. Keep children under 12 and pets away from
the strength machine at all times.
7. Always wear athletic shoes for foot protec-
tion while exercising.
8. Keep hands and feet away from moving
parts. Do not lean on or rest your hands on
the strength machine when it is in use.
9. All users of the strength machine should be
instructed to report any injury or strength
machine irregularity to facility staff immedi-
ately.
10. Make sure the weight pin is completely
inserted into one of the weight plates.
11. Check all cables, cable connections, and pul-
leys before each use of the strength machine.
Make sure all parts are properly tightened.
Replace any worn parts immediately.
12. Make sure the cable remains on the pulleys
at all times. If the cable binds while you are
exercising, stop immediately and make sure
the cable is on the pulleys and nothing is
interfering with the cable or pulleys. Replace
all cables at least every two years.
13. The strength machine is designed to support
amaximum user weight of 350 lbs. (159 kg).
14. Keep the strength machine indoors, away
from moisture and dust. Do not put the
strength machine in a garage or covered
patio, or near water.
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the strength machine.
IMPORTANT PRECAUTIONS

WARNING DECAL PLACEMENT
4
The decals shown below have been placed
on the strength machine in the indicated
locations. If a decal is missing or illegible,
see HOW TO CONTACT CUSTOMER CARE
on the back cover of this manual and order a
free replacement decal. Apply the decal in
the location shown.
Decal 1
Shown at 70%
GZ7003
Decal 3
Shown at 85%
Decal 2
GZ7026
Decal 2
Decal 3
Decal 1

Assembled Dimensions:
Height: 78 in. (1.98 m)
Width: 32 in. (0.81 m)
Depth: 59 in. (1.50 m)
5
Base
Anchor Strap
Backrest Weight Pin
Handle
Weight
Arm
CAM
Arm Knob
Seat
Tower
BEFORE YOU BEGIN
Thank you for selecting the EPIC STRENGTH™
FLY/REAR DELT strength machine. The strength
machine’s stylish ergonomic design and never-before-
seen features improve upon traditional strength training.
The innovative features and quality construction provide
areliable product for your club. And the advanced solu-
tions to isolating individual muscle groups make the
FLY/REAR DELT strength machine a key tool for mem-
bers to reach their goals.
For your benefit, read this manual carefully before
using the strength machine. If you have questions
after reading this manual, see HOW TO CONTACT
CUSTOMER CARE on the back cover of this manual. To
help us assist you, please note the product model
number and serial number before calling. The model
number is GZFI8063.2. The serial number can be found
on a decal attached to the strength machine (see the
front cover of this manual).
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.

This section explains how to adjust the strength machine. Make sure all parts are properly tightened each time
the strength machine is used. Replace any worn parts immediately.
6
ADJUSTING THE RESISTANCE
Tochange the amount of resistance for your workout,
insert the weight pin into the desired weight. Make
sure that the weight pin is fully inserted into the
weight.
ADJUSTMENTS
Weight
Weight
Pin
ADJUSTING THE SEAT
To raise the seat, lift on the end of the seat and move
the seat to the desired position. To lower the seat, lift
on the end of the seat and press down on the back of
the seat until the seat is at the desired height.
Lift
Press
Seat
ADJUSTING THE ARMS
To change the position of the arms, pull the arm knob
down and move the arm to the desired position.
Reengage the arm knob into the selector bracket on
the bottom of the cam.
CAM
Arm Knob
Arm

7
MAINTENANCE
For safe and trouble-free operation of your EPIC STRENGTH strength equipment, it is important to perform
preventive maintenance on a regular basis. Make sure that all parts are properly tightened each time the strength
machine is used. Replace any worn parts immediately. The strength machine can be cleaned with a cloth damp-
ened with water and a mild, non-abrasive soap. Do not use solvents.
Note: Instruct all personnel to perform equipment inspection and maintenance requirements. Personnel must
record and report any accident. For any questions or concerns, see HOW TO CONTACT CUSTOMER CARE
on the back cover of this manual.
Use only original EPIC STRENGTH parts for repair or replacement to maintain your machine’s warranty.
FreeMotion Fitness recommends the following procedures:
SCHEDULED MAINTENANCE
DAILY
1. Upholstery—General cleaning:
•Wipe using a cloth dampened with a solution of
warm water and a mild soap.
•If necessary,use a soft bristle brush with the
cleaning solution.
•Always remove the cleaning solution using a
cloth dampened with clean water. Rinse often.
2. Upholstery—Difficult stains:
•Spray the stain with a non-abrasive household
cleaner such as FORMULA 409®cleaner,
SIMPLE GREEN®,or a similar product.
•Rub the area gently and let it sit for a few min-
utes.
•Rinse thoroughly using a cloth dampened with
clean water.
•Repeat if necessary using a soft bristle brush.
Optional method for difficult stains:
•Rub the area gently using a cloth dampened
with rubbing alcohol.
•Rinse thoroughly using a cloth dampened with
clean water to remove alcohol residue.
CAUTION: When using any cleaning product, try
it first in an inconspicuous place to ensure there
is no damage to the material. Follow directions
and adhere to safety precautions of each manu-
facturer of cleaning agent used. FreeMotion
Fitness and its vendors cannot be held liable for
damage or injuries resulting from the use or mis-
use of cleaning products.
3. Towers and Frames:
•Wipe using a cloth dampened with a solution of
warm water and a mild soap.
•Rinse and dry thoroughly.
Important: Do not use abrasive cleaners because
they may scratch the equipment. Strong cleansers
and abrasives will damage decals. Use caution
around decals. Do not use solvents such as lacquer
thinner, kerosene, gasoline, or similar liquids.
WEEKLY
1. Hardware:
•Check all nuts and bolts. Tighten them as
required.
2. Cables:
•Check all cables for proper tension.
•Check the entire length of the cable by pulling
each handle individually to its fully extended
position and inspecting the cable that is
exposed on the exterior of the machine, as well
as the cable inside of the cut stack tower.
•Run your fingers along the cable, paying close
attention at the bends and attachment points.
•Watch for the following conditions, which may
indicate a worn cable in need of replacement:
A. torn or split cable sheath that exposes the
cable
B. kinked or severely bent cable
C.curled or twisted sheath
D.stretched cable sheath, showing a thinning
cross-section
A
B
D
C

8
MONTHLY
1. Grips:
•Check and replace as needed.
YEARLY OR AS REQUIRED
1. Weight Stack Guide Rods:
•Clean and lubricate the full length by wiping
using a soft cloth containing a lightweight
motor oil, 10W-40 or 10W-30 weight. Only a
light coating over the entire length is needed.
Note: Do not use TEFLON®or silicone-
based lubricants.
CUSHION ATTACHMENT
Important: All EPIC STRENGTH cushions are fabri-
cated using dense plywood with tee-nuts installed for
bolting to the machine framework. Because these tee-
nuts are held by the plywood, they will not withstand
the torque that standard nuts and bolts will.
Therefore, when tightening the cushion bolts, turn
them only until they are snug and the cushion does
not move or feel loose. Overtightening may strip the
tee-nuts from the plywood and make it impossible to
remove the cushion in the future.
CABLE TENSION CHECK
1. Insert the weight pin into the top weight plate.
2. Slowly raise and lower the top weight by normal
machine use. The top weight should come to
rest just on top of the second weight when the
leg lever is returned to the resting position.
•If there is too much tension on the cable, the
top weight will not rest on the second weight,
and it may be difficult to insert the weight pin
into the weight plates.
•If there is not enough tension on the cable, the
top weight will not be lifted immediately when
the leg lever is lifted. Ideally, the leg lever/cable
should not move more than 1/2" (1.3cm) from
the resting position before the top weight
begins to be lifted.
3. If there is too much or not enough tension on the
cable, adjust the cable as described in CABLE
ADJUSTMENTS.

9
CABLE GUARDS
Check for alignment periodically to ensure that cable
guards are not rubbing on the cable and that they are
performing their intended duty. If the alignment is not
proper, loosen the bolt slightly, readjust the cable
guard as necessary, and retighten the bolt.
Correct Alignment
Incorrect Alignment
Rubbing Rubbing
Out of
Alignment
Guards Guards
Cable
Cable
Pulley
CABLE ADJUSTMENTS
CAUTION: After making any cable adjustment, use
the strength machine to lift a few weights while some-
one makes sure that the cable is not derailed from a
pulley or rubbing on a cable guard (see CABLE
GUARDS).
ADJUSTMENT
Top Weight Pulley Adjustment—
Tools required: 9/16" open or box-end
wrench/spanner, 5/16" Allen wrench/hex key
1. Using a 5/16" Allen wrench/hex key and a 9/16"
open or box-end wrench/spanner, loosen the nut
holding the pulley in the “U”-bracket.
2. Toincrease the tension, slide the pulley down in
the slot. To decrease the tension, slide the pulley
up.
3. Tighten the nut and check the tension as
described in CABLE TENSION CHECK, on page
8. If necessary, readjust the pulley.
Pulley Slot
“U”-bracket

10
SERVICING THE WEIGHT STACK
For required parts, see HOW TO CONTACT CUS-
TOMER CARE on the back cover of this manual.
1. Remove the wingnuts under the tower cap and
remove the tower cap from the tower.
2. Remove the screw from the top of each guide
rod.
3. Remove the 3/8" nylon locknut and two 3/8"
washers from the 3/8" x 2 1/4" bolt attaching the
“U”-bracket to the weight rod.
4. Lift the guide rods out of the top of the tower.
5. Lift and rotate the top weight and weight pin, and
remove them through the front opening of the
tower.
6. Servicing the weight stack involves replacing the
two guide bushings and the weight insert in the
top weight. First, use a punch to drive the two
existing guide bushings and weight insert out of
the top weight.
7. To insert the new guide bushings and weight
insert, hold a guide bushing square to the face of
one of the holes in the top weight, place a pro-
tective piece of wood on top of the bushing, and
lightly tap the bushing into place. The bushing
should be flush with the surface. Repeat with the
other guide bushing and weight insert.
8. Replace the top weight and weight pin on top of
the weight stack.
9. Reattach the “U”-bracket to the weight rod with
the bolt, two washers, and locknut.
10. Clean and lubricate the guide rods by wiping
them with a soft cloth containing a lightweight
motor oil, 10W-40 or 10W-30 weight. Apply only a
light coating over the entire length. Note: Do not
use TEFLON®or silicone-based lubricants.
11. Reinsert the guide rods through the top of the
tower and into the weight stack.
Note: If the weight stack has shifted, use a
short bar to realign the holes in the weight
plates. Hold the weight plates while inserting
the guide rods.
12. Reattach the guide rods to the top of the frame
with the two screws.
13. Insert the weight pin into the top weight. Pull the
handle, lifting the top weight all of the way to the
top. Slowly return the handle to the resting posi-
tion. If the top weight sticks, loosen one of the
guide rod screws. Lift the top weight to the top
again. Retighten the guide rod screw. Check the
full travel again and readjust the guide rods as
necessary.
14. While slowly pulling the handle, have someone
check the cable guard on the top weight to
ensure that it is not dragging or rubbing on the
cable.
15. Replace the tower cap and retighten the
wingnuts onto the bolts.
Weight
Insert
Guide
Bushings
Top Weight
Weight Rod
WARNING: Do not force the
guide rods into the weights; doing so will
damage the bushings and weight inserts.

11
CABLE DIAGRAM
The cable diagram shows the proper route of the
cable. Use the diagram to make sure that the cable
and the cable guards have been assembled correctly.
Ifthe cable has not been correctly routed, the
strength machine will not function properly and dam-
age may occur. The numbers show the correct route
of the cable. Make sure that the cable guards do
not touch or bind the cable.
Cable (39)
4
1
3
65
7
2

12
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Tower
3 1 Tower Cap
4 1 Left Lower Arm
5 1 Right Lower Arm
6 2 Upper Arm
7 2 1/2" x 3/4" Bolt
8 1 Head Pad
9 4 Felt Washer
10 1 Backrest
11 1 Seat Frame
12 1 Seat
13 19 Weight
14 1 Weight Rod
15 1 Top Weight
16 2 Weight Guide
17 2 Long Trim
18 1 Insignia Strap
19 1 Left Cam
20 1 Right Cam
21 2 Selector Bracket
22 2 3/8" x 1 1/4" Bolt
23 3 Base Foot
24 1 Rear Name Plate
25 1 Rear Plate Frame
26 1 Pulley Bumper
27 1 “U”-bracket
28 1 Rod Nut
29 1Star Washer
30 1 Rod Washer
31 2 Guide Bushing
32 2 1/4" Washer
33 39 Weight Insert
34 2 Weight Bumper
35 2 Short Pivot Rod
36 4 Wave Washer
37 8 3/8" x 3/4" Bolt
38 12 1" Bearing
39 6 3/8" Washer
40 8 Snap Ring
41 4 Large Bumper
42 6 5/16" x 1" Screw
43 2 Long Pivot Rod
44 1 Long Panel
45 1 Long Panel Frame
46 1 Short Panel
47 1 Short Panel Frame
48 2 1/4" x 1" Button Bolt
49 2 3/8" x 3/4" Self-tapping Screw
50 2 Wingnut
51 2 Finger Guard
52 14 3/8" x 1/2" Button Screw
53 4 Tower Foot
54 4 Arm Bracket
55 1 Short Trim
56 4 Handle Grip
57 6 Large Pivot Washer
58 2 1/4" x 1" Flat Head Screw
59 2 Handle Grip Cap
60 4 Handle Bushing
61 2 Wire Tie
62 1 Bungee Cord
63 1 Weight Pin
64 2 1/2" x 1 1/4" Bolt
65 7 3/8" x 1" Non-patch Bolt
66 2 3/8" x 2 1/4" Bolt
67 2 3/8" x 5/8" Bolt
68 4 CableGuard
69 5 4" Pulley
70 8 3/8" Locknut
71 2 #8 x 3/4" Self-tapping Screw
72 4 3/8" x 2" Bolt
73 2 #4 x 5/8" Screw
74 2 #4 Nut
75 4 Rivet
76 1 Double Cable Guard
77 4 5/16" x 5/8" Screw
78 2 Small Nylon Washer
79 2 Arm Pin
80 2 Arm Knob
81 1 Anchor Strap
82 2Serrated Washer
83 2 Spring
84 1 Epic Insignia
85 1Insignia Frame
86 1 Cable
87 2 Handle Bumper
88 4 Small Bumper
89 1 Bungee Ring
90 2 1/4" x 3/8" Bolt
# 1 Owner’s Manual
PART LIST—Model No. GZFI8063.2 R0405A
If replacement parts are needed, or if parts are missing or damaged, see HOW TO CONTACT CUSTOMER
CARE on the back cover of this manual.

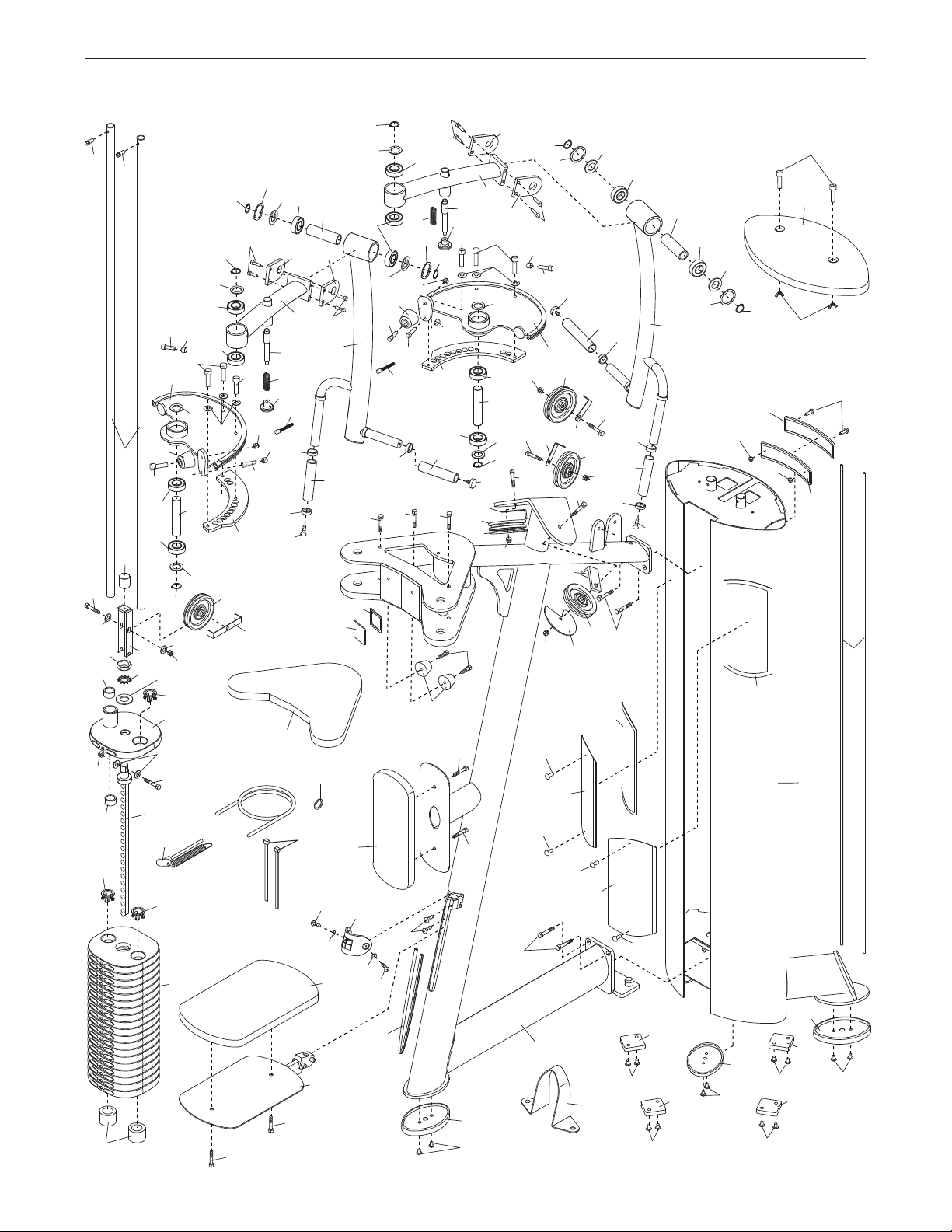

EXPLODED DRAWING—Model No. GZFI8063.2 R0405A
1
2
3
4
13 12
11
34
33
33
63
14
31
15
31
33
30
29
28 27
66
26
61
62
69
76
16
65
65
10
60
59
58
56
5
40 36
38 35 38
36
40
37
40
36 38
38
36 40
35
48
50
20
42
43
38
38 57
40
56
60
72
68
69
51
70
72 68
69
72
68
69
70
70
72
51
69
68
7
60
56
56
58
59
60
8
9
65
65
75
75
75
75
64
18
90
55
23
52
23
52
52
52
53
53
53
53
52
52
52
24
25
73
74
74
41
21
40
38
6
70
38
40 37
37
6
49
49
44
45
46
47
23
17
70
40
57
38
38 43
41
42
19
21
22
37
79
80
79
80
81
66
70
9
54 54
9
54
54
9
57
57
42
70
70
22
77
42
65 65
67
41
83
83
39
57 39
82 82
78
89
87
87
65
84
85
88
77
86
86
88
88
77
88
77
71
32
3271
57
38
13

Part No. GZ7217 R0405A Printed in USA © 2005 ICON IP, Inc.
HOW TO CONTACT CUSTOMER CARE
If you have questions after reading this manual, or if you require assistance, please contact Customer Care at
the address and phone number listed below. Please be prepared to give the following information:
•The MODEL NUMBER of the product (GZFI8063.2).
• The NAME of the product (EPIC STRENGTH FLY/REAR DELT strength machine).
• The SERIAL NUMBER of the product (see the front cover of this manual).
• When ordering replacement parts, please also give the KEY NUMBER and DESCRIPTION of the part(s) (see
the PART LIST and the EXPLODED DRAWING on pages 12 and 13 of this manual).
Customer Care: 1-800-201-2109, Monday–Friday, 8 a.m.–5 p.m. Mountain Time
FreeMotion Fitness, Inc. • 1096 Elkton Dr., Suite 600 • Colorado Springs, CO 80907
