Epic 1200 Pro Elliptical User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. EPEL7906.3
Serial No.
Write the serial number in the
space above for reference.
USERʼS MANUAL
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-997-6999
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.iconservice.com

TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
OWTOUSET EELLIPTICAL .............................................................10
MAINTENANCEANDTROUBLES OOTING ...................................................20
EXERCISEGUIDELINES ...................................................................21
PARTLIST ..............................................................................24
EXPLODEDDRAWING ....................................................................26
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
WARNING DECAL PLACEMENT
2
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 350 lbs. (159 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the pulse sensors
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Pulse Sensor
Ramp
andlebar
Pedal Disc
Wheel
Pedal
Water Bottle older*
Console
andle
Leveling Foot
Fan
*No water bottle is included
Thank you for selecting the revolutionary EPIC™EL
COMMERCIAL PRO elliptical. The EL COMMERCIAL
PRO elliptical provides an impressive selection of fea-
tures designed to make your workouts at home more
effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

5
#8 x 3/4"
Screw (78)–4
5/16" x 1" Patch
Screw (81)–11
#10 x 1/2"
Screw (79)–10
5/16" x 1.5" Button
Bolt (73)–4
5/16" Washer
(104)–6
#10 Fender
Washer (80)–10
5/8" Wave
Washer (102)–6
5/16" Split
Washer (105)–5
5/16" Locknut
(106)–4
M10 x 20mm Patch
Screw (108)–6
Pivot Spacer
(71)–4
5/16" x 2 1/2" Button
Screw (88)–8
M10 Split
Washer (110)–6
M6 Split
Washer
(111)–10
ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tool(s) and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.

6
1.
With the help of another person, place two
packing inserts from the packing material under
the rear of the Frame (1) so that the Frame is
lifted off the floor. Have another person hold
the elliptical to prevent it from moving from
side to side until this step is completed.
Attach the Rear Stabilizer (3) to the Frame (1)
with four 5/16" x 2 1/2" Button Screws (88).
Then, remove the packing inserts and lower the
Rear Stabilizer.
1
2. With the help of another person, place two pack-
ing inserts from the packing material under the
Frame (1) so that the Frame is lifted off the
floor. Have another person hold the elliptical
to prevent it from moving from side to side
until this step is completed.
Attach the Front Stabilizer (2) to the Frame (1)
with four 5/16" x 2 1/2" Button Screws (88).
Then, remove the packing inserts and lower the
Front Stabilizer.
2
88
88
2
1
88
88
3
1
To make assembly easier, read the
information on page 5 before you begin.

7
4. Apply a generous amount of the included
grease to the Pivot Axle (33) and to two 5/8"
Wave Washers (102).
Tip: Avoid pinching or damaging the Upper
Wire Harness (97). Insert the Pivot Axle (33)
through the Upright (6). Then, slide a 5/8" Wave
Washer (102) onto each end of the Pivot Axle.
Slide an Upper Body Arm (12) onto the left side
of the Pivot Axle (33). Attach the Upper Body
Arm with a 5/16" x 1" Patch Screw (81), a Large
Axle Cover (94), and a 5/16" Washer (104).
Attach the other Upper Body Arm (12) in the
same way.
4
3. Tip: Be careful not to pinch the Wire
Harnesses (97, 54) during this step. Start all
screws before tightening any of them.
While a second person holds the Upright (6)
near the Frame (1), connect the Upper Wire
arness (97) to the Lower Wire arness (54).
Attach the Upright (6) to the Frame (1) with five
5/16" x 1" Patch Screws (81) and five 5/16"
Split Washers (105).
3
Avoid pinching the
Wire Harnesses (97, 54)
81
81
81
105
105
54
97
81
94
12
12
102
102
94
33
6
Grease
6
1
97
81
104
104

8
6. Identify the Right Link Arm (10), which is
marked with a “Right” sticker. Apply a small
amount of grease to the axles on the Right Link
Arm and to two 5/8" Wave Washers (102).
Then, slide a Pivot Spacer (71) and a Wave
Washer onto each axle.
At the same time, slide the Right Link Arm (10)
into the right Upper Body Arm (12) and into the
Right Pedal Arm (8).
Attach the Right Link Arm (10) to the right
Upper Body Arm (12) with a 5/16" x 1" Patch
Screw (81), a Large Axle Cover (94), and a
5/16" Washer (104).
Then, attach the Right Link Arm (10) to the
Right Pedal Arm (8) with a 5/16" x 1" Patch
Screw (81), a Small Axle Cover (67), and a
5/16" Washer (104).
Repeat this step for the other side of the
elliptical.
Tip: If you have a hard time working the Link
Arms (10, 11) all the way into the Upper
Body Arms (12) and the Pedal Arms (8, 9),
try working them in halfway and then tight-
ening the 5/16" x 1" Patch Screws (81) to
pull them the rest of the way in.
6
10
67
81
12
71
102
8
Grease
Grease
5
5. Identify the Right Pedal Plate (107), which is
marked with an “R” sticker. Attach the Right
Pedal Plate to the Right Pedal Arm (8) with
three M10 x 20mm Patch Screws (108) and
three M10 Split Washers (110).
Identify the Right Pedal Assembly (62), which is
located in a package marked with a “Right”
sticker. Attach the Right Pedal Assembly to the
right Pedal Plate (107) with five #10 x 1/2"
Screws (79), five M6 Split Washers (111), and
five #10 Fender Washers (80). Tip: To avoid
damaging the Pedal, do not overtighten the
Screws.
Repeat this step for the Left Pedal Plate (not
shown) and the Left Pedal Assembly (56).
80
62
108
107
56
79
79
8
110
111
102
104 81
104
94
71

9
7. While a second person holds the Console (60)
near the Upright (6), connect the console wire
to the Upper Wire arness (97). Then, connect
the console pulse wire to the and Pulse Wire
(65). Insert the excess wire downward into the
Upright.
Tip: Avoid pinching the wires during this
step. Attach the Console (60) to the Upright (6)
with four #8 x 3/4" Screws (78).
7
Avoid pinching
the wires
Pulse
Wire
6
Console
Wire
65
97
78
60
9. Plug the Power Cord (55) into the power socket
at the rear of the elliptical (see OW TO PLUG
IN T E POWER CORD on page 10). IMPOR-
TANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room
temperature before plugging in the power
cord. If you do not do this, the console dis-
plays or other electronic components may
become damaged.
Note: When you plug in the elliptical for the
first time (see HOW TO PLUG IN THE
POWER CORD on page 10), the Ramp (not
shown) will calibrate automatically. The
Ramp will move upward and downward as it
calibrates. When the Ramp stops moving, the
Ramp is calibrated.
IMPORTANT: If the Ramp (not shown) does
not calibrate automatically, see HOW TO
CALIBRATE THE RAMP on page 20 and
manually calibrate the Ramp.
9
8. Identify the Right andlebar (31), which is
marked with a “Right” sticker and orient it as
shown. Attach the Right andlebar to the right
Upper Body Arm (12) with two 5/16" x 1.5"
Button Bolts (73) and two 5/16" Locknuts (106).
Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step to attach the Left Handlebar
(7) to the left Upper Body Arm (12).
8
31
106
73
7
12
55
12
10. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
exagonal
oles

10
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into an appro-
priate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. This product is for use on a nominal
120-volt circuit. IMPORTANT: The elliptical is not
compatible with GFCI-equipped outlets and may
not be compatible with AFCI-equipped outlets.
A temporary
adapter may
be used to
connect the
power cord to
a 2-pole
receptacle as
shown at the
right if a prop-
erly grounded
outlet is not
available. The
temporary adapter should be used only until a prop-
erly grounded outlet can be installed by a qualified
electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a quali-
fied electrician to determine if the outlet box cover
is grounded before using an adapter.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the ellipti-
cal, hold the upright, and place one foot against one of
the front wheels. Pull on the upright and have a sec-
ond person lift the handle on the rear of the frame until
the elliptical will roll on the front wheels. Carefully
move the elliptical to the desired location, and then
lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear
stabilizer until the rocking motion is eliminated.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed
by a qualified electrician.
Grounded Outlet Box
Adapter
Lug
Metal Screw
Power Cord
HOW TO USE THE ELLIPTICAL
Place
your foot
here
Lift here
Pull on
upright

11
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars and step
onto the pedal that is in the lowest position. Next, step
onto the other pedal. Push the pedals until they begin
to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the oppo-
site direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Pedals
Crank Arm
andlebars

12
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the
incline of the ramp with the touch of a button. As you
exercise, the console will provide continuous exercise
feedback. You can even measure your heart rate
using the handgrip pulse sensor.
The console features six target toning workouts
designed to work specific areas of the body. The con-
sole guides you through each workout with a variety of
exercise instructions while automatically changing the
resistance of the pedals and the incline of the ramp.
The console also offers sixteen intensity control work-
outs. Each intensity control workout automatically
changes the resistance of the pedals and prompts you
to increase or decrease your pedaling pace as it
guides you through an effective workout.

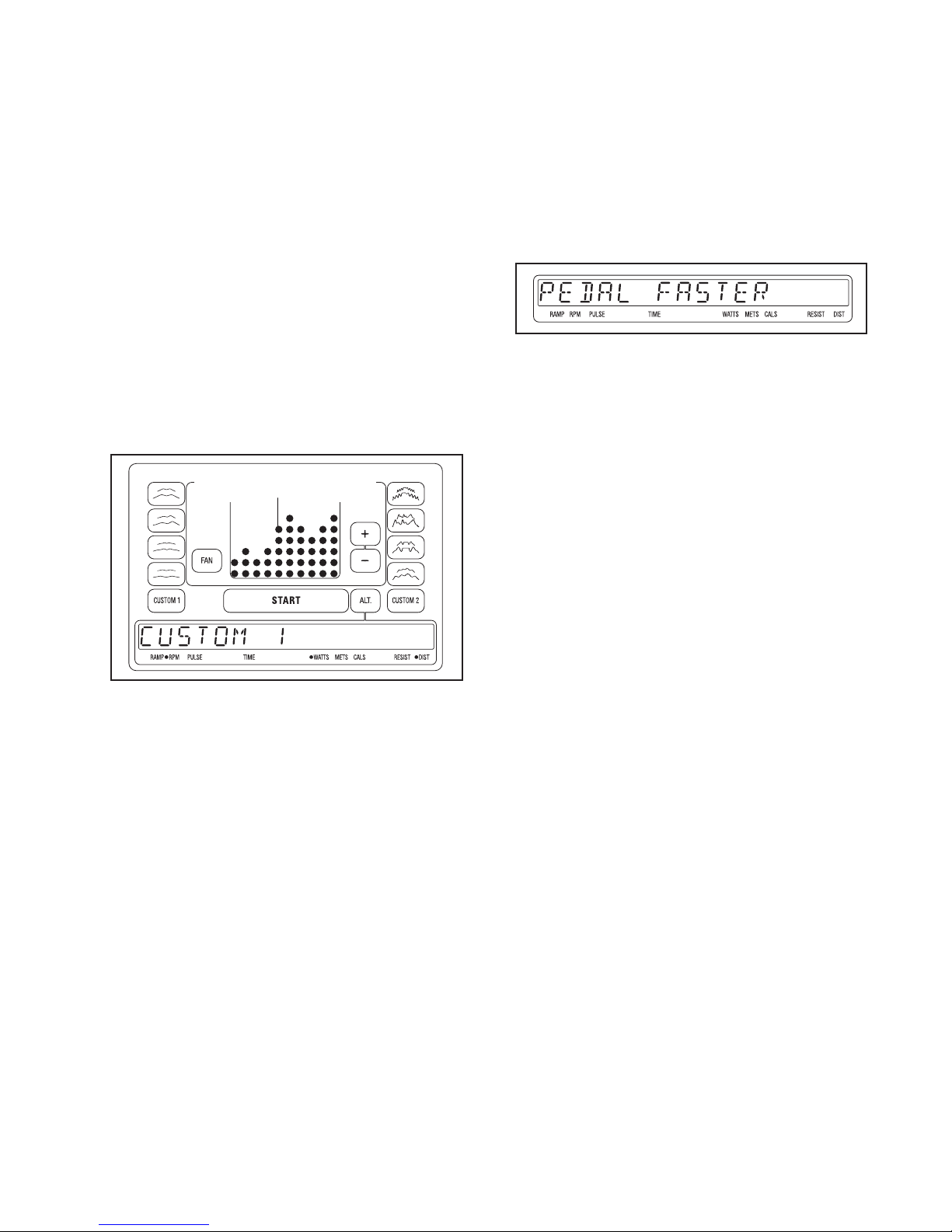

In addition, the console offers two custom workouts
that allow you to create your own workouts and store
them in memory for future use.
To use the manual mode, see page 13. To use a
target toning workout, see page 15. To use an
intensity control workout, see page 17. To create a
custom workout, see page 18. To use a custom
workout, see page 19.
Note: If there is a sheet of plastic on the face of the
console, remove the plastic.
CONSOLE DIAGRAM

13
HOW TO USE THE MANUAL MODE
1. Press any button on the console or begin
pedaling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing any of the
Quick Intensity Control Workouts or Quick Target
Toning Workouts buttons repeatedly until a track
appears in the matrix.
3. Begin pedaling and change the resistance of
the pedals and the incline of the ramp as
desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons. Note: After you press the buttons, it will
take a moment for the pedals to reach the
selected resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press the Ramp increase and decrease buttons.
Note: After you press the buttons, it will take a
moment for the ramp to reach the selected incline
level.
4. Follow your progress with the display.
The far left section of
the display—This section
of the display will show
your pedaling pace (in
revolutions per minute)
and the ramp incline level
for a few seconds each time the ramp incline level
changes. This section of the display will also show
your heart rate when you use the handgrip pulse
sensor (see step 5 on page 14).
The center left section
of the display—This sec-
tion of the display will
show the elapsed time.
Note: During a workout,
except for a custom work-
out, the display will show the time remaining in the
workout.
The center right section
of the display—This sec-
tion of the display can
show your power output
in watts, your exercise
intensity in mets, and the
approximate number of calories you have burned.
Press the ALT. button repeatedly to view the
desired exercise information.
The far right section of
the display—This section
of the display will show
the distance you have
pedaled (in miles) and the
resistance level of the
pedals for a few seconds each time the resistance
level changes.
The matrix—The matrix
will show a track repre-
senting 1/4 mile. As you
exercise, indicators will
appear in succession
around the track until the
entire track appears. The
track will then disappear
and the indicators will again begin to appear in
succession.
Track
Workouts
Buttons

5. Measure your heart rate if desired.
If there are sheets
of plastic on the
metal contacts on
the handgrip
pulse sensor,
remove the plas-
tic. In addition,
make sure that
your hands are
clean. To measure
your heart rate,
hold the handgrip
pulse sensor with your palms resting against the
metal contacts. Avoid moving your hands or
gripping the contacts tightly.
When your pulse is detected, two or three dashes
will appear in the display and then your heart rate
will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan.
Pivot the fan louvers above the display upward or
downward to direct the airflow from the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the display will be
reset.
When you are finished exercising, unplug the
power cord. IMPORTANT: If you do not do this,
the electrical components of the elliptical may
wear prematurely.
Contacts
14

15
HOW TO USE A TARGET TONING WORKOUT
1. Press any button on the console or begin
pedaling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select a target toning workout.
To select a target toning workout, press the Quick
Target Toning Workouts button that has the name
of the desired workout.
When you select a target toning workout, the
name of the workout will appear in the display for
a few seconds and a profile of the resistance lev-
els of the workout will scroll across the matrix.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute seg-
ments. One resistance level, one ramp incline
level, and one target pace setting are programmed
for each segment. Note: The same resistance
level, ramp incline level, and/or target pace setting
may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level or ramp incline level is pro-
grammed for the next segment, the resistance
level or the ramp incline level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals or the ramp incline level will
then change.
As you exercise, the console will display a variety
of exercise instructions. For example, the console
may instruct you to pedal backwards or to use
only your upper body during certain segments of
the workout.
In addition, the colors on the lit muscle display will
indicate your exercise intensity:
Color Exercise Intensity
Pink Low
Blue Low
Green Medium
Yellow Medium
Orange igh
Red igh
You will also be prompted to keep your pedaling
pace near the target pace setting for the current
segment. When the words PEDAL FASTER
appear in the display, increase your pace. When
the words PEDAL SLOWER appear, decrease
your pace. When no words appear, maintain your
current pace. IMPORTANT: The target pace set-
tings are intended only to provide motivation.
Make sure to pedal at a pace that is comfort-
able for you.
Profile

16
If the resistance level or the ramp incline level for
the current segment is too high or too low, you can
manually override the setting by pressing the
Resistance or the Ramp buttons. owever, when
the current segment ends, the pedals will automat-
ically adjust to the resistance level for the next
segment and the ramp incline will automatically
adjust to the incline level for the next segment.
Note: You can also use the + and - buttons next to
the matrix to adjust the resistance settings during
an intensity control workout.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
When the workout is completed, the display will
show a time of 0:00. If you continue to pedal after
the workout is completed, the display will continue
to show exercise feedback; however, the display
will not show the elapsed time until you select the
manual mode or a new workout.
4. Follow your progress with the display.
See step 4 on page 13.
5. Measure your heart rate if desired.
See step 5 on page 14.
6. Turn on the fan if desired.
See step 6 on page 14.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 14.

17
HOW TO USE AN INTENSITY CONTROL
WORKOUT
1. Press any button on the console or begin
pedaling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select an intensity control workout.
To select an intensity control workout, press the
Quick Intensity Control Workouts button that has
the profile of the desired workout once for a
shorter workout or twice for a longer workout.
When you select an intensity control workout, the
name of the workout will appear in the display for
a few seconds and a profile of the resistance lev-
els of the workout will scroll across the matrix.
3. Begin pedaling to start the workout.
Each workout is divided into 20, 30, 45, or 67.5
one-minute segments. One resistance level and
one target pace setting are programmed for each
segment. Note: The same resistance level and/or
target pace setting may be programmed for con-
secutive segments.
During the workout, the workout profile will show
your progress (see the drawing to the left). The
flashing segment of the profile represents the cur-
rent segment of the workout. The height of the
flashing segment indicates the resistance level for
the current segment. At the end of each segment
of the workout, a series of tones will sound and
the next segment of the profile will begin to flash.
If a different resistance level is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
To increase or decrease the overall intensity of the
workout, press the + and - buttons next to the
matrix. The resistance levels of all remaining seg-
ments in the workout will then increase or
decrease proportionately.
As you exercise, you will be prompted to keep
your pedaling pace near the target pace setting for
the current segment. When the words PEDAL
FASTER appear in the display, increase your
pace. When the words PEDAL SLOWER appear,
decrease your pace. When no words appear,
maintain your current pace. IMPORTANT: The tar-
get pace settings are intended only to provide
motivation. Make sure to pedal at a pace that is
comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
owever, when the current segment ends, the
pedals will automatically adjust to the resistance
level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
When the workout is completed, the display will
show a time of 0:00. If you continue to pedal after
the workout is completed, the display will continue
to show exercise feedback; however, the display
will not show the elapsed time until you select the
manual mode or a new workout.
4. Follow your progress with the display.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. Turn on the fan if desired.
See step 6 on page 15.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
Profile

18
HOW TO CREATE A CUSTOM WORKOUT
1. Press any button on the console or begin
pedaling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select a custom workout.
To select a custom workout, press the CUSTOM 1
or the CUSTOM 2 button. When you select a cus-
tom workout, the words CUSTOM 1 or CUSTOM 2
will appear in the display for a few seconds and a
profile of the resistance levels of the workout will
scroll across the matrix.
3. Begin pedaling to start the workout, and
program the desired settings.
Each custom workout is divided into 40 one-
minute segments. You can program one resistance
level and one target pace setting for each
segment.
To program a resistance level for the first segment,
simply adjust the resistance of the pedals by
pressing the Resistance buttons. To program a tar-
get pace for the first segment, simply pedal at the
desired pace.
At the end of the first segment, the workout will
store the current resistance level and your current
pace in memory. Program a resistance level and a
target pace for the second segment as described
above.
Continue exercising for up to forty minutes. Stop
pedaling when you are finished with your workout.
The workout you created will then be stored in
memory. Note: If your workout is less than forty
minutes long, any remaining segments in the
workout will be stored with the default resistance
level and target pace.
4. When the workout is finished, the console will
turn off automatically.
See step 7 on page 15.
Profile

19
HOW TO USE A CUSTOM WORKOUT
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select a custom workout.
To select a custom workout, press the CUSTOM 1
or the CUSTOM 2 button. When you select a cus-
tom workout, the words CUSTOM 1 or CUSTOM 2
will appear in the display for a few seconds and a
profile of the resistance levels of the workout will
scroll across the matrix. Note: If only the first
row of indicators in the matrix is lit, see HOW
TO CREATE A CUSTOM WORKOUT on page
18.
3. Begin pedaling to start the workout.
Each custom workout can have up to 40 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance level and/or tar-
get pace setting may be programmed for consecu-
tive segments.
During the workout, the workout profile will show
your progress. The flashing segment of the profile
(see the drawing above) represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
As you exercise, you will be prompted to keep
your pedaling pace near the target pace setting for
the current segment. When the words PEDAL
FASTER appear in the display, increase your
pace. When the words PEDAL SLOWER appear,
decrease your pace. When no words appear,
maintain your current pace. IMPORTANT: The
target pace settings are intended only to pro-
vide motivation. Make sure to pedal at a pace
that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
owever, when the current segment ends, the
pedals will automatically adjust to the resistance
level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
4. Change the workout if desired.
If desired, you can change the workout while
using it. To change the resistance level for the
current segment, simply press the Resistance
buttons. At the end of the current segment, the
new resistance level will be stored in memory. To
change the target pace for the current seg-
ment, simply change your pedaling pace. At the
end of the current segment, your pace will be
stored in memory. You can continue exercising
and changing the workout for up to forty minutes.
5. Follow your progress with the display.
See step 4 on page 14.
6. Measure your heart rate if desired.
See step 5 on page 15.
7. Turn on the fan if desired.
See step 6 on page 15.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
Profile

20
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the con-
sole and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in.
If the console does not display your heart rate when
you hold the handgrip pulse sensor, or if the displayed
heart rate appears to be too high or too low, see step
5 on page 14.
HOW TO CALIBRATE THE RAMP
If the ramp is not functioning properly, the ramp may
need to be calibrated. To calibrate the ramp, hold
down the Start button and the Resistance increase
button for about 5 seconds until the display on the
console changes. Next, press the Start button once,
and then press the Ramp increase button. The ramp
will move upward and downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
Then, press the Start button repeatedly to return to the
manual mode.
HOW TO AD UST THE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest setting, the
belt may need to be adjusted.
To adjust the
belt, first care-
fully pry off the
right Disc Cover
(41) using a flat
screwdriver.
Next, remove the
four screws (not
shown) from the
center of the
right Pedal Disc
(40). Gently
rotate the Disc away from the elliptical.
Loosen, but do
not remove, the
three indicated
screws (A).
Insert the shaft of
a screwdriver
downward
between the
Idler (B) and the
Idler Pulley (C).
Pull the top of
the screwdriver
toward the front
of the elliptical until the Belt (57) is tight. Then, tighten
the three screws.
Reattach the right disc with the four screws and then
reattach the right disc cover.
MAINTENANCE AND TROUBLESHOOTING
41
40
B
C
A
57
