Epson 1400 - Stylus Photo Color Inkjet Printer User manual

Epson Stylus Photo 1400
User’s Guide
®

2
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without the prior written permission of Seiko Epson Corporation. The information
contained herein is designed only for use with this Epson product. Epson is not responsible for any
use of this information as applied to other equipment.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or
third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result
of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to
this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s
operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as Original Epson Products or
Epson Approved Products by Seiko Epson Corporation.
A Note Concerning Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when using any
Epson product. While some countries' laws permit limited copying or reuse of copyrighted material
in certain circumstances, those circumstances may not be as broad as some people assume. Contact
your legal advisor for any questions regarding copyright law.
Trademarks
Epson, Epson Stylus, Claria, and MicroPiezo are registered trademarks; Epson Exceed Your Vision is
a registered logomark; and Supplies Central is a service mark of Seiko Epson Corporation.
BorderFree and RPM are registered trademarks, PhotoEnhance is a trademark, and Epson
Connection is a service mark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be
trademarks of their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2008 Epson America, Inc. CPD-22650R1
8/08

3
Contents
Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exif Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Printing from Start to Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Special Papers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Printing with Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Printing with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Mac OS X 10.5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Mac OS X 10.3 and 10.4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Selecting the Correct Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Printing Borderless Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Borderless Printing with Windows . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Borderless Printing with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . 32
Storing and Displaying Your Prints . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Printing on CDs and DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning the Rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Designing and Printing a CD/DVD with Windows . . . . . . . . . . . . . . 37
Designing and Printing a CD/DVD with a Macintosh . . . . . . . . . . . . 41
Direct Printing from a Digital Camera or Camera Phone . . . . . . . . . . . . . . 46

4Contents
Maintaining Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Checking the Print Head Nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Replacing an Ink Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Checking the Ink Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Purchasing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Ink Cartridge Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Removing and Installing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . 53
Aligning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cleaning the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Transporting the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Diagnosing Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Running a Printer Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Setup and Software Installation Problems . . . . . . . . . . . . . . . . . . . . . 64
Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Print Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Problems with Paper Feeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
CD/DVD Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Miscellaneous Printout Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Uninstalling Printer Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Epson Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Purchase Supplies and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Other Software Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . 76

5
Requirements and Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Windows System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Macintosh System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Ink Cartridge Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Epson America, Inc. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

6Contents

Welcome 7
Welcome
Your Epson Stylus®Photo 1400 is a full-featured, wide-format photo printer.
With its exceptional speed and print resolution, you can print superior
photographs and enlargements and use it for all of your everyday printing. It
provides you with these advanced features:
■Claria®Hi-Definition ink for the ultimate combination of photo quality and
longevity
■Smooth gradations and sharp detail with Epson’s patented MicroPiezo®print
head and DX5™technology
■Automatic photo correction when printing from Windows®and Mac OS®X
10.5
■True BorderFree®frame-ready prints on select 4 × 6, 5 × 7, 8 × 10, letter-size,
11 × 14, 11 × 17, 13 × 19, and even 12 × 12 scrapbook-size papers
■CD and DVD printing on ink jet-printable CDs and DVDs
■PictBridge™or USB Direct-Print printing directly from your digital camera
or camera phone
Exif Print
The Exif (Exchangeable Image File) Print format includes information about your
digital camera settings in JPEG/TIFF files so your printer and application can use
them to create accurate print settings. Most digital cameras store Exif Print
information such as shutter speed, metering, flash, exposure settings, resolution,
and lens use in the JPEG/TIFF image file. Your printer uses the information to
ensure the most accurate image reproduction.

8Welcome
About Your Documentation
To set up your printer and install its software, see the Start Here sheet.
This book contains instructions on loading paper, printing with Windows and
Macintosh,
®printing borderless photos, printing on CDs and DVDs, direct
printing from a digital camera or camera phone, maintaining your printer, and
solving basic problems.
For more information about your printer, see the on-screen Reference Guide by
double-clicking the icon for it on your desktop.
Please follow these guidelines throughout:
Warning:
Warnings must be followed carefully to avoid bodily injury.
Caution:
Cautions must be observed to avoid damage to your equipment.
Note:
Notes contain important information about your printer.
Tip:
Tips contain hints for better printing.

Printing from Start to Finish 9
Printing from Start to Finish
Follow the steps in these sections to load paper, CDs, or DVDs, and print from
your computer, digital camera, or camera phone:
■“Loading Paper” below
■“Printing with Windows” on page 16
■“Printing with a Macintosh” on page 20
■“Selecting the Correct Paper Type” on page 27
■“Printing Borderless Photos” on page 28
■“Printing on CDs and DVDs” on page 34
■“Direct Printing from a Digital Camera or Camera Phone” on page 46
Loading Paper
The type of paper you choose affects the way your printout looks, so be sure to
select the correct paper for your job. For the best results, you’ll want to use one of
Epson’s special ink jet papers designed for your printer. For guidelines, see page 12.

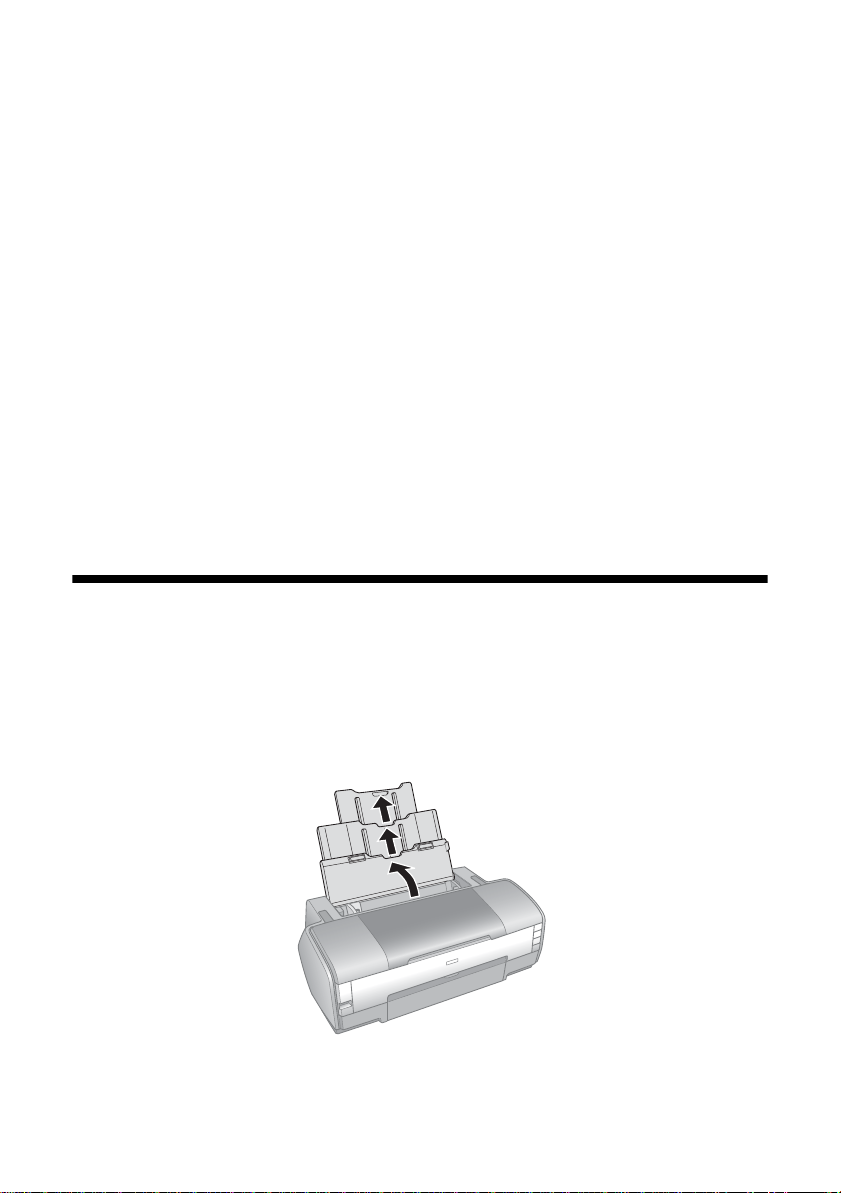

1. Open the paper support and slide out its extensions.

10 Printing from Start to Finish
2. Open the front flap, then pull out the output tray and its extension.
3. Press in the release button on the left edge guide and slide the guide to the left.
Release button

Loading Paper 11
4. Insert the paper, printable side up, against the right edge guide and behind the
tab. The printable side is usually whiter or glossier than the other side.
You can load about 120 sheets of plain paper. (See page 15 for capacity
guidelines on special paper, such as photo or matte paper.)
5. Press in the release button on the left edge guide and slide the guide against
the left edge of the paper (but not too tightly).
Note:
The left edge guide moves slightly during paper handling and printing. Do not
adjust the guide if it moves.
Larger paper Smaller paper
Tab
Always load the short
edge first, even for
landscape printing.
Tab
Larger paper Smaller paper
Release button
Release button

12 Printing from Start to Finish
Follow these guidelines when loading paper:
■Don’t load paper above the arrow mark on the left edge guide. Make sure the
paper is under the tabs on the left and right edge guides.
■Load the printable side face-up. It’s often glossier or whiter than the other
side.
■Always load the short edge first, even when printing in landscape mode.
■Load letterhead or preprinted paper into the printer top edge first.
■If you experience paper feeding problems, try loading fewer sheets.
■If you’re using special paper, check the package for additional instructions on
loading and using the paper.
Special Papers
You can achieve good results with most types of plain bond paper. Coated papers,
however, provide superior printouts because they absorb less ink. Epson provides
special papers that are formulated for the ink used in Epson ink jet printers and
recommends these papers to ensure high-quality results.
Note:
When you use special paper, check the package for special instructions on loading and
using the paper.
Caution:
If your Epson®special paper includes a cleaning sheet, don’t use it with this printer; the
sheet may jam inside your printer.

Loading Paper 13
Epson offers the following special papers for the Epson Stylus Photo 1400:
Paper name Size Part number Sheet count
Epson Ultra Premium Photo
Paper Glossy Borderless 4 × 6 inches S042181
S042174 60 100
Borderless 5 × 7 inches S041945 20
Borderless 8 × 10 inches S041946 20
Letter (8.5 × 11 inches) S042182
S042175 25 50
Epson Premium Photo Paper
Semi-gloss Borderless 4 × 6 inches S041982 40
Letter (8.5 × 11 inches) S041331 20
Super B (13 × 19 inches) S041327 20
Epson Premium Photo Paper
Glossy Borderless 4 × 6 inches S041808
S041727 40 100
Borderless 5 × 7 inches S041464 20
Borderless 8 × 10 inches S041465 20
Letter (8.5 × 11 inches) S042183
S041667 25 50
Borderless 11 × 14 inches S041466 20
US B (11 × 17 inches) S041290 20
A3 (11.7 × 16.5 inches) S041288 20
Super B (13 × 19 inches) S041289 20
Epson Photo Paper Glossy Borderless 4 × 6 inches S041809
S042038 50 100
Letter (8.5 × 11 inches) S041141
S041649
S041271
20
50
100
US B (11 × 17 inches) S041156 20
Super B (13 × 19 inches) S041143 20

14 Printing from Start to Finish
You can purchase genuine Epson ink and paper at Epson Supplies CentralSM at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766) or visit Epson’s website.
Epson Bright White Paper Letter (8.5 × 11 inches) S041586 500
Epson Premium Presentation
Paper Matte Borderless 8 × 10 inches S041467 50
Letter (8.5 × 11 inches) S041257
S042180 50 100
Borderless 11 × 14 inches S041468 50
A3 (11.7 × 16.5 inches) S041260 50
Super B (13 × 19 inches) S041263 50
Epson Premium Presentation
Paper Matte Double-sided Letter (8.5 × 11 inches) S041568 50
Epson Ultra Premium
Presentation Paper Matte Letter (8.5 × 11 inches) S041341 50
A3 (11.7 × 16.5 inches) S041343 50
Super B (13 × 19 inches) S041339 50
Epson Presentation Paper
Matte Letter (8.5 × 11 inches) S041062 100
Legal (8.5 × 14 inches) S041067 100
US B (11 × 17 inches) S041070 100
Super B (13 × 19 inches) S041069 100
Epson Ultra Premium Photo
Paper Luster Letter (8.5 × 11 inches) S041405 50
A3 (11.7 × 16.5 inches) S041406 50
Super B (13 × 19 inches) S041407
S041604 50
Epson Iron-on Cool Peel
Transfer Paper Letter (8.5 × 11 inches) S041153 10
Epson Photo Quality Self-
Adhesive Sheets A4 (8.3 × 11.7 inches) S041106 10
Paper name Size Part
number Sheet count

Loading Paper 15
When loading Epson special papers, follow these capacity guidelines:
Paper name Loading capacity
Epson Presentation Paper Matte A3 or larger sizes:
50 sheets
Smaller sizes:
100 sheets
Epson Bright White Paper 80 sheets
Epson Ultra Premium Photo Paper Glossy 20 sheets
Epson Premium Photo Paper Glossy
Epson Premium Photo Paper Semi-gloss
Epson Photo Paper Glossy
Epson Ultra Premium Presentation Paper Matte
Epson Premium Presentation Paper Matte
Epson Ultra Premium Photo Paper Luster
A3 or larger sizes:
10 sheets
Smaller sizes:
20 sheets
Epson Premium Presentation Paper Matte Double-sided
Epson Iron-on Cool Peel Transfer Paper
Epson Photo Quality Self-Adhesive Sheets
One sheet

16 Printing from Start to Finish
Printing with Windows
Follow the instructions in this section to print a basic document or photo.
For instructions on printing borderless photos, see page 28. For more advanced
printing instructions, see your on-screen Reference Guide.

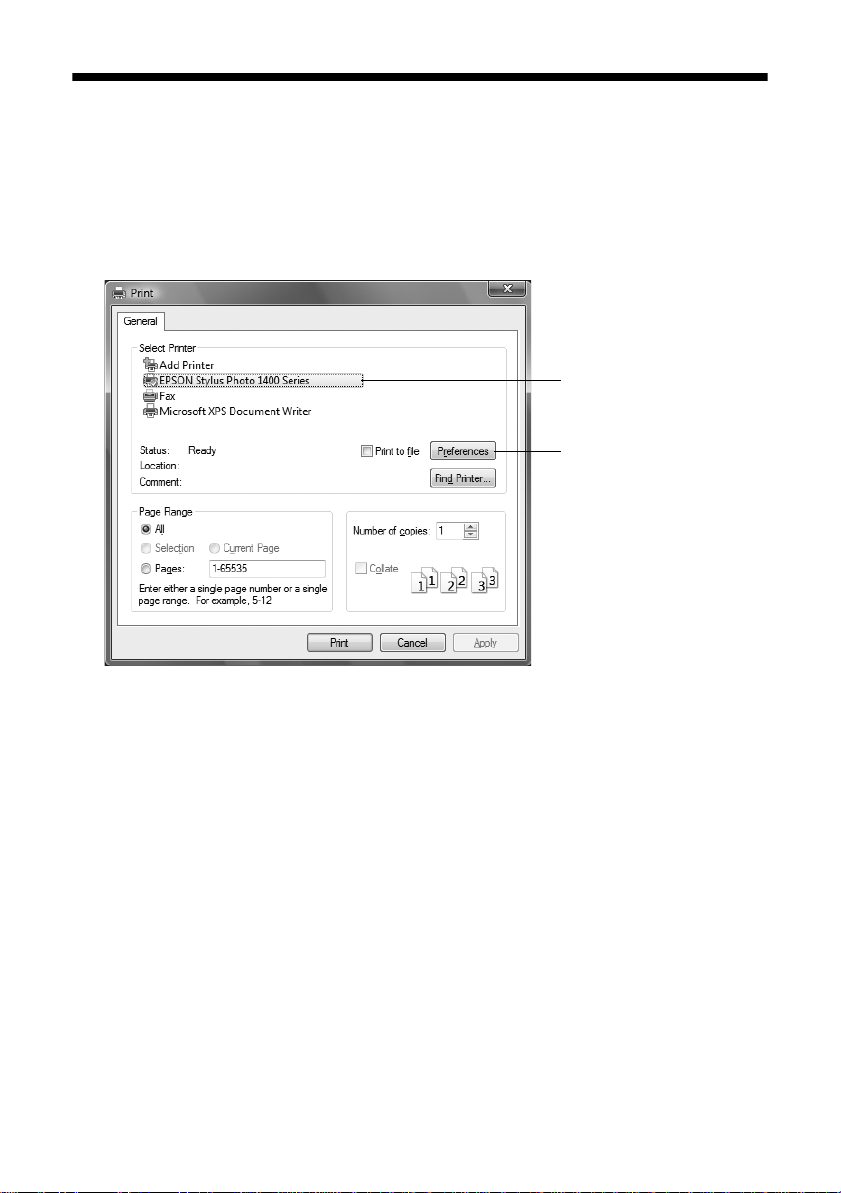

1. Open the File menu and select Print. You see a print window like this one:
2. Make sure EPSON Stylus Photo 1400 Series is selected.
3. Click the Properties or Preferences button. (If you see a Setup, Printer, or
Options button, click it. Then click Properties or Preferences on the
next screen.)
Select your printer here
Click here to open
your printer software

Printing with Windows 17

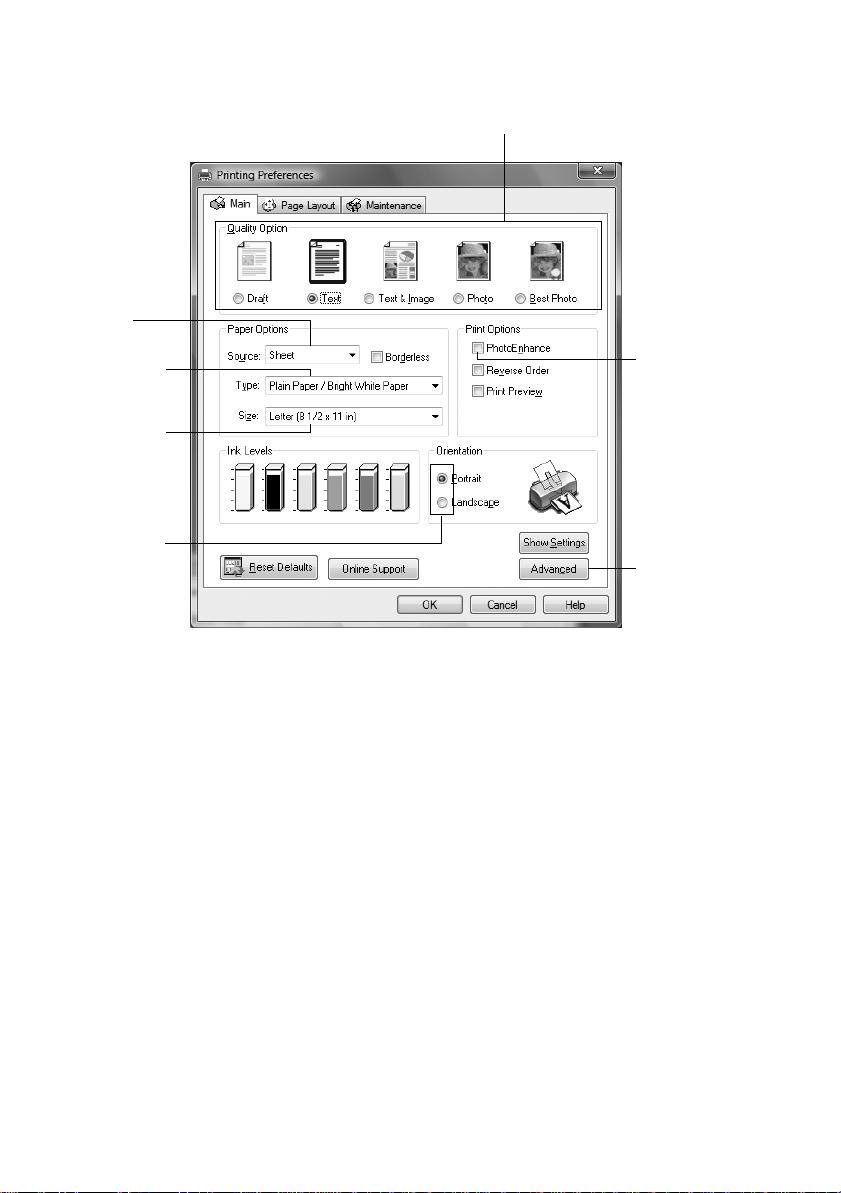

4. On the Main tab, select the basic print settings:
Select from these Quality Option settings:
Draft: For rough drafts with reduced print quality
Text: For text-only documents with higher text quality
Text & Image: For documents with text and images with higher quality
Photo: For photos and graphics with good quality and speed
Best Photo: For photos or graphics with high print quality
5. Select Sheet as the Source setting.
6. Make sure the paper Type and Size settings match the paper you’ve loaded in
the printer. See “Selecting the Correct Paper Type” on page 27.
7. Select the direction you want your image or document to print as the
Orientation setting. Select Portrait for vertical orientation or Landscape for
horizontal.
8. Select PhotoEnhance to automatically correct your photos.
Select the type of document you’re printing
Selectyour
paper Type
Click here
for more
options
Selectyour
document
or image
orientation
Selectyour
paper Size
Select
PhotoEnhance™
to automatically
correct photos
Select
Sheet

18 Printing from Start to Finish

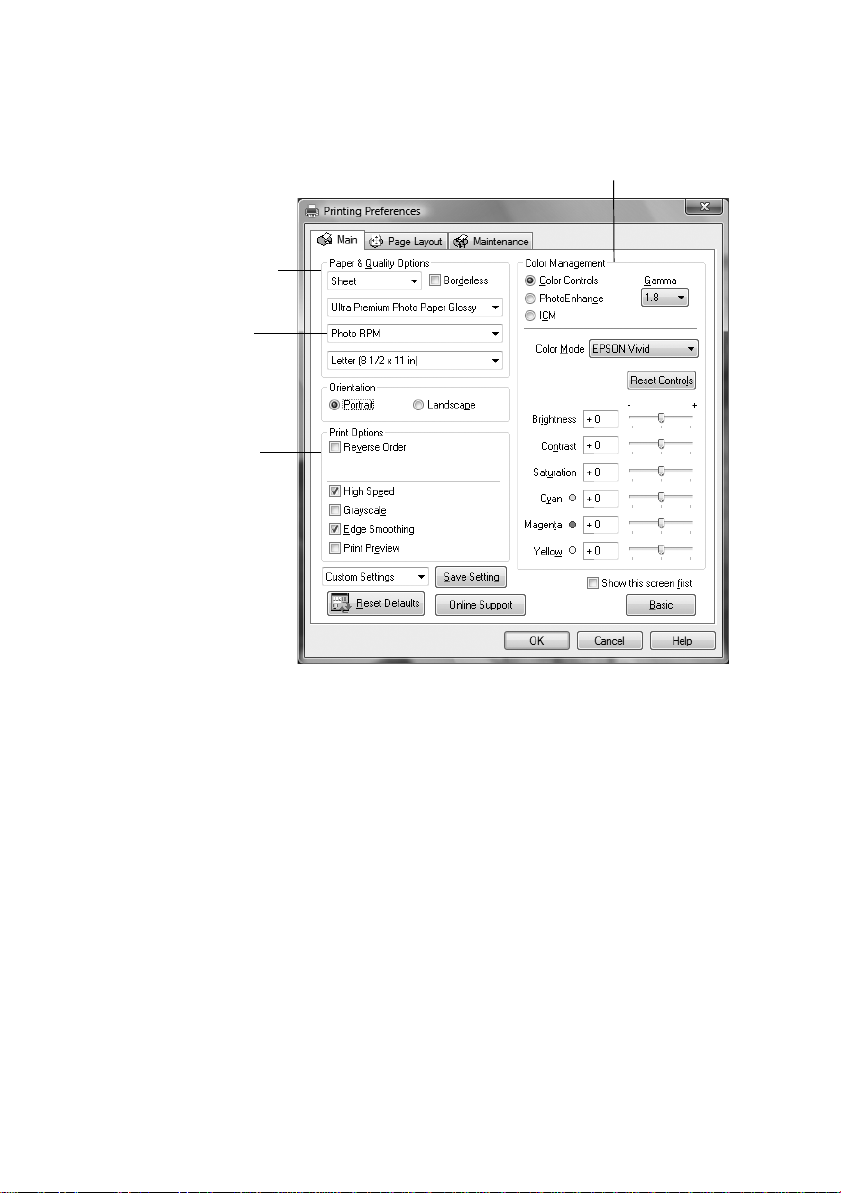

9. For more printing options, click the Advanced button. Then select the
following settings as necessary.
Note:
When you select Photo RPM for the highest print quality, printing will take longer.
For more information about advanced settings, or instructions on saving them as a
group so you can reuse them later, click the Help button or click the ?button and
then click on the area you need help with.
10. If you want to change the layout settings, click the Page Layout tab and
select settings as necessary.
11. Click OK to save your settings, then click OK or Print to start printing.
Select Print Options
as necessary
SelectPhoto RPM
for the best print
quality on certain
paper types
Select Paper & Quality
Options as necessary
Select a color management method
(To choose No Color Adjustment, click ICM first)

Printing with Windows 19
During printing, the following window appears and shows the progress of your
print job. You can use these buttons to cancel, pause, or resume printing. You can
also see an estimate of your ink levels.
Tip:
You can also press the )paper button on your printer to cancel printing.
Selecting Default Settings
When you change the printer settings within a program, they only apply to that
program. If you want to change the default printer settings for all your Windows
programs, follow these steps:
1. Right-click the printer icon in the lower right corner of your screen
(taskbar).
2. Select Printer Settings.
3. Select the default settings you want for all your applications, then click OK.
You can still change the printer settings in your individual programs, when
necessary.
Click to cancel printing
Click to pause or
resume printing
Click to purchase ink

20 Printing from Start to Finish
Printing with a Macintosh
Follow the instructions below for your Mac OS operating system to print a basic
document or photo. For instructions on printing borderless photos, see page 28.
For more advanced printing instructions, see your on-screen Reference Guide.
Mac OS X 10.5
1. Open a photo or document in an application.
2. Open the File menu and select Print.

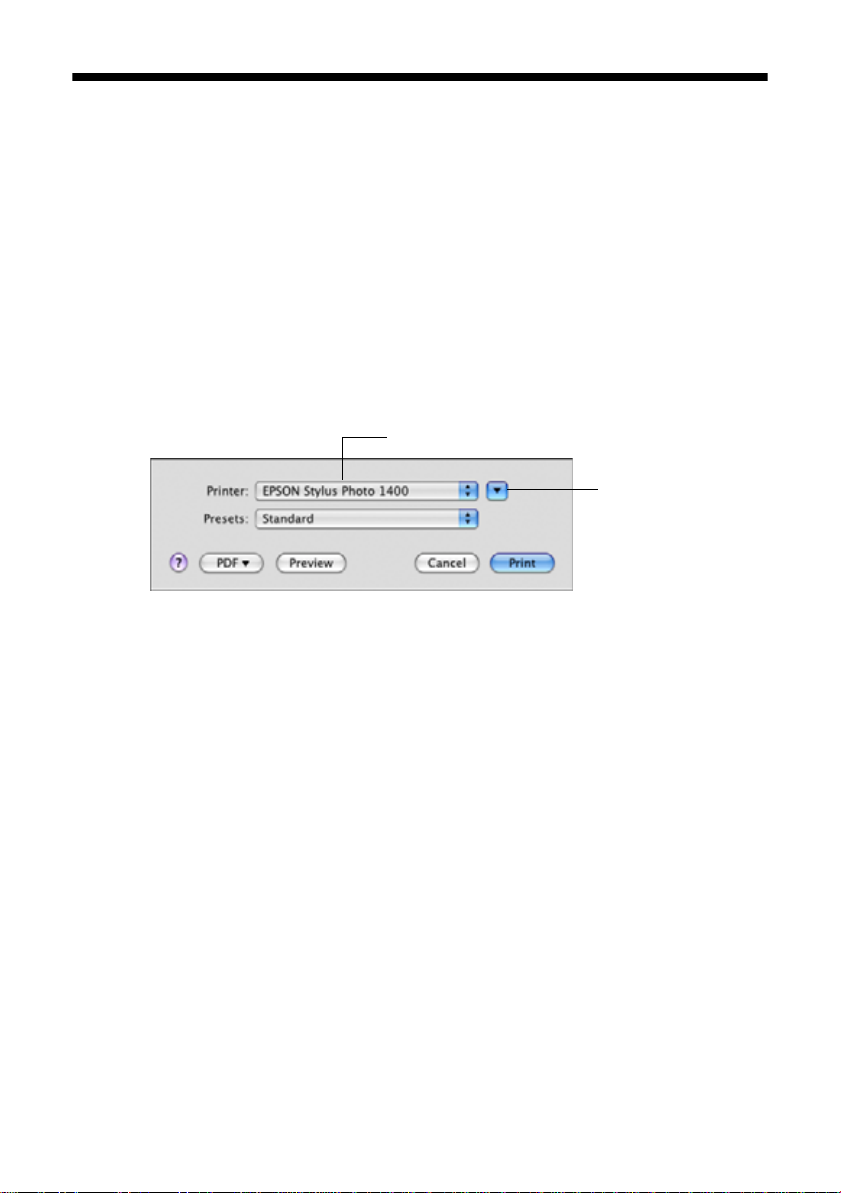

3. Select EPSON Stylus Photo 1400 as the Printer setting.
4. Click dto expand the Print window, if necessary.
Click to expand
Select EPSON Stylus Photo 1400
