Equinox Systems EQLED203 User manual

Order code: EQLED203
Super Boogie
User Manual

www.prolight.co.uk Super Boogie User Manual 2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Before your initial start-up, please make sure that there is no damage caused during transportation.
• Should there be any damage, consult your dealer and do not use the equipment.
• To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
• Please note that damages caused by user modications to this equipment are not subject to warranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
OPERATING DETERMINATIONS
• If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and
the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc.
• Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and/or property.
Safety advice
CAUTION!
KEEP THIS EQUIPMENT
AWAY FROM RAIN,
MOISTURE AND LIQUIDS
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!
• Never let the power cable come into contact with other
cables. Handle the power cable and all mains voltage
connections with particular caution!
• Never remove warning or informative labels from the unit.
• Do not open the equipment and do not modify the unit.
• Do not connect this equipment to a dimmer pack.
• Do not switch the equipment on and off in short intervals,
as this will reduce the system’s life.
• Only use the equipment indoors.
• Do not sit the equipment on a at surface as this can
block the air intake to cool the LED.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when
equipment is not in use or before cleaning! Only handle
the power-cable by the plug. Never pull out the plug by
pulling the power-cable.
• Make sure that the available mains supply voltage is
between 100~240V AC, 50/60Hz.
• Make sure that the power cable is never crimped or
damaged. Check the equipment and the power cable
periodically.
• If the equipment is dropped or damaged, disconnect the
mains power supply immediately and have a qualied
engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic
temperature uctuation (e.g. after transportation),
do not connect power or switch it on immediately.
The arising condensation might damage the equipment.
Leave the equipment switched off until it has reached
room temperature.
• If your product fails to function correctly, stop use
immediately. Pack the unit securely (preferably in the
original packing material), and return it to your Pro Light
dealer for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be
carried out by a qualied technician. THIS UNIT CONTAINS
NO USER SERVICEABLE PARTS.
• This lighting xture is for professional use only - it is
not designed for or suitable for household use. The
product must be installed by a qualied technician in
accordance with local territory regulations. The safety of
the installation is the responsibility of the installer. The
xture presents risks of severe injury or death due to re
hazards, electric shock and falls.
• Warning! Risk Group 2 LED product according to
EN 62471. Do not view the light output with optical
instruments or any device that may concentrate the beam.
• WARRANTY: One year from date of purchase.

www.prolight.co.uk Super Boogie User Manual 3
Product overview & technical specications
The extremely wide coverage effect with super bright LEDs
makes the Super Boogie ideal for both installation and
mobile applications. Brilliant beams of colour along with
versatile light shows make this effect impressive under
both DMX and built-in show modes.
• 24 x 3W LEDs (R: 6, G: 6, B: 6, A: 6)
• Beam angle: 78°
• DMX channels: 4/6 or 26 selectable
• Auto, sound active and master/slave modes
• 0-100% dimming and variable strobe
• IR remote control included
• Supplied with mounting bracket
• 4 push button menu with LED display
• IEC power input/output
• 3-Pin XLR input/output
• Convection cooled
Super Boogie
Specications
Power consumption 72W
Power supply 100~240V, 50/60Hz
Fuse F3A 250V
Dimensions 277 x 265 x 240mm
Weight 2.9kg
Order code EQLED203
265mm 40mm
203mm
240mm
70mm
277mm

www.prolight.co.uk Super Boogie User Manual 4
Technical specications
In the box: 1 x xture,
1 x power cable
& 1 IR remote
01 - Hanging bracket
02 - Adjustment knobs
03 - IEC power input
04 - Fuse F3A 250V
05 - IEC power output
06 - Safety eye
07 - 3-Pin DMX input
08 - 3-Pin DMX output
09 - Microphone
10 - LED display
11 - Function buttons
01
02
06
08
07
11 09
10
03
04
05
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk

www.prolight.co.uk Super Boogie User Manual 5
Operating instructionsOperating instructionsOperating instructions
MENU
A001
A512
Addr
DMX address setting
N A S t
SL1
SL2
SLnd
Master/ slave mode
test
Auto Test
5o 0 5o16
5e995e 0
SoUn
Sound active
ver
Firmware Version
v10
o N
oFF
LEd
Display blackout
Display invert
d 1 s p
d 1 s p
4Ch
26Ch
CHnd
Channel modes
Sound sensitivity
Au 0 Au16
S p 9S P 0
AutO
Auto modes
Auto speed

www.prolight.co.uk Super Boogie User Manual 6
DMX mode:
Operating in a DMX control mode environment gives the user the greatest exibility when it comes
to customising or creating a show. In this mode you will be able to control each individual trait of
the xture and each xture independently.
To access the DMX address mode, press the “MENU” button and use the “UP” and “DOWN” buttons on
the rear of the unit to show Addr on the LED display. Now press the “ENTER” button and use the “UP”
and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
DMX channel mode:
To access the DMX channel mode, press the “MENU” button and use the “UP” and “DOWN” buttons on
the rear of the unit to show Chnd on the LED display. Now press the “ENTER” button and use the “UP”
and “DOWN” buttons to choose one of the 4 or 26 DMX channel modes. Press the “ENTER”
button to conrm the setting. To exit out of any of the above options, press the “MENU” button.
Operating instructions
4 Channel 26 Channel Function Value
1 1 Master dimmer (0-100%) 000-255
2 2 No function 000-007
Strobe (slow-fast) 008-255
3 Colour Chase
No function 000-007
Chase 01 008-022
Chase 02 023-037
Chase 03 038-052
Chase 04 053-067
Chase 05 068-082
Chase 06 083-097
Chase 07 098-112
Chase 08 113-127
Chase 09 128-142
Chase 10 143-157
Chase 11 158-172
Chase 12 173-187
Chase 13 188-202
Chase 14 203-217
Chase 15 218-232
Chase 16 233-247
All Chase 248-255
6Chase Auto Speed (slow-fast) 000-127
Chase Sound Sensitivity (slow-fast) 128-255
3 Red 1 dimmer (0-100%) 000-255
4 Green 1 dimmer (0-100%) 000-255
5 Blue 1 dimmer (0-100%) 000-255
6 White 1 dimmer (0-100%) 000-255
7 Red 2 dimmer (0-100%) 000-255

www.prolight.co.uk Super Boogie User Manual 7
Operating instructions
4-ch Mode 26-ch Mode Function Value
8 Green 2 dimmer (0-100%) 000-255
9 Blue 2 dimmer (0-100%) 000-255
10 White 2 dimmer (0-100%) 000-255
11 Red 3 dimmer (0-100%) 000-255
12 Green 3 dimmer (0-100%) 000-255
13 Blue 3 dimmer (0-100%) 000-255
14 White 3 dimmer (0-100%) 000-255
15 Red 4 dimmer (0-100%) 000-255
16 Green 4 dimmer (0-100%) 000-255
17 Blue 4 dimmer (0-100%) 000-255
18 White 4 dimmer (0-100%) 000-255
19 Red 5 dimmer (0-100%) 000-255
20 Green 5 dimmer (0-100%) 000-255
21 Blue 5 dimmer (0-100%) 000-255
22 White 5 dimmer (0-100%) 000-255
23 Red 6 dimmer (0-100%) 000-255
24 Green 6 dimmer (0-100%) 000-255
25 Blue 6 dimmer (0-100%) 000-255
26 White 6 dimmer (0-100%) 000-255

www.prolight.co.uk Super Boogie User Manual 8
Operating instructions
Master/slave mode:
To set the master unit, press the “MENU” button and use the “UP” and “DOWN” buttons on the rear of
the unit to show SLnd on the LED display. Press the “ENTER” button and use the “UP” and “DOWN”
buttons on the rear of the unit to show NASt. Press the “ENTER” button to conrm the setting.
To set the other units in slave mode, press the “MENU” button and use the “UP” and “DOWN” buttons on
the rear of the unit to show SLnd on the LED display. Now press the “ENTER” button and use the “UP”
and “DOWN” buttons to choose either SL1 or SL 2.
Press the “ENTER” button to conrm the setting.
The unit/s will now run in sequence with the master unit.
To exit out of any of the above options, press the “MENU” button.
Please ensure that all slave units are set to the same DMX channel mode as the master unit.
Sound active:
To access the sound active setting, press the “MENU” button and use the “UP” and “DOWN” buttons on
the rear of the unit to show SoUn on the LED display. Now press the “ENTER” button and use the “UP”
and “DOWN” buttons to choose between So 0 to So16. Press the “ENTER” button and use the “UP”
and “DOWN” buttons to select the sound sensitivity between Se O to Se99. Press the “ENTER”
button to conrm the setting.
Value: 0 - 99 (0 = low, 99 = high)
To exit out of any of the above options, press the “MENU” button.
Auto Modes:
To access the auto setting, press the “MENU” button and use the “UP” and “DOWN” buttons
on the rear of the unit to show Aut0 on the LED display. Now press the “ENTER” button and use the
“UP” and “DOWN”” buttons to choose between Au 0 to au16. Press the “ENTER” button and use the
“UP” and “DOWN”” buttons to select the auto speed between SP 0 to SP 9.
Press the “ENTER” button to conrm the setting. To exit out of any of the above options, press the
“MENU” button.
Display blackout:
To access the display blackout setting, press the “MENU” button and use the “UP” and “DOWN” buttons
on the rear of the unit to show LEd on the LED display. Now press the “ENTER” button and use the
“UP” and “DOWN” buttons to choose between on (display blacks out) or ofF(display always on).
Press the “ENTER” button to conrm the setting. To exit out of any of the above options, press the “MENU”
button.

www.prolight.co.uk Super Boogie User Manual 9
Display invert setting:
To access the display invert setting, press the “MENU” button and use the “UP” and “DOWN” buttons on
the rear of the unit to show dIsp on the LED display. Now press the “ENTER” button and use the “UP”
and “DOWN” buttons to choose between dIsp or ds1p. Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MENU” button.
Software version:
To access the xtures software version, press the “MENU” button and use the “UP” and “DOWN” buttons
on the rear of the unit to show uer on the LED display. Now press the “ENTER” button.
The unit will now display the xtures software version e.g. u10.
To exit out of any of the above options, press the “MENU” button.
IR remote functions:
Button functions:
01 - Sets the unit into blackout on or off
02 - Runs the Auto modes - Use the Auto ‘+’ and ‘-’
buttons to change the desired program
03 - Runs the Sound 1 mode
04 - Runs the Sound 2 mode
05 - Runs the Sound 3 mode
06 - Runs the Strobe mode
07 - Sets the auto program - Use the ‘+’ and ‘-’ buttons
to change the desired program
08 - Sets the run speed/sensitivity - Use the ‘+’ and ‘-’
buttons to change the desired speed (auto mode)/
sensitivity (sound mode)
09 - Sets the strobe mode run speed - Use the ‘+’ and ‘-’
buttons to change the desired speed
–
+
–
+
AUTO
–
+
STROBE
SPEED
SPEED/
SENSITIVITY
ON/OFF
STROBE
AUTO
SOUND
2
SOUND
1
SOUND
3
01
02
03
05
04
06
07
08
09
Operating instructions

www.prolight.co.uk Super Boogie User Manual 10
Setting the DMX address:
The DMX mode enables the use of a universal DMX controller. Each xture requires a “start address”
from 1- 512. A xture requiring one or more channels for control begins to read the data on the channel
indicated by the start address. For example, a xture that occupies or uses 7 channels of DMX and was
addressed to start on DMX channel 100, would read data from channels: 100, 101, 102, 103, 104,
105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in
the chain starts at 107.
DMX 512:
DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent
xtures and controllers. A DMX controller sends DMX data instructions form the controller to the xture.
DMX data is sent as serial data that travels from xture to xture via the DATA “IN” and DATA “OUT”
XLR terminals located on all DMX xtures (most controllers only have a data “out” terminal).
DMX linking:
DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the shortest
cable path possible. The order in which xtures are connected in a DMX line does not inuence the
DMX addressing. For example; a xture assigned to a DMX address of 1 may be placed anywhere in
a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a
DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit,
no matter where it is located in the DMX chain.

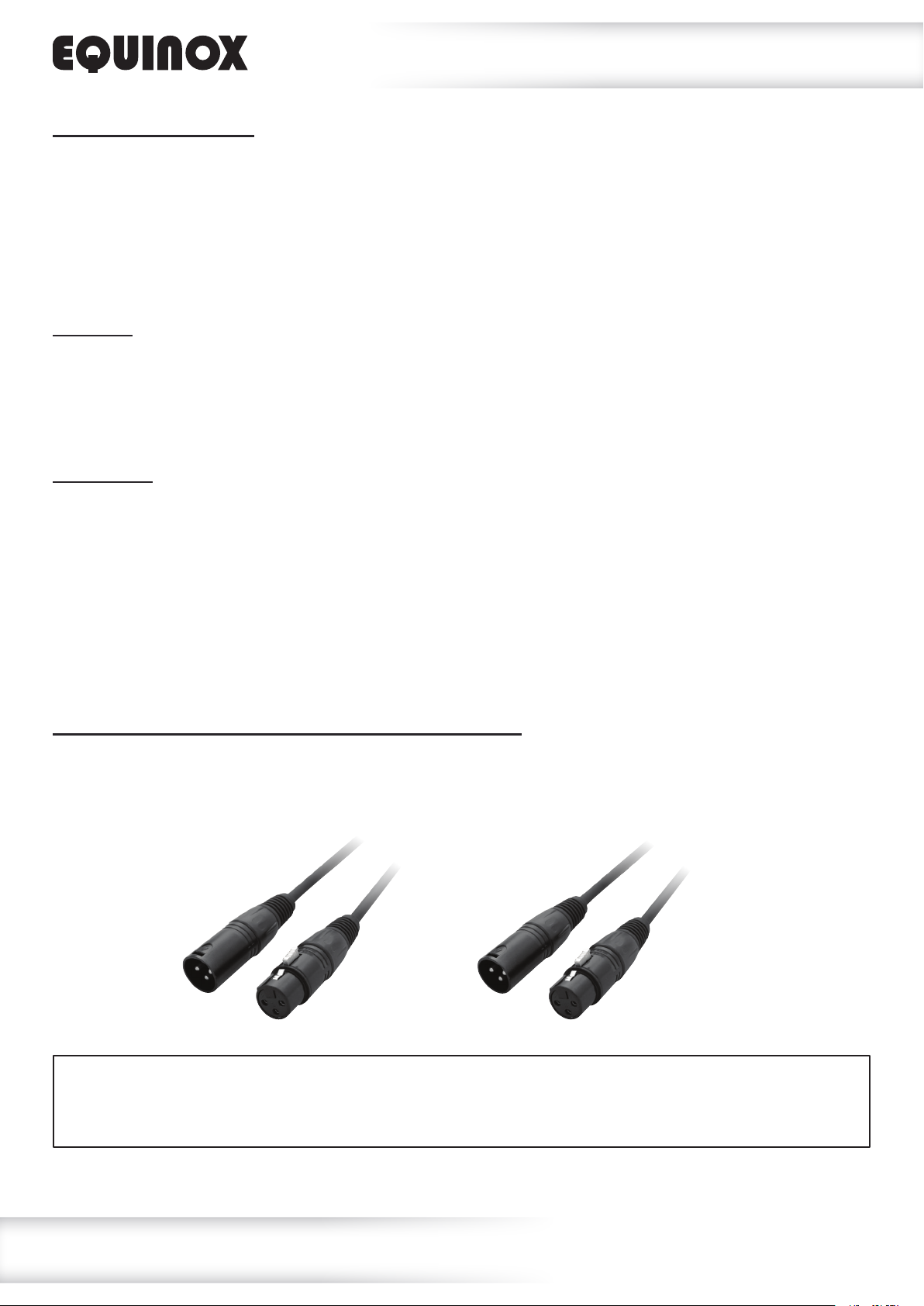

DATA cable (DMX cable) requirements (for DMX operation):
This xture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit.
Your unit requires either a standard 3-pin or 5-pin XLR connector for data input/output,
see images below.
Also remember that DMX cable must be daisy chained and cannot be split.
DMX setup
Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers.
Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m3-Pin:
CABL185 – 2m CABL187 – 5m CABL188 – 10m5-Pin:

www.prolight.co.uk Super Boogie User Manual 11
Notice:
Be sure to follow the diagrams below when making your own cables.
Do not connect the cables shield conductor to the ground lug or
allow the shield conductor to come in contact with the XLRs
outer casing. Grounding the shield could cause a short circuit
and erratic behaviour.
Line termination:
When longer runs of cable are used,
you may need to use a terminator on
the last unit to avoid erratic behaviour.
Using a cable terminator will decrease
the possibilities of erratic behaviour.
(3-pin - Order ref: CABL90,
5-pin - Order ref: CABL89)

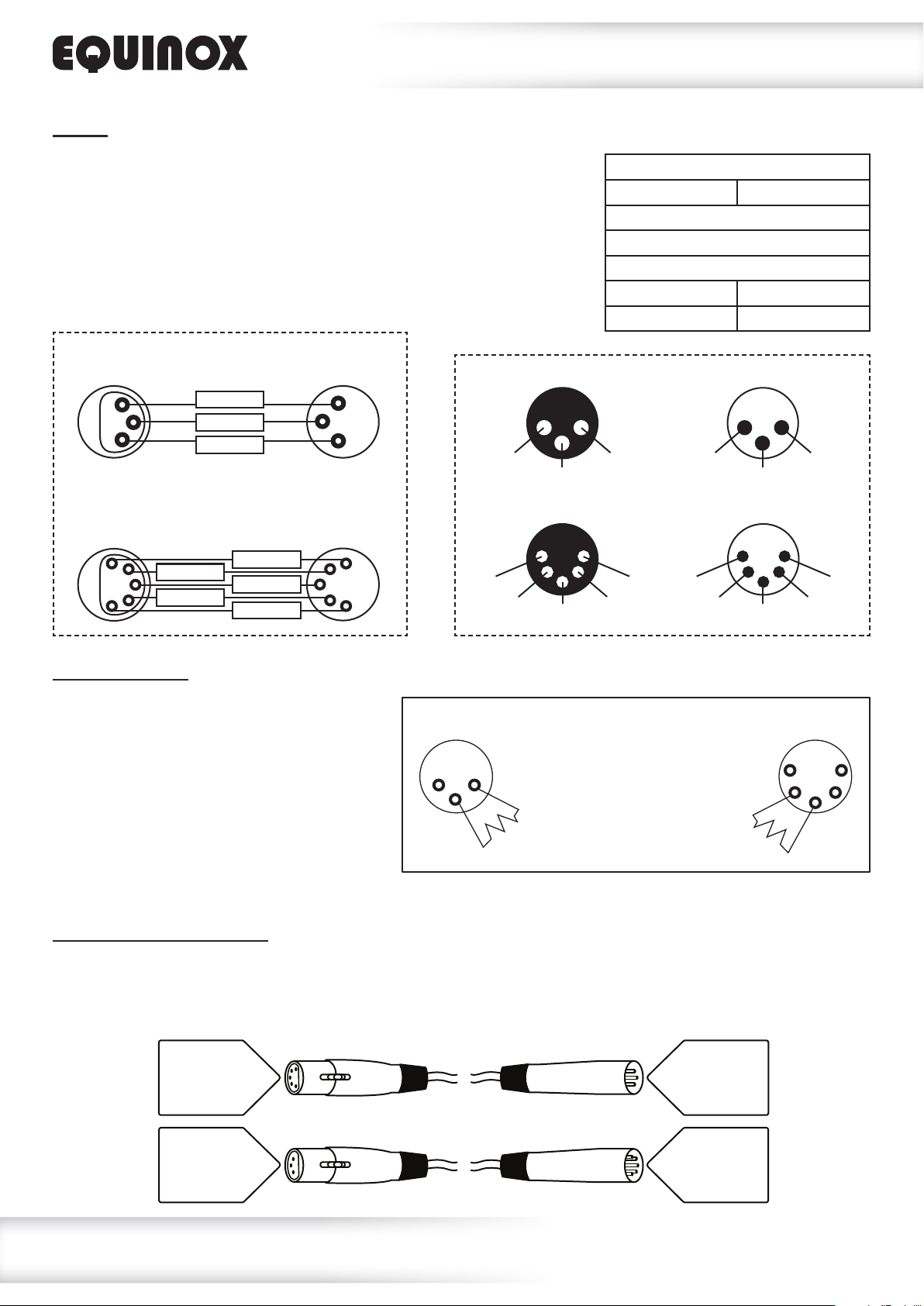

5-pin XLR DMX connectors:
Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR xtures
may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a
3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
5-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
DMX setup
Termination reduces signal
transmission problems and
interference. It is always
advisable to connect a DMX
terminal, (resistance 120
Ohm 1/4W) between pin 2
(DMX-) and pin 3 (DMX+) of
the last xture.
5-Pin
1
2 4
5
3
3-Pin
1 2
3
Pin Conguration
3-Pin 5-Pin
Pin 1 - Ground
Pin 2 - Negative
Pin 3 - Positive
– Pin 4 - N/C
– Pin 5 - N/C
1
2
3
1
2
3
DMX 512
3-Pin XLR output
DMX 512
3-Pin XLR input
GROUND
DMX +
DMX –
DMX 512
5-Pin XLR output
DMX 512
5-Pin XLR input
1
2
45
3
12
4
5
3
GROUND
N/C
DMX –
N/C DMX +
1 ground
3 hot
2 cold
3-Pin XLR male 3-Pin XLR female
2 cold
3 hot
1 ground
2 cold
1 ground 5 N/C
3 hot 4 N/C
5-Pin XLR male 5-Pin XLR female
4 N/C
5 N/C 1 ground
3 hot 2 cold

www.prolight.co.uk Super Boogie User Manual 12
Multiple xture power linking / WEEE notice
Power linking:
This xture provides power linking via the power output on the rear allowing multiple units to be
connected together. The maximum number of xtures that can be connected is 20 xtures @ 240V
or 10 xtures @ 120V (including the rst xture). After the maximum number of xtures are
connected a new power run will need to be started.
Please note: Caution should be used when power linking other xtures to the Super Boogie as the power
consumption of other xtures will vary. Fixtures tted with lamps often require 2/3 times more current
on startup, these may require their own power source..
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
MENU ENTER
MIC
DOWNUP
POWER OUTPUT:
100-240V~50/60Hz
POWER INPUT:
100-240V~50/60Hz
FUSE: F3A 250V
POWER CONSUMPTION: 72W
DMX INPUT
DMX OUTPUT
SAFETY ETE
www.prolight.co.uk
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed of
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government ofce, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
