Equinox Systems Power Flower EQLED77 User manual

User manual
Order code: EQLED77
Order code: EQLED79
IMPACT

WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
Equinox Power Flower & Impact Flower Safety
2

Equinox Power Flower & Impact Flower Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 100V/240V.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
LED failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
3

You should nd inside the carton the following items:
1, Fixture 2, Power cable 3, User manual
Technical Specications:
Overview
Equinox Power Flower & Impact Flower Technical specications
Identication:
1. Hanging bracket
2. Earth point
3. Safety eye
4. LED display
5. Function buttons
6. DMX input socket
7. DMX output socket
8. IEC power in socket
9. IEC power out socket
10. Hanging bracket tightening knobs
11. Fuse - 1A, 240V
EQLED79 Impact Flower
• DMX channels: 1, 3 or 5 selectable
• Sound activated, auto, DMX and master/slave
• 1 x 20W white COB LED
• 11 solid colour gobos with mirror dish
• 4 Push button LED digital display
• 0-100% dimming and variable strobe via DMX
• IEC Power in/out sockets
• 3-pin XLR in/out sockets
• Power consumption: 45W
• Power supply: 100-240V, 50/60Hz
• Dimensions: 232 x 281 x 260mm
(195mm with bracket folded)
• Weight: 4.3kg
EQLED77 Power Flower
• DMX channels: 1, 3 or 5 selectable
• Sound activated, auto, DMX and master/slave
• 1 x 20W white COB LED
• Multicolour reector dish and 11 gobos
• 4 Push button LED digital display
• 0-100% dimming and variable strobe via DMX
• IEC Power in/out sockets
• 3-pin XLR in/out sockets
• Power consumption: 45W
• Power supply: 100-240V, 50/60Hz
• Dimensions: 232 x 281 x 260mm
(195mm with bracket folded)
• Weight: 4.3kg
4

Equinox Power Flower & Impact Flower Operation Modes
5
Operation modes:
DMX mode:
To access the DMX mode, press the “MODE” button on the rear of the unit to show 512 on the
LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the
desired DMX address from d.OO1~ d.512, and press the “ENTER” button to conrm the setting.
DMX channel mode:
To access the DMX channel mode, press the “MODE” button on the rear of the unit to show 512
on the LED display. Then press the “ENTER” button and use the “UP” and “DOWN” buttons to
set the desired DMX address from d.OO1~ d.512. Now press the “ENTER” button to choose
one of the 1, 3 or 5 DMX channel modes use the “UP” and “DOWN” buttons, and press the
“ENTER” button to conrm the setting.
3 channel DMX chart:
1
2
3
0-14
15-29
30-44
45-59
60-74
75-89
90-104
105-119
120-134
135-149
150-164
165-209
210-255
0-179
180-214
215-255
0-255
Channel Value Function
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Gobo 11
Gobo wheel clockwise rotation
Gobo wheel anti-clockwise rotation
Mirror dish 360 degree rotation
Mirror dish clockwise rotation
Mirror dish anti-clockwise rotation
LED brightness 0-100%
1
0-7
8-67
68-127
128-187
188-247
248-255
Channel Value Function
No function (Blackout)
Show (Program 1)
Show (Program 2)
Show (Program 3) - Slow motion mode
Sound active (188 = Low sensitivity, 247 = High sensitivity)
Random shows
1 channel DMX chart:

Equinox Power Flower & Impact Flower Operation Modes
6
To exit out of any of the above options, press the “MODE” button.
Master/slave mode
To access the master/slave mode, press the “MODE” button on the rear of the unit to show
SLAv on the LED display and press the “ENTER” button to conrm the setting. The unit will
now run in sequence with the master unit.
Please ensure that all slave units are set to the same DMX channel mode as the master unit.
Sound active mode:
To access the sound active mode, press the “MODE” button on the rear of the unit to show
SUNd on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN”
buttons to set the sound sensitivity level from SU.OO~ SU.31 and press the “ENTER” button
to conrm the setting.
Note: SU00 = Low, SU31 = High
To exit out of any of the above options, press the “MODE” button.
5 channel DMX chart:
1
2
3
4
5
0-14
15-29
30-44
45-59
60-74
75-89
90-104
105-119
120-134
135-149
150-164
165-209
210-255
0-179
180-214
215-255
0-255
0-19
20-255
0-17
18-255
Channel Value Function
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Gobo 11
Gobo wheel clockwise rotation
Gobo wheel anti-clockwise rotation
Mirror dish 360 degree rotation
Mirror dish clockwise rotation
Mirror dish anti-clockwise rotation
LED brightness 0-100%
No function
Sound active
No function
Strobe (slow to fast)
(When in sound active 0-255 = sensitivity)

Equinox Power Flower & Impact Flower Operation Modes
7
Auto run mode:
To access the auto run mode, press the “MODE” button to show AUTO on the rear of the unit.
In the auto run mode there are three setting options to choose from:
Gobo - Gobo setting options
roAt - Gobo rotation options
led - LED setting options

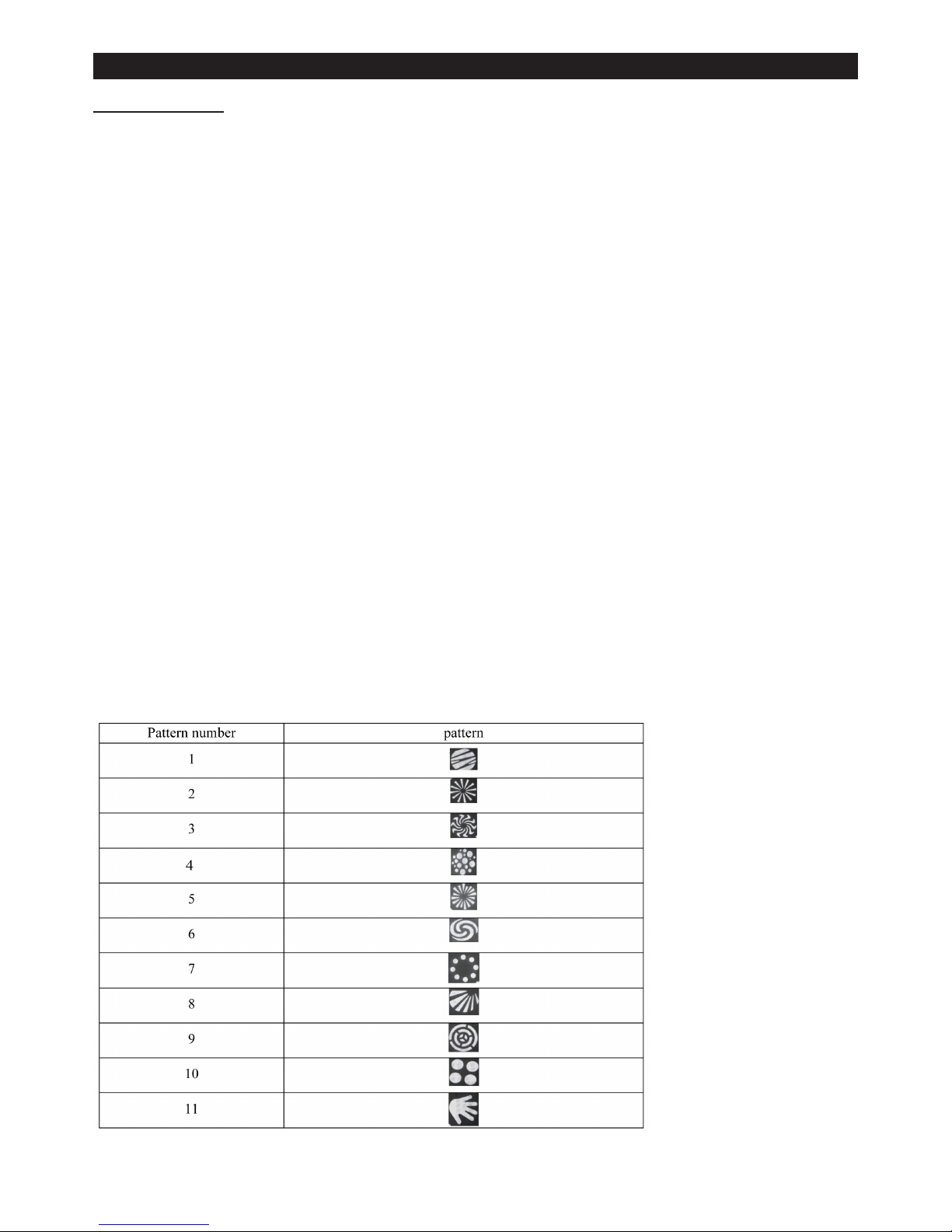

Gobo setting options:
While in the auto mode, press the “MODE” button to show Gobo on the rear of the unit.
Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of
the 5 options.
GorG = Static gobo
G-cЅ = Spins the gobo wheel in a clockwise direction. In this menu, press the “ENTER”
button then us the “UP” or “DOWN” buttons to select the speed.
GccЅ = Spins the gobo wheel in a anti-clockwise direction. In this menu, press the “ENTER”
button then us the “UP” or “DOWN” buttons to select the speed.
GPoS = Gobo selector. In this menu, press the “ENTER” button and then use the up and down
buttons to scroll through the 11 static gobos
G.Pro = Spins the gobo wheel clock wise and anti-clock wise.
To exit out of any of the above options, press the “MODE” button.

Equinox Power Flower & Impact Flower Operation Modes
8
Mirror dish rotation options:
While in the auto mode, press the “MODE” button to show roAt on the rear of the unit.
Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of
the 4 settings.
r.orG = Static mirror dish
r.-cЅ = Spins the mirror dish in a clockwise direction. In this menu, press the “ENTER”, enter the
rotating speed settings, through the “UP” or “DOWN” to select the speed with 10 increments.
r.ccЅ = Spins the mirror dish in a anti-clockwise direction. In this menu, press the “ENTER”,
enter the rotating speed settings, through “UP” or “DOWN” to select the speed with 10 increments.
rPro = Spins the mirror dish clockwise and anti-clockwise whilst running the built-in programs.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MODE” button.
LED setting options:
While in the auto mode, press the “MODE” button to show led on the rear of the unit.
Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of the 2
settings by pressing the “ENTER” button and using the “UP” and “DOWN” buttons accordingly
and press the “ENTER” button to conrm the setting.
e.con = Set the brightness of the LED from 000-255 (000=off, 255=full on). In this menu,
press the “ENTER” button, through the “UP” or “DOWN” to set the chosen brightness.
e.pro = Sets the led into fade in and fade mode. Fade speed can be set from 00-15
(00=slow, 15=fast). In this menu, press the “ENTER” button, through the “UP” or “DOWN”
to set the chosen fade speed.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MODE” button.
Note: After completing your settings, the auto run mode will run according to your settings.
Built-in programs mode
To access the built-in programs mode, press the “MODE” button on the rear of the unit to show
Pro on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN”
buttons to select between the program options:
Pro1 = This program is set to a slow rotation with fade in and fade out.
Pro2 = This program is set to a fast rotation with fade in and fade out.
Press the “ENTER” button to conrm the setting.
To exit out of any of the above options, press the “MODE” button.

Equinox Power Flower & Impact Flower Operation Modes
9
Factory reset menu mode
Error reset:
Note: you only need to go into this mode if the rear of the unit shows -err
on the LED display on start up.
To access the setting mode, press the “MODE” button on the rear of the unit to show Set
on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to
choose one of the 3 settings by pressing the “ENTER” button and using the “UP” and “DOWN”
buttons accordingly.
o-St = Set the offset of the gobo wheel from 0 - +100 or -100.
The user can adjust the gobo wheel to the correct position via this option if the image
of the gobo is partially obscured.
нoto = Review the motor reset status.
If the LED display shows G-nG then the gobo wheel motors position is incorrect.
If the LED display shows G-oѢ then the gobo wheel motor has reset successfully.
If the LED display shows r-nG then the rotation wheel motors position is incorrect.
If the LED display shows r-oѢ then the rotation wheel motor has reset successfully.
-rSt = Resets the unit to its factory settings.
To exit out of the above, press the “MODE” button until you are back at the main menu.
Total reset:
In addition, if the xture is not operating properly after powering on and menu is not operating
normally, press the “MODE” and “ENTER” buttons at the same time, then power on, until the
LED display ashes then release the buttons. Note: This will also restore the factory settings.

Further DMX cables can be purchased from all
good sound and lighting suppliers or Prolight
dealers.
Please quote:
CABL10 – 2m
CABL11 – 5m
CABL12 – 10m
Equinox Power Flower & Impact Flower DMX set up
DMX Control Mode
Operating in a DMX control mode environment gives the user the greatest exibility when it comes
to customising or creating a show. In this mode you will be able to control each individual trait of
the xture and each xture independently.
Setting the DMX address
The DMX mode enables the use of a universal DMX controller. Each xture requires a
“start address” from 1- 511. A xture requiring one or more channels for control begins to read the
data on the channel indicated by the start address. For example, a xture that occupies or uses 7
channels of DMX and was addressed to start on DMX channel 100, would read data from
channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used
do not overlap. E.g. the next unit in the chain starts at 107.
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):
• The Equinox Power Flower can be controlled via DMX-512 protocol. The DMX address is set on
the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for
data input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
10

Notice:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90 3-pin, CABL89 5-pin) will decrease
the possibilities of erratic behaviour.
5-pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
Equinox Power Flower & Impact Flower DMX set up
11

Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
English
(Applicable in the European Union and other European countries with seperate
collection systems)
This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
seperate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
