8VHUV*XLGH
(QJOLVK
)RUWKHODWHVW8VHU,QVWDOODWLRQ*XLGHSOHDVHYLVLWZZZHUJRWURQFRP

RI
*UHY)ವ
< 44.4 lbs. (20.1 kg)
ESPAÑOL
These symbols alert users of a safety condi-
tion that demands attention.All users should
be able to recognize and understand the
significance of the following Safety Hazards
if encountered on the product or within the
documentation. Children who are not able
to recognize and respond appropriately to
SafetyAlerts should not use this product with-
out adult supervision!
Hazard Symbols
Review Symbol Signal Word Level of Hazard
NOTE A NOTE indicates important information that helps you
make better use of this product.
CAUTION
A CAUTION indicates either potential damage to
hardware or loss of data and tells you how to avoid the
problem.
WARNING A WARNING indicates either potential for property dam-
age, personal injury, or death.
ELECTRICAL
An Electrical indicates an impending electrical hazard
which, if not avoided, may result in personal injury, re
and/or death.
Safety
CAUTION: DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY. SERIOUS
INJURY OR PROPERTY DAMAGE MAY
OCCUR!
WARNING: Because surfaces vary widely and the ultimate
mounting method is out of Ergotron’s control, it is imperative
that you consult with appropriate engineering, architectural
or construction professional to ensure that your Ergotron
mounting solution is mounted properly to handle applied
loads.
CAUTION: Make sure the
wall mount bracket is level,
ush and snug to the wall
surface. DO NOT OVER-
TIGHTEN THE BOLTS.

RI
*UHY)ವ
AB C D
1
2
3
5/32”
10mm
Ø 3/16" (5 mm)
Ø 3/8" (10 mm)
Ø 1/2" (13 mm)
4x
5x
1x
1x 2x
4x
M6 x 70mm
5x
1x
1x
1/4”-20 x 2”
1
abc
TEAM
LIFT
For Your Safety!
ESPAÑOL

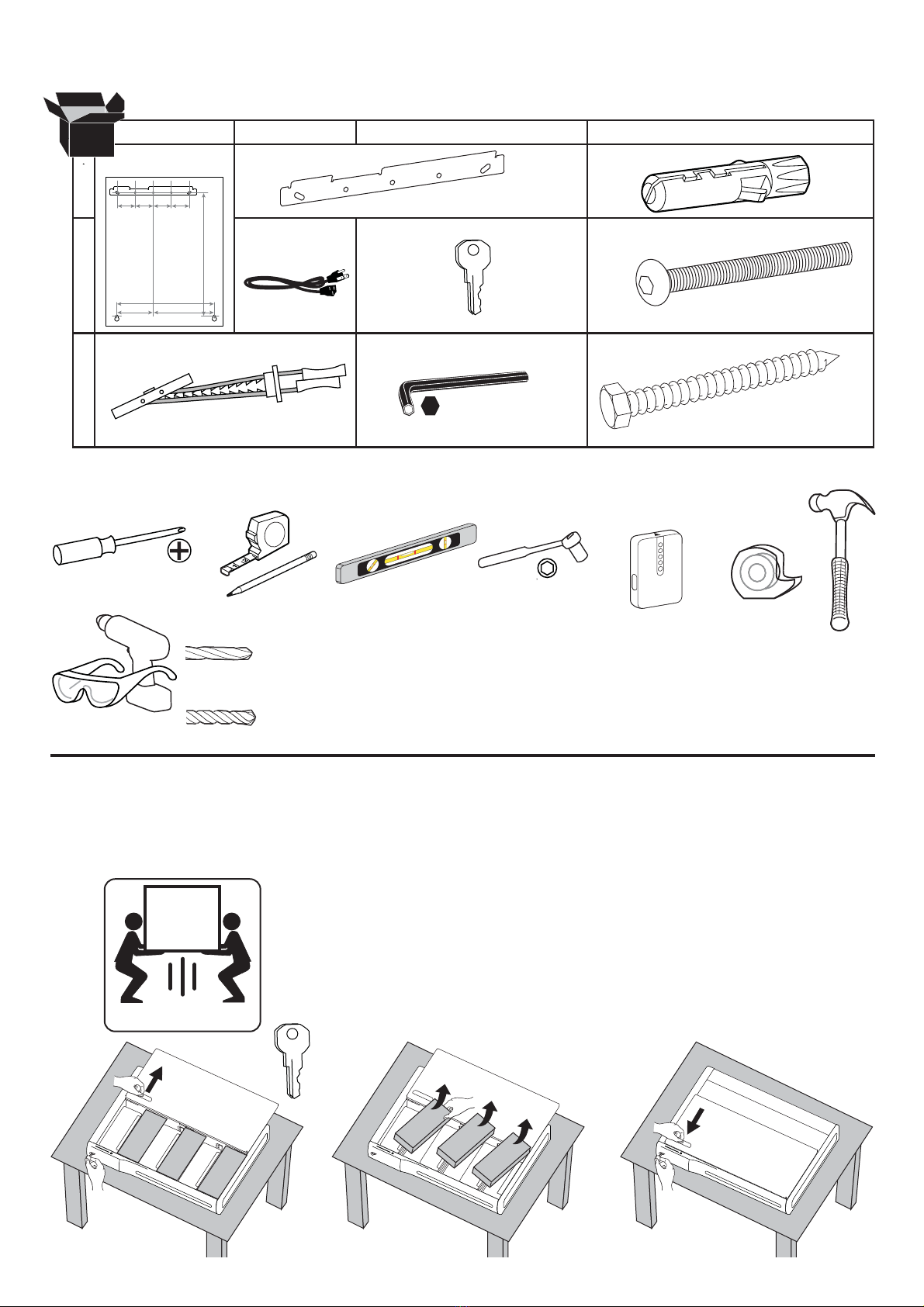

Components
Tools Needed
Stud Finder
CONCRETE
WOOD STUD
HOLLOW WALL
REMOVE INTERNAL PACKAGING

RI
*UHY)ವ
< 3 lbs
(1.36 kg)
< 11.9" (302 mm)
4” (102 mm)6" (152 mm)
< 8.5"
(215 mm)
<1"
(25 mm)
3"
(74 mm)
6"
(151 mm)
62”-68”
(158-173 cm)
32.75"
(831 mm)
35.6"
(905 mm)
7"
(178 mm)
11.8"
(300 mm)
35.3"
(900 mm)
6.5”
(168 mm)
2
3
85
ESPAÑOL
Floor

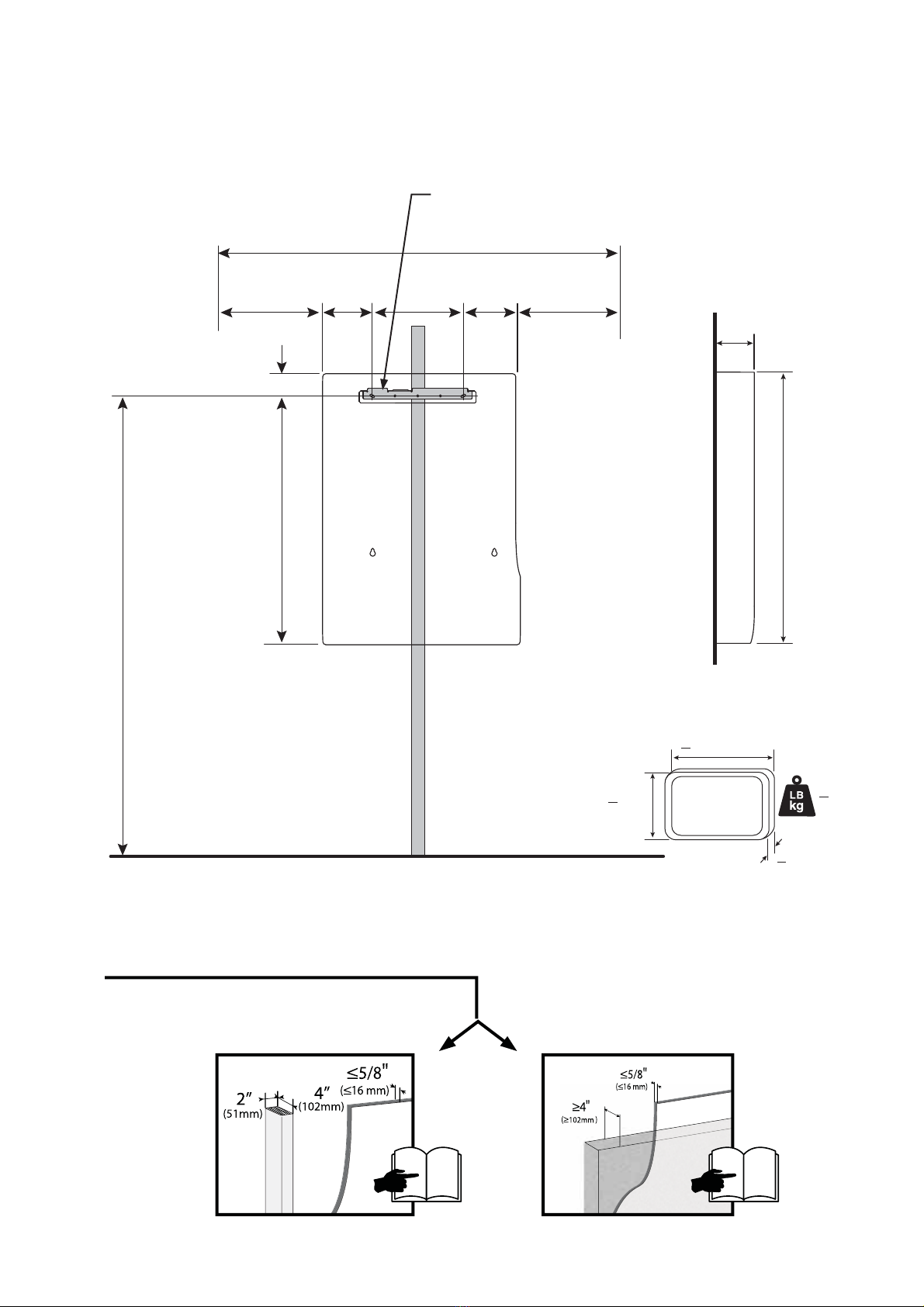

MOUNTING CONSIDERATIONS
Individual tablet or chromebook weight:
Individual dimensions (including cover):
Space Requirements:
When mounting to wood stud, at least one screw in the upper mounting
bracket must be installed in a stud (preferably the center hole).
Mounting
Holes
Recommended Mounting Height Above Floor
CONCRETE
WOOD STUD
HOLLOW WALL

RI
*UHY)ವ
a
ESPAÑOL
Hole Option 1
RECOMMENDED
Center Hole in Stud
First Choose a Hole Option:
The stud can be located at one of ve mounting holes on the top bracket.
While the rst option (center hole of bracket) is recommended, you should
consult with a construction professional to conrm which method is best
suited for your particular situation.
After you decide on a Hole Option, follow attachment instructions on the
following page.
Extreme Left Hole in Stud
Middle Left Hole in Stud
Middle Right Hole in Stud
Extreme Right Hole in Stud
Hole Option 2
Hole Option 5
Hole Option 3 Hole Option 4
WOOD STUD
HOLLOW WALL

RI
*UHY)ವ
7
62”-68”
(158-173 cm)
62”-68”
(158-173 cm)
c
e
b
d
ESPAÑOL
Place template on wall lining up the
chosen hole with the stud and the
mark 62”-68” (158-173 cm) from oor.
Level and secure template
to wall.
Find stud and draw a mark. Put a mark on the stud 62”-68”(158-173 cm)
from oor.
WOOD STUD
HOLLOW WALL

RI
*UHY)ವ
9
Ø 1/2"
(13 mm)
f
gh
62”-68”
(158-173 cm)
1/4”-20 x 2”
12 3 4
1x
5/32”
Ø 3/16"
(5 mm)
M6 x 70mm
10mm
ESPAÑOL
NOTE: Use the Ø 3/16” (5 mm) drill bit when drilling directly into the wood stud.
Use the Ø 1/2” (13 mm) drill bit when drilling into the hollow wall for the anchors.
Use hollow wall anchors where ever a screw does not get inserted directly into the
wood stud.
1. Drill the three holes for the top bracket that correspond with the hole option determined on previous page.
2. Drill the bottom two holes.
Insert anchors then attach bracket to wall according to the hole
option determined on previous page. Verify wall bracket is level
before tightening screws.
WOOD STUD
HOLLOW WALL
WOOD STUD
HOLLOW WALL

RI
*UHY)ವ
Ø 3/8" (10 mm)
3-1/8"
(80 mm)
5x
a
cd
e
b
9
62”-68”
(158-173 cm)
62”-68”
(158-173 cm)
62”-68”
(158-173 cm)
3x M6 x 70mm
10mm
ESPAÑOL
WARNING:
Anchors that are not fully set in solid concrete
will not support the applied load resulting in
an unstable, unsafe condition which could lead
to personal injury and/or property damage.
Consult a construction professional if you have
any doubt about what this means in regard to
your particular situation.
WARNING:
Mounting holes must be at least 3-1/8” (80mm)
deep and must be located within solid concrete,
not mortar or covering material. If you drill into
an area of concrete that is not solid, reposition
mounting holes until both anchors can be fully
inserted into solid concrete!
Level and secure template to
the wall lining up the chosen
mounting holes with the mark
62”-68” (158-173 cm) from oor.
Put a mark on the wall 62”-68”
(158-173 cm) from oor.
Drll the top 3 holes, then the bottom two holes.
Insert anchors into holes, then attach mounting bracket. Verify wall
bracket is level before tightening screws.
CONCRETE

RI
*UHY)ವ
5
6
a
a
b
4
b
ESPAÑOL
a. Remove two screws on left side. Save screws for reattaching cover.
b. Unlock door by turning key 180° clockwise. Open door by turning knob 180° clockwise.
a. Open door and remove these 3 screws. Save screws for reattaching cover.
b. Remove left cover
Hang unit onto top
bracket.
Warning: 2 people are required to lift
this product.

RI
*UHY)ವ
7
aa
bb
2x M6 x 70mm
10mm
1/4”-20 x 2”
2x 5/32”
ESPAÑOL

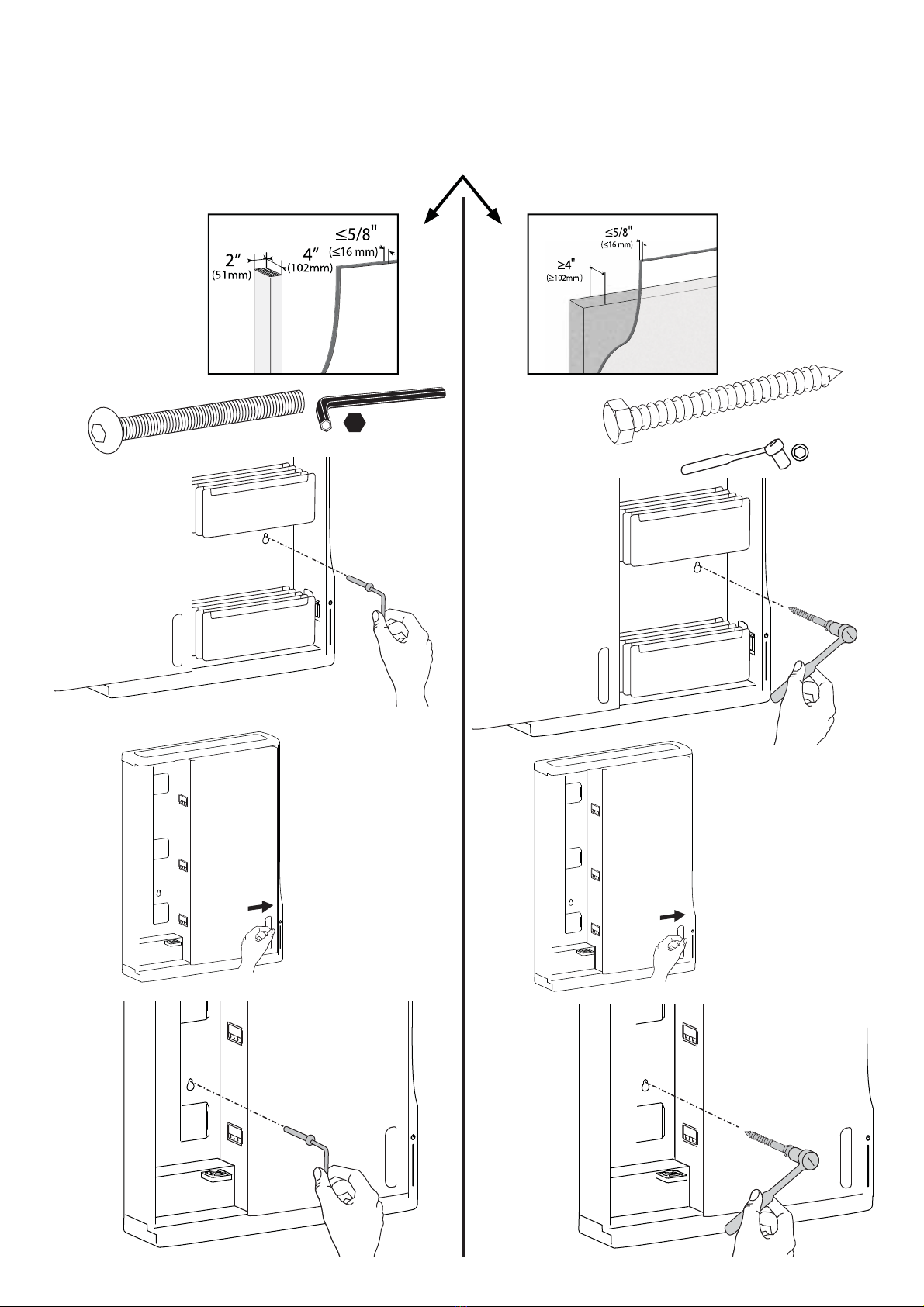

a. Secure unit to wall by inserting screw through back wall and into bottom right wall anchor.
b. Close door, then insert screw through back wall and into bottom left wall anchor.
CONCRETE
WOOD STUD
HOLLOW WALL

RI
*UHY)ವ
8
a
c
b
ESPAÑOL

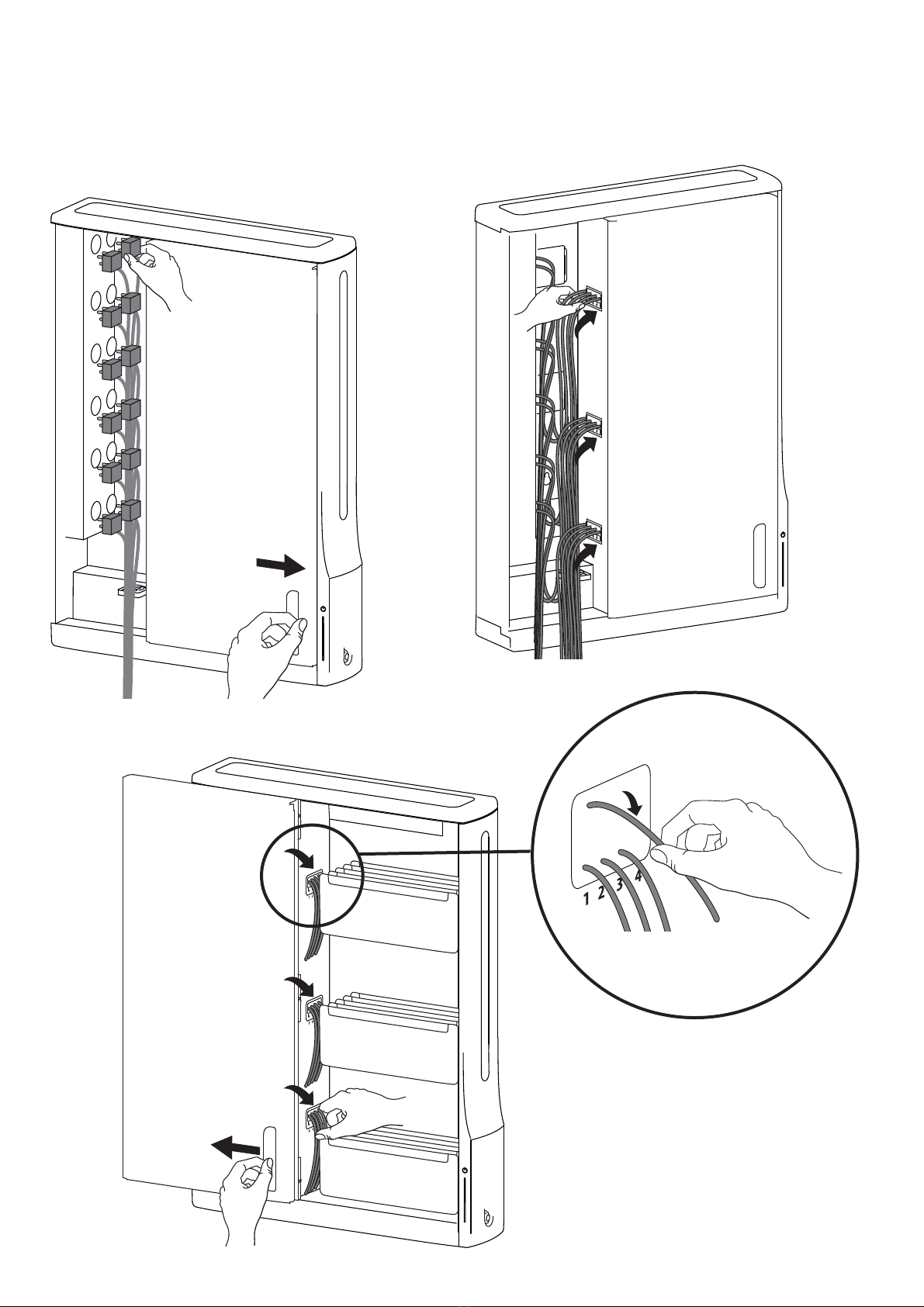

a. Plug in all the tablet power cables into the outlets inside.
(Customer supplies power cables that come with the devices)
b. Route cables through the access holes.
c. Open door an pull cables through the access holes.

RI
*UHY)ವ
10
9
ab
ESPAÑOL

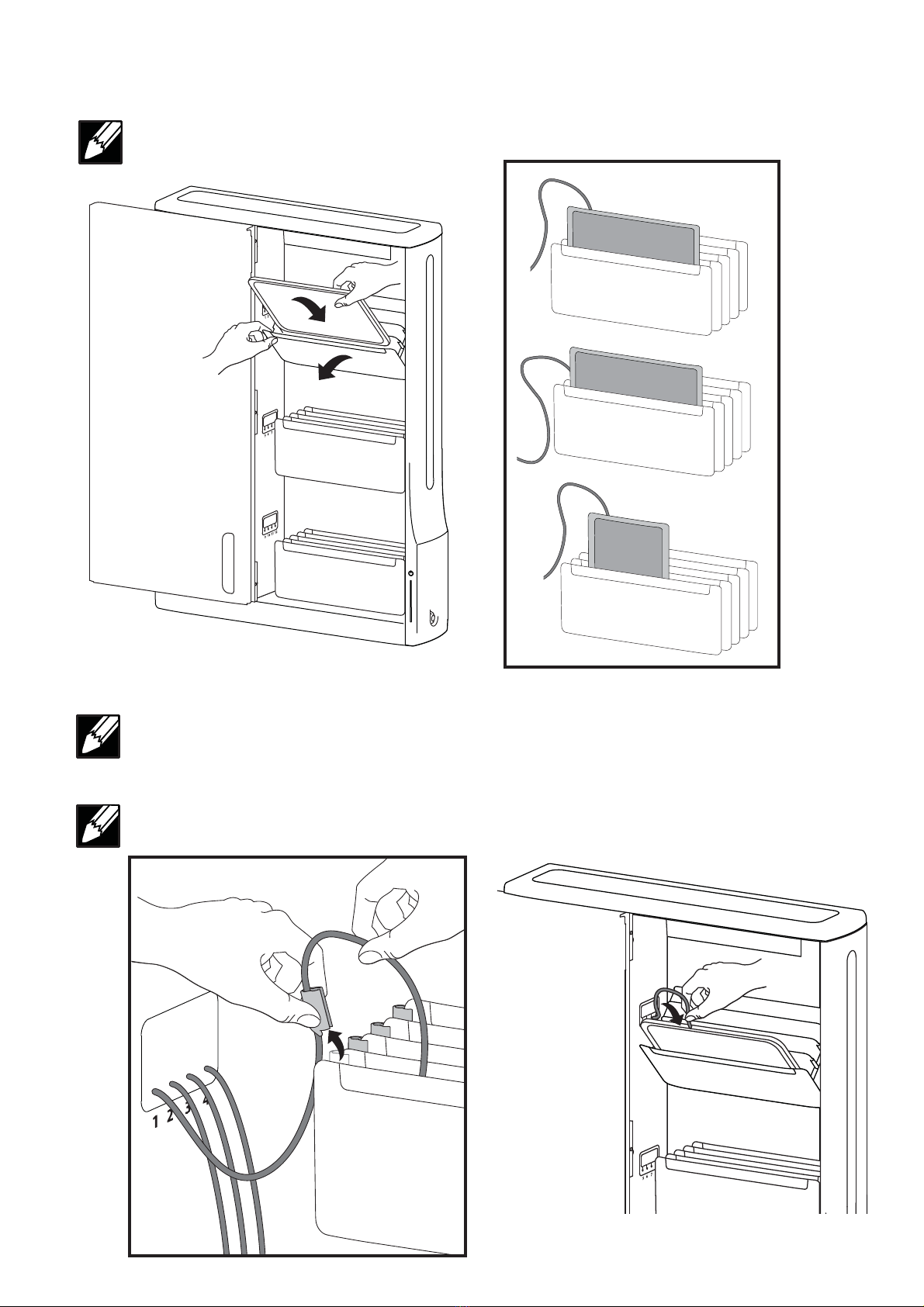

Pull out tablet tray and insert tablet.
NOTE: Tablet should be positioned so power plug is at top or left side.
a. Slide cable clip offof tablet slot and route cable through clip, then reattach cable clip.
NOTE: Leave enough slack in cable to plug into tablet.
b. Plug tablet cables into tablets.
NOTE: When tablet is removed, store unconnected cable in the appropriate tablet slot.

RI
*UHY)ವ
11
12
ab
ESPAÑOL
Tie up excess cable with velcro cable ties.
a. Attach left cover with 2 screws saved from removal of cover.
b. Open door and attach 3 inside screws saved from removal of left cover
NOTE: Keep cables away from
power system components that
might get hot during operation.

RI
*UHY)ವ
13
14
ab
ESPAÑOL
a. Close door and turn lock knob 180° counter clockwise.
b. Lock door by turning key 180° counterclockwise.
Plug power cable into bottom power jack and then into wall outlet to start charging.

RI
*UHY)ವ
LED
Input/Output: 100-240V~, 12A-10A, 50/60 Hz
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: 1) This device may not cause harmful
interference. 2) This device must accept any
interference received, including interference that
may cause undesired operation.
CAN ICES-3(A) / NMB-3(A).
UNIVERSAL TABLET WALL STATION 12
35MR
Product of China 827-345-00
Ergotron Europe
Beeldschermweg 3
3821 AH, Amersfoort
The Netherlands
UL 62368-1
CAN/CSA C22.2
No. 62368-1-14
IEC/EN 62368-1
ESPAÑOL
Tablet Charging
NOTE: The power cord acts as the connect/disconnect device
switching power on and o. The socket outlet shall be installed
near the equipment and shall be easily accessible.
Power Indicator – Communicates charge status with the following signals:
To begin charging the tablets, plug in the power cord.
The power cord is used to turn the power on and o. Charging occurs
whenever the power cord is connected to an outlet.
Light Description
O No power to the module.
On - solid Tablets or Chromebooks are charging.
Environmental
Temperature range:
Operating 0° to 30°C (32° to 86°F)
Storage -40° to 60°C (-40° to 140°F)
Relative humidity (maximum):
Operating 10%–90% (non condensing)
Storage 5%–95% (non condensing)
Altitude (maximum): 2000 m (6,562 ft)
Compatibility:
Tablets and chromebooks
Certication:
UL / IEC / EN 62368-1 Audio/Video Information and Communication
Technology Equipment.
CAN/CSA C22.2 No. 62368-1-14
ICES-003 Issue 5, Class A
FCC Part 15 Class A
RoHS and REACH compliant material used.
Dimensions
26.4”W x 35.6”H x 5.9”D (669 x 905 x 151 mm)
Weight (w/o equipment)
64.5 lbs (29.3 kg)
Rated weight capacity
44.4 lb (20.1 kg)
Maximum tablet or chromebook size
Individual dimensions (including cover):
up to 11.9”H x 8.9”W x 1.0”D (30 x 23 x 2.5 cm)
Individual tablet or chromebook weight:
up to 3 lb (1.4 kg)
Cooling/ventilation
One 12V DC continuous operation fan
Shipping dimensions
40.9”x 28.9”x 8.4”(1040 x 735 x 214 mm)
Shipping weight
77 lb (34.9 kg)
Power system
Part number Power System
DM12-1006-1 Input: 100-120V~, 12A, 50/60 Hz
DM12-1006-2 Input: 220-240V~, 8A, 50/60 Hz
DM12-1006-3 Input: 220-240V~, 8A, 50/60 Hz
DM12-1006-4 Input: 220-240V~, 8A, 50/60 Hz
DM12-1006-5 Input: 220-240V~, 8A, 50/60 Hz
Specifications

RI
*UHY)ವ
ESPAÑOL
Equipment Electric Safety
There are specic risks associated with the use of equipment having power cables.You must be aware of, and avoid these risks when this product is located in
close proximity to children.
WARNING: Failure to observe the following Electrical Safety notices can result in re or death by electric shock.
Electrical cables can be hazardous. Misuse can result in re or death by electrical shock.
• Double Pole / Neutral Fusing
• Inspect power cables thoroughly before each use.
• Do not use cables that are damaged.
• Insert the plug completely into the outlet.
• Grasp the plug to remove from the outlet.
• Do not unplug by pulling on the cable.
• Do not use excessive force to make connections.
• Do not plug the cable into an extension cable.
• Do not remove, bend or modify any metal prongs or pins of cable.
• Do not drive, drag or place objects over the cable.
• Do not walk on the cable.
• Avoid overheating. Uncoil the cable and do not cover it with any material.
• Do not run cable through doorways, holes in ceilings, walls or oors.
Keep this product away from water.
• Do not use when wet.
• Do not place this product in close proximity to ammable liquids or gases.
This product is intended for use only with loading as indicated. Use with loads greater than indicated may result in instability causing possible injury.
The power cord acts as the connect/disconnect device switching power on and o. The socket outlet shall be installed near the equipment and shall be easily
accessible.
CAUTION: Changes or Modications not expressly approved by Ergotron could void the user’s authority to operate the equipment.
Use Safety
There are specic risks associated with the use of this product (for charging or storage). You must be aware of, and avoid these risks when this product is
located in close proximity to children.
WARNING: Failure to observe the following Use Safety notices may result in serious personal injury or equipment damage.
Only Adults should use this product.
• Do not allow anyone to climb or hang on this product.
• Do not block the fans and vent openings.To prevent overheating, leave at least 102 mm (4-inch) clearance around
fans and vents.
This product is designed to be used indoors only.
• Do not use this product to store equipment other than what has been noted in this guide.
• Do not use this product to store liquids or cleaning supplies.
• Do not place heavy objects on this product.
– The maximum weight capacity is 44.4 lbs (20.1 kg).
Cleaning and Maintenance

RI
*UHY)ವ
www.ergotron.com
MADE IN CN
12-345-678
1234567-1234
k(UJRWURQ,QF$OOULJKWVUHVHUYHG
www.ergotron.com | USA: 1-800-888-8458 | Europe: [phone] | China: 400-120-3051 | Japan: [email protected]
ESPAÑOL
127(:KHQFRQWDFWLQJFXVWRPHUVHUYLFHUHIHUHQFHWKHVHULDOQXPEHU
)RUORFDOFXVWRPHUFDUHSKRQHQXPEHUVYLVLWKWWSFRQWDFWHUJRWURQFRP
)RU6HUYLFHYLVLWZZZHUJRWURQFRP
)RU:DUUDQW\YLVLWZZZHUJRWURQFRPZDUUDQW\
