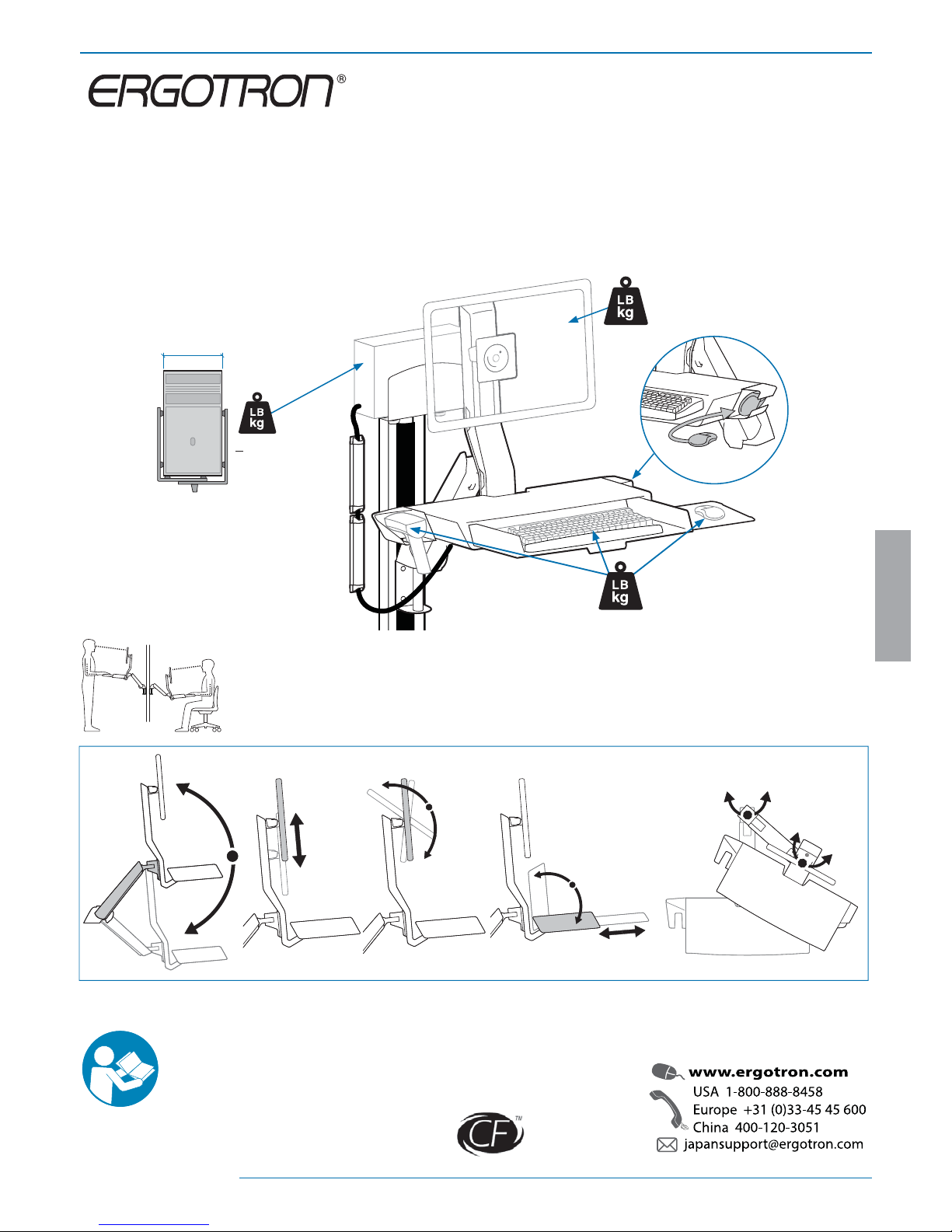

StyleView Sit Stand Combo System, with
Worksurface and Small CPU Holder
< 50 lbs (22.7 kg)
90˚
8"
(202mm)
180˚
360˚
20"
(508mm) 5"
(127mm)
25˚
5˚
1.38" - 3.75"
(35-95 mm)
6-18 lbs*
(2.7-8.2 kg)
1-4 lbs
(0.45-1.8 kg)
User's Guide - English
Guía del usuario - Español
Manuel de l’utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l’utente - Italiano
Användarhandbok - svenska
ユーザーガイド:日本語
用户指南 : 汉语
Includes
Constant Force™
Technology
ENGLISH
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide
* The Combo Arm can be modied to mount displays up to 25 lbs (11.3 kg), however display lift and tilt motion will not be possible if
this option is chosen. Refer to special instructions on page 13.

888-45-205-W-05 rev.P • 06/17
2 of 23
Ø 3/8" (10 mm) Ø 1/2" (12.8 mm)
Ø 7/32" (5.6 mm)
2
1
10mm
11 mm
13 mm
7/16"
1/4”
ENGLISH
Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly
installed on the product before attempting adjustments. This product should move smoothly and easily through the
full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in
desired positions, follow the adjustment instructions to create smooth and easy movements. Depending on your
product and the adjustment, it may take many turns to notice a diff erence. Any time equipment is added or removed
from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps
to ensure safe and optimum operation.
Tools Needed
Stud Finder
Concrete Wall Mounting
HOLLOW WALL

888-45-205-W-05 rev.P • 06/17
3 of 23
AB C D E
1
2
3
4
5
6
7
8
9
1x
1x
1x
1x
1x
4x
3x
2x
1x
1x
1x
M4 x 10mm
4x
M4 x 10mm
4x
2x
M6 x 10mm
2x 8x
M6 x 70mm M4.2 x 25mm
10x 4x
10x
10x
6 mm
3 mm
10x
M6
2x
2x
2x
4x
1/4-20 x 2"
10x
7x
7x
2x
M5 x 15mm
4x
1x
1x
1x
1x
1x
1x
1x
1x
1x
1x
M8 x 16mm
8x
1x
1x
M3.5 x 8mm
2x
8mm
1x
1x
M4 x 8mm
2x
M4 x 6mm
M4 x 10mm
2x
4x
M10 x 18mm
2x
M10 x 16mm
ENGLISH
Components
Optional Weight Capacity Modication Fasteners

888-45-205-W-05 rev.P • 06/17
4 of 23
1
6”
(152 mm)
5’3”-5’9”
(160-175cm)
21”
(533 mm)
28.5”
(724mm)
< 27.5”
(699mm)
9.2”
(232mm)
11.9”
(301mm)
9.5”
(241mm)
22.7”
(575mm)
31.9”
(810mm)
17”
(430mm)
12.5”
(318mm)
ENGLISH

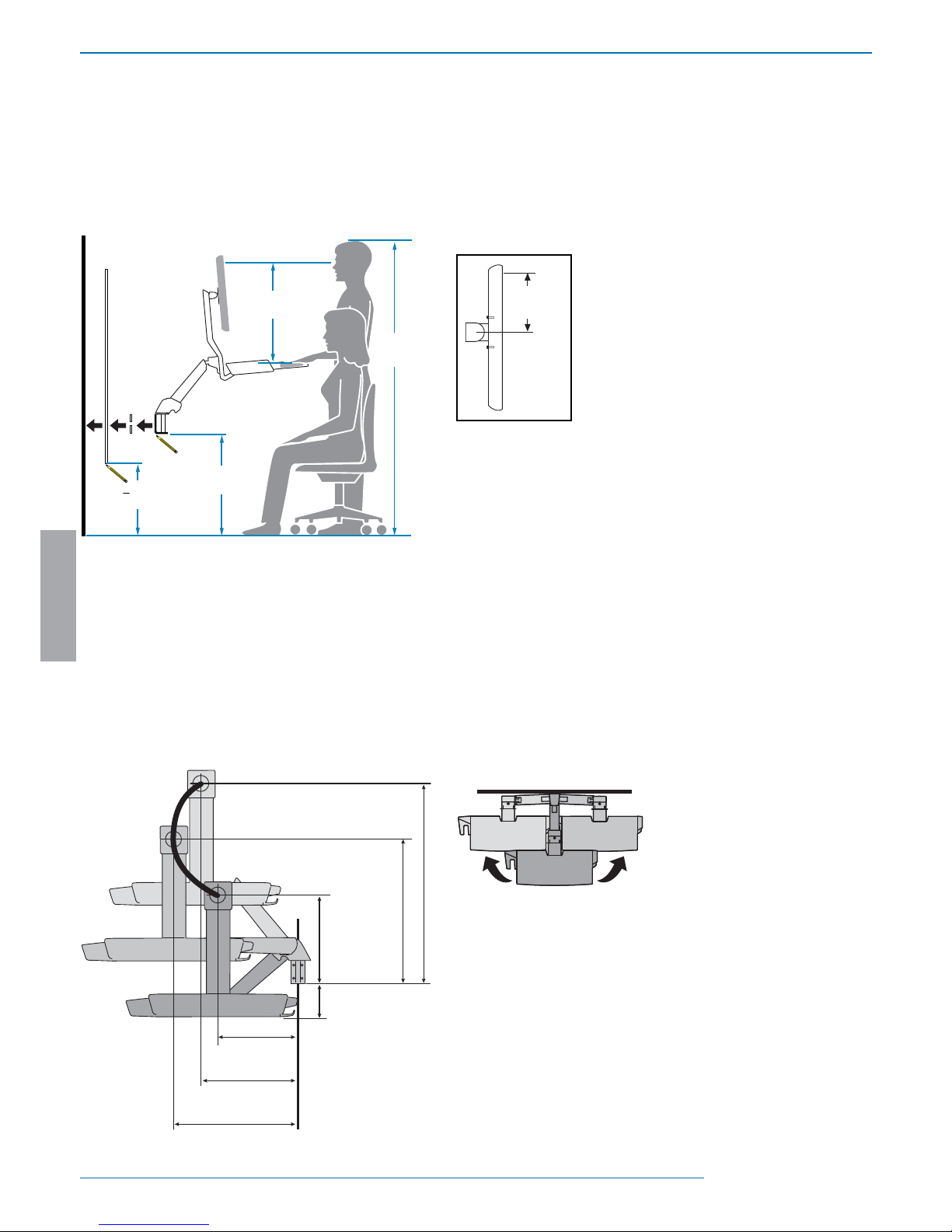

Mounting Height for Ergonomic Workstation
This mounting height is a recommendation for an ergonomic workstation that accommodates user heights of 5’3”-5’9” (160-
175cm).
If user heights are dierent than this, you should change mounting height to accommodate user heights. (Change mounting
height one inch for every one inch dierence in user heights).
Mounting height assumes there is a 6” (152
mm) distance between the center of your
monitor mounting holes and the top of the
screen. If your distance is smaller, you should
increase mounting height accordingly, if your
distance is larger, you should decrease your
mounting height accordingly.
Determine mounting location:
Top view showing range of motion when pulled out from the wall.
Front view with arm pushed back against the wall.

888-45-205-W-05 rev.P • 06/17
5 of 23
2
6
8
10x 10x
10x
10x
Ø 3/8" (10 mm) Ø 1/2"
1/4-20 x 2"
10x
M6
≤ 16"
Studs ≥ 25
gauge steel
≥ 5/8"
Sheetrock

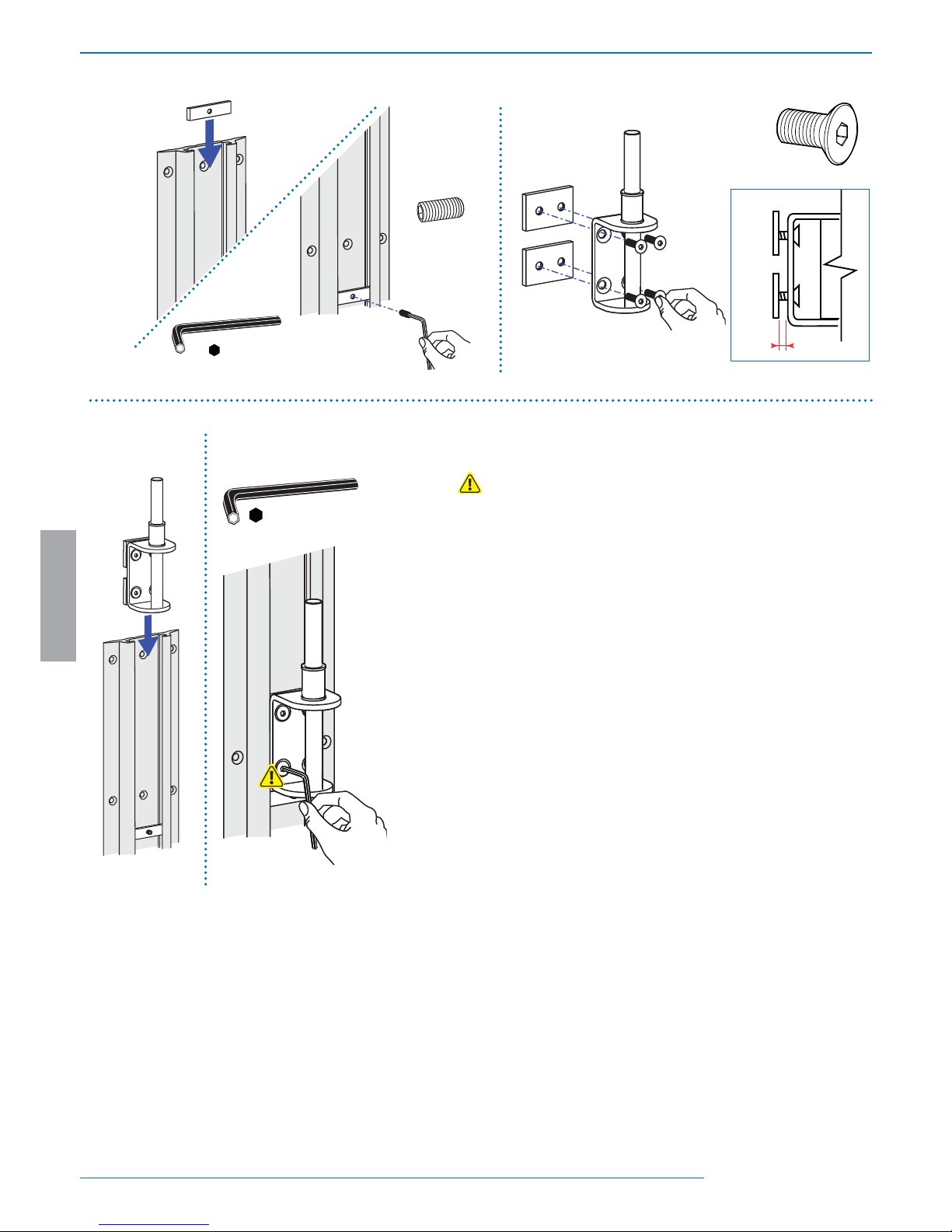

Stud spacing
ENGLISH
Concrete Wall Mounting HOLLOW WALL
WARNING: Because surfaces vary widely and the ultimate mounting method is out of Ergotron’s control, it is imperative that you consult with
appropriate engineering, architectural or construction professional to ensure that your Ergotron mounting solution is mounted properly to handle applied loads.

888-45-205-W-05 rev.P • 06/17
6 of 23
2
a
b
c
3-1/8"
(80 mm)
x 10
x 10
ENGLISH

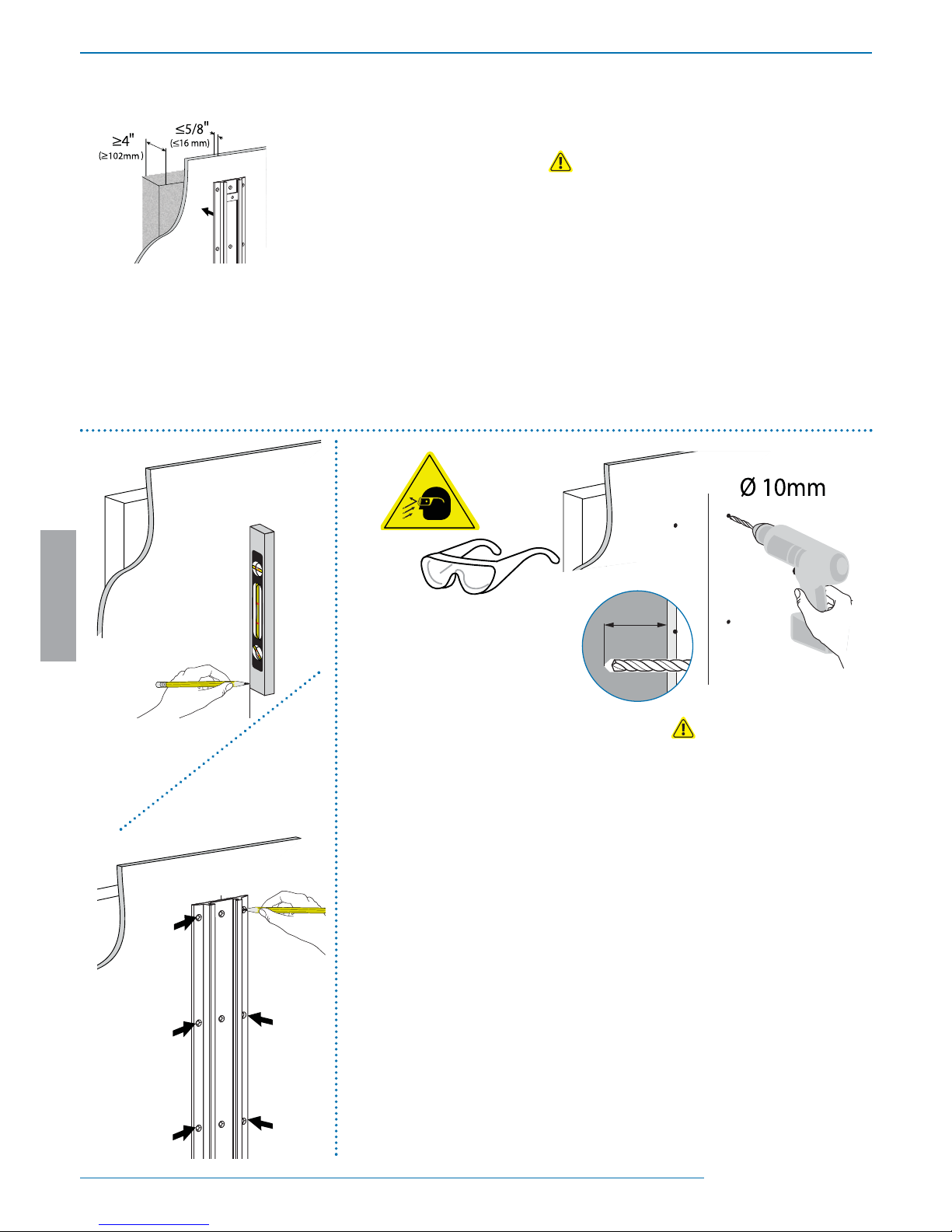

Concrete Wall Mounting
WARNING:
Mounting holes must be at least 3-1/8”(80mm) deep and must be located within solid
concrete, not mortar or covering material. If you drill into an area of concrete that is
not solid, reposition mounting holes until both anchors can be fully inserted into solid
concrete!
WARNING:
Anchors that are not fully set in solid concrete will not support the applied load
resulting in an unstable, unsafe condition which could lead to personal injury
and/or property damage. Consult a construction professional if you have any
doubt about what this means in regard to your particular situation.

888-45-205-W-05 rev.P • 06/17
7 of 23
10x
123
10x
M6 x 70mm
10mm
10mm
10x
M6
10
3
d
e
ENGLISH

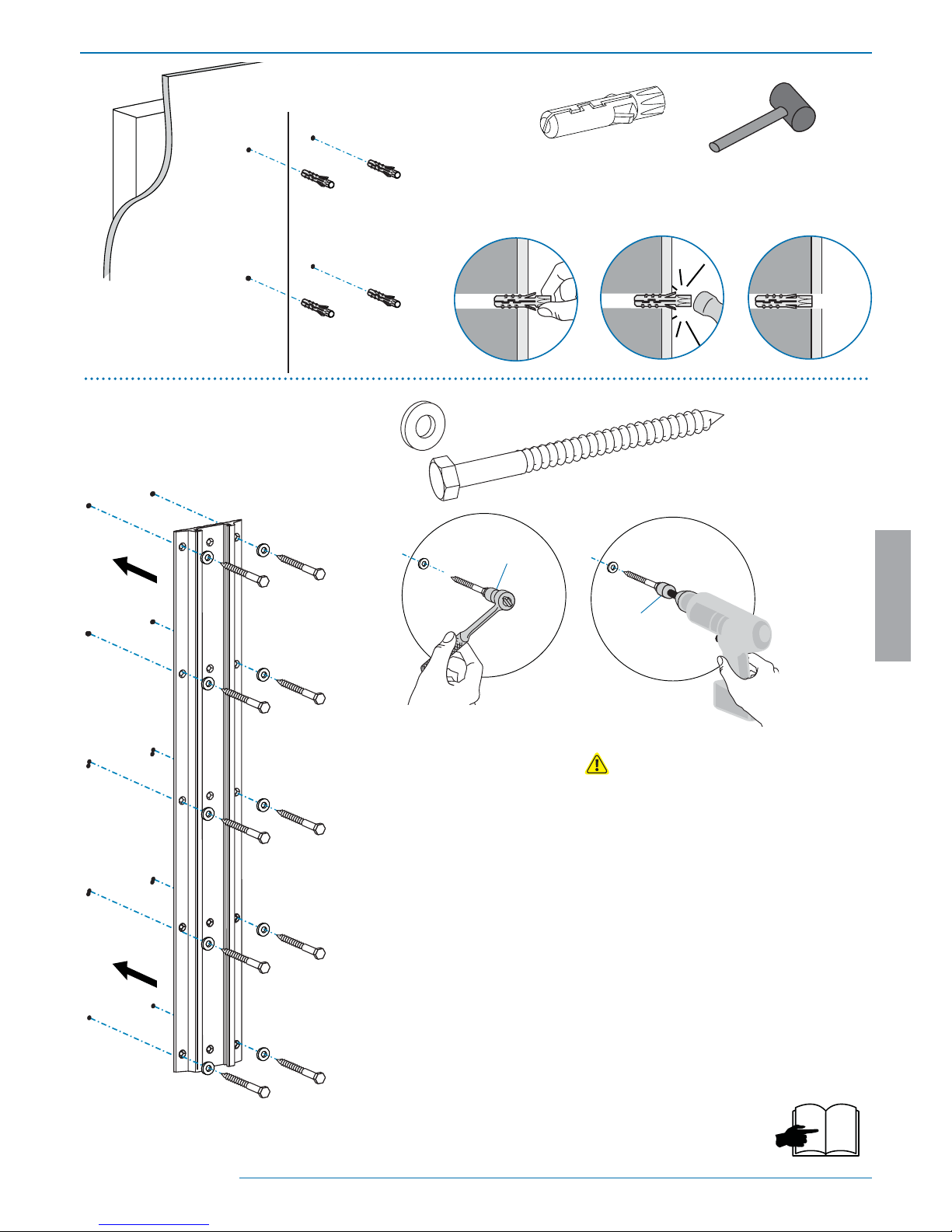

CAUTION: Make sure the wall mount bracket is level,
ush and snug to the wall surface. DO NOT OVERTIGHT-
EN THE BOLTS.

888-45-205-W-05 rev.P • 06/17
8 of 23
2
acb
10x
≤ 16"
Studs ≥ 25
gauge steel
≥ 5/8"
Sheetrock
Stud spacing
ENGLISH
HOLLOW WALL
Requires minimum material thickness of 5/8” (16 mm).

888-45-205-W-05 rev.P • 06/17
9 of 23
10
3
d
e
1234
10x
10x
1/4-20 x 2"
2
ENGLISH
HOLLOW WALL
CAUTION: Make sure the wall mount bracket is level,
ush and snug to the wall surface. DO NOT OVERTIGHT-
EN THE BOLTS.

888-45-205-W-05 rev.P • 06/17
10 of 23
3a
cd
b
M6 x 10mm
6 mm
3 mm
4x
M10 x 18mm
¼"
ENGLISH
NOTE: Fasteners may unwind due to vibration caused by movement of mounting solution over time.
Inspect mounting solution for loose fasteners on a routine basis. If desired, apply a light duty thread lock-
ing adhesive to fasteners before installation to prevent back-out.

888-45-205-W-05 rev.P • 06/17
11 of 23
4a
6 mm
12x
2x
g
i
h
ef
bcd
M6 x 10mm
3 mm
2x M10 x 16mm
ENGLISH

888-45-205-W-05 rev.P • 06/17
12 of 23

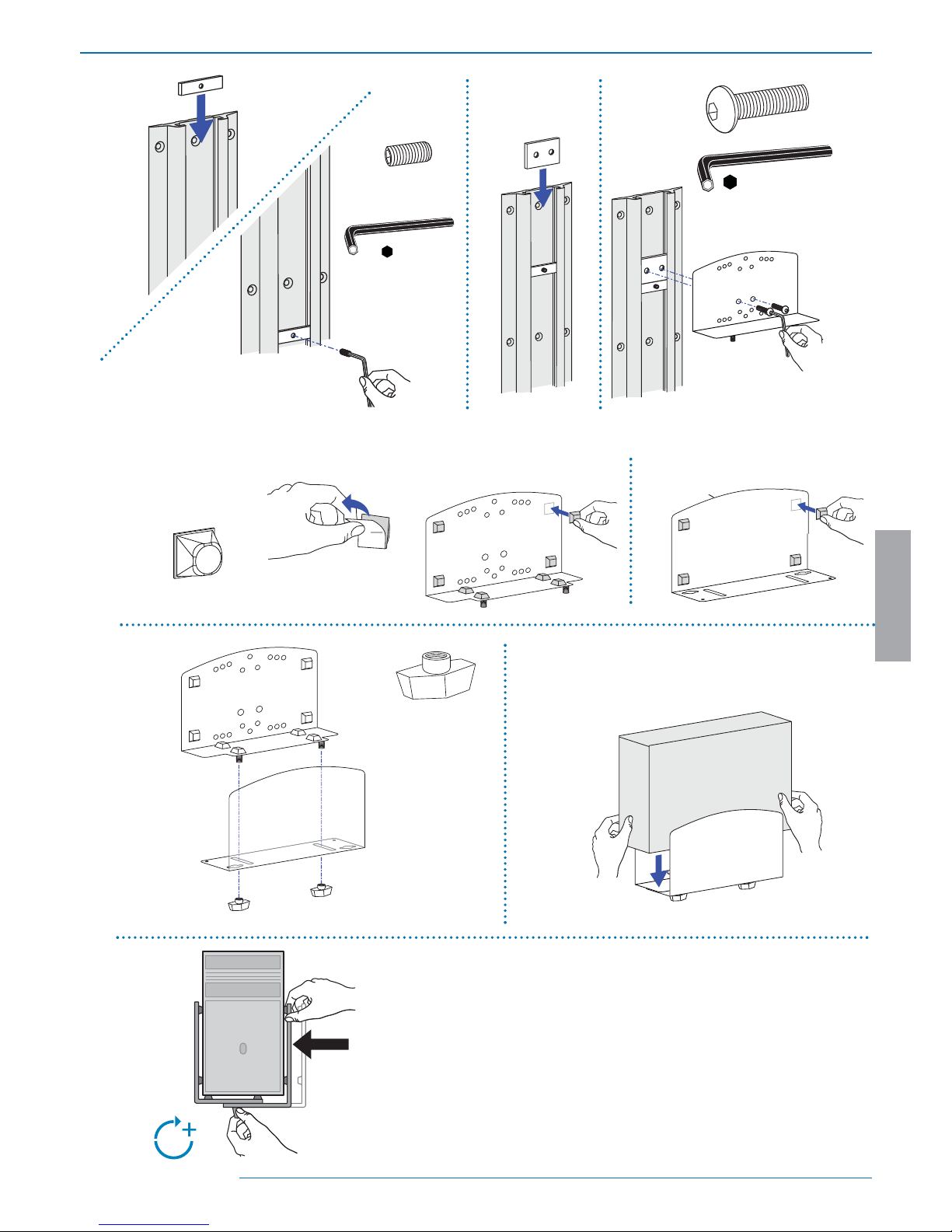

5
6
13 mm
2x M5 x 15mm
1x
1x
1x
1x
1x
M8 x 16mm
3 mm
ENGLISH

888-45-205-W-05 rev.P • 06/17
13 of 23
2x
M4 x 6mm
1x
M4 x 8mm
1x
1x
20˚
acb
i
ii
ENGLISH

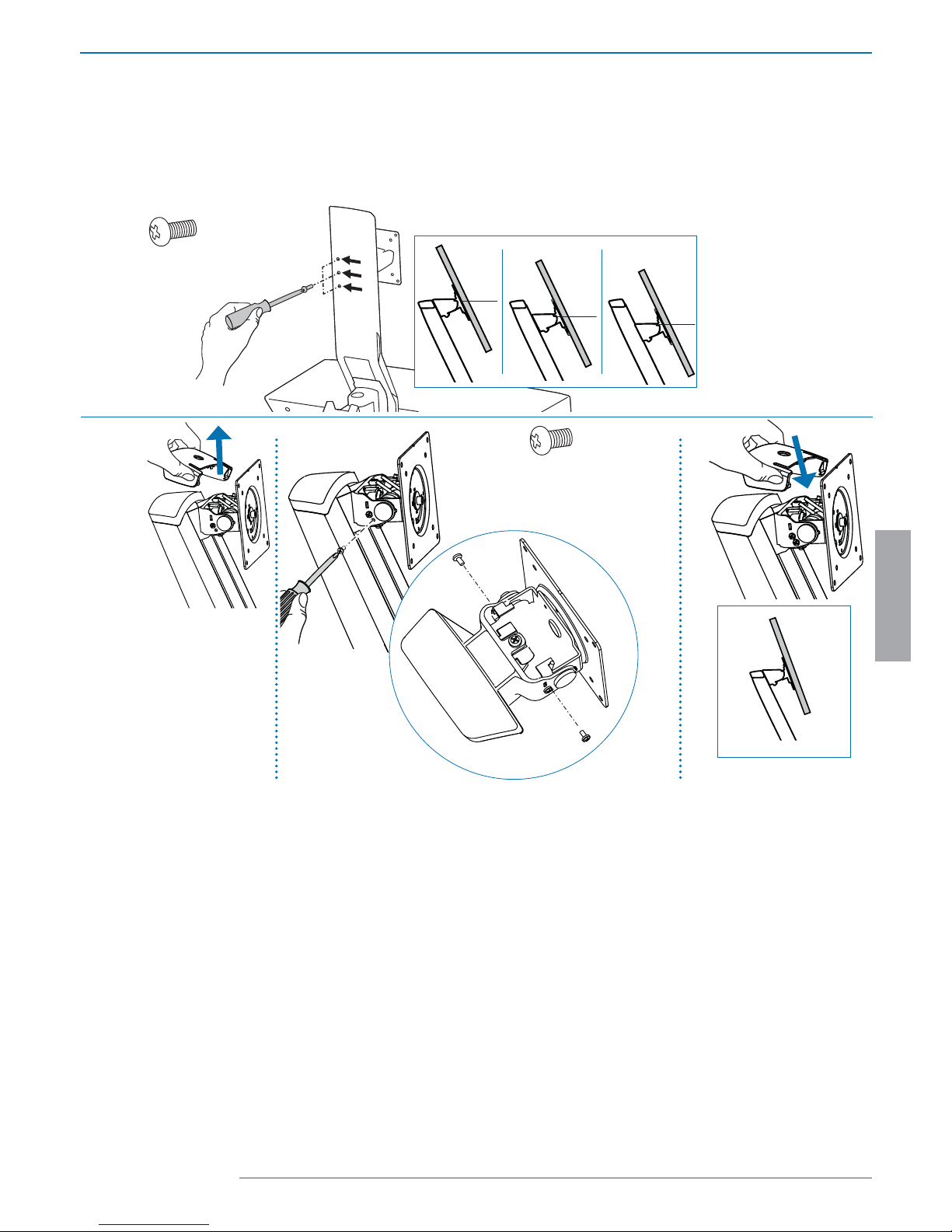

Optional Weight Capacity Modication for Displays 18 - 25 lbs (8.2 - 11.3 kg) Only!
IMPORTANT: with this option display lift and tilt motion are no longer possible. To accomodate extra weight, the display is xed at one of three heights (spaced
2.5" (64 mm) apart), and display tilt is xed at 20°. If mounting a display 18 lbs (8.2 kg) or less, skip to next page.
Optional Weight Capacity Modication

888-45-205-W-05 rev.P • 06/17
14 of 23
4x 4x
M4 x 10mm
8
7
2x
4x
1x
9
0˚
1x
M3.5 x 8mm
ENGLISH

888-45-205-W-05 rev.P • 06/17
15 of 23
11
10
12
1x 1x
ENGLISH

888-45-205-W-05 rev.P • 06/17
16 of 23
14
7x
5x
2x
13
2x
ENGLISH

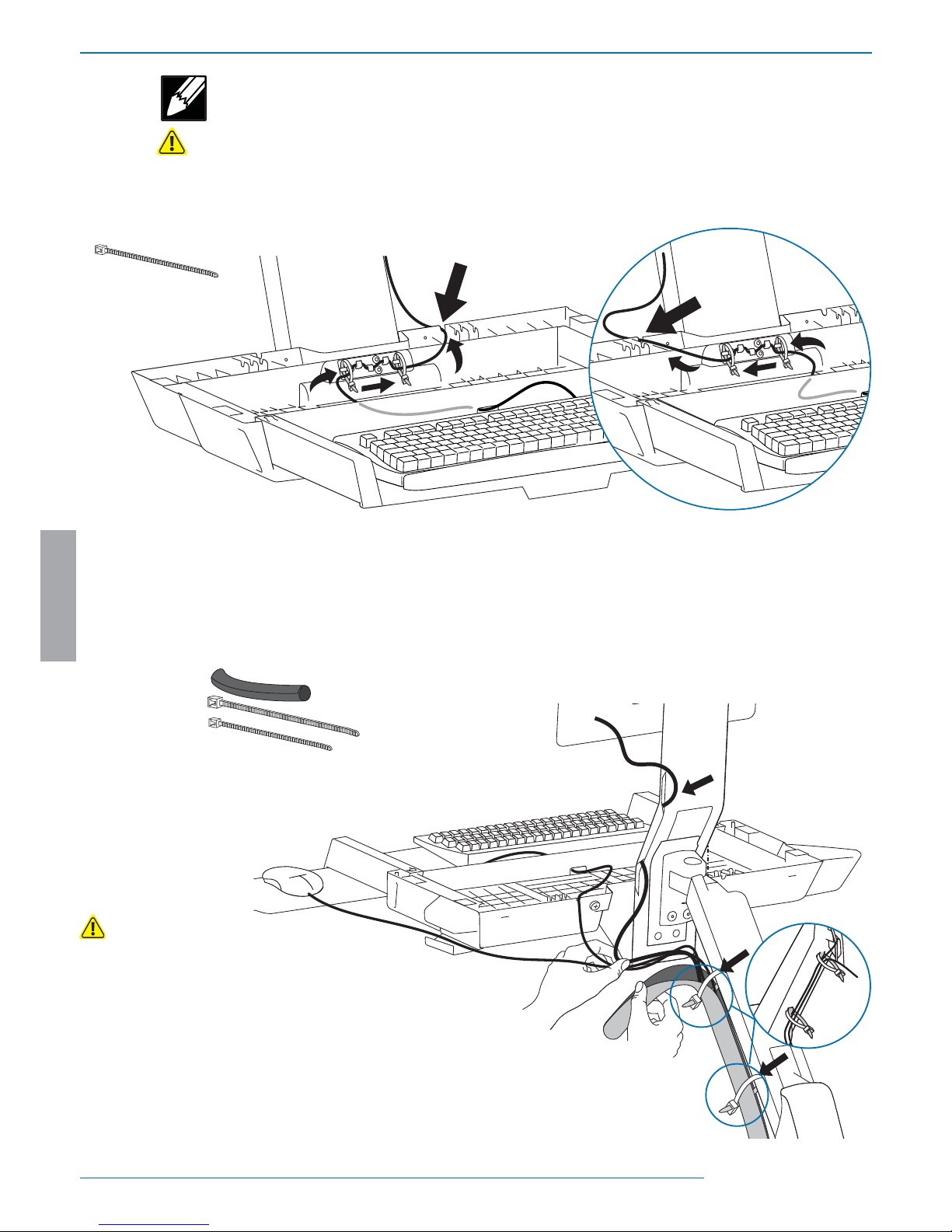

NOTE: Make sure cables can slide in and out through
covers and cable channels.
NOTE: Leave enough slack in cable to allow full range of motion.
Caution:
To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to
follow these instructions may result in equipment damage or personal injury.

888-45-205-W-05 rev.P • 06/17
17 of 23
15
16
2x
OPTIONAL:
M4 x 10mm
2x
ENGLISH

888-45-205-W-05 rev.P • 06/17
18 of 23
17
a
f
cd
ghe
b
M4.2 x 25mm M4.2 x 25mm
M4.2 x 25mm
4x 2x 2x 2x
2x
Ø 7/32" (xx mm)
.21875
Flush with drywal
123
4x
2x
1x 1x
2x 2x 2x
ENGLISH
CAUTION: Make sure there is enough clearance between back of mounted component and cable
channel. Failure to allow clearance space may result in personal injury and equipment damage.

888-45-205-W-05 rev.P • 06/17
19 of 23

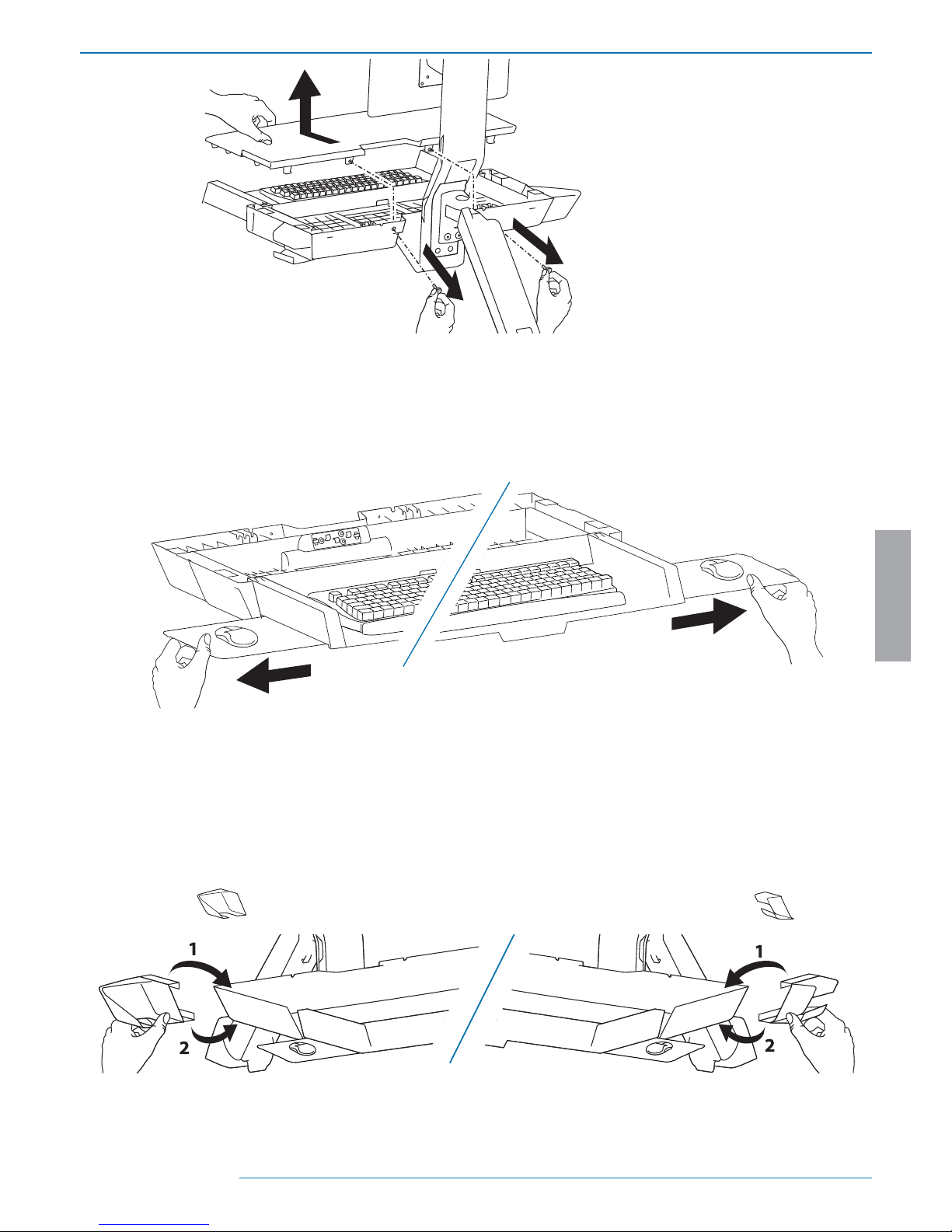

ik
18 ab
c
d
19 2x
ENGLISH

888-45-205-W-05 rev.P • 06/17
20 of 23
20
a
1/4”
8mm
ENGLISH

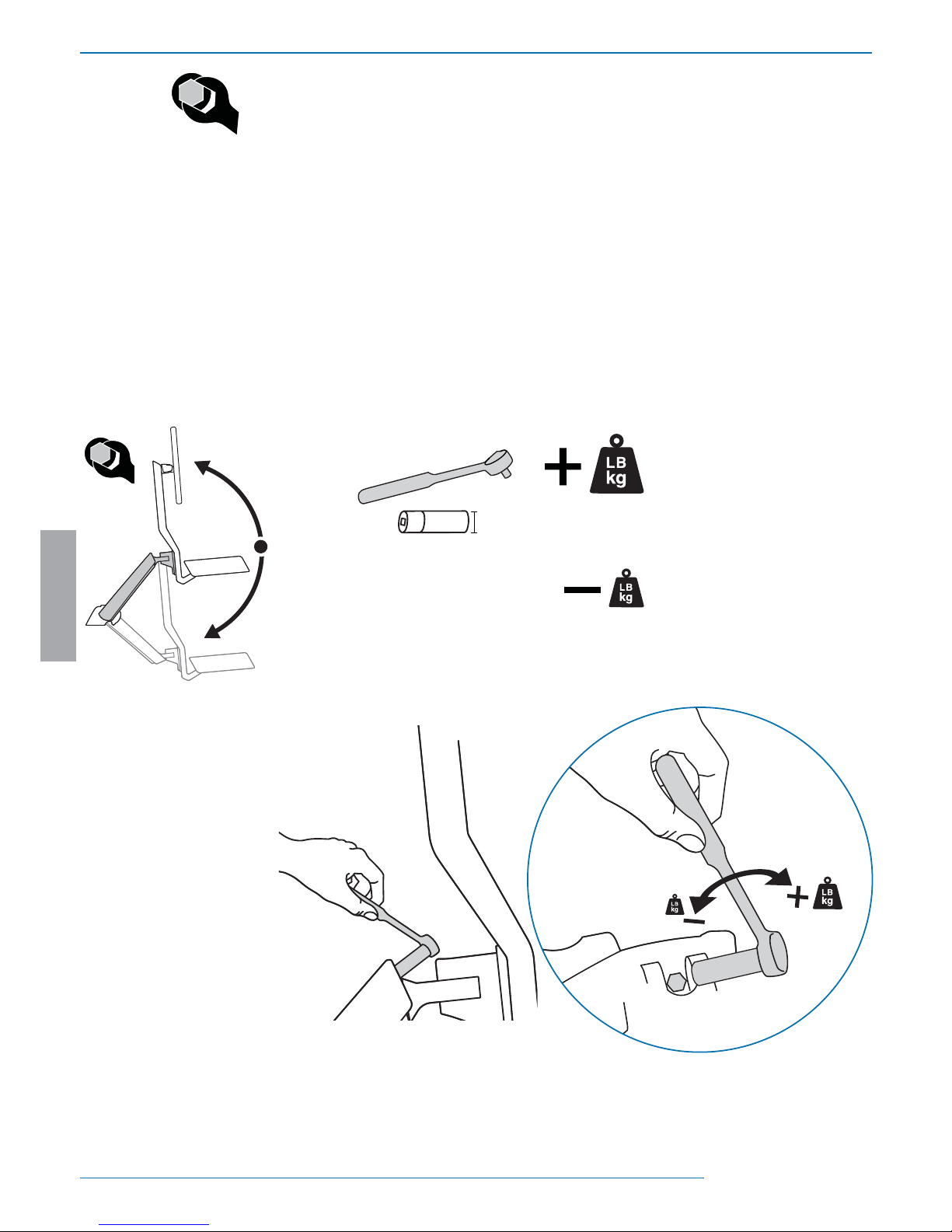

Increase Lift Strength
If the mounted weight is too heavy or
this product does not stay up when
raised, then you'll need to increase
Lift Strength:
Decrease Lift Strength
If the mounted weight is too light or
this product does not stay down when
lowered, then you'll need to decrease
Lift Strength:
Adjustment Step
Important! You will need to adjust this product after installation is complete. Make sure all your equipment is
properly installed on the product before attempting adjustments. This product should move smoothly and easily
through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product
does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
Depending on your product and the adjustment, it may take many turns to notice a diff erence. Any time
equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you
should repeat these adjustment steps to ensure safe and optimum operation.
