Ericsson G30 / G35
Fixed Wireless Terminal for GSM Mobile Networks
User Guide
E
EN-LZT 151 233 FWT User ...
page 1 Cyan Magenta Yellow
Bla k
Cyan Magenta Yellow
Bla k
Monday, May 21, 2007 16:48

EN/LZT 151 233 R1D
© Ericsson AB 2006 – All Rights Reserved
EN-LZT 151 233 FWT User ...
page 2 Cyan Magenta Yellow
Bla k
Cyan Magenta Yellow
Bla k
Monday, May 21, 2007 16:48

Fixed Wireless Terminal: G30 & G35 3
Table of Contents
Table of Contents ........................................ 3
Welcome ..................................................... 4
Fixed Wireless Terminal................................ 6
Installation ................................................... 9
Connecting Devices to the FWT................. 15
Advanced Features.................................... 20
Troubleshooting......................................... 29
Technical Data........................................... 33
Accessories ............................................... 36
Product Care and Safety............................ 38
Warranty.................................................... 42
Glossary .................................................... 45
Index ......................................................... 47

4Fixed Wireless Terminal: G30 & G35
Welcome
Welcome to the User Guide for the G30 / G35 Fixed Wireless Terminal.
Important information: Some of the services described in this
guide might not be supported by all networks. Please, contact
your network operator for information on different network ser-
vices operational in your GSM network.
The latest version of this user guide can be downloaded from:
http://www.ericsson.com/enterprise/library/manual.shtml
Disposal of the product
Your product should not be placed in municipal waste. Please check
local regulations for disposal of electronic products.
Copyright
No part of this document may be reproduced without the written per-
mission of the copyright owner.
The contents of this document are subject to revision without notice due
to continued progress in methodology, design and manufacturing.
Ericsson shall have no liability for any error or damage of any kind result-
ing from the use of this document.

Fixed Wireless Terminal: G30 & G35 5
Warranty
ERICSSON MAKES NO WARRANTY OF ANY KIND WITH REGARD TO
THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PAR-
TICULAR PURPOSE. Ericsson shall not be liable for errors contained
herein nor for incidental or consequential damages in connection with
the furnishing, performance or use of this material.
Declaration of Conformity
Hereby, Ericsson Enterprise AB declares that this product is in confor-
mity with the requirements and other relevant provisions of the European
R&TTE directive 1999/5/EC.
Details to be found at: http://ericsson.com/sdoc.
FCC Statement
This device complies with the limits for a Class B digital device, pursuant
to part 15 and part 24 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residen-
tial installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
Changes or modifications not expressly approved by Ericsson
could void the user’s authority to operate the equipment
ICES Statement
This Class B digital device complies with Canadian ICES-003.

6Fixed Wireless Terminal: G30 & G35
Fixed Wireless Terminal
Product Description
The FWT is a flexible and cost-effective solution for connection to the
wireless GSM network when there is no fixed line infrastructure or if you
need additional telephone lines.
The G35 can also be connected to a PBX so you can benefit from the
Least Cost Routing (LCR) capabilities offered by most PBX vendors to
optimize your costs by routing outgoing calls to mobile phones through
the GSM network.
The FWT allows automatic network searching between GSM 850/1900
or GSM 900/1800 frequencies, ensuring world wide coverage in the
GSM networks.
The FWT features the latest technology, which makes it perfect for eve-
ryday communication:
• Available in 2 dual-band GSM models (GSM 850/1900 or GSM
900/1800.
• Telephone line providing high quality speech.
• Battery back-up (optional).
• PBX connectivity (only on the G35 model).

Fixed Wireless Terminal: G30 & G35 7
Supplied Parts
After unpacking, please check that the following parts and list of compo-
nents are included:
List of Components
1. FWT unit
2. Antenna
3. 4 x mounting screws
4. Power cable (USA, UK, EU or AUS)
5. AC/DC adapter
6. Wall mount bracket
7. Telephone cable
8. Quick Guide and User Guide manuals

8Fixed Wireless Terminal: G30 & G35

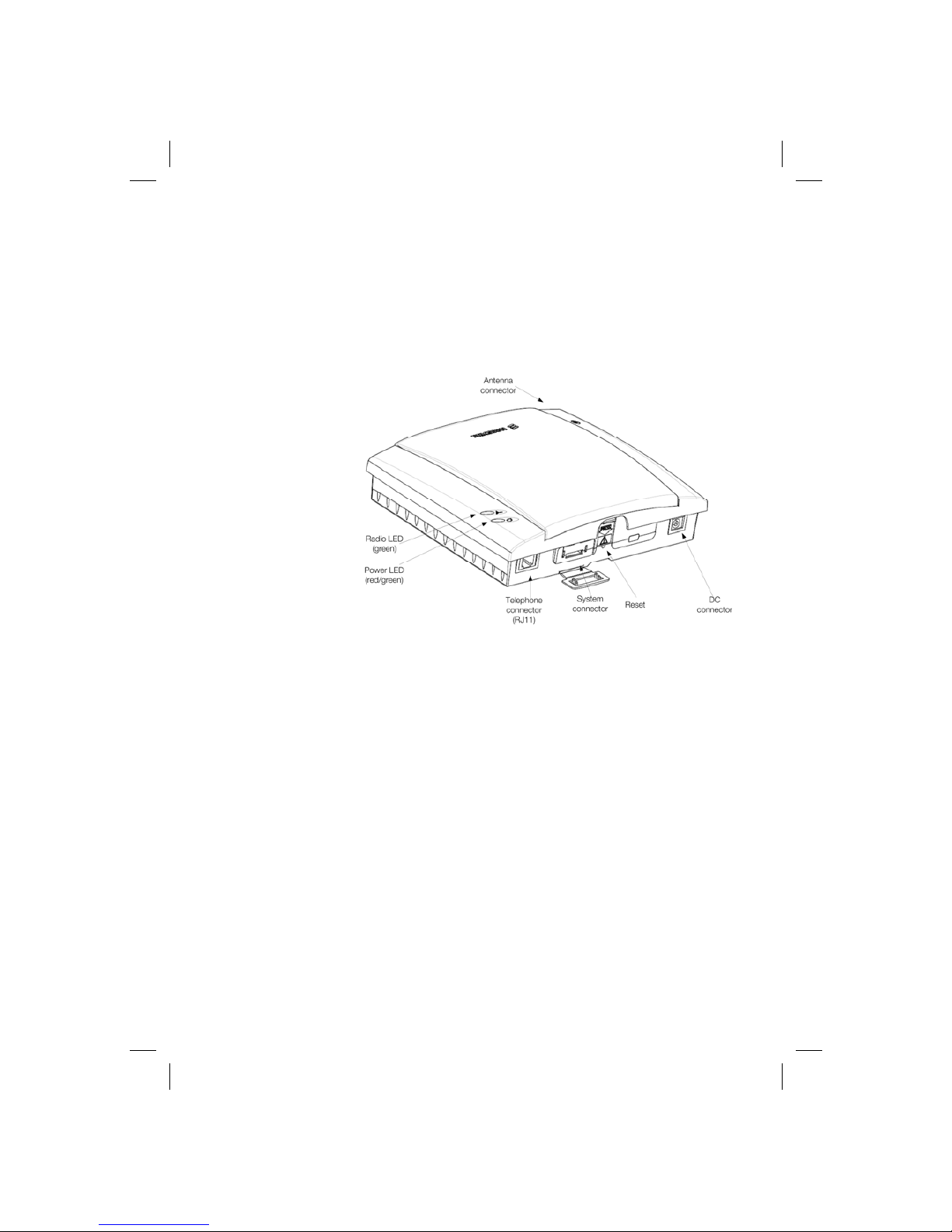

External Connector and Indicators

Fixed Wireless Terminal: G30 & G35 9
Installation
SIM Card
Your network operator provides you with a SIM (Subscriber Identity
Module) card. The SIM card contains information about your telephone
number and the services included in your subscription.
Preparing Your FWT
You need to follow these steps before you install the FWT on the wall
and finalize all connections.
Warning: The FWT should be switched off before inserting or
removing your SIM card or connecting any devices to the FWT.
Assembly
1. Connect the antenna.

10 Fixed Wireless Terminal: G30 & G35

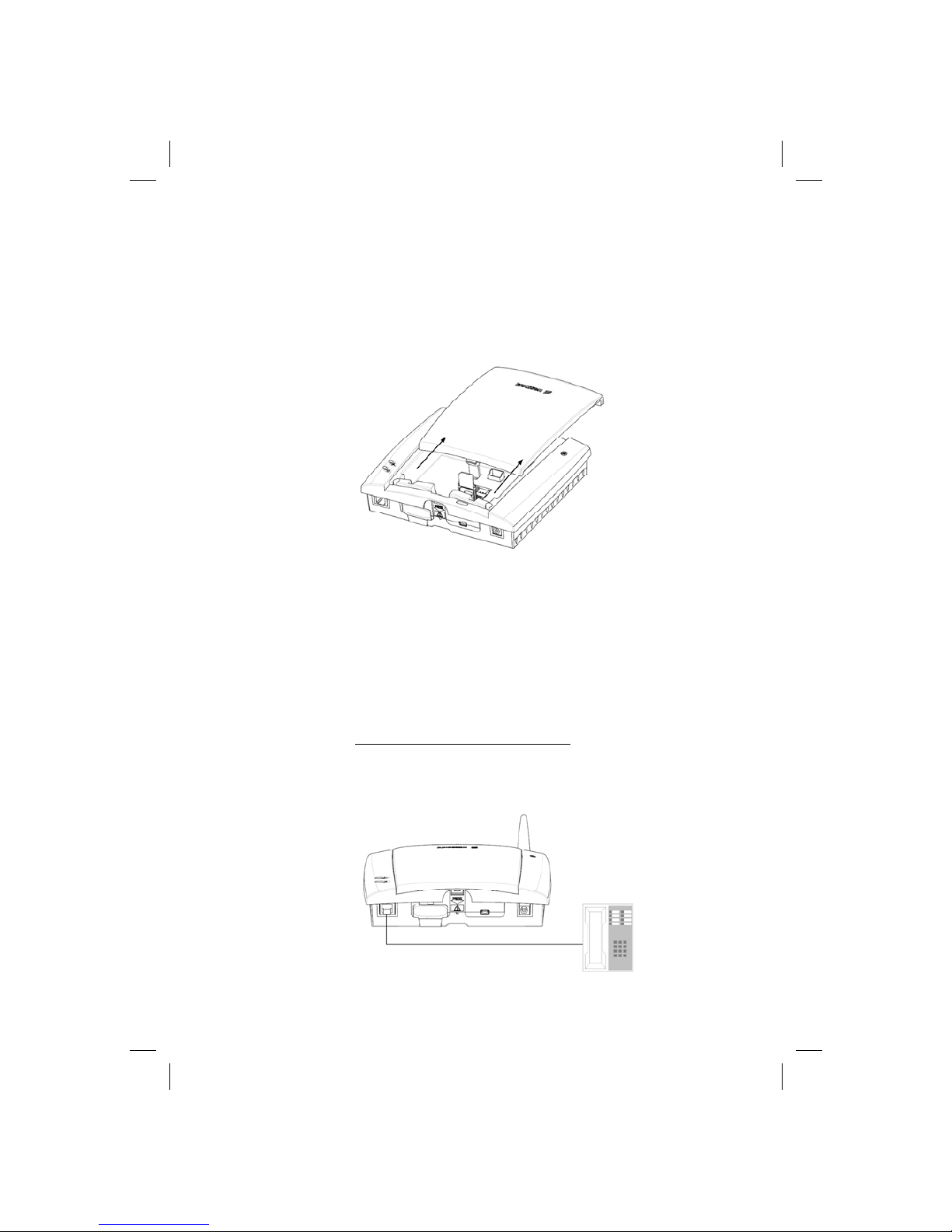

2. Remove the front cover, by pressing down and pushing the small
tab that is in the center of the bottom part of the FWT. Open the
SIM Card holder and insert the SIM Card.
3. Close the SIM Card holder, placing it horizontally and securing it
with the sliding part of the holder.
4. Install the battery (optional) in the battery compartment (over the
SIM Card). To do so, connect the battery cable to the FWT connec-
tor. Connect the black cable to the negative pole (-) of the battery
and the red cable to the positive pole (+). Fit the cable under the
holding tab (over the SIM Card) and insert the battery until the tab
fixates it.
5. Replace the front cover.
Connecting a telephone to the FWT
Connect an analog telephone to the line interface (RJ11) of the FWT.
Important: You may have to use this telephone to enter the PIN
code.

Fixed Wireless Terminal: G30 & G35 11
Switch on the FWT
Connect the power supply. The FWT switches on automatically and the
LED indicators start flashing.
Note: If the Power LED is off, there is a problem with the power
supply. Please refer to the topic Troubleshooting documented on
page 29 for more detailed information.
Enter PIN
Most SIM cards are protected with a PIN (Personal Identity Number),
which you get from your network operator and which you need in order
to access the network. If the SIM card is not protected by a PIN code,
then you do not need to enter a PIN.
The FWT starts the network search automatically. If the SIM card is
protected by the PIN code, then the LEDs will flash simultaneously.
Please follow these steps before you enter your PIN:
1. Pick up the telephone and dial the PIN code. Press the # key on
your telephone or wait until you hear a beep tone.
2. If you make a mistake while entering your PIN, hang up the tele-
phone and try again.
If the PIN is correct, you will hear a beep over the telephone (positive
indication tone). If it is incorrect, a deep tone will sound (error indication
tone).
If the PIN is entered incorrectly three times, the SIM card will be
blocked. If this happens, you can unblock it by using the PUK (Personal
Unblocking Key), which you also may get from your network operator.
Please refer to the topic SIM Card Security documented on page 27 for
more detailed information.
Note: Once you have entered the PIN code for the first time, you
will not have to enter it again unless you change your SIM card.
The FWT performs this operation automatically in case of power
failure.
Network Search
After you have switched on your FWT and entered the PIN, the FWT
automatically searches for a network.
When a network is found, the Radio LED is on or flashes depending on
the GSM signal strength.

12 Fixed Wireless Terminal: G30 & G35
Note: If the Radio LED is off, you do not have access to the GSM
network at your present location.
Now you have prepared the FWT for wall installation. Please, follow the
instructions below for complete wall installation.
Installing the FWT on the Wall
FWT Location
The GSM signal strength available at the FWT location affects the per-
formance of the unit. The stronger the GSM signal, the better the FWT
performance.
Tip: Test several potential locations by moving the FWT while
looking at the Radio LED. Select the location where the Radio
LED is continuous steady, or the location with the highest amount
of flashes.
Note: Moving the FWT as little as 20 cm can affect the GSM
reception quality.
Please consider the following recommendations:
• Always select an indoor location, preferably close to a window and
as high as possible in the building. Generally, you will experience
better GSM signal strength in these places.
• Always ensure that the distance between the FWT location and the
user or other people is greater than 20cm
• Do not install the FWT in a wet or damp location.
• Do not install the FWT in an outdoor location.
• Do not install the FWT on walls or in rooms that contain large
amounts of metal, steel or wiring.
• Do not expose the FWT to extreme temperatures (near radiators,
cooling vents, etc).
Number of Radio LED flashes Location status
0 OFF Unacceptable
1 - - - Acceptable
2 - - - - - - Good
3 - - - - - - - - - Very Good
Continuously ………………… Excellent
Location Testing

Fixed Wireless Terminal: G30 & G35 13
Wall mounting
Please proceed as indicated in the following picture.
1. Fix the wall-mounting bracket on the wall.
1. Press the FWT against the wall-mounting bracket.
3. Slide the FWT downwards.
Warning: Once you have fixed the FWT to the wall and switched
it on, check the final status of the LEDs. If either one is off, then
there is a problem with the power supply or the GSM signal.

14 Fixed Wireless Terminal: G30 & G35
Now the FWT is ready for connecting devices and making calls.

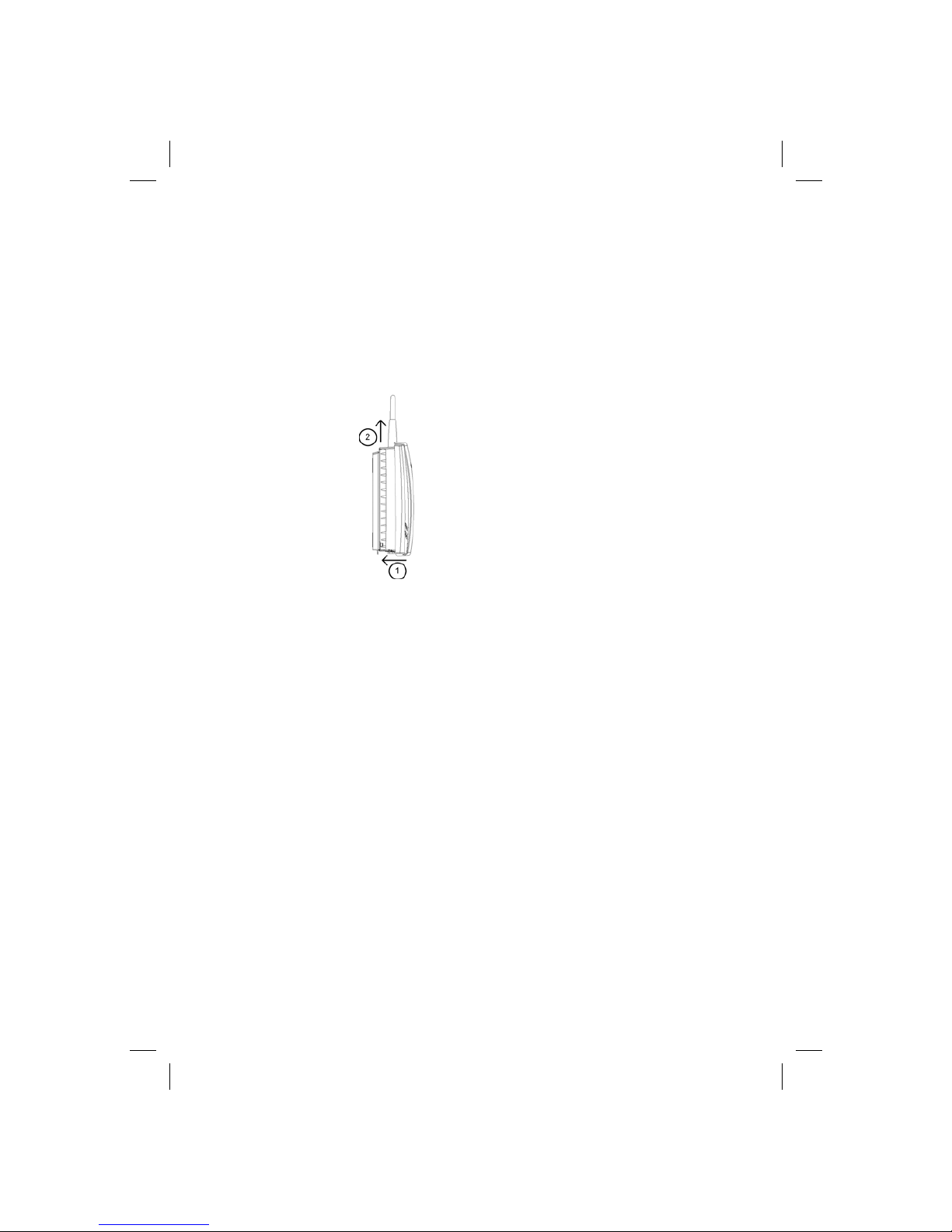

Note: If you want to remove the FWT from the wall bracket, then
you have to press the tab (step 1) as indicated in the following
picture and then slide the FWT upwards (step 2).

Fixed Wireless Terminal: G30 & G35 15
Connecting Devices to the FWT
Warning: Before you start any connections please refer to the
topic Product Care and Safety documented on page 38 for more
detailed information and contact your network operator if you
have any questions.
Warning: To ensure good protection against electrical discharges
and the best audio quality, proper grounding of the power supply
is strongly recommended.
Connecting devices to the FWT
Connect the devices to the FWT (RJ11 connector) in the same way as
with an analog telephone line. The devices must be connected in paral-
lel. You can connect the devices directly to the FWT telephone line con-
nector (RJ11) or make an internal telephone wiring, use RJ11 splitters or
similar connectors.

16 Fixed Wireless Terminal: G30 & G35
Note: When making the connections, the two-wire telephone
cable polarity does not matter.
Tip: If your home or company is already wired with telephone
cable, you only need to connect the cable to the FWT RJ11 con-
nector and your telephone line will be up and running in all
rooms.
Note: The telephone wire must be installed indoors.
Note: The telephone wire should not exceed 600 meters.
Checking the connections
Once the devices (up to 3) have been connected, do the Ring Back Test
as described below in order to check the connections:
• Lift one telephone and dial **#10#. You will hear a beep tone and
the terminal LEDs will start flashing. Three flashes indicate it is syn-
chronized.
• Hang up the telephone and check that all the connected telephones
start to ring.
• Lift any of the telephones connected and then hang up again. The
ringing will stop and the LEDs will return to normal operation mode.
Tip: If any of the telephones are not ringing, check your tele-
phone cable layout and connections to make sure that all devices
are properly connected.
Checking the quality of the calls
Use any of the telephones connected to the FWT terminal to make a
call. Check the speech quality and ask the receiver to call you back to
confirm that you can also receive calls.
If you have problems, please refer to the topic Troubleshooting docu-
mented on page 29 for more detailed information.
Installing the FWT as a telephone line
The FWT is designed to provide a telephone line (RJ11 connector) to
which up to three (3) Fixed Line devices can be connected in parallel.
The FWT provides a single telephone line, which means that only one
communication can take place at a time, in the same way as an ordinary
fixed line.

Fixed Wireless Terminal: G30 & G35 17
Warning: In order to avoid GSM interferences (noise), place the
FWT at least three (3) meters (horizontal) away from electronic
devices, including the telephone equipment connected to the
FWT, or other household electronic devices such as televisions or
radio receivers. The difference in height should be at least 2
meters (vertical). This is not necessary if you use telephone de-
vices that fulfill the Immunity Characteristics settled by the IEC
CISPR-24 standard. In this case, a minimum security distance of
20 cm is recommended.
Connecting the FWT to a PBX
This feature is only available for the FWT G35 model. The G35 FWT is
designed to provide a telephone line (RJ11 connector) that behaves in
the same way as an analog trunk.
Generic requirements
The PBX should meet the following generic requirements for FWT con-
nectivity:
• The PBX must provide analog trunks.
• One position of the trunk must be assigned to each FWT.
• The trunk card must support either Busy Tone Detection (BTD) or
Polarity Reversal Detection on answer and release.

18 Fixed Wireless Terminal: G30 & G35
• The PBX can be programmed to utilize Least Cost Routing (LCR), if
available, to automatically choose the trunk where the G35 FWT is
connected.
• If the PBX does not offer LCR, choose the trunk where the FWT is
connected manually with a special dialed prefix. Check the installa-
tion in the same way as before.
The G35 FWT is compatible with most analog PBXs on the market.
G35 FWT connectivity to the analog trunk of the PBX
If the PBX fulfils the requirements for FWT connectivity, listed above,
follow all the installation steps as described in the topic Installing the
FWT on the Wall documented on page 12.
Note: A minimum distance of 3 meters between the G35 FWT
and the PBX is recommended. The cable distance between the
PBX and the G35 FWT should not exceed 600 meters, and the
connection cable should be at least 0.4mm2in diameter.
Warning: If you install more than one G35 FWT to a PBX, their
antennas have to be separated by 20 cm in height or 2 meters in
the horizontal.
If you are using an analog PBX – disconnect the telephone you have
used to enter the PIN and test the FWT, and connect the analog trunk
cable from the PBX to the FWT telephone line interface.
Check your PBX programming guide to see how to program your PBX
to route certain calls through the FWT trunk if you are using a Least Cost
Routing (LCR) programmed PBX. Once LCR is programmed, make a
call to a mobile telephone number. See if the call is established through
the FWT and check the speech quality.

Fixed Wireless Terminal: G30 & G35 19
If the PBX does not offer the LCR option, choose the FWT trunk manu-
ally with a specific prefix. Check the installation in the same way as be-
fore. If you encounter problems, contact your distributor or network
operator.
Warning: The PBX may require specific programming: both pro-
gramming and installation should be done by specialized service
personnel.
Using telephones
Telephones connected to the FWT work in the same way as if they were
connected to a fixed line network.
Note: You can also benefit from some GSM functionality that you
usually do not have in the fixed line network. Please refer to the
topic Advanced Features documented on page 20 for more de-
tailed information.
Please refer to the topic Audible Tones documented on page 32 for
more detailed information.

20 Fixed Wireless Terminal: G30 & G35
Advanced Features
If a DTMF telephone is connected to the FWT, the following features can
be accessed.
Changing Volume
During a call, you can increase or decrease the reception volume level.
• Increase volume: dial R####
• Decrease volume: dial R****
Call Divert
You can divert incoming calls to another phone number when you are
unable to answer.
The following table shows the divert alternatives as well as the way to
proceed to manage this function.
Note: These dialing sequences may vary depending on your
network operator. If these do not work, please consult your net-
work operator or check the user guide provided with your sub-
scription.
To manage diversion
of calls ... With function ... Dial ... You will hear ...
Always
Activate **21*phone_number# 1 beep
Deactivate ##21# 3 beeps
Check status *#21# 1 beep if activated
3 beeps if deactivated
