ESTeem 195Eg User manual

ESTeem MODEL 195Eg
USER’S MANUAL
Manual Revision 2.1
August 2005
Electronic S
y
stems Technolo
gy,
Inc.

ESTeem MODEL 195Eg
USER’S MANUAL
Manual Revision 2.1
Firmware Version 302 and above
August 2005
Prepared by: Date:
Name: Eric P. Marske
Title: Manager Customer Support
Approved by: Date:
Name: Tom L. Kirchner
Title: President

COPYRIGHT INFORMATION
This manual and the firmware described in it are copyrighted by EST, with all rights reserved. Under the copyright laws, this manual or the
firmware internal to the ESTeem unit may not be copied, in whole or part, without the written consent of EST. Under the law, copying
includes translating into another language.
Electronic Systems Technology (EST) cannot guarantee that you will receive notice of a revision to the firmware described in the manual,
even if you have returned a registration/warranty card received with the product. You should periodically check with your authorized EST
dealer or call factory direct.
EST and the EST logo are registered trademarks of Electronic Systems Technology, Inc. Simultaneously published in the United States
and Canada. All rights reserved.
WARRANTY INFORMATION
Electronic Systems Technology, Inc., (hereinafter EST) expressly warrants its products as free of manufacturing defects for a period of one
year from the date of sale to first user/customer.
THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED AND THERE IS EXPRESSLY EXCLUDED ALL WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NO OTHER WARRANTY GIVEN BY ANY EMPLOYEE, AGENT,
DISTRIBUTOR OR OTHER PERSON WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON EST.
LIMITATION OF LIABILITY:
EST's liability shall be limited to refunding of purchase price, repair or replacement of product.
IN NO EVENT SHALL EST HAVE LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAMAGES
CAUSED DIRECTLY OR INDIRECTLY BY THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY INTERRUPTION OF SERVICES,
LOSS OF BUSINESS OR ANTICIPATORY PROFITS. IN NO EVENT SHALL EST BE LIABLE FOR ANY DAMAGES WHATSOEVER IN
EXCESS OF THE PURCHASE PRICE OF THE PRODUCT.
In the event that a unit or part requires replacement or factory servicing, the following conditions apply:
a) Customer must obtain from EST an authorized RMA (Return Materials Authorization) number (call 509-735-9092 Customer Support)
before shipment of product or parts to EST for any reason;
b) If the whole unit is shipped, it must be in its original carton and shipping components, or a carton and shipping components supplied
by EST, or if parts only are shipped, they must be packaged and cushioned so as to prevent damage in transit and shipped freight
prepaid;
PRODUCT WILL BE CONSIDERED OUT OF WARRANTY IF:
a) If the product is damaged due to improper or abnormal use, abuse, mishandling, accident or improper maintenance or failure to
follow operating instruction;
b) If the product is defective as a result of sand, dirt, or water damage;
c) If any factory-sealed enclosure has been opened or shows evidence of an attempt to be opened;
d) If defects or damage are caused by the use of unauthorized parts or unauthorized service;
e) If the product has had its serial numbers altered or removed.
Warranty repair form must be accompanied by proof of user's purchase of unit. Product must be shipped to the manufacturer at the
following address:
Electronic Systems Technology
415 North Quay Street
Kennewick, Washington USA 99336
ADDITIONAL SERVICE:
If EST releases an improvement update to firmware internal to the ESTeem unit during the 90 day period after the unit was purchased by the
first user/customer, EST will update the applicable unit with the revised version at no charge other than for UPS handling and shipping to and
from your location to the EST factory. Return of any such item must be accompanied with proof of purchase.

TABLE OF CONTENTS
Revised: 25 Apr 05 Page 1 EST P/N AA107G
CHAPTER 1 – INTRODUCTION
Before You Begin 1-1
Model 195Eg Overview 1-1
Model 195Eg Configuration Modes 1-1
Access Point Modes --------------------------------------------- 1-2
Access Point Repeater --------------------------------------------- 1-3
Self-Healing Mesh Network --------------------------------------------- 1-3
Station (802.11g Client) Modes --------------------------------------------- 1-3
CHAPTER 2 – CONFIGURATION DIAGRAMS
Model 195Eg Access Point Configurations 2-1

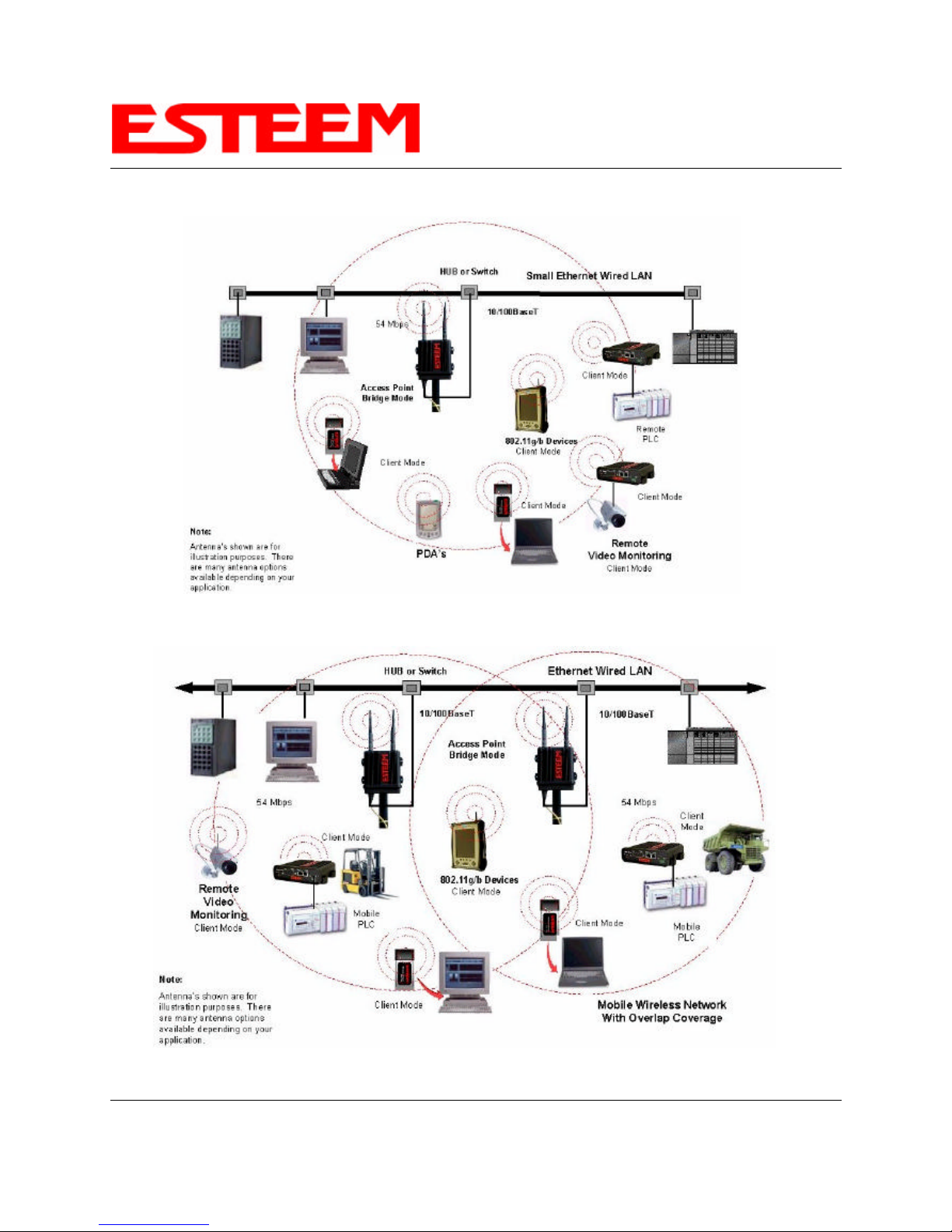

Figure 1: Single Access Point Bridge Diagram --------------------------------------------- 2-1
Figure 2: Multiple Access Point Bridge Diagram --------------------------------------------- 2-1

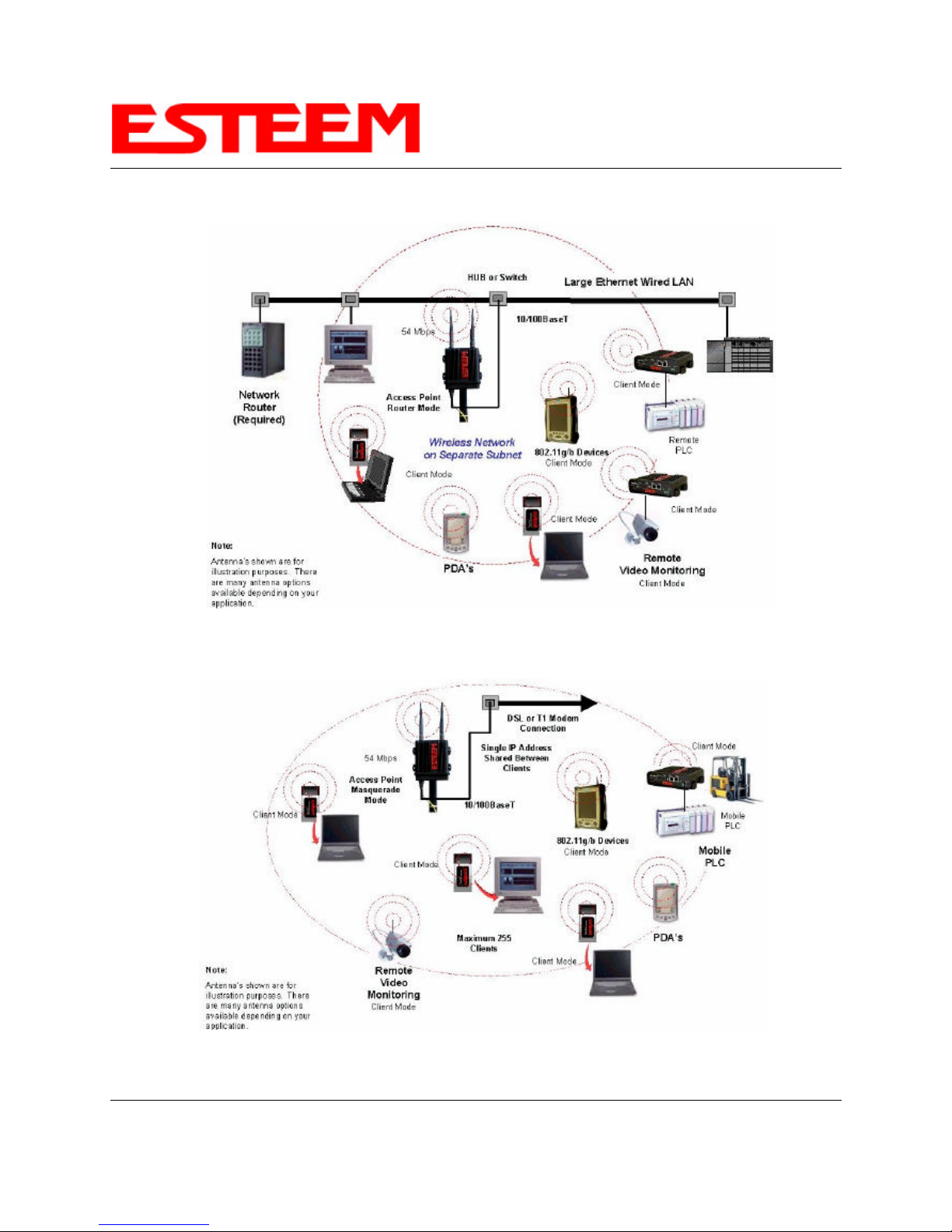

Figure 3: Access Point Router Diagram --------------------------------------------- 2-2
Figure 4: Access Point Masquerade Diagram --------------------------------------------- 2-2

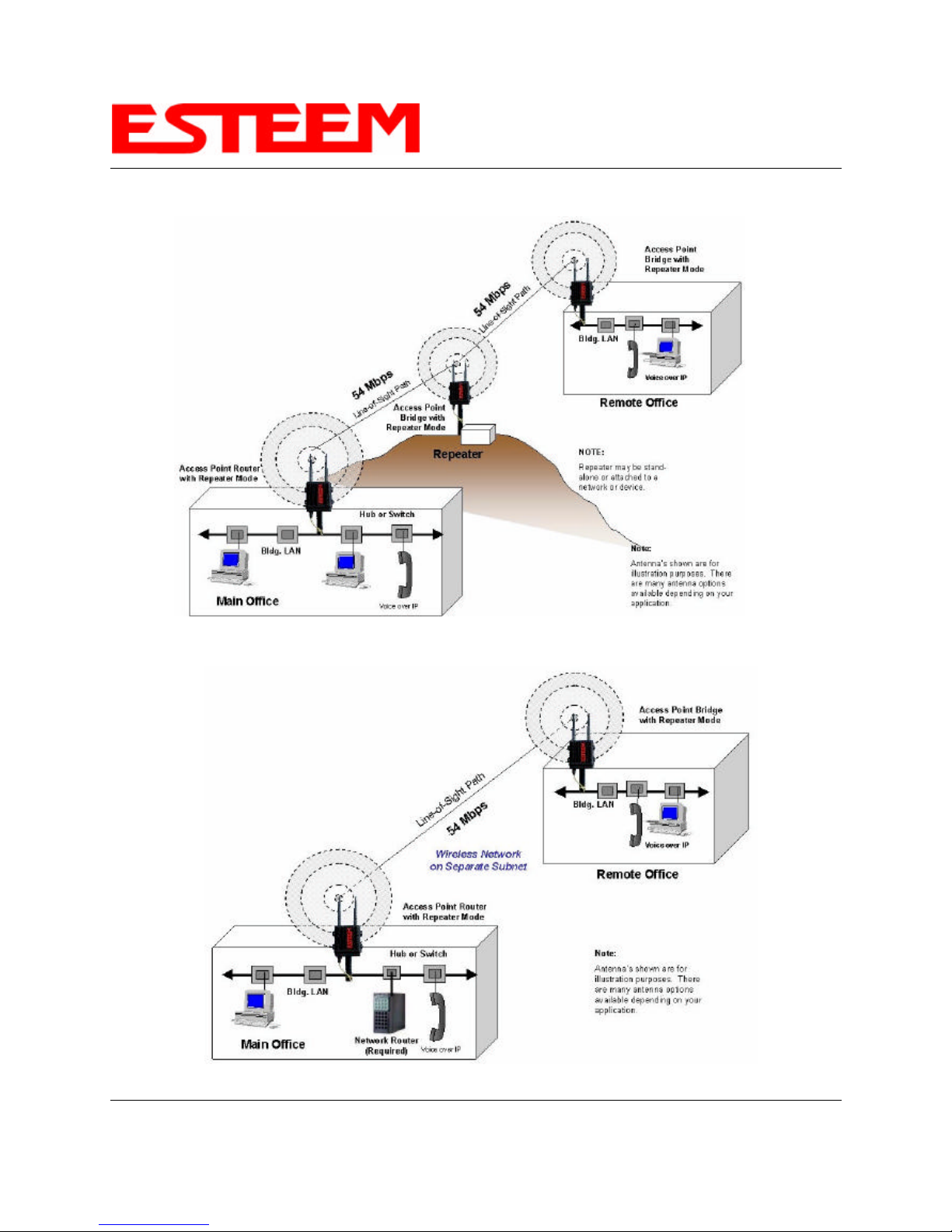

Model 195Eg Access Point Repeater with Clients Configurations 2-3
Figure 5: Access Point Bridge Repeater with Clients Diagram --------------------------------------------- 2-3
Figure 6: Access Point Router Repeater with Clients Diagram --------------------------------------------- 2-3
Figure 7: Access Point Masquerade Repeater with Clients Diag. --------------------------------------------- 2-4

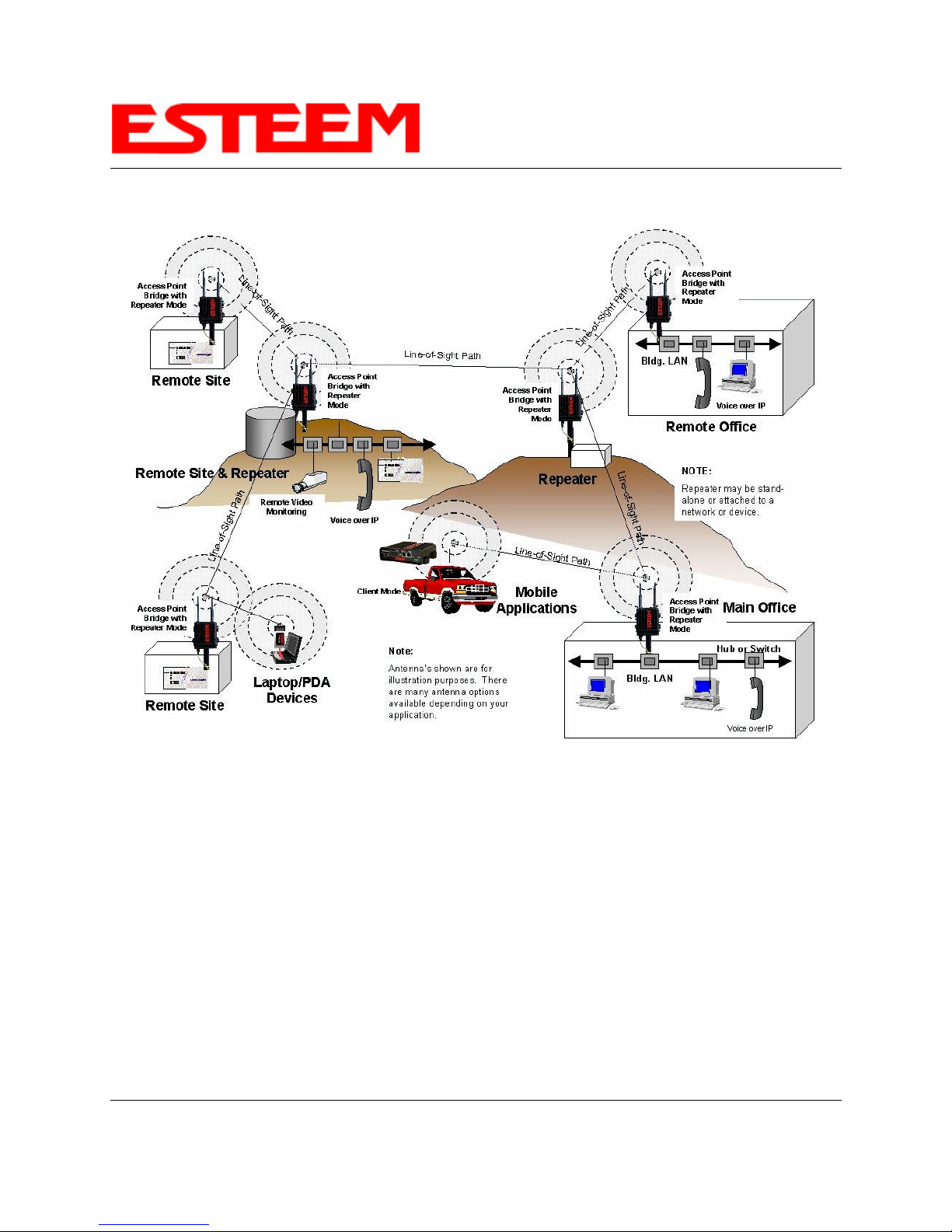

Model 195Eg Building to Building Configurations 2-4
Figure 8: Building to Building Configuration Diagram --------------------------------------------- 2-4
Figure 9: Building to Building with Repeater Diagram --------------------------------------------- 2-5
Figure 10: Building to Building Router Diagram --------------------------------------------- 2-5

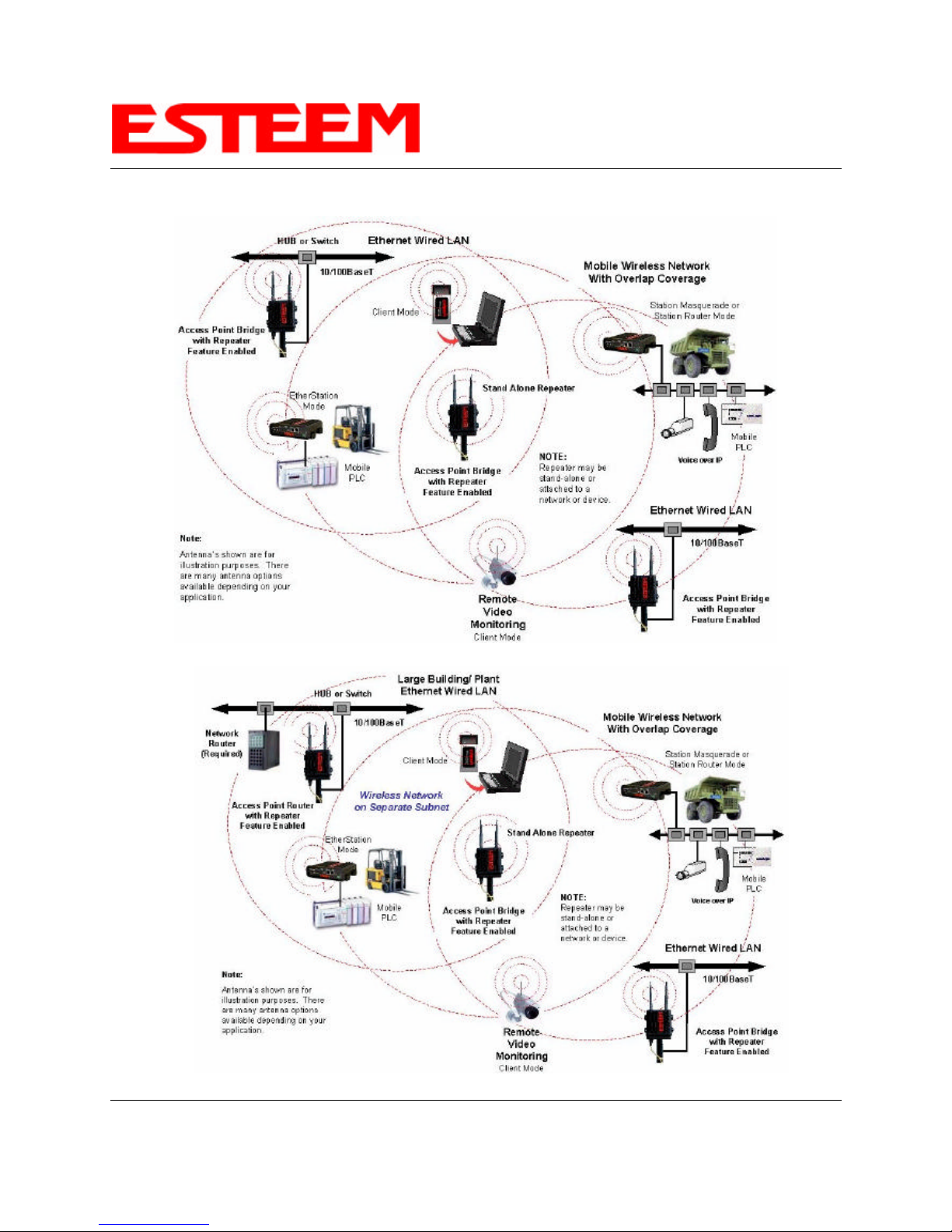

Model 195Eg Complete Wireless Solutions 2-6
Figure 11: Complete Bridge Network Solutions Diagram --------------------------------------------- 2-6
Figure 12: Complete Router Network Solutions Diagram --------------------------------------------- 2-7
CHAPTER 3 – STARTING OUT
Overview 3-1
Quick Start Guide --------------------------------------------- 3-1
Model 195Eg Hardware Layout 3-1
Required Hardware --------------------------------------------- 3-1
Front Panel Overlay Diagram --------------------------------------------- 3-2
Antenna Port Overview --------------------------------------------- 3-2
Antenna Configuration --------------------------------------------- 3-3
Hardware Configuration Diagram --------------------------------------------- 3-3
System Configuration Table --------------------------------------------- 3-4

TABLE OF CONTENTS
Revised: 25 Apr 05 Page 2 EST P/N AA107G
ESTeem Discovery Utility 3-5
Installation --------------------------------------------- 3-5
Operation --------------------------------------------- 3-6
Configuring the IP Address --------------------------------------------- 3-6
Using The RS-232 Interface 3-7
Installing ESTeem Utility Program --------------------------------------------- 3-7
Programming Using the RS-232 Port --------------------------------------------- 3-7
CHAPTER 4 – WEB CONFIGURATION
Logging Into Web Configuration Manager 4-1
Web Configuration Manager 4-2
Top Menu --------------------------------------------- 4-2
Setting ModemID Field --------------------------------------------- 4-2
Status Menu --------------------------------------------- 4-3
System Log Screen --------------------------------------------- 4-5
Setup Screen --------------------------------------------- 4-5
Advanced Configuration Screen --------------------------------------------- 4-6
Backup Screen --------------------------------------------- 4-6
Restore Screen --------------------------------------------- 4-7
Software Update --------------------------------------------- 4-8
System Reboot --------------------------------------------- 4-8
CHAPTER 5 – EXAMPLE CONFIGURATIONS
Programming Example 5-1
Programming Example #1 Diagram --------------------------------------------- 5-1
Programming Example #2 Diagram --------------------------------------------- 5-2
Table 1: Example System Configuration Table --------------------------------------------- 5-2
Example 1 – Plant Network (Access Point Router Repeater) 5-3
Example 2 –Repeater (Access Point Bridge Repeater) 5-13
Example 3 – Remote Building (Access Point Bridge Repeater) 5-19
Example 4 – EtherStation Mode 5-20
Example 5 – Station Router Mode 5-22
Example 6 – Station Masquerade Mode 5-26

TABLE OF CONTENTS
Revised: 25 Apr 05 Page 3 EST P/N AA107G
CHAPTER 6 – REPEATING FEATURES
Overview 6-1
ESTeem Mesh Network 6-1
Configuration --------------------------------------------- 6-1
Spanning Tree Protocol (STP) 6-2
Overview --------------------------------------------- 6-2
Phases --------------------------------------------- 6-3
Priority and Path Cost --------------------------------------------- 6-4
Root Bridge --------------------------------------------- 6-4
Redundant Backup 6-5
CHAPTER 7 – ANTENNA SETUPS
Antenna and Cable Configurations 7-1
Antenna Diversity 7-2
Antenna Port Selection 7-2
Coaxial Cable Attenuation 7-3
Assembling the AA195PM Outdoor Pole Mounting Kit 7-4
Model 195Eg Series with Direct Mount Dual Diversity Antennas 7-9
Model 195Eg Series with External Mount Antenna 7-10
Fresnel Zone 7-11
APPENDIX A – FCC INFORMATION
APPENDIX B – SPECIFICATIONS
195Eg Specifications --------------------------------------------- B-1
Case Diagram --------------------------------------------- B-2
Antenna Specifications --------------------------------------------- B-3
APPENDIX C – INTERFACE PORTS
Ethernet Interface --------------------------------------------- C-1
Setting DHCP Server --------------------------------------------- C-1
RS-232 Port Pin-Out --------------------------------------------- C-2
APPENDIX D – RADIO CONFIGURATION
Frequency of Operation --------------------------------------------- D-1
Setting Data Rates --------------------------------------------- D-1
Setting RF Power Level --------------------------------------------- D-3

TABLE OF CONTENTS
Revised: 25 Apr 05 Page 4 EST P/N AA107G
APPENDIX E – SECURITY
APPENDIX F – TROUBLESHOOTING
Testing Communication Link --------------------------------------------- F-1
Status Screen --------------------------------------------- F-1
Viewing RF Data Rates --------------------------------------------- F-2
Signal Strength vs Data Rates --------------------------------------------- F-4
Updating 192E to Operate with 195Eg --------------------------------------------- F-4
Long Range Point to Point Applications --------------------------------------------- F-6
EtherStation Status Program --------------------------------------------- F-6
APPENDIX G – Quick Start Guide

CHAPTER 1
INTRODUCTION
Revised: 27 Jul 05 1-1 EST P/N AA107G
BEFORE YOU BEGIN
Thank you and congratulations on your purchase of the ESTeem
Model 195Eg Wireless Ethernet Radio Modem! This manual was
written to help both the first time and advanced user of the 195Eg
configure the radio modem for your application. If this your first
time configuring the 195Eg and you would like to get going as soon
as possible, we recommend using the 195Eg Quick Start Guide
provided with the modem. A copy of the guide is listed in the
appendix of this manual for your reference.
The ESTeem 195Eg is a very versatile wireless Ethernet networking device. To keep the manual usably short, many of the
application descriptions and programming details assume the user has a good working knowledge of the following network
concepts:
•General Ethernet networking and the configuration of LAN topologies
•Common Ethernet terminology and acronyms
•TCP/IP network protocol structure and how to configure TCP/IP networks and subnets
•How to identify and set the TCP/IP address on your computer
•Have administrator privileges to the computer and network you are configuring
•If using routing protocols, you must be able to identify and configure the network routers, gateways and firewalls
•You must be familiar with using web browser software such as Internet Explorer, Netscape or Mozilla
If you are unfamiliar with any of the above networking concepts, you may need to contact your network administrator for
assistance.

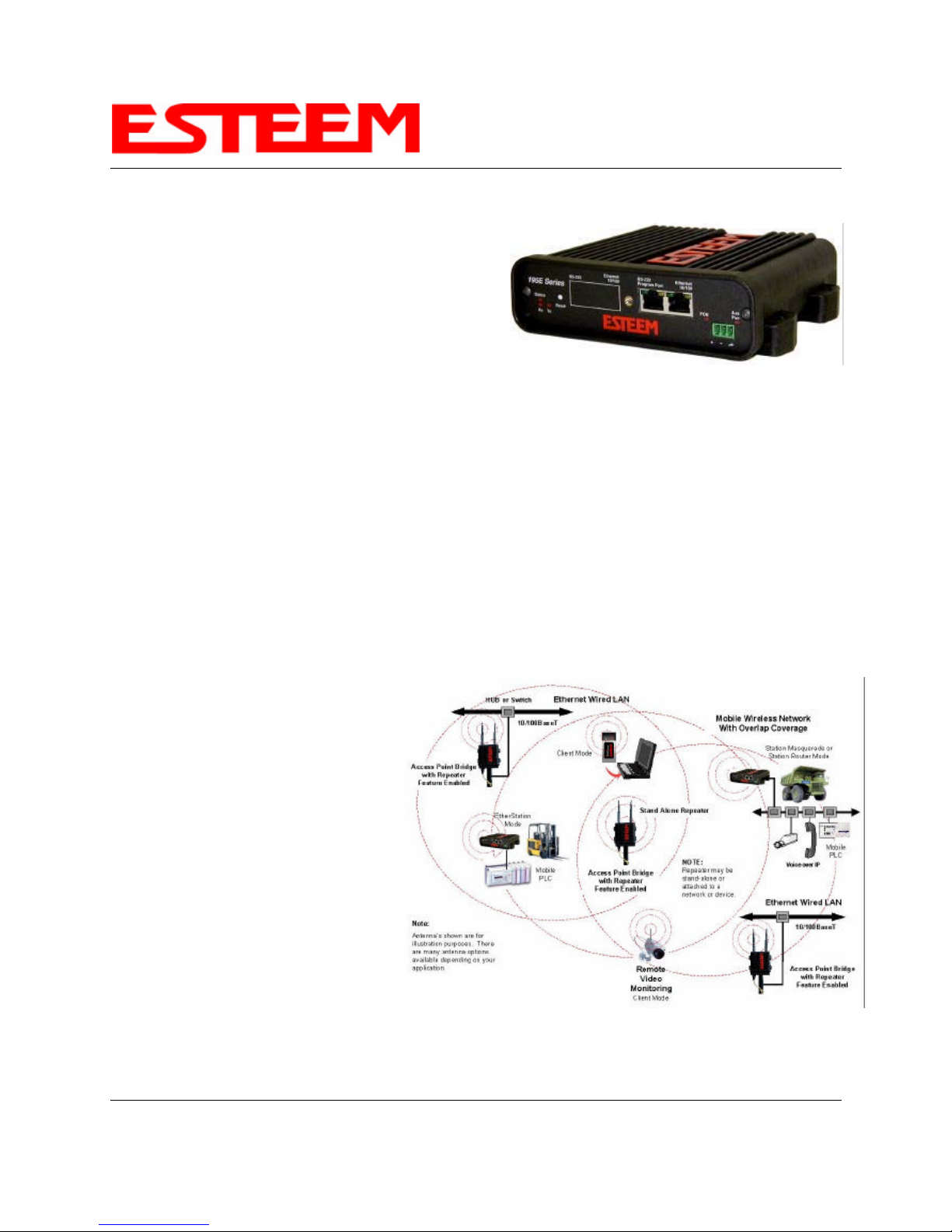

MODEL 195Eg OVERVIEW
The ESTeem Model 195Eg is a IEEE 802.11g
protocol compatible wireless LAN transceiver
that can be used to build a Wireless Local Area
Network (WLAN) for line-of-sight distances to
13 miles for fixed base and 5 miles for mobile
applications at RF data rates up to 54 Mbps.
The Model 195Eg is also downward compatible
with IEEE 802.11b protocol networks. The IEEE
802.11 WLAN was designed to look and feel like
any IEEE 802 wired LAN. The Model 195Eg is a
very sophisticated networking device that can
be configured for multiple modes of operation
depending upon the needs of the wireless and
wired LAN system. The following configuration
modes are provided as an overview of the basic
network types, as all possible network
configurations can not be listed. For further
help in selecting the correct network type,
please contact Customer Support at 509-735-
9092. Figure 1- Access Point Bridge Diagram

CHAPTER 1
INTRODUCTION
Revised: 27 Jul 05 1-2 EST P/N AA107G
MODEL 195Eg CONFIGURATION MODES
The Model 195Eg can be configured for multiple
modes of operation without any changes to the
hardware:
Access Point Modes
1. Access Point Bridge Mode. When the
Model 195Eg is configured as an Access
Point it will provide a wireless bridge from a
hardwired Local Area Network (LAN) to
laptops, office computers, Personal Digital
Assistants (PDA’s), video cameras, PLC’s,
etc. that have integral or external 802.11g or
802.11b wireless devices or other Model
195Eg modems in client modes. Multiple
Access Point Bridge modems can be
physically connected to the same network
(LAN) or through a radio link using the
Access Point Repeater mode to provide
overlapping, seamless Ethernet communication for mobile devices. The ESTeem Model 195Eg in Access Point Bridge mode
will pass all network traffic between connected devices including global network broadcasts. See Figure 1.
2. Access Point Router Mode. In this mode the ESTeem Model 195Eg will function as a router between the wired Ethernet
network, connect to the 195Eg’s Ethernet port, and the wireless network of 802.11g/b clients and other 195Eg’s in repeater
peer mode. As in all standard router configurations, the wireless and wired Ethernet networks will need to be on separate
subnets. To communicate from the wired Ethernet network to devices on the wireless network, a separate router (in
addition to the Model 195Eg) is required. The 195Eg in Access Point Router mode will pass network traffic for connected
devices but will block global
network broadcasts from the wired
network. This mode of operation
should be used instead of the
Access Point Bridge mode when a
separation between networks is
required or the ESTeem is
connected to larger LAN Networks
that will continuously send global
network broadcasts (Figure 2).
3. Access Point Masquerade Mode.
The Access Point Masquerade
mode is a special use of the Access
Point mode where the Model 195Eg
will connect 802.11g or 802.11b
wireless devices as clients into a
single static IP address on a wired
network. Data requests from the
wireless network will be processed
Figure 2 – Repeater Mode Diagram
Figure 3- Access Point Masquerade Diagram

CHAPTER 1
INTRODUCTION
Revised: 27 Jul 05 1-3 EST P/N AA107G
through the Access Point Masquerade 195Eg, but any request from the wired Ethernet network to devices on the wireless
network will be rejected similar to the operation of a “firewall”. The 195Eg will hide all the IP addresses connected on the
wireless link. You should use this mode of operation if Model 195Eg is connected directly to the Internet with a static IP
address (DSL, T1, etc.) and you want the wireless clients to access the information through the Model 195Eg (Figure 3).
This mode should also be used for attaching the Model 195Eg to a network where few IP addresses are available or a
firewall for the wireless clients is required.
4. Access Point Repeater. The Access Point Repeater is a unique enhancement of the 802.11g Access Point mode only
available the ESTeem Model 195Eg. The Access Point Repeater can be used with any of the above Access Point modes.
With this repeater feature enabled, the Model 195Eg Access Points do not have to be hardwired together on the same
physical LAN to provide seamless Ethernet communication for roaming 802.11g/b Clients. In addition to greatly extending
the Access Point canopy range, the Model 195Eg will also bridge any Ethernet device or Ethernet network connected to the
unit over this same wireless Ethernet network. This mode gives the user the features of a point to multi-point bridge
network but also allows 802.11g/b Client devices or the Model 195Eg in the Client mode to simultaneously roam under the
network canopy.
5. Self-Healing Mesh Network. If multiple Access Point Repeater routes are configured to the same destination ESTeem, the
195Eg will create a “self-healing” mesh network by automatically re-routing data through alternate paths to reach its
destination if the primary path is inoperable. The routing and priority of alternate paths is completely user configurable. See
Figure 4.
Station (802.11g Client) Modes
6. EtherStation Mode. This is a unique feature of the Model 195Eg when used in any Access Point network. When the 195Eg
is configured in the EtherStation Mode and attached to a single Ethernet Device, the Model 195Eg will emulate an 802.11g
PCMCIA wireless card in functionality for communication as an 802.11g client. The 195Eg will seamless roam under the
radio canopy of Access Point and can provide greatly increased range over a Wireless LAN Card for mobile Ethernet
devices such as vehicles, forklifts, cranes, etc (Figures 1-3).
Main Office
Remote Office
Vehicles
Remote Site
Remote Site
Remote Site
Access
Point/Repeater
Access
Point/Repeater
Remote Site
Access
Point/Repeater
Access
Point/Repeater
Access
Point/Repeater
Remote Site
Access
Point/Repeater
Remote Site
Access
Point/Repeater
Remote Site
Access
Point/Repeater
Remote Site
Access
Point/Repeater
Access
Point/Repeater Access
Point/Repeater
Access
Point/Repeater
Remote Site
Remote Site
Client Mode
Figure 4 – Mesh Network Diagram

CHAPTER 1
INTRODUCTION
Revised: 27 Jul 05 1-4 EST P/N AA107G
7. Station Router Mode. The Station Router mode will also function as an 802.11g client, similar to EtherStation, but will allow
multiple Ethernet devices to be connected to a single 195Eg (Figure 3). The 195Eg will function as a router between the
wireless client mode and the wired Ethernet devices connected to the Ethernet port. Similar in configuration to the Access
Point Router mode, the wireless and wired Ethernet networks will need to be on separate subnets. To communicate from
wireless network to devices on the wired Station Router network, a separate router (connected to the Ethernet side of the
Access Point) is required. This mode would be used where multiple Ethernet devices will be connected to a single Model
195Eg in a mobile client application and the connected Ethernet devices will need to be accessible from the Access Point’s
LAN network.
8. Station Masquerade Mode. The Station Masquerade Mode is another mode where multiple devices will be connected to a
single ESTeem in a mobile or Client application, but unlike the Station Router mode, the Station Masquerate will consolidate
all connected Ethernet devices to a single IP address on the network. The devices connected to the Station Masquerade
195Eg will be able to access information from both the wireless and wired LAN, but will be inaccessible the other way similar
in application to a firewall. This mode would be used where multiple Ethernet devices will be connected to a single Model
195Eg in a mobile application and the IP addresses for each device will be hidden from the LAN connected to the Access
Point. See Figure 3.
To begin setup of your wireless Ethernet network you must first configure the Model 195Eg for the mode desired. Chapter 2 will
show several examples of the different modes of operation to help select the correct mode for your application.

CHAPTER 2
CONFIGURATION DIAGRAMS
Revised: 25 Jul 05 2-1 EST P/N AA107G
MODEL 195Eg ACCESS POINT BRIDGE DIAGRAMS
Figure 1: Single Access Point Bridge Diagram
Figure 2: Multiple Access Point Bridge (Overlapping Coverage) Diagram

CHAPTER 2
CONFIGURATION DIAGRAMS
Revised: 25 Jul 05 2-2 EST P/N AA107G
MODEL 195Eg ACCESS POINT ROUTER DIAGRAM
MODEL 195Eg ACCESS POINT MASQUERADE DIAGRAM
Figure 3: Access Point Router Diagram
Figure 4: Access Point Masquerade Diagram

CHAPTER 2
CONFIGURATION DIAGRAMS
Revised: 25 Jul 05 2-3 EST P/N AA107G
MODEL 195Eg ACCESS POINT REPEATER AND CLIENT CONFIGURATION DIAGRAMS
Figure 5: Access Point Bridge Repeater with Clients Diagram
Figure 6: Access Point Router Repeater with Clients Diagram

CHAPTER 2
CONFIGURATION DIAGRAMS
Revised: 25 Jul 05 2-4 EST P/N AA107G
MODEL 195Eg ACCESS POINT REPEATER AND CLIENT CONFIGURATION DIAGRAMS (Cont.)
MODEL 195Eg BUILDING TO BUILDING CONFIGURATION DIAGRAMS
Figure 7: Access Point Masquerade Repeater with Clients Diagram
Figure 8: Building to Building Configuration Diagram

CHAPTER 2
CONFIGURATION DIAGRAMS
Revised: 25 Jul 05 2-5 EST P/N AA107G
MODEL 195Eg BUILDING TO BUILDING CONFIGURATION DIAGRAMS (Cont.)
Figure 10: Building to Building Router Diagram
Figure 9: Building to Building with Repeater Diagram

CHAPTER 2
CONFIGURATION DIAGRAMS
Revised: 25 Jul 05 2-6 EST P/N AA107G
MODEL 195Eg COMPLETE BRIDGE SYSTEM CONFIGURATION DIAGRAMS
Figure 11: Complete Bridge Network Solutions Diagram

CHAPTER 2
CONFIGURATION DIAGRAMS
Revised: 25 Jul 05 2-7 EST P/N AA107G
MODEL 195Eg COMPLETE ROUTER SYSTEM CONFIGURATION DIAGRAMS
Figure 12: Complete Router Network Solutions Diagram

CHAPTER 3
STARTING OUT
Revised: 25 Jul 05 3-1 EST P/N AA107G
OVERVIEW
Most configuration of the ESTeem Model 195Eg is completed using the internal Web interface (discussed in detail in Chapter 4),
but to access the modem through a web browser requires first setting the TCP/IP address. The TCP/IP address (IP address) is
set at the factory for a static Class B (172.16.xxx.xxx - Mask 255.255.0.0) and listed on the ESTeem documentation. If this IP
address does not match your network configuration, you will need to use either the ESTeem 195E Discovery program or the RS-
232 interface to set the IP address in the 195Eg.
QUICK START GUIDE
A printed copy of the Model 195Eg Quick Start Guide was provided in the documentation package that arrived with your new
ESTeem 195Eg. This guide is an abbreviated step-by-step procedure on configuration of the 195Eg for most Ethernet bridging
and Access Point applications. A copy of the Quick Start Guide is provided in Appendix G of this User’s Manual for
convenience.
MODEL 195Eg HARDWARE LAYOUT
Unpack the ESTeem Model 195Eg shipping boxes and locate the items contained below for initial configuration. Take a few
minutes to inventory your equipment before you proceed. Report any missing or damaged items to Customer Support (509-735-
9092) as soon as possible.
Each node in your ESTeem Model 195Eg’s network may have different hardware components based upon the final installation
location (i.e Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power supplies may be different, but
the following items will be required for basic setup:
Model 195Eg AA109 Resource Disk
Antenna
(AA01S Displayed)
(2) Ethernet Cables
Power Supply
(AA175 Displayed)
Serial Interface Cable
(AA6021)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.

CHAPTER 3
STARTING OUT
Revised: 25 Jul 05 3-2 EST P/N AA107G
Notes:
•There is no Power On/Off switch on the Model 195Eg.
•Attach the programming Cable to the RS-232 Programming Port and the Patch Cable between the Power Supply and
Ethernet port.
•One word of caution, always attach an antenna to Port A (Figure 2) on the Model 195Eg before power up.
12 VDC Input
(Auxiliary
Connector )
Reset Button
RS-232 Input/Output
(RJ-45 Connector)
RJ-45 10/100BaseT
Ethernet Port
Transmit
LED
Receive
LED
Status
LED
Power over
Ethernet LED
Auxiliary
Power LED
Figure 1: 195Eg Front Panel Overview
Antenna Connectors
(TNC Female-RP)
Antenna Port A
(Single Receive Antenna)
Antenna Port B
(Dual Receive Antennas)
Figure 2: 195Eg Antenna Overview
