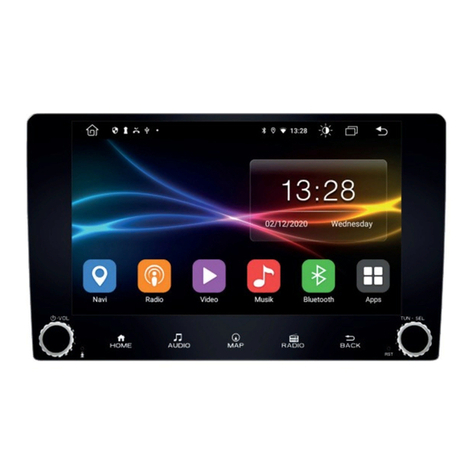

ESX VISION ANDROID Series User manual

V1. 0
VISION ANDROID™ SERIES
SMART NAVICEIVER
MOBILE INTERNET READY
V1. 0
OWNER‘S
MANUAL
VN1060-MA-4G

2
Always follow the instructions in this manual before using the device. Please keep this manual
easily accessible in the vehicle for future reference.
INDEX
Important Notes....................................................................................................................................3
Safety Information................................................................................................................................5
1. Operation...........................................................................................................................................6
1.1 SD card slot for navigation software ....................................................................................6
1.2 ACC button ...........................................................................................................................6
1.3 Reset button .........................................................................................................................6
1.4 Function keys .......................................................................................................................7
1.5 Status bar .............................................................................................................................8
1.6 Touchscreen .........................................................................................................................9
1.7 Main menus ........................................................................................................................10
1.8 Split screen.........................................................................................................................12
1.9 Camera view.......................................................................................................................13
2. Settings ...........................................................................................................................................14
2.1 Internet connection via WiFi / Hotspot................................................................................14
2.2 Internet connection via 4G/LTE ..........................................................................................15
2.3 Date & time.........................................................................................................................16
2.4 Language............................................................................................................................16
2.5 Google account ..................................................................................................................17
2.6 Screen brightness...............................................................................................................18
2.7 Wallpaper............................................................................................................................18
2.8 Steering wheel remote control............................................................................................19
2.9 Sound settings....................................................................................................................20
2.10 Navigation...........................................................................................................................21
2.11 Key illumination ..................................................................................................................21
2.12 More settings ......................................................................................................................22
2.13 Microphone selection..........................................................................................................23
3. Basic Functions..............................................................................................................................24
3.1 Radio (AM/FM) ...................................................................................................................24
3.2 Digital Radio (DAB+) ..........................................................................................................25
3.3 Phone .................................................................................................................................26
3.4 Audio Player .......................................................................................................................30
3.5 Video Player .......................................................................................................................31
3.6 Media Connect iOS ............................................................................................................32
3.7 Media Connect Android ...................................................................................................... 33
3.8 File manager.......................................................................................................................34
3.9 AUX ....................................................................................................................................34
4. Updates ...........................................................................................................................................35
4.1 MCU Update.......................................................................................................................35
4.2 System Upgrade.................................................................................................................35

3
IMPORTANT NOTES
Dear customer,
The Android operating system is an open platform that allows you to personalize your device according
to your wishes. You can download apps from the Google Play Store after registering and using them on
your device. Audio Design has no inuence on the content or function of these apps. For this reason, we
can not assume any liability for the functionality, operation or damage resulting from the download and
/ or use of apps. Audio Design can not provide service for the apps installed or installed on the device.
Use is always at your own risk. If you have any questions, especially about content or how it works,
please contact the developer of the app.
To ensure the safety of the driver, the occupants and other road users, it is essential that the driver
always focuses on the trafc.
ATTENTION: Your ESX device has an internal memory with a limited capacity. By downloading apps,
pictures and music you ll up this memory. When the memory is full, there is a possibility that apps may
stop working or be of limited use. If so, you’ll need to delete apps or content to restore the feature. You
are responsible for the management of the store.
DISCLAIMER
INTENDED USE OF THE DEVICE
SPECIFICATIONS / RADIO TYPE
This device is only suitable for use in a vehicle with an on-board voltage of 12 volts with negative ground.
In the event of misuse, incorrect installation or modication, the operating license and the warranty
become void.
Distribution:
Audio Design Lautsprecher Vertriebs GmbH
Am Breilingsweg 3, DE-76709 Kronau/Germany
The Audio Design Lautsprecher Vertriebs GmbH hereby declares that the radio system type VN1060-
MA-4G complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available
at the following Internet address: www.esxnavi.de/ce
DECLARATION OF CONFORMITY
Function Band Information Frequency Range Max. emitted power
GPS GLONASS 1.575 MHz / 1.602 MHz –
AM Radio Medium wave 520 - 1.700 Hz –
FM Radio Band II 87,5 - 108 MHz –
DAB Radio Band III (5A – 13F) 174,9 - 239,2 MHz –
4G / LTE FDD (Band 1 / 3 / 5 / 7 / 8 / 20)
TDD (Band 38 / 39 / 40 / 41)
800 - 2.100 MHz
1.900 - 2.600 MHz
21,9 dBm
21,7 dBm
3G WCDMA (Band 1 / 5 / 8) 900 - 2.100 MHz 22,8 dBm
Bluetooth Version 5.0 2.400 MHz - 2.484 MHz 8,5 dBm
WiFi / WLAN IEEE802.11b/g/n 2.400 MHz 16,0 dBm

4
IMPORTANT NOTES
• ESX or Audio Design GmbH are in no way afliated with the car manufacturer or any of its subsidiar-
ies or afliated companies connected to, or is acting on its behalf or with its authorization.
• All registered product names, trade marks and brands are the property of their respective owners.
• This owner‘s manual was made with the utmost care. Technical changes and errors reserved.
• Due to the ongoing development of this device, it is possible that the information in this manual is
incomplete or is not matching to the delivery status.
• Due to further developments on the part of the automobile manufacturers, it is possible that some
functions are not supported that were not available when this device was developed.
• Please visit periodically www.esxnavi.de on the internet, to check if additional information and up-
dates are available.
In general, the assembly and installation of the device should be made by a trained and technically
skilled specialists. If you have any problems with operating the device, contact your specialist dealer or
the Audio Design Service Department under Tel. +49 7253 - 94 65 95 or [email protected].
This device is equipped with high precision and sensitive technique and should always be treated with
caution. Please note the following tips to avoid endangering the warranty and extend the life of the
appliance.
• Children under 12 should not operate the device. Keep the device and all accessories away from small
children.
• Keep the device and its components dry. The effects of water, liquid or moisture can cause damage to
the vehicle, the device itself or injury.
• Keep the device and its components away from excessive heat. High temperatures may shorten the
life of appliance of the electrical components.
• Keep the device and its components away from excessive cold. Extreme temperature changes and
moisture inside the device may cause the breaking of certain components. Do not to drop the device
and avoid violent shocks or excessive shaking.
• Do not use strong chemical cleaners, solvents or water to clean the device. Use a slightly moistened
cotton cloth with soft surface.
• Replace a blown fuse only with a new one with the same values. However, before you replace a de-
fective fuse, check at rst what is the cause of the short circuit. Start with the power supply cable. If
the fuse blows again, a malfunction consists inside the device. In this case you should contact your
authorized dealer.
LEGAL NOTICE
CUSTOMER SERVICE
CARE & MAINTENANCE
If you have to dispose the device, please note that no electronic devices may be disposed
in the household waste. Dispose the device in a suitable recycling facility in accordance with
local waste regulations. If necessary, consult your local authority or your dealer.
DISPOSAL

5
SAFETY INFORMATION
• Note any time the trafc regulations of the country in which the device is operated.
• Please ensure, that with the engine turned off the vehicle‘s battery does not discharge fully. The de-
vice is another electrical consumer which must be operated with the engine running, other-wise the
vehicle‘s battery will be discharged and the vehicle can not be started.
• Set the volume of the device only as loud, that you are still be able to hear warning signals (e.g. police
sirens) and trafc noise inside the vehicle.
• Operate the device as driver only if it‘s absolutely necessary and in the driving safety is not compro-
mised. The same stands for looking at the screen. If necessary, better park your vehicle at a safe and
appropriate location.
• The trafc rules of the EU prohibit to view moving pictures or movies while driving, if the screen of the
device is installed within sight of the driver, as he may be distracted. View the screen as driver only
for the navigation function, and then only briey that you will not be distracted. Note at any time the
local trafc regulations. In an accident, regress claims could be made by the car insurance company.
• This device is not a substitute for your personal judgment or perception. All suggested routes from the
navigation system should never be taken as a reason to disregard the local trafc rules. Your personal
assessment of trafc or your knowledge of safe driving practices is paramount. Always match your
driving with the current trafc situation.
• Do not follow the suggested routes, if the navigation system instructs you to take an unsafe or illegal
way, puts you in an unsafe situation, or directs you into an area which you consider unsafe.
• If problems occur while driving, park the vehicle in a safe and appropriate place to continue before
you operate.
• Please use only the included original accessories. Ensure a sufcient mounting of the device by using
the included installation accessories, as in the event of an accident enormous accelerations may
occur. Poorly installed devices and equipment in accidents could represent a severe risk to the driver
and the other passengers of the vehicle.
• Note under all circumstances the regulations and advice of the vehicle manufacturer and do not make
any modications to the vehicle, which could interfere with safe driving. Please treat all parts of the
device and the components of your vehicle always with caution.
• Please avoid short circuits and make sure that no metal objects can get inside the device. Also make
sure that all connections are properly connected and avoid the interchanging of the polarity of all
connections. Complete the installation only while the ignition is turned off.
• In the event of a defect or malfunction, do not attempt to repair it by yourself or open the device, this is
dangerous and could cause injury or damage to the equipment or vehicle. A repair should be done by
trained and authorized personnel only. The device uses a Class 1 laser to read the disk. Eye contact
with a laser is very dangerous to the human eye.
• If you connect an external device, you should rst read the instruction manual of the external device
and make sure that it is compatible. Avoid connecting an incompatible external device.
• If you install external applications onto the operating system of the device or operate les, make sure
that they are „virus free“ and compatible with AndroidTM. Otherwise there is a risk that the operating
system no longer works properly and must be reinstalled.
• Do not damage or scratch the screen with sharp objects. Do not operate the screen with hard objects.

6
1. OPERATION
1.2 ACC BUTTON
1.1 SD CARD SLOT FOR NAVIGATION SOFTWARE
With the ACC button next to the SD card slot, you can operate the naviceiver without the ignition
switched on. Press the button for about 2 seconds and the device will turn on. To switch off, press the
button again for 2 seconds.
If the device no longer reacts to inputs, the system is overloaded or has crashed. Then restart the sys-
tem by pressing the reset button (RST) on the front panel. Use a suitable object, such as a paper clip or
ballpoint pen. After pressing the reset button, the system restarts without losing the settings you have
already made.
1.3 RESET BUTTON
Here you can insert the MicroSD card of the navigation software. Please only use the upper MicroSD
card slot. The lower MicroSD card slot is only suitable for media.

7
1. OPERATION
1.4 FUNCTION KEYS
Number Function Description
Turn on / off Press here to turn the device on or off.
Main menu Press here to open the main menu.
Back Press here to open the previous menu.
Decrease volume Press here to decrease the volume.
Increase volume Press here to increase the volume.
Camera Press here to display the image signal from the connected
camera(s). By pressing again you can switch through the
views of the connected cameras or exit the view again.

8
1. OPERATION
1.5 STATUS BAR
Symbol Function Description
Back Tap here to open the previous menu.
Main menu Tap here to open the main menu.
Recently used Tap here to view recently used applications. The split screen
function can also be started here.
USB A USB storage medium is connected.
SD card An SD card is connected.
Bluetooth®A smartphone is connected to the ESX device via Bluetooth®.
GPS The ESX device has GPS connection.
4G The ESX device is connected to mobile internet via 4G/LTE.
WiFi/WLAN The ESX device is connected via WiFi/WLAN or to the hotspot
of a smartphone or via a network.
Time Current time display.

9
1. OPERATION
Note: Depending on the apps or optional accessories used, this view may vary as shown here!
You can operate the touchscreen of the ESX device with the following gestures:
Touch the screen
briey
Touch the screen
longer
Hold and swipe
The ESX device has two freely assignable main
menus that you can access with a swipe to the
right or left.
Slowly slide your nger down from the top to view
the latest messages or activity. This function is
available in every view.
In this view you can continue swiping down to
display additional control panels. This function is
available in every view.
The “Apps” control panel at the bottom takes you
to the app menus, which you can access with a
swipe to the right or left. All installed apps can be
found there in alphabetical order. Briey tap on an
icon to start the respective application. Briey tap
on an icon to start the respective application.
1.6 TOUCHSCREEN

10
1. OPERATION
The ESX device has two main menus in which
the seven basic apps with the most important
functions which are located below.
In the rst main menu you will nd the widget
“Time” in the upper control eld on the right. You
can position other apps on the other free elds on
the control panel.
Press and hold an app icon and swipe it forward
onto one of the main menus.
There you can place the app on one of the free
positions. You can then move further apps forward
as you wish. The apps can still be found in the app
menus in alphabetical order.
In the widget menu, for example, you can drag the
“Music” widget to the front of the main menu.
There you can place the widget in the free position.
1.7 MAIN MENUS

11
1. OPERATION
You can also swap the positions of the two
widgets.
To remove an app or a widget from the main
menu, simply move it to the trash can that appears
above.
The second main menu is initially empty in the
upper control panel.
You can also equip this with apps and widgets as
you wish.
1.7 MAIN MENUS

12
1. OPERATION
At the top of the status bar, tap on .
All currently used or recently used apps can be
seen in this view.
The primary app is now always displayed on the
left. Now select an app for the right side (e.g.
radio).
If you want to dissolve the split screen again, drag
the black frame in the center of the picture to the
left or right.
Hold the desired app briey until the gray elds
appear on the side. Then slide the app window all
the way to the left until it clicks into place.
The secondary app on the right can be changed
by starting another app in the main menu.
1.8 SPLIT SCREEN
Note: Some apps are not suitable for display in split screen mode.

13
1. OPERATION
If you want to open the camera view without
having engaged reverse gear, press the direct
camera button on the front of the device. The
rst view shows the rear view camera.
When you engage reverse gear, you can see the
reversing camera with guide lines, which was
connected to “R-CAM”.
You can make further settings in the app menu
under “Settings” and then under “Reverse”.
If you have connected an additional camera to
“F-CAM”, press the camera direct button on
the front of the device again to open its view
To exit the camera view and return to the main
menu, press again .
If you want to change the camera settings, tap
on the screen and then on the gear symbol that
appears at the top right.
1.9 CAMERA VIEW

14
2. SETTINGS
In order to be able to fully use the Android operating system of the ESX device, e.g. Google Maps, it is
necessary to connect the device to the Internet via WLAN. To do this, you need a smartphone with a
mobile internet connection and the so-called hotspot function. You can also use a xed WiFi network for
this. First activate the hotspot function in your smartphone
App menu > Settings
> Network & Internet
> Wi-Fi
Tap on the name of your smartphone on which
you set up the hotspot or on the local WiFi
network.
To display the keyboard for entering the password,
tap the eld above the green line.
Then enter the password of the network and
press “CONNECT”.
After a successful entry, the ESX device should
be connected to the Internet after a few seconds.
The symbol then appears at the top right of the
status bar.
If you tap on the network name again in the
“Connected” status, you will receive some
information about the currently active Internet
connection.
If you want to interrupt the connection to your
smartphone, tap on “FORGET”.
Important note: Depending on the type of smartphone, you may have to restart the hotspot
function if the connection to the ESX device is interrupted. It is therefore advisable to keep the
hotspot function permanently activated in your smartphone. The next time you switch it on,
check whether the internet connection is active.
Please also note that using some apps on the mobile Internet may result in high data volume
consumption.
2.1 INTERNET CONNECTION VIA WiFi / HOTSPOT

15
2. SETTINGS
To connect the device to the Internet via an optionally connected 4G/LTE dongle, please proceed as
follows:
> Turn off the device and have your PIN code ready to unlock your SIM card
> Then connect the 4G/LTE dongle with antennas to the device*
> Put your SIM card in the SIM card slot of the dongle*
> Turn the device on again
* Refer to the enclosed Installation Guide
After the device has started, enter your 4-digit PIN
code of the SIM card here. Conrm the entry with
the tick.
If the device is successfully connected to the mobile
Internet, the symbol appears in the status bar at
the top right.
After successful entry, the SIM card is unlocked.
If the device is switched off, you have to enter the
PIN code of the SIM card again after each restart,
just like with a smartphone.
2.2 INTERNET CONNECTION VIA 4G / LTE
Important note: You can also deactivate the request for the PIN code of your SIM card so that
you do not have to enter it again after each device start. To do this, insert the SIM card into a
smartphone and deactivate the request for the PIN code in accordance with the instructions of
the mobile network operator or the smartphone manufacturer.

16
2. SETTINGS
App menu > Settings
> System
> Languages, time
> Languages & input
This ESX device has the function of automatically determining the date and time via active GPS
reception or the Internet. You can also set the date, time zone and format manually.
App menu > Settings
> System
> Languages, time
> Date & time
2.3 DATE & TIME
2.4 LANGUAGE
Important note: In order for the operating system to display your preferred language, it must be
in the rst position. If certain menus and functions are not available in the selected language,
the next language is always used.

17
2. SETTINGS
2.5 GOOGLE ACCOUNT
Via “Play Store” in the app menu you can now
select other compatible apps and install them on
the ESX device.
Tap on “Add account” to connect the ESX device
to your Google account. Then enter your login
details.
Here you can delete the linked account with
“Remove account”. Under “Google Account”
you can make general settings for your account.
In this menu you can adjust the services of your
Google account on the ESX device.
Tap in the settings on„Google“.
Your Google account has now been set up and
linked to the ESX device. You can also add other
accounts. Tap your account name to open the
account menu.
App menu > Settings
> Accounts

18
2. SETTINGS
2.6 SCREEN BRIGHTNESS
In one of the menus, drag the status bar down.
The status menu opens. Then keep swiping down.
Here you can change the brightness of the screen.
Here you can change the background image of the menus.
Press and hold on an empty space in the main
menu.
Tap “Overview” or “QuickPic” to select a new
background image.
Swipe through the selection, then tap „Set
wallpaper“ to choose the wallpaper you want.
Under “QuickPic” you can select your own photo
as a background image. In the image view, tap
„Set As“.
2.7 WALLPAPER

19
2. SETTINGS
In the app menu, tap on “Setting wheel”. First tap on “START”.
First select a function on the control panel that you
want to teach in.
Now press the corresponding button or controller
on the steering wheel remote control. The
corresponding function is then highlighted in blue.
Repeat the two previous steps until you have
learned all the functions.
Complete the teaching with „END“ and exit the
menu.
2.8 STEERING WHEEL REMOTE CONTROL
Important note: If the ESX device does not receive any signals from the steering wheel remote
control, check whether it is correctly connected to the device. Some vehicles are not compatible.
The ESX device is CAN bus compatible, but for this you need a corresponding vehicle-specic
CAN bus adapter or CAN bus module. Then teaching in the steering wheel remote control is not
necessary.

20
2. SETTINGS
2.9 SOUND SETTINGS
Under „EQ“ you will nd a 16-band equalizer
with 8 different presets. Tap on one of the presets
on the left or use the sliders to set the equalizer
yourself.
Under „Bass Boost“ you can set the bass boost
separately for the front and rear. This function is
only available when the preamp outputs are used.
Under “Surround Sound” you can set the
acoustic center of the stage. Tap on one of the
presets or use the yellow dot to set the acoustic
center of the stage yourself.
Under „Zone“ you can dene the settings for the
subwoofer output. This function is only available
when the subwoofer output is used.
Under „Bass Filter“ you can set the crossover
frequency for low frequencies for the front and
rear. This function is only available when the
preamp outputs are used.
In the app menu, tap on „DSP“ to make sound settings.
