EKEPC3ChargingPileOCCP-1.6J
protocolcontroller

2
ThankyouforchoosingEKEPC3ChargingPileOCCP-1.6Jprotocolcontroller.
Pleasereadthismanualbeforeinstallation,operationandmaintenance.
ThisproductisaOCCP-1.6JprotocolvertifiedACCharigingPile
ControllerwhichcanconnecttoyourAPPorbackgroundremote
platformbyusingWIFI,2G/4G,Ethernetandmanyothernetwork
communications.AndalsoThelocalsettingofthisproducthasa
varietyofcustomizedintelligentchargingsolutionssuchas
intelligentchargingandappointmentcharging.
Becauseoftheadvantageswhichincludeenergysaving,
environmentalprotection,easytouse,highdegreeofintelligence,
thisproductcanbeapplicatedwidelyandreliableinsafety.
Powersupply:AC170V-260V50Hz,
powerconsumption<=3W.
Operatingtemperaturerange:-25~55degrees;
Relativehumidity:<95%;
Height:2000m;
Overview

3
Instructionforusing
1.1Aboutthemanual
TheInstructionscontainalltheinformationneededfordebugging
andusingthecontroller.
Validityrangeofthismanual
Thismanualisvalidforallpartsofthechargingpilecontroller.
ThisproductisbasedoninternationalstandardsIEC61851and
SAEJ1772.
Note:SAEJ1772isastandardforelectricvehiclechargersproposed
bytheSocietyofAutomotiveEngineers.
1.2Recycleandtreatment
Thematerialofthecontrollerhasenvironmentalcompatibilityand
canberecycled.Inordertomeettheenvironmentalprotection
requirements,pleasecontactacertifiedprofessionalcompanythat
specializesinhandlingsuchwastetodealwithelectronicwaste.

4
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile
2.1Precautionsandhazards
SafetyInstruction
Note:pleasefollowthesafetyinstructionsandlegalguidelines.
Duetothedifferentinstallationrequirementsindifferentcountriesand
regions,theinstallationpersonnelareresponsibleforensuringthatthe
productinstallationcanmeetthelocallegalrequirements.
Contactwithlivecomponentswillcauseseriousinjury.Pleasecutoffthe
powersupplyofallsystemsanddevicesbeforeoperation.
2.2Fuse
Warning:improperfusingmaycauseheatorfire
Theinternalself-resettingfuseisonlyusedtoprotectthecontroller,and
theinstallationpersonnelareresponsibleforthesafetyofthecircuit.
2.3Repair
Itisnotallowedtorepair,andthedefectivedeviceshallbedisposed
(abandoned)undertheconditionofmeetingtheenvironmental
protectionrequirements.
Warning:openingthedevicewithoutpermissioncancausedanger
Openingthedevicewithoutpermissionmaycauseharmtotheuseror
causesignificantdamageorpropertyloss.
Note:ifthedeviceischangedinviolationofregulations,themanufacturer's
warrantywillbeinvalid.Anyunauthorizedchangeswillvoidthewarranty.
Danger:voltagehazard

5
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile
Wiringdiagramofsinglephase32A
6mm2
6mm2
6mm2
6mm2
6mm2
1.5mm2
1.5mm2
6mm2
220V 32A
RFID--Lines--Card
LCD--Lines
LED--Lines
X4
DLB With Meter
Lock
Wi fiWith Antenna
PE
SIM-Card and 4GAntenna
PE
RCMU
Connect Meter Rs485
Rs485
Rs485
Modbus9600,n,8,1
Address:01H
Modbus9600,n,8,1
Address:02H
B
A
Note: figure a does not need to
access the system when the billing
function, over-voltage protection
function,and over-current protection
function are not enabled. Figure B
can be disconnected from the system
when the DLB function is not enabled.
Rs485
Power Input

6
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile
PENDisconnectionProtectionSystem
6mm2
6mm2
6mm2
6mm2
6mm2
1.5mm2
1.5mm2
6mm2
220V 32A
RFID--Lines--Card
LCD--Lines
LED--Lines
X4
DLB With Meter
Lock
Wi fiWith Antenna
PE
SIM-Card and 4GAntenna
PE
RCMU
Connect Meter Rs485
Rs485
Rs485
Modbus9600,n,8,1
Address:01H
Modbus9600,n,8,1
Address:02H
B
A
Note: figure a does not need to
access the system when the billing
function, over-voltage protection
function,and over-current protection
function are not enabled. Figure B
can be disconnected from the system
when the DLB function is not enabled.
N L

7
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile

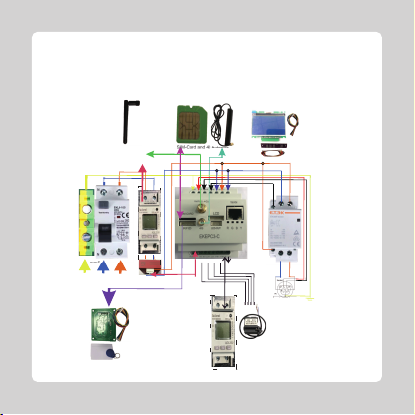

SinglePhase
Wiringexample230VAC
Modbus-RTU
9600，n，8，1
Address：02H
Modbus-RTU
9600，n，8，1
Address：01H
Out:DC 5V/100mA
Iftheconnectionisfor
cabletype,thePPline
isnoneedtoconnecttohere.

8
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile
ThreePhase
Wiringexample400VAC
Modbus-RTU
9600，n，8，1
Address：01H
Modbus-RTU
9600，n，8，1
Address：02H
Out:DC 5V/100mA
Iftheconnectionisfor
cabletype,thePPline
isnoneedtoconnecttohere.

9
TheinstructionmanualforOCPP-1.6Jprotocol
controllerofelectricvehiclechargingpile
GuidenceofEKEPC3(OCCP1.6J)controller
1.Bootdistributionnetwork
1.1.1Connecttothepowersupplyandstartup,thenswipethe
dediciatedcardfornetworkconfigurationtohelptheWIFIsignaltobe
avaliabletolinkbydevice.Ifthecardislost,pleasecontacttothe
manufacturetoreplacethecard.
1.1.2ICcardsupportedbythiscontroller:contactlessICcard,13.56MHz,
M1withprotocolISO14443A
standard,IC-UID、IC-CUID、IC-FUID、IC-UFUID,etc.
1.1.3Forcardwhichisreleasedbyourcompany,TheTagIDisalready
writtenwhenitwasproduced.ThenumberofTagIDwillbemarkedon
thecard(with9-digitdecimal).
1.1.4Forcardwhichissetbyyourself,theRFIDmodulewillreadthe
serialnumberwhichissolidifiedincardastheTagIDnumber(with
8-digithexadecimal).
1.1.5IfyouusedtheRFIDfunctiononyourcontroller,thenyouneedto
addtheTagIDatlocaldeviceorthebackgroundplatformofOCCP
operationaccordingtotherequire,tohelpyouaddTagIDintoyourlist.

10
TagID
Swipethecard
1.2Useadevicethatcanreceivewirelessnetworksignals(suchasa
mobilephoneorlaptop)tosearchforwirelessLAN(name:OCPP_XXXX
password:88888888)andconnecttoit.
WIFI successfully connected

11
1.3Openthebrowser,typetheIPaddress192.168.4.1toenterthelogin
page.
User1：ETEC-001
User2：OCPP-00001
PAS1：88888888
PAS2：88888888
1.4 Entertheparametersettinginterfaceofthelocalwebpage.
Groupsof9relatedparameters

12
2.Thesetupinstructionoflocalwebpage
TheMainmenugroupoptionsoflocalwebpage
Step1:SettheinformationabouttheController
Iftheparametersare
completed,pleaseclick
thisbutton.
Ifthetimeisdifferentbetween
thefinalplatformyouconnected
andyourlocalplace,pleaseenter
thetimedifferencehere.
Thistextisallowedtochange.
Thistextisallowedtochange.
Thistextisallowedtochange.
Ifyourchargingpileisnotconnectedto
anetworkorback-endAPP.Please
selectthisoptionas:Home,otherwise
itwillbepulic.
Selectthecontroller'sworkmode:
MasterotSlave

13
Step2:setupthenetworksystemyouaregoingtoaccess
Step3:SetuptheparametersaboutOCCPbackground'sconnection.
Iftheparametersarecompleted,
pleaseclickthisbutton.
Iftheparametersarecompleted,
pleaseclickthisbutton.
WhenyouchooseON:Onlyatthesituation
whenthechargingpilewithoutnetwork
andOCCPbackgroundisnotavaliableto
authorize.IftheTagIDyouusedcannotbe
foundonthelocallist,butthedevicehas
yourusingrecord,itwillfindtheTagIDinthe
cache.Whenbothtwomatchthenthe
chargingwillbeavaliabletostart.
EntertheUrlofOCCPbackgroundwhich
youwanttoaccessathere.BothWSlink
orWSSlinkareavaliabletouse.

14
Step4:Settheregisteraddressforaccessingtothemeter.
IfthisisanADL400meter,
enter2304,2306,2308,
2310,2312,2314,2322,
2332,2310.IftheSDM63
type0meterisentered:
0,2,4,6,8,10,52,342,
10.Forothertypesof
meters,pleasereferto
theinstructionmanual
ofthemeteryouselected.
Iftheparametersare
completed,pleaseclick
thisbutton.
Step5:Setthebuttonforfunctionsrelatedtothechargingpile.
Illustrate:Allammeterswiththefollowingfunctionsaresupported:1)RS485
communicationinterface,communicationprotocol:Modbus-RTU.9600,n,8,1.
2)Theaddressoftheelectricitymeterissetas01H(electricitymeterformetering)and
02H(totalcircuitmeterforcurrentcollectionforDLBfunction).
3)Thedatatypeoftherequiredregisteris:4-bitfloatingpoint.

15
Ifyourchargingpiledoesn't
haveRFIDmoduleinstalled,
pleasedisablethisfunction.
IftheICcardyouuseisreleased
byourcompany,selectDisable
thisarea.IftheICcardyouuseis
blank,selectEnablethisoption.
Ifyouchargingpilehavea
meterinstalled,please
enablethisfunction.
Ifyouchargingpilehavea
meterinstalled,please
enablethisfunction.

16
IfyouareconnectinganLCD
monitorthatis1602J(0.9
inches),selectthisoptionto
ONstatus,otherwiseselect
OFFstatus.
Ifyouturnonthereservation
function:thechargingpileis
correctlyconnectedtothe
carswipecardtostartthe
chargingcannotstart
chargingimmediately,but
startcharginginthetime
areayouset,andthe
chargingpilewill
automaticallystopcharging
afterreachingtheendtime
youset.
Iftheparametersare
completed,pleaseclickthis
button.
Ifthedelaystartfunctionis
on,itwillnotstarttocharge
atsoonwhenthecharging
pileauthorized.Butstartto
chargeafterrandomdelay
(in600s).

17
Step6:Settherelevantconfigurationparametersofthechargingpile
Whenthedisplaytemperature
ofthechargingpileandthe
actualtemperaturevalueare
different,thedisplayedvalue
canbecorrected.e.g.when
themeasuredtemperatureis
25.5degrees,thedisplayed
temperatureis30.8degrees,
enter-53here.

18
Iftheparametersare
completed,pleaseclickthis
button.
Step7:Setupthepre-authorizationaspect

19
Ifthisoptionenabled,it
willsearchthealllistsof
thelocaldevicelistto
checkwhetherthesame
TagIDnumberisornot.
Ifthisoptiionenabled,The
TagIDnumberwhichpre-
authorizedwillbereleased
bytheOCPPbackground.
Ifyouclickhere,theTagID
whichwillbereadwithin60s
byswipingRFIDmodulecan
beaddedtothelocallist.
EntertheTagIDyouwantto
addherethenclickthe
buttonontheleftifit’s
correct,itwillbeenteredto
yourlocallist.
Ifyouclickthebuttonhere,
yourpreviouscharging
TagIDwillbedeleted.
Ifyouhaveenabledthe
optiontoallowcharging
offline,pleaseturnthis
parameterON.
WhenyouselectitasON,it
willallowtochargeifthe
TagIDyouusedisfoundin
locallist.

20
WhentheONisselected,itstill
allowtostarttochargeifthe
networkdisconnect.Theall
chargingrecordswillbesavedin
localdevice(maximumto
10,000records)untilreconnect
tothenetworkandbackground.
Thelocaldevicewilluploadthe
allchargingrecordswhich
uploadofflinethenclearthem
up.
IfyouforgettotakeaICcardbut
youremmenberyourICcard
number,justentertheTagID
numberhereandclickthebutton
ontheleft.Thedevicewill
considerthatyouhaveswiped
thecard,andaccessto
pre-authorizationprocess.
Iftheparametersarecompleted,
pleaseclickthisbutton.
Step8:Other
