Etec SPOTWASH E3048 User manual
Page | 2
Congratulations!
You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest
possible performance of the device, read this manual carefully and familiarize yourself with the most
important functions. This manual contains important information on the operation and maintenance
of this unit. Please keep this manual for future reference, together with the device.
unpacking:
Please unpack the product immediately after receiving and check it for completeness and integrity. If
you notice any damage to the transport of one or more parts of the product or package, please notify
the seller immediately and collect the packaging material for later inspection. Keep the carton and all
related packaging materials. If the product needs to be returned, please make sure you return it in
the original packaging.
Provisional useful life of the LED headlamp:
The brightness of LEDs decreases with time. The main cause is HEAT because it speeds up the
process. When LEDs are placed very close together, they are exposed to a higher operating
temperature than when an ideal distance is maintained or operated under optimal conditions, ie
individually. For this reason, the useful life is significantly reduced when all color LEDs are operated
with maximum brightness. The service life achievable under normal operating conditions is
approximately between 40,000 and 50,000 hours. If the prolongation of the service life is of great
importance to you, you should ensure that the operating temperature is kept low. An air-conditioned
operating environment and the reduction of the overall luminous intensity can contribute to this.
Warning:
DANGER!
Protect the device from rain and moisture!
Disconnect the power cord before opening the housing!
PLEASE READ THESE INSTRUCTIONS FOR YOUR SAFETY CAREFULLY,
BEFORE OPERATING THE UNIT FOR THE FIRST TIME!
safety instructions:
All persons who install, operate and maintain this equipment must:
• be qualified and
• Follow the instructions in this manual.
ATTENTION! Be careful when handling this unit. In the case of
dangerous mains voltages, you could get a life-threatening electric
shock when you touch the cables!
Page | 3
Before using the appliance for the first time, ensure that the product has not been damaged by
transport. If it is damaged, please contact the seller and do not use it. In order to ensure the perfect
condition and the safe handling, the safety instructions and warnings in this manual must be
observed.
Please note that we assume no liability for damages caused by manual changes. This device does not
contain any user-serviceable parts. Only carry out maintenance work by qualified technicians.
Important Safety Information:
The manufacturer is not liable for damage caused by the failure to observe this manual or
unauthorized modifications to this product.
• The power cord must never come into contact with other cables! Use the power cord and
all connections to the power supply.
• Do not remove the warnings and information labels from the product.
• The grounding contact must never be tampered.
• Make sure that no cables are around.
• Do not insert objects into the ventilation slots.
• Do not connect this unit to a dimmer pack.
• Do not open or modify the unit.
• Never use the appliance during a thunderstorm. In the event of a thunderstorm, unplug the
power cord immediately.
• Never look directly into the light source.
• Do not turn the unit on and off at short intervals as this will reduce the lifetime of the unit.
• Do not expose the unit to shocks. Do not use excessive force when installing or using the
device.
• Use the product only in indoor areas and avoid contact with water or other liquids.
• Check that the housing is tightly closed and that all screws are tightened before using the
appliance.
• Do not place the product near open fires or flammable liquids or gases.
• Always allow at least 50cm clearance around the unit to ensure adequate ventilation.
• Always unplug the unit when not in use or when you want to clean it. Only hold the mains
cable at the provided area on the plug. Never unplug the cord from the wall outlet.
• Protect the product from extreme heat, moisture or dust.
• Make sure that the available mains voltage is not higher than indicated on the back of the
unit.
• Do not crush or damage the power cord. Check the unit and the power cord at regular
intervals for possible damage.
• If the connection cable is clearly damaged, it must be replaced.
• If the lens is clearly damaged, it must be replaced so that the functions of the unit are not
affected by cracks or scratches.
• Disconnect the appliance immediately from the power supply if it falls or becomes severely
damaged.
• Have the unit checked for safety by a qualified technician before using it again.
• Do not turn off the unit immediately after exposure to strong temperature fluctuations (eg
during transport). The resulting condensation could damage the unit. Do not turn the unit on
until room temperature is reached.
Page | 4
• Turn the power off immediately if it is not working properly. Pack the device carefully
(preferably in the original package) and send it to your dealer.
• Suitable for adult use only. The light-emitting device must be placed out of the reach of
children. Never leave the connected device unattended.
• Only use replacement fuses of the same type and performance as the fuses already
contained.
• The user is responsible for the correct positioning and correct operation of the device. The
manufacturer is not liable for damages caused by incorrect use or incorrect installation.
• The unit falls under protection class I. Therefore it must be earthed with the yellow-green
cable.
• There may be too little smoke or odor during initial start-up. This is not unusual and does
not necessarily mean that the device is not working properly.
• Repairs, maintenance and electrical connections may only be carried out or handled by
qualified technicians.
ATTENTION! EYE DAMAGE!
Never look directly into the light source.
(Especially epileptics)!
Intended Use:
• This unit is not suitable for continuous operation. Maintaining regular operating breaks
increases the life of the unit.
• The minimum distance between the light source and the illuminated area is 0.5 meters.
• The maximum ambient temperature for operation is ta = 45 ° C and must never be
exceeded.
• The relative humidity must not exceed 50% at an ambient temperature of 45 ° C.
• If the appliance is not used as described in this manual, it could be damaged and the
warranty void.
• Any improper use will lead to risks such as: Short circuits, burns,
• Electric shock, crashes, etc.
Your safety and the people you surround are in danger!
Installation:
Observe the European and international guidelines for installation, mounting on trusses and all other
safety measures. Do not attempt to install the unit yourself! Always have the installation carried out
by qualified personnel!
Page | 5
The mounting stand or the installation wall must be capable of carrying 10 times the weight of the
appliance without deforming. When attaching, the device must be secured with a second safety
fixture, such as a suitable safety cable. Never place yourself directly underneath the unit during
fixing, dismantling or maintenance.
Overhead mounting requires a professional experience, including calculating the load capacities, the
mounting material used, and periodic safety inspections of the entire mounting material and
equipment. If you do not have these qualifications, you should refrain from performing an
installation yourself. The installation should be inspected once a year by a suitably trained specialist.
power connections:
Connect the device to the power supply with the mains cable. Always ensure that the colored cables
are connected to the appropriate, correct locations.
International
Europe Cable
UK Cable
USA Cable
PIN
L
BROWN
RED
YELLOW / COPPER
PHASE
N
BLUE
BLACK
SILVER
ZERO
YELLOW-GREEN
GREEN
GREEN
GROUND
Make sure that the device is always properly grounded!
disposal:
Do not throw the appliance into normal household waste at the end of its useful life.
This product is subject to European Directive 2002/96 / EC.
• Dispose of the product through an approved disposal company or through
your municipal waste disposal facility.
• Observe the current regulations. If in doubt, contact your disposal facility.
• The packaging is certified by a dual system. Dispose of all packaging materials in an
environmentally friendly manner according to local regulations.
maintenance:
The device is almost maintenance-free. Nevertheless, the device should be cleaned regularly. If the
appliance is not cleaned regularly, the light output of the appliance will be considerably reduced over
time. Disconnect the unit from the mains and wipe it with a damp cloth. Never immerse the unit in
any liquid. Clean the unit with a soft cloth. Do not use alcohol or solvents. The connections should
Page | 6
also be cleaned regularly. Disconnect the device from the mains and wipe the connections with a
cloth. Ensure that all connections are completely dry before you connect or reconnect the device to
other devices.
The operator must ensure that all safety-relevant and mechanical devices are subjected to a
technical inspection test by qualified personnel after four years. The operator must ensure that all
safety-related and mechanical devices are inspected once a year by qualified personnel.
The following points must be considered during the verification:
1. All screws used to install the product or parts of the product must be secure and not
corroded.
2. Neither housing nor fastenings or the areas to which the product is attached may be
deformed.
3. Mechanically moved components, such as axles, lenses, etc., must not have any wear
marks.
4. Power cables must be undamaged and must not show any signs of material fatigue.
Replace fuse:
Overvoltages, short circuits or unsuitable mains connections can cause a fuse to burn through. The
device does not work when the fuse is blown. If your device burns a backup, perform the following
steps.
1. Disconnect the mains plug.
2. Insert a flat screwdriver into the slot of the fuse cover. Lever the cover gently. The fuse now comes
to light.
3. Remove the old backup. If you look brown or milky, it is burned.
4. Insert the new fuse into the holder. Close the cover. Use only a fuse of the same type and the
same specifications. Observe the label with the technical data.
Page | 7
Product description:
The ETEC SPOTWASH E3048 is a 2in1 LED Moving Head and combines a spot moving head and a wash
light in a single device. It is equipped with a white 30 Watt LED Spot with 11° beam angle. Further
features of the moving head 6 extremely bright 10W 4in1 RGBW LEDs with 25° beam angle. The
combination of spot and wash effect, can produce new unique effects with just one fixture. Another
highlight the spot moving head has a motorized focus and a gobo wheel with 7 gobos.
Thanks sound to light and automatic mode with 8 programs the E3048 can be used immediately. A
master / slave control and DMX 10 or 17 channels is also possible. The SPOTWASH provides pan and
tilt movements of 540° and tilt 270° and a color wheel with 7 colors + white. The real RGBW color
mixing of the lens ensures perfect colors on the stage, in the club, at shows, TV studios and in many
other applications. The large LCD display, all functions using 4 keys can be set easily.
Technical specifications:
Power consumption: 95W
Power supply: 100 - 240V
Voltage frequency: 50 / 60Hz
Diod Type: Single / 4in1
Number of diodes: 1/6
Diode Power: 30W / 10W
Beam angle: 11 ° / 25 °
Display: LCD matrix
Color: color wheel / RGBW
Dimmer: Linear: 0 - 100%
Number of DMX channels: 10 or 17
DMX standard: DMX 512
Control interface: 4 buttons
Operating modes: DMX512, automatic, music-
controlled, manual, master / slave
AC IN: powerCON
DMX IN: XLR - 3-pin
DMX OUT: XLR - 3-pin
Protection class: IP20
Housing: ABS
Measurements: 200x190x330mm
Weight: 4.2 kg
Page | 8

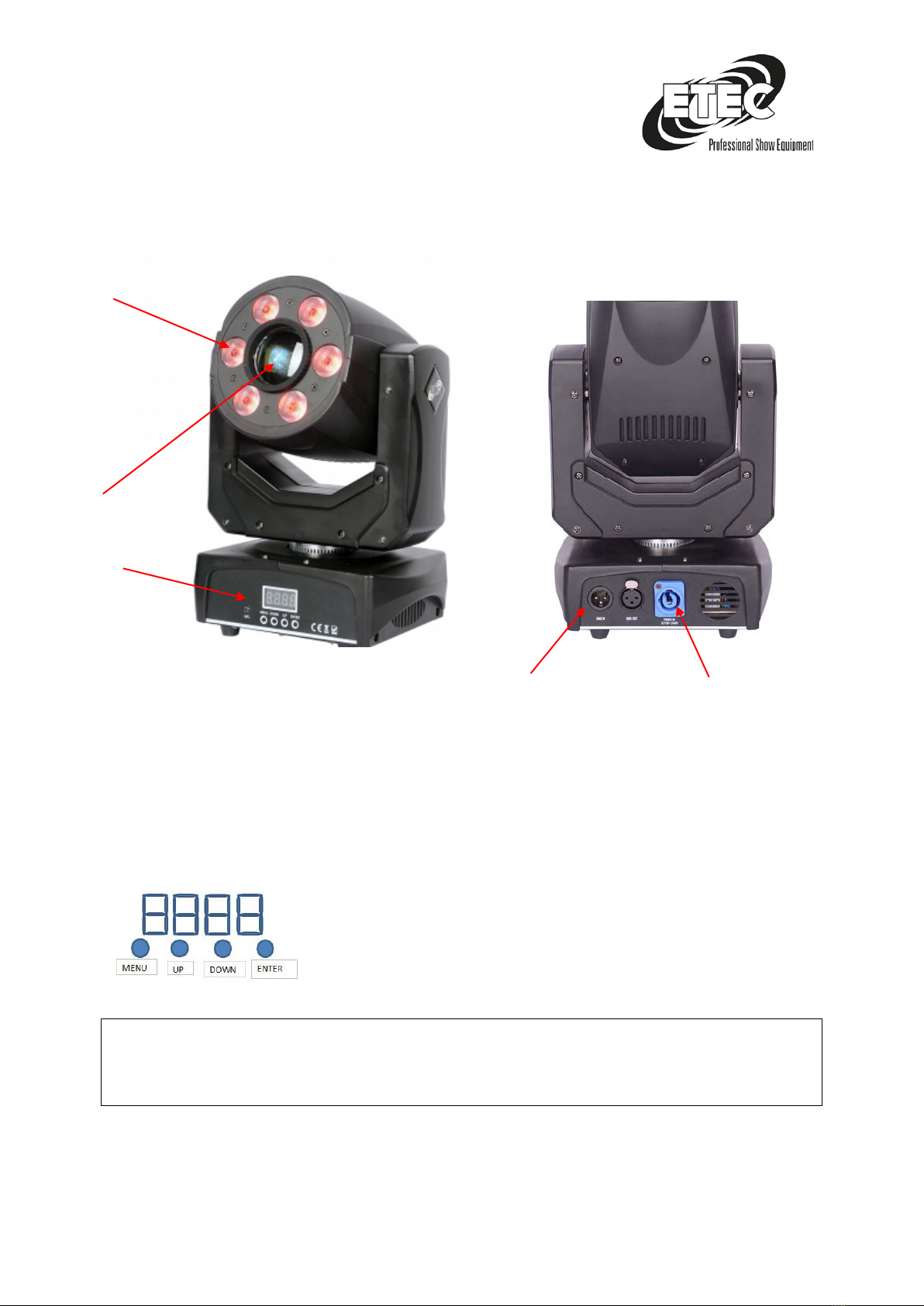

Product Overview:
1. LED Diode
2. Display
3. Display &Buttons: Mode, Up, Down, Enter
4. DMX linking IN/OUT
5. PowerCON IN
Functions and settings:
LCD display
MENU: Function mode selection, such as DMX, Master / Slave, Auto, Sound Mode and Brightness
settings
DOWN / UP: Previous or Next function
Enter: Confirm and save the selection
1.
6.
5.
2.
3.
Page | 9

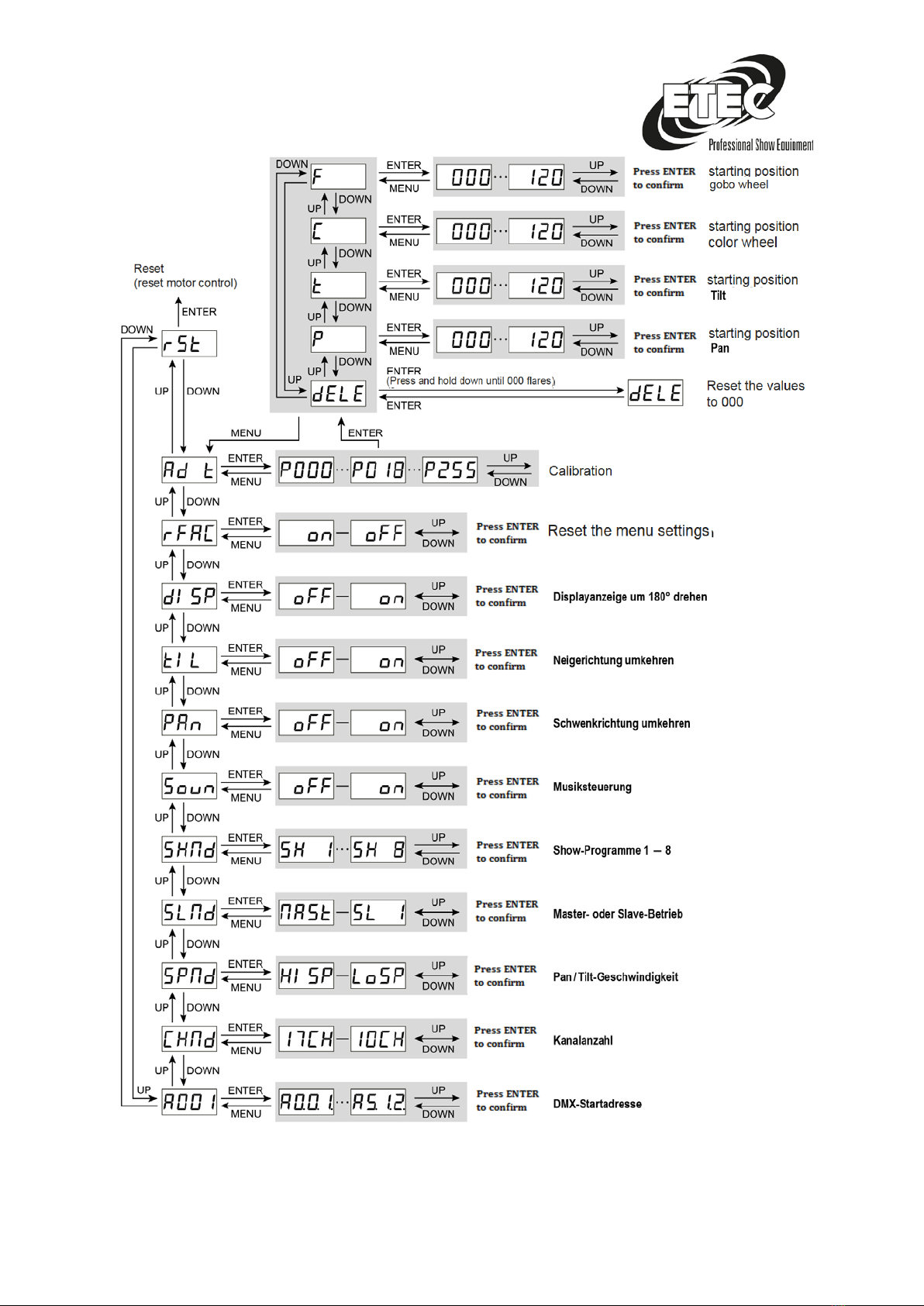

Menu overview:
Page | 10
Press ENTER
to confirm
You can display the low menu only with P018
Page | 11

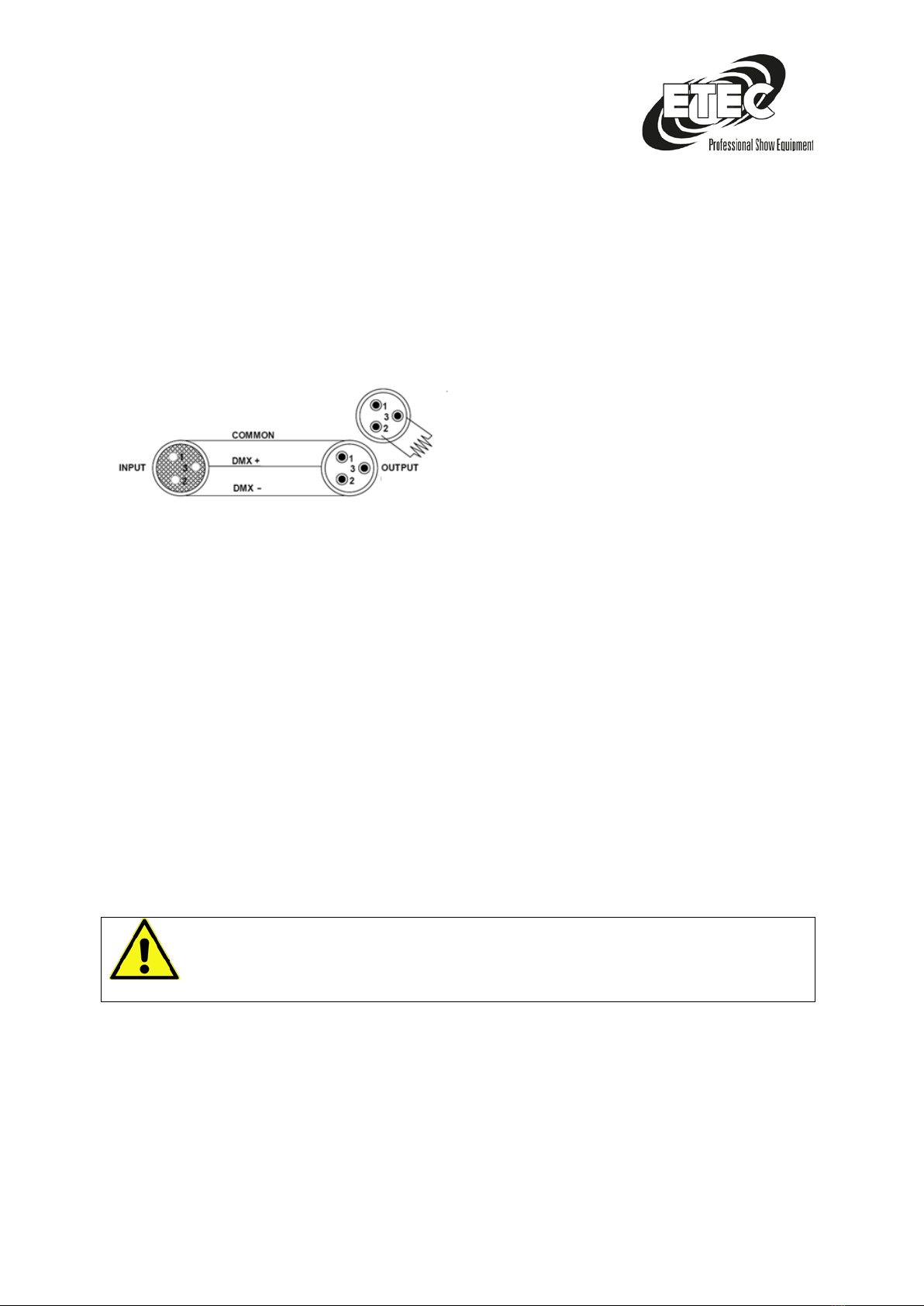

Setting up a DMX connection:
Page | 12
DMX is a standardized transmission protocol that allows all DMX-compatible models of the various
manufacturers to be connected to one another and controlled by a single mixer. Free DMX data
transfer between different DMX devices are used.
The connection arrangement between the devices has no influence on the DMX addressing. For
example, DMX address 1 has been assigned to a device, and the DMX connection position can be
positioned at the beginning, at the end or anywhere in the middle.
Therefore the first device, which is controlled by a controller, can be the last one in a row at the
same time. When the DMX address 1 has been assigned to a device, the DMX controller knows which
addressers the data send filter, no matter where the DMX cable is located.
Resistance 120 ohms 1 / 4w between PIN 2DMX -) and PIN 3 (DMX +) of the last headlight.
Caution: Avoid contact between the general and the housing grounding of the headlight. The general
grounding may cause a loop and your headlight could only function irregularly. Test the cables with a
resistance meter to check the correct polarity and to ensure the correct polarity.
Connecting the headlights:
If you want to control light shows with one or more devices with a DMX-512 controller, or you want
to play synchronized shows with two or more devices in master / slave mode, you must use a serial
data transmission line. The total number of channels required by all devices determines the number
of devices that the data transmission line can support.
The devices connected to a serial data transmission line must be connected in series. According to
the standard EIA-485, no more than 30 devices should be connected to a data transmission line.
However, if you connect more than 30 devices to a serial data transfer line without using an optical
splitter, the quality of the DMX signal may be degraded.
• Maximum recommended length of the DMX data transmission line: 100m
• Maximum recommended number of headlights on a DMX data transmission line:
30 devices
• with 220V: Up to 6 units can be connected in series

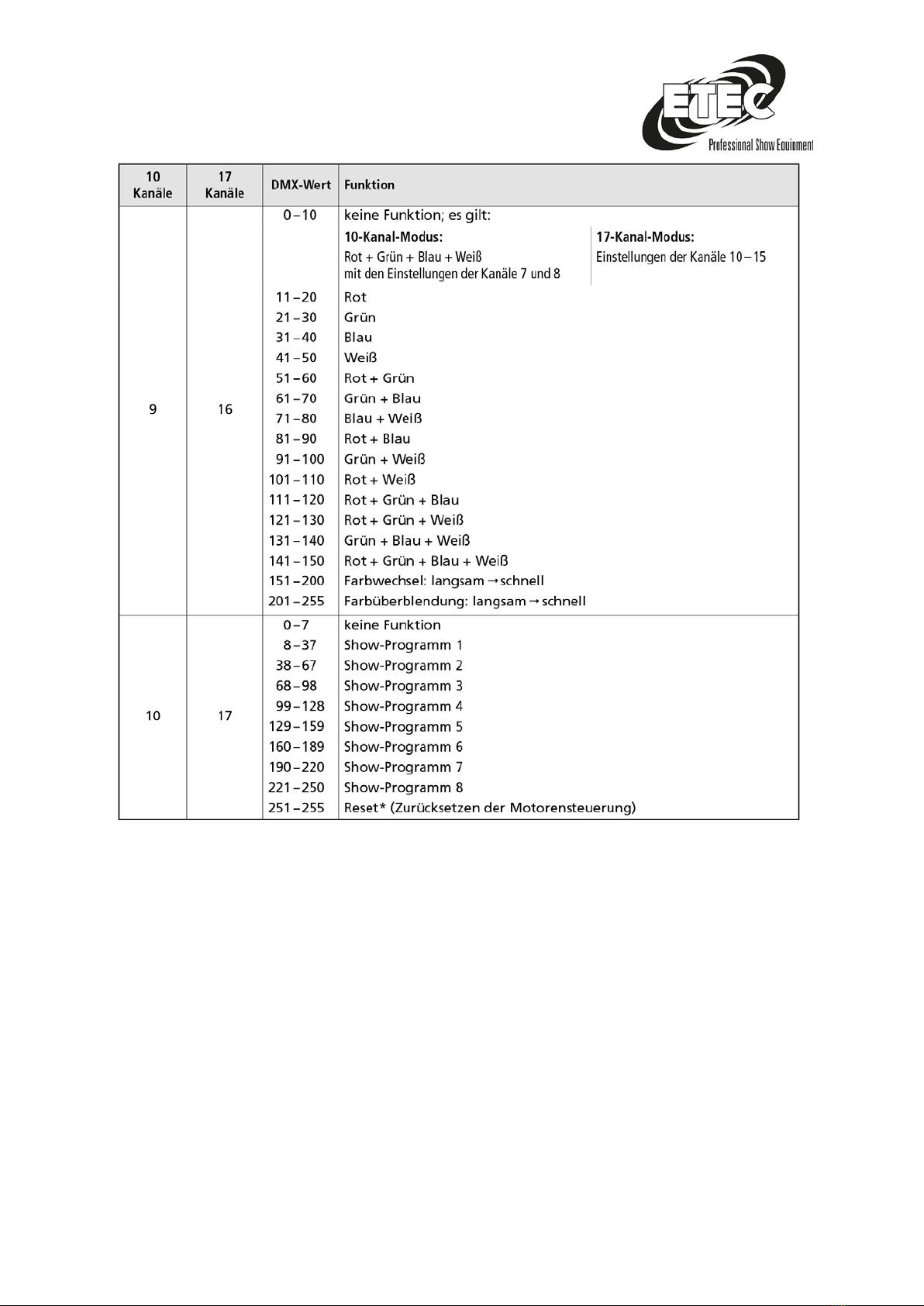

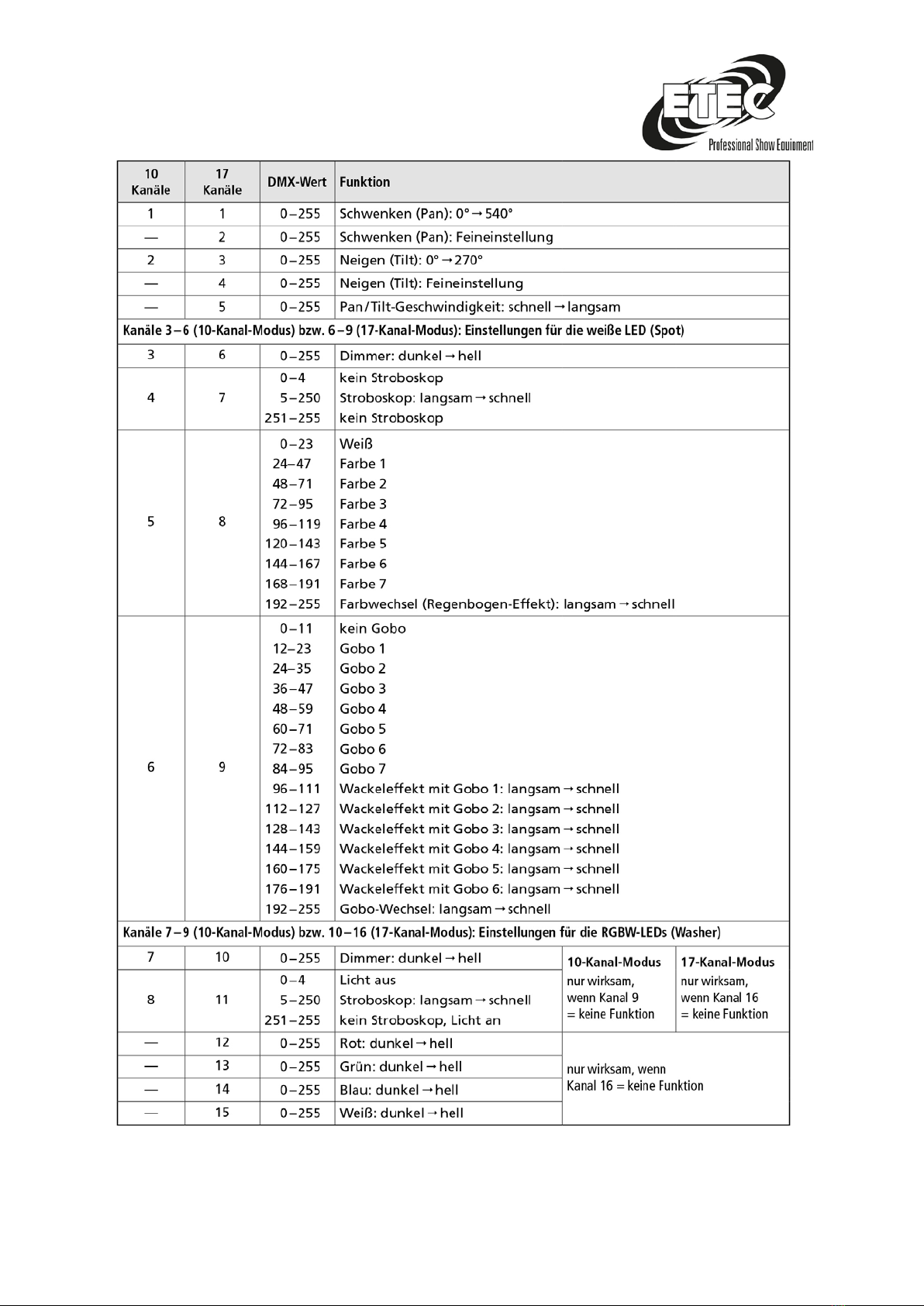

DMX Channel assignment:
Page | 13
Page | 14
Final Note:
Technical and optical changes within the scope of product improvement are reserved - even without
prior notice.
No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult
your ETEC dealer!
Page | 15
Space for your notes:
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
Table of contents
Other Etec Test Equipment manuals
