Eton American Red Cross FR405 User manual

American Red Cross FR405 by Etón
AM/FM Water-Resistant Radio with NOAA, Flashlight,
Siren and Cell Phone Charger
Owner’s Manual
American Red Cross Radio Line By:

3
American Red Cross FR405 OWNER’S MANUAL
American Red Cross Radio Line By:
DO YOU NEED HELP? Contact Us
Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA.
1-800-872-2228 (U.S.); 1-800-637-1648 (Canada); 650-903-3866
(worldwide); M-F, 8:30-4:00, Pacific Standard Time;
www.etoncorp.com.
WARNING
• Do not expose this appliance to rain or moisture.
• Do not submerge or expose for extended period to water.
• Protect from high humidity and rain.
• Only operate within specified temperature range (0 °C to 40 °C).
• Unplug immediately if liquid has been spilled or any object has
fallen into the apparatus.
• Clean only with a dry cloth. Do not use detergents or chemical
solvents as this might damage the finish.
• Unplug and disconnect external antennas during lightning storms.
• Do not remove cover [or back].
• Refer servicing to qualified service personnel.
Disposal
According to the European Directive 2002/96/EC all
electrical and electronic products must be collected
separately by a local collection system.
Please act according to your local rules and do not dispose of your old
products with your normal household waste.
ENVIRONMENT

4
DIAGRAMS
Phone
Charger
DC 5VEar
Flip open
OPEN
Phone
Charger
DC 5VEar
Flip open
BATTERY OFF
DYNAMO
ADAPTOR WEATHER
23456
7
SIREN ALERT
OFF
AM FM WEATHER Cell Phone
Charger
RECYCLE POWER
Weather Radio
AM/FM/Weather Alert Radio
FR-405
Light Off Flash
POWER
V
O
L
U
M
E
T
U
N
I
N
G
FM 88 92 96 100 103 106 108 MHz
AM 530 600 700 900 1100 1400 1710 kHz
SCALE||||||| 0 |||||||| 1 ||||||| 2 |||||||||3 ||||||| 4 ||||||||| 5 |||||||| 6 ||||||||| 7 ||||||| 8 |||||||| 9 |||||||| 10 |||||||| SCALE

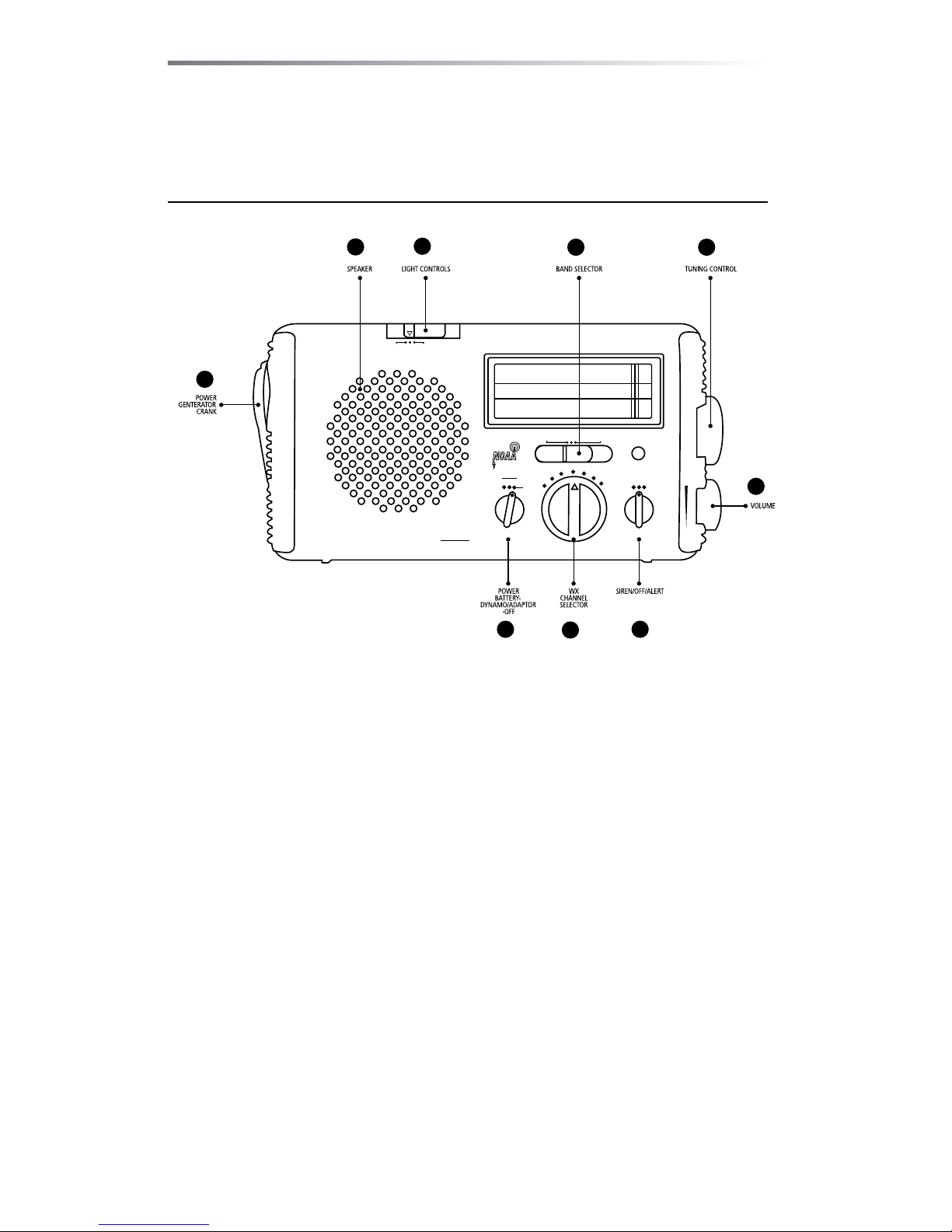

1. Power: Battery-Dynamo/Adaptor-OFF
2. Weather Channel Selector
3. Siren-ON/OFF
4. Volume Control
5. Tuning Control
6. Band Selector
7. Light Controls
8. Speaker
9. Power Generator Crank
123
4
5
6
7
8
9
American Red Cross FR405 OWNER’S MANUAL

5
DIAGRAMS continued
Phone
Charger
DC 5VEar
Flip open
OPEN
Phone
Charger
DC 5VEar
Flip open
BATTERY OFF
DYNAMO
ADAPTOR WEATHER
23456
7
SIREN ALERT
OFF
AM FM WEATHER Cell Phone
Charger
RECYCLE POWER
Weather Radio
AM/FM/Weather Alert Radio
FR-405
Light Off Flash
POWER
V
O
L
U
M
E
T
U
N
I
N
G
FM 88 92 96 100 103 106 108 MHz
AM 530 600 700 900 1100 1400 1710 kHz
SCALE||||||| 0 |||||||| 1 ||||||| 2 |||||||||3 ||||||| 4 ||||||||| 5 |||||||| 6 ||||||||| 7 ||||||| 8 |||||||| 9 |||||||| 10 |||||||| SCALE
1. Battery Compartment Cover
2. Earphone Jack
3. AC Adapter Jack
4. Cell Phone Charger Jack
1
234
American Red Cross FR405 OWNER’S MANUAL

American Red Cross FR405 OWNER’S MANUAL
INITIAL SETUP
1. Open the compartment; it slides downward with firm pressure
at center of hinge.
2. Connect the battery pack.
POWER SOURCES
1. Rechargeable battery pack (included).
2. 3 AA batteries (not included).
3. AC adapter/charger (included).
4. Continually turning the crank, even with no batteries installed.
CHARGING THE BATTERY PACK
1. Switch the BATTERY/DYNAMO-ADAPTER/OFF switch to the
OFF position.
2. Turn the dynamo-crank clockwise or counter-clockwise about
2 turns per second for 90 seconds.
3. After charging, select the DYNAMO-ADAPTOR position for
power.
While charging, the red LED charging light illuminates.
AA BATTERY OPERATION
1. Open the battery compartment.
2. Install 3 AA batteries, observing polarity diagram.
3. For power, set the power selector switch to the
BATTERY position.
6

American Red Cross FR405 OWNER’S MANUAL
7
USING AN AC ADAPTER
Once plugged in, the AC adapter acts as a charger, charging the
internal Ni-MH battery pack. Charge it for 8 hours to achieve a
full charge.
1. Plug the adapter into the DC 4.5 V socket.
2. For power, set the BATTERY/DYNAMO-ADAPTER/OFF switch to
the DYNAMO-ADAPTER position.
Only use an AC adapter of 4.5 VDC, negative polarity and
100mA current capability. To order the correct AC adapter call the
toll free number shown at the beginning of this manual, ask for
the parts department and order part # GPU3504.
EMERGENCY OPERATIONS WITH NO
POWER SOURCE
1. Set power selector switch to DYNAMO/ADAPTOR.
2. While continually turning the dynamo crank, the radio, lights
and siren functions will work.
CELL PHONE CRANK CHARGING
Because cell phone batteries vary in their current ratings, we
cannot specify charging rates or usage time. 10 to 15 minutes of
cranking may result in 1 or more minutes of talk-time.
1. Set POWER switch to OFF position.
2. Plug the cell phone charging cord into the Phone Charge
socket.

American Red Cross FR405 OWNER’S MANUAL
TURNING THE RADIO ON AND OFF
Turn it on with the POWER switch.
1. Select the BATTERY position when using AA batteries.
2. Select the DYNAMO/ADAPTER position when powering via
the AC adapter or internal, rechargeable Ni-MH battery pack.
3. To turn off, set POWER switch to OFF.
8
ADJUSTING THE VOLUME
Set VOLUME knob to desired level.
TUNING-IN STATIONS
1. Select AM, FM, or WEATHER (WX) with the band selector
switch. For FM and WEATHER (WX), fully extend the
telescopic antenna.
2. Adjust the volume with the VOLUME knob.
3. Tune stations with the TUNING knob, or tune in WEATHER
(WX) with the 7-position switch.
CELL PHONE CRANK CHARGING continued
3. Select the correct charging tip for your phone.
4. Plug charging tip into the charging cord and into the phone’s
charging socket.
5. Rotate the dynamo crank about 2 turns per second.

American Red Cross FR405 OWNER’S MANUAL
TO RECEIVE WEATHER ALERTS
Tune into your strongest weather station. Select a comfortable
volume level. Leave the radio on and select the ALERT position
with the SIREN/OFF/ALERT switch. When there are weather alerts,
the radio will come on at the volume that you have set.
9
LIGHTS
Set the LIGHT/OFF/FLASH switch to the FLASH or LIGHT position.
SIREN
Set the SIREN/OFF/ALERT switch to the SIREN position.
EARPHONE JACK
Plug in earphones (not included).
BATTERY PACK SPECIFICATIONS
Ni-MH; 3.6 volt DC; 450 mAh.

American Red Cross FR405 OWNER’S MANUAL
IMPORTANT BATTERY INFORMATION
To minimize the possibility of battery acid leakage, only use high
quality alkaline, lithium or rechargeable nickel-metal-hydride bat-
teries. Never intermix old with new, or different brands or types of
batteries. Damage caused by battery acid leakage is not covered
by this product’s warranty.
WARRANTY REGISTRATION
To ensure full warranty coverage or product updates, registration
of your product should be completed as soon as possible after
purchase or receipt. You may use one of the following options to
register your product:
1. By visiting our website at http://www.etoncorp.com.
2. Mail in enclosed warranty card.
3. Mail your registration card or information to following ad-
dress; include your name, full mailing address, phone number,
email address, model purchased, date purchased, retail vendor
name:
AC ADAPTER SPECIFICATIONS
Output 4.5 volt DC; negative polarity; 100 milliampere; plug tip
outer diameter 3.4mm, inner diameter 1.3mm. AC adapter use
automatically charges the rechargeable battery pack. Only charge
the battery pack with a 100 milliampere AC adapter. If an AC
adapter rated greater than 100 milliampere is used, disconnect
the rechargeable battery pack.
10

American Red Cross FR405 OWNER’S MANUAL
LIMITED WARRANTY
Retain the warranty information from your warranty card with
your proof of purchase or the Limited Warranty information can
also be viewed at www.etoncorp.com.
SERVICE FOR YOUR PRODUCT
To obtain service for your product, we recommend first contact-
ing an Etón service representative at 1-800-872-2228 US, 1-800-
637-1648 Canada, [phone] or customersvc@etoncorp.
com for problem determination and trouble-shooting. If further
service is required, the technical staff will instruct how to proceed
based on whether the radio is still under warranty or needs non-
warranty service.
WARRANTY – If your product is still in warranty and the Etón
service representative determines that warranty service is needed,
a return authorization will be issued and instructions for shipment
to an authorized warranty repair facility. Do not ship your radio
back without obtaining the return
authorization number.
WARRANTY REGISTRATION continued
Etón Corporation
1015 Corporation Way
Palo Alto, CA 94303 USA
11

American Red Cross FR405 OWNER’S MANUAL
SERVICE FOR YOUR PRODUCT
NON-WARRANTY – If your product is no longer under
warranty and requires service our technical staff will refer you
to the nearest repair facility that will be able to best handle the
repair.
For service outside North America, please refer to the distributor
information included at time of purchase/receipt.
12

American Red Cross FR405 OWNER’S MANUAL
13

14

15
