ETS NORD NORDcanopy Manual

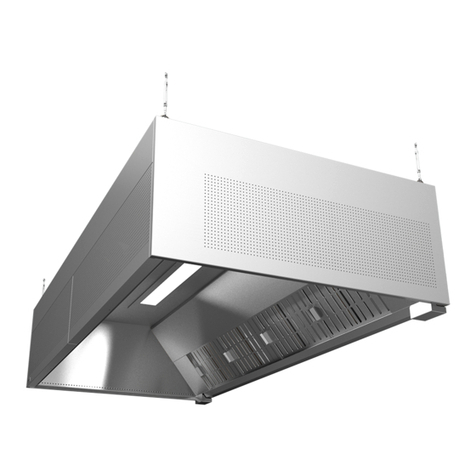

NORDcanopy
HP Installation and maintenance manual
www.nordcooking.com
www.etsnord.com
2RDM-063-0922
®NORDcanopy |HP
Table of Contents
1. Safety 4
2. Installing the canopy 5
3. Lighting connection 8
4. Kitchen Canopy maintenance 9
Images are for illustrative purposes.
We reserve the right to make changes. 3
RDM-063-0922
®NORDcanopy |HP
In the kit:
3
2
4
1
5
7
6
8
1 – Ceiling bracket
2 – Electric cable bushing
3 – Suspension wire
4 – LED spotlight
5 – Filter
6 – Electric cable bushing
7 – Suspension adjustment point
8 – Exhaust air connection (160mm)
A – Ceiling mounting box + 4 screws
B – Grease filter
C – Suspension wire + 4 ×wire ceiling mount
AB C
www.etsnord.com
4RDM-063-0922
®NORDcanopy |HP
1. Safety
450
300
300
600
160
450
600
300
300
It is prohibited to place any additional items of weight on the top of the canopy.
Images are for illustrative purposes.
We reserve the right to make changes. 5
RDM-063-0922
®NORDcanopy |HP
2. Installing the canopy
Relative positions of ceiling bracket mounting and electrical cable pass-through holes
2.1 Fasten the ceiling brackets to the ceiling
175
225
450
225
6 x M4
ATTN! Choose appropriate fastening devices depending on the ceiling type
Diameter of the mounting holes in the ceiling bracket are 4.5mm.
www.etsnord.com
6RDM-063-0922
®NORDcanopy |HP
2.2 Hanging the suspension wires
4x
Images are for illustrative purposes.
We reserve the right to make changes. 7
RDM-063-0922
®NORDcanopy |HP
2.3 Hanging the canopy
2.4 Leveling the canopy
After the canopy has been leveled and is in its correct final resting position, you may then snip o unused cabel.
4x
www.etsnord.com
8RDM-063-0922
®NORDcanopy |HP
3. Lighting connection
4x
Images are for illustrative purposes.
We reserve the right to make changes. 9
RDM-063-0922
®NORDcanopy |HP
4. Kitchen Canopy maintenance
4.1 Removing the grease filter
4.2 Spot LED lighting
Spot LED lighting is fastened with spring clips on the top surface of the canopy ceiling. For replacing the
luminaire, it should be pulled downward from the canopy ceiling.
www.etsnord.com
10 RDM-063-0922
®NORDcanopy |HP
4.3 Kitchen Canopy Maintenance
All internal and external surfaces of the kitchen canopy, including light fixtures, are cleaned using neutral
cleaning agents. Carefully rinse the surfaces after cleaning, in order to avoid harmful interactions of cleaning
agents and high temperatures.
Recommended daily:
Never clean the kitchen canopy when any of its surfaces are hot. To clean the grease filter it must be removed
from the kitchen canopy. It may be washed by hand, in a dishwasher, or steam-cleaned. Liquid grease must
always be disposed of using methods approved according to local regulations.
ATTN! Do not use hard or abrasive detergents, chlorine or bleach when cleaning the canopy!
