WARNINGS!
Always power o the system before any maintenance work!
Risk of electric shock!
Electrical connections to the system may only be made by an authorized electrician.
Risk of falling!
Make sure installation and service personnel have stable work platforms when installing the device.
Only original spare parts purchased from ETS NORD may be used!
Installation, Use and Maintenance Manual
1. Removing the Ceiling Panel (Optional) 5
2. Hanging the Kitchen Canopy 5
3. Leveling the Canopy 6
4. Opening the Front Panel 6
5. Fastening Kitchen Canopy Sections Together 6
6. Water Connection 9
7. Installing HFM Labyrinth Filters 10
8. Electrical Installation 11
9. Using the HM Kitchen Canopy 16
10. Measuring and Adjusting Airflow 17
11. Accessories 18
12. Kitchen Canopy Maintenance 18

RDM-076-0623 3
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
1 86 7532 9 104
2111 13 171512 201914 1816
1 – Suspension points
2 – Supply air adjustment plate
3 – Supply air connection
4 – Cable bushings
5 – Lighting
6 – Exhaust air regulating plate
7 – Exhaust air connection
8 – 1/2“ water inlet
9 – Pressure reducing valve
10 – Solenoid valve
11 – Front panel
12 – Front panel lock
13 – “AirGrip” air nozzle system
14 – Auxiliary air supply
15 – Control buttons
16 – Control box
17 – Exhaust chamber access hatch
18 – Airflow measuring nozzles
19 – HFM labyrinth filters
20 – Water nozzles
21 – 2“ water drain

www.etsnord.com
4RDM-076-0623
®NORDcanopy |HM
L1 - 30
L1 + 25 L2 + 25
L + 50
L + 50
L
B
L - 30
B - 96
280 180
48
15
48
40
ABCD
EFGH
I
In the kit:
A – Ceiling panel for modular connection
B – Loop nut
C – HFM Labyrinth filters
D – Bolts and cap nuts
E – Screws
F – Exhaust chamber access hatches
G – Control box
H – Water system assembly
I – Solenoid
J – W3 Spiral cable
K – W0 Power cable with junction box XB0
L – W1 Light cable with junction box XB1

RDM-076-0623 5
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
Safety
It is prohibited to hold or add additional
weight on the top of the canopy.
1. Removing the Ceiling Panel (Optional)
With larger canopies, removing the center ceiling panel can provide better access for exhaust duct and insulation
installation.
2. Hanging the Kitchen Canopy
M10
B

www.etsnord.com
6RDM-076-0623
®NORDcanopy |HM

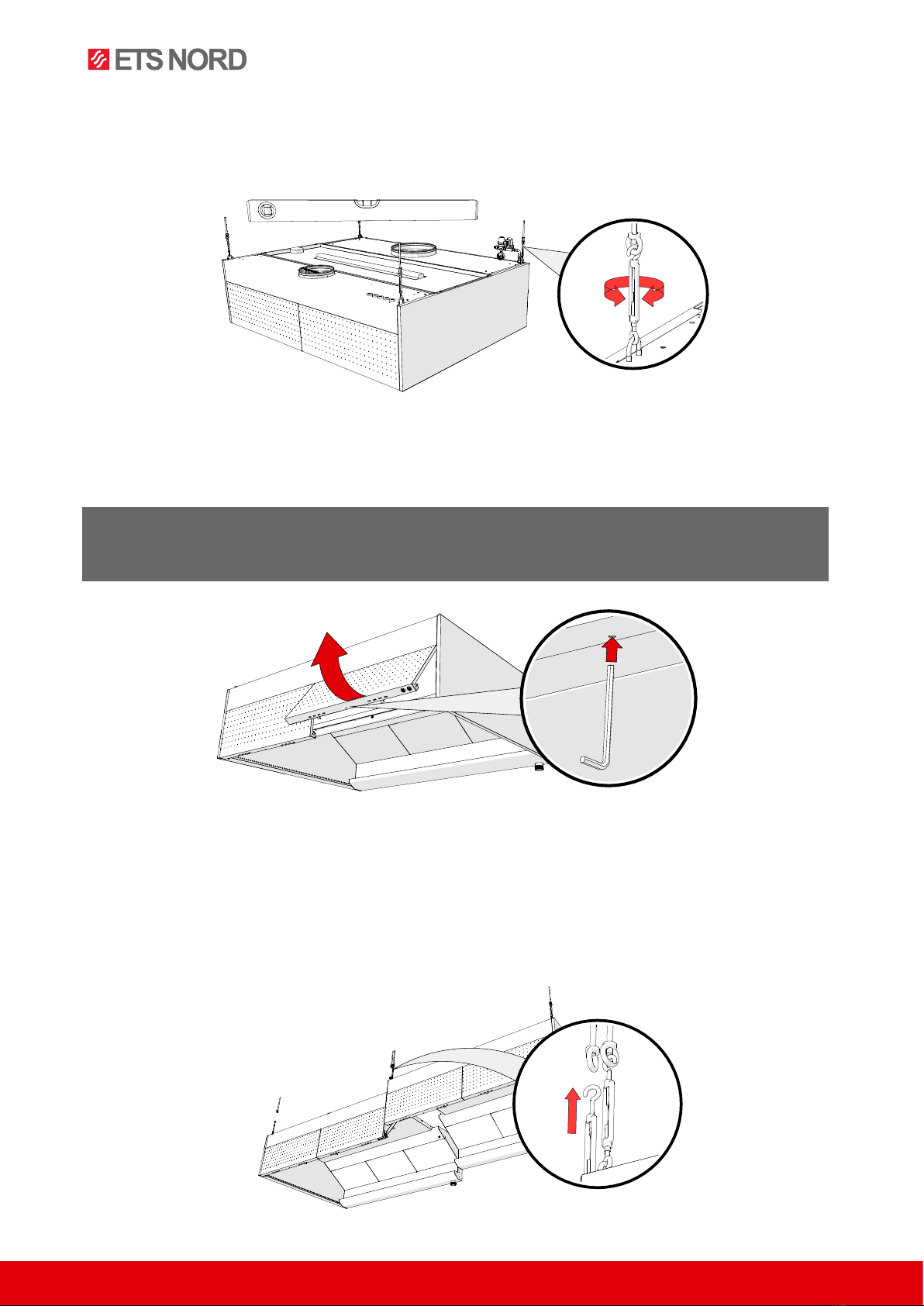

3. Leveling the Canopy
Is performed for each section.
4. Opening the Front Panel

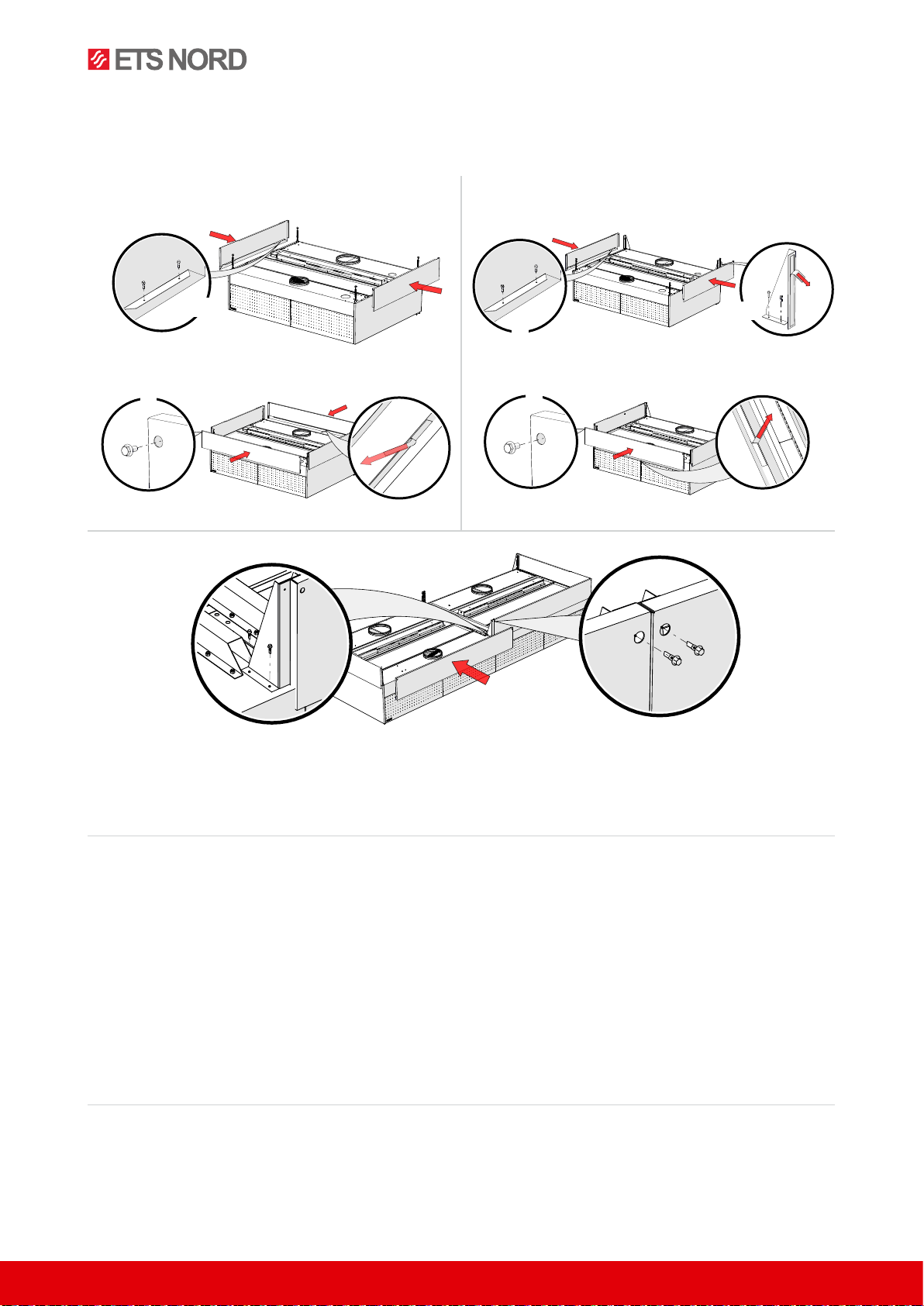

5. Fastening Kitchen Canopy Sections Together
5.1 Hanging the Canopy Sections
Each section has to be suspended at least from four anchor points.
The panel locks automatically.
ATTN! At the end of the installation, make sure that the panels are correctly fixed.

RDM-076-0623 7
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
5.2 Removing the Support Strip for the Exhaust Chamber Access Hatch
5.3 Sequential Connection
5.4 Installation of the Ceiling Panel Between the Sections
6x D
5x D
D
4x E
E

www.etsnord.com
8RDM-076-0623
®NORDcanopy |HM

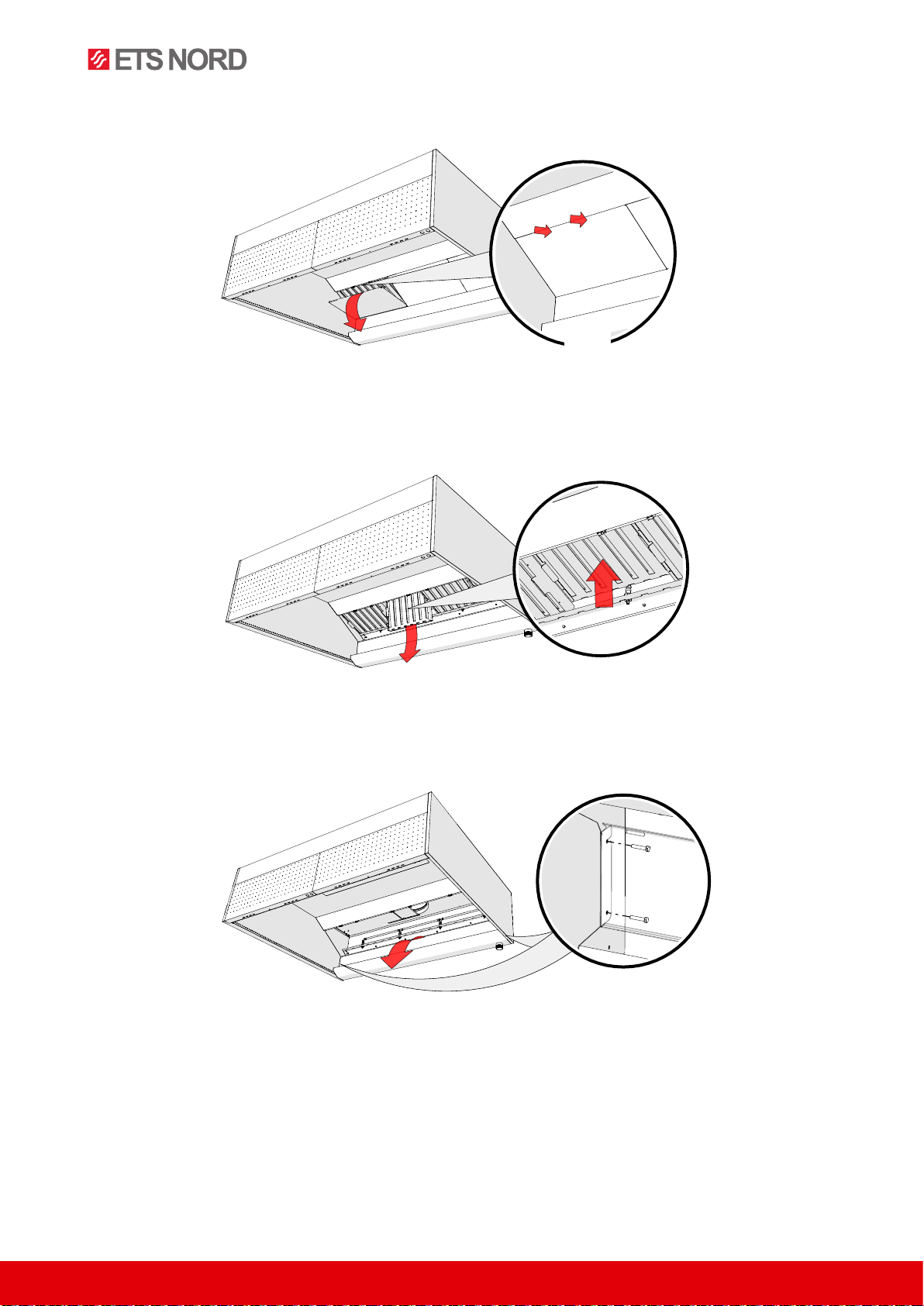

5.5 Fastening Sides Back-to-Back
Requires additional bolt holes.
5.6 Installing Exhaust Chamber Support Strip
4x D
D
2x D
D

RDM-076-0623 9
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
6. Water Connection
6.1 Plumbing Diagram
6.2 Water Connection Sizes
1/2"
2"
360°

www.etsnord.com
10 RDM-076-0623
®NORDcanopy |HM
6.3 Adjust the Pressure Reducing Regulator to 2 Bar
7. Installing HFM Labyrinth Filters
PUSH

RDM-076-0623 11
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.

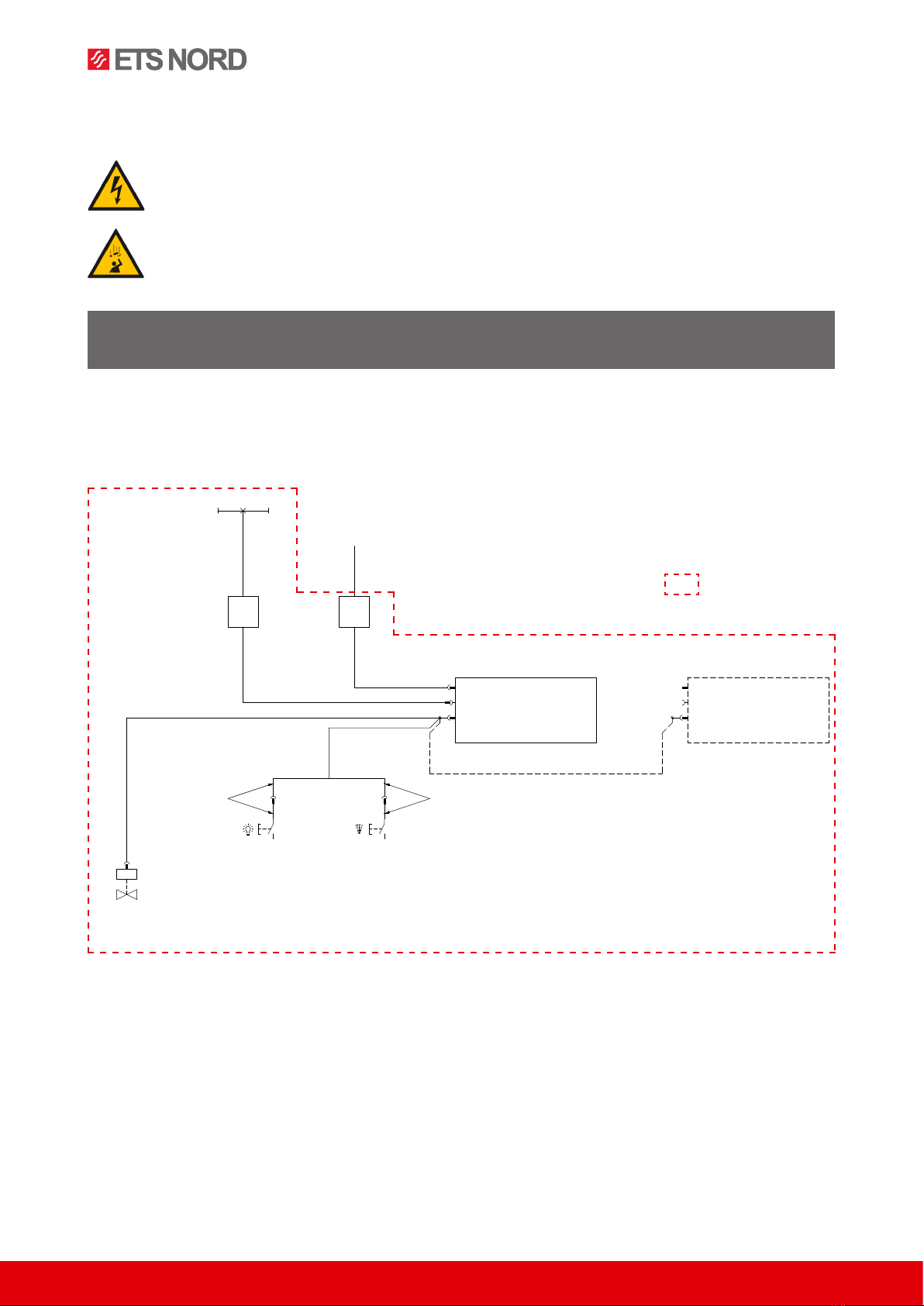

8. Electrical Installation
Risk of electric shock!
Electrical connections to the system may only be made by an authorized electrician.
Risk of falling!
Make sure installation and service personnel have stable work platforms when installing the device.
Lang Page Release dateRev.
Created by
Approved by
R&D department
11415, Peterburi tee 53,
Tallinn, Estonia
Document ID
HM CONTROL
BOX
LED Electrical supply
1 phase 230 VAC
Electromagnetic Valve
for water
Lighting Water
White
tube
Blue
tube
XB1
XD1
XD2
X3
Y1
W0
W1
W2
W3
(desired to use
30 mA RCD)
XB2
W4 (HM canopy section "handshake")*
* W4 cable is not included in delivery.
XD2
X3
XD1
HM CONTROL
BOX
Multisection canopy design
(up to 4 HM control boxes)
1
A
234567891011
B
C
D
E
F
G
A
B
C
D
E
F
Lang Page Release dateRev.
Created by
Approved by
R&D department
12 13 14 15 16
G
H
J
K
L
H
J
K
2341 5678 /
11415, Peterburi tee 53,
Tallinn, Estonia
https://www.etsnord.ee
Document ID
D.Tihhomirov
I. Ilinõh 06-06-2023 EN
HM Canopy
Overview diagram
3 3
Multi-Control Box Canopy
included in the kit
NOTE! Electrical installation must be performed by an authorized electrician
and follow local, regional and national standards and regulations.
®

Connection Diagram
Lang Page Release dateRev.
Created by
Approved by
R&D department
11415, Peterburi tee 53,
Tallinn, Estonia
Document ID
HM CONTROL
BOX
1 2 3 4 6 7 8 9
10
5
XD1 XD2 X3
C14 C13
W0
3G0,75
Electrical supply
1 phase 230 VAC
W1
3G0,75
W2
3G0,75
Canopy
lighting
bn
gn-ye
bu bn
gn-ye
bu
gn-ye
bn bu
wh
bn
gy
gn
ye
bu
W3
8x0,25
L
N
Electromagnetic valve
for water
L
N
pk
rd
(to junction box XB1) (to junction box XB2; (should be connected to X3
Spiral cable for
illumunated push-buttons
during the canopy installation)luminaires connected
in parallel.
Push-buttons to be connected
to the cable according the
colours of tubes:
white to white,
blue to blue.
3G0,5
or
11 12
W4
min. 3x0,25
"Handshake" circuit between
HM control boxes in case of
multisection design of canopy.
It gives possibility to turn on-off
the whole canopy from few points.
1
A
234567891011
B
C
D
E
F
G
A
B
C
D
E
F
Lang Page Release dateRev.
Created by
Approved by
R&D department
12 13 14 15 16
G
H
J
K
L
H
J
K
2341 5678 /
11415, Peterburi tee 53,
Tallinn, Estonia
https://www.etsnord.ee
Document ID
D.Tihhomirov
I. Ilinõh
Connection diagram
HM Canopy
06-06-2023 EN 1 2
Twin Control Box Canopy
Each Control Box
RDM-076-0623
12 www.etsnord.com
NORDcanopy |HM
®

RDM-076-0623 13
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
X3 signal
connector IO names Explanation Notes
1 PE Water valve protective
earth connection
W2 control cable green-yellow core
2 Water valve + Water valve + connection W2 control cable brown core
3 Water valve - Water valve - connection W2 control cable blue core
4 Canopy lighting on/o Canopy lighting on/o signal W3 spiral cable white core
5 +24V +24V for pushbuttons W3 spiral cable brown + pink cores
6 Water valve on/o Water valve on/o signal W3 spiral cable grey core
7 Lighting pushbutton
illumination
Canopy lighting on/o
pushbutton illumination
W3 spiral cable green core
8 0V 0V for pushbuttons W3 spiral cable yellow + red cores
9 Water valve pushbutton
illumination
Water valve on/o pushbutton
illumination
W3 spiral cable blue core
10 Canopy lighting on/o
pushbutton signal sharing
Canopy lighting on/o pushbutton
signal sharing for "PLC handshake"
W4 control cable white core (cable
and its installation from customer)
11 Water valve on/o
pushbutton signal sharing
Water valve on/o pushbutton signal
sharing for "PLC handshake"
W4 control cable brown core (cable
and its installation from customer)
12 0 V (-) for sharing 0V sharing for "PLC handshake" W4 control cable green core (cable
and its installation from customer)
1 – Control box suspension clamps
2 – IEC C14 socket for lighting connection (XD2)
3 – IEC C13 socket for power connection (XD3)
4 – Terminal block for controls (X3)

www.etsnord.com
14 RDM-076-0623
®NORDcanopy |HM

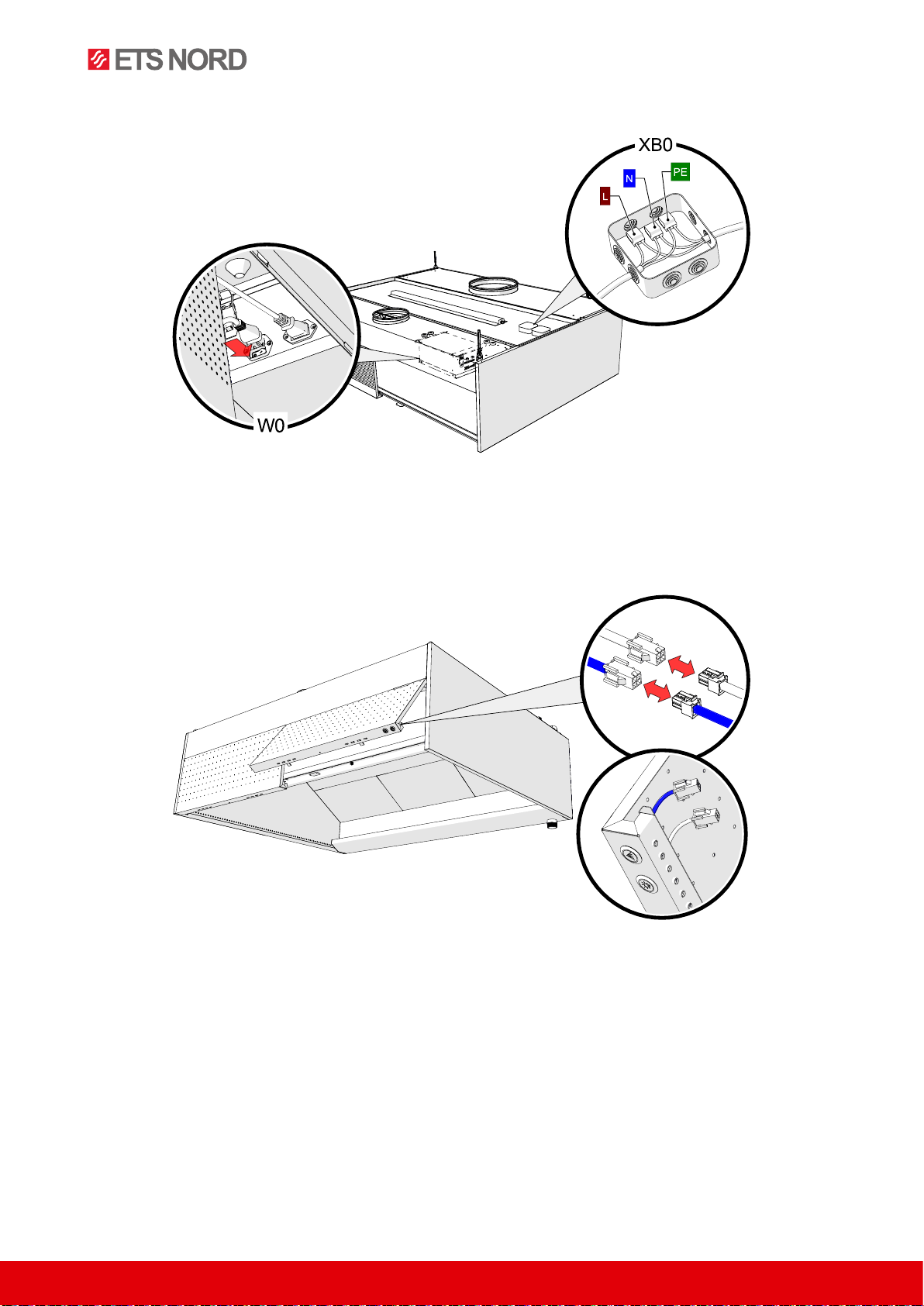

8.1 Installing Control Box
8.2 Connecting the Solenoid Valve to the Control Box
8.3 Lighting Connection
4x

RDM-076-0623 15
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
8.4 Connecting the Power Cable
8.5 Connecting the Front Panel
Before closing the front panel connect control buttons.

www.etsnord.com
16 RDM-076-0623
®NORDcanopy |HM
9. Using the HM Kitchen Canopy
HM Canopy is controlled by two buttons located under front panel.
Lighting and water mist are o
Lighting is on but water mist is o
Both lighting and water mist are turned on
Note that when you turn o the lights when the water mist is on it will turn o both the lights and water mist
functions.
NB! When cooking food with flames be sure to turn the mist shower on.
LightingWater mist

RDM-076-0623 17
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
10. Measuring and Adjusting Airflow
NORDcanopy canopies are fitted with measuring nozzles located inside the canopy.
In order to adjust supply airflow, the position of the adjusting plate located in the supply chamber is adjusted.
The exhaust airflow adjustment plate is located behind the HFM Labyrinth filters. Lock the adjustment plate in
place using the butterfly nuts!
K-factor for measuring airflow
• Exhaust K-factor = 20,6 per filter
Supply air K-factor, per 1 m of front panel
SP×0 SP×1 SP×2 SP×3 SP×K
Front panel* - 19,2 32,3 50,4 -
AirGrip 2,4 - - - -
Side panel* - - - - 6,6
* The supply panel k-factors above include the “AirGrip” air capture system K-factor.
* If the side panel has perforation, add the side panel k-value to the front panel k-value.
Calculation example:
Supply air canopy L=2 meter with SP×2 front panel.
Calculation of the supply air volume:
Pressure in the supply air chamber is 26 Pa
Front panel SP×2 k-factor is 32,3
Qs = 2 × 32,3 x √26 = 330 l/s
Calculation of the exhaust air volume:
Pressure in the exhaust air chamber is 22 Pa
4 × HFM labyrinth filter k-factor is 82,4
Qe= 4 × 20,6 x √22 = 386 l/s
ATTN! During measurement, all HFM Labyrinth filters and exhaust chamber access hatches
must be in place and the front panel must be closed.
Qv=k√∆pm
Number of HFM filters K-value
1 20,6
2 41,2
3 61,8
4 82,4
5 103

www.etsnord.com
18 RDM-076-0623
®NORDcanopy |HM
11. Accessories
11.1 Installation of Cover Plates

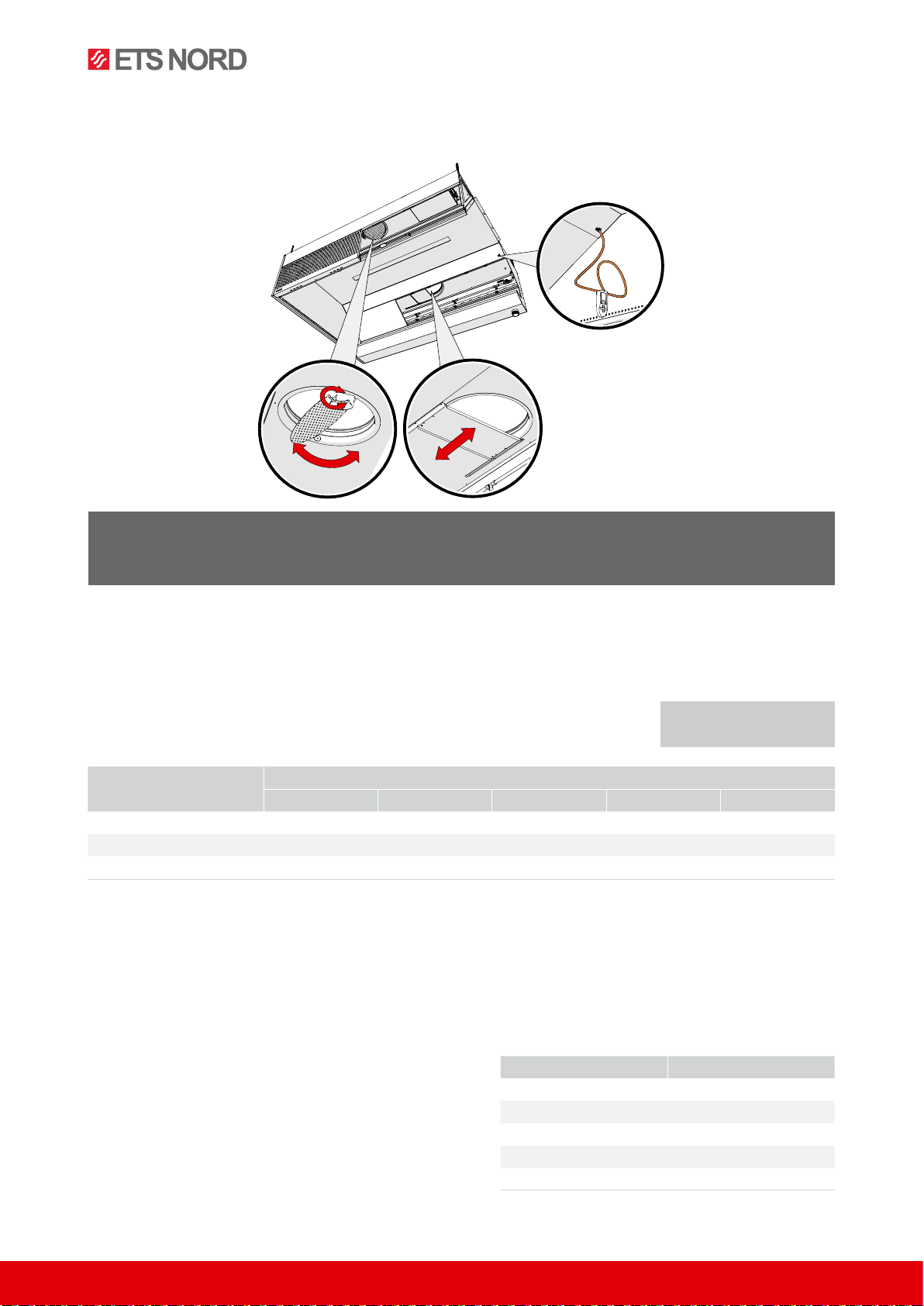

12. Kitchen Canopy Maintenance
DEPENDING
ON THE
FREQUENCY OF
KITCHEN USAGE
All internal and external surfaces of the kitchen canopy, including light fixtures, are
cleaned using neutral cleaning agents. Carefully rinse the surfaces after cleaning, in
order to avoid harmful interactions of cleaning agents and high temperatures. To clean
the exhaust chamber, HFM filters and the COVER SUPPORT RAIL (pictured below)
are removed from the kitchen canopy. To clean the supply chamber, the front panel
of the kitchen canopy is removed. ATTN! Do not use hard or abrasive detergents,
chlorine or bleach when cleaning the canopy! Never clean the kitchen canopy when
any of its surfaces are hot.
Occasionally check the water nozzles. These need to be cleaned if water spray pattern
is changed (see below).
To clean HFM Labyrinth filters they must be removed from the kitchen canopy. Liquid
grease must always be disposed of using methods approved according to local
regulations.
x8
x4
A
x8
x2
x2
B
C

RDM-076-0623 19
®NORDcanopy |HM
Images are for illustrative purposes.
We reserve the right to make changes.
12.1 Removing Exhaust Chamber Access Hatches
12.2 Removing HFM Labyrinth Filters
12.3 Removing the Access Hatch Support Strip
PUSH

www.etsnord.com
20 RDM-076-0623
®NORDcanopy |HM
12.4 Removing Water Nozzles
Water spray should be parrallel to the rear wall. Turn nozzles so that they are all in line.
When servicing nozzles, make sure they are installed in the right direction.
