ETS AP-30W User manual

AP-30W
Operating instructions
Thank you for buying our air cleaner. Each
system is carefully manufactured and
subjected to a test run to ensure safety and
reliability. Please read the instructions
carefully before initial use and save them for
future reference.
www.ets-products.ph

AP-30W
2
Table ofcontents
Scope of delivery 03
Specifications 03
Areas ofapplication 04
System overview 05
Wallmounting 06
Remote control 07
Control and display field 08
Tuya app control 10
Maintenance and cleaning 14
Filter replacement 16
Safety instructions 17
Contact 18
TuyaSmart App Control;
availablein Apple AppStore &
Google Play Store.

AP-30W
3
Scope of delivery
Air cleaner:
1
Power cable:
1
Operating instructions:
1
Remote control:
1
Mounting plate:
1
Mounting dowels:
6
Specifications
Air volume (CADR):
200 m³/h
Mains voltage*:
220 V / 240 V
Frequency*:
50/60 Hz
Power:
60 W
Dimensions (mm):
520 x 310 x 140
Weight:
8,9 kg
Ambient temperature:
5 °C – 40 °C
Relative humidity:
< 80%
Noise level::
~ 54 dB at highest fan level
* Voltage and frequency depend on the standard of the country or region in which the devices
are used. Device data can befound onthe product label. Use only devices that are intended for
your region.

AP-30W
4
Areas ofapplication
The system is equipped with a highly efficient filtration and cleaning
system including a HEPA H13 filter, an activated carbon filter, a
titanium dioxide photo catalyst filter, a UV sterilization lamp with a
254-nm wavelength, and a plasma generator.
ETS air cleaning systems are used to effectively remove toxins,
viruses, bacteria, pathogens, dust, allergens, and odors from the
ambient air.
Industry and commerce
Business and office spaces
Medical
Medical practices, waiting rooms, retirement and care homes,
hospitals, quarantine facilities
Hospitality and Leisure
Pubs, restaurants, bars, wellness, locker rooms, communal
accommodation, hotel rooms
Private households
Living rooms and bedrooms
Certified for:
> Aerosols
> Bacteria, viruses
> Allergies
> Asthma
> Hay fever
> Mould spores
> Pollen
> Odours
Certified Efficacies

AP-30W
5

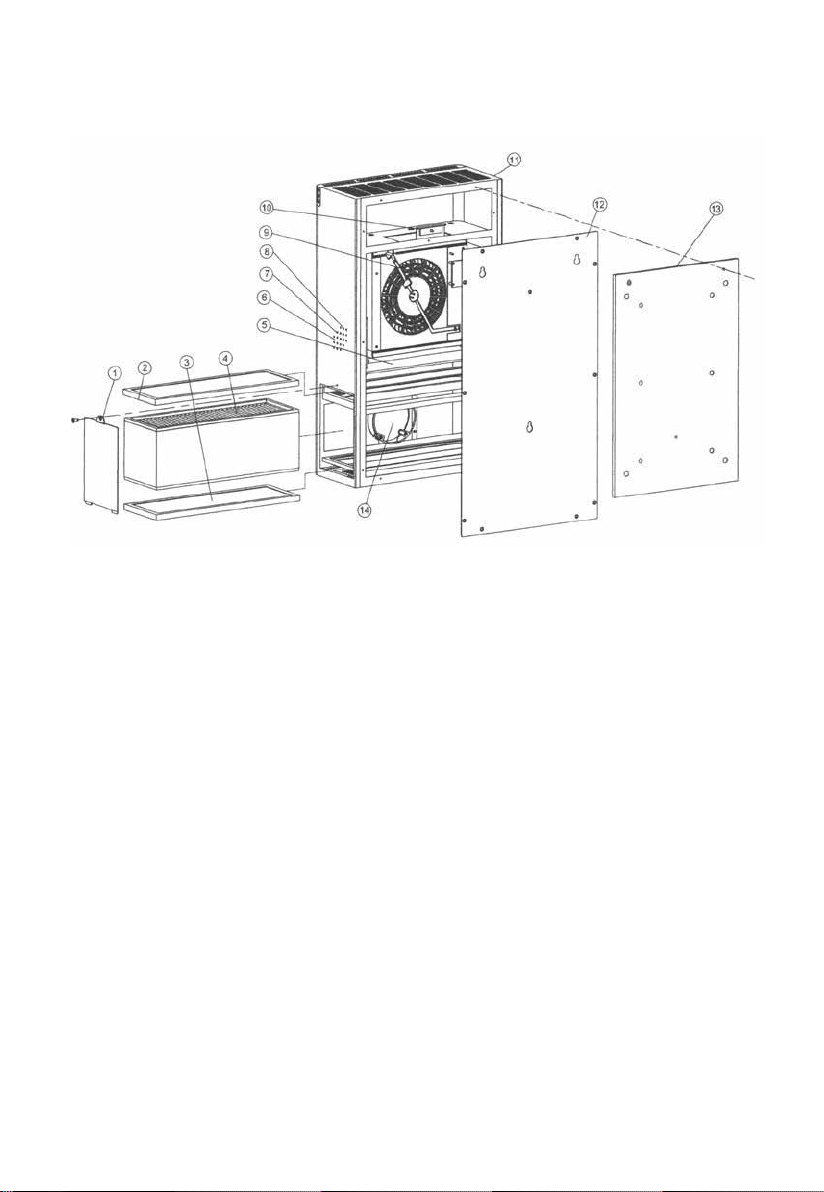

1 Maintenance panel
2 TiO2 photocatalyst
3Prefilter
4HEPA H13 filters and activated carbon filter
5 UV-C lamp
6 TVOC
7 Temperature/moisture sensor
8 PM2.5-Sensor
9 Fan
10 Plasma generator
11 Primary housing
12 Aircleanerrearwall
13 Wall-mounting plate
14 Control board
• Four-layer air filter and four-stage air cleaning
• High-precision particle sensors and organic gas sensors installed for
real-time air quality testing
• Remote control, manual controls, and night mode
• Four cleaning modes:
1) M anual , 2) A ut o , 3) Q uick cleaning
4) Night operation with cleaning and four fan levels
• Warning display for replacing the HEPAH13 filter, activated carbon filter,
and UV lamp
System overview

AP-30W
6
Wall mounting
Before fixing themounting plate to thewall, ensure that thereare nopipes
or electrical cables in the wall.
1. Leave more than 40 cm free to the right of the
plate. Leave more than 20 cm free above and
to the left of the plate. The mounting plate
should be placed near a power outlet.
2. Use a spirit level to mount the mounting
plate in the correct position. Make six marks
through the holes in the mounting plate with
amarking pen.Drillholesofthepropersizefor
the dowels in the accessories package, and fix
the mounting plate firmly to the wall.
3. Fix the air cleaner to the mounting plate using
the three adjustable pins.
4. Connect the air cleaner to the power source.

AP-30W
7
Remote control
On/off
Decreaseairvolume
Timer
Sterilization
Child safety
Increase air volume
Auto mode
Sleep mode
Plasma
not assigned

AP-30W
8

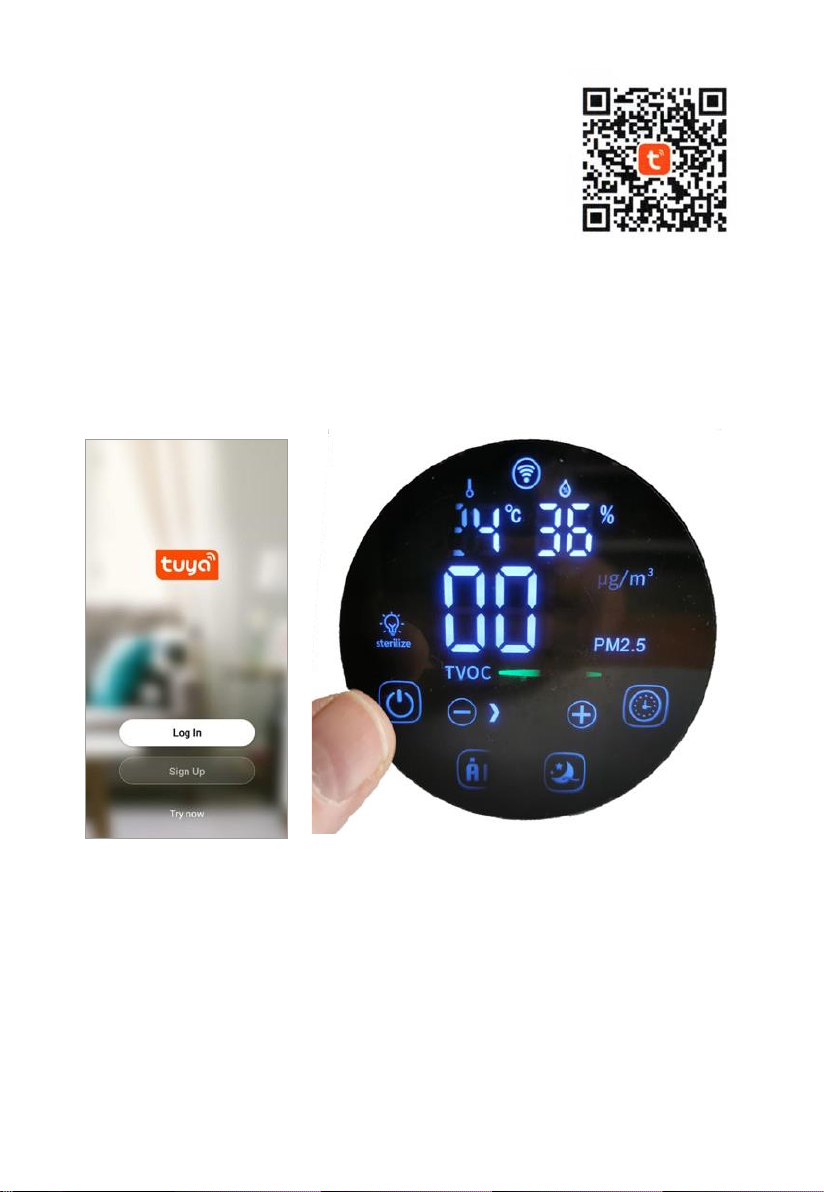

Touchscreen display
WiFi
Temperature
Sterilization
On/off
Auto mode
Child safety
Humidity
Timer
Fan Speed
Sleep mode
On/off
Standby mode is green. On mode is white.
Touch the On/Off icon to switch the air cleaner on or off. Standard mode
is manual mode with AirVolume Level 1 after the air cleaner is switched on.
Auto/manual
Manual is white, auto is green.
In manual mode: Air volume can be measured and the UV lamp switched on.
In auto mode: Sensors automatically measure the air volume for PM2.5 and
TVOC. After five minutes in auto mode, the UV lamp is automatically switched
on, and after 30 minutes in auto mode, it is switched back off.
Fan speed
Manually control the fan speed by either pressing the + or - button.

AP-30W
9
Timer
Switched off – white. Switched on – green. The air cleaner can be switched
offautomaticallybetween1 to 9hours.
Child safety
Switched on – lit up white.
Touch the screen to switch on child safety, and touch sleep mode and the
timer for three seconds to switch it back off. Child safety can be switched on
and off with the remote control.
Air volume
+/–The air volume can be adjusted according to application
environment.
Sterilization
Switched off: Lit up white. Switched on – green.
Sterilization allows UV-C and plasma to be switched on and off together.
Night mode
In night mode, the display lighting switches off, and the system no longer
runs at high fan levels.

AP-30W
10
Tuya Smart App Control
1. Scan the QR code in order to download and install
the Tuya Smart App.
2. GettheTuyaSmartAppstartedbyclickingon„login“(orsignupforthefirst
time) or„try now“ (some of the functions might be not accessible yet).
3. Connect the devise to the current and touch the ON/OFF icon for 5 sec until
the beep sounds. Now the pairing mode is activated and you can connect the
device with yoursmart-phone.

AP-30W
11

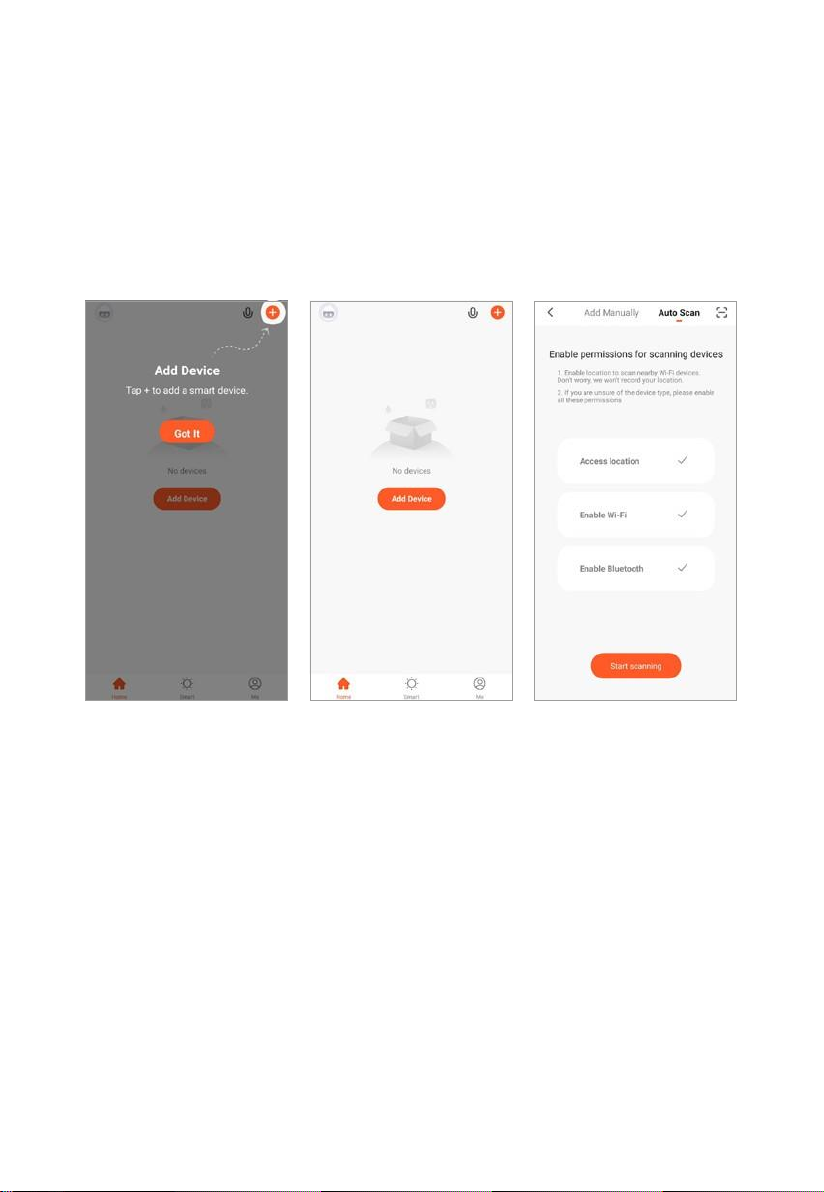

4. Click „ADD DEVICE“ then select „AUTO SCAN“ and enable „access location,
Wifi and Bluetooth“.
Please ensure that the device and your smartphone is using the same
network. Click on„AUTO SCAN“ to find available devices.

AP-30W
12

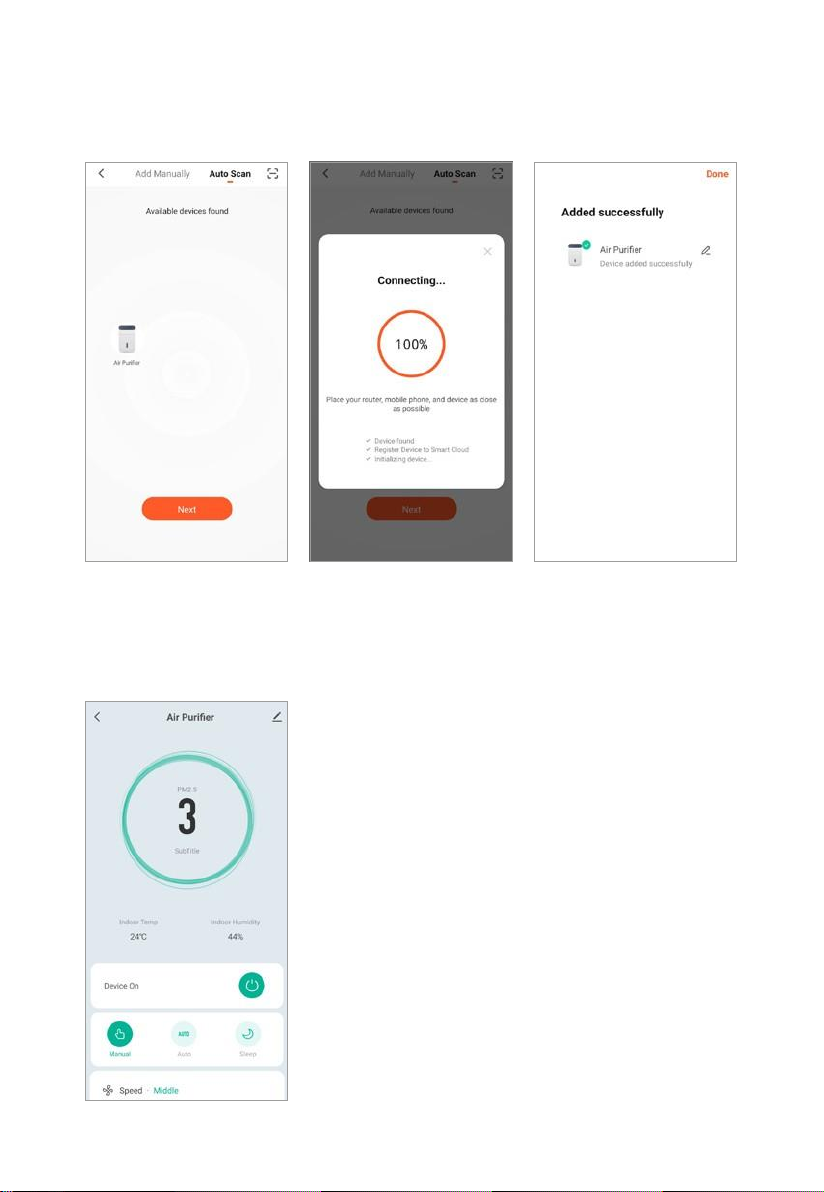

5. Select the new device on your screen and connect it with the system.
6. Now you have full control of the device via your smartphone

AP-30W
13
Maintenance andcleaning
To clean the air, the system uses several filters and air cleaning systems
simultaneously:
Prefilter
The prefilter filters out large particles such as human hair, animal hair, lint, etc.
HEPA H13 filter
The HEPA H13 filter removes smoke, dust, pollen, allergens, toxins, and fine
particles larger than 0.3 μm.
Activated carbon filter
The activated carbon filter removes gases such as benzene and methanol,
odors, etc.
Photocatalyst TiO filter and UV-C lamp
Eliminates viruses and bacteria in reactions with the titanium dioxide
coating in conjunction with UV-C light with a wavelength of 253.7 nm.
Bi-Polar Plasma
At the plasma stage, air is routed between electrodes carrying high
electrical voltage. The generated bi-polar ions are dispersed into the
room air and neutralize bacteria, viruses and VOCs.

AP-30W
14
Note
The UV lamp is permanently installed and may be replaced by technical
customer service personnel only.
Prefilter
The prefilter must be checked regularly at intervals of no longer than
four weeks and cleaned as necessary.
The prefilter can be either cleaned with a vacuum cleaner or rinsed out
with running water. Insert the prefilter only after it has dried
completely.
HEPA H13 filters and activated carbon filters cannot be cleaned. Do
not re- place these filters until the system indicates that doing so is
necessary.
Use only original replacement parts. They have been harmonized with
device operation. Using third-party replacement parts can impair
cleaning performance. Doing so invalidates the guarantee and the
test results from the microbiological institute.
Switch off the device and pull the power plug before working on the
machine to avoid danger of electric shock.

AP-30W
15
Maintenance panel
Filter replacement
To replace the filter, open the maintenance panel on the right-hand
side with a Phillips screwdriver. The individual filters can be pulled out
so that they can be replaced.
Note:
Re-insert the filters as they were installed. The prefilter (netting) goes
in the lower slot. Insert the composite filter with the HEPA H13 filter
downwards and the activated carbon upwards. The titanium dioxide
filter (metal honeycomb material) goes in the top slot.
The photocatalyst filter and the UV lamp are permanently installed
and may be replaced by technical customer service personnel only.

AP-30W
16
Safety instructions
• Before use, the rear housing cover must be completely closed.
• Do not open the rear cover or the maintenance panel while the device
is in use.
• Before connecting the machine to the power source, ensure that the
voltage indicated on the type plate is the same as the mains voltage
in your region.
• Do not use the product if the plug, the power cable, or the housing is
damaged.
• Keep the product away from children.
• Do not block air inlets and outlets.
• The product is suitable for dry rooms only.
• Clean the housing with a dry or slightly moist cloth.
• Never use alcohol-based cleaning agents to wipe off the housing!

AP-30W
17
Manufacturer
ETS Products Philippines Inc.
Berthaphil 4, Warehouse 2C
Civil Aviation Complex Clark
Clark Freeport, Pampanga 2023,
Philippines
Contact
Phone [phone]
E-Mail [e-mail]
Internet www.ets-products.ph
You can find more information and technical data about air cleaning systems on
our w ebsite .
