ETS REJUVASUN 332 User manual

28940-01A

28940-01A
i
To obtain warranty service, contact your place of purchase. Proof of purchase, including serial num-
ber, is required for verification. Contact ETS, LLC only if you purchased your equipment directly.
ETS, LLC 7445 Company Drive, Indianapolis, IN 46237-9296
1-800-449-3605 In Canada call 1-800-661-6292 or 519-421-1212
48 MONTH “GOLD MEDAL” WARRANTY
Your ETS Distributor (including ETS, LLC if purchased directly), through a manufacturer’s warranty, warrants your tan-
ning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime. Your ETS
Distributor will, at its discretion, repair any structural defect which materially affects the performance of the tanning unit,
or replace the tanning unit.
For forty-eight (48) months following the purchase date of your tanning unit, your ETS Distributor will provide replace-
ments for parts that prove to be defective in material or workmanship, with the following exceptions: gas springs, ballasts
and electronic lamp starters are warranted against manufacturer’s defects for a period of one (1) year; “glow tube” lamp
starters and cracked or broken endcaps are warranted against manufacturer’s defects for a period of ninety (90) days; flu-
orescent lamps are warranted against manufacturer’s defects for a period of thirty (30) days; acrylics are warranted against
manufacturer’s defects for a period of one (1) year (prorated) following the purchase date of your tanning unit. Shipping
charges will be covered during the first ninety (90) days following the purchase date.
Your ETS Distributor (including ETS, LLC if purchased directly), also extends to you a two (2) year parts warranty on all
T-Max® remote system components. External voltage transformers (buck-boosters) are covered by a one (1) year parts and
labor warranty, provided you send back the defective transformer.
Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or replace-
ment work required to be performed for a period of ninety (90) days following the shipping date of your tanning unit. Normal
wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting from unauthorized repairs or
modifications are not covered by this warranty. Warranty coverage does not include cosmetic abnormalities such as scratch-
es, nicks, dents, or other cosmetic changes that do not materially interfere with the function of the tanning unit.
THIS 48 MONTH “GOLD MEDAL” WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or modify this 48
Month “Gold Medal” Warranty in any respect. To obtain service under this 48 Month “Gold Medal” Warranty, contact your
authorized ETS Distributor (or ETS, LLC if purchased directly). Proof of purchase, including serial number, is required.
IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUITY FOR
ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE
RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR SUBSTITUTE
PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDIRECT, SPECIAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential dam-
ages, and the above limitation or exclusion will not apply to residents of some states. This 48 Month “Gold Medal” Warranty
gives you specific, legal rights and you may have other rights which may vary from state to state.
All warranty service must be performed by an authorized service person using only ETS authorized replacement parts. Use
of non-authorized parts may void your warranty. All labor charges must be authorized by your ETS Distributor prior to the
start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If
your tanning unit must be returned for service within thirty (30) days from the purchase date, freight charges will be paid
for by your ETS Distributor, after which all freight charges shall be at your expense. Contact your ETS Distributor for the
authorized Service Center nearest you. This warranty is serial number specific and only applies to tanning units purchased
through an authorized ETS Distributor. This warranty is extended to the individual or legal entity whose name appears on
the original sales document and may not be transferred to any other individual or legal entity. This warranty is void if the
tanning unit is modified in any manner from its original design.

28940-01A
ii
elcome
Congratulations on your purchase of this technologically advanced sun tanning unit. Not only is this
unit designed and manufactured for years of dependable service, the new Rejuvasun™ unit opens up
a new revenue channel for your salon.
Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.
ontents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

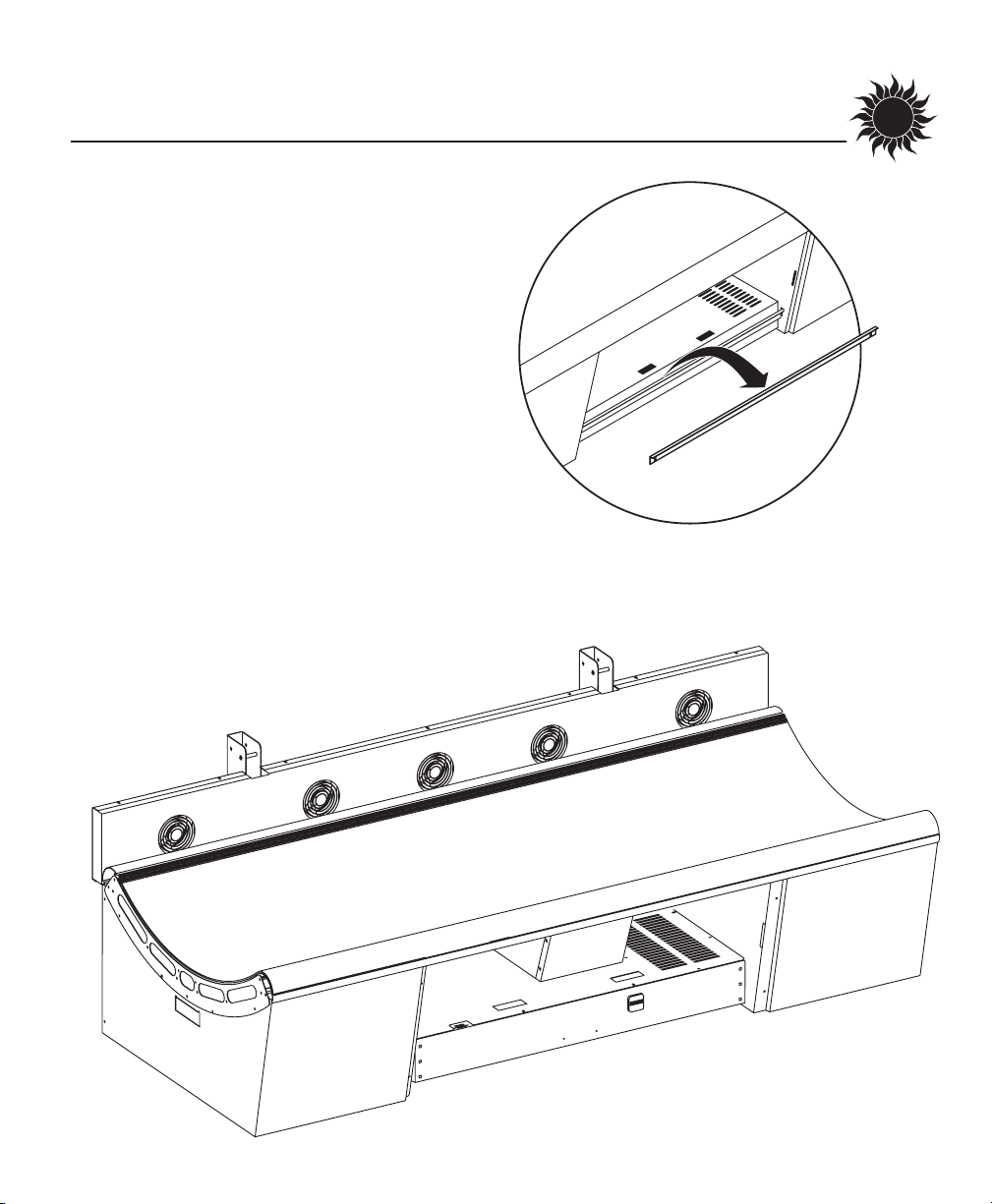

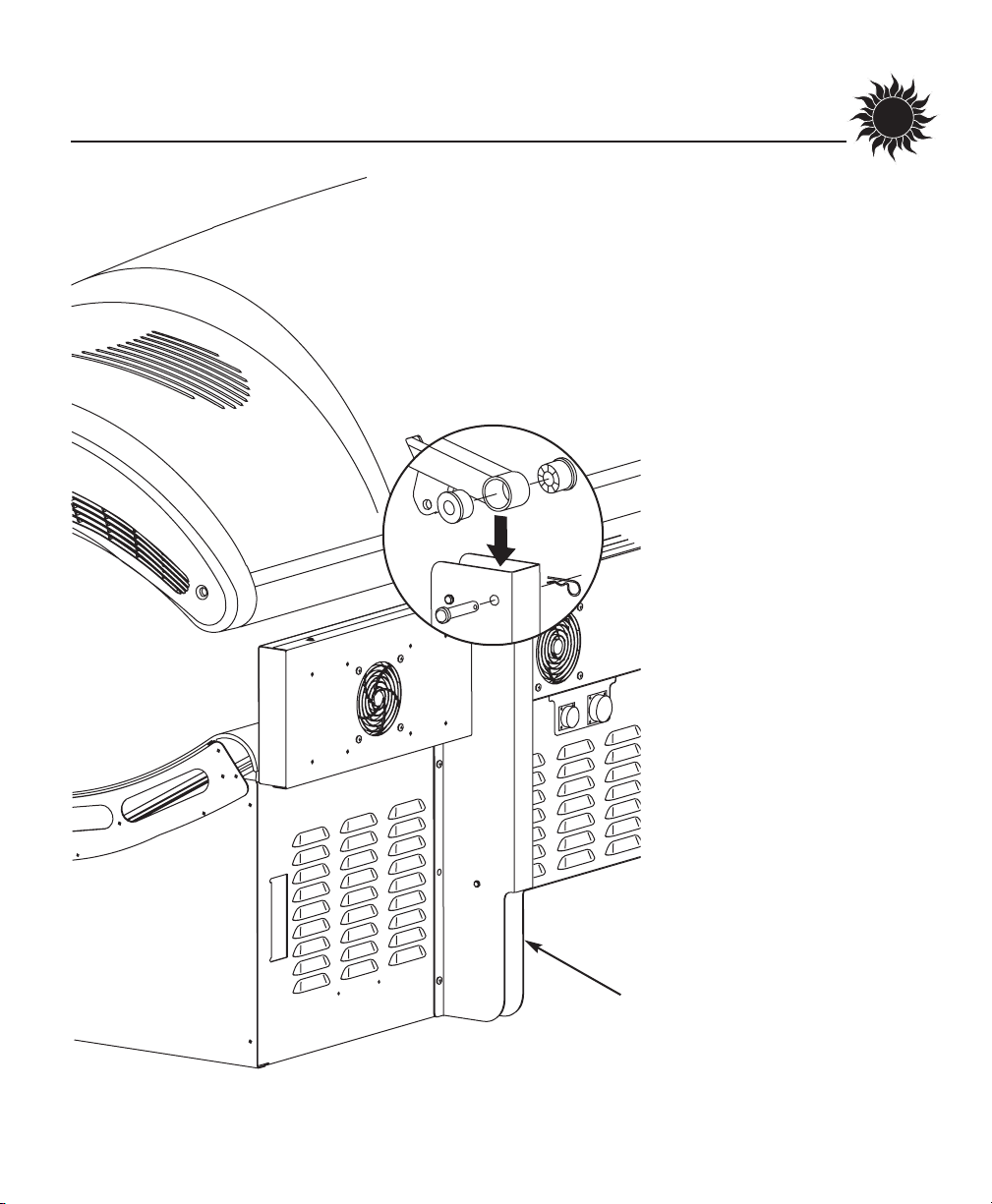

Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

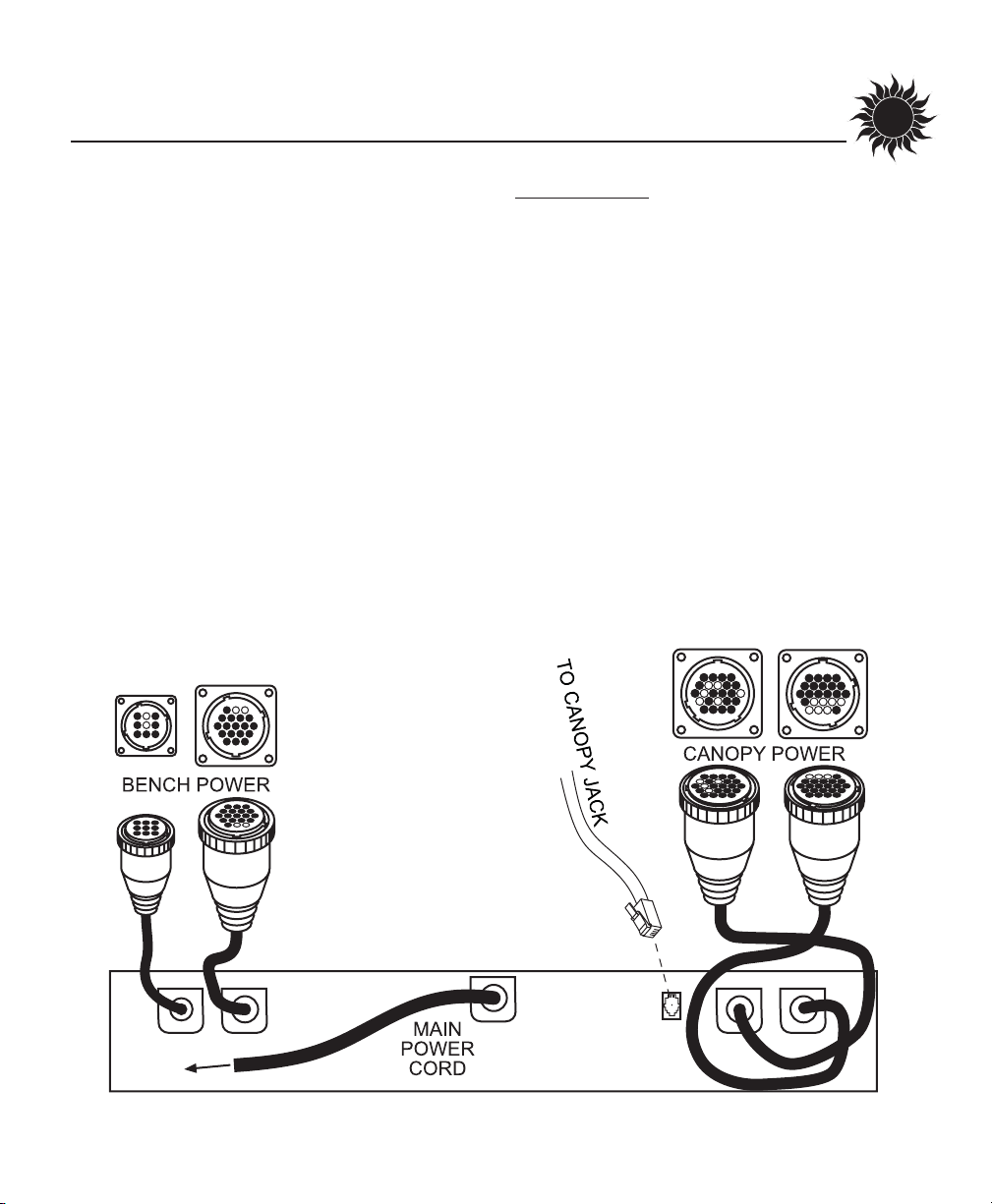

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

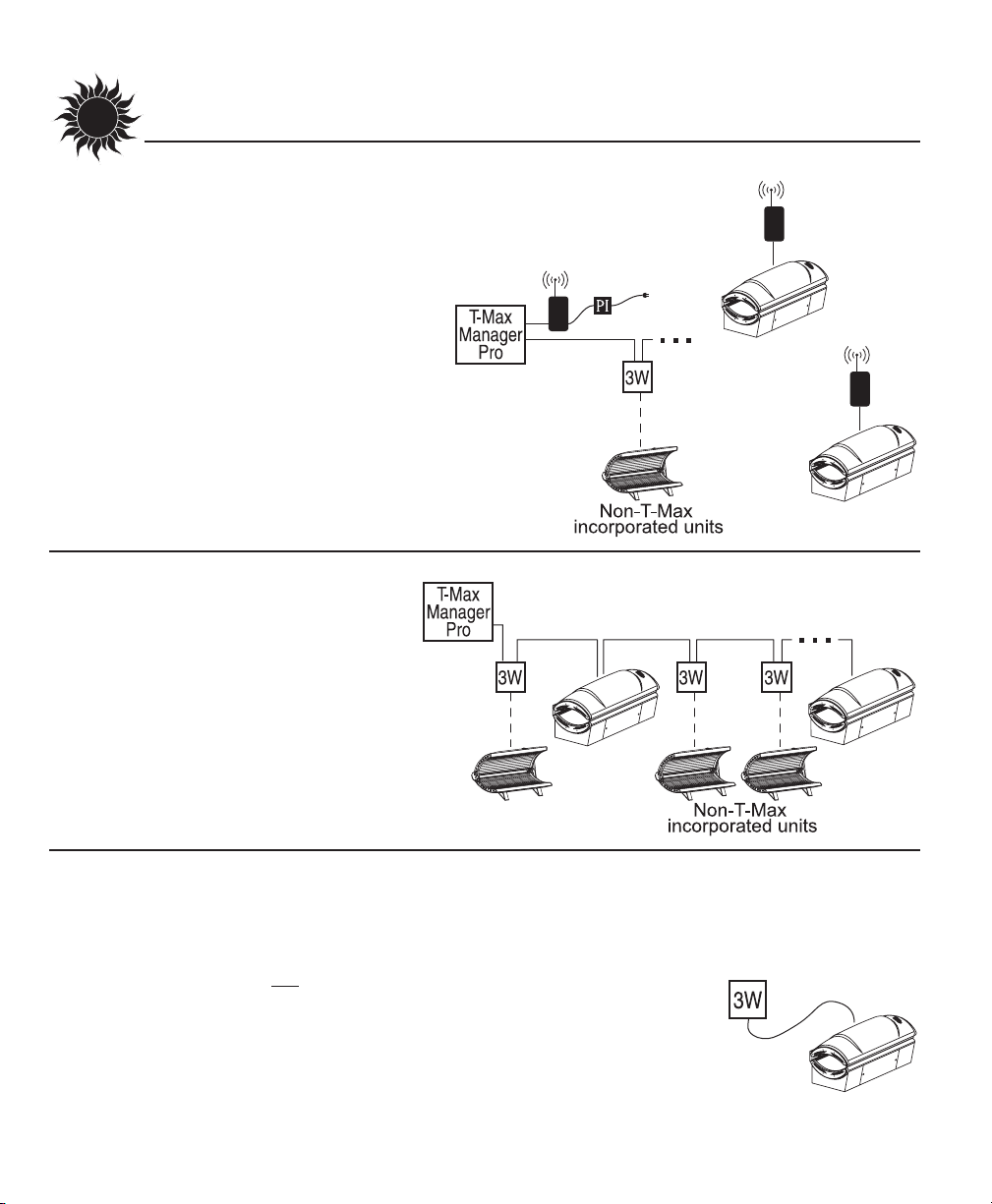

Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

28940-01A
iii
afety Information
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause
eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow. Minimum use distance from face tanner is 4 inches (10.2
centimeters), otherwise overexposure may occur. Minimum use distance elsewhere is touching the clear plastic panels. Do not use with-
out clear plastic panels in place.Untanned persons should not tan on consecutive days during their first week of tanning. Never tan more
than once a day.Tanning normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or twice
per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the
extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should
therefore be reduced by approximately 10% during that period.
WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Required eyewear: Ultra SunGlobes®,
special-eyez , or other dark-tinted eyewear that meet 21 CFR 1040.20 guide-
lines. Other types of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other
eye injury. If discomfort develops, discontinue use and consult a physician.
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:
Velocity® Wolff® Model VEL71-T12 / 100W PREHEAT-BIPIN (Bench lamps)
Velocity® PLUS Wolff® Model VLP71-T12-100W Bi-Pin (Canopy lamps)
Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045 (SolarMax™ IFT facial unit)
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.
LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers.Regulations are stated in 21 CFR, Section
1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:
DANGER
88465
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 20 MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Level 5
Skin Type: 1st-3rd Sessions
I Sensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 4 8 12 16 20
III Normal (Burns moderately and tans average.) 610152020
IV Dark (Burns minimally, tans easily and above average.) 812162020
DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.

28940-01A
iv
Renseignements sur la Sécurité
Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les
rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac-
tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ
DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES
BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre
sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous
souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il
est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire
qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.
Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible. La distance minimale d’usage de l’appareil de
bronzage pour le visage est de 4 pouces (10.2 centimètres), afin d’éviter une exposition excessive. Les autres parties du corps peu-
vent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les panneaux de plastique transparents. La première
semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours. Ne vous faites jamais
bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître après les premières séances : il atteint son apogée
au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon l’im-
portance de leur hâle initial.
Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonction-
nement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.
AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce
doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées: Ultra
SunGlobes®,
special-eyez , ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes protectrices peu-
vent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou lésions oculaires
graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.
SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :
Velocity® Wolff® Modèle VEL71-T12 / 100W PREHEAT-BIPIN (banc seulement)
Velocity® PLUS Wolff® Modèle VLP71-T12-100W Bi-Pin (partie supérieure seulement)
Heraeus E400 HPT -ou- Philips Modèle HPA 400/30s -ou- CosmoTech Modèle 23045 (unité faciale)
Cet équipement doit être mis à la terre.
Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie
1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.
DANGER
88465
TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 20 MINUTES
Élevé 1/Semaine 1 Élevé 2 Élevé 3 Élevé 4 Élevé 5
Type de peau: 1ere-3e
IPeau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 4 8 12 16 20
III Peau normale (brûle et bronze de façon modérée) 610152020
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 812162020
Débrancher l’alimentation électrique avant de nettoyer l’appareil , d’en faire l’entretien ou de changer les lampes.

28940-01A
1
nstallation
Unpacking and Inspection
Your sunbed comes in two cardboard car-
tons, one for the canopy and one for the
bench and ballast tray. Open the cartons
and remove the sunbed parts as follows.
The boxes dismantle to allow easy
removal of the units. Remove the box tops
and pull the sides out. The bench and
canopy are each wrapped in plastic.
Remove the plastic and, with a helper or
two, grasp the canopy and pull it from the
carton bottom without using the plastic
endcaps to lift the unit. Do the same for
the bench. Do not attempt to lift either
unit with the plastic still on as it may slip.
The ballast drawer is secured to the carton
bottom with brackets. Remove these
brackets from the ballast drawer with a
Phillips screwdriver.
Note! The cartons are reusable. You may
wish to save them for future use.
After unpacking the unit, check to make
sure you have received the following:
• Canopy unit
• Bench unit
• Ballast drawer
• Body fan kit
• Pair of gas springs
• (2) endcaps (one with slots for the
body fan bracket)
• Front access panel
• Bag containing necessary assembly
hardware, safety goggles, and pillow
Inspect these items, including the canopy
and bench, and make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.
Record the serial number of the unit in the
area provided at the back of this manual.
This information will be required whenev-
er you call customer service.
CAUTION
DO NOT lift the canopy using the plastic end-
caps. They are not designed to hold the weight
of the unit and may break, causing damage to
the unit and possible injury.

28940-01A
2
Installation - Pre-Installation Planning
Pre-Installation Planning
Before you begin to assemble your sunbed, you should observe the following consid-
erations.
WARNING
Shock hazard.
Disconnect power before
servicing.
Air from the room is used to cool
the sunbed. Maximum ambient room
temperature should be 80°F. Place
your sunbed no closer than 6” from
any wall. Make sure nothing
obstructs the airflow into or out of
the fan openings. A poorly ventilat-
ed room may cause the unit to
become hot and cause discomfort
to the user.
CAUTION
Use of a voltage source above 230V
AC may prevent proper operation of
the sunbed and could cause damage
and void the warranty.
CAUTION
Proper assembly of your sunbed
requires three people. Plan to have
a couple of helpers assist you.
CAUTION
•The Rejuvasun™ 332 with Omnilux™
requires a dedicated circuit capable of
providing 30 Amp service at 220VAC.
This unit must be hardwired directly to
a junction box on a dedicated circuit.
We recommend connection by a pro-
fessional electrician.
• IMPORTANT! Voltage must be below
230V AC or may require a Buck Booster.
• Some portions of the carton may be
used for assembly. Do not discard car-
tons until assembly is complete.
• You will need a #2 Phillips screwdriver
to assemble this tanning bed.

28940-01A
3
Installation - Hardware Inventory
Nylon Floating
Bearing
Quantity 4
Hinge Pin,
5/16” x 2 1/32”
Quantity 2
Hinge Pin Locking Clip
Quantity 2
Clevis Fork,
M10 Long
Quantity 2
Bronze Bushing, 10mm
Quantity 2
Clevis Pin, 10mm
Quantity 2
Retaining Ring
Quantity 2
Phillips Screw, #10 x 1/2”
Quantity 8
Phillips Screw, #10 x 1”
Quantity 8
Hardware Inventory
Open the hardware bag. Remove the
hardware. In addition to a phone type (RJ-
11) cable and pillow, make sure you have
the following items.
Safety Goggles
Quantity 1
Access Panel Key
Quantity 1
WARNING
Always wear protective eyewear when tanning
lamps are on.
Failure to may result in severe burns or
longterm injury to the eyes.

28940-01A
4
Installation - Assembly Procedures
Assembly Procedures
This sunbed arrives with a ballast tray stop
bar installed to limit tray movement (see
right). To remove, lift the bar, shift it to the
left or right and then pull it from the bed.
After the bed is assembled, reinstall the
bar to keep the tray from damaging the
access panel if the bed is moved.
Stand Assembly
1. Place the bench unit approximately
where it will be when assembled.
Leave some room behind it to work.
2. Slide the ballast drawer under the
bench, as shown, with the cables
toward the back.

28940-01A
5
Installation - Assembly Procedures
Install Canopy
1. Lay something across the bench, such
as some cardboard or a blanket, to
protect the units and place the canopy
on the bench with the canopy hinge
arms toward the back. Once again, do
not use the canopy plastic endcaps to
lift the unit.
CAUTION
DO NOT lift the canopy using the plastic end-
caps. They are not designed to hold the weight
of the unit and may break, causing damage to
the unit and possible injury.

28940-01A
6
Installation - Assembly Procedures
2. Insert the Nylon Floating Bearings into
the canopy hinge arms and carefully
lower the hinge arms into the bench
uprights.
3. Secure the arms in place with the
Hinge Pins and Hinge Pin Locking
Clips.
Bench Upright

28940-01A
7
Installation - Assembly Procedures
Install Gas Springs
1. Screw the upper Clevis Forks onto the
Gas Springs, piston end up as shown.
2. Have a helper hold the canopy in its
fully open position.
3. The lower clevis forks are
already installed. Make sure
the threaded hole faces up,
slide the Gas Springs down
into the bench uprights
and twist the Gas Springs
into the lower clevis forks.
Turn the Gas Springs until
they are snug.
Do not lower the canopy yet!

28940-01A
8
Installation - Assembly Procedures
Attach Gas Springs
1. With the canopy still raised, slip the
Bronze Bushings into the hole in the
clevis brackets on the underside of the
canopy mounting arms.
2. Line up both Clevis Forks and careful-
ly lower the canopy to engage the
Clevis Forks. Pay special attention
when lowering the canopy that the
clevis forks do not damage the
bronze bushings. Bronze is excel-
lent for smooth pivoting applica-
tions such as this, but tends to
be soft compared to the steel
clevis fork.
3. Lock the Clevis Forks in place
with the Clevis Pins
4. Secure the Clevis Pins with the
Retaining Rings.
NOTE: When this assembly is complete,
lift and lower the canopy a few times to
lubricate the gas springs for optimum per-
formance.
Clevis Bracket

28940-01A
9
Installation - Assembly Procedures
Install Endcaps
NOTE: This unit comes with a foot end
body fan. Instructions for installing the fan
are included with the body fan kit. Follow
those instructions to install the body fan.
Put the head end endcap (the one without
slots on top) in place and secure with two
#10 x 1/2” screws in the two middle
holes. Use two #10 x 1” screws in the two
outer holes.
1/2” SCREWS
1” SCREW
1” SCREW

28940-01A
10
Installation - Electrical Connections
Electrical Connections
At the rear of the sunbed, connect the two
canopy power cords and two bench power
cords from the ballast tray to their respective
power receptacles. Simply match the plug
to the receptacle, push on firmly and secure
by twisting the threaded locking ring.
Connect the RJ-11 (phone type) cable
between the canopy and rear jack on the
ballast drawer. The three jacks on the front
of the drawer are for remote connections.
Connect main power cord as described in
Pre-Installation Planning.
PIN CONFIGURATIONS MAY VARY FROM SHOWN
Helpful Hint:Line up the plug with the
proper receptacle and push in. Apply
pressure to the plug and twist the locking
ring counter-clockwise until you feel the
plug click into place. Then turn the lock-
ing ring clockwise to secure it. The ring
will click when fully engaged.

28940-01A
11
Installation - Final Assembly
Final Assembly
Make sure the air filter is in place on top of
the ballast drawer. It simply sits on the
drawer, over the air slots, and is held in
place by airflow when the unit is running.
The arrow on the filter should point down.
Reinstall the Ballast Tray Stop Bar.
Put the Front Access Panel in place and lock
with the Access Panel Key.
ACCESS PANEL
FILTER

28940-01A
12
Installation - Remote Connections
Remote Connections
Your sunbed incorporates advanced cir-
cuitry allowing it to connect and commu-
nicate with most remote control systems.
If a remote system is to be used, first
determine whether the remote system is a
T-Max® System or a standard remote sys-
tem operating with a control relay. The
following pages outline many different
remote connection scenarios. Find the
scenario that best fits your application.
Three remote ports are located on top of
the ballast drawer at the front, two RJ-22
(4-wire) ports and one RJ-11 (6-wire)
port. A Remote Control Bypass plug is
already installed in one of the RJ-22
remote control ports. Your sunbed will not
operate without the Remote Control Bypass
plug or a remote system connected.
ATTENTION: Although the Remote
Control Bypass plug provided with your
sunbed will work wherever a T-Max® ter-
minator is called for in the series, the T-
Max® terminator will not work as a
bypass plug. Normally, a bypass plug is
needed only when your sunbed is operat-
ed without a remote system connected.
You will notice some wire clamps along
the side of the fan housing under the
bench. These are for the remote cables to
keep them out from under the ballast
drawer when rolling the drawer in and
out of the unit. Route the remote cables
as shown below, leaving some slack for
the drawer to roll out.
REAR
TO REMOTE
PORT
FAN HOUSING UNDER BENCH
REMOTE PORTS
WIRED
REMOTE
PORTS (RJ-22)
WIRELESS
REMOTE
PORT (RJ-11)

28940-01A
13
Installation - Remote Connections
CAUTION
The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter-
face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.
Remote Connections
Your sunbed incorporates advanced circuitry
allowing it to connect and communicate with
most remote control systems. If a remote sys-
tem is to be used, first determine whether the
remote system is a T-Max® Manager Pro
System or a standard remote system operating
with a control relay. Follow the appropriate
instructions for your system type.
T-Max® Manager Series
The T-Max® Manager series offers the ulti-
mate in sunbed control, while allowing the
tanner easy straightforward operation. The
Manager/Plus, Manager/Pro and Manager G2
are equipped to run the Rejuvasun directly.
The circuitry inside your sunbed eliminates
the need for the T-Max 1A, 3A or 3W when
connecting to the T-Max Manager series. Your
sunbed supports the auto addressing feature
of the Manager and the following parameters:
5, 6, 7, 8, 9, 10, 15 and 23. See your T-Max®
manual for descriptions of these parameters
and how they function.
Special Note on T-Max®
The Rejuvasun with Omnilux requires the lat-
est software in your T-Max remote system to
properly control the sunbed. To check for this,
when applying power to a Manager/Plus or
Manager/Pro a 3-digit version number will
appear on the left-hand side of the screen.
This must be 4.23 or higher. The Manager G2
should be 029 or higher. An upgrade CD is
included with your sunbed. Follow the
instructions on the CD.
T-Max® Wireless Remote System
The T-Max® G2 eliminates wires in your
salon, allowing easy setup without hiring an
electrician to run wires. It also protects your
investment from damage by isolating each
unit from one another. Your sunbed arrives
“wireless ready”, which means it connects
directly to the T-Max® wireless system. Older
tanning beds, and T-Max® managers, also uti-
lize this system but require a T-Max “Power
Injector” (PI) to provide the needed power to
the wireless unit.
Remote System Hook-up Scenarios
Follow the diagrams on the next page to see
the many different scenarios for hooking up
your salon. If you need further assistance, call
T-Max® directly at 471-272-0761.

28940-01A
14
Installation - Remote Connections
NOTE: A T-Max® 1A with a
“master” chip can be substituted
for a 3A.
Scenario 1 - T-Max® Manager Series with Complete Wireless
Connect one G2 (with Power
Injector) to the Manager/Pro and
one G2 to each of the tanning
beds. Install as many beds as you
like with this configuration. Units that do
not communicate with T-Max will need a
G2 with Power Injector and an additional
3W to operate. You can place your sunbed at
any location in the series.
Scenario 2 - T-Max 3W with Wireless
In single sunbed installations, the T-Max® 3W can offer the same
control as the T-Max® Manager/Pro, eliminating the need for a
Manager. The remote control bypass plug must not be used in this
configuration. The 3W may be used as a “master” with no modifica-
tion.
After you have set the T-Max® 3W’s, address to “0” (refer to your T-
Max® user’s guide) and the sunbed’s address to “1”, simply connect
one G2 to the T-Max® 3W and one G2 to the tanning bed.
Scenario 3 - T-Max® Manager/Pro
Series with Wireless combo
Connect one G2 (with Power
Injector) to the Manager/Pro and
one G2 to a wireless ready tanning bed.
The rest of the salon may be “daisy-
chained” together and connected to the wireless
equipped tanning bed, eliminating the need to
wire the Manager/Pro to the tanning beds.

28940-01A
15
Installation - Remote Connections
Scenario 5 - T-Max® Manager/Pro with
wires
As always, this tanning bed is fully com-
patible with a wired T-Max® system.
Simply connect the RJ-22 modular cable(s),
described in the T-Max® Manager/Pro manual, into
the remote port(s) located on the ballast drawer
and follow the instructions that came with your
remote system.
Scenario 4 - T-Max® Manager/Pro with
Wireless combo
Wireless can be easily added to an existing
salon already utilizing T-Max®. Connect one
G2 (with Power Injector) to the Manager/Pro
and one G2 to each wireless ready tanning
bed. The rest of the salon may be “daisy-
chained” together and connected to the
Manager/Pro.
After you have set the T-Max® 3W’s, address to “0”
(refer to your T-Max® user’s guide) and the
sunbed’s address to “1”, simply connect the RJ-22
modular cables, described in the T-Max® user’s
guide, directly into either of
the smaller ports located on
the ballast drawer and
either port on the back of
the T-Max® 3W.
Scenario 6 - Single Bed wired to T-Max® 3W
In single sunbed installations, the T-Max® 3W can
offer the same control as the T-Max® Manager/Pro,
eliminating the need for the Manager. The remote
control bypass plug must not be used in this con-
figuration. The 3W may be used as a “master” with
no modification.
