ETS Solaris 542 User manual

28937-01A

28937-01A
i
48 MONTH “GOLD MEDAL” WARRANTY
Your ETS Distributor (including ETS, LLC if purchased directly), through a manufacturer’s warranty, warrants your tan-
ning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime. Your ETS
Distributor will, at its discretion, repair any structural defect which materially affects the performance of the tanning unit,
or replace the tanning unit.
For forty-eight (48) months following the purchase date of your tanning unit, your ETS Distributor will provide replace-
ments for parts that prove to be defective in material or workmanship, with the following exceptions: gas springs, ballasts
and electronic lamp starters are warranted against manufacturer’s defects for a period of one (1) year; “glow tube” lamp
starters and cracked or broken endcaps are warranted against manufacturer’s defects for a period of ninety (90) days; flu-
orescent lamps are warranted against manufacturer’s defects for a period of thirty (30) days; acrylics are warranted against
manufacturer’s defects for a period of one (1) year (prorated) following the purchase date of your tanning unit. Shipping
charges will be covered during the first ninety (90) days following the purchase date.
Your ETS Distributor (including ETS, LLC if purchased directly), also extends to you a two (2) year parts warranty on all
T-Max® remote system components. External voltage transformers (buck-boosters) are covered by a one (1) year parts and
labor warranty, provided you send back the defective transformer.
Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or replace-
ment work required to be performed for a period of ninety (90) days following the shipping date of your tanning unit. Normal
wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting from unauthorized repairs or
modifications are not covered by this warranty. Warranty coverage does not include cosmetic abnormalities such as scratch-
es, nicks, dents, or other cosmetic changes that do not materially interfere with the function of the tanning unit.
THIS 48 MONTH “GOLD MEDAL” WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or modify this 48
Month “Gold Medal” Warranty in any respect. To obtain service under this 48 Month “Gold Medal” Warranty, contact your
authorized ETS Distributor (or ETS, LLC if purchased directly). Proof of purchase, including serial number, is required.
IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUITY FOR
ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE
RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR SUBSTITUTE
PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDIRECT, SPECIAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential dam-
ages, and the above limitation or exclusion will not apply to residents of some states. This 48 Month “Gold Medal” Warranty
gives you specific, legal rights and you may have other rights which may vary from state to state.
All warranty service must be performed by an authorized service person using only ETS authorized replacement parts. Use
of non-authorized parts may void your warranty. All labor charges must be authorized by your ETS Distributor prior to the
start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If
your tanning unit must be returned for service within thirty (30) days from the purchase date, freight charges will be paid
for by your ETS Distributor, after which all freight charges shall be at your expense. Contact your ETS Distributor for the
authorized Service Center nearest you. This warranty is serial number specific and only applies to tanning units purchased
through an authorized ETS Distributor. This warranty is extended to the individual or legal entity whose name appears on
the original sales document and may not be transferred to any other individual or legal entity. This warranty is void if the
tanning unit is modified in any manner from its original design.
To obtain warranty service, contact your place of purchase. Proof of purchase, including serial num-
ber, is required for verification. Contact ETS, LLC only if you purchased your equipment directly.
ETS, LLC 7445 Company Drive, Indianapolis, IN 46237-9296
1-800-449-3605 In Canada call 1-800-661-6292 or 519-421-1212

28937-01A
ii
elcome
Congratulations on your purchase of this technologically advanced sun tanning unit. It has been
designed to provide years of dependable service for you.
Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.
ontents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

28937-01A
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause
eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 3 inches (7.6 centimeters) between your
body and canopy clear plastic panel, otherwise overexposure may occur. Minimum use distance elsewhere is touching the clear plastic
panels. Do not use without clear plastic panels in place. Untanned persons should not tan on consecutive days during their first week of
tanning. Never tan more than once a day. Tanning normally appears after the first few sessions and maximizes after approximately four
weeks.Tan once or twice per week thereafter to maintain appearance. Persons already having a base tan may begin at advanced lev-
els corresponding to the extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation.Recommended tanning times should
therefore be reduced by approximately 10% during that period.
WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types
of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If dis-
comfort develops, discontinue use and consult a physician.
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE 542:
BRONZING SUN™ PLUS Wolff® Model BSP 71-T12-100WR BI-PIN (Bench lamps)
Velocity® VS-R™ Wolff® Model VEL71-T12-160W VS-R Bi-Pin (Canopy lamps)
Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045 (SolarMax™ IFT facial unit)
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.
iii
afety Information
LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section
1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:
88465
DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
DANGER
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 12 MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Subsequent
Skin Type: 1st-3rd Sessions Maximum
ISensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 2471012
III Normal (Burns moderately and tans average.) 3691212
IV Dark (Burns minimally, tans easily and above average.) 4 7 10 12 12

28937-01A
Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les
rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac-
tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ
DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES
BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre
sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous
souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il
est peu probable que vous bronzerez sous une lampe solaire.Les enfants, les personnes âgées et les personnes qui ont une peau claire
qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.
Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace
d’au moins 3 pouces (7,60 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, afin d’éviter
une exposition excessive. Les autres parties du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la
lampe sans les panneaux de plastique transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial
ne doivent pas se faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence nor-
malement à apparaître après les premières séances : il atteint son apogée au bout d’environ quatre semaines. Les personnes qui
ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.
Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonction-
nement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.
AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce
doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées.Coquilles de protection pour les yeux recommandées: Les
coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes protectrices
peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou lésions oculaires
graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.
SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :
BRONZING SUN™ PLUS Wolff® Modèle BSP 71-T12-100WR BI-PIN (banc seulement)
Velocity® VS-R™ Wolff® Modèle VEL71-T12-160W VS-R Bi-Pin (partie supérieure seulement)
Heraeus E400 HPT -ou- Philips Modèle HPA 400/30s -ou- CosmoTech Modèle 23045 (unité faciale)
Cet équipement doit être mis à la terre.
Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie
1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.
TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 12 MINUTES
Élevé 1/Semaine 1 Élevé 2 Élevé 3 Élevé 4 Sem. suivantes
Type de peau: 1ere-3eTemps maximal
IPeau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 2471012
III Peau normale (brûle et bronze de façon modérée) 3691212
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4 7 10 12 12
iv
Renseignements sur la Sécurité
88465
Débrancher l’alimentation électrique avant de nettoyer l’appareil , d’en faire l’entretien ou de changer les lampes.
DANGER

28937-01A
1
nstallation
Unpacking and Inspection
The bench and canopy are each wrapped
in plastic. Pull back the plastic and, with
a helper, grasp the canopy and pull it from
the carton bottom, leaving the plastic
wrap and the carton packaging. Do the
same for the bench. Do not attempt to lift
either unit with the plastic still on as it
may slip. Do not lift the canopy by its
plastic endcaps. The ballast tray is secured
to the carton bottom with brackets.
Remove these brackets from the ballast
tray with a Phillips screwdriver.
Note! The cartons are reusable. You may
wish to save them for future use.
After unpacking the unit, check to make
sure you have received the following:
• Canopy unit
• Bench unit
• Ballast tray
• Metal access panel
• Long metal hinge cover panel
• Two large endcaps
• Body fan (in a box)
• Bag containing necessary assembly
hardware, safety goggles, and pillow.
Inspect these items, including the canopy
and bench, to make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.
Record the serial number of the unit in the
area provided at the back of this manual.
This information will be required whenev-
er you call customer service.
Tools Required

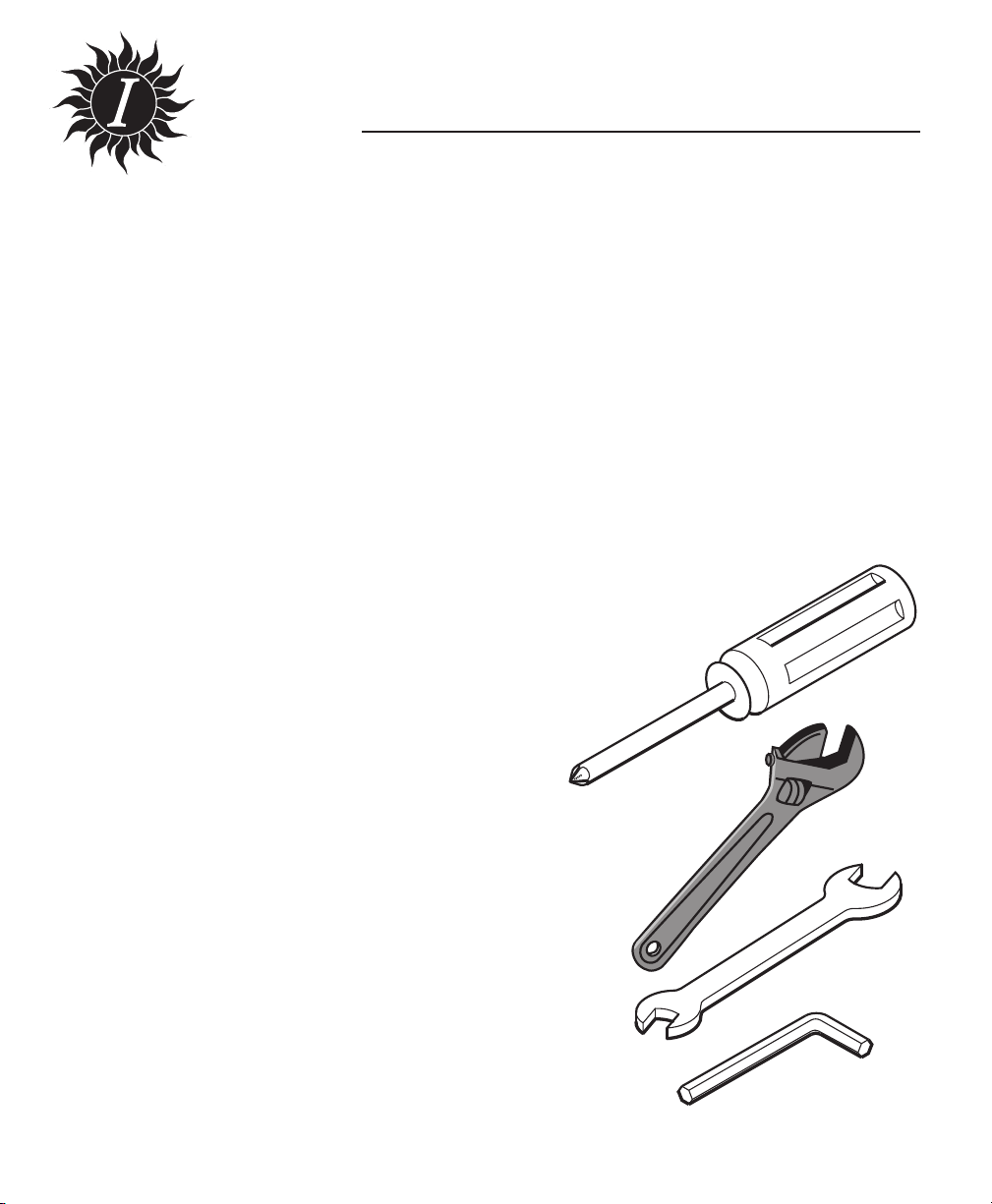

You will need the following tools to
assemble your sunbed.
#2 Phillips Screwdriver
Adjustable Wrench
9/16” Wrench
5/16” Allen Wrench
(included in the hardware kit)

28937-01A
2
Installation - Pre-Installation Planning
Pre-Installation Planning
Before you begin to assemble your sunbed, you should observe the following consid-
erations.
• The SOLARIS® 542 operates from a
220V AC power source. The unit
should be wired to a dedicated cir-
cuit capable of providing 50 Amp
service. This unit must be hardwired
directly to a junction box. We rec-
ommend connection by a profes-
sional electrician.
• This sunbed arrives with a ballast
tray stop bar installed to limit tray
movement (see below). To remove,
lift the bar, shift it to the left or right
and then pull it from the bed. After
the bed is assembled, reinstall the
bar to keep the tray from damaging
the access panel if the bed is moved.
WARNING
Shock hazard.
Disconnect power before
servicing.
Air from the room is used to cool the sunbed.
Maximum ambient room temperature should
be 80°F. Place your sunbed no closer than 6”
from any wall. Make sure nothing obstructs
the airflow into the sunbed’s endcaps or out
of the fan openings. A poorly ventilated room
may cause the unit to become hot and cause
discomfort to the user.
CAUTION
Use of a voltage source above 230V AC may
prevent proper operation of the sunbed and
could cause damage and void the warranty.
A buck booster transformer may be required
to alter voltage.
CAUTION
Proper assembly of your sunbed requires
three people. Plan to have a couple of
helpers assist you.
CAUTION

28937-01A
3

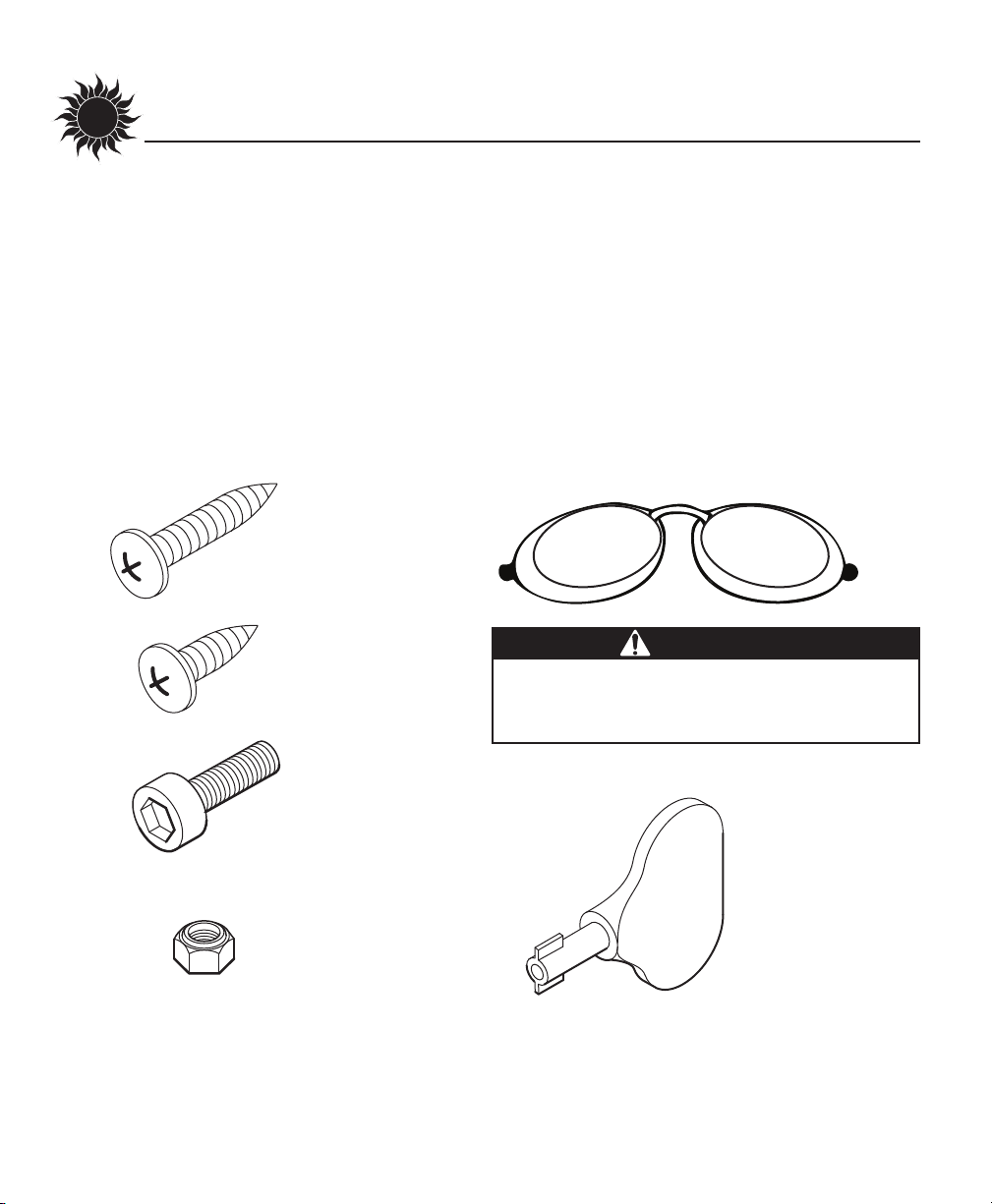

Installation - Hardware Inventory
Hardware Inventory
Open the hardware bag and remove the
contents. In addition to a pillow, the Allen
wrench and an RJ-11 (phone type) cable,
make sure you have the following hard-
ware items.
Safety Goggles
Quantity 1
Access Panel Key
Quantity 1
#10 x 1” Phillips
Pan Head Screw
Quantity 14
3/8-16 x 1 1/4”
Hex Socket Bolt
Quantity 6
3/8-16 Self-locking
Hex Nut
Quantity 6
#10 x 1/2” Phillips
Pan Head Screw
Quantity 4
WARNING
Wear protective eyewear.
Failure to may result in severe burns or
longterm injury to the eyes.

28937-01A
4
Installation - Assembly Procedures
Assembly Procedures

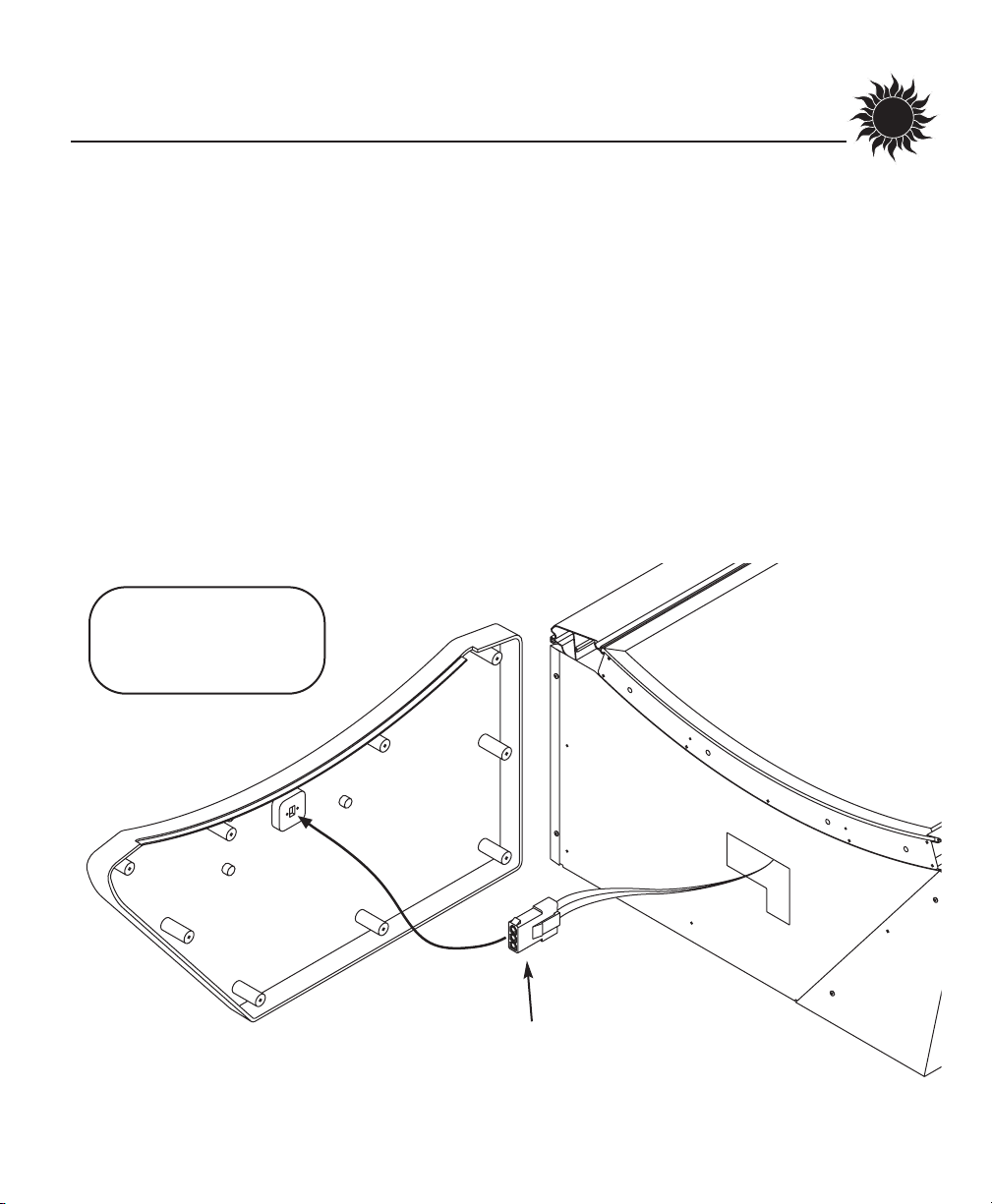

Before installing the foot end endcap you
must install the body fan power cord into
the endcap, as shown below. The connec-
tor will snap securely into the endcap. The
body fan kit includes instructions for
installation.
BODY FAN POWER CORD
Snap body fan power
cord into hole in foot
end endcap.

28937-01A
5
Installation - Assembly Procedures

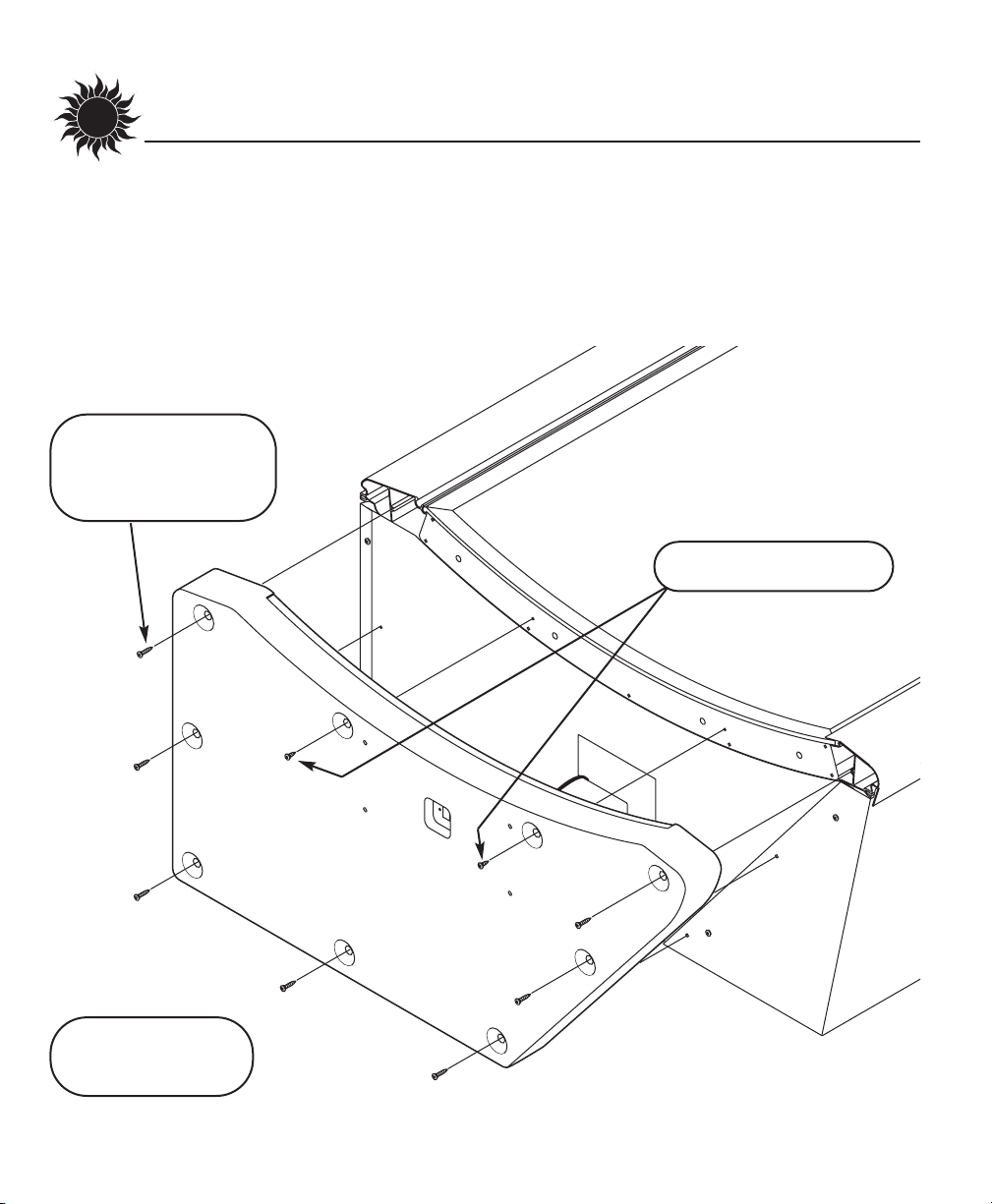

Parts needed:
Head end endcap
Foot end endcap
14 - #10 x 1” Phillips pan-head screws
4 - #10 x 1/2” Phillips pan-head screws
Attach each endcap
with 7 - 1” screws
as shown.
Foot end endcap
shown.
Use 1/2” screws here.

28937-01A
6
Installation - Assembly Procedures
Use the preinstalled
screws to attach the
hinge cover panel.
Parts needed:
Long blue hinge cover panel

28937-01A
7
Installation - Assembly Procedures
CANOPY ARM
HINGE ARM
Install this bolt as a
positioning aide.
Slip canopy arm onto hinge
arm. Positioning bolt will
engage the slot on top of
hinge arm and hold canopy
up while the other bolts are
installed.
Install other bolts as
shown. Secure all six
bolts in place with self-
locking nuts.
Parts needed:
6 - 3/8 x 1 1/4” hex-socket bolts
6 - 3/8” self-locking hex nuts
Remove this pin
and discard.
1
2
3
4

28937-01A
8
Installation - Assembly Procedures
Put access panel in
place and lock with
access panel key.
Install Body Fan.
Instructions are
included in Body
Fan kit.
Slide ballast tray under
and pull cords through to
the back. Reinstall ballast
tray stop bar.

28937-01A
9
Installation - Electrical Connections
Electrical Connections
At the rear of the sunbed, connect the two
canopy power cords and two bench power
cords from the ballast tray to their respective
power receptacles. Simply match the plug
to the receptacle, push on firmly and secure
by twisting the threaded locking ring.
Connect the RJ-11 (phone type) cable
between the canopy and rear jack on the
ballast drawer. The three jacks on the front
of the drawer are for remote connections.
Connect main power cord as described in
Pre-Installation Planning.
PIN CONFIGURATIONS MAY VARY FROM SHOWN
(Rear of ballast tray shown)
Helpful Hint: Line up the plug with the
proper receptacle and push in. Apply
pressure to the plug and twist the locking
ring counter-clockwise until you feel the
plug click into place. Then turn the lock-
ing ring clockwise to secure it. The ring
will click when fully engaged.

28937-01A
10
Installation - Final Adjustments

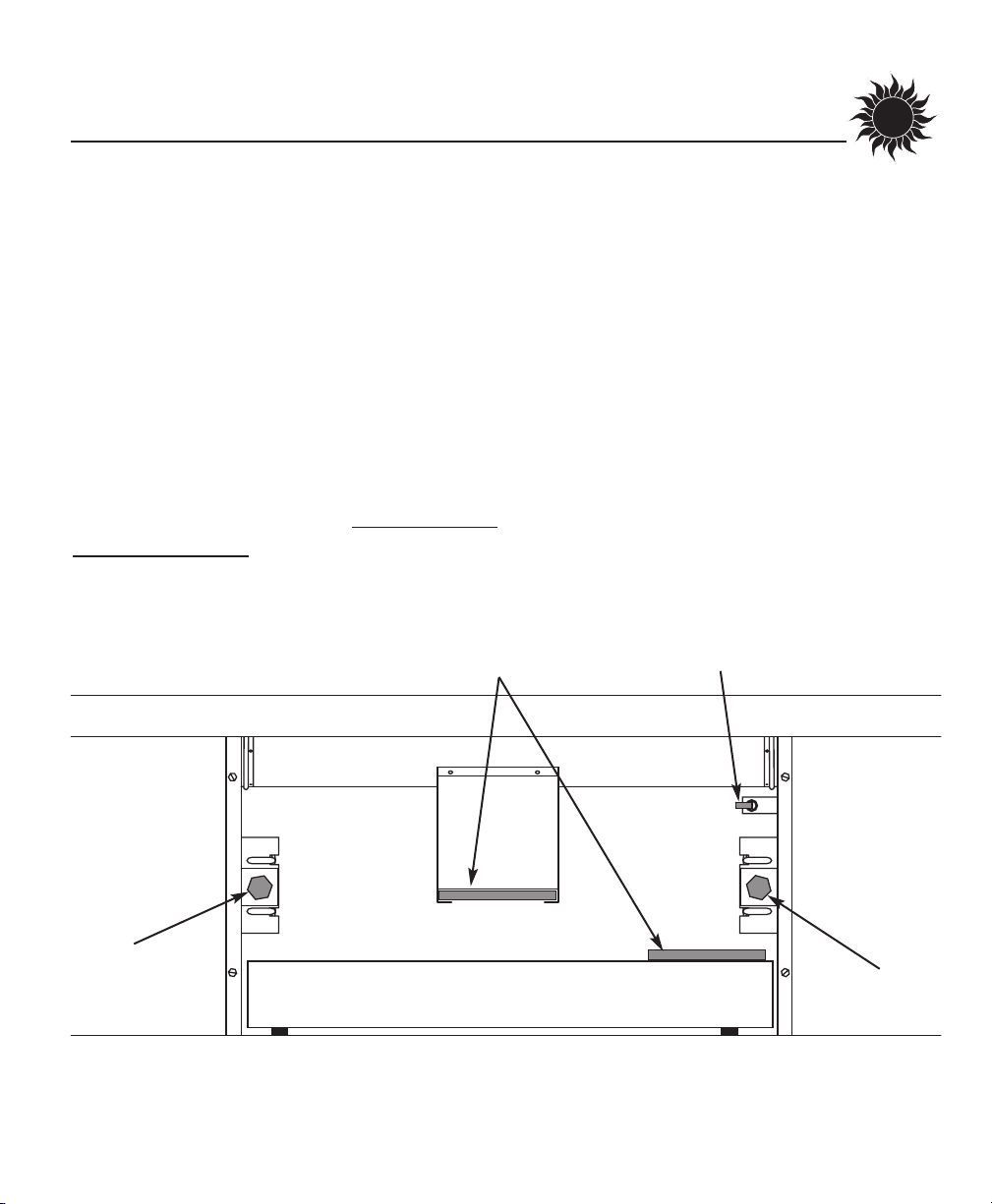

LIFT
ADJUSTMENT
MAINTENANCE HEIGHT
RELEASE HANDLE
AIR FILTERS
Final Adjustments
Your sunbed uses a smooth gliding spring
lift system to raise the canopy. This lift sys-
tem may need to be adjusted slightly due
to shipment. Remove the front access
panel. Use a wrench to turn the hex
shaped Lift Adjustment lugs (shown
below), clockwise for more lift and coun-
terclockwise for less. When adjusted
properly, the canopy should raise easily as
well as rest fully closed. Always adjust
both lugs equally.
Make sure the air filters are in place. The
filter on top of the ballast tray simply sits
over the vent holes. Airflow holds it in
place when the unit is on. The airflow
arrow on the side of this filter should point
down. The filter hanging under the bench
should be installed with the arrow point-
ing up.
LIFT
ADJUSTMENT

28937-01A
11
Installation - Remote Connections

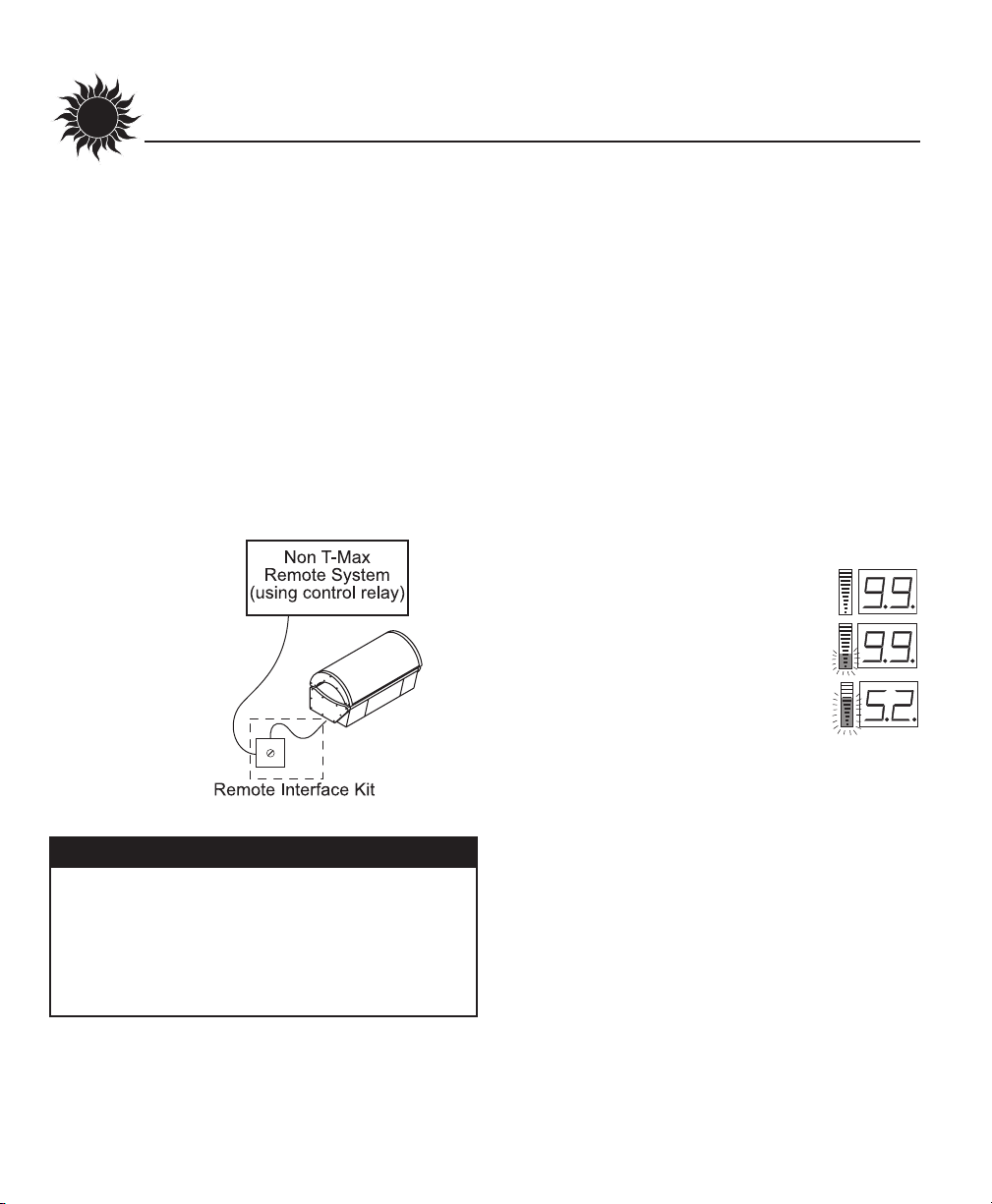

Remote Connections
Your sunbed incorporates advanced cir-
cuitry allowing it to connect and commu-
nicate with most remote control systems.
If a remote system is to be used, first
determine whether the remote system is a
T-Max® System or a standard remote sys-
tem operating with a control relay. The
following pages outline many different
remote connection scenarios. Find the
scenario that best fits your application.
Three remote ports are located on top of
the ballast drawer at the front, two RJ-22
(4-wire) ports and one RJ-11 (6-wire)
port. A Remote Control Bypass plug is
already installed in one of the RJ-22
remote control ports. Your sunbed will not
operate without the Remote Control Bypass
plug or a remote system connected.
ATTENTION: Although the Remote
Control Bypass plug provided with your
sunbed will work wherever a T-Max® ter-
minator is called for in the series, the T-
Max® terminator will not work as a
bypass plug. Normally, a bypass plug is
needed only when your sunbed is operat-
ed without a remote system connected.

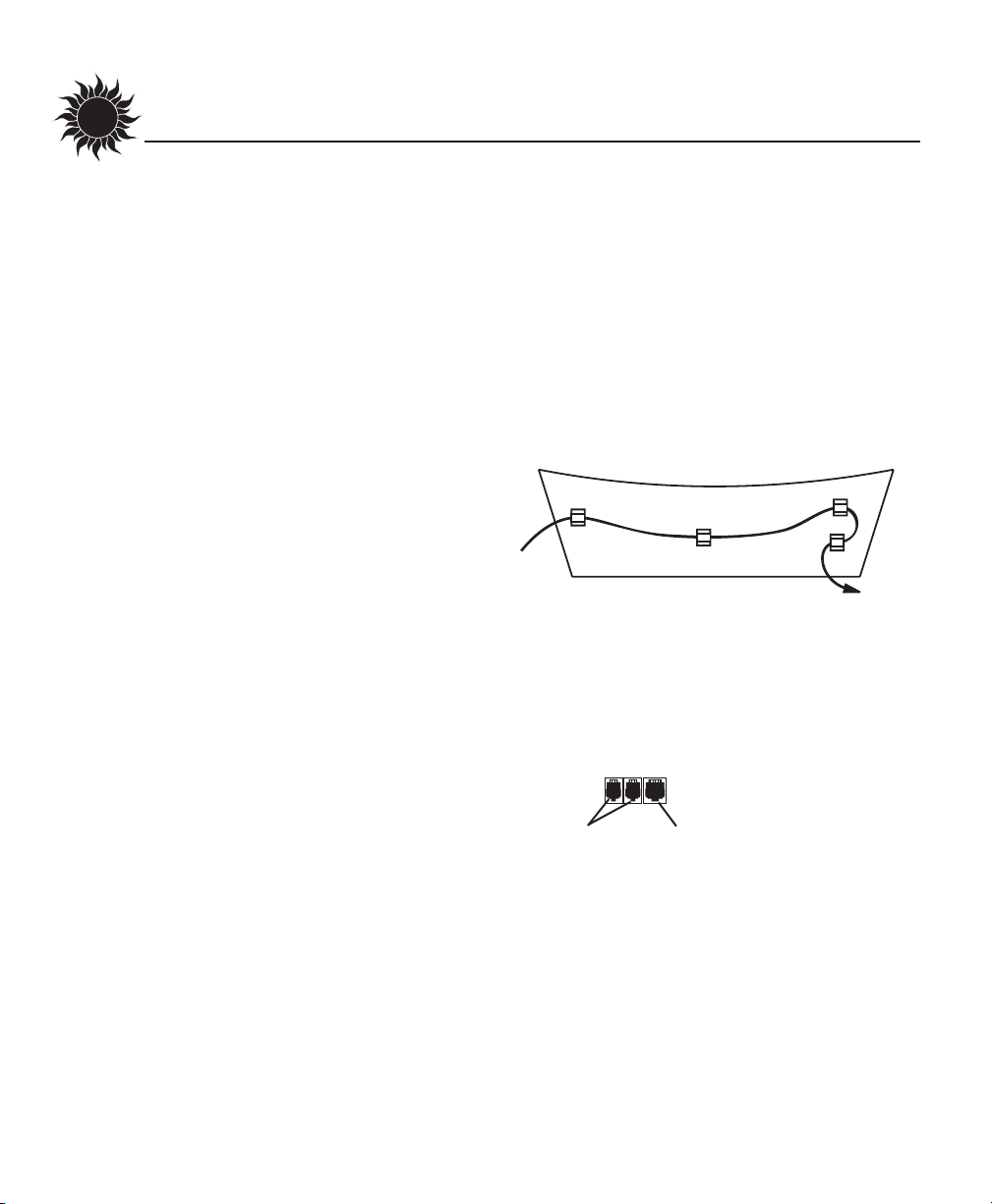

You will notice some wire clamps along
the side of the fan housing under the
bench. These are for the remote cables to
keep them out from under the ballast
drawer when rolling the drawer in and
out of the unit. Route the remote cables
as shown below, leaving some slack for
the drawer to roll out.
REAR
TO REMOTE
PORT
FAN HOUSING UNDER BENCH
REMOTE PORTS
WIRED
REMOTE
PORTS (RJ-22)
WIRELESS
REMOTE
PORT (RJ-11)

28937-01A
12
Installation - Remote Connections
CAUTION
The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter-
face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.
T-Max® Products
The T-Max® remote systems offer the ultimate
in sunbed control, while allowing the tanner
easy straightforward operation. Your sunbed is
configured to directly connect to this system,
including the new wireless remote system.
The circuitry inside your sunbed eliminates
the need for the T-Max® 1A or 3A when con-
necting to the T-Max® Manager series. Your
sunbed supports the auto addressing feature
of the latest T-Max® Manager models and the
following parameters: 5, 6, 7, 8, 9, 10, 15 and
23. See your T-Max® manual for descriptions
of these parameters and how they function.
REMOTE PORTS
WIRED
REMOTE
PORTS (RJ-22)
WIRELESS
REMOTE
PORT (RJ-11)
T-Max® Wireless Remote System
The T-Max® G2 eliminates wires in your
salon, allowing easy setup without hiring an
electrician to run wires. It also protects your
investment from damage by isolating each
unit from one another. Your sunbed arrives
“wireless ready”, which means it connects
directly to the T-Max® wireless system. Older
tanning beds, and T-Max® managers, also uti-
lize this system but require a T-Max “Power
Injector” (PI) to provide the needed power to
the wireless unit.
Remote System Hook-up Scenarios
Follow the diagrams on the next few pages to
see the many different scenarios for hooking
up your salon. If you need further assistance,
call T-Max® directly at [phone].

28937-01A
13
Installation - Remote Connections
NOTE: A T-Max® 1A with a
“master” chip can be substituted
for a 3A.
Scenario 1 - T-Max® Manager Series with Complete Wireless
Connect one G2 (with Power
Injector) to the Manager and one
G2 to each of the tanning beds.
Install as many beds as you like
with this configuration. Units that do not
communicate with T-Max will need a G2
with Power Injector and an additional
3A to operate. If you have an older T-Max®
Manager that doesn’t support auto addressing,
set the address of each sunbed manually as
described in Setting the address manually. You
can place your sunbed at any location in the series.
Scenario 2 - T-Max 3A with Wireless
In single sunbed installations, the T-Max® 1A and 3A can offer the
same control as the T-Max® Manager, eliminating the need for a
Manager. If you’re using a 1A in this manner, it must have a chip
labelled “master” installed on its circuit board. The remote control
bypass plug must not be used in this configuration. The 3A may be
used as a “master” with no modification.
After you have set the T-Max® 1A’s, or 3A’s, address to “0” (refer to
your T-Max® user’s guide) and the sunbed’s address to “1”, simply
connect one G2 (with Power Injector) to the T-Max® 3A and one G2
to the tanning bed.
Scenario 3 - T-Max® Manager
Series with Wireless combo
Connect one G2 (with Power
Injector) to the Manager and one
G2 to a wireless ready tanning bed. The
rest of the salon may be “daisy-chained”
together and connected to the wireless
equipped tanning bed, eliminating the need to
wire the Manager to the tanning beds.

28937-01A
14
Installation - Remote Connections
After you have set the T-Max® 1A’s, or 3A’s, address
to “0” (refer to your T-Max® user’s guide) and the
sunbed’s address to “1”, simply connect the RJ-22
modular cables, described in the T-Max® user’s
guide, directly into either
of the smaller ports located
on the ballast drawer and
either port on the back of
the T-Max® 1A or 3A.
Scenario 4 - T-Max® Manager Series with
Wireless combo 2
Wireless can be easily added to an existing
salon already utilizing T-Max®. Connect one
G2 (with Power Injector) to the Manager and
one G2 to each wireless ready tanning bed.
The rest of the salon may be “daisy-chained”
together and connected to the Manager.
Scenario 5 - T-Max® Manager Series
with wires
As always, this tanning bed is fully com-
patible with a wired T-Max® system. Simply con-
nect the RJ-22 modular cable(s), described in the
T-Max® Manager manual, into either of the
smaller remote port(s) located on the ballast
drawer and follow the instructions that came
with your remote system.
Scenario 6 - Single Bed wired to T-Max® 3A
In single sunbed installations, the T-Max® 1A and
3A can offer the same control as the T-Max®
Manager, eliminating the need for a Manager. If
you’re using a 1A in this manner, it must have a
chip labelled “master” installed on its circuit
board. The remote control bypass plug must not be
used in this configuration. The 3A may be used as
a “master” with no modification.

28937-01A
15
Installation - Remote Connections
CAUTION
The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter-
face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.
Scenario 7 - Non T-Max® Remote System wired
to unit
Most non-T-Max® remote systems control the
sunbed by the use of a relay. The relay operates
the sunbed by connecting and disconnecting a
pair of wires leading from the sunbed. Refer to the
user’s manual provided with your remote system
to determine if it operates in this way. To connect
your sunbed to this type of system a remote inter-
face kit is required. Contact your place of purchase
to obtain the kit. The illustration below details a
typical connection. Follow the instructions provid-
ed with the kit and from the remote’s manual to
make the necessary connections.
Setting the sunbed address manually
Before connecting your sunbed to the T-Max®
Manager or T-Max® 1A or 3A, the address of
your sunbed must first be set. Set the “id” man-
ually as described below.
Setting the “id”
1. Make sure no cables are plugged into
your sunbed’s remote ports.
2. Remove and reapply power to the unit.
3. Press and hold the stop button, located
on the sunbed display, for three seconds
and release. The display should indicate
an “id” number from “oF” to “252”.
4. If you are using a T-Max® 1A or 3A as a
“master” remote, the “id” of the sunbed
must be set to “1”. If you are using a T-
Max® Manager each sunbed must be
assigned a different “id”. To set the “id”
press the timer button, to count up, or
the body fan control button, to count
down, until the desired number is
achieved.
5. Press the stop button to return to the
normal display mode.
1-99
100-199
200-252
