elcome
Congratulations on your purchase of this technologically advanced sun tanning unit. It has been
designed to provide years of dependable service.
Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.
ontents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

27964-01A
iii
afety Information
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause
eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 1 inch (2.5 centimeters) between your
body and canopy clear plastic panel, otherwise overexposure may occur. Minimum use distance from face tanner (if equipped) is 4 inch-
es (10.2 centimeters). Minimum use distance elsewhere is touching the clear plastic panels. Do not use without clear plastic panels in
place. Untanned persons should not tan on consecutive days during their first week of tanning. Never tan more than once a day. Tanning
normally appears after the first few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to
maintain appearance. Persons already having a base tan may begin at advanced levels corresponding to the extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should
therefore be reduced by approximately 10% during that period.
WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types
of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If dis-
comfort develops, discontinue use and consult a physician.
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE 30 AND 32 SERIES:
Velocity® Wolff® Model VEL 71-T12-100W
Heraeus E400 HPT, Philips Model HPA 400/30s or CosmoTech Model 23045 (SolarMax™ IFT facial unit : 30 3F, 32 3F)
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.
LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section
1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:
DANGER
DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
88465
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 20 MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Subsequent
Skin Type: 1st-3rd Sessions Maximum
ISensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 4 8 12 16 20
III Normal (Burns moderately and tans average.) 610152020
IV Dark (Burns minimally, tans easily and above average.) 812162020

27964-01A
iv
Renseignements sur la Sécurité
Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les
rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des
réactions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau.
PORTEZ DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE
GRAVES BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent aug-
menter votre sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médica-
ments, si vous souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez
pas au soleil, il est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont
une peau claire qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.
Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au
moins 1 pouce (2,5 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, afin d’éviter une exposi-
tion excessive. La distance minimale d’usage de l’appareil de bronzage pour le visage (si muni) est de 4 pouces (10,2 centimétres). Les
autres parties du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les panneaux de plastique
transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours.
Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître après les premières séances :
il atteint son apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des niveaux plus
élevés, selon l’importance de leur hâle initial.
Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonction-
nement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.
AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce
doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées:
Les coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes pro-
tectrices peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou
lésions oculaires graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.
SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :
Velocity® Wolff® Modèle VEL 71-T12-100W
Heraeus E400 HPT, Philips Modèle HPA 400/30s ou CosmoTech Modèle 23045 (unité faciale : 30 3F, 32 3F)
Cet équipement doit être mis à la terre.
Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie
1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.
DANGER
Débrancher l’alimentation électrique avant de nettoyer l’appareil , d’en faire l’entretien ou de changer les lampes.
88465
TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 20 MINUTES
Élevé 1/Semaine 1 Élevé 2 Élevé 3 Élevé 4 Sem. suivantes
Type de peau: 1ere-3eTemps maximal
IPeau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 4 8 12 16 20
III Peau normale (brûle et bronze de façon modérée) 610152020
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 812162020

27964-01A

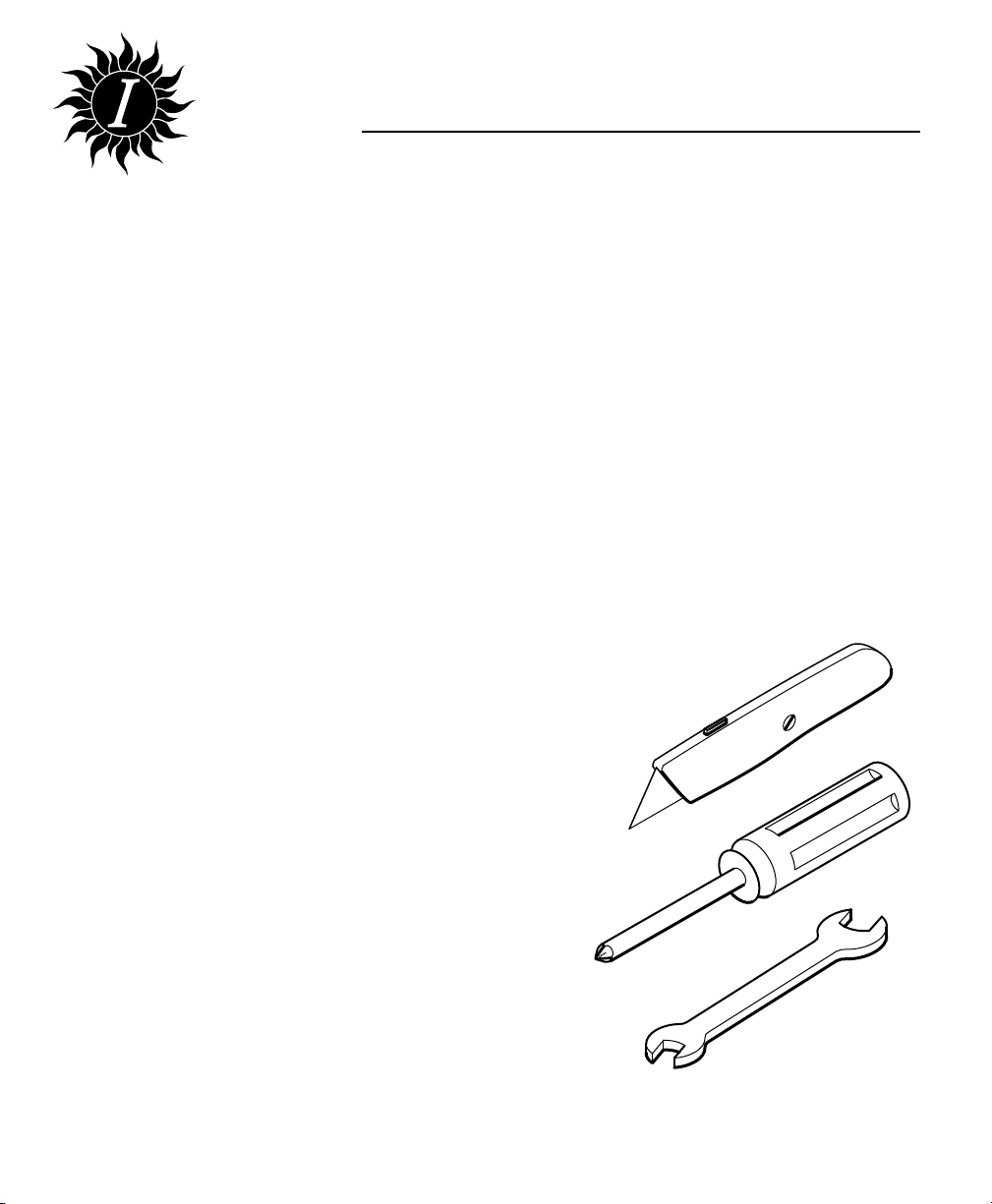

Tools Required
You will need the following tools to
assemble your sunbed.
Utility Knife
#2 Phillips
Screwdriver
7/16” Wrench
1
nstallation
Unpacking and Inspection
Your sunbed comes in two cardboard car-
tons, one for the bench and one for the
canopy. Open the cartons and remove the
bench and canopy as follows.
The bench and canopy are each wrapped
in plastic. Pull back the plastic and, with
a helper, grasp the bench and pull it from
the carton bottom, leaving the plastic
wrap and the carton packaging. Do the
same for the canopy. Do not attempt to
lift either unit with the plastic still on as
it may slip.
Note! The cartons are reusable. You may
wish to save them for future use.
As you unpack your boxes you should
find the following:
• Canopy unit
• Bench unit
• Pair of gas springs
• Front skirt panel
• Bag containing necessary assembly
hardware, safety goggles, opening
handle and pillow
• Gas spring cover panel
Inspect these items, including the canopy
and bench, and make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.
Record the serial numbers of the canopy
and bench in the area provided at the
back of this manual. This information will
be required whenever you call customer
service.

27964-01A
2
Installation - Pre-Installation Planning
Pre-Installation Planning
Before you begin to assemble your sunbed, you should observe the following consid-
erations.
• The SUNVISION Elite™ 30 and 32
series require a dedicated circuit
capable of providing 30 Amp ser-
vice at 220VAC. This unit must be
hardwired directly to a junction
box. We recommend connection by
a professional electrician.
• IMPORTANT! Voltage must be
below 230V AC or may require a
Buck Booster.
WARNING
Shock hazard.
Disconnect power before
servicing.
Air from the room is used to cool
the sunbed. Maximum ambient
room temperature should be 80°F.
Place your sunbed no closer than
6” from any wall. Make sure nothing
obstructs the airflow into the
sunbed’s endcaps or out of the fan
openings. A poorly ventilated room
may cause the unit to become hot
and cause discomfort to the user.
CAUTION
Use of a voltage source above 230V
AC may prevent proper operation of
the sunbed and could cause damage
and void the warranty.
CAUTION
Proper assembly of your sunbed
requires three people. Plan to have
a couple of helpers assist you.
CAUTION

27964-01A
3
Installation - Hardware Inventory

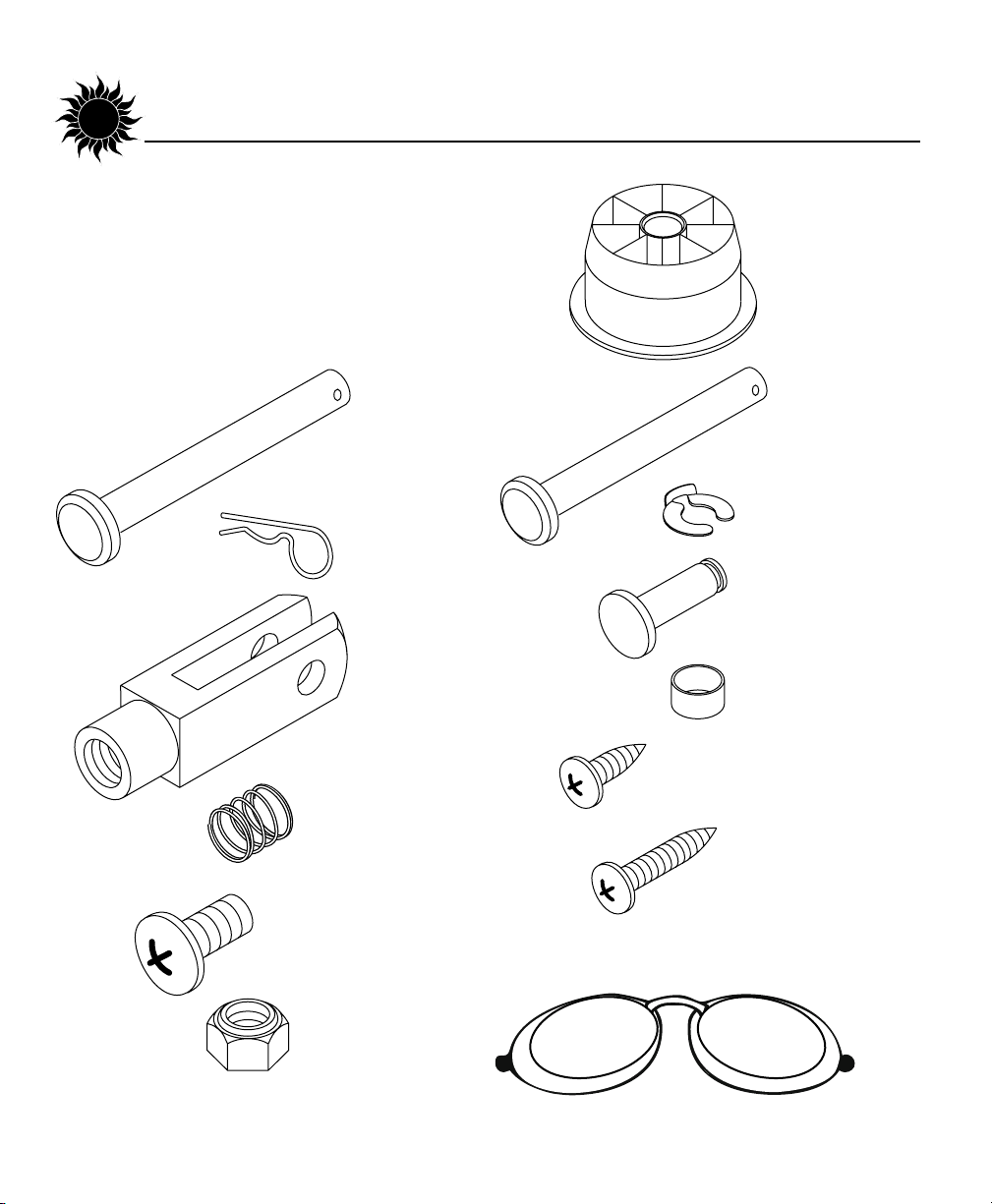

Hardware Inventory
Use the utility knife to cut open the hard-
ware bag. Remove the hardware. Make
sure you have the following items.
Clevis Pin
3/8” x 2 1/64”
Quantity 2
Bridge Pin
Quantity 4
Clevis Fork,
M10 Long
Quantity 4
Centering Spring
Quantity 4
1/4-20 x 1/2”
Machine Screw
Quantity 8
1/4-20 Locknut
Quantity 8
Nylon Floating
Bearing
Quantity 4
Clevis Pin
5/16” x 2 1/32”
Quantity 2
Retaining Ring
Quantity 2
10mm Clevis Pin
Quantity 2
Bronze Bushing
Quantity 2
#10 x 1/2” Screw,
Blue Head
Quantity 8
#10 x 1” Screw,
Quantity 3
Safety Goggles
Quantity 1

27964-01A
4
Installation - Assembly Procedures
Assembly Procedures
Lower Clevis Fork Assembly
1. Insert the larger clevis pin (3/8” x 2
1/64”) through the hole directly below
the large hole in one of the stand
uprights, as shown.
2. Slide a centering spring, a clevis fork
and then another centering
spring onto the clevis pin
and insert the pin the
rest of the way
through the upright.
3. Secure the clevis
pin by inserting
the straight portion
of a bridge pin
through the small
hole in the end of
the clevis pin.
4. Repeat for the other
stand upright. Make sure
the clevis forks point upwards
as shown.
STAND UPRIGHT
CLEVIS PIN
CENTERING SPRING
CLEVIS FORK
BRIDGE PIN

27964-01A
5
Installation - Assembly Procedures
Stand Upright Assembly

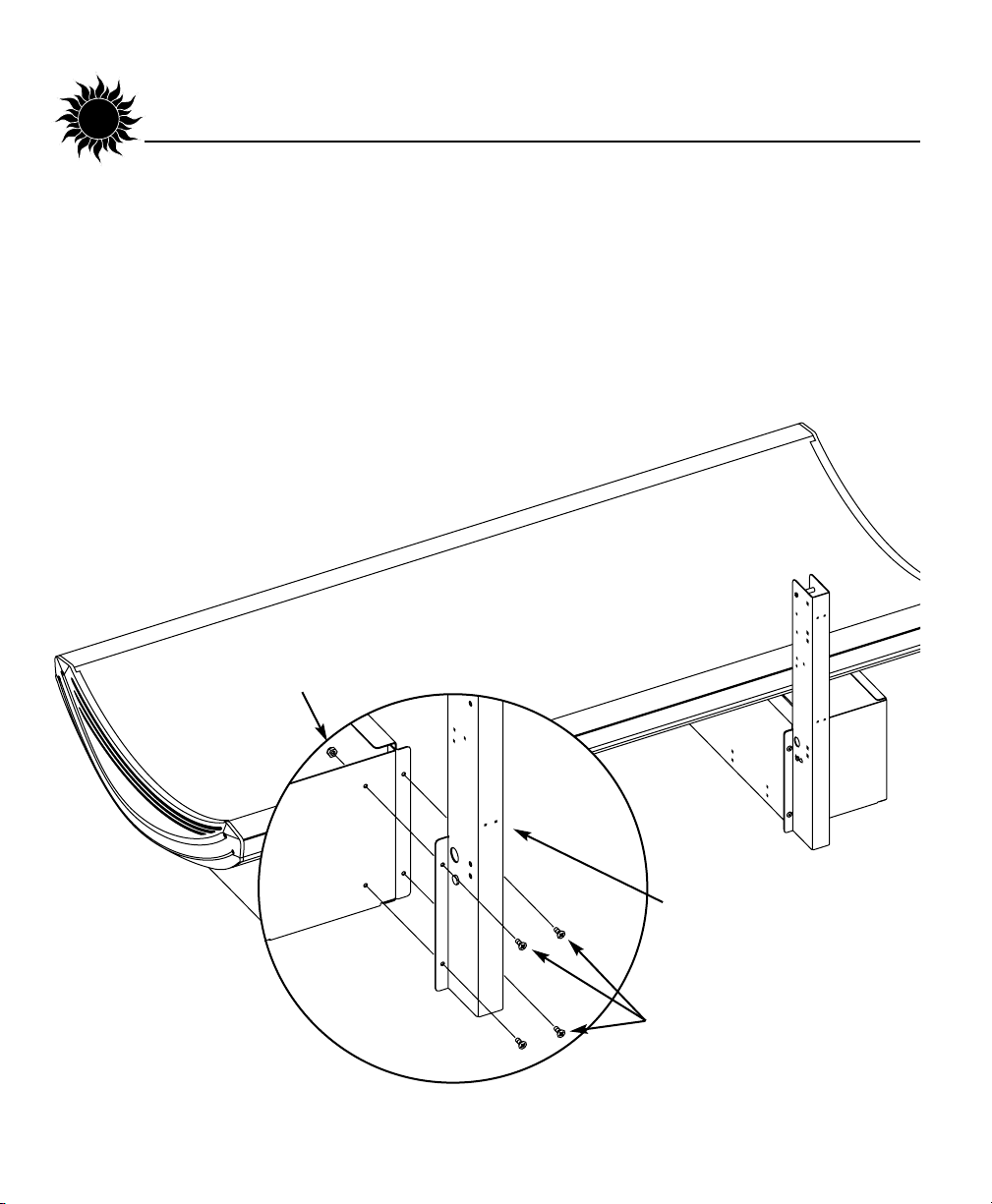

1. Place the bench approximately where
it will remain, leaving room to work
behind it.
2. Make sure the clevis forks are pointed
up and secure each stand upright to
the rear of the bench pedestals using
four 1/4-20 x 1/2” machine screws
and four locknuts.
LOCKNUT
(others hidden)
MACHINE SCREWS
STAND UPRIGHT

27964-01A
6
Installation - Assembly Procedures
Canopy Installation

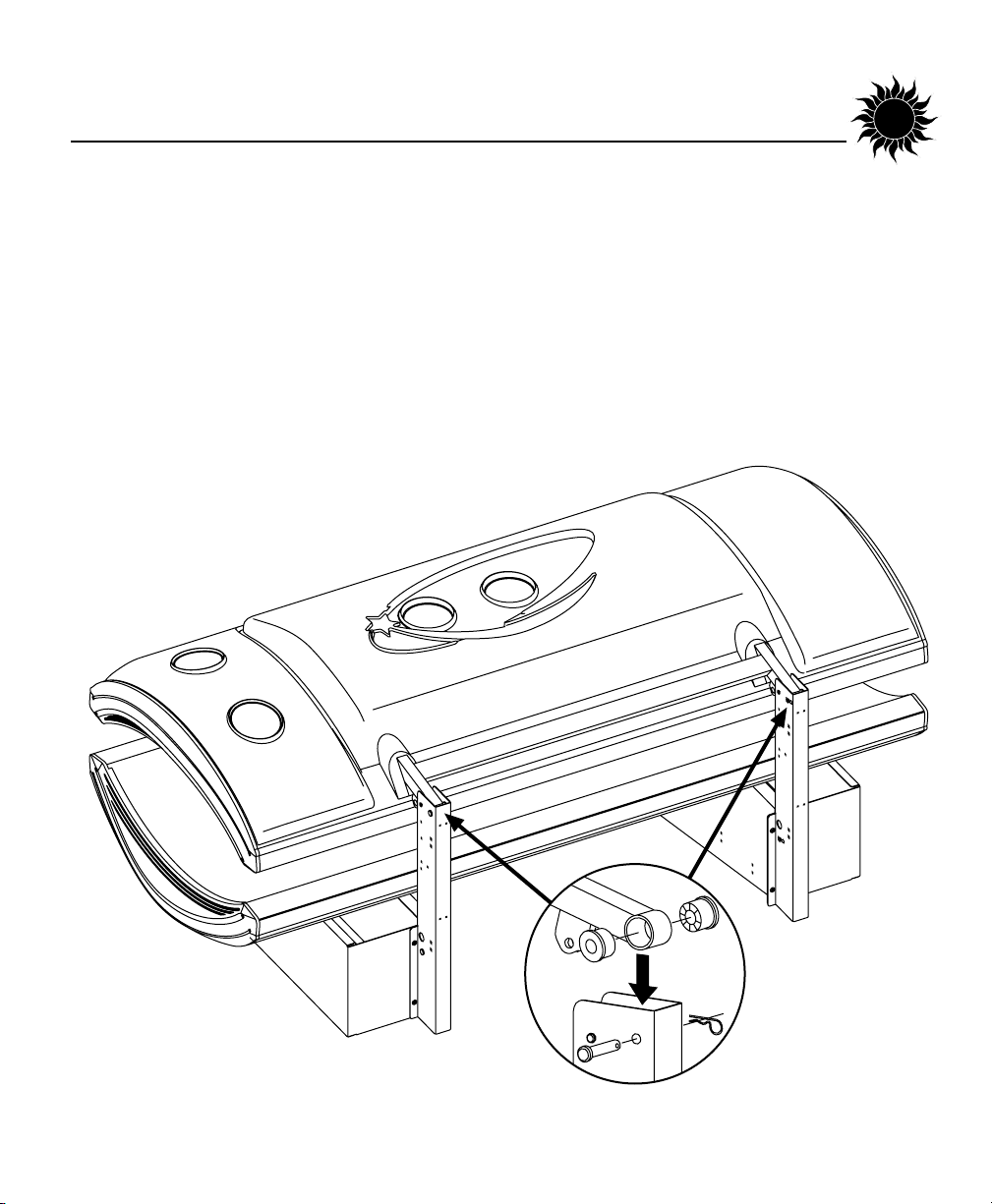

1. Place two nylon floating bearings into
each canopy arm.
2. Holding the canopy over the bench,
with the canopy arms inside the stand
uprights, insert clevis pins (5/16” x 2
1/32”) through the uprights and nylon
floating bearings to attach the canopy.
3. Secure the clevis pins by inserting the
straight portion of a bridge pin through
the small hole in the end of the clevis
pin.

27964-01A
7
Installation - Assembly Procedures
Install Gas Springs
1. Have a helper hold the canopy in its
fully open position.
2. Make sure the threaded holes in the
lower clevis forks face up (the large
holes above the clevis forks allow fin-
ger access). Slide the gas springs down
into the stand uprights, piston end up
as shown, and twist the gas springs
into the lower clevis forks until they
are snug.
3. Screw the upper clevis forks onto the
gas springs.
Do not lower the canopy yet!

27964-01A
8
Installation - Assembly Procedures
Attach Gas Springs

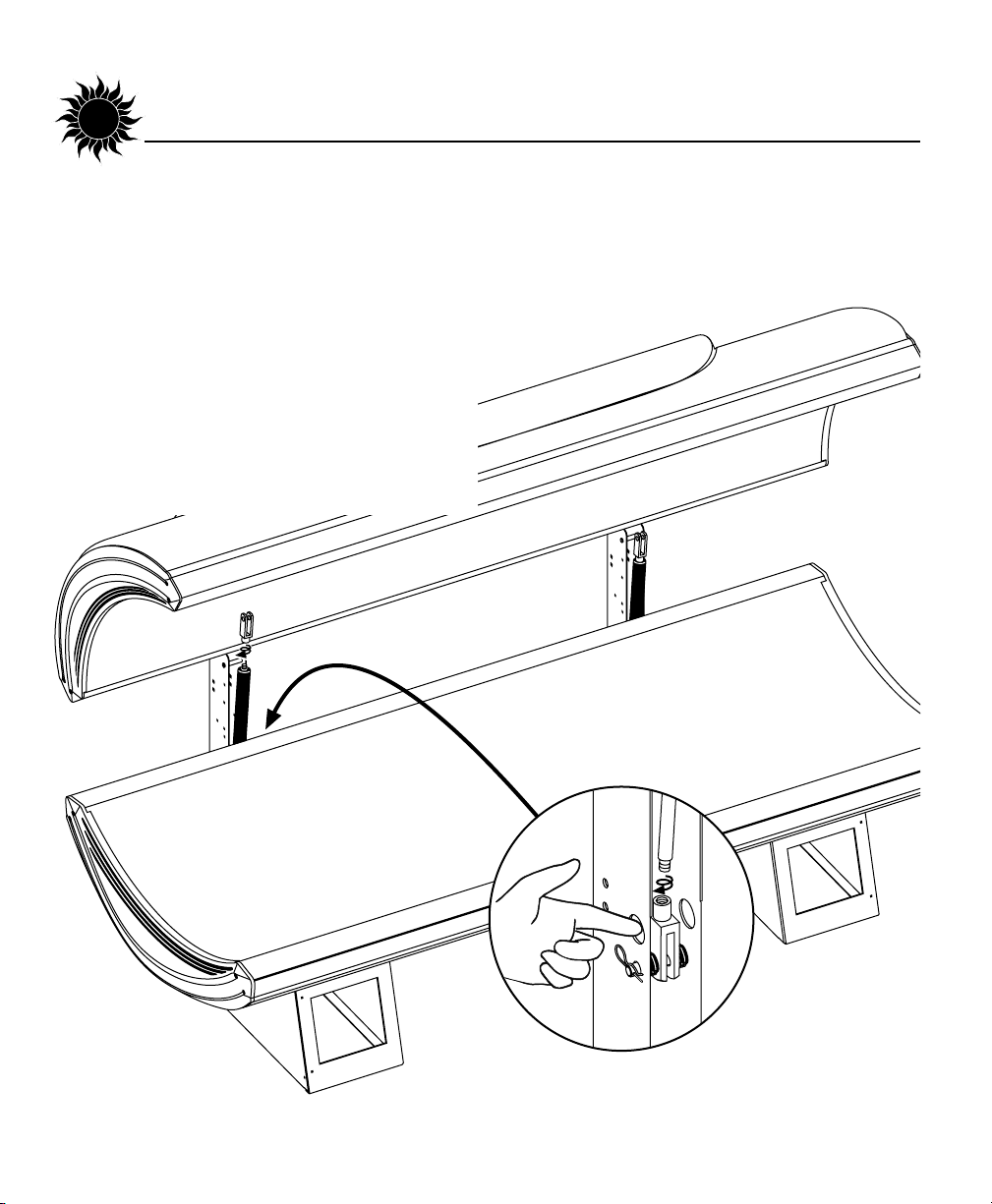

1. With the canopy still raised, slip the
bronze bushings into the hole in the
clevis brackets on the underside of the
canopy arms.
2. Line up both clevis forks and carefully
lower the canopy to engage the clevis
forks. Pay special attention when low-
ering the canopy that the clevis forks
do not damage the bronze bushings.
Bronze is excellent for smooth pivot-
ing applications such as this, but
tends to be soft compared to the
steel clevis fork.
3. Lock the clevis forks in place
with the 10mm clevis pins.
4. Secure the clevis pins with the
retaining rings.
NOTE: When this assembly is complete,
lift and lower the canopy a few times to
lubricate the gas springs for optimum per-
formance.

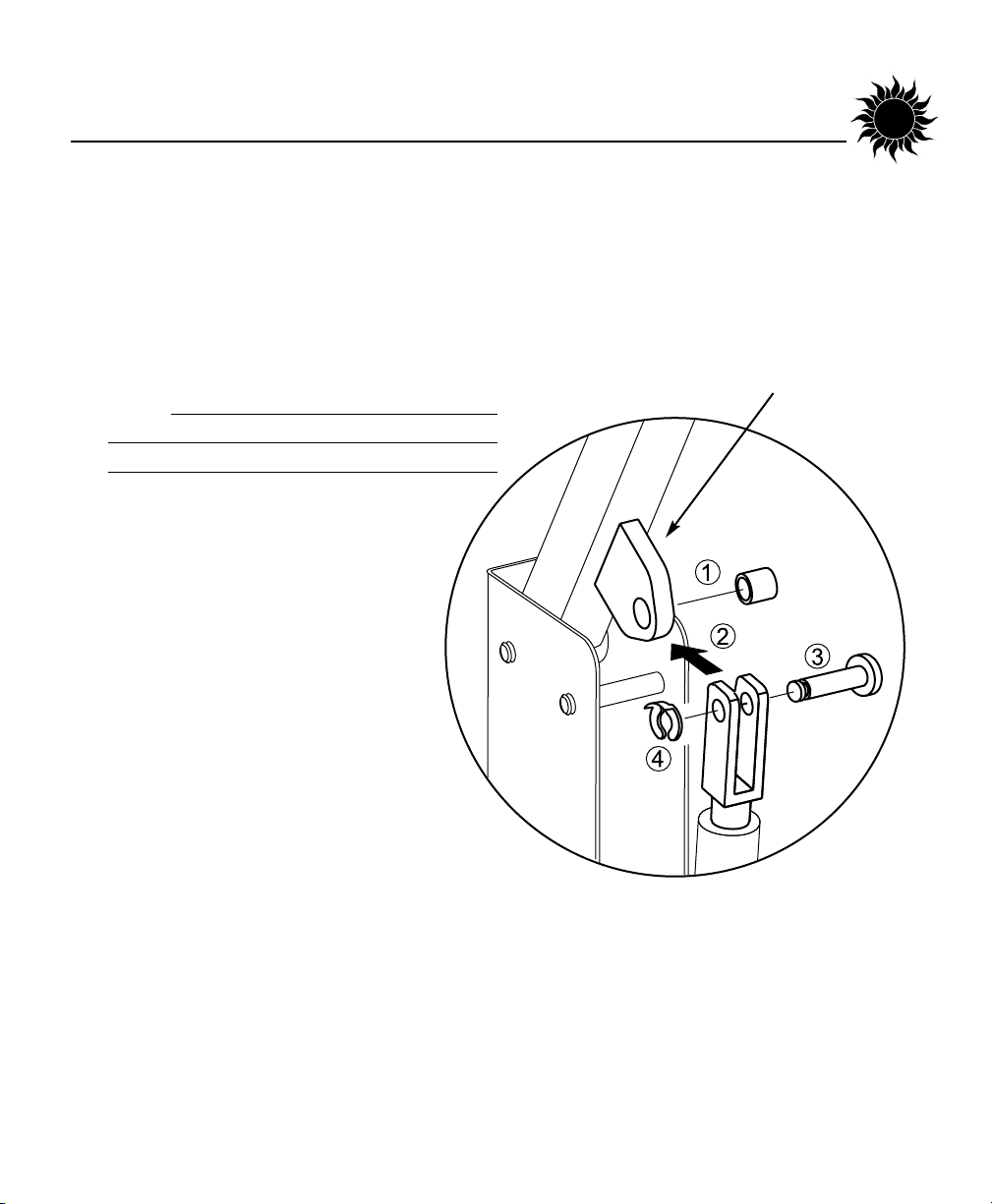

Clevis Bracket

27964-01A
9
Installation - Assembly Procedures

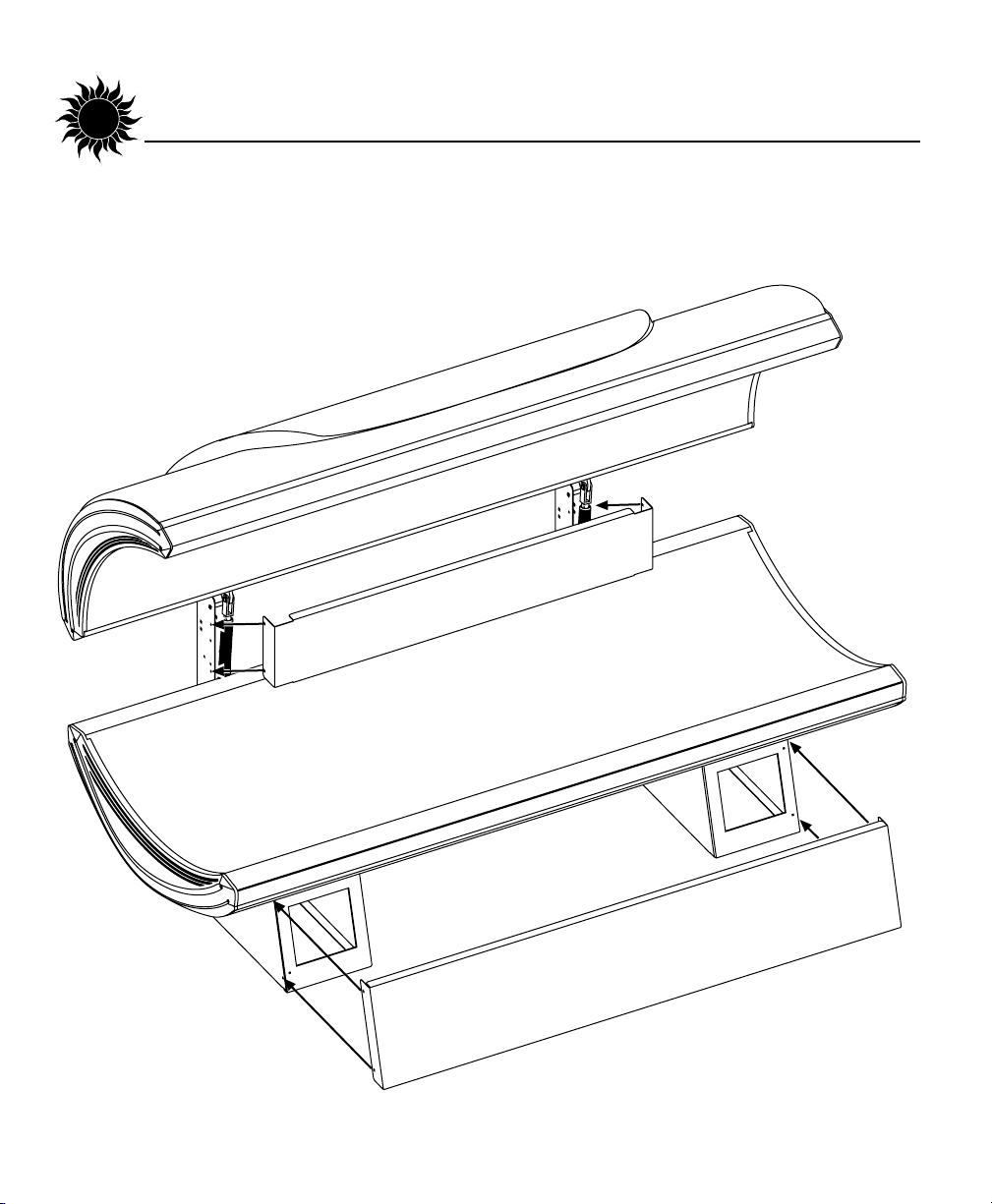

Attach Cover Panels
1. Put the gas spring cover panel in place
and secure with two blue-headed #10
x 1/2” screws in each end. The skirt
installs in the same way.

27964-01A
10
Installation - Assembly Procedures
Attaching Handle to Canopy
1. Install the handle by inserting the three
#10 x 1” Phillips head screws through
the handle and into the predrilled
holes on the canopy.

27964-01A
11
Installation - Assembly Procedures

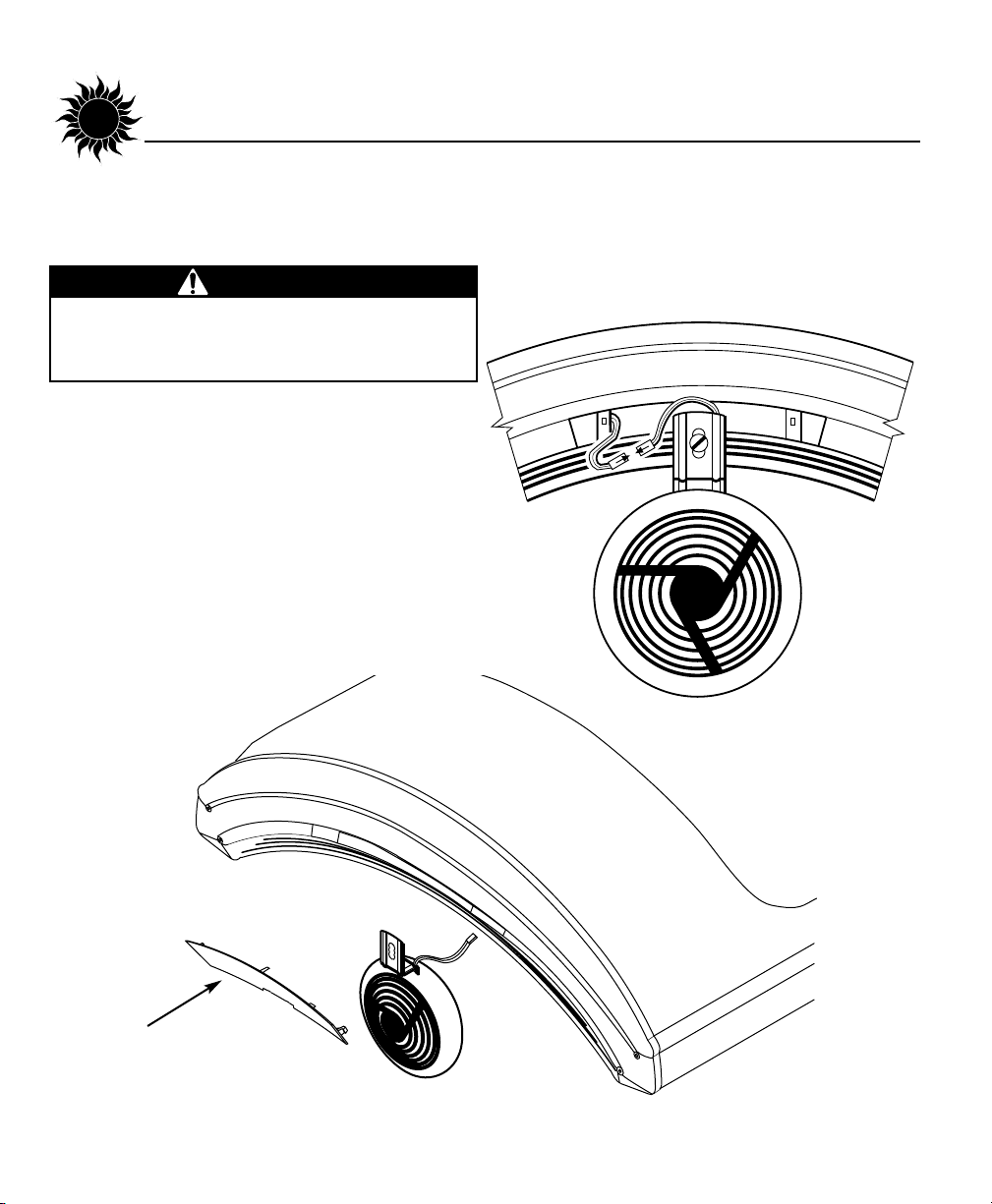

Body Fan Assembly
(body fan sold separately)
Your sunbed is designed to accept a body
cooling fan on the canopy endcap at the
foot end. Follow the instructions that
come with the body fan for installation.
CENTER INSERT
WARNING
Shock hazard.
Be sure power is disconnected before
installing body fan.

27964-01A
12
Installation - Electrical Connections
Electrical Connections

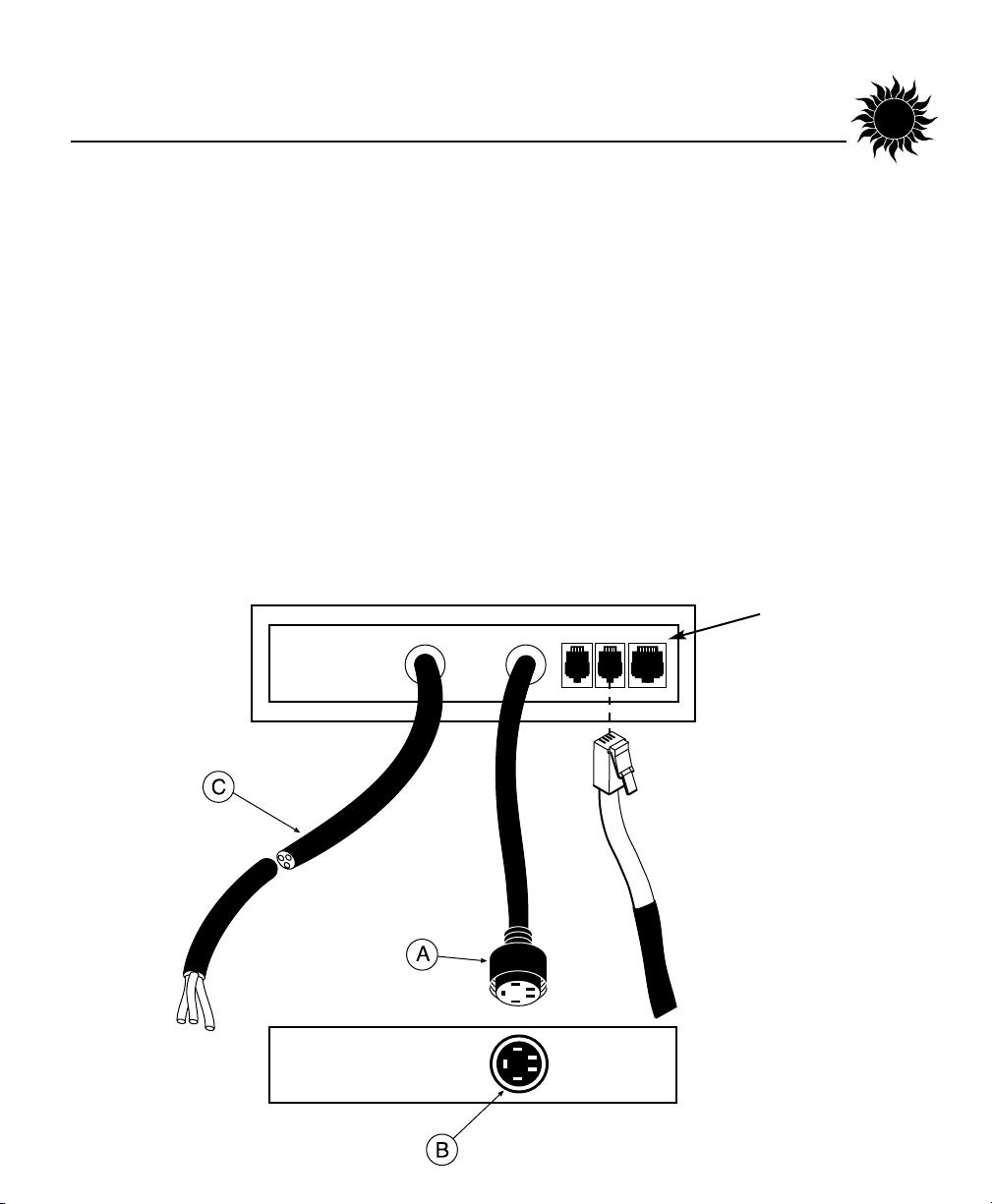

At the rear of the bed, insert canopy plug
(A) into bench socket (B). Connect power
cord (C) as described in Pre-Installation
Planning. Again, a professional electrician
is recommended. The Remote Control
Bypass plug is already installed in one of
the remote control ports as shown. Your
sunbed will not operate without the
Remote Control Bypass plug or a remote
system connected. Remove the protective
film from the acrylic shields. Your equip-
ment is now ready for use.
NOTE: Your sunbed is designed to accept
an input from a remote control device.
The remote control is optional. If you
plan on using a remote system refer to
Remote Connections.
ATTENTION: Although the Remote
Control Bypass plug provided with your
sunbed will work wherever a T-Max® ter-
minator is called for in the series, the T-
Max® terminator will not work as a
bypass plug. A bypass plug is needed only
when your sunbed is operated without a
remote system connected.
Remote Control
Bypass plug
Remote Control
Ports

27964-01A
13
Installation - Remote Connections
CAUTION
The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter-
face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.
Remote Connections
Your sunbed incorporates advanced circuitry
allowing it to connect and communicate with
most remote control systems. If a remote sys-
tem is to be used, first determine whether the
remote system is a T-Max® System or a stan-
dard remote system operating with a control
relay. Follow the appropriate instructions for
your system type.
T-Max® Products
The T-Max® remote systems offer the ultimate
in sunbed control, while allowing the tanner
easy straightforward operation. Your sunbed is
configured to directly connect to this system,
including the new wireless remote system.
The circuitry inside your sunbed eliminates
the need for the T-Max® 1A or 3A when con-
necting to the T-Max® Manager series. Your
sunbed supports the auto addressing feature
of the latest T-Max® Manager models and the
following parameters: 5, 6, 7, 8, 9, 10, 15 and
23. See your T-Max® manual for descriptions
of these parameters and how they function.
REMOTE PORTS
WIRED
REMOTE
PORTS (RJ-22)
WIRELESS
REMOTE
PORT (RJ-11)
T-Max® Wireless Remote System
The T-Max® AP-900 eliminates wires in your
salon, allowing easy setup without hiring an
electrician to run wires. It also protects your
investment from damage by isolating each
unit from one another. Your sunbed arrives
“wireless ready”, which means it connects
directly to the T-Max® wireless system. Older
tanning beds, and T-Max® managers, also uti-
lize this system but require a T-Max “Power
Injector” (PI) to provide the needed power to
the wireless unit.
Remote System Hook-up Scenarios
Follow the diagrams on the next page to see
the many different scenarios for hooking up
your salon. If you need further assistance, call
T-Max® directly at [phone].

27964-01A
14
Installation - Remote Connections
NOTE: A T-Max® 1A with a
“master” chip can be substituted
for a 3A.

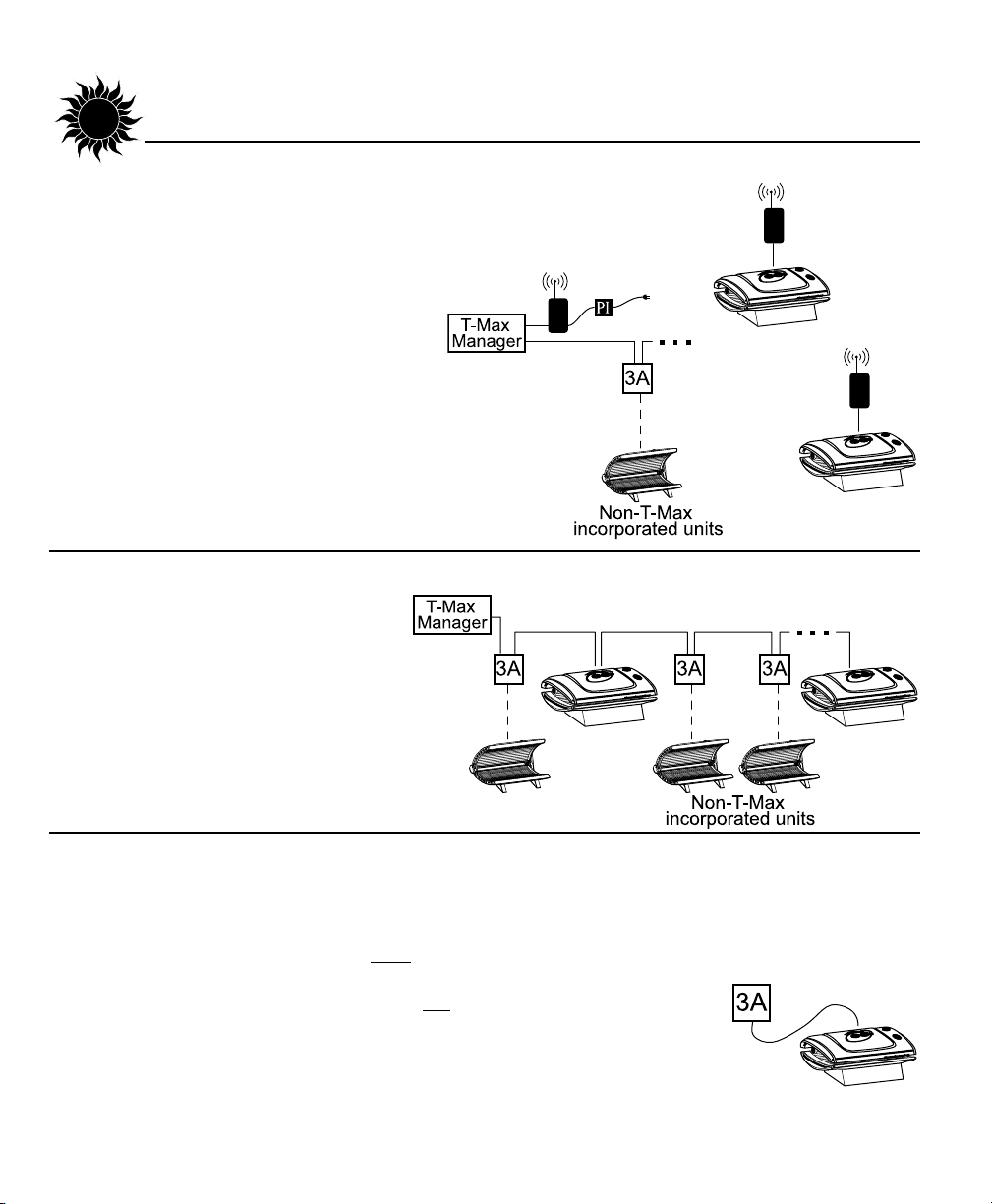

Scenario 1 - T-Max® Manager Series with Complete Wireless
Connect one AP-900 (with Power
Injector) to the Manager and one
AP-900 to each of the tanning
beds. Install as many beds as you
like with this configuration. Units that do
not communicate with T-Max will need
an AP-900 with Power Injector and an
additional 3A to operate. If you have an older
T-Max® Manager that doesn’t support auto
addressing, set the address of each sunbed
manually as described in Setting the address man-
ually. You can place your sunbed at any location in the series.
Scenario 2 - T-Max 3A with Wireless
In single sunbed installations, the T-Max® 1A and 3A can offer the
same control as the T-Max® Manager, eliminating the need for a
Manager. If you’re using a 1A in this manner, it must have a chip
labelled “master” installed on its circuit board. The remote control
bypass plug must not be used in this configuration. The 3A may be
used as a “master” with no modification.
After you have set the T-Max® 1A’s, or 3A’s, address to “0” (refer to
your T-Max® user’s guide) and the sunbed’s address to “1”, simply
connect one AP-900 (with Power Injector) to the T-Max® 3A and one
AP-900 to the tanning bed.
Scenario 3 - T-Max® Manager
Series with Wireless combo
Connect one AP-900 (with Power
Injector) to the Manager and one
AP-900 to a wireless ready tanning bed.
The rest of the salon may be “daisy-
chained” together and connected to the
wireless equipped tanning bed, eliminating
the need to wire the Manager to the tanning
beds.

27964-01A
15
Installation - Remote Connections
After you have set the T-Max® 1A’s, or 3A’s, address
to “0” (refer to your T-Max® user’s guide) and the
sunbed’s address to “1”, simply connect the RJ-22
modular cables, described in the T-Max® user’s
guide, directly into either of
the smaller ports located on
the back of the canopy and
either port on the back of
the T-Max® 1A or 3A.
Scenario 4 - T-Max® Manager Series with
Wireless combo 2
Wireless can be easily added to an existing
salon already utilizing T-Max®. Connect one
AP-900 (with Power Injector) to the Manager
and one AP-900 to each wireless ready tan-
ning bed. The rest of the salon may be
“daisy-chained” together and connected to
the Manager.
Scenario 5 - T-Max® Manager Series
with wires
As always, this tanning bed is fully com-
patible with a wired T-Max® system.
Simply connect the RJ-22 modular cable(s),
described in the T-Max® Manager manual, into
either of the smaller remote port(s) located on the
back of the canopy and follow the instructions
that came with your remote system.
Scenario 6 - Single Bed wired to T-Max® 3A
In single sunbed installations, the T-Max® 1A and
3A can offer the same control as the T-Max®
Manager, eliminating the need for a Manager. If
you’re using a 1A in this manner, it must have a
chip labelled “master” installed on its circuit
board. The remote control bypass plug must not be
used in this configuration. The 3A may be used as
a “master” with no modification.
