ETS solarforce 648 User manual

27971-01A

27971-01A
i
48 MONTH “GOLD MEDAL” WARRANTY
Your ETS Distributor (including ETS, LLC if purchased directly), through a manufacturer’s warranty, warrants your tanning
unit to be free of structural defects in material and workmanship, under normal use, for its lifetime. Your ETS Distributor
will, at its discretion, repair any structural defect which materially affects the performance of the tanning unit, or replace the
tanning unit.
For forty-eight (48) months following the purchase date of your tanning unit, your ETS Distributor will provide replace-
ments for parts that prove to be defective in material or workmanship, with the following exceptions: gas springs, ballasts
and electronic lamp starters are warranted against manufacturer’s defects for a period of one (1) year; “glow tube” lamp
starters and cracked or broken endcaps are warranted against manufacturer’s defects for a period of ninety (90) days; fluo-
rescent lamps are warranted against manufacturer’s defects for a period of thirty (30) days; acrylics are warranted against
manufacturer’s defects for a period of one (1) year (prorated) following the purchase date of your tanning unit. Shipping
charges will be covered during the first ninety (90) days following the purchase date.
Your ETS Distributor (including ETS, LLC if purchased directly), also extends to you a two (2) year parts warranty on all
T-Max® remote system components. External voltage transformers (buck-boosters) are covered by a one (1) year parts and
labor warranty, provided you send back the defective transformer.
Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or replacement
work required to be performed for a period of ninety (90) days following the shipping date of your tanning unit. Normal
wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting from unauthorized repairs or
modifications are not covered by this warranty. Warranty coverage does not include cosmetic abnormalities such as scratch-
es, nicks, dents, or other cosmetic changes that do not materially interfere with the function of the tanning unit.
THIS 48 MONTH “GOLD MEDAL” WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or modify this 48
Month “Gold Medal” Warranty in any respect. To obtain service under this 48 Month “Gold Medal” Warranty, contact your
authorized ETS Distributor (or ETS, LLC if purchased directly). Proof of purchase, including serial number, is required.
IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUITY FOR ANY
LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE RECEIVED, OR
FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR SUBSTITUTE PRODUCTS, LOSS OF
BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAM-
AGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, and the above limitation
or exclusion will not apply to residents of some states. This 48 Month “Gold Medal” Warranty gives you specific, legal rights
and you may have other rights which may vary from state to state.
All warranty service must be performed by an authorized service person using only ETS authorized replacement parts. Use
of non-authorized parts may void your warranty. All labor charges must be authorized by your ETS Distributor prior to the
start of repairs and must not exceed the established rates and time allotment policies established by your ETS Distributor. If
your tanning unit must be returned for service within thirty (30) days from the purchase date, freight charges will be paid
for by your ETS Distributor, after which all freight charges shall be at your expense. Contact your ETS Distributor for the
authorized Service Center nearest you. This warranty is serial number specific and only applies to tanning units purchased
through an authorized ETS Distributor. This warranty is extended to the individual or legal entity whose name appears on
the original sales document and may not be transferred to any other individual or legal entity. This warranty is void if the
tanning unit is modified in any manner from its original design.
To obtain warranty service, contact your place of purchase. Proof of purchase, including serial num-
ber, is required for verification. Contact ETS, LLC onlyif you purchased your equipment directly.
ETS, LLC 7445 Company Drive, Indianapolis, IN 46237-9296
1-800-449-3605 In Canada call 1-800-661-6292 or 519-421-1212

27971-01A
ii
elcome
Congratulations on your purchase of this technologically advanced sun tanning unit. It has been
designed to provide years of dependable service for you.
Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.
ontents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . .32
Under the Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

27971-01A
iii
afety Information
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause
eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 3.5 inches (8.9 centimeters) between
your body and canopy clear plastic panel and side tanner clear plastic panel, otherwise overexposure may occur. Minimum use distance
elsewhere is touching the clear plastic panels. Do not use without clear plastic panels in place. Untanned persons should not tan on con-
secutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first few sessions
and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having
a base tan may begin at advanced levels corresponding to the extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should
therefore be reduced by approximately 10% during that period.
WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types
of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If dis-
comfort develops, discontinue use and consult a physician.
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE SOLARFORCE 648:
BRONZING SUN™ HPK90 Wolff® Model BSHPK90 71-T12-180W VS-R
Heraeus E400 HPT, Philips Model HPA 400/30s or CosmoTech Model 23045 (facial unit)
MARQUIS, Wolff System® Model CF26W (shoulder unit)
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.
LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section
1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:
DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
88465
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 12 MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Subsequent
Skin Type: 1st-3rd Sessions Maximum
ISensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 2471012
III Normal (Burns moderately and tans average.) 3691212
IV Dark (Burns minimally, tans easily and above average.) 4 7 10 12 12
DANGER

27971-01A
iv
Renseignements sur la Sécurité
Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les
rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac-
tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ
DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES
BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre
sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous
souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il
est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire
qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.
Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au
moins 3,5 pouces (8,9 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure et le panneau de plastique
transparent de l’appareil de bronzage latérales, afin d’éviter une exposition excessive. Les autres parties du corps peuvent toucher les pan-
neaux de plastique transparents. N’utilisez pas la lampe sans les panneaux de plastique transparents. La première semaine de bronzage,
les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par
jour. Le bronzage commence normalement à apparaître après les premières séances : il atteint son apogée au bout d’environ quatre
semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.
Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonction-
nement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.
AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce
doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées:
Les coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes pro-
tectrices peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou
lésions oculaires graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.
SEULES LES LAMPES INDIQUÉES CI-DESSOUS ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT:
BRONZING SUN™ HPK90 Wolff® Modèle BSHPK90 71-T12-180W VS-R
Heraeus E400 HPT, Philips Modèle HPA 400/30s ou CosmoTech Modèle 23045 (unité faciale)
MARQUIS, Wolff System® Modèle CF26W (unité en bandoulière)
Cet équipement doit être mis à la terre.
Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie
1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.
Débrancher l’alimentation électrique avant de nettoyer l’appareil ,
d’en faire l’entretien ou de changer les lampes.
88465
TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 12 MINUTES
Élevé 1/Semaine 1 Élevé 2 Élevé 3 Élevé 4 Sem. suivantes
Type de peau: 1ere-3eTemps maximal
IPeau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 2471012
III Peau normale (brûle et bronze de façon modérée) 3691212
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4 7 10 12 12
DANGER

27971-01A
1
nstallation
Pre-Installation Planning
Before you begin to assemble your sunbed, you should observe the following consid-
erations.
• The SolarForce® 648 operates from
a 220V AC power source. The unit
should be wired to a dedicated cir-
cuit capable of providing 80 Amp
service. This unit must be hardwired
directly to a junction box. We rec-
ommend connection by a profes-
sional electrician.
• IMPORTANT! Voltage must be
below 230V AC or may require a
Buck Booster.
WARNING
Shock hazard.
Disconnect power before
servicing.
Air from the room is used to cool
the sunbed. Maximum ambient
room temperature should be 80°F.
Place your sunbed no closer than
6” from any wall. Make sure nothing
obstructs the airflow into or out of
the fan openings. A poorly ventilat-
ed room may cause the unit to
become hot and cause discomfort
to the user.
CAUTION
Use of a voltage source above 230V
AC may prevent proper operation of
the sunbed and could cause damage
and void the warranty.
CAUTION
Proper assembly of your sunbed
requires three people. Plan to have
a couple of helpers assist you.
CAUTION

27971-01A
2
Installation - Unpacking and Inspection
Unpacking and Inspection
Your sunbed comes in two cardboard car-
tons, one for the canopy and one for the
bench and ballast tray. Open the cartons
and remove the sunbed parts as follows.
The canopy is wrapped in plastic. Pull
back the plastic and, with a helper, grasp
the canopy and pull it from the carton
bottom, leaving the plastic wrap and the
carton packaging. Do not attempt to lift
the canopy with the plastic still on as it
may slip. Do not lift the canopy by its
plastic endcaps. Leave the bench in its
box until instructed to remove it in
Assembly Procedures.
Note! The cartons are reusable. You may
wish to save them for future use.
After unpacking the unit, check to make
sure you have received the following:
• Canopy unit
• Bench unit
• Ballast drawer
• Front access panel
• Two large endcaps, one with small
lamps
• Shoulder tanner cover
• Two 10” diameter flexible ducts
• Bag containing necessary assembly
hardware, safety goggles, and pillow.
Inspect these items, including the canopy
and bench, to make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.
Record the serial number of the unit in the
area provided at the back of this manual.
This information will be required whenev-
er you call customer service.

27971-01A
3
Installation - Hardware Inventory
Hardware Inventory
Open the hardware bag and remove the
contents. In addition to a pillow, make
sure you have the following hardware
items.
x 1 5/16” Hex wrench
x 2 6mm Hex wrench
(acrylic key)
x 12 Screw, #10 x 1/2”
x 6 Bolt, 3/8-16 x 1 1/4”
hex socket
x 6 Nut, 3/8-16 “nylock”
x 8 Screw, #10-32 x 1/2”
x 4 Washer, #10
x 16 Screw, 1/4-20 x 3/4”
with tooth washer
Tools Needed
#2 Phillips screwdriver
Wrenches (or ratchet wrenches)
in 9/16” and 7/8” sizes
Flat screwdriver

27971-01A
4
Installation - Hardware Inventory
WARNING
Wear protective eyewear.
Failure to may result in severe burns or
longterm injury to the eyes.
x 1 Safety goggles
x 5 10” Hose clamp
x 1 10” Hose adapter flange
x 8 Teflon® glide

27971-01A
5
Installation - Assembly Procedures
Assembly Procedures
The bench requires some disassembly
before installation. Save all screws as
some will be used to reassemble the unit.

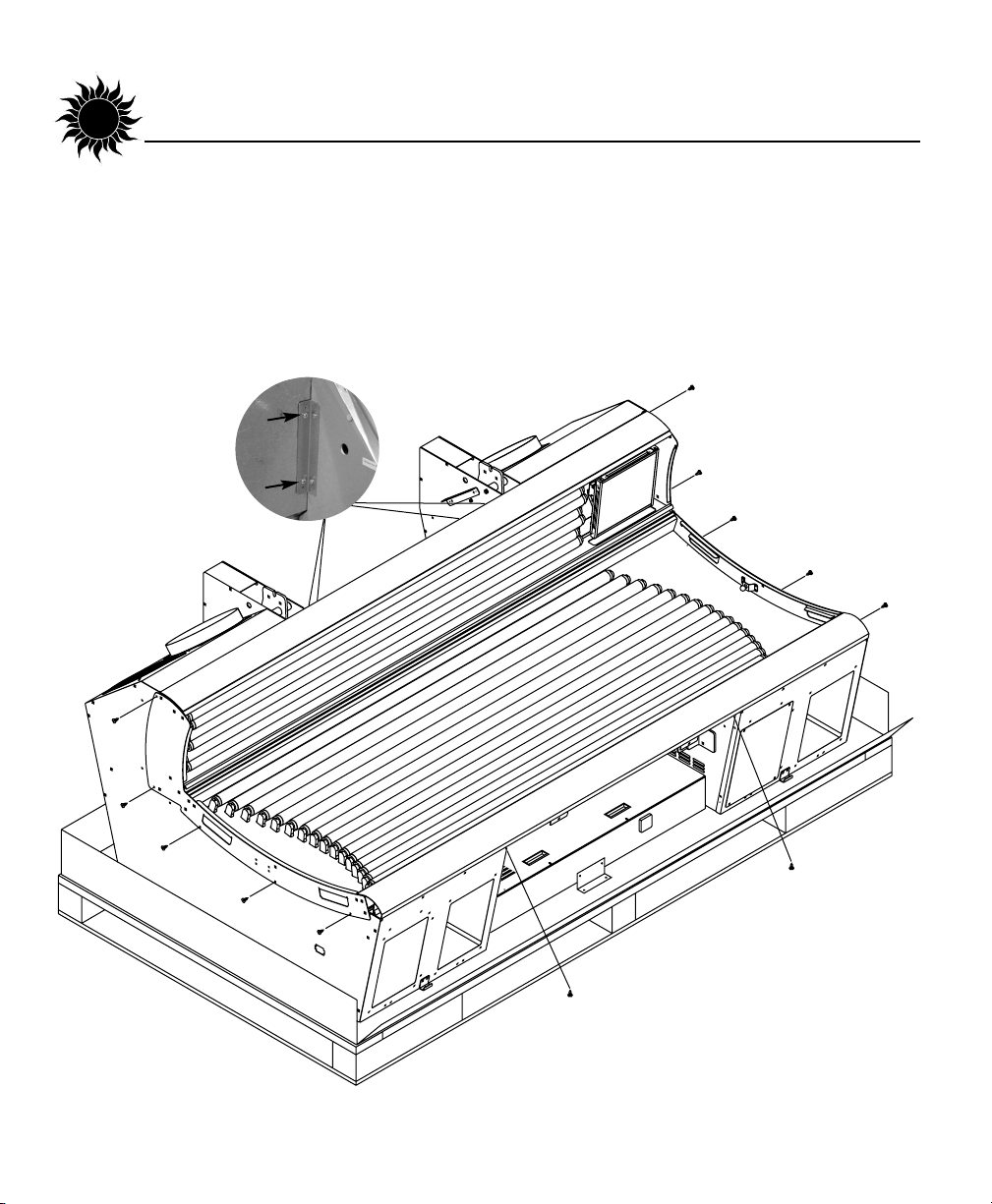

Remove the Rear Access
Panel. It is held in place
with four screws.
Remove these three
access plates.

27971-01A
6
Installation - Assembly Procedures
Remove the bench acrylics. They are held
in place with quarter-turn latches. Using
the smaller hex wrench (6mm) turn the
latch 90° to unlock. The rear acrylic has
four latches, and simply lifts out. The
bench acrylic has two latches and is sup-
ported by gas springs. After detaching the
gas springs from the bench (see below) lift
the acrylic from the channel in the back.
Pry the metal clip out (do
not remove) and pull gas
spring end off ball stud.

27971-01A
7
Installation - Assembly Procedures

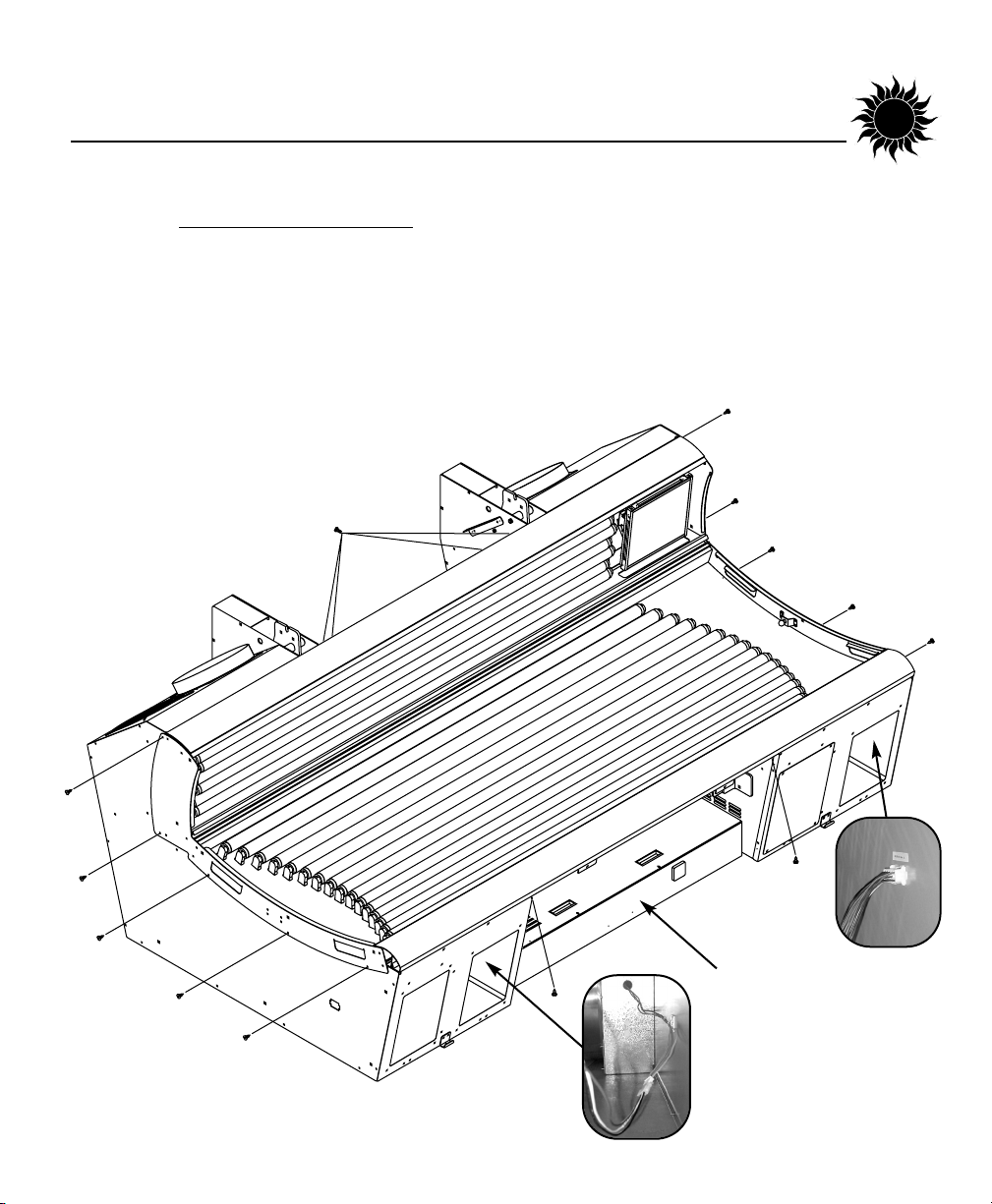

Unscrew the bench assembly from the
pedestals. The bench is held in place with
16 screws (5 #10 x 1/2” screws on each
side, 2 under the front lip and four #10-32
x 1/2” screws in the back). The screws are
indicated by green markings.

27971-01A
8
Installation - Assembly Procedures

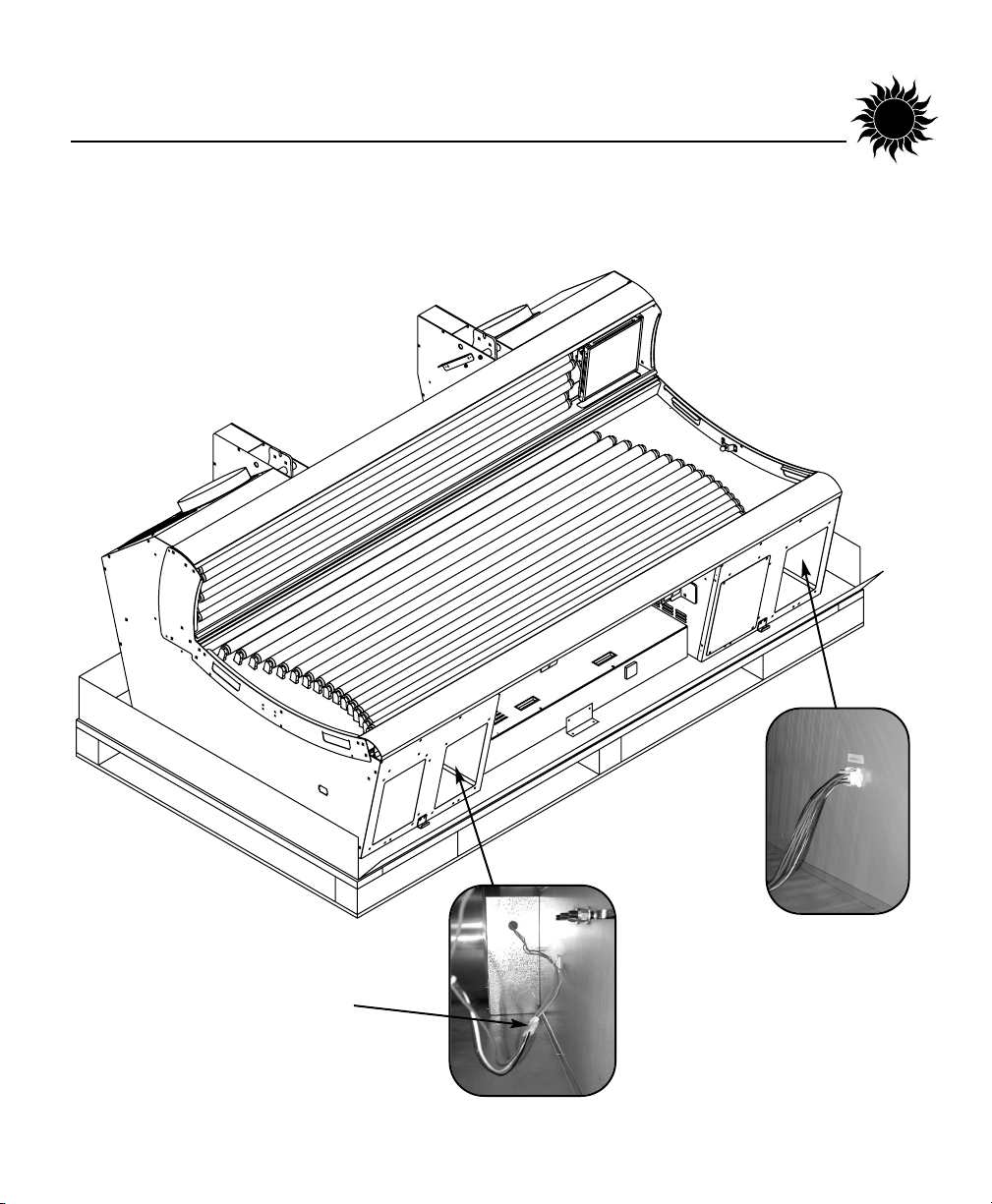

Before lifting the bench assembly, discon-
nect the Shoulder Tanner harness and
blower harness inside the pedestals (see
below).
DISCONNECT
BLOWER HARNESS
SQUEEZE TABS AND
PULL HARNESS
FROM PANEL
Carefully lift the bench assembly and
place upside-down out of the way.

27971-01A
9
Installation - Assembly Procedures
Place the pedestals in the room where the
unit will reside. Leave room behind them
to work. In the hardware kit are 8 Teflon®
glides with adhesive backing. If desired,
stick four on the bottom of each pedestal,
one in each corner. This will help when
moving the unit.
IMPORTANT: The diagram below shows
how to position the pedestals. Take some
time to line them up properly, as this will
greatly aid assembly.

27971-01A
10
Installation - Assembly Procedures
Reattach the bench assembly to the
pedestals. Be careful of the wires. Use the
same screws removed earlier. If needed,
the hardware kit also contains these 16
screws. The four #10-32 x 1/2” screws
hold the back of the bench to the
pedestals.
Reconnect the blower harness and click
the shoulder tanner harness into the
pedestal panel.
Unscrew the two brackets from the ballast
drawer and discard. Roll the ballast draw-
er under the bench with the cables toward
the back.
BALLAST DRAWER
#10-32 x 1/2”

27971-01A
11
Installation - Assembly Procedures
CANOPY ARM
HINGE ARM
Install this bolt as a
positioning aide.
Slip canopy arm onto hinge
arm. Positioning bolt will
engage the slot on top of
hinge arm and hold canopy
up while the other bolts are
installed.
Install other bolts as
shown. Secure all six
bolts in place with self-
locking nuts.
Parts needed:
Canopy
6 - 3/8-16 x 1 1/4” hex-socket bolts
6 - 3/8-16 “nylock” nuts
1
2
3

27971-01A
12
Installation - Assembly Procedures

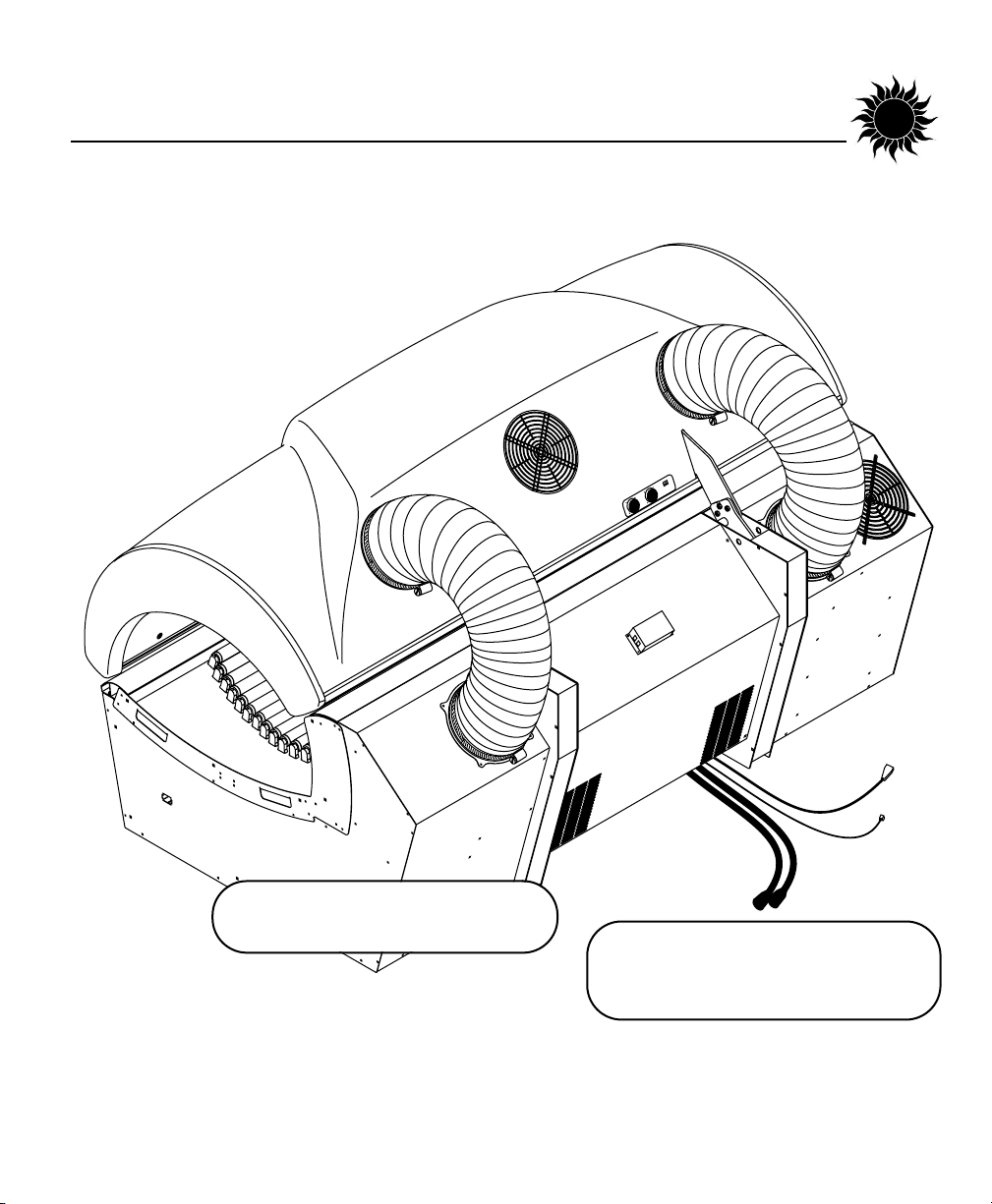

Parts needed:
2 - 10” hoses
4 - 10” hose clamps
Slide a hose clamp onto the end
of a hose. Slip the hose onto the
hose adapter flange. Slide the
clamp down around the hose
and flange and tighten.

27971-01A
Installation - Assembly Procedures
13
Have your electrician connect power
directly into the junction box as described
in Pre-Installation Planning. Again, a pro-
fessional electrician is recommended.
In the head-end endcap are two speakers
capable of handling 20W of musical
power, with a maximum of 80W. Speaker
terminals are located on the bench power
bracket for connection to a stereo.
At the rear of the sunbed, connect the two
bench power cords to their respective
power receptacles on the bench. Simply
match the plug to the receptacle, push on
firmly and secure by twisting the threaded
locking ring. Connect main power cord to
the bottom of the junction box.
PIN CONFIGURATIONS MAY VARY FROM SHOWN
(Rear of ballast drawer shown)
JUNCTION BOX SPEAKER
TERMINALS
BENCH
POWER
CANOPY POWER
MAIN
POWER
CORD

27971-01A
14
Installation - Assembly Procedures
Parts needed:
Rear access panel
4 - #10 x 1/2” screws
Position the rear access panel
and secure with the four screws. Pull the two remaining power
cords and two other cords out
from under the rear access panel.

27971-01A
15
Installation - Assembly Procedures
Plug each cord into its respective receptacle.
The two large cables must run straight up,
plugging the left one into the left receptacle
on the canopy and the right one into the right
receptacle. The computer type cable connects
to the small box on the rear access panel.
