ETS STARPOWER 548 User manual

27330-01A

i
27330-01A
STANDARD 48 MONTH WARRANTY
Your ETS Distributor (including ETS, Inc. if purchased directly), through a manufacturer’s warranty, warrants
your tanning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime.
Your ETS Distributor will, at its discretion, repair any structural defect which materially affects the performance
of the tanning unit, or replace the tanning unit.
For forty-eight (48) months following the shipping date of your tanning unit, your ETS Distributor will provide
replacements for parts that prove to be defective in material or workmanship. Fluorescent lamps, and lamp starters
are warranted against manufacturer’s defects for a period of ninety (90) days following the shipping date of your
tanning unit. Acrylics will be warranted against manufacturer’s defects for a period of 2 years (prorated).
Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or
replacement work required to be performed for a period of one (1) year following the shipping date of your tan-
ning unit. Normal wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting
from unauthorized repairs or modifications are not covered by this warranty. Warranty coverage does not include
cosmetic abnormalities such as scratches, nicks, dents, or other cosmetic changes that do not materially interfere
with the function of the tanning unit.
THIS STANDARD 48 MONTH WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or
modify this Standard 48 Month Warranty in any respect. To obtain service under this Standard 48 Month
Warranty, contact your authorized ETS Distributor (or ETS, Inc. if purchased directly). Proof of purchase, includ-
ing serial number, is required.
IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUI-
TY FOR ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE
PRICE RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR
SUBSTITUTE PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDI-
RECT, SPECIAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of
incidental or consequential damages, and the above limitation or exclusion will not apply to residents of some
states. This Standard 48 Month Warranty gives you specific, legal rights and you may have other rights which may
vary from state to state.
All warranty service must be performed by an authorized service person. All labor charges must be authorized by
your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment
policies established by your ETS Distributor. If your tanning unit must be returned for service, all freight charges
shall be at your expense. Contact your ETS Distributor for the authorized Service Center nearest you. This war-
ranty is serial number specific and only applies to tanning units purchased through an authorized ETS Distributor.
This warranty is extended to the individual or legal entity whose name appears on the original sales document and
may not be transferred to any other individual or legal entity. This warranty is void if the tanning unit is modified
in any manner from its original design.
To obtain warranty service, contact your place of purchase. Proof of purchase, including serial num-
ber, is required for verification. Contact ETS, Inc. onlyif you purchased your equipment directly.
ETS, Inc. 7445 Company Drive, Indianapolis, IN 46237-9296
1-800-449-3605 In Canada call 1-800-661-6292 or 519-421-1212

27330-01A
ii
Welcome
Congratulations on your purchase of this technologically advanced sun tanning unit. It has been
designed to provide years of dependable service for you.
Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . .22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Contents

27330-01A
iii
Safety Information
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause
eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 3 inches (7.6 centimeters) between your
body and canopy clear plastic panel and side tanner clear plastic panel, otherwise overexposure may occur. Minimum use distance else-
where is touching the clear plastic panels. Do not use without clear plastic panels in place. Untanned persons should not tan on con-
secutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first few sessions
and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons already having
a base tan may begin at advanced levels corresponding to the extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should
therefore be reduced by approximately 10% during that period.
WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types
of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If dis-
comfort develops, discontinue use and consult a physician.
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE 548:
BRONZING SUN™ PLUS Wolff® Model BSP 71-T12-100WR BI-PIN -or- SPEED® 225R Wolff® Model SPD71-T12-225R Bi-Pin (Bench lamps)
Velocity® VS-R™ Wolff® Model VEL71-T12-160W VS-R Bi-Pin -or- SPEED® 315VS-R Wolff® Model SPD75-T12-315VS-R VS-R Bi-Pin
(Canopy and side tanner lamps)
Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045 (SolarMax™ IFT facial unit)
COSMOLUX® RA plus 15504/40W (Shoulder unit)
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.
88465
DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 12 MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Subsequent
Skin Type: 1st-3rd Sessions Maximum
ISensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 2471012
III Normal (Burns moderately and tans average.) 3691212
IV Dark (Burns minimally, tans easily and above average.) 4 7 10 12 12
DANGER

27330-01A
iv
Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les
rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac-
tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ
DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES
BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre
sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous
souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il
est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire
qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.
Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au
moins 3 pouces (7,60 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, afin d’éviter une expo-
sition excessive. Les autres parties du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les
panneaux de plastique transparents. La première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se
faire bronzer tous les jours. Ne vous faites jamais bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître
après les premières séances : il atteint son apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peu-
vent commencer à des niveaux plus élevés, selon l’importance de leur hâle initial.
Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonction-
nement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.
AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce
doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées: Les
coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes protectrices
peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou lésions oculaires
graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.
SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :
BRONZING SUN™ PLUS Wolff® Modèle BSP 71-T12-100WR BI-PIN -ou- SPEED® 225R Wolff® Modèle SPD71-T12-225R Bi-Pin (banc seulement)
Velocity® VS-R™ Wolff® Modèle VEL71-T12-160W VS-R Bi-Pin -ou- SPEED® 315VS-R Wolff® Modèle SPD75-T12-315VS-R VS-R Bi-Pin
(partie supérieure et appareil de bronzage à lampes latérales)
Heraeus E400 HPT -ou- Philips Modèle HPA 400/30s -ou- CosmoTech Modèle 23045 (unité faciale)
COSMOLUX® RA plus 15504/40W (unité en bandoulière)
Cet équipement doit être mis à la terre.
Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie
1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.
88465
TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 12 MINUTES
Élevé 1/Semaine 1 Élevé 2 Élevé 3 Élevé 4 Sem. suivantes
Type de peau: 1ere-3eTemps maximal
IPeau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 2471012
III Peau normale (brûle et bronze de façon modérée) 3691212
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4 7 10 12 12
Débrancher l’alimentation électrique avant de nettoyer l’appareil ,
d’en faire l’entretien ou de changer les lampes.
DANGER
Renseignements sur la Sécurité

1
27330-01A
Installation
Unpacking and Inspection
The bench and canopy are each wrapped
in plastic. Remove the plastic and, with a
helper or two, grasp the canopy and pull
it from the carton bottom. Do the same for
the bench. Do not attempt to lift either
unit with the plastic still on as it may slip.
The endcaps on the canopy should not be
used to lift the unit. The ballast tray is
secured to the carton bottom with brack-
ets. Remove these brackets from the bal-
last tray with a Phillips screwdriver.
Note! The cartons are reusable. You may
wish to save them for future use.
After unpacking the unit, check to make
sure you have received the following:
• Canopy unit
• Bench unit
• Rear lamp module
• Ballast tray
• Access panel
• Two large bench endcaps
• Body fan kit
• Shoulder tanner kit
• Two bags containing necessary
assembly hardware, safety goggles, a
pillow and a tube of touch-up paint.
Inspect these items, including the canopy
and bench, to make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.
Record the serial number of the unit in the
area provided at the back of this manual.
This information will be required whenev-
er you call customer service.
Tools Required
You will need the following tools to
assemble your sunbed.

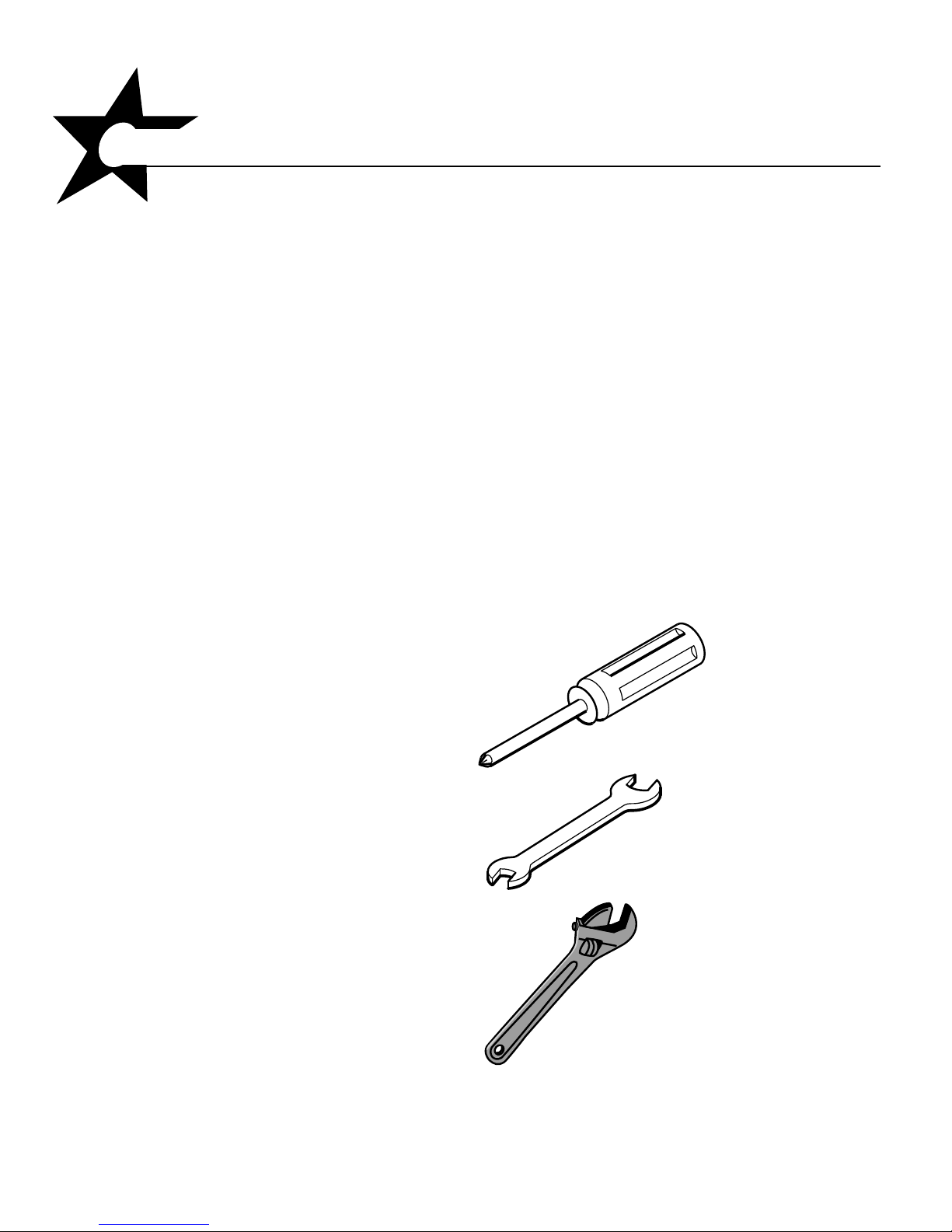

#2 Phillips Screwdriver
-AND-
9/16” and 7/16” Wrenches
-OR-
Adjustable Wrench

2
Installation - Pre-Installation Planning
27330-01A
Pre-Installation Planning
Before you begin to assemble your
sunbed, you should observe the following
considerations.
WARNING
Shock hazard.
Disconnect power before
servicing.
Air from the room is used to cool the
sunbed. Maximum ambient room tem-
perature should be 80°F. Place your
sunbed no closer than 6” from any wall.
Make sure nothing obstructs the airflow
into or out of the fan openings. A poorly
ventilated room may cause the unit to
become hot and cause discomfort to
the user.
CAUTION
Use of a voltage source above 230V AC
may prevent proper operation of the
sunbed and could cause damage and
void the warranty.
CAUTION
Proper assembly of your sunbed
requires four people. Plan to have a
few helpers assist you.
CAUTION
• The STARPOWER® 548 operates from a
220V AC power source. The unit should
be wired to a dedicated circuit capable
of providing 60 Amp service. This unit
must be hardwired directly to a junction
box. We recommend connection by a
professional electrician.
• IMPORTANT! Voltage must be below
230V AC or may require a Buck Booster.
Hardware Inventory
Open the hardware bags and remove the
hardware. In addition to a pillow, an RJ-
11 (phone type) cable and touch-up paint,
make sure you have the following hard-
ware items.
#10 x 1” Phillips
Pan Head Screw
Quantity 14
3/8-16 x 1 1/4”
Hex Socket Bolt
Quantity 18
3/8-16 Self-locking
Hex Nut
Quantity 18
#10 x 1/2” Phillips
Pan Head Screw
Quantity 12

3
27330-01A
Installation - Hardware Inventory
Safety Goggles
Quantity 1
Access Panel Key
Quantity 1
5/16” Allen Wrench
Quantity 1
Additional hardware in Body Fan box
#10 x 1/2” Phillips
Pan Head Screw
Quantity 5
1/4-20 x 1 1/2”
Hex Head Bolt
Quantity 4
Hardware in Shoulder Tanner box
#10 x 1/2” Phillips
Pan Head Screw
Quantity 4
5/16” Washer
Quantity 4
5/16-18 Stud
Quantity 4
5/16-18 Self-locking
Hex Nut
Quantity 4
1/4” Allen Wrench
Quantity 1
Canopy Adapter Arm
Quantity 2
Adapter Gusset
Quantity 4

4
Installation - Assembly Procedures
27330-01A
Assembly Procedures

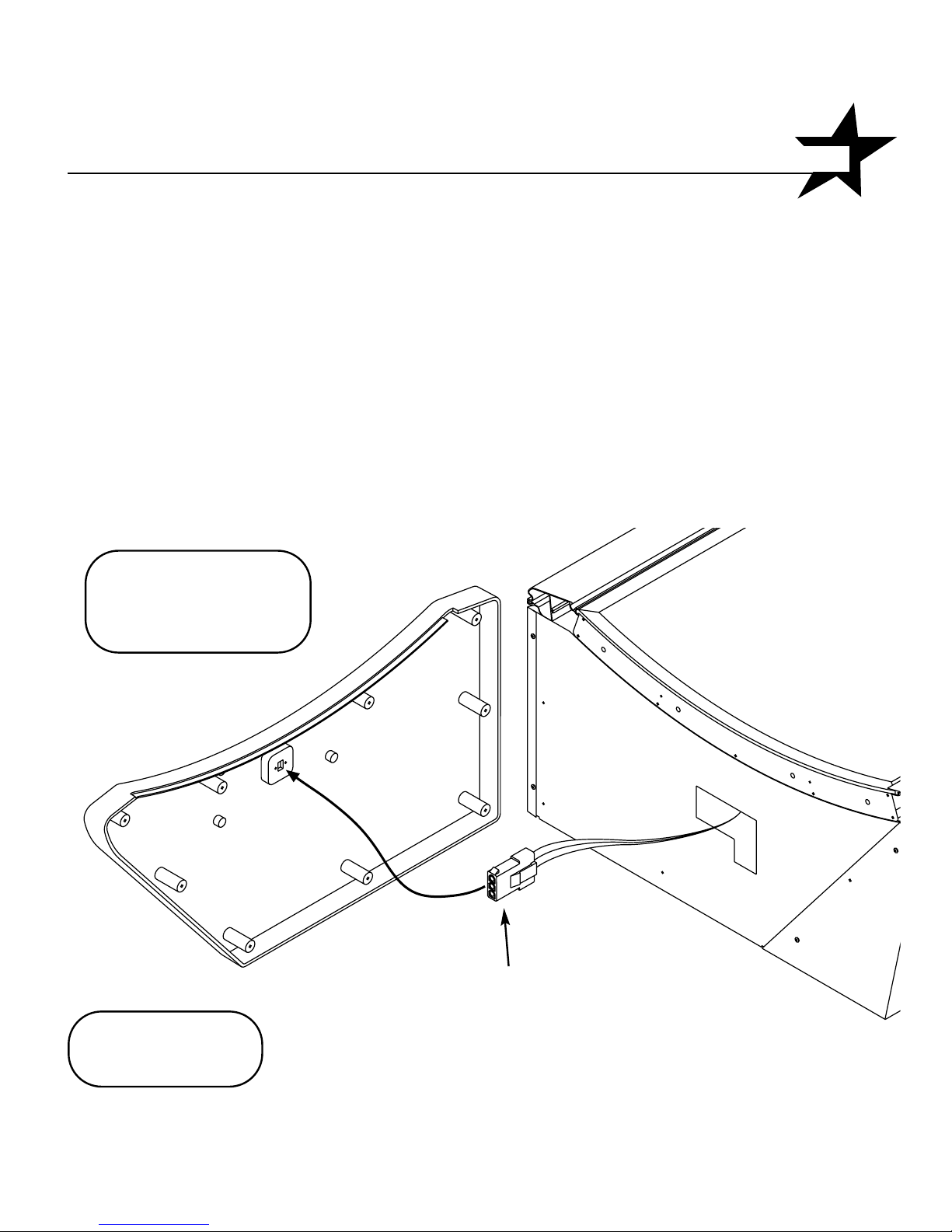

Before installing the bench endcaps you
must install the body fan power cord into
the foot end endcap, as shown below, and
the shoulder tanning unit power cord into
the head end endcap. The connector will
snap securely into the endcap.
BODY FAN POWER CORD
Snap body fan power
cord into hole in foot
end endcap.
Foot end endcap
shown.

5
27330-01A
Installation - Assembly Procedures
Parts needed:
Foot end endcap
Head end endcap
14 - #10 x 1” Phillips pan-head screws
4 - #10 x 1/2” Phillips pan-head screws
Attach endcap with
1” screws as shown.
Foot end endcap
shown.
Use 1/2” screws here.

6
Installation - Assembly Procedures
27330-01A

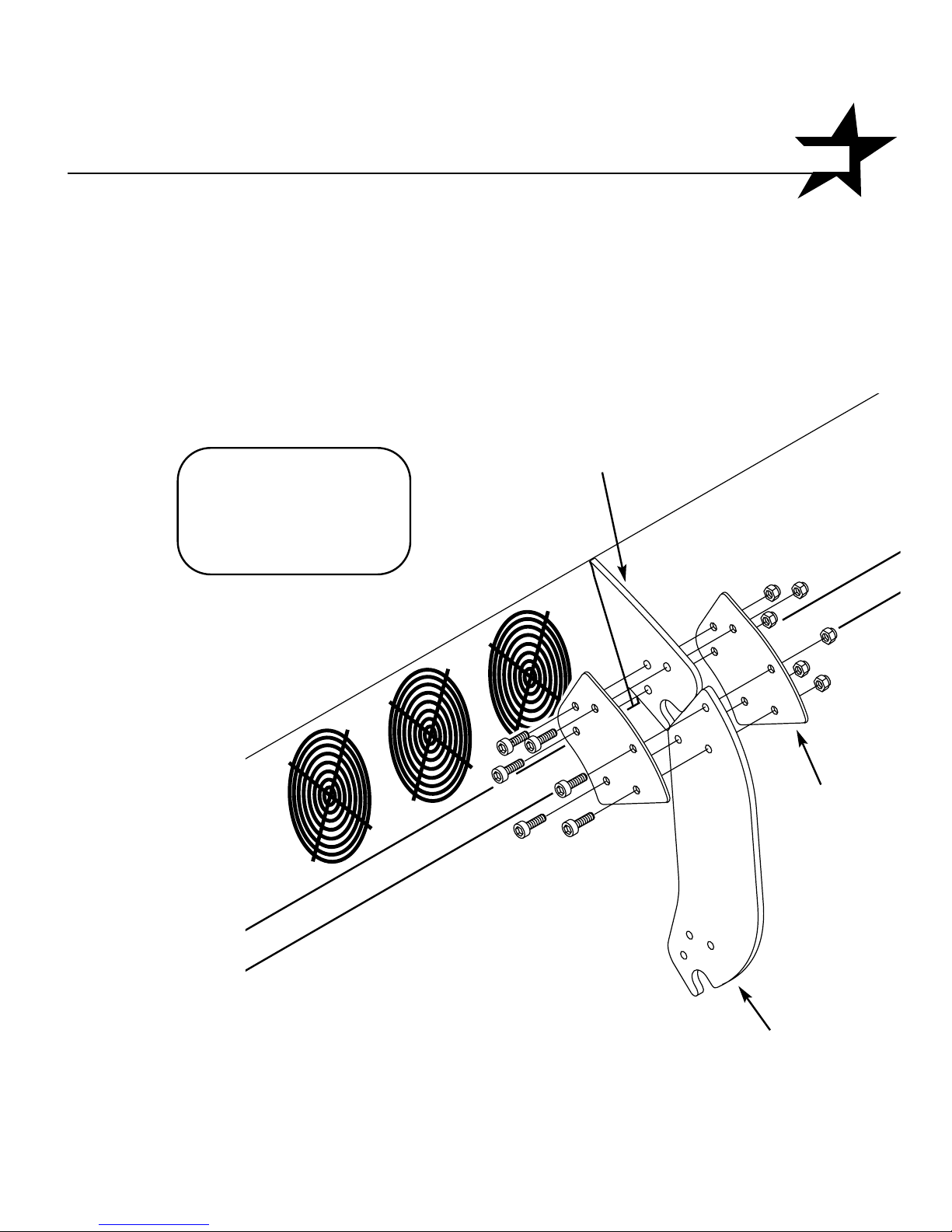

Attach adapter arms
to canopy arms using
two adapter gussets
and six bolts and nuts.
Parts needed:
Canopy
2 - Canopy Adapter Arms
4 - Adapter Gussets
12 - 3/8 x 1 1/4” hex-socket bolts
12 - 3/8” self-locking hex nuts
ADAPTER ARM
ADAPTER
GUSSET
CANOPY ARM

7
27330-01A
Installation - Assembly Procedures
Install this bolt as a
positioning aide.
Slip canopy arm onto hinge
arm. Positioning bolt will
engage the slot on top of
hinge arm and hold canopy
up while the other bolts are
installed.
Install other bolts as
shown. Secure all six
bolts in place with self-
locking nuts.
Parts needed:
6 - 3/8 x 1 1/4” hex-socket bolts
6 - 3/8” self-locking hex nuts
CANOPY
HINGE ARM
Remove this pin
and discard.
3
1
2
4

8
Installation - Assembly Procedures
27330-01A
Parts needed:
Rear lamp module
8 - #10 x 1/2” Phillips pan-head screws
Secure rear lamp module
in place with 8 screws
where shown.
Canopy removed for clarity.

Installation - Assembly Procedures
9
27330-01A
Parts needed:
Body fan kit
Shoulder tanner kit
Install the body fan and shoulder
tanner as described in the
instruction sheets included in
their respective boxes.

10
27330-01A
Installation - Assembly Procedures
Slide the ballast tray under the unit
and pull the cords through to the
rear. Install the access panel by
putting it in place and locking
with the access panel key.

11
27330-01A
Installation - Electrical Connections
Electrical Connections

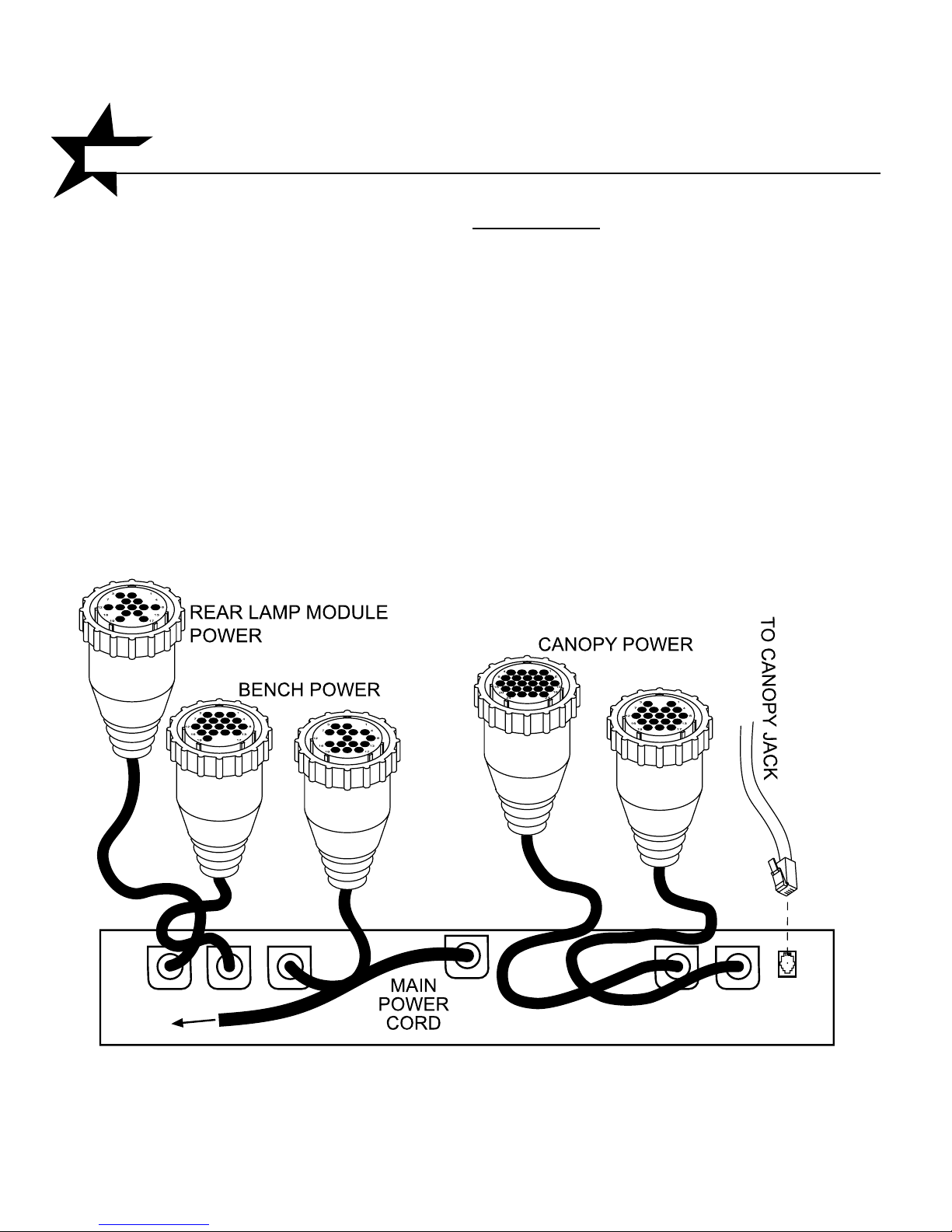

At the rear of the sunbed, connect the two
canopy power cords, two bench power
cords and rear lamp module cord from the
ballast tray to their respective power recep-
tacles. Simply match the plug to the recep-
tacle, push on firmly and secure by twisting
the threaded locking ring.
PIN CONFIGURATIONS MAY VARY FROM SHOWN
(Rear of ballast tray shown)
Connect the RJ-11 (phone type) cable
between the canopy and rear jack on the
ballast tray. The three jacks on the front of
the tray are for remote connections.
Connect main power cord as described in
Pre-Installation Planning.
Helpful Hint: Line up the plug with the
proper receptacle and push in. Apply
pressure to the plug and twist the locking
ring counter-clockwise until you feel the
plug click into place. Then turn the lock-
ing ring clockwise to secure it. The ring
will click when fully engaged.

12
27330-01A
Installation - Final Adjustments
LIFT
ADJUSTMENT
MAINTENANCE HEIGHT
RELEASE HANDLE
AIR FILTERS

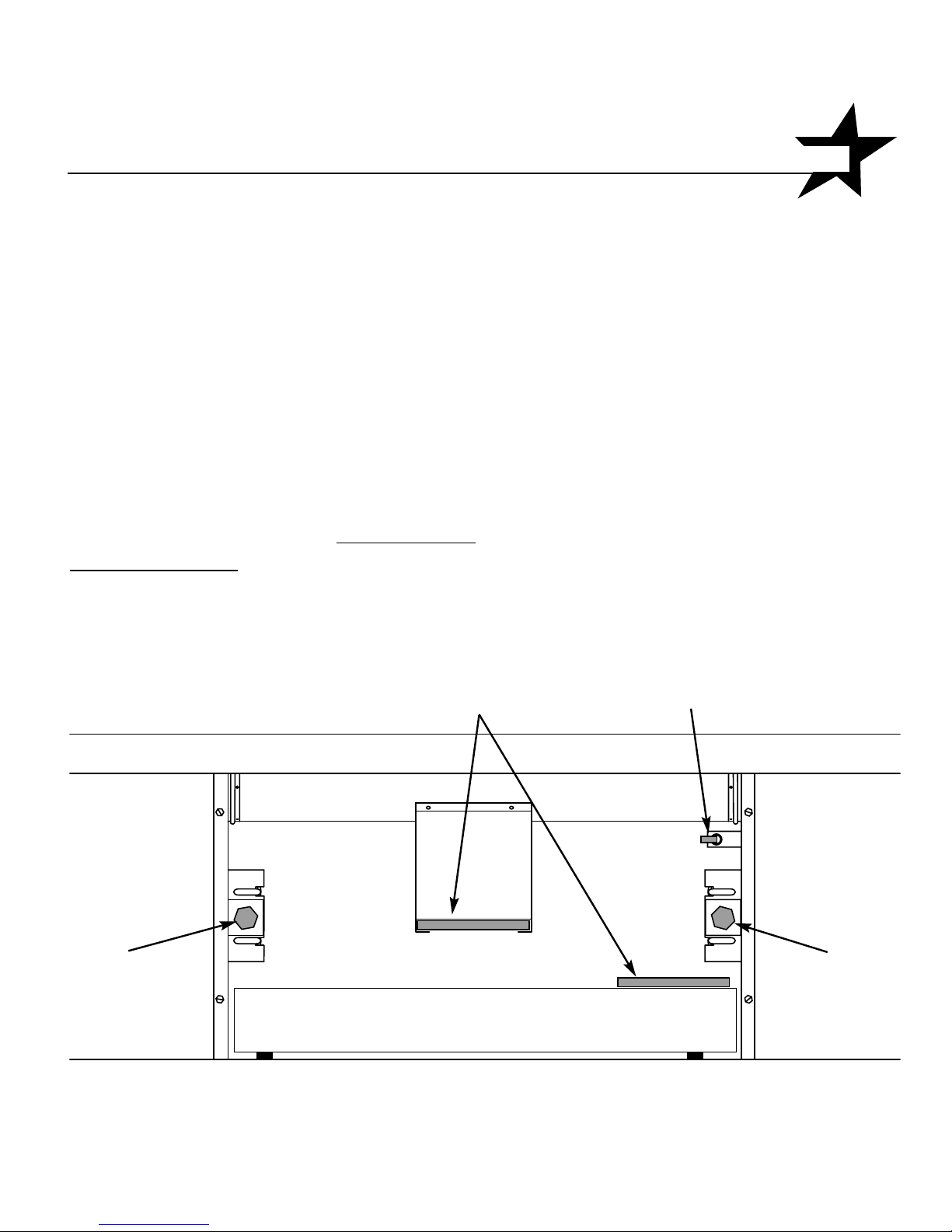

Final Adjustments
Your sunbed uses a smooth gliding spring
lift system to raise the canopy. This lift sys-
tem may need to be adjusted slightly due
to shipment. Remove the front access
panel. Use a wrench to turn the hex
shaped Lift Adjustment lugs (shown
below), clockwise for more lift and coun-
terclockwise for less. When adjusted
properly, the canopy should raise easily as
well as rest fully closed. Always adjust
both lugs equally.
Make sure the air filters are in place. The
filter on top of the ballast tray simply sits
over the vent holes. Airflow holds it in
place when the unit is on. The airflow
arrow on the side of this filter should point
down. The filter hanging under the bench
should be installed with the arrow point-
ing up.
LIFT
ADJUSTMENT

27330-01A
Installation - Remote Connections
13
Remote Connections
Your sunbed incorporates advanced cir-
cuitry allowing it to connect and commu-
nicate with most remote control systems.
If a remote system is to be used, first
determine whether the remote system is a
T-Max® System or a standard remote sys-
tem operating with a control relay. The
following pages outline many different
remote connection scenarios. Find the
scenario that best fits your application.
Three remote ports are located on top of
the ballast drawer at the front, two RJ-22
(4-wire) ports and one RJ-11 (6-wire)
port. A Remote Control Bypass plug is
already installed in one of the RJ-22
remote control ports. Your sunbed will not
operate without the Remote Control Bypass
plug or a remote system connected.
ATTENTION: Although the Remote
Control Bypass plug provided with your
sunbed will work wherever a T-Max® ter-
minator is called for in the series, the T-
Max® terminator will not work as a
bypass plug. Normally, a bypass plug is
needed only when your sunbed is operat-
ed without a remote system connected.
You will notice some wire clamps along
the side of the fan housing under the
bench. These are for the remote cables to
keep them out from under the ballast
drawer when rolling the drawer in and
out of the unit. Route the remote cables
as shown below, leaving some slack for
the drawer to roll out.
REAR
TO REMOTE
PORT
FAN HOUSING UNDER BENCH
REMOTE PORTS
WIRED
REMOTE
PORTS (RJ-22)
WIRELESS
REMOTE
PORT (RJ-11)

14
27330-01A
Installation - Remote Connections
CAUTION
The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter-
face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.
T-Max® Products
The T-Max® remote systems offer the ultimate
in sunbed control, while allowing the tanner
easy straightforward operation. Your sunbed is
configured to directly connect to this system,
including the new wireless remote system.
The circuitry inside your sunbed eliminates
the need for the T-Max® 1A or 3A when con-
necting to the T-Max® Manager series. Your
sunbed supports the auto addressing feature
of the latest T-Max® Manager models and the
following parameters: 5, 6, 7, 8, 9, 10, 15 and
23. See your T-Max® manual for descriptions
of these parameters and how they function.
REMOTE PORTS
WIRED
REMOTE
PORTS (RJ-22)
WIRELESS
REMOTE
PORT (RJ-11)
T-Max® Wireless Remote System
The T-Max® AP-900 eliminates wires in your
salon, allowing easy setup without hiring an
electrician to run wires. It also protects your
investment from damage by isolating each
unit from one another. Your sunbed arrives
“wireless ready”, which means it connects
directly to the T-Max® wireless system.
The T-Max® wireless system is available in
two configurations: AP-900 Retail and AP-900
OEM. The Retail version contains a power
adapter which plugs into a standard 110V
outlet. The OEM version gets power from the
tanning bed through the same RJ-11 cable it
uses to communicate, eliminating the need
for an outlet. Tanning beds labelled “wireless
ready” use the AP-900 OEM.
Remote System Hook-up Scenarios
Follow the diagrams on the next page to see
the many different scenarios for hooking up
your salon. If you need further assistance, call
T-Max® directly at [phone].

15
27330-01A
Installation - Remote Connections

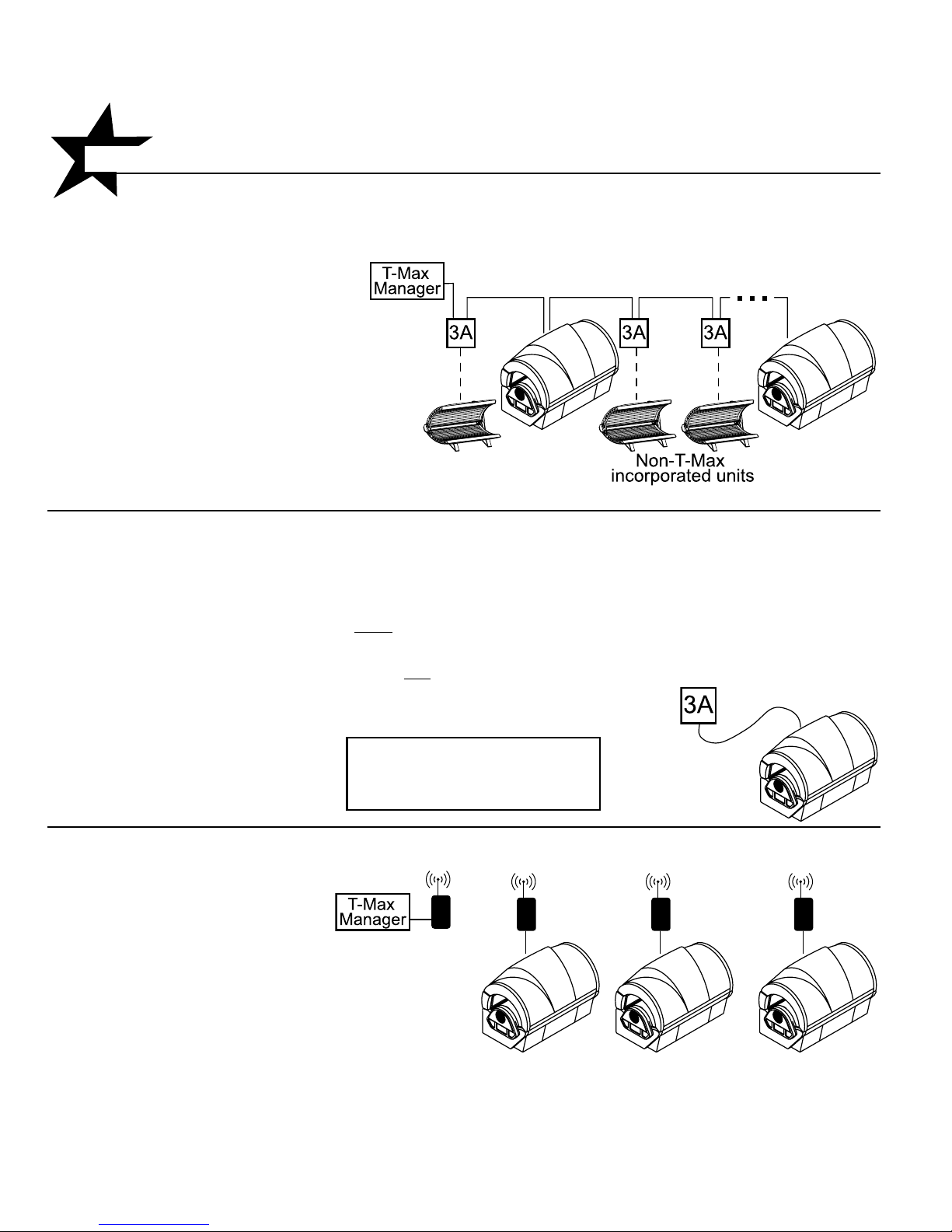

Scenario 1 - T-Max® Manager Series with wires
This system is ideal for multiple sunbed installa-
tions. Simply connect the RJ-22 modu-
lar cable(s), described in the T-Max®
Manager manual, into the remote
port(s) located on the ballast drawer and follow
the instructions that came with your remote
system. If you have an older T-Max® Manager
that does not support auto addressing, set
the address of each sunbed manually as
described in Setting the address manually.
You can place your sunbed at any location in
the series.
Scenario 2 - Single Bed wired to T-Max® 3A
In single sunbed installations, the T-Max® 1A and
3A can offer the same control as the T-Max®
Manager, eliminating the need for a Manager. If
you’re using a 1A in this manner, it must have a
chip labelled “master” installed on its circuit
board. The remote control bypass plug must not be
used in this configuration. The 3A may be used as
a “master” with no modification.
NOTE: A T-Max® 1A with a
“master” chip can be substituted
for a 3A.
Scenario 3 - T-Max® Manager
Series with Complete Wireless
Connect one AP-900 Retail to the
Manager and one AP-900 OEM
to each of the tanning beds.
Install as many beds as you like
with this configuration. Units that
do not communicate with T-Max
will need an AP-900 Retail and
an additional 3A to operate.
After you have set the T-Max® 1A’s, or 3A’s, address
to “0” (refer to your T-Max® user’s guide) and the
sunbed’s address to “1”, simply connect the RJ-22
modular cables, described in the T-Max® user’s
guide, directly into either of the smaller ports locat-
ed on the ballast drawer and either port on the
back of the T-Max® 1A
or 3A.
