ETS SunStar 332 User manual

26868-01A

26868-01A
i
STANDARD 48 MONTH WARRANTY
Your ETS Distributor (including ETS, Inc. if purchased directly), through a manufacturer’s warranty, warrants
your tanning unit to be free of structural defects in material and workmanship, under normal use, for its lifetime.
Your ETS Distributor will, at its discretion, repair any structural defect which materially affects the performance
of the tanning unit, or replace the tanning unit.
For forty-eight (48) months following the shipping date of your tanning unit, your ETS Distributor will provide
replacements for parts that prove to be defective in material or workmanship. Fluorescent lamps, and lamp starters
are warranted against manufacturer’s defects for a period of ninety (90) days following the shipping date of your
tanning unit. Acrylics will be warranted against manufacturer’s defects for a period of 1 year (prorated).
Labor costs associated with repair or replacement work covered by this warranty will be reimbursed for repair or
replacement work required to be performed for a period of one (1) year following the shipping date of your tan-
ning unit. Normal wear and tear, damage from misuse or abuse, damage incurred in transit or damages resulting
from unauthorized repairs or modifications are not covered by this warranty. Warranty coverage does not include
cosmetic abnormalities such as scratches, nicks, dents, or other cosmetic changes that do not materially interfere
with the function of the tanning unit.
THIS STANDARD 48 MONTH WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED. No one has the authority to change or
modify this Standard 48 Month Warranty in any respect. To obtain service under this Standard 48 Month
Warranty, contact your authorized ETS Distributor (or ETS, Inc. if purchased directly). Proof of purchase, includ-
ing serial number, is required.
IN NO EVENT SHALL YOUR DISTRIBUTOR OR THE MANUFACTURER BE LIABLE AT LAW OR IN EQUI-
TY FOR ANY LOSS, LIABILITY, DAMAGE OR EXPENSE IN AN AMOUNT IN EXCESS OF THE PURCHASE
PRICE RECEIVED, OR FOR LOSS OF USE OR PROFITS, LOSS OF TIME, INCONVENIENCE, RENTAL OR
SUBSTITUTE PRODUCTS, LOSS OF BUSINESS, LOSS OF INCOME, OR ANY OTHER INCIDENTAL, INDI-
RECT, SPECIAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of
incidental or consequential damages, and the above limitation or exclusion will not apply to residents of some
states. This Standard 48 Month Warranty gives you specific, legal rights and you may have other rights which may
vary from state to state.
All warranty service must be performed by an authorized service person. All labor charges must be authorized by
your ETS Distributor prior to the start of repairs and must not exceed the established rates and time allotment
policies established by your ETS Distributor. If your tanning unit must be returned for service, all freight charges
shall be at your expense. Contact your ETS Distributor for the authorized Service Center nearest you. This war-
ranty is serial number specific and only applies to tanning units purchased through an authorized ETS Distributor.
This warranty is extended to the individual or legal entity whose name appears on the original sales document and
may not be transferred to any other individual or legal entity. This warranty is void if the tanning unit is modified
in any manner from its original design.
To obtain warranty service, contact your place of purchase. Proof of purchase, including serial num-
ber, is required for verification. Contact ETS, Inc. onlyif you purchased your equipment directly.
ETS, Inc. 7445 Company Drive, Indianapolis, IN 46237-9296
1-800-449-3605 In Canada call 1-800-661-6292 or 519-421-1212

26868-01A
ii
elcome
Congratulations on your purchase of this technologically advanced sun tanning unit. It has been
designed to provide years of dependable service for you.
Please read all the instructions in this booklet before installing and using the unit. Always be sure to
observe all safety precautions.
ontents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Pre-Installation Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Hardware Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Assembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

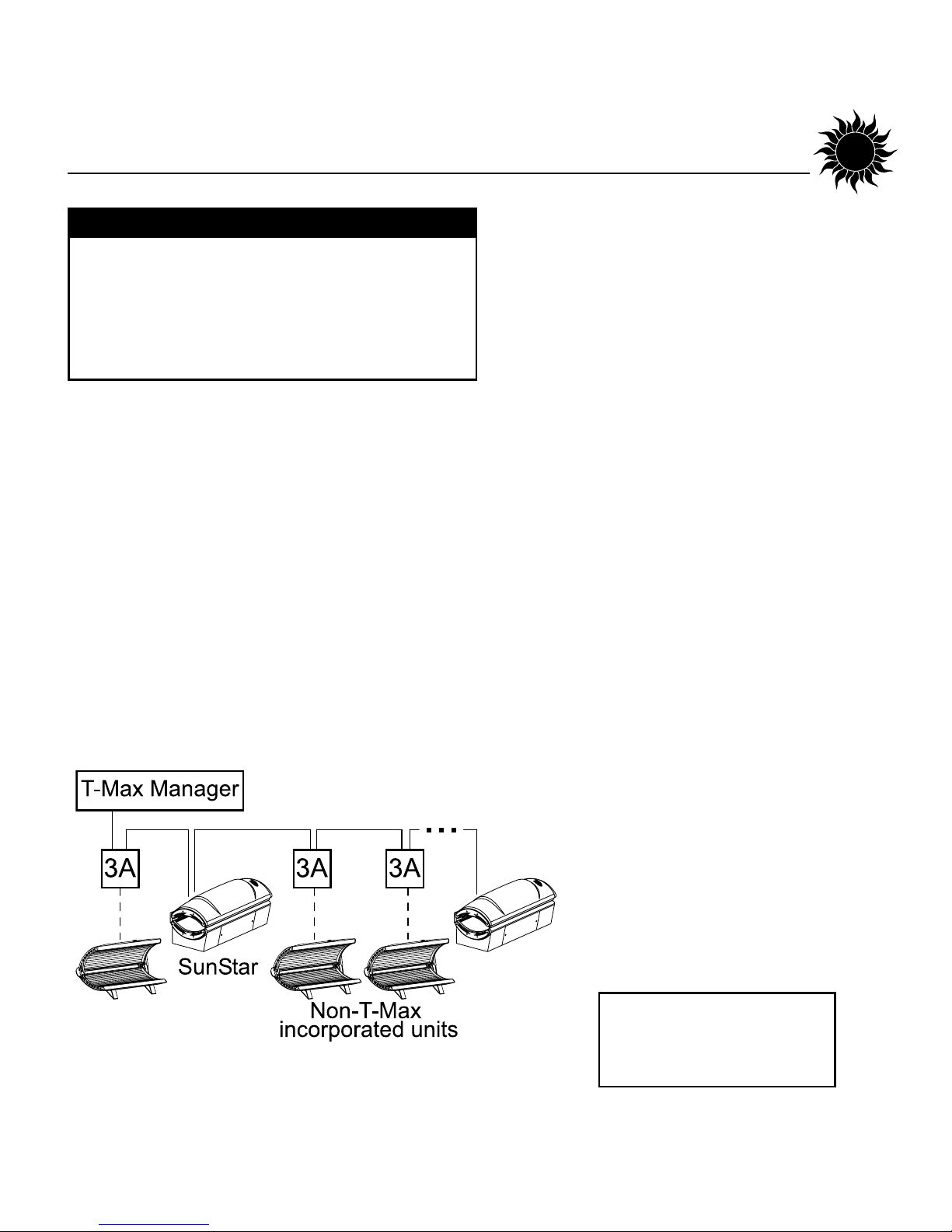

Remote Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Before You Tan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Exposure Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Using Your Sunbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cleaning After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Thorough Periodic Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Mechanical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Lamp and Acrylic Replacement . . . . . . . . . . . . . . . . . . . . . . . . .21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

26868-01A
iii
afety Information
Ultraviolet radiation. Follow instructions. Avoid overexposure. As with natural sunlight, overexposure can cause
eye and skin injury and allergic reactions. Repeated exposure may cause premature aging of the skin and skin
cancer. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE BURNS OR LONGTERM INJURY TO THE EYES.
Medications or cosmetics may increase your sensitivity to the ultraviolet radiation. Consult physician before using sunlamp if you are
using medications or have a history of skin problems or believe yourself especially sensitive to sunlight. If you do not tan in the sun, you
are unlikely to tan from the use of this product. Children, the elderly, or fair skinned people who always burn easily and either never tan
or tan minimally should not use this equipment.
To use, lie down under canopy and pull down as far as adjustment will allow maintaining at least 3 inches (7.6 centimeters) between your
body and canopy acrylic panel, otherwise overexposure may occur. Minimum use distance from face tanner is 4 inches (10.2 centime-
ters). Minimum use distance elsewhere is touching the acrylic panel. Do not use without acrylic panels in place. Untanned persons should
not tan on consecutive days during their first week of tanning. Never tan more than once a day. Tanning normally appears after the first
few sessions and maximizes after approximately four weeks. Tan once or twice per week thereafter to maintain appearance. Persons
already having a base tan may begin at advanced levels corresponding to the extent of their base tan.
New lamps emit approximately 10% more ultraviolet radiation during the first 50 hours of operation. Recommended tanning times should
therefore be reduced by approximately 10% during that period.
WARNING: • Read the instructions booklet before using this sunlamp product. • All persons in the room should wear protective eyewear
when lamps are on. Recommended eyewear: provided eyeshields or equivalent eyewear as defined under 21 CFR 1040.20. Other types
of eyewear may not provide adequate protection. Failure to use protective eyewear may result in severe burns or other eye injury. If dis-
comfort develops, discontinue use and consult a physician.
ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THIS EQUIPMENT:
Dark Tan™ PLUS Wolff® Model DTP71-T12-100W BI-PIN
Heraeus E400 HPT -or- Philips Model HPA 400/30s -or- CosmoTech Model 23045 (SolarMax™ IFT facial unit)
THIS EQUIPMENT MUST BE EARTH GROUNDED.
This product is in conformity with performance standards for sun lamp products under 21 CFR PART 1040.20 and
ANSI/UL Standard 482. Certified to CAN/CSA Standard C22.2 NO. 224.
LABELING NOTICE: Labels are affixed on all systems to inform the user of possible dangers. Regulations are stated in 21 CFR, Section
1040.20, and require that all products manufactured after September 8, 1986 which use sunlamps must display the following:
DANGER
88465
DISCONNECT POWER BEFORE ATTEMPTING TO CLEAN, RELAMP, OR ENGAGE IN THE MAINTENANCE OF THIS PRODUCT.
RECOMMENDED EXPOSURE TIMES IN MINUTES MAXIMUM EXPOSURE TIME IS 10 MINUTES
Level 1/Week 1 Level 2 Level 3 Level 4 Level 5
Skin Type: 1st-3rd Sessions
ISensitive Skin (Burns easily and severely and does not tan.) NOT RECOMMENDED FOR TANNING
II Light (Burns easily and severely and tans minimally.) 246810
III Normal (Burns moderately and tans average.) 3571010
IV Dark (Burns minimally, tans easily and above average.) 4681010

26868-01A
iv
Renseignements sur la Sécurité
Rayonnement ultraviolet. Veuillez suivre les instructions. Évitez une exposition excessive. Tout comme pour les
rayons du soleil, une exposition excessive peut causer des blessures aux yeux et à la peau et provoquer des réac-
tions allergiques. Une exposition répétée peut causer le vieillissement prématuré de la peau et provoquer le cancer de la peau. PORTEZ
DES LUNETTES PROTECTRICES: LE NON-RESPECT DE CETTE CONSIGNE DE SÉCURITÉ PEUT ENTRAÎNER DE GRAVES
BRÛLURES OU DES LÉSIONS OCULAIRES À LONG TERME. Les médicaments ou les produits cosmétiques peuvent augmenter votre
sensibilité au rayonnement ultraviolet. Consultez un médecin avant d’utiliser la lampe solaire si vous prenez des médicaments, si vous
souffrez d’une maladie cutanée ou si vous croyez être particulièrement sensible aux rayons du soleil. Si vous ne bronzez pas au soleil, il
est peu probable que vous bronzerez sous une lampe solaire. Les enfants, les personnes âgées et les personnes qui ont une peau claire
qui brûle facilement, ne bronze jamais ou alors très peu, ne devraient pas utiliser cette lampe.
Étendez-vous sous la partie supérieure, puis abaissez celle-ci aussi bas que possible, en veillant cependant à conserver un espace d’au
moins 3 pouces (7,60 centimètres) entre le corps et le panneau de plastique transparent de la partie supérieure, afin d’éviter une exposition
excessive. La distance minimale d’usage de l’appareil de bronzage pour le visage est de 4 pouces (10.2 centimètres). Les autres parties
du corps peuvent toucher les panneaux de plastique transparents. N’utilisez pas la lampe sans les panneaux de plastique transparents. La
première semaine de bronzage, les personnes qui n’ont pas un hâle initial ne doivent pas se faire bronzer tous les jours. Ne vous faites
jamais bronzer plus d’une fois par jour. Le bronzage commence normalement à apparaître après les premières séances : il atteint son
apogée au bout d’environ quatre semaines. Les personnes qui ont déjà un teint hâlé peuvent commencer à des niveaux plus élevés, selon
l’importance de leur hâle initial.
Les lampes neuves émettent approximativement 10 % de plus de rayons ultraviolets au cours des 50 premières heures de fonction-
nement. Le temps de bronzage doit donc êatre réduit d’environ 10 % pendant cette période.
AVERTISSEMENT : • Lisez le livret d’instructions avant d’utiliser cette lampe solaire. • Les autres personnes présentes dans la pièce
doivent aussi porter des lunettes protectrices lorsque les lampes sont allumées. Coquilles de protection pour les yeux recommandées: Les
coquilles de protection fournies ou l’équivalent, tel que le stipule le document 21 CFR 1040.20. Les autres types de lunettes protectrices
peuvent ne pas assurer une protection adéquate. Utilisé sans lunettes protectrices, ce produit peut causer des brûlures ou lésions oculaires
graves. Si vous souffrez d’un malaise, arrêtez l’utilisation et consultez un médecin.
SEULES LES LAMPES SUIVANTES ONT ÉTÉ HOMOLOGUÉES POUR CET ÉQUIPEMENT :
DARK TAN™ PLUS Wolff® Modèle DTP71-T12-100W BI-PIN
Heraeus E400 HPT -ou- Philips Modèle HPA 400/30s -ou- CosmoTech Modèle 23045 (unité faciale)
Cet équipement doit être mis à la terre.
Ce produit est conforme aux normes de rendement pour les lampes solaires dans le documents 21 CFR, partie
1040.20 , ANSI/UL 482 , CAN/CSA C22.2 N° 224.
DANGER
88465
TEMPS D’EXPOSITION RECOMMANDÉ EN MINUTES LE TEMPS D’EXPOSITION MAXIMAL EST DE 10 MINUTES
Élevé 1/Semaine 1 Élevé 2 Élevé 3 Élevé 4 Élevé 5
Type de peau: 1ere-3e
IPeau sensible (brûle facilement et ne bronze pas) NON RECOMMANDÉ
II Peau claire (brûle facilement et bronze très peu) 246810
III Peau normale (brûle et bronze de façon modérée) 3571010
IV Peau foncée (brûle très peu, bronze plus facilement que la moyenne) 4681010
Débrancher l’alimentation électrique avant de nettoyer l’appareil , d’en faire l’entretien ou de changer les lampes.

26868-01A
1
nstallation
Unpacking and Inspection
Your sunbed comes in two cardboard car-
tons, one for the canopy and one for the
bench and ballast tray. Open the cartons
and remove the sunbed parts as follows.
The boxes dismantle to allow easy
removal of the units. Remove the box tops
and pull the sides out. The bench and
canopy are each wrapped in plastic.
Remove the plastic and, with a helper or
two, grasp the canopy and pull it from the
carton bottom without using the plastic
endcaps to lift the unit. Do the same for
the bench. Do not attempt to lift either
unit with the plastic still on as it may slip.
The ballast drawer is secured to the carton
bottom with brackets. Remove these
brackets from the ballast drawer with a
Phillips screwdriver.
Note! The cartons are reusable. You may
wish to save them for future use.
After unpacking the unit, check to make
sure you have received the following:
• Canopy unit
• Bench unit
• Ballast drawer
• Body fan kit
• Pair of gas springs
• (2) endcaps (one with slots for the
body fan bracket)
• Front access panel

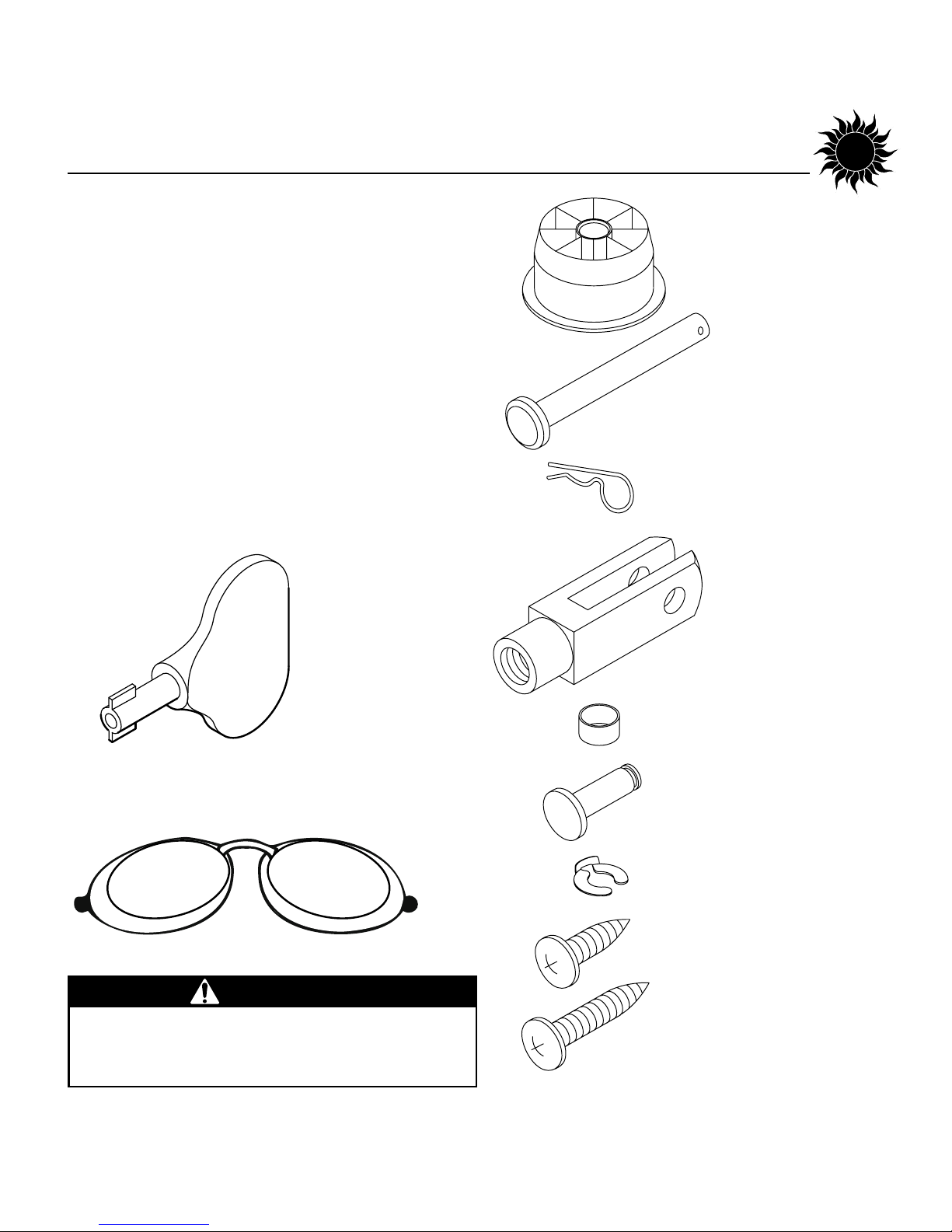

• Bag containing necessary assembly
hardware, safety goggles, and pillow
Inspect these items, including the canopy
and bench, and make sure they are free
from any visible damage. Report the
extent of any damage to the transportation
company.
Record the serial numbers of the canopy
and bench in the area provided at the
back of this manual. This information will
be required whenever you call customer
service.

26868-01A
2
Installation - Pre-Installation Planning
Pre-Installation Planning
Before you begin to assemble your sunbed, you should observe the following consid-
erations.
WARNING
Shock hazard.
Disconnect power before
servicing.
Air from the room is used to cool
the sunbed. Maximum ambient
room temperature should be 80°F.
Place your sunbed no closer than
6” from any wall. Make sure nothing
obstructs the airflow into or out of
the fan openings. A poorly ventilat-
ed room may cause the unit to
become hot and cause discomfort
to the user.
CAUTION
Use of a voltage source above 230V
AC may prevent proper operation of
the sunbed and could cause damage
and void the warranty.
CAUTION
Proper assembly of your sunbed
requires three people. Plan to have
a couple of helpers assist you.
CAUTION
• The SUNSTAR® 332 requires a dedicat-
ed circuit capable of providing 30 Amp
service at 220VAC. This unit must be
hardwired directly to a junction box on a
dedicated circuit. We recommend con-
nection by a professional electrician.
• IMPORTANT! Voltage must be below
230V AC or may require a Buck Booster.
• Some portions of the carton may be
used for assembly. Do not discard car-
tons until assembly is complete.

26868-01A
3
Installation - Tools Required
Tools Required
You will need the following tools to
assemble your sunbed.
Utility Knife
#2 Phillips
Screwdriver

26868-01A
4
Installation - Hardware Inventory
Nylon Floating
Bearing
Quantity 4
Hinge Pin,
5/16” x 2 1/32”
Quantity 2
Hinge Pin Locking Clip
Quantity 2
Clevis Fork,
M10 Long
Quantity 2
Bronze Bushing, 10mm
Quantity 2
Clevis Pin, 10mm
Quantity 2
Retaining Ring
Quantity 2
Phillips Screw, #10 x 1/2”
Quantity 8
Phillips Screw, #10 x 1”
Quantity 8
Hardware Inventory
Use the utility knife to cut open the hard-
ware bag. Remove the hardware. In addi-
tion to some touch-up paint, a phone type
(RJ-11) cable and pillow, make sure you
have the following items.
Safety Goggles
Quantity 1
Access Panel Key
Quantity 1
WARNING
Always wear protective eyewear when unit is on.
Failure to may result in severe burns or
longterm injury to the eyes.

26868-01A
5
Installation - Assembly Procedures
Assembly Procedures
Stand Assembly
1. Place the bench unit approximately
where it will be when assembled.
Leave some room behind it to work.
2. Slide the ballast drawer under the
bench, as shown, with the cables
toward the back.

26868-01A
6
Installation - Assembly Procedures
Install Canopy
1. Lay something across the bench, such
as some cardboard or a blanket, to
protect the units and place the canopy
on the bench with the canopy hinge
arms toward the back. Once again, do
not use the canopy plastic endcaps to
lift the unit.

26868-01A
7
Installation - Assembly Procedures
2. Insert the Nylon Floating Bearings into
the canopy hinge arms and carefully
lower the hinge arms into the bench
uprights.
3. Secure the arms in place with the
Hinge Pins and Hinge Pin Locking
Clips.
Bench Upright

26868-01A
8
Installation - Assembly Procedures
Install Gas Springs
1. Screw the upper Clevis Forks onto the
Gas Springs, piston end up as shown.
2. Have a helper hold the canopy in its
fully open position.
3. The lower clevis forks are
already installed. Make sure
the threaded hole faces up,
slide the Gas Springs down
into the bench uprights
and twist the Gas Springs
into the lower clevis forks.
Turn the Gas Springs until
they are snug.
Do not lower the canopy yet!

26868-01A
9
Installation - Assembly Procedures
Attach Gas Springs
1. With the canopy still raised, slip the
Bronze Bushings into the hole in the
clevis brackets on the underside of the
canopy mounting arms.
2. Line up both Clevis Forks and careful-
ly lower the canopy to engage the
Clevis Forks. Pay special attention
when lowering the canopy that the
clevis forks do not damage the
bronze bushings. Bronze is excel-
lent for smooth pivoting applica-
tions such as this, but tends to
be soft compared to the steel
clevis fork.
3. Lock the Clevis Forks in place
with the Clevis Pins
4. Secure the Clevis Pins with the
Retaining Rings.
NOTE: When this assembly is complete,
lift and lower the canopy a few times to
lubricate the gas springs for optimum per-
formance.
Clevis Bracket

26868-01A
10
Installation - Assembly Procedures
Install Endcaps
NOTE: This unit comes with a foot end
body fan. Instructions for installing the fan
are included with the body fan kit. Follow
those instructions to install the body fan.
Put the head end endcap (the one without
slots on top) in place and secure with two
#10 x 1/2” screws in the two middle
holes. Use two #10 x 1” screws in the two
outer holes.
1/2” SCREWS
1” SCREW
1” SCREW

26868-01A
11
Installation - Electrical Connections
Electrical Connections
At the rear of the sunbed, connect the two
canopy power cords and two bench power
cords from the ballast tray to their respective
power receptacles. Simply match the plug
to the receptacle, push on firmly and secure
by twisting the threaded locking ring.
Connect the RJ-11 (phone type) cable
between the canopy and rear jack on the
ballast drawer. The double jacks on the front
of the drawer are for remote connections.
Connect main power cord as described in
Pre-Installation Planning.
PIN CONFIGURATIONS MAY VARY FROM SHOWN
Helpful Hint: Line up the plug with the
proper receptacle and push in. Apply
pressure to the plug and twist the locking
ring counter-clockwise until you feel the
plug click into place. Then turn the lock-
ing ring clockwise to secure it. The ring
will click when fully engaged.

12
26868-01A
Installation - Final Assembly
Final Assembly
Make sure the air filter is in place on top of
the ballast drawer. It simply sits on the
drawer, over the air slots, and is held in
place by airflow when the unit is running.
The arrow on the filter should point down.
Put the Front Access Panel in place and lock
with the Access Panel Key.
Note: You may have a few extra screws left
over.
ACCESS PANEL
FILTER

13
26868-01A
Installation - Remote Connections
Remote Connections
Your sunbed incorporates advanced cir-
cuitry allowing it to connect and com-
municate with most remote control sys-
tems. If a remote system is to be used,
first determine whether the remote sys-
tem is a T-Max® System or a standard
remote system operating with a control
relay. Follow the appropriate instructions
for your system type.
Two remote ports are located on top of
the ballast drawer at the front. Both ports
work the same. A Remote Control Bypass
plug is already installed in one of the
remote control ports. Your sunbed will not
operate without the Remote Control Bypass
plug or a remote system connected.
ATTENTION: Although the Remote
Control Bypass plug provided with your
sunbed will work wherever a T-Max® ter-
minator is called for in the series, the T-
Max® terminator will not work as a
bypass plug. Normally, a bypass plug is
needed only when your sunbed is operat-
ed without a remote system connected.
You will notice some wire clamps along
the side of the fan housing under the
bench. These are for the remote cables to
keep them out from under the ballast
drawer when rolling the drawer in and
out of the unit. Route the remote cables
as shown below, leaving some slack for
the drawer to roll out.
REAR
TO REMOTE
PORT
FAN HOUSING UNDER BENCH

14
26868-01A
Installation - Remote Connections
T-Max® Products
The T-Max® remote systems offer the ultimate
in sunbed control, while allowing the tanner
easy straightforward operation. Your sunbed is
configured to directly connect to this system.
The circuitry inside your sunbed eliminates the
need for the T-Max® 1A or 3A when connect-
ing to the T-Max® Manager series. Your
sunbed supports the auto addressing feature of
the latest T-Max® Manager models and the fol-
lowing parameters: 2, 5, 6, 7, 8, 9, 10, 14, and
15. See your T-Max® manual for descriptions
of these parameters and how they function.
T-Max® Manager Remote System
This system is ideal for multiple sunbed instal-
lations. Simply connect the RJ-22 modular
cable(s), described in the T-Max® Manager
manual, into the remote port(s) located on the
back of your sunbed and follow the instruc-
tions that came with your remote system, not-
ing figure 1. If you have an older T-
Max® Manager that doesn’t support
auto addressing, set the address, or
“id”, of each sunbed manually as
described in Setting the address man-
ually. You can place your sunbed at
any location in the series.
figure 1
NOTE: A T-Max® 1A
can be substituted for
the 3A in figure 1.
CAUTION
The remote connection is not designed to supply
or accept high voltage, nor can it provide power
to an external timer. The sunbed’s remote inter-
face circuitry operates on 5 volts, attempting to
connect it to any higher voltages will damage the
sunbed as well as void your warranty.
Go straight to the source with all your
T-Max® brand remote questions:
[phone]

15
26868-01A
T-Max® 1A and 3A Remote Systems
In single sunbed installations, the T-Max® 1A
and 3A can offer the same control as the T-
Max® Manager, eliminating the need for a
Manager. If you’re using a 1A in this manner,
it must have a chip labelled “master” installed
on its circuit board. The remote control
bypass plug must not be used in this configu-
ration. The 3A may be used as a “master” with
no modification.
After you have set the T-Max® 1A’s, or 3A’s,
address to “0” (refer to your T-Max® user’s
guide) and the sunbed’s address to “1” (see
right), simply connect the RJ-22 modular
cables, described in the T-Max® user’s guide,
directly into either port located on the back of
the sunbed and either port on the back of the
T-Max® 1A or 3A. See figure 2.
Setting the address manually
Before connecting your sunbed to the T-Max®
Manager or T-Max® 1A or 3A, the address of
your sunbed must first be set. Set the “id” man-
ually as described below.
Setting the “id”
1. Make sure no cables are plugged into
your sunbed’s remote ports.
2. Remove and reapply power to the unit.
3. Press and hold the stop button, located
on the sunbed display, for three seconds
and release. The display should indicate
an “id” number from “oF” to “252”.
4. If you are using a T-Max® 1A or 3A as a
“master” remote, the “id” of the sunbed
must be set to “1”. If you are using a T-
Max® Manager each sunbed must be
assigned a different “id”. To set the “id”
press the timer button, to count up, or
the body fan control button, to count
down, until the desired number is
achieved.
5. Press the stop button to return to the
normal display mode.
1-99
100-199
200-252
figure 2
NOTE: A T-Max® 1A
with a “master” chip
can be substituted for
a 3A in figure 2.
Installation - Remote Connections
