EURO EA90STRS User manual

1
Rangehood
Instruction Manual
EA90STRS
EURO APPLIANCES BY EUROSTYLE GROUP

2
CONTENT
1 .............................................. Notice
2 .............................................. Installation Requirements
3 .............................................. Installation –Fitting the Rangehood.
4 .............................................. Safety Warning
5 .............................................. Instructions for Use
6 .............................................. Maintenance
7 .............................................. Troubleshooting

3
(1) Notice
1. Thank you for choosing our Rangehood. Please read this
instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and
competent installer in compliance with applicable Australian
Standards.
3. Euro Appliances disclaims all liability for any damage or
injury caused as a result of not following these instructions for
installation.
This Rangehood is suitable for connection to a 240V, 50Hz
power supply with a proper earth.
Contents
1 x Rangehood
1 x Packet of Screws & Fittings
1 x plastic outlet with flaps
1 x Set of Chimney Pieces (Upper & Lower)
1 x Operating & Installation Instructions

4
(2) Installation - Requirements
Warning: This Rangehood is suitable for indoor installation only in
accordance with the following:
Installation must be performed by a qualified competent installer.
If installed above a barbecue, the minimum distance from the
cooking grid/plate is 120cm.
If installed above a cooking appliance, the minimum distance
from the cooking surface is 65cm.
1. Before installation, please ensure the area is clean to avoid
suction of any debris such as bits of broken wood, sawdust,
etc.
2. Flexible duct bending should be ≥120°.
3. There shall be adequate ventilation of the room when the
Rangehood is used at the same time as appliances burning gas
or other fuels (not applicable to appliances that only discharge
the air back into the room).
4. The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels
(not applicable to appliances that only discharge the air back
into the room).
5. Regulations concerning the discharge of air have to be
fulfilled.

5
(3). Installation –Fitting the Rangehood.
This Rangehood must be placed at a distance of 65cm minimum from the
cooking surface of a cooker/hotplate and 120cm minimum from the
cooking surface of a BBQ.

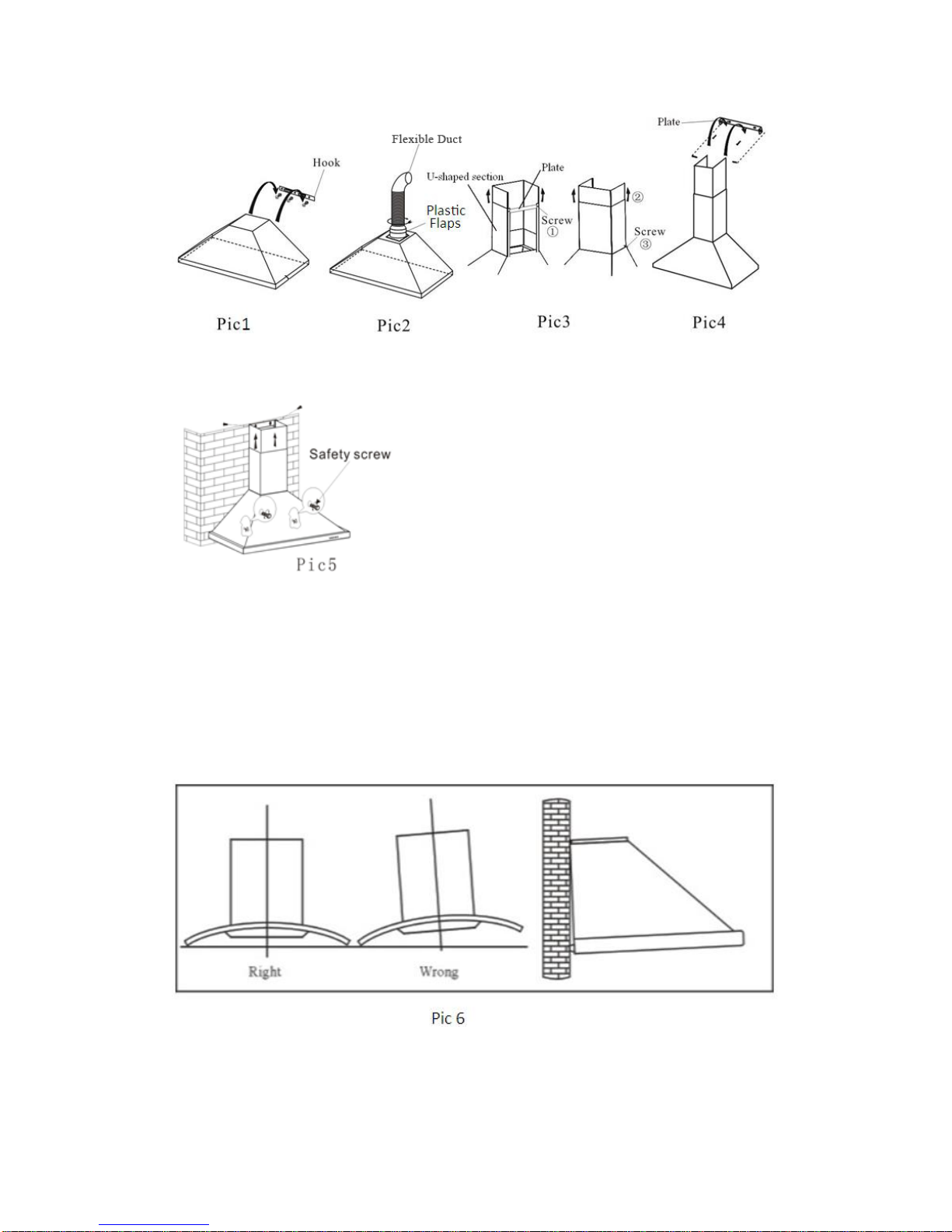

3.1 Fit the plastic outlet with flaps to the outlet vent of the Rangehood
using 4 screws 9mm long supplied (refer to Pic 2 for location of the
flaps).
3.2 Fit the supplied Hook to the wall using the 36mm long screws
supplied (refer to Pic 1). Fixing method to the wall must be capable of
supporting the weight of the Canopy.
3.3 Lift the Canopy onto the Hook and make sure both left and right
hand hooks are engaged (refer to Pic 1).
3.4 Fit the Flexible Duct (not supplied) to the plastic outlet (refer to Pic
2).
3.5 Exhaust the Flexible Duct to the outdoors and fit a one way valve
to prevent rain & dust entering into the Canopy.
3.6 Determine the height of the U-shaped section. Line up the holes in
the plate with those in the lower U-Shaped section and fix the plate to the
wall using the 36mm long screws supplied (refer to Pic 3 item 1).
3.7 Align the holes in the lower corner of the U-shaped section and fit
the 9mm long screws supplied through each side (refer to Pic 3 item 3).
3.8 Pull up the inner U-shaped section to a suitable height and align it
with the upper plate (refer to pic 4).
3.9 Fix the upper plate to the wall using the 36mm long screws
supplied. Fix the inner U-shaped section to the upper plate using the 9mm
long screws supplied on either side of the bracket (refer to pic 4).
3.10 Finally, drill two Ø3.5mm holes in line with the 2nd plate where the
upper and lower sections overlap. Use a 9mm long screw supplied on
each side to fix them together.
Note: Fix the Canopy with two 30mm safety screws. The two safety
screw holes are positioned on the back casing (refer to Pic 5).
