EURO Alfresco ERB 120SS User manual

1
INDEX
1.- Notice
2.- In the Box
3.- Installation
4.- Explain the instructions:
5.- Notice of installation
6.- Instructions for se
7.- Connecting the remote control
8.- Safety Warning
9.- Maintenance
10.- Abnormity and Solution

2
1. NOTICE
1.1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.
1.2. The installation work must be undertaken by a qualified and competent fitter.
1.3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following
instructions for installation contained in the following text.
1. . The cooker hood is used on 220/2 0v, 50Hz.
2. IN THE BOX
1 x Rangehood
1 X Remote Control
1 x Packet of Screws
1 x Operating Instructions
3A. INSTALLATION (Indoor)
3.1. The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface
for the best effect.

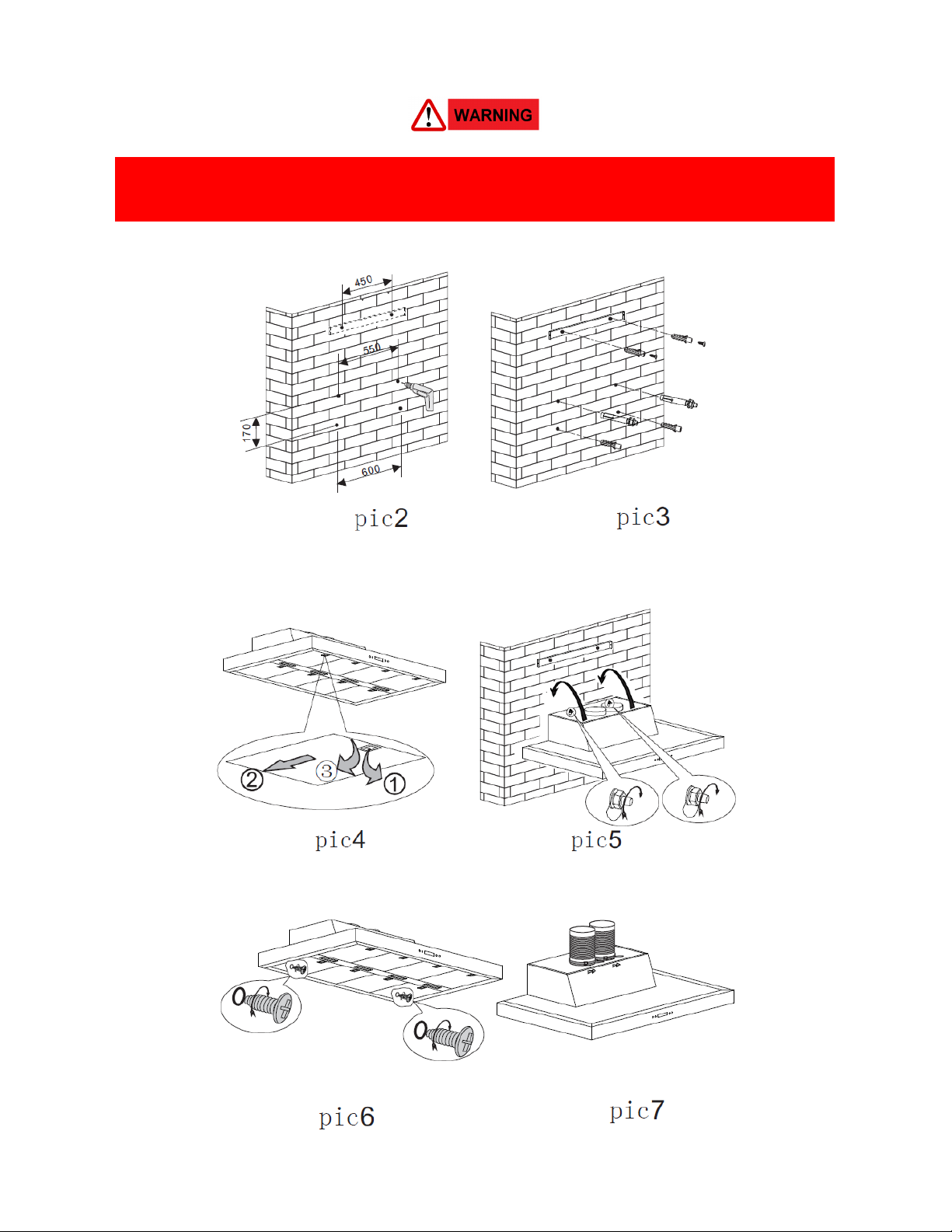

3.2. After deciding the installation height of the hood, drill 6 x Φ8 holes according to pic 2.
3.3. Put the plugs into the 2 bracket holes and 2 safety holes, and put the M6*60 explosive bolt into the
2 key holes. Fix the inside chimney bracket onto the wall with 2 ST x 0 screws. See pic 3.
3. . Take off the 8 filters according to 1-2-3 step. See pic .
3.5. Hang the hood on the two explosive bolts and lock nut. See Pic 5
3.6. Screw 2 ST x 30 through the back of the hood. See pic 6.
3.7. Fasten the extension pipe onto the outlet with a tie. See pic 7
3.8. Put the inside chimney inside the outside chimney. Take them together and put them on the top of
the hood. Then pull the extension pipe, and fasten the other end to the wall. See pic 8.
3.9. Pull the inside chimney upwards, then connect the inside chimney to the inside chimney bracket
with 2 ST x 8 screws. See pic 9.
4.


EXPLAIN THE INSTR CTIONS
Connection of the appliance to the supply mains.
Necessity to allow disconnection of the appliance from the supply after installation. Disconnection
may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in
accordance with the wiring rules.
3B. INSTALLATION (Alfresco)
Warning: This canopy is not an outdoor appliance but it can be installed in an alfresco area in
accordance with the following:
3.10. The canopy must not be exposed to rain, moisture or dust
3.11. Do not install in a location where winds may blow water or dust onto the canopy.
3.12. If installed above a barbecue, the minimum distance from the cooking grid/plate is 120cm
3.13. This canopy is suitable for indoor installation but cannot be recirculated.

3
Failure to install the screws or fixing device in accordance with these instructions may result in
electrical hazards.

4
5. NOTICE OF INSTALLATION
5.1 Before installation, please ensure the area is clean to avoid suction of the remaining bits of
broken wood and dust.
5.2 The air must not be discharged into a flue that is used for exhausting fumes from appliances
burning gas or other fuels.
5.3 The bending of ventilation tube should be≥120°, parallel or above the start point and should
be connected to the external wall.
5. After installation, make sure that the extractor is level to avoid grease collection at one end.
There shall be adequate ventilation of the room when the range hood is used at the same time as
appliances burning gas or other fuels.
Regulations concerning the discharge of air have to be fulfilled.

5
6. INSTR CTIONS FOR SE
1. Plug the hood; LCD will display 2 -hour system with blue backlight. Backlight will be extinguished
after 30 seconds without any operation.
2. Press “ ” button once; lights will be on and LCD will show “ ”. Press “ ” button again;
lights will be off and “ ” on LCD will disappear.
3. Press “ ” button once; the hood works at LOW speed and LCD will show “ ” and “ ”
button will be on. Press “ ” button again; the hood works at MEDIUM speed. Press “ ” button
one more time; the hood works at HIGH speed. Press “ ” button again; the hood works at LOW
speed again and it repeat. While pressing “ ” button; the “ ” button is always on. If you want
to stop the hood now; press the “ ” button once.
. When the hood is not working; press “ ” button once. The hood will work at the speed it
works last time and LCD will show “ ”. Press “ ” button again; the hood stop working and “ ”
will disappear from LCD.
5. When both “ ” button and “ ” button don’t work; “ ” button is used for time-setting.
Press “ ” button for 2 to 3 seconds; will be shown on LCD and flashes; which
represents hour. Press “ ” button once the number adds by 01. Continue pressing “ ” button;
it will display from 13;1 … until 23. When LCD shows 23; it doesn’t work by pressing “ ” button.
Press “ ” button once; the number reduces by 01. When LCD shows 00; it doesn’t work by
pressing “ ” button. After setting hour; you can start setting minute
by pressing “ ” button again. on LCD flashes; which represents minutes. Press “ ” button
once the number adds by 01. Continue pressing “ ” button; it will display from 01;02… until 59.
When LCD shows 59; it doesn’t work by pressing “ ” button. Press “ ” button once; the
number reduces by 01. When LCD shows 00; it doesn’t work by pressing “ ” button. After setting
hour and minute; press “ ” to confirm.

6
6. When “ ” button doesn’t work; “ ” button is used for delay timer function. Delay timer
function allows you to set the hoods automatically power off according to the delay timer you set
from 1 minute to 60 minutes. Press “ ” button once; it enters for delay timer setting and LCD
shows . Press “ ” button once the number adds by 01. Continue pressing “ ”
button; it will display from ; ; … until Press “ ”
button once; the number reduces by 01. After setting delay timer you want; press “ ” button to
confirm. If you set delay timer as 05:00; the LCD display will show from 05:00; 0 :59… until 00:01
00:00. When LCD shows 00:00; the hood will automatically power off and LCD display will only show
2 -hour system with blue backlight. After 30 seconds without operation; blue backlight will
disappear. But please note the Lamp is not under control of delay timer. Next time; if you want to
use delay timer function and you press “ ” button without any change on time. The hood will
automatically count time down from your previous setting after 5 seconds.
Never let the children operate the machine
The cooker hood is for home use only, not suitable for barbecue, Roast shop and other commercial
purpose.
Please ask the technical person to do the assembling.
The cooker hood and its filter mesh should be clean regularly in order to keep in good working
order.
Before cleaning, please switch the power off at the main supply.
Clean the cooker hood according to the instruction manual and keep the cooker hood from the
danger of burning.
1. If there is any fault with the appliance, please call the service department to arrange a service
engineer.
2. There is a fire risk if cleaning is not carried out in accordance with the instructions.
3. Do not flambé under the range hood.
Accessible parts may become hot when used with cooking appliances.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.

7
7. MAINTENANCE
7.1. The cooker hood and its filter mesh should be clean regularly in order to keep in good
working order. Because the grease filters are made of metal, do not clean the filters with
detergents that will corrode metal products.
7.2. Clean the filters as below:
Method one:
Put the filter in the water ( 0℃-50℃), pour in some grease-loosening detergent, soak it for
about 2-3 minutes and then clean it with a soft brush. Do not brush too hard, in case to
damage the filter.
Method two:
User can put the filter into a dishwasher with detergent for cleaning. Set the temperature at
around 60℃.
7.3. To protect the main body from corrosion over a long period of time, the cooker hood
should be cleaned with hot water plus soap or non corrosive detergent once a week. Do
not use grinding detergent, or it will damage the body.
7. . Keep the motor and other spare parts free from water, as this will cause damage to the
appliance.
7.5. Disassembly and assembly the filter:
7.6. To change the lights, take off the 8 baffle filters, disconnect the light wiring, and change the
Led light.

8
8. CONNECTING THE REMOTE CONTROL
A New remote control has to establish a new connection to the cooker hood when used for
first time. One remote control could possibly control several cooker hood at the same time.
Connection process between remote control and cooker hood
Press on control panel of the cooker hood, the backlight display is on, the cooker hood is in
standby mode.
Press for 5 seconds, the indicators light begin flashing from one button to another ,the
cooker hood it in connection mode, press any bottom on remote control to confirm the
connection. The connection process finished and the remote control can be used for speed
selection, lighting and timer setting.
If you want to connect again, you will need to clear the code that has been set up previously.
To clear the code, press for 5 seconds, the indicators light begin flashing from one button to
another, the cooker is in connection mode.
Then, press again for 5 seconds, the previous connection code is cleared.
When the previous code has been cleared, the cooker hood back to standby mode, press
for 5 seconds, the indicate light flashing from one button to another ,the cooker hood it in
connection mode, then, press any bottom on remote control to confirm the connection.
Lighting
Press button once, the light is on, press again, the light is off. The lighting
button it is controlled separately and will not affect any other functions.
Turning on/ Increasing motor speed
1st press, Low speed
2nd press, Medium speed
3rd press High speed
Turning off/Decreasing motor speed
Pess the button and the motor begins shift to a lower speed and the LCD screen display
the speed level. Repeating press the button, it keep on decreasing the motor speed till the
cooker hood turning off.
Timer
Press the button to set up the timer on/off function.

9
9. ABNORMITY AND SOL TION
Fault Cause Solution
Light does not work, but
motor work
The bulb damaged Change bulb
Bulb contact lamp cap bad Fix or change
Light panel switch damage Fix or change
Light work, but motor
does not work
Bulb contact lamp cap Restart later
Motor bearings damage Change motor
Motor burn out Change motor
Motor control switch damage Fix or change
Light does not work,
motor does not work
Plug contact outlet bad Fix or change
Power wire cut off Change power wire
Switch damage Fix or change
Shake of the body
Wind leaves damage Change leaves
Motor screw loosen Screw it tight
Combination screw loosen Screw it tight
Body hang unfixable Tight the body
Insufficient suction
The distance between the body and
the gas top too long Readjust the distance
Cross-ventilation too strong or too
closed in the kitchen
Reduce cross-ventilation
or open the window
Exhaust pipe too long Adjust the length of pipe
Air outlet valve not open Check the valve if flexible
The outside wind is too strong No the technical problem
