European Home J-60 User manual

1
J Series Outdoor Gas Fireplace EuropeanHome.com
-- Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
--An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read the
installation, operating, and maintenance
instructions thoroughly before installing or
servicing this equipment.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
J SERIES
Outdoor · Gas · Fireplace
Installation,
Operation
and
Owner’s Manual
J-60
J-60-ST
July 2015
WARNING: FOR OUTDOOR USE ONLY
Solid fuels shall not be burned in this appliance.
Gas Fireplaces
Report # 0284GF009S

2
J Series Outdoor Gas Fireplace EuropeanHome.com
TABLE OF CONTENTS
Important Safety Information 3
Important Safety Information About Propane 4
Specications 5
Clearances 7
Installation 8
Gas Installation 10
Operating the Fireplace 12
Maintenance 13
Parts List 14
Warranty Appendix A

3
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free decorative gas appliance.
J Series Outdoor Gas Fireplace EuropeanHome.com
SOLID FUELS SHALL NOT BE BURNED IN THIS APPLIANCE
Keep the appliance area clear and free from combustible materials, gasoline, and other ammable vapors and
liquids.
Do not use this appliance if any part has been under water. Immediately call a qualied service technician to
inspect the appliance and to replace any part of the control system and any gas control that has been under
water.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the appliance.
Clothing or other ammable materials should not be hung from the appliance or placed on or near the
appliance.
Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating
the appliance. Installation and repair should be done by a qualied service person.
The appliance should be inspected before use and at least annually by a qualied service person. More
frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners, and circulating air passageways of the appliance are
kept clean.
Thank you for purchasing a J Series Outdoor Gas Fireplace by European Home.This replace has been designed
to provide you with safe, trouble-free operation.
Please read this manual thoroughly before beginning the installation of your replace. It has information which
is important for safe installation and operation.
Please inspect your shipment for completeness and any damage. Contact your retailer if any damage is found.
Do not install your appliance with any damaged or substituted parts.

IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS
J Series Outdoor Gas Fireplace EuropeanHome.com4
This gas replace is equipped at the factory for use with natural gas. If conversion to propane (LP) is desired,
the optional factory-supplied conversion kit must be used.
When using propane (LP), the gas supply cylinder to be used must be:
1) constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission, CAN/CSA-B339, as applicable,
2) provided with a listed overlling prevention device, and
3) provided with a cylinder connection device compatible with the connection for the appliance.
If a propane hose is used to connect a propane cylinder to the replace, the following is required:
Inspect the hose before each use of the replace.
The hose assembly must be replaced prior to the replace being put into operation if there is evidence
of excessive abrasion or wear or if the hose is damaged. The replacement hose assembly must be a
regulator hose with a QCC-1 connection and an outlet pressure set for 11”w.c. (2.74 kPa).
Locate the hose out of pathways where people may trip over it or in areas where the hose may be
subject to accidental damage.
Note

SPECIFICATIONS and DIMENSIONS
J Series Outdoor Gas Fireplace EuropeanHome.com
5
CERTIFICATION
OMNI-Test Laboratories, Inc. has certied that the J Series Outdoor Gas Fireplace complies with the ANSI
Z21.97-2014/CSA 2.41-2014 Outdoor Decorative Gas Appliances standard.
SPECIFICATIONS
ModelJ60, J60-ST
Gas Natural Propane
Input Btu/hr 76,000 76,000
Minimum
Supply Pressure
(NG)
in. w.c. 7”w.c.
kpa 1.74 kPa
Minimum
Supply Pressure
(LP)
in. w.c. 11”w.c.
kpa 2.74 kPa
Manifold Pressure
(NG)
in. w.c. 6.3”w.c.
kpa 1.57 kPa
Manifold Pressure
(LP)
in. w.c. 10.4”w.c.
kpa 2.59 kPa
Electrical Rating V DC 1.5

SPECIFICATIONS and DIMENSIONS
6J Series Outdoor Gas Fireplace EuropeanHome.com
Dimension J60
A 65⁄”
B 60”
C 49¼”
Dimension J60-ST
A 65⁄”
B 60”
C 49¼”
7½”
7½”
17½” 27”
18”
27”
18”
17½”
Model J60-ST
(see through)
Model J60
(single sided)

CLEARANCES
7J Series Outdoor Gas Fireplace EuropeanHome.com
A 4” Top of replace to combustibles
B 0” Back of replace to back combustible wall
C 4.5” Side of replace opening to combustible trim
D 5.5” Fireplace opening to side wall in front of replace
E 0” Side of replace to combustible side wall
F 6” Top of replace opening to combustibles
G 17” Top of replace opening to combustible mantel
H 18” Front of replace to back combustible wall
12” Maximum depth of mantel
CLEARANCES TO COMBUSTIBLES
Clearances (Front Elevation View)
MANTEL
SIDEWALL
TRIM
TRIM
A
B
C
D
E
C
F
G
Clearances (Top Plan View)
H

8
INSTALLATION
J Series Outdoor Gas Fireplace EuropeanHome.com
WHEN ENCLOSINGYOUR FIREPLACETHE USE OF NON-COMBUSTIBLE BUILDING
MATERIALS IS REQUIRED. PLEASE READ AND UNDERSTAND THE FOLLOWING.
Product* Non-combustible Manufacturer Approved
Skamol1Skamotec® 225 Fireplace Building Board §4§4
Promat2PROMATECT®-L Insulating Boards §4§4
James Hardie Building Products3HardieBacker® ¼” Cement Board 4 4
James Hardie Building Products3HardieBacker® 500 Cement Board 4 4
U.S. Architectural Products4Versaroc® Cement Bonded Particle Board 4 4
U.S. Architectural Products4Cem-Clad® Cement Panel 4 4
* The listed brand names are trademarks of their respective companies
COMBUSTIBLE MATERIALS
Materials that can catch re and burn are considered combustible. Any material that is made of, or faced with, wood, wood pulp,
paper, plastic or any other material that can catch re and burn is considered combustible. Even though these materials may have
been 'ame-proofed', made 're-resistant' or are 're-rated', they are considered combustible. Standard and Type X drywall are both
combustible.
NON-COMBUSTIBLE MATERIALS
A material is non-combustible when it cannot catch re and burn.
The table below shows a list of materials which may be used to enclose this replace. Only these materials may be used with this
replace. No other materials are approved for use around this replace.
Products marked with §are recommended for enclosing replaces.
Since this replace may be installed only outdoors, it is important to select materials that are suited for outdoor
conditions.
James Hardie Building Products
231 S. LaSalle St., Suite 2000
Chicago, Illinois 60604
Toll Free: [phone]
www.jameshardie.com
U.S. Architectural Products, Inc.
1117 Douglas Avenue, Unit 1
North Providence, Rhode Island 02904
Toll Free: [phone]
www.architecturalproducts.com
Skamol Americas, Inc.
Toll Free: [phone]
E-mail: skamote[email protected]
www.skamotec225.com
Promat Inc.
[phone]
E-mail: sa[email protected]
www.promat.co.uk

9
INSTALLATION
J Series Outdoor Gas Fireplace EuropeanHome.com
Any accumulated rain water will drain from a ⁄” opening in the center rear of the replace bottom. This
opening must not be blocked. The water which runs through this opening will accumulate in the base of your
enclosure and must be allowed to drain away from the enclosure. An appropriate length of 1½”- 2”PVC pipe
installed at the base of the enclosure which would run down and out, is recommended. These openings must
be checked for blockage periodically.

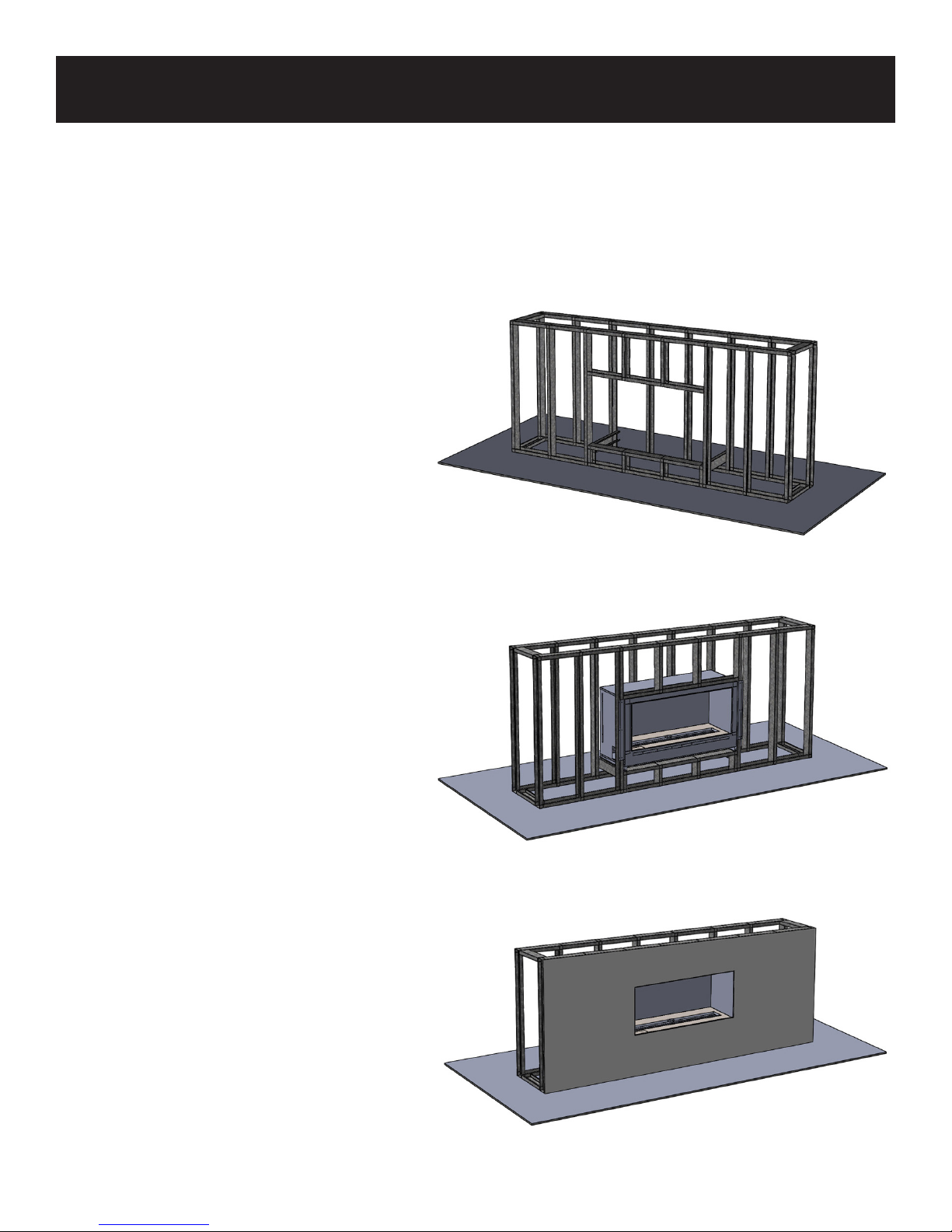

While combustible framing is permitted, metal
framing is more appropriate for an outdoor
enclosure. A typical installation is shown.
The replace is then placed in the framing.
The facing is applied to the framing.

GAS INSTALLATION
J Series Outdoor Gas Fireplace EuropeanHome.com10
The J Series Outdoor Gas Fireplace is shipped from the factory for use with natural gas.
A kit to convert the replace to propane (LP) is available. The conversion must be performed by a qualied
service person. Contact your local gas supplier.
This product must be installed by a licensed plumber or gastter.
The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 /NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1;
or Propane Storage and Handling Code, CSA B149.2, as applicable.
The replace and its individual shuto valve must be isolated from the gas supply piping system by closing its
individual manual shuto valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than ½ psi (3.5 kPa).
Note
INSTALL THE GAS SUPPLY
For the J Series Outdoor Gas Fireplace a 4⁄”x 7”opening in the lower left side is provided for the gas supply.
Alternately an identical opening is on the right.
The gas supply piping must have a separate gas shuto valve and a capped, ⁄” pipe tapping upstream of the
valve for the purpose of reading pressure. A service shuto valve must be placed within six feet of the replace
gas control valve.
Verify the gas pressure using the upstream ⁄”pipe tap.
The gas supply line must terminate with a ½”male are tting.

GAS INSTALLATION
J Series Outdoor Gas Fireplace EuropeanHome.com11

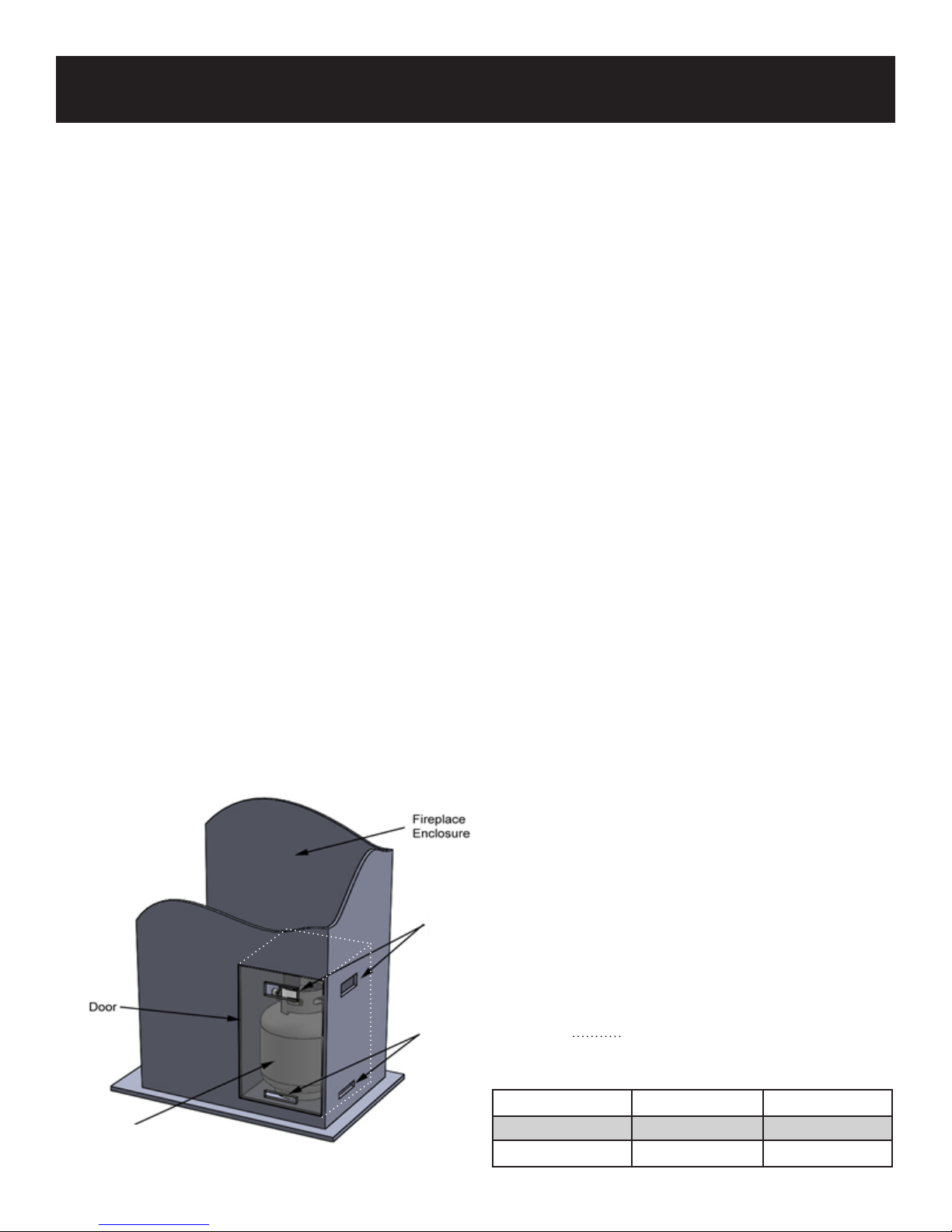

PROPANE CYLINDER ENCLOSURE
If you are planning to operate your J Series Outdoor Gas Fireplace using a propane cylinder, it must be placed in an
enclosure that meets the following specications:
The oor of the enclosure must be located 2 inches (50 mm) above the ground and must be non-combustible.
The width and the depth of the enclosure must be 13 inches (330 mm) X 13 inches (330 mm)
One side of the enclosure must be open or at least two ventilation openings must be provided in the sidewalls of the
enclosure, located within 5 in (127 mm) of the top of the enclosure, equally sized, spaced at a minimum of 90 degrees,
and unobstructed. The opening(s) must have a total free area of not less than 1 square inch per lb. (14.2 cm2/kg) of
stored fuel capacity.
If one side of the enclosure is to be left open, a chain located 12 inches above the oor of the enclosure must span the
opening to prevent the tank from tipping. One end of the chain should be attached with a hook for easy removal of the
tank.
Ventilation openings must be provided at oor level of the enclosure and must have a total free area of not less than ½
square inch per lb (7.1 cm2/kg) of stored fuel capacity. If ventilation openings at oor level are in a sidewall, there must
be at least two openings. The bottom of the openings must be 1 in (25.4 mm) or less from the oor level and the upper
edge no more than 5 in. (127 mm) above the oor level. The openings must be equally sized, spaced at a minimum of
90 degrees (1.57 rad) and unobstructed. Every opening must have minimum dimensions so as to permit the entrance
of a ⁄ in. (3.2 mm) diameter rod. Ventilation openings in sidewalls must not communicate directly with other enclosures
of the replace. The propane cylinder enclosure MUST be isolated from the replace but can be part of the replace
enclosure. See the example below.
A regulator hose with a QCC-1 connection and an outlet pressure set for 11” w.c. can be purchased at any retail outlet
that oers gas grill replacement parts. All parts of the hose must remain inside the enclosure.
A B C
20lb. tank (9.1kg) 20in (130cm) 10in (65cm)
30lb. tank (13.6kg) 30in (195cm) 15in (100cm)
A
B
CPropane Cylinder Enclosure

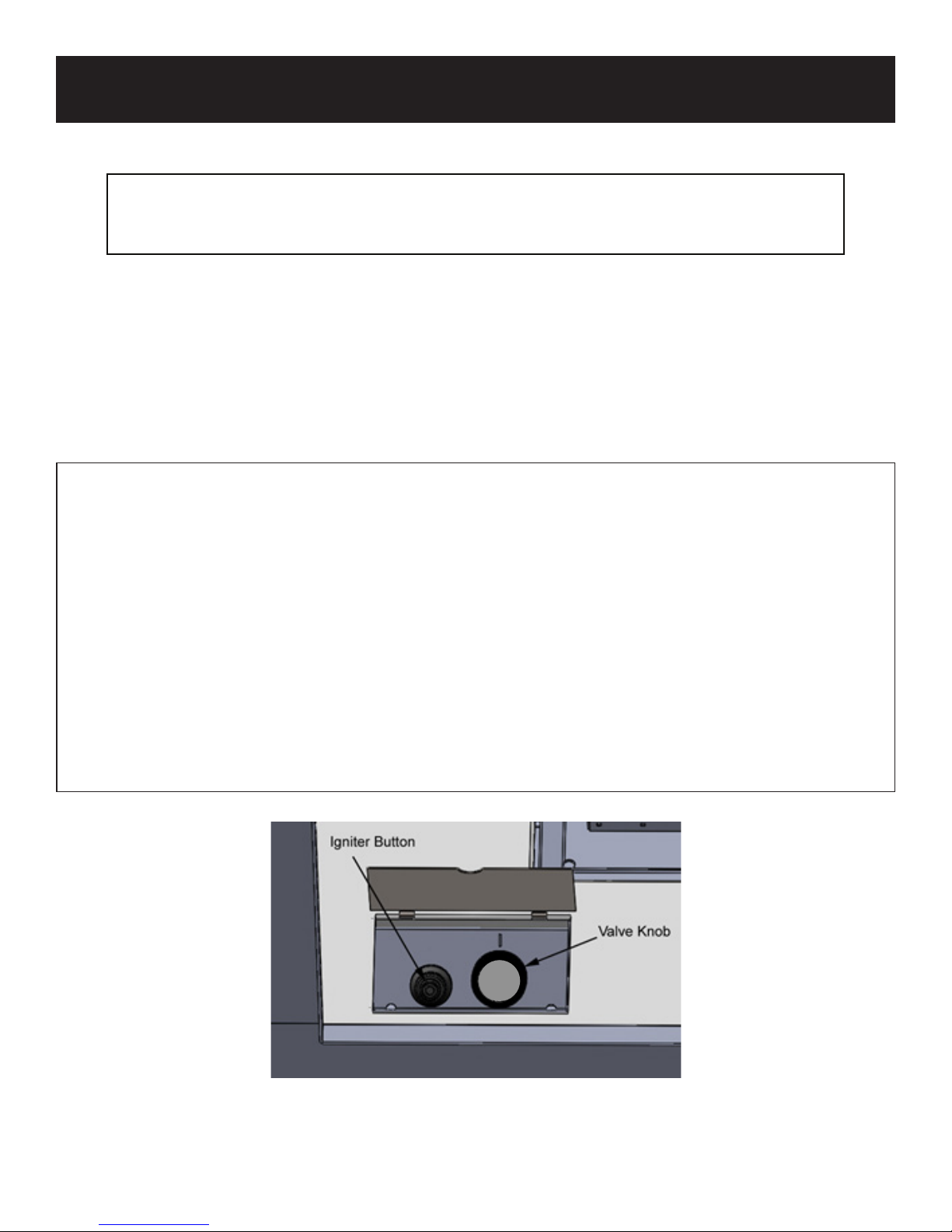

OPERATING the FIREPLACE
J Series Outdoor Gas Fireplace EuropeanHome.com12
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
BEFORE LIGHTING, smell all around the heater area for gas. Be sure to smell next to the oor because some gas
is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the re department.
LIGHTING INSTRUCTIONS
1. Push in gas valve knob slightly and turn to“OFF”.
2. Wait ve (5) minutes before attempting to light the burner.
3. Push the igniter button and hold. You will hear a repeating clicking sound.
4. Turn gas valve knob to“PILOT” position and push all the way in. The pilot should light. If so,
release the igniter button.
5. If the ame does not light after 4 seconds, repeat steps 1 through 4. Continue to press the knob
for 60 seconds. Release the knob and it will pop back out.
6. Turn the valve knob to the“ON”position. If the burner will not stay lit, turn the knob to“OFF”
and call your service technician or gas supplier.
TO TURN OFF GAS
1. Push in gas control knob slightly and turn to“OFF”.
OFF
PILOT
ON
The Igniter Button (see picture above) takes (1) AAA battery.
To replace, unscrew Igniter Button cap, replace battery, and put cap back on.

MAINTENANCE
J Series Outdoor Gas Fireplace EuropeanHome.com13
A qualied service agency should conduct an annual inspection and maintenance of your J Series Outdoor
Gas Fireplace to keep it running safely. The following procedures should be performed only by a qualied
service person. The gas supply should be turned o whenever a maintenance procedure is performed. All
parts of the replace that are removed for servicing must be replaced prior to operation.
Cleaning the Media and Burner.
1. With all parts of the replace at room temperature, carefully remove and clean the re media
with a soft bristled brush.
2. Lift o the hearth panel and clean the surface with a brush. Remove any debris from the area
under the hearth panel.
3. Clean the pilot shield with a vacuum cleaner.
Cleaning the Stainless Steel.
1. With all parts of the replace at room temperature, carefully remove the hearth panel.
2. Using a high-quality stainless steel cleaner, be sure to softly clean WITH the grain.

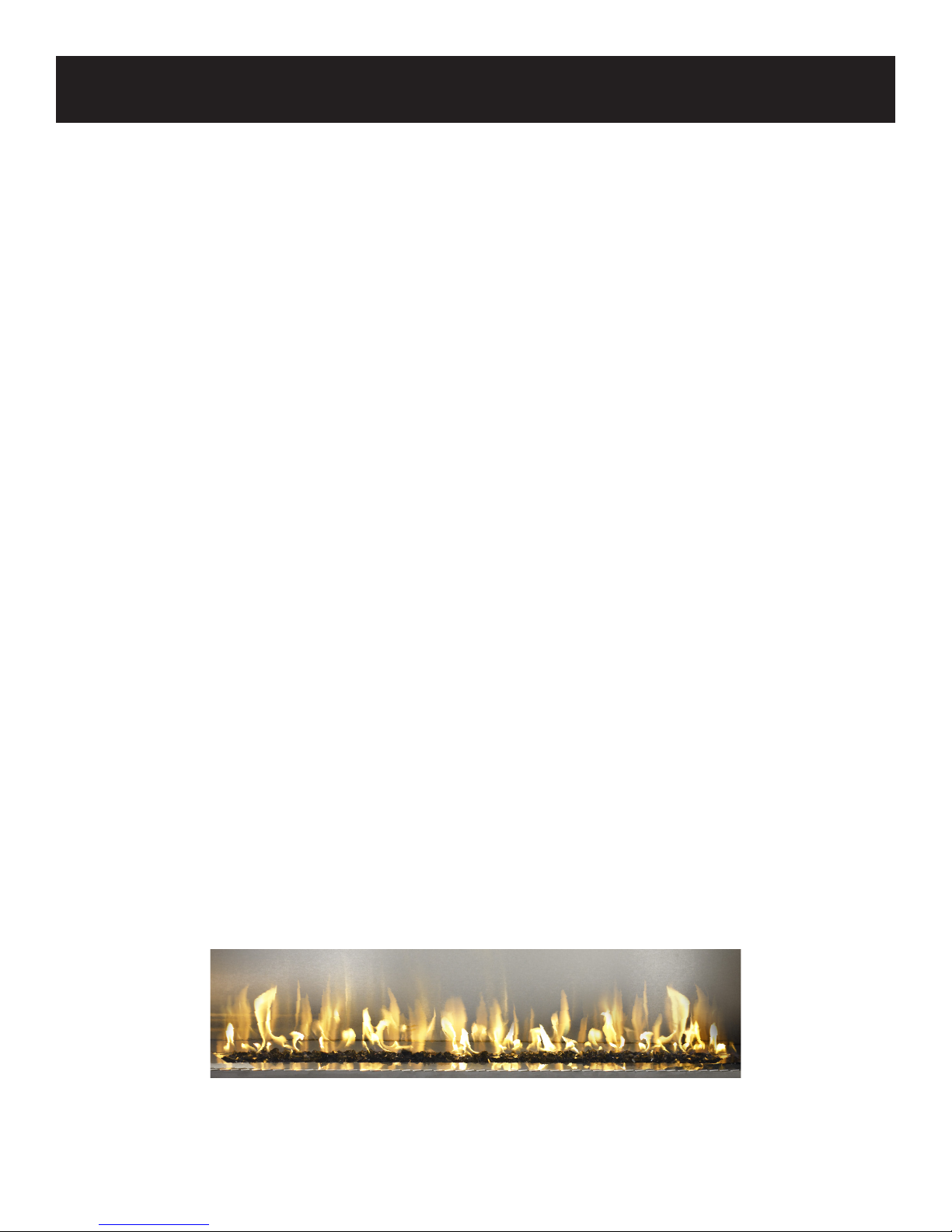

The ames should look like the picture below.
The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is
damaged. The replacement burner shall be specied by the manufacturer.
Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary.
It is imperitive that the control compartments, burners, and circulating-air passageways of the appliance are
kept clean.

PARTS LIST
J Series Outdoor Gas Fireplace EuropeanHome.com14

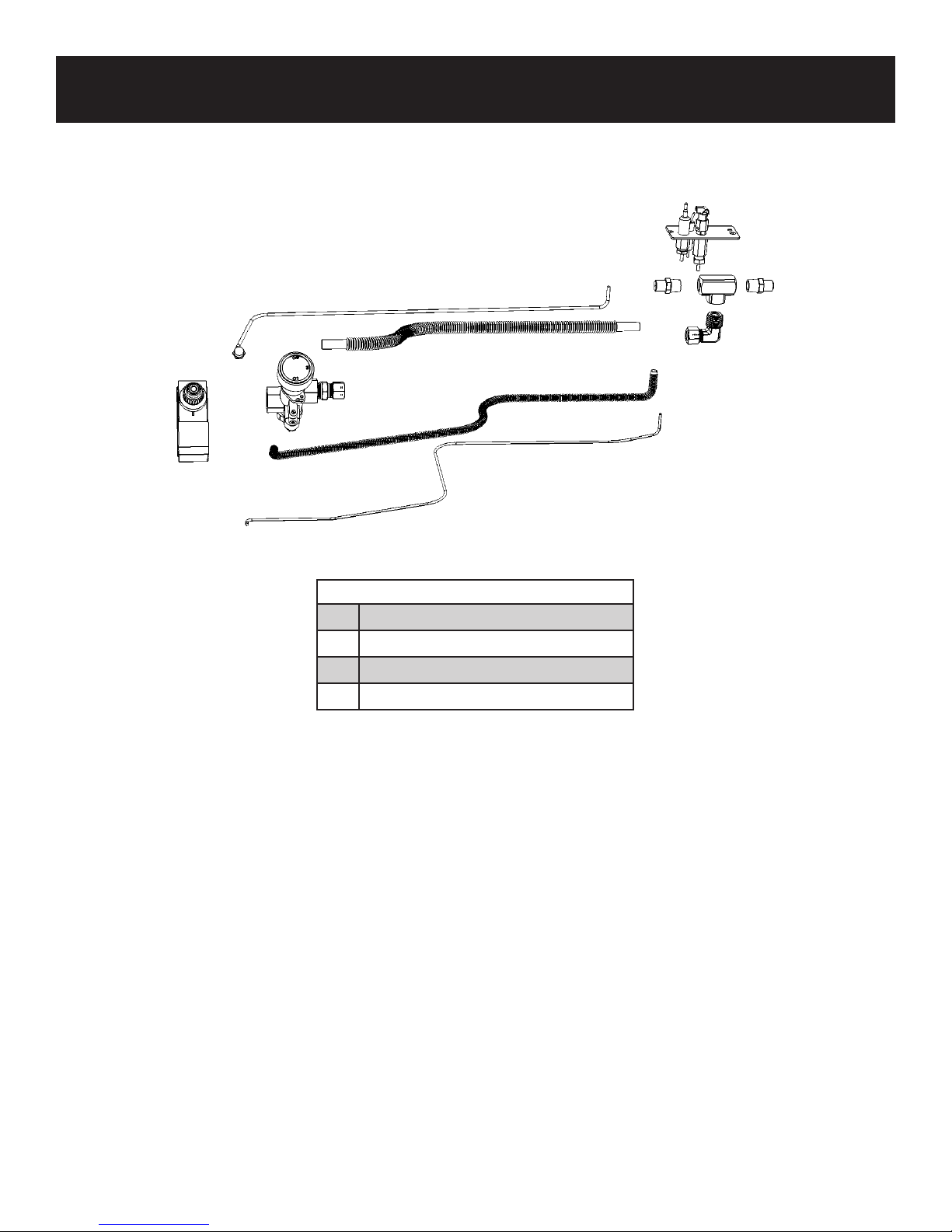

Replacement Parts List
1Electronic Ignition (takes 1 AAA battery)
2Gas Valve
3Pilot Assembly
4Main Burner Orice
1
2
4
3
4
J SERIES OUTDOOR GAS FIREPLACE PARTS LIST
Gas Valve (Manual) REPL-JVF-GS-GV-01
Electronic Ignition REPL-JVF-GS-IM-01
Pilot Assembly REPL-JVF-GS-PA-01
For replacement parts and customer service,
please contact your local hearth products dealer.

INSTALLATION RECORD
15J Series Outdoor Gas Fireplace EuropeanHome.com
The installer should complete the form below that describes the details of the installation. Having this written
record of installation information available will greatly expedite troubleshooting should any problems arise
with your replace. The installer should keep a duplicate of this form for their records as well.
DATE PURCHASED: ______________________________________
DEALER: ______________________________________
INSTALLER: ______________________________________
FIREPLACE S/N: ______________________________________
DATE INSTALLED: ______________________________________
FUEL: ______________________________________
MEASURED AFTER INSTALLATION
INLET PRESSURE: ______________________________________
MANIFOLD PRESSURE: ______________________________________
DATE PURCHASED: ______________________________________
DEALER: ______________________________________
INSTALLER: ______________________________________
FIREPLACE S/N: ______________________________________
DATE INSTALLED: ______________________________________
FUEL: ______________________________________
MEASURED AFTER INSTALLATION
INLET PRESSURE: ______________________________________
MANIFOLD PRESSURE: ______________________________________
INSTALLER: PLEASE DUPLICATE ABOVE INFORMATION AND RETAIN THIS COPY FOR YOUR RECORDS.

APPENDIX A
J Series Outdoor Gas Fireplace EuropeanHome.com16
European Home Warranty
for
The J Series Outdoor Gas Fireplace
European Home warrants the gas controls and burner of the J Series Outdoor Gas Fireplace against defects in
materials and workmanship for a period of ONE (1) YEAR from the date of original retail purchase. We warrant
the J Series Outdoor Gas Fireplace and cover against defects in materials and workmanship for a period of FIVE
(5) YEARS from the date of original retail purchase. If a defect exists, European Home will, at its option, either
(1) provide needed components using new or refurbished replacement parts or (2) exchange the product
with one which is new or which has been manufactured from new or serviceable used parts and is at least
functionally equivalent to the original product. A replacement product/part assumes the remaining warranty
of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer
coverage for you.When a product or part is exchanged, any replacement item becomes your property and the
replaced item becomes the property of European Home. All warranty claims must be submitted through the
dealer from which you purchased the product. Check with your dealer in advance for any costs to you when
arranging a warranty call. Shipping and/or delivery charges for parts are not covered by this warranty.
Nothing in the above shall be deemed to imply that this warranty shall apply to work which has been abused,
or neglected or shows evidence of changes or modications by others with or without permit, damages
caused by the acts of God, building settlement or moving, re or vandalism. In addition, installation of this
product that varies from the requirements stated in the instruction manual will void the warranty.
European Home is a division of Europa Ja, Inc.

APPENDIX A
J Series Outdoor Gas Fireplace EuropeanHome.com17
NOTES

18
J Series Outdoor Gas Fireplace EuropeanHome.com
IGJVF-150713
EUROPEAN HOME
a division of Europa Ja, Inc.
376 Washington Street
Suite 203
Malden, MA 02148
www.europeanhome.com
