European Home GVF-42 User manual

1
G Series Linear Hearth Burner EuropeanHome.com
-- Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
-- Installation and service must be performed by
a qualied installer, service agency or the gas
supplier.
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or loss of life. This is an unvented gas-red heater. It uses
air (oxygen) from the room in which it is
installed. Provisions for adequate combustion
and ventilating air must be provided. Refer to
page 6.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
Thisappliancemaybeinstalledinanaftermarket,
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate.This appliance
is not convertible for use with other gases.
G SERIES
Linear · Hearth · Burner
Installation,
Operation
and
Owner’s Manual
GVF-42
GVF-60
GVF-72
January 6, 2016
Report #284-F-08-4

2
G Series Linear Hearth Burner EuropeanHome.com
TABLE OF CONTENTS
Important Safety Information 3
Room Volume for Vent Free 6
Specications and Dimensions 8
Listing Label 11
Pre-installation Planning 12
Electric Installation 15
Gas Installation 17
Installing the Burner 18
Operating the Burner 20
Maintenance 22
Parts List 23
Warranty Appendix A
Product Installation Record Appendix B
Troubleshooting Appendix C

3
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.
G Series Linear Hearth Burner EuropeanHome.com
• Any change to this heater or its controls can be dangerous.
• Improper installation or use of the heater can cause serious injury or death
from re, burns, explosion or carbon monoxide poisoning.
• Do not allow fans to blow directly into the replace. Avoid any drafts that alter
burner ame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory, not
approved for use with this heater.
WARNING
1. Due to high temperatures, the heater should be located out of trac and away from furniture and
draperies.
2. Children and adults should be alerted to the hazard of high surface temperature and should stay
away to avoid burns or clothing ignition.
3. Young children should be carefully supervised when they are in the same room with the heater.
4. Do not place clothing or other ammable material on or near the heater.
5. Any safety screen or guard removed for servicing a heater, must be replaced prior to operating the
heater.
6. Installation and repair should be done by a qualied service person. Do not modify or substitute any
part of this appliance.
7. To prevent malfunction and/or sooting, an unvented gas heater should be cleaned before use and
at least annually by a professional service person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,
burners and circulating air passageways be kept clean.
8. CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning are similar to the u
with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Have
the heater serviced as it may not be operating properly.
9. The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.l/NFPA54.
10. This unit complies with ANSI Z21.11.2b-2011 Unvented Heaters and ANSI Z.21.60-2012/CSA 2.26-
2012 Decorative Appliances for Installation in Solid-Fuel Burning Fireplaces. Do not install the heater in a
bathroom or bedroom.

4
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.
G Series Linear Hearth Burner EuropeanHome.com
11. Correct installation of the re media, proper location of the heater, and annual cleaning are
necessary to avoid potential problems with sooting. Sooting, resulting from improper installation
or operation, can settle on surfaces outside the replace. See re media placement instructions for
proper installation.
12. WARNING: Avoid any drafts that alter burner ame patterns. Do not allow fans to blow directly into
replace. Do not place a blower inside burn area of rebox. Ceiling fans may create drafts that alter
burner ame patterns. Sooting and improper burning will occur.
13. Caution: Candles, incense, oil lamps, etc. produce combustion by-products including soot. Vent
free heaters will not lter or clean soot produced by these types of products. In addition, the smoke
and/or aromatics (scents) may be reburned in the vent free heater which can produce odors. It is
recommended to minimize the use of candles, incense, etc. while the vent free heater is in operation.
14. Keep room area clear and free from combustible materials, gasoline and other ammable vapors and
liquids.
15. Unvented gas heaters are a supplemental zone heater. They are not intended to be the primary
heating appliance.
16. Unvented gas heaters emit moisture into the living area. In most homes of average construction,
this does not pose a problem. In houses of extremely tight construction, additional mechanical
ventilation is recommended.
17. During manufacturing, fabricating and shipping, various components of this appliance are treated
with certain oils, lms or bonding agents. These chemicals are not harmful but may produce
annoying smoke and smells as they are burned o during the initial operation of the heater; possibly
causing headaches or eye or lung irritation. This is a normal and temporary occurrence. The initial
break-in operation should last two to three hours with the burner at the highest setting. Provide
maximum ventilation by opening windows or doors to allow odors to dissipate. Any odors remaining
after this initial break-in period will be slight and will disappear with continued use.
18. Input ratings are shown in BTU per hour and are for elevations up to 2,000 feet. For elevations above
2,000 feet, input ratings should be reduced 4 percent for each 1,000 feet above sea level. Refer to the
National Fuel Gas Code.
19. The heater and its main gas valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of ½ psig (3.5 kPa).

5
IMPORTANT SAFETY INFORMATION
Read these instructions carefully before installing or trying to operate this Vent Free gas heater.
G Series Linear Hearth Burner EuropeanHome.com
20. The appliance must be isolated from the gas supply piping system by closing its equipment shuto
valve during any pressure testing of the gas supply piping system at test pressures equal to or less
than ½ psi (3.5 kPa).
21. Do not use this room heater if any part has been under water. Immediately call a qualied service
technician to inspect the room heater and to replace any part of the control system and any gas
control which has been under water.
22. This heater must not be used with glass doors in the closed position. This can lead to pilot outages
and severe sooting outside the replace.
23. Never burn solid fuels in a replace where an unvented room heater is installed.
24. Always have a replace screen in place when the appliance is in operation and, unless other
provisions for combustion air are provided, the screen must have an opening(s) for introduction of
combustion air.
25. All outside air ducts and/or ash dumps in the replace must be permanently closed prior to the
installation of the heater.
26. This appliance has been certied by OMNI-Test Laboratories, Inc. to ANSI Z21.11.2b-2011, Unvented
Room Heaters and ANSI Z.21.60-2012/CSA 2.26-2012 Decorative Appliances for Installation in Solid-
Fuel Burning Fireplaces.

ROOM VOLUME for VENT FREE
6G Series Linear Hearth Burner EuropeanHome.com
CODES
Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1 or NFPA54 which
can be obtained from…
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
ADEQUATE COMBUSTION AND VENTILATION AIR
This heater shall not be installed in a conned space or unusually tight construction unless provisions are provided for adequate
combustion and ventilation air.
The National Fuel Gas Code, (ANSI Z223.1/NFPA 54), denes a conned space as a space whose volume is less than 50 cubic feet
per 1,000 BTU per hour (4.8 m3per kw) of the aggregate input rating of all appliances installed in that space. An unconned space
is dened as a space whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8 m3per kw) of the aggregate input
rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed,
through openings not furnished with doors, are considered a part of the unconned space.
UNUSUALLY TIGHT CONSTRUCTION IS DEFINED AS CONSTRUCTION WHERE…
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of 1 perm (6 x 10
kg per Pa-sec-m²) or less with openings gasketed or sealed;
b) weather stripping has been added on operable windows and doors, and
c) caulking or sealants are applied to areas such as joints around window and door frames, between sole plates and oors, be-
tween wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.
This appliance is equipped for natural gas. Field conversion is not permitted.
WARNING
If the area in which the heater may be operated does not meet the required
volume for indoor combustion air, combustion and ventilation air shall be
provided by one of the methods described in the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, the International Fuel Gas Code or applicable local codes.
WARNING

ROOM VOLUME for VENT FREE
7G Series Linear Hearth Burner EuropeanHome.com
The following formula can be used to determine the maximum heater rating (per the denition of unconned space) that is al-
lowed in your space:
Maximum BTU/Hr. = x 1000
Example A: Consider two connecting rooms with an open area between, with the following dimensions: L1 = 15½ ft., L2 = 12 ft., W
= 12 ft., H = 8 ft.
x 1000 = 52,800 BTU/Hr.
Example B: If there were a door between the two rooms the calculation would be based only on the room with the heater.
x 1000 = 29,760 BTU/Hr.
Will my space support a G Series Linear Hearth Burner?
Maximum BTU/hr. my space will support (use formula above) a) __________________
BTU/hr. of European Home G Series Linear Hearth Burner b) ____37,500________
If the answer to a) is greater than b) then your space will support the installation of the G Series Linear Hearth Burner; if a) is less
than b) then your space will not support an G Series Linear Hearth Burner.
(L1 + L2)ft. x (W)ft. x (H)ft.
50
(15½ + 12)ft. x (12)ft. x (8)ft.
50
(15½)ft. x (12)ft. x (8)ft.
50
This appliance is for installation in a solid-fuel burning replace or UL 127 factory-
built replace or in a listed ventless rebox enclosure.
Exception: DO NOT install this appliance in a factory-built replace that includes
instructions stating that it has not been tested or should not be used with
unvented gas logs.
WARNING

SPECIFICATIONS and DIMENSIONS
8G Series Linear Hearth Burner EuropeanHome.com
G Series Linear Hearth Burner
(all sizes)
Fuel Natural Gas ONLY
Manifold Pressure 3.5”(0.87 kPa)
Minimum Supply
Pressure 4.0”(1.0 kPa)
Maximum Supply
Pressure 7.0”(1.7 kPa)
Orice Size #47 DMS
Input (High, BTU/hr.) 37,500
Input (Low, BTU/hr.) 25,000
Electrical 6V DC
SPECIFICATIONS
The G Series Linear Hearth Burner has been certied to two standards:
- ANSI Z21.11.2b-2011, for unvented room heaters
- ANSI Z.21.60-2012/CSA 2.26-2012, for vented decorative appliances
Check the local/state codes to determine if unvented heaters are permitted at your location before installing
this product as a vent-free appliance. If unvented heaters are not permitted you may install and operate this
product as a vented appliance.
Burner Specications

SPECIFICATIONS and DIMENSIONS
G Series Linear Hearth Burner EuropeanHome.com
9

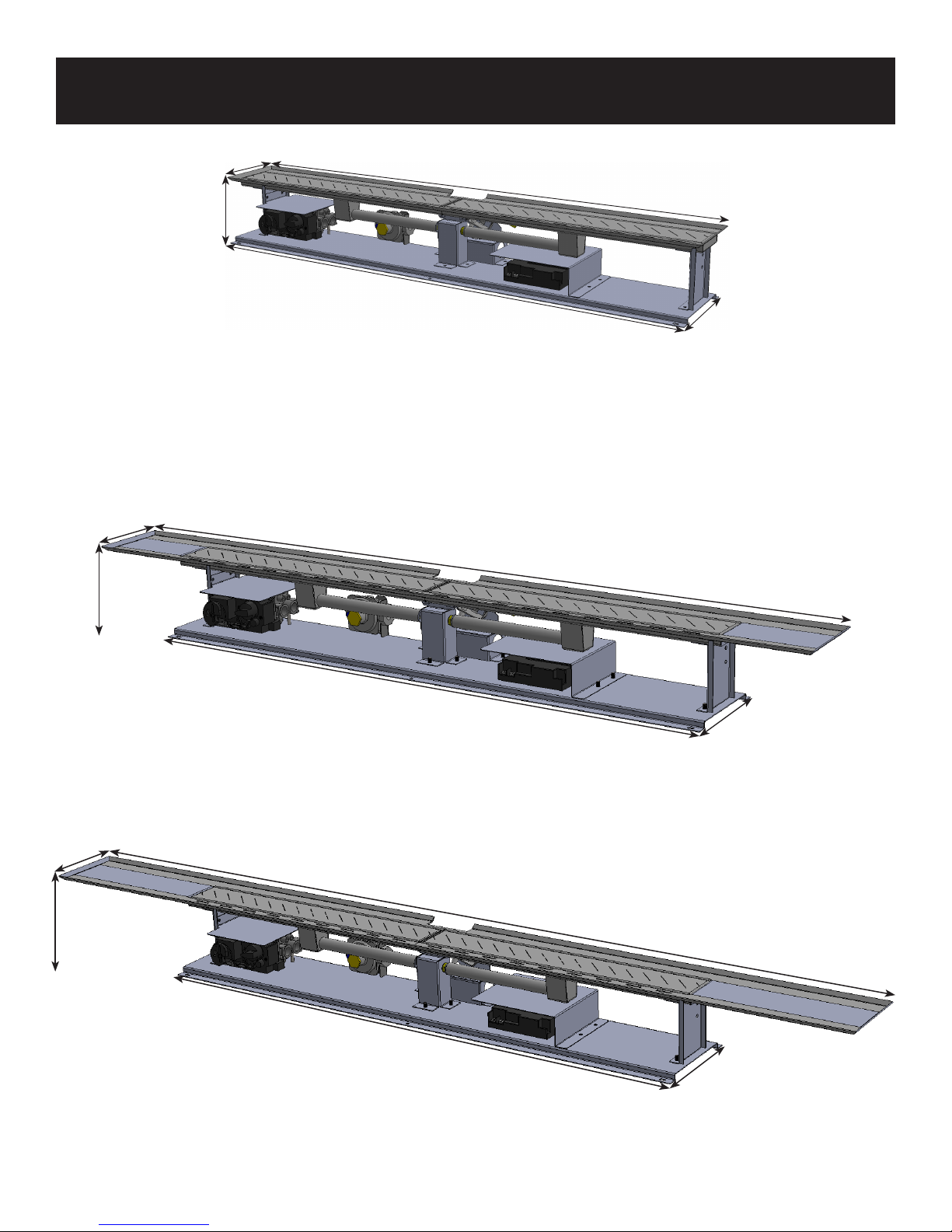

GVF-42 Burner
GVF-60 Burner
GVF-72 Burner
38⁄”
59⁄”
49¼”
37⁄”
5”
5⁄”
6½”
6½”
6½”
5⁄”
5⁄”
5”
5”
37⁄”
37⁄”

SPECIFICATIONS and DIMENSIONS
10G Series Linear Hearth Burner EuropeanHome.com
39⁄”
Optional GVF-42 Burner Cover
Optional GVF-72 Burner Cover
Optional GVF-60 Burner Cover
5⁄”
5⁄”
5⁄”
16⁄”
16⁄”
16⁄”
60”
72”
*(open in rear)
*(open in rear)
*(open in rear)
* For see through and peninsula installations, please contact European Home for special order burner cover.

SPECIFICATIONS and DIMENSIONS
G Series Linear Hearth Burner EuropeanHome.com
11
CERTIFICATION
OMNI-TestLaboratories,Inc.hascertiedthattheGSeriesLinear HearthBurnersmeettheANSIZ21.11.2b-2011
and ANSI Z.21.60-2012/CSA 2.26-2012 standards.
G Series Linear Hearth Burner Listing Label
SAMPLE

SPECIFICATIONS and DIMENSIONS
12G Series Linear Hearth Burner EuropeanHome.com
HIGH ALTITUDE INSTALLATIONS
These appliances are tested and approved without requiring changes when installed at elevations from 0 to
2,000 feet.
When installing these replaces at altitudes above 2,000 feet reduce the input rate by 4% for each 1,000 above
2,000 feet. Consult with your local gas supplier to determine the proper orice size.
B
GVF-42 GVF-60 GVF-72
A (Opening Width without Cover) 43⁄” 49⁄” 59¼”
A (Opening Width with Cover) 47” 65” 77”
B (Distance to Lintel) 18” 18” 18”
C (Fireplace Depth) 15¾” 15¾” 15¾”
D (Flue Opening) 50 sq. in. 50 sq. in. 50 sq. in.
A
C
D
Minimum Fireplace Dimensions Required by Model

13
PRE-INSTALLATION PLANNING
G Series Linear Hearth Burner EuropeanHome.com
Before you begin the installation you should have the following tools and supplies:
• Pipe wrenches
• Safety glasses and gloves
• Approved pipe joint sealant
• Manometer
• Leak detection uid (non-corrosive) or electronic gas detector
• Appropriate gas supply line parts
BEFORE YOU BEGIN
Thank you for purchasing anG Series Linear Hearth Burner by European Home.This product has been designed
to provide you with safe, trouble-free operation.
Please read this manual thoroughly before beginning the installation. It has information which is important
for safe installation and operation.
Please inspect your shipment for completeness and any damage. Contact your retailer if any damage is found.
Do not install your appliance with any damaged or substituted parts.
The installation of your G Series Linear Hearth Burner will follow the steps listed:
• Pre-Installation Planning
• Electric Installation
• Gas Installation
• Installing the Burner

14
PRE-INSTALLATION PLANNING
G Series Linear Hearth Burner EuropeanHome.com
APPROVED INSTALLATIONS
Your G Series Linear Hearth Burner is to be installed in a solid-fuel burning replace or a prefabricated
replace listed to UL-127 or in a listed ventless rebox enclosure.
When installed your linear hearth burner must sit fully inside the replace, behind the replace lintel.
WARNING: Before installing in a solid-fuel burning replace, the chimney ue and rebox must be cleaned of
soot, creosote, ashes and loose paint by a qualied chimney cleaner.
Lintel

15
PRE-INSTALLATION PLANNING
G Series Linear Hearth Burner EuropeanHome.com
MANTEL CLEARANCES
11.0”minimum
12.0”maximum
Existing replace
opening
Top of existing
replace opening
Combustible mantels may be no closer to the replace opening than 11.0”or deeper than 12.0”.
Combustible mantel

ELECTRIC INSTALLATION
G Series Linear Hearth Burner EuropeanHome.com16
When servicing controls label all wires prior to disconnection. Wiring errors can cause improper and dangerous operation.
This appliance must be electrically grounded in accordance with local codes, or, in the absence of local codes, with either the
National Electrical Code ANSI/NFPA 70.
Electrical work should only be performed by a qualied, licensed electrician. Electric power must be o when making
connections at the junction box or performing any service.
All wiring shall be in compliance with all local, city, and state codes.
WARNING

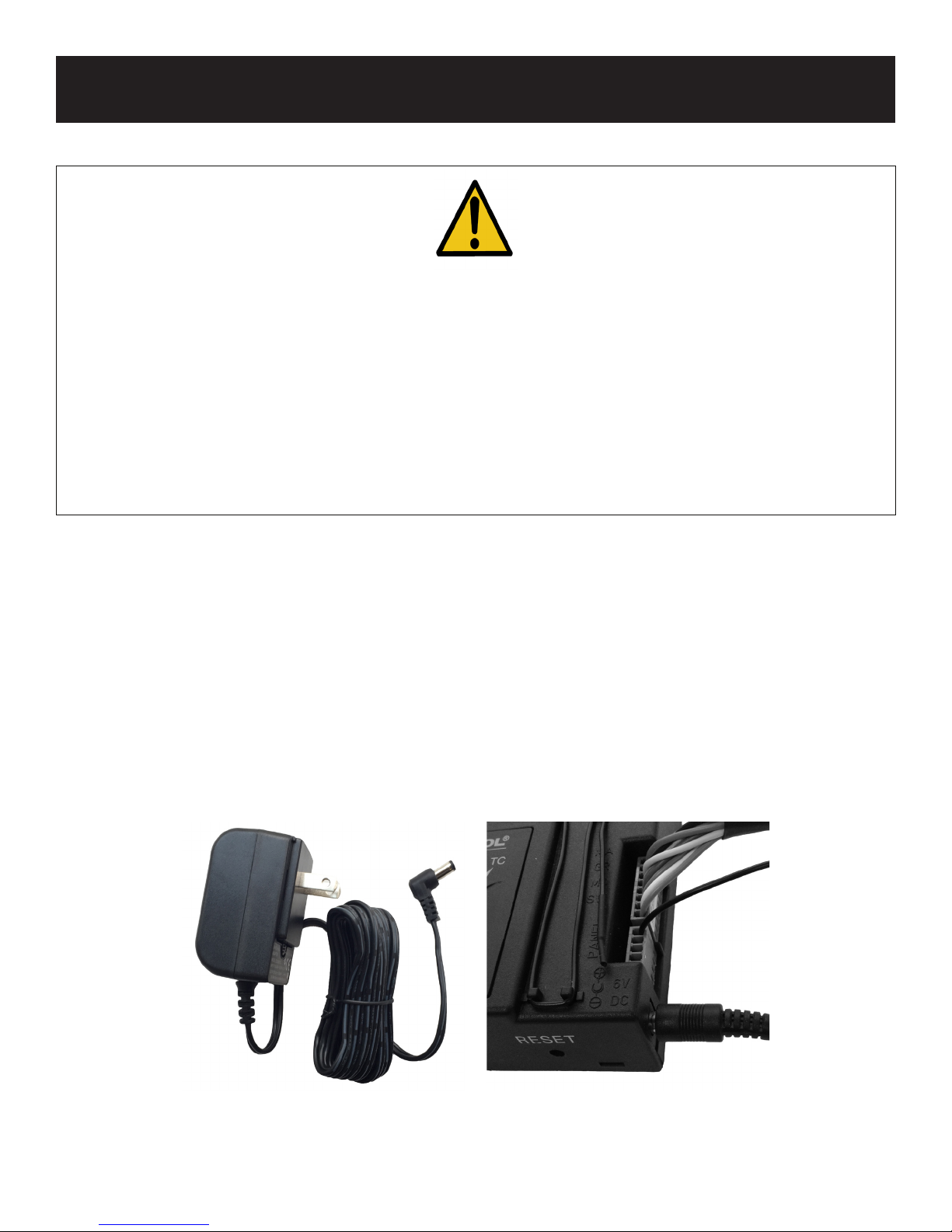

AC Adapter
ELECTRICAL REQUIREMENTS
The G Series Linear Hearth Burner uses a receiver and remote control for its burner operation. The remote
control is powered by a 9V battery and the receiver is powered by an 120V AC wall adapter.
This installation must provide for an approved 120V AC wall receptacle to be placed within the six foot
cord limit of the wall adapter.
DO NOT place batteries in the receiver when powering the receiver via the wall adapter.
All installations must be in compliance with any and all applicable electrical codes.
AC Adapter Connected to Receiver

ELECTRIC INSTALLATION
G Series Linear Hearth Burner EuropeanHome.com17
G SERIES BURNER ELECTRICAL SCHEMATIC
AC Adapter Jack
È

GAS INSTALLATION
G Series Linear Hearth Burner EuropeanHome.com18
Top View of Burner Module Showing Area for Gas Supply
INSTALL THE GAS SUPPLY
The table below shows the dimensions, for all models, of the area to the rear of the burner module which is
concealed by the optional burner cover. Route the gas supply so that it terminates inside this area (shown
below.)The gas supply piping should have a separate gas shuto valve and a capped, 1/8”pipe tapping upstream
of the valve for the purpose of reading pressure.The gas supply line must terminate with a 3/8”male are tting.
The Hearth Burner must be isolated from the gas supply system by closing the service valve during any pressure
testing of the gas supply system at test pressures equal to or less than ½psi (3.5 kPa).
Verify the gas pressure using the upstream 1/8”pipe tap.
The installation of this product must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1
This product is shipped from the factory for use with natural gas ONLY. Conversion to another fuel is NOT permitted.
This product must be installed by a licensed plumber or gastter when installed within the Commonwealth of Massachusetts.
Note
All Models
A 43”
B 7”
B
A
Install Gas Supply in This Space
Area for Gas Supply (hidden by cover)
Burner Module

INSTALLING the BURNER
19G Series Linear Hearth Burner EuropeanHome.com

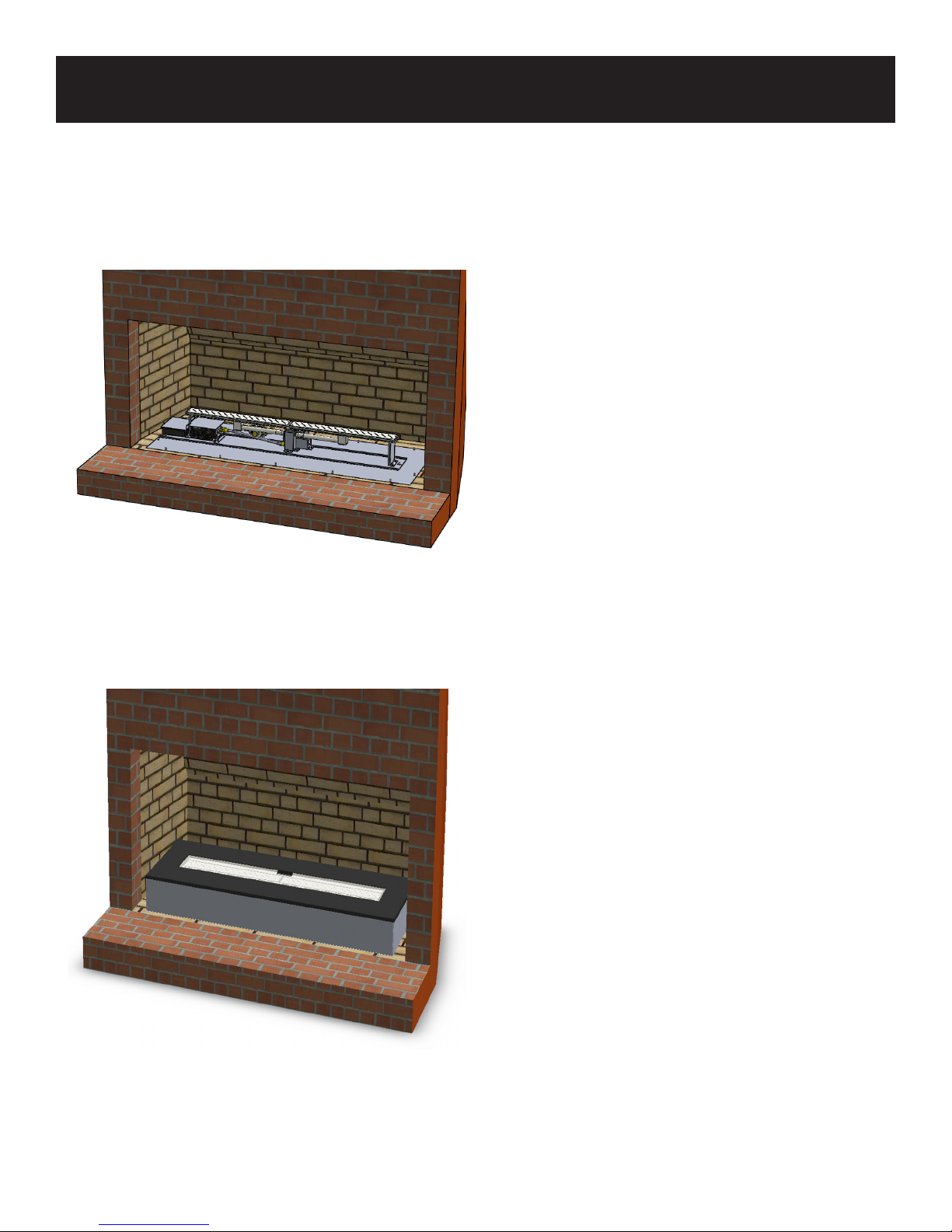

Place the burner in the center of the replace and
connect the gas supply to the exible connector
attached to the burner.
After the gas supply has been connected, open the
main supply and check all of the ttings for gas leaks.
Never use a ame to test for leaks.
Place the optional cover over the burner so the
burner is centered in the cover opening as shown
at left
WARNING: Failure to position the parts in
accordance with these diagrams or failure to use
only parts specically approved with this product
may result in property damage or personal injury.

INSTALLING the BURNER
20G Series Linear Hearth Burner EuropeanHome.com
INSTALLING THE FIRE MEDIA
Your G Series Linear Hearth Burner comes with two types of re media; crushed glass or Carrara pebbles.
First install the re media then the Embaglow.
The Fire Media
The contents of the bag of burner media should be spread to an even depth across the entire burner top.
The pilot ame should be clear of the re media by ¼”
Embaglow (Optional)
Note: Embaglow contains loose metal bers which may be sharp. You are advised to wear gloves while
installing it.
1. Remove the bunch of Embaglow from the package and tease out the bers until they form a very loose,
very light network.
2. Once the bers are prepared, place them where a glow is desired. Ensure that the metal bers are kept
away from the pilot light area as they can prevent ignition of the pilot light.
Although the bers have a long life, they will eventually deteriorate. If this becomes apparent, replacement
Embaglow can be purchased from your local replace retailer or European Home.
BEFORE THE FIRST FIRE
1. Make sure all ammable materials have been removed from inside and around the replace.
2. Conrm that the wiring is secure.
3. Check the gas supply for leaks.
4. Conrm the proper placement of the burner media.
