Graco Ultra Max II 695 User manual

3Z9257
Rev. B
B
OPERATION – – –
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Graco Inc. is registered to I.S. EN ISO 9001
309252. . . . . . .
245000
Related manuals
All models not available in all countries.
309639. . . . . . .
309250. . . . . . .
309640. . . . . . .
309251. . . . . . .
309278. . . . . . .
AutoClean
3300 psi (227 bar, 22.7 MPa) Maximum Working Pressure
ULTRArMAX
695/795/1095/1595/Mark V –
TI0765A
309260. . . . . . .
309267. . . . . . .
309263
309261
309268
(695)
(795/1095)
(1595/Mark V)
309266. . . . . . .
(695/795/1095)
(1595/Mark V )
You need:
Stwo adjustable wrenches
Stwo 5 gallon (19 liters) metal pails
Scompatible cleaning fluids
Power: grounded outlet
Japan: 100V, 15A
United Kingdom: 110V, 15A
North/Latin Am: 120V, 15A
Europe/South Am: 230V, 10A
Australia/Asia: 240V, 10A
S12 AWG, (1.5 mm2) grounded
extension cord up to
300 feet (100 M)
READ ALL INSTRUCTIONS AND WARNINGS
BEFORE SETTING UP OR OPERATING THIS UNIT.
INSTRUCTIONS
LatexOil Base
Clothing:
Srespirator
Ssafety glasses

23Z9257
Fire and explosion hazard: Solvent and paint fumes can ignite or
explode.
To help prevent a fire and explosion:
DUse only in an extremely well ventilated area.
DEliminate all ignition sources; such as pilot lights, cigarettes and
plastic drop cloths (static arc hazard). Do not plug or unplug power
cords or turn lights on or off in spray area.
DGround Sprayer, object being sprayed, paint and solvent pails.
DHold gun firmly to side of grounded pail when triggering into pail.
DUse only conductive airless paint hose.
DDo not use 1,1,1-trichloroethane, methylene chloride, other
halogenated hydrocarbon solvents or fluids containing such
solvents in pressurized aluminum equipment. Such use could
result in a chemical reaction, with the possibility of explosion.
Fluid injection and high pressure hazard: High pressure spray or
leaks can inject fluid into the body.
To help prevent injection, always:
DEngage trigger safety latch when not spraying.
DKeep clear of nozzle and leaks.
DNever spray without a tip guard.
DDo PRESSURE RELIEF if you stop spraying or begin servicing
sprayer.
DDo not use components rated less than sprayer Maximum
Working Pressure.
DNever allow children to use this unit.
If high pressure fluid pierces your skin, the injury might look like
“just a cut”. But it is a serious wound! Get immediate medical attention.
WARNING

33Z9257
Contractor IIContractor II
ContractorContractor
CONTROLS / CONTROLES / COMMANDES / CONTROLES
12
5
34
Drain Valve /
Pressure Control / Trigger Lock /
Follow 1–5 when you stop
spraying.
On/Off Switch
PRESSURE RELIEF / / /
CONTROLS / / /
AutoCleant309278
15/20 Ampere Switch
/
/
/
/
/
Pressure Display /

43Z9257
1513 1412
7
9108 11
2
46
1
20”
STARTUP / / /
Flush / / /
Prime / /
5
WARNING
WARNING
PAINT
WASTE
1’ 10”
3
WASTE
WASTE
WASTE
WARNING
10”
FLUSH
FLUSH
FLUSH FLUSH
Flush with warm, soapy
water.
Flush with mineral spirits.
Watch for paint. Watch for paint.

53Z9257
1234
123
2
CHANGE PAINT / / /
Prime
CLEAR CLOG / / /
SPRAY / / /
1 3
Pressure Relief
WARNING
WARNING
123
Grounded Outlets Required
WARNING
or Flush
AutoCleant309278
GROUNDING /

63Z9257
20”
20 21
1816
14
15 17
910
11 12 13
3
4
7
1
8
19
Pressure Relief
Pressure Relief
20”
Pressure Relief
Mineral Spirits
WASTE
Mineral Spirits
22
Flush
AutoCleant
309278
6
or 3–22
25
WARNING
FLUSH
FLUSH
SHUTDOWN / / /

73Z9257
GAL/LTR
Noise
Power 91 dB(A)*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pressure 82 dB(A)*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
* ISO 3744
AutoCleant
Service manual
High pressure limit
Transducer fault /
High line voltage
High current
Motor overheated
> 2000 psi in
Timer Mode
Low line voltage
TIMER
PRESSURE
ERROR CODES /
Turn power OFF/ON to reset 309278
PRESSURE GAL/LTR
TIMER
Service
DISPLAY /
91 dB(A)*
82 dB(A)*
91 dB(A)*
82 dB(A)*
/
––
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from
defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the
exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of
sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment
is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub-
stitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

83Z9257
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD
BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches,
hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making
any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.

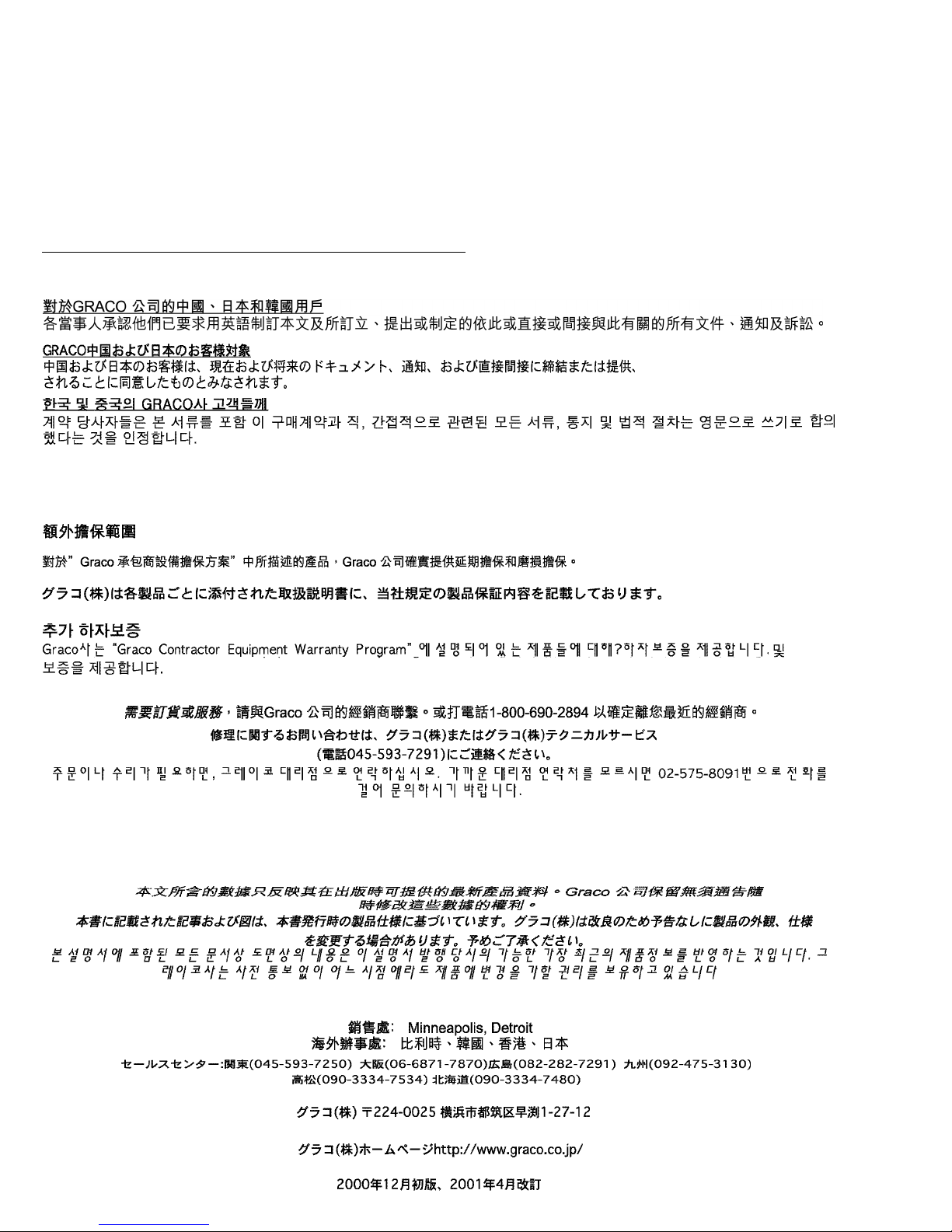

FOR GRACO CHINESE, JAPANESE AND KOREAN CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English.
ADDITIONAL WARRANTY COVERAGE /
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty
Program”.
TO PLACE AN ORDER OR FOR SERVICE, contact your Graco distributor,
or call 1–800–690–2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the
right to make changes at any time without notice.
Sales Offices: Minneapolis, Detroit
Foreign Offices: Belgium, Korea, Hong Kong, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
http://www.graco.com
PRINTED IN USA 309257 December 2000, revised 12/2002
