LS Series Coolers and Condensers
2
Method of Shi pment
Forced draft units are shipped either fully assembled (small units) or with the top section(s) separate from the bottom section(s).
These sections have mating flanges and will join together in a waterproof joint when sealed and bolted together as described in the
following instructions. Miscellaneous items, such as sealer, fasteners and any other required materials, are packaged and placed
inside the pan for shipment.
NOTE: All casing sections are factory inspected prior to shipment to verify proper fit for rigging. Please take extra care to handle
and rig unit section per the instructions of this manual to avoid possible distortion and poor casing alignment. It is advisable to
check each section upon receipt and during each lift to ensure that the factory alignment has not been altered. Should the field
inspection indicate the section alignment (“square”) has been altered, please contact the factory or your local EVAPCO
representative for additional instructions to obtain proper section fit.
Storage
Do not place tarps or other coverings over the top of the units if the units are to be stored before installation. Excessive heat can
build up if the units are covered causing possible damage to the PVC eliminators. For extended storage beyond six months rotate
the fan and fan motor shaft(s) monthly. Also, the fan shaft bearings should be purged and regreased prior to start-up.
G eneral
For extended lifts, or where hazards may exist, it is recommended that safety slings and spreaders be employed for safety. Refer
to the extended lift information in this bulletin.
International Building Code Pr ov i s i ons
The International Building Code (IBC) is a comprehensive set of regulations addressing the structural design and installation
requirements for building systems– including HVAC and industrial refrigeration equipment. As of June 2008, all 50 states plus
Washington D.C. have adopted the International Building Code. The code provisions require that evaporative cooling equipment
and all other components permanently installed on a structure must meet the same seismic design criteria as the building. The LS
Series Coolers and Condensers are IBC 2006 compliant up to 1g (7kPa wind-load) with standard construction and up to 5.12g
(7kPa wind-load) with additional structural modifications.
All items attached to the Evapco LS Closed Circuit Cooler or LS Evaporative Condenser must be independently reviewed and
isolated to meet applicable wind and seismic loads. This includes piping, ductwork, conduit, and electrical connections. These
items must be flexibly attached to the Evapco unit so as not to transmit additional loads to the equipment as a result of seismic or
wind forces.
Structural Steel Suppor t
Two structural “I” beams running the length of the unit are required for supporting the unit. These beams should be located
underneath the outer flanges of the unit as shown in Figure 1. See Table 1 for Steel Support Dimensions.
Mounting holes, 19mm in diameter, are located in the bottom flange for bolting to the structural steel. Refer to the recommended
structural steel support drawing and certified print for exact bolt hole location. Bolt the bottom section to the steel support before
rigging the top section.
Beams should be sized in accordance with accepted structural practices. Maximum deflection of the beam under the unit should be
1/360 of the unit length, not to exceed 13mm. Deflection may be calculated by using 55% of the operating weight as a uniform load
on each beam (see certified print for operating weight).

LS Se
r
ies Coolers and Condensers
3
The supporting “I” beams should be level to within 1.5mm in 1m before setting the unit. Do not level the unit by shimming
between the bottom flange and the beams as this will not provide proper longitudinal support.
NOTE: Consult IBC 2006 for required steel support layout and structural design.
Table 1 – Steel Support Dimensions
Rigging Pan/Fan Secti on
U-bolts or similar lifting points are located in the pan-fan section for lifting and final positioning purposes as shown below in Figures
2, 3 and 4. Units with lengths up to 5.4m have 4 total lift points. Units with lengths of 7.3m and 2.4m x 11m long units have 6 lift points.
All other 11m long units have 8 lift points. See Table 2 for the minimum “H” dimensions for rigging the pan-fan assembly.
NOTE: Use all of the U-bolts or lift points provided for lifting.
Figure 2 – Pan/Fan Section
(up to 5.4m Long)
Figure 3 – Pan/Fan Section
(7.3m Long and 2.4 x11m Long - 6 lift points shown)
Unit
Footprint (m) B1(Unit Only) (mm) B2 Unit with Intake Attn.
(mm)
A
(mm)
1.2×1.8 1235 3038 1826
1.2×2.7 1235 3038 2724
1.2×3.6 1235 3038 3645
1.2×5.4 1235 3038 5486
1.6×3.6 1661 3467 3645
1.6×5.4 1661 3467 5490
2.4×3.6 2388 4191 3651
2.4×5.4 2388 4191 5486
2.4×7.3 2388 4191 7341
2.4×11 2388 4191 11030
3×3.6 2991 4794 3648
3×5.4 2991 4794 5493
3×7.3 2991 4794 7334
3×11 2991 4794 11020

LS Series Coolers and Condensers
4
The recommended method for extended lifts is to use slings under the unit as shown in Figures 5 and 6. Spreader bars should
always be used between the cables at the top of the section to prevent damage to the upper flanges. NOTE: The U-bolts or other
lifting points should be used for final positioning only and for lifting where no danger exists. If they are used for extended
lifts, safety slings and spreader bars should be provided under the sections as shown.
Figure 5 – Extended Lift Pan/Fan Section
(up to 5.4m Long) Figure 6 – Extended Lift Pan/Fan Section (7.3m and 11m Long - 6 lift points shown)
See Table 2 for the minimum “H” dimensions for rigging the pan-fan assembly for both standard and extended lifts.

LS Se
r
ies Coolers and Condensers
5
Unit
Footprint (m) Minimum “H” (m)
2.4 x 5.4 5.8
2.4 x 7.3 7.7
2.4 x 11 11.6
3 x 3.6 4.6
3 x 5.4 5.8
3 x 7.3 7.7
3 x 11 11.6
Table 2 – Minimum “H” Dimension for Pan/Fan Rigging
Applying Sealer T ape
Once the bottom section has been set on the supporting steel and bolted in place, wipe the top flanges to remove any dirt or
moisture. Place sealer tape over the mounting hole centerline on the side flanges. Apply two strips of sealer tape, one partially
overlapping the other, on the end flanges.
The sealer tape should overlap on the corners as shown in Figure 7. Do not splice the sealer tape along the end flanges and
preferably not on the side flanges if it can be avoided. Always remove the paper backing from the sealer tape.
For units which have two coil sections, sealer tape must be applied to all internal flanges (Figure 8).
Figure 7 – Proper Sealer Tape Application Figure 8 – Sealer Detail for Center Joint of
Units with Two of More Coil Sections
Rigging the Coil Secti on
U-bolts or lift points are provided in the four corners of the coil section for lifting and final positioning (Figure 9). On larger coil
sections which have 2 coils, there are additional lift points on the center (Figure 10). Refer to the certified drawing for the coil
section weight. The end and center eliminator sections should be removed before lifting from the U-bolts or lift points and set back
into place once the rig is complete. See Table 3 for the minimum “H” dimensions for rigging the coil section. NOTE: Use all of the
U-bolts or lift points provided for lifting.
CAUTION: On units shipped as two separate sections, do not assemble sections and attempt to lift the entire unit. The
U-bolts and lift points are designed to carry only the weight of their individual section.
Unit
Footprint (m) Minimum “H” (m)
1.2 x 1.8 2.5
1.2 x 2.7 3.1
1.2 x 3.6 4.6
1.2 x 5.4 5.8
1.6 x 3.6 4.6
1.6 x 5.4 5.8
2.4 x 3.6 4.6

LS Series Coolers and Condensers
6

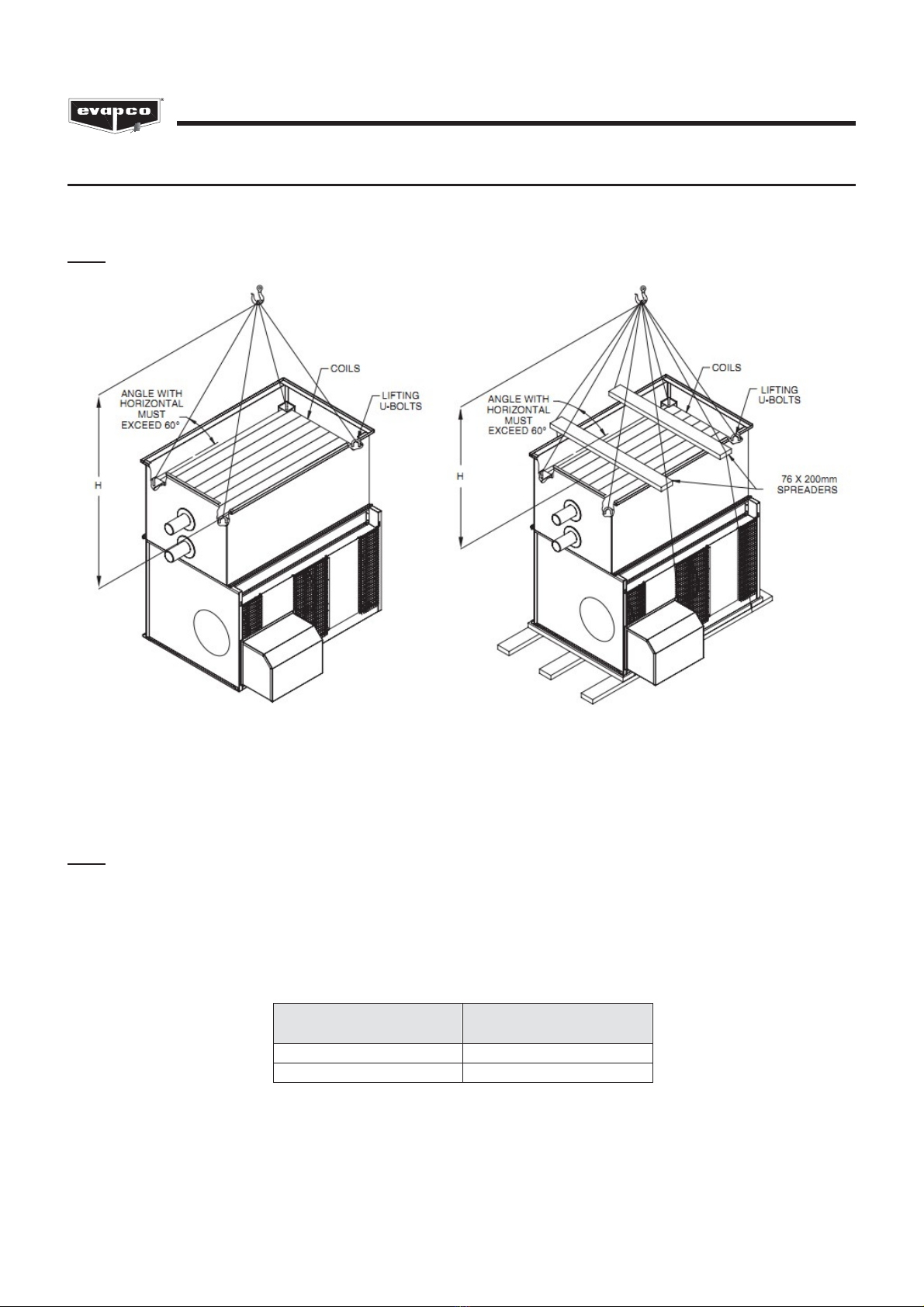

Figure 9 – Small Coil Section Figure 10 – Large Coil Section (2 Coils Wide)
The recommended method for extended lifts is to use slings under the unit as shown in Figures 11 and 12. Spreader bars should
always be used between the cables at the top of the section to prevent damage to the upper flanges.
NOTE: The U-bolts or other lifting points should be used for final positioning only and for lifting where no danger exists. If
they are used for extended lifts, safety slings and spreader bars should be provided under the sections as shown.
Figure 11 – Extended Lift Small Coil Section Figure 12 – Extended Lift Large Coil Section

LS Se
r
ies Coolers and Condensers
7
See Table 3 for the minimum “H” dimensions for rigging the coil section for both standard and extended lifts.
Table 3 – Minimum “H” Dimension for Coil Rigging
Unit
Footprint(m) Minimum “H”(m)
1.2 x 1.8 2.5
1.2 x 2.7 3.1
1.2 x 3.6 4.6
1.2 x 5.4 5.8
1.6 x 3.6 4.6
1.6 x 5.4 5.8
2.4 x 3.6 4.6
2.4 x 5.4 5.8
2.4 x 7.3 4.6
2.4 x 11 5.8
3 x 3.6 4.6
3 x 5.4 5.8
3 x 7.3 4.6
3 x 11 5.8
Assemblyof the Coil Section to the Pan/Fan Secti on
Before assembling the coil section to the pan/fan section, remove any loose parts shipped in the pan. On small centrifugal fan
units, the fan motor guard is normally shipped in the basin to avoid damage. It should be attached to the unit with the self-tapping
screws provided.
Wipe the flanges on the bottom of the coil section.
Check to see that the water distribution connection on
the coil section is in the correct position relative to the
pan-fan section (see certified print). Confirm that
sealer tape has been applied to the top of the pan-fan
section as shown in Figures 7 and 8.
Lower the coil section to within several inches of the
pan-fan section making sure the two sections do not
touch and the sealer tape is not disturbed. Place drift
pins (see Figure 13, Detail B) in at least 3 of the
corner mounting holes and gradually lower the coil
section into place using the drift pins to guide the
section down accurately onto the mating flange. On
5.4m and 7.3m long sections, drift pins should be
used midway along the sides as well.
Place fasteners in all four corner bolt holes. Then
continue to install the rest of the fasteners working
from the corners toward the center, using drift pins to
align the holes. A fastener must be installed in every
hole on the side flanges although none are required
on the end flanges. For units with two coil sections,
mount the first as described, and then follow the
same procedure for the second section.

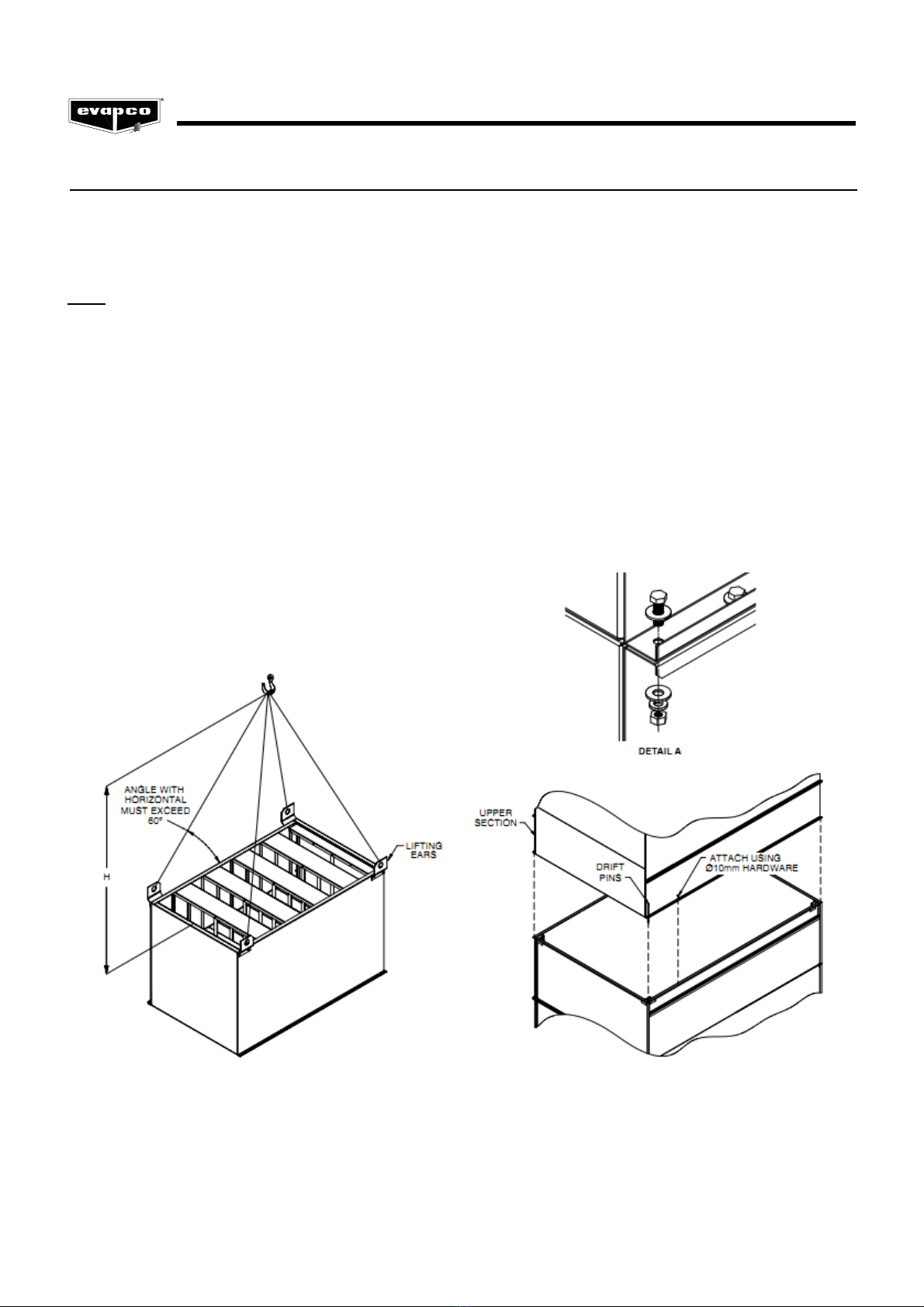

Figure 13 – Mating Coil Section to Pan-Fan Section

LS Series Coolers and Condensers
8
Rigging Complete U ni ts
Units that are shipped with the pan-fan and coil sections assembled can be lifted into final position on the structural steel as a
complete unit. U-bolts or lift points are provided in the coil section below the eliminators for lifting and final positioning (Figure 14).
NOTE: Use all of the U-bolts or lift points provided for lifting.

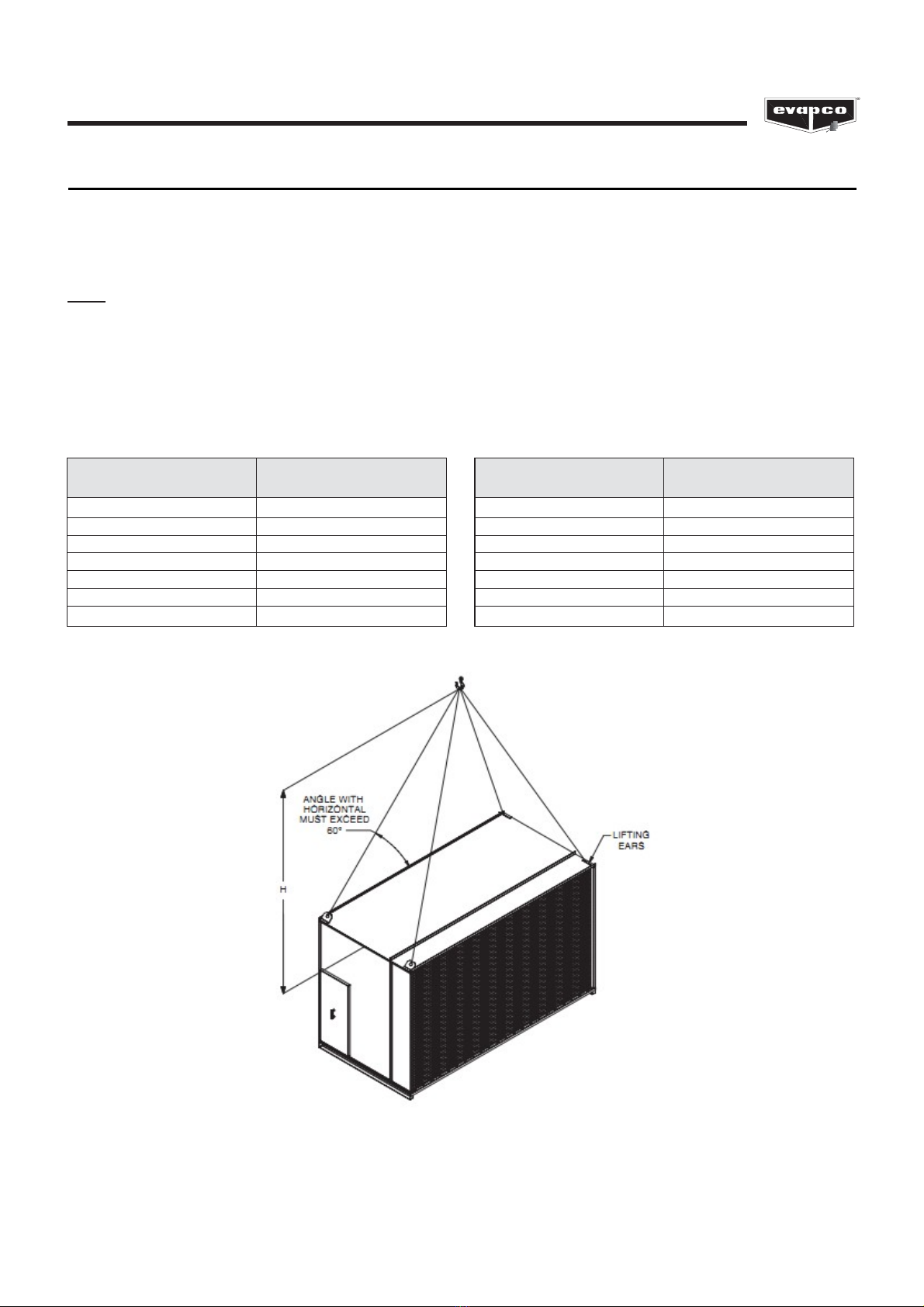

Figure 14 – Complete 1.2m Wide Units Figure 15 – Extended Lift Complete Unit
The recommended method for extended lifts is to use slings under the unit as shown in Figure 15. Spreader bars should always be
used between the cables at the top of the section to prevent damage to the upper flanges.
NOTE: The U-bolts or other lifting points should be used for final positioning only and for lifting where no danger exists. If
they are used for extended lifts, safety slings and spreader bars should be provided under the sections as shown.
See Table 4 for the minimum “H” dimensions for rigging the entire unit for both standard and extended lifts.
Table 4 – Minimum “H” Dimension for Complete Unit Rigging
Unit
Footprint (m) Minimum “H” (m)
1.2 x 1.8 2.5
1.2 x 2.7 3.1

LS Se
r
ies Coolers and Condensers
9
Unit
Footprint(m) Minimum “H”(m)
2.4 x 5.4 5.8
2.4 x 7.3 4.6
2.4 x 11 5.8
3 x 3.6 4.6
3 x 5.4 5.8
3 x 7.3 4.6
3 x 11 5.8
Optional Tapered
or Straight-Sided Hood Secti on
Some units may be supplied with an optional discharge hood section. This section will ship from the factory as a separate item or
loosely mounted on top of either the pan-fan section or coil section to reduce freight charges. Each hood section is equipped with
U-bolts located at the four corners for lifting and final positioning (Figure 16). Always use safety slings for extended lifts or where
any hazard exists.
NOTE: When combined with other sections, the hood must be removed prior to any lift. In all cases the hood section
must be rigged as a separate part.
Once the coil section has been secured to the pan-fan section, wipe the top flanges to remove any dirt or moisture. Place sealer
tape over the mounting hole centerline on the side flanges. Apply two strips of sealer tape, one partially overlapping the other, on
the end flanges as shown in Figures 7 and 8. Remove any shipping blocks or other obstructions. Lower the hood onto the top
flange of the coil section.
Install the fasteners in all four corners as shown in Figure 16. For 5.4m long hoods, two additional fasteners are provided and
are to be fastened in the middle of each side. NOTE: Always lift the hood separately and follow the rigging sequence shown.
Figure 16 – Discharge Hood Rigging and Assembly (Tapered Hood Shown)
See Table 5 for the minimum “H” dimensions for rigging the discharge hood for both standard and extended lifts.
Table 5 – Minimum “H” Dimension
for Rigging Discharge Hoods and DischargeAttenuation
Unit
Footprint (m) Minimum “H” (m)
1.2 x 1.8 2.5
1.2 x 2.7 3.1
1.2 x 3.6 4.6
1.2 x 5.4 5.8
1.6 x 3.6 4.6
1.6 x 5.4 5.8
2.4 x 3.6 4.6

10
LS Series Coolers and Condensers
Optional Discharge Attenuation
Secti on
Some units may be supplied with an optional discharge attenuation section. This section will ship from the factory as a separate
item or mounted on top of either the pan-fan section or coil section to reduce freight charges. Each discharge attenuation section
is equipped with U-bolts located at the four corners for lifting and final positioning (Figure 17). Always use safety slings for
extended lifts or where any hazard exists.
NOTE: When combined with other sections, the attenuation must be removed prior to any lift. In all cases the hood
section must be rigged as a separate part.
Once the coil section has been secured to the pan-fan section, wipe the top flanges to remove any dirt or moisture. Place sealer
tape over the mounting hole centerline on the side flanges. Apply two strips of sealer tape, one partially overlapping the other, on
the end flanges as shown in Figures 7 and 8.
Lower the attenuation section to within several inches of the coil section making sure the two sections do not touch and the sealer
tape is not disturbed. Place drift pins (see Figure 18) in at least 3 of the corner mounting holes and gradually lower the coil section
into place using the drift pins to guide the section down accurately onto the mating flange. On 5.4m and 7.3m long sections,
drift pins should be used midway along the sides as well.
Place fasteners in all four corner bolt holes. Then continue to install the rest of the fasteners working from the corners toward the
center, using drift pins to align the holes. A fastener must be installed in every hole on the side flanges although none are required
on the end flanges. For units with two attenuation sections, mount the first as described, and then follow the same procedure for
the second section.
Figure 17 – Discharge Attenuator Rigging Figure 18 – Discharge Attenuator Installation Instructions

LS Series Coolers and Condensers
11
Unit
Footprint(m) Minimum “H”(m)
2.4 x 5.4 5.8
2.4 x 7.3 4.6
2.4 x 11 5.8
3 x 3.6 4.6
3 x 5.4 5.8
3 x 7.3 4.6
3 x 11 5.8
Optional Intake A ttenuati on
Some units may be supplied with an optional intake attenuation section. This section will ship from the factory as a separate item
or mounted on top of either the pan-fan section or coil section to reduce freight charges. Each intake attenuation section is
equipped with U-bolts located at the four corners for lifting and final positioning (Figure 19). Always use safety slings for extended
lifts or where any hazard exists.
NOTE: When combined with other sections, the attenuation must be removed prior to any lift. In all cases the attenuation
section must be rigged as a separate part.
Move the attenuation section to within several inches of the fan intake section. Place drift pins (see Figure 18) in at least 3 of the
corner mounting holes and gradually move the coil section into place using the drift pins to guide the section accurately onto the
mating flange. On 5.4m and 7.3m long sections, drift pins should be used midway along the sides as well. See Table 6 for the
minimum “H” dimensions for rigging the inlet attenuation for both standard and extended lifts.
Table 6 – Minimum “H” Dimension for Rigging Inlet Attenuation
Unit
Footprint(m) Minimum “H”(m)
1.2 x 1.8 2.5
1.2 x 2.7 3.1
1.2 x 3.6 4.6
1.2 x 5.4 5.8
1.6 x 3.6 4.6
1.6 x 5.4 5.8
2.4 x 3.6 4.6
Figure 19 – Complete Attenuator Rigging

12
LS Series Coolers and Condensers
Motor Installation (1.2m and 1.6m wide models )
1. Study Figure 20 before installing the motor bases on the unit.
2. Insert the lifting device into the lifting hole A provided in the motor base.
3. Lift the motor/motor base assembly and align holes B to B1 and C to C1. Insert the 13mm diameter pivot bolts with flat
washer D. Install flat washer, nut and jam nut E on the pivot bolt. DO NOT OVERTIGHTEN.
4. Insert the J-bolts F into holes G. Install flat washers and cotter pins H. Place nuts, lock washers, and flat washers J on the
threaded portion of J-bolts. Their final location will be behind the motor base installed next.
5. Insert the J-bolts into the holes K in the motor base. Install flat washers, lock washers, and nuts L. Remove the lifting device
from the motor base and position motor base toward the unit for belt installation.
6. Install the belts M around the fan sheave and motor sheave (Figure 21). Tighten belts by adjusting nuts on J-bolts. Do not
over tension the belts. When the belts are properly adjusted, the deflection at the center of the belt should be approximately
13mm with moderate hand pressure.
7. Measure the distance from the motor base to the J-bolt mounting angles to ensure that both sides of the base are located the
same distance from the unit. This should ensure that the sheaves are properly aligned since they were pre-set at the factory.
8. As a final check, lay a straight edge from sheave to sheave (Figure 22). There should be 4 point contact. Adjust the position
of the motor sheave if necessary.
9. To install the motor guard N, line up the holes and fasten with the self-tapping screws P (Figure 21). Check to ensure that the
motor guard does not make contact with the drive sheave or belts.

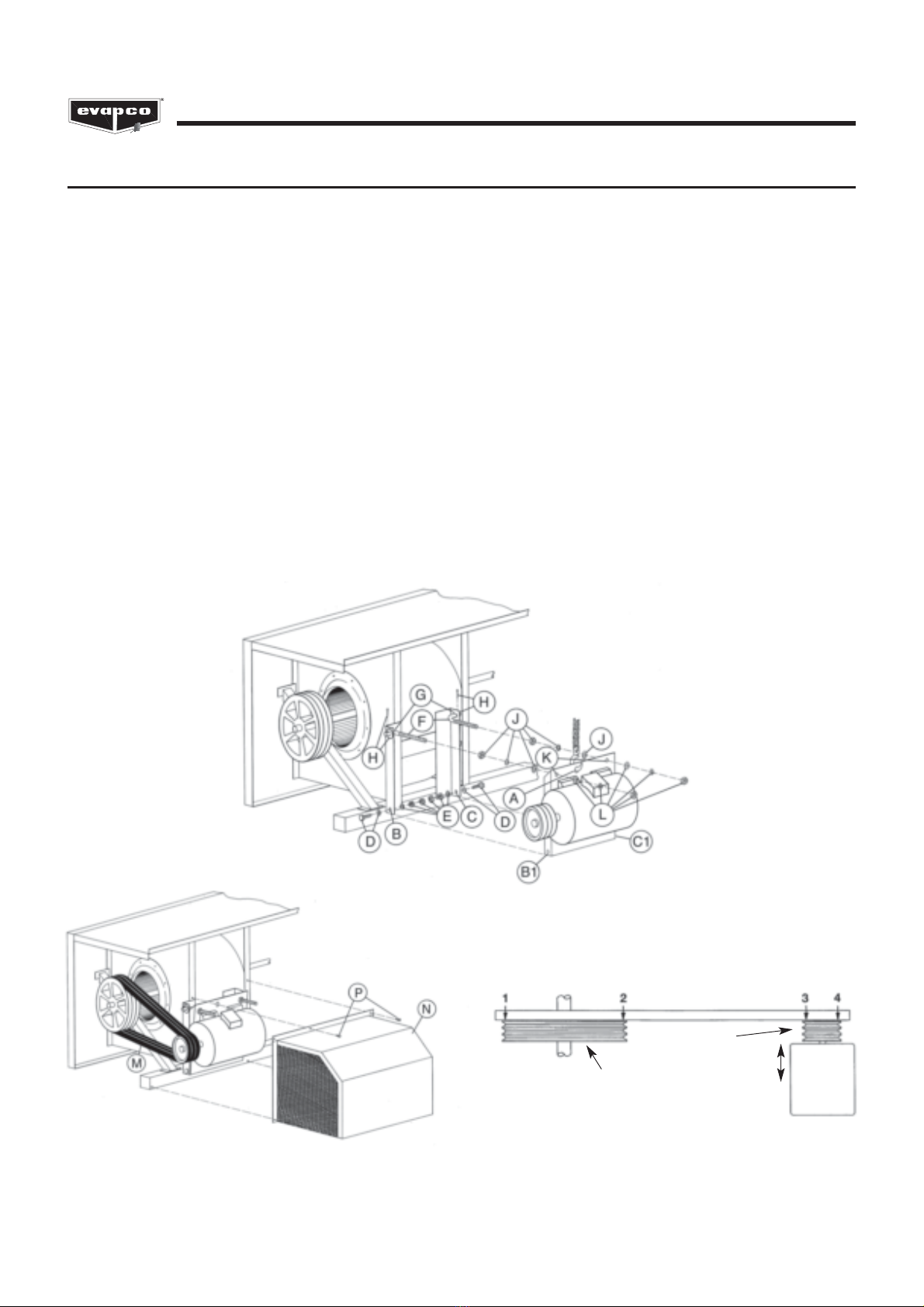

Figure 20 – Motor Installation
MOTOR
SHEAVE
FAN
SHEAVE
ADJUST POSITION
OF MOTOR SHEAVE
(only if necessary)
Figure 21 – Motor Guard and Powerband Belt Installation Figure 22 – Sheave Alignment Check

13
LS Series Coolers and Condensers
Unit
Footprint(m) Minimum Level (m)
2.4 x 5.4 4.6
2.4 x 7.3 3.7
2.4 x 11 4.6
3 x 3.6 3.7
3 x 5.4 4.6
3 x 7.3 3.7
3 x 11 4.6
Final Assembly and Start -up Details
Shipping Materials - Remove any wood chocks, spare parts, or miscellaneous items that have been placed inside the unit for
shipping purposes. Clean all debris from the basin.
Pump Discharge Line - Connect the riser pipe from the pump discharge on the pan-fan section to the riser pipe on the coil section
using the flexible connection and hose clamps provided.
Bleed-off Line - A bleed-off line and valve are installed on the unit when shipped with a pump. On units shipped without a pump
(remote sump applications) make sure a bleed-off line and valve are properly sized and installed on the discharge side of the pump
and connected to a convenient drain. In either case, the bleed-off valve should be fully open.
Strainer - Check the strainer in the basin to ensure that it is in its proper location over the pump suction.
Screens - Protective air inlet screens are provided across the front of the fan section of all models. Screens are not provided on
the bottom of the fan section since most of the units are mounted on steel beams, either on the roof or at ground level. If units are
installed in an elevated position, bottom screens are recommended for safety protection and should be provided by the installing
contractor.
Float Valve Adjustment - The float valve is pre-set at the factory, however adjustment should be checked after rigging. The float
valve should be adjusted so that the center of the float is 25mm below the center of the overflow connections when the valve is in the
fully closed position. Raise or lower the float by using the wing nuts on the vertical threaded rod. Do not adjust the horizontal rod.
During normal operation, the water level will drop 76mm to 100mm below the overflow in condensers and coolers. See Table 7 for
normal operating level for the LS Series units. Note: The float valve has an available operating pressure between 140kPa and
340 kPa.
Fan Rotation - Bump start and check the fans for proper rotation. Directional arrows are placed on the outside of centrifugal fan
housings or on the inside of axial fan cylinders. Note, unless the unit has been sized for dry operation, the fan motor will overamp
unless the pump is also running.
Pump Rotation - Once the basin is filled with water, bump start and check the pump for proper rotation. Directional arrows are
found on the pump impeller housing.
Table 7 – Minimum Operating Level
Unit
Footprint(m) Minimum Level (m)
1.2 x 1.8 3.4
1.2 x 2.7 3.4
1.2 x 3.6 3.4
1.2 x 5.4 3.4
1.6 x 3.6 3.4
1.6 x 5.4 3.4
2.4 x 3.6 3.7

14
LS Series Coolers and Condensers
Freeze Pr otecti on
The simplest and most effective way of keeping the recirculated water from freezing is to use a remote sump. With a remote sump,
when the recirculating water pump is shut off all recirculating water drains back to the sump.
If a remote sump is not being used, pan heaters are available. However, the basin heater will not prevent the external water lines,
pump or pump piping from freezing. For installations where water will be left in the basin during freezing conditions, the make-up water
supply, overflow and drain lines, as well as the pump and pump piping up to the overflow level must be heat traced and insulated to
protect them from damage. Any other connections or accessories at or below the water level must also be heat traced and insulated.
A condenser or cooler cannot be operated dry (fans on, pump off) unless the water is completely drained from the pan.
The pan heaters are sized to prevent pan water from freezing only when the fans are turned off.
Water T r eatment
Proper water treatment is an essential part of the maintenance required for evaporative cooling equipment. Galvanized equipment
should be passivated prior to equipment startup to avoid the formation of white rust. For more information on passivation and white
rust, please download a copy of EVAPCO’s Engineering Bulletin 36 at www.evapco.com. The spray water and the fluid inside the
heat transfer coil should both be maintained with a water treatment program to ensure efficient system operation while maximizing
the equipmentʼ s service life. For more information on recommended water chemistry for EVAPCO equipment, see the Operation
and Maintenance Instructions for this equipment.
Mai ntenance
Once the installation is complete and the unit is turned on, it is important that it be properly maintained. Maintenance is not difficult
or time-consuming but must be done regularly to assure full performance of the unit. Refer to the operation and maintenance
instructions supplied with the unit for proper maintenance procedures.

15
LS Series Coolers and Condensers
Accessory Location C heckl i s t
Accessories can ship in a variety of locations depending on the type of accessory, the size of the unit and the accessories
purchased with the unit. See Table 11 for a guide to accessory location.
Table 11 – Unit Accessory Shipping Location
Unit Accessories Shipping Location
Aluminum Ladder Shipping Location is Unit and Accessory Dependent
- If Space is Available: Strapped Inside Unit Basin
- If No Space is Available: Shipped Separately on Truck Bed
Discharge Attenuation Shipping Location is Unit Dependent
-1.2m Wide Units: Shipped Separately on Truck Bed
-2.4m Wide Units and Larger: Mounted Loosely Bolted on Basin or Coil Casing
Discharge Hood with Dampers Shipping Location is Unit Dependent
-1.2m Wide Units: Shipped Separately on Truck Bed
-2.4m Wide Units and Larger: Mounted Loosely Bolted on Basin or Coil Casing
Electric Basin Heater Shipping Location is Unit Dependent
- End Mounted Heater: Installed in Unit Basin
- Side Mounted Heater: Strapped Inside Unit Basin
Electric Basin Heater Control Panel Shipping Location is Dependent on Control Panel Size
- If Space is Available: Mounted on Unit Basin
- If No Space is Available: Boxed, Wrapped and Wire Tied Inside Unit Basin
Electric Basin Heater Low Water Cutout Shipped in Rigging Box Strapped Inside Unit Basin
Electric Basin Heater Thermostat Shipping Location is Unit Dependent
- End Mounted Thermostat: Mounted on Unit Basin
- Side Mounted Thermostat: Shipped in Rigging Box
Electronic Water Level Control Probes Mounted in PVC standpipe
Electronic Water Level Control PVC Standpipe Strapped Inside Unit Basin
Factory Mounted Crossover Piping Welded to Coil Connections
Fan Screens (If not mounted) Shipping Location is Unit and Accessory Dependent
- If Space is Available: Strapped Inside Unit Basin
- If No Space is Available: Crated and Shipped Separately on Truck Bed
Hot Water or Steam Coil Installed in Unit Basin
Inlet Attenuation Shipped as a Separate Section
Motor (If not mounted) Installed In Unit Basin
Remote Sump Trash Screen Installed In Unit Basin
Rigging Hardware Shipped in Rigging Box Strapped Inside Unit Basin
Safety Cage Attached to the Ladder
Sealer Tape Shipped in Rigging Box Strapped Inside Unit Basin
Sump Sweeper Piping with and without
High Flow Eductors Installed in Unit Basin
Vibration Switch Mounted in Fan Section

16
LS Series Coolers and Condensers
EVAPCO, Inc. •
P.O. Box 1300 • Westminster, MD21158 USA
PHONE: [phone] • FAX: [phone] • E-MAIL: [email protected]
©2011 EVAPCO, Inc.
EVAPCOAsia Pacific
1159 Luoning Rd. Baoshan Industrial Zone, Shanghai, P. R. China, Postal Code: 200949
Phone: [phone] Fax: [phone] E-mail: [email protected]
