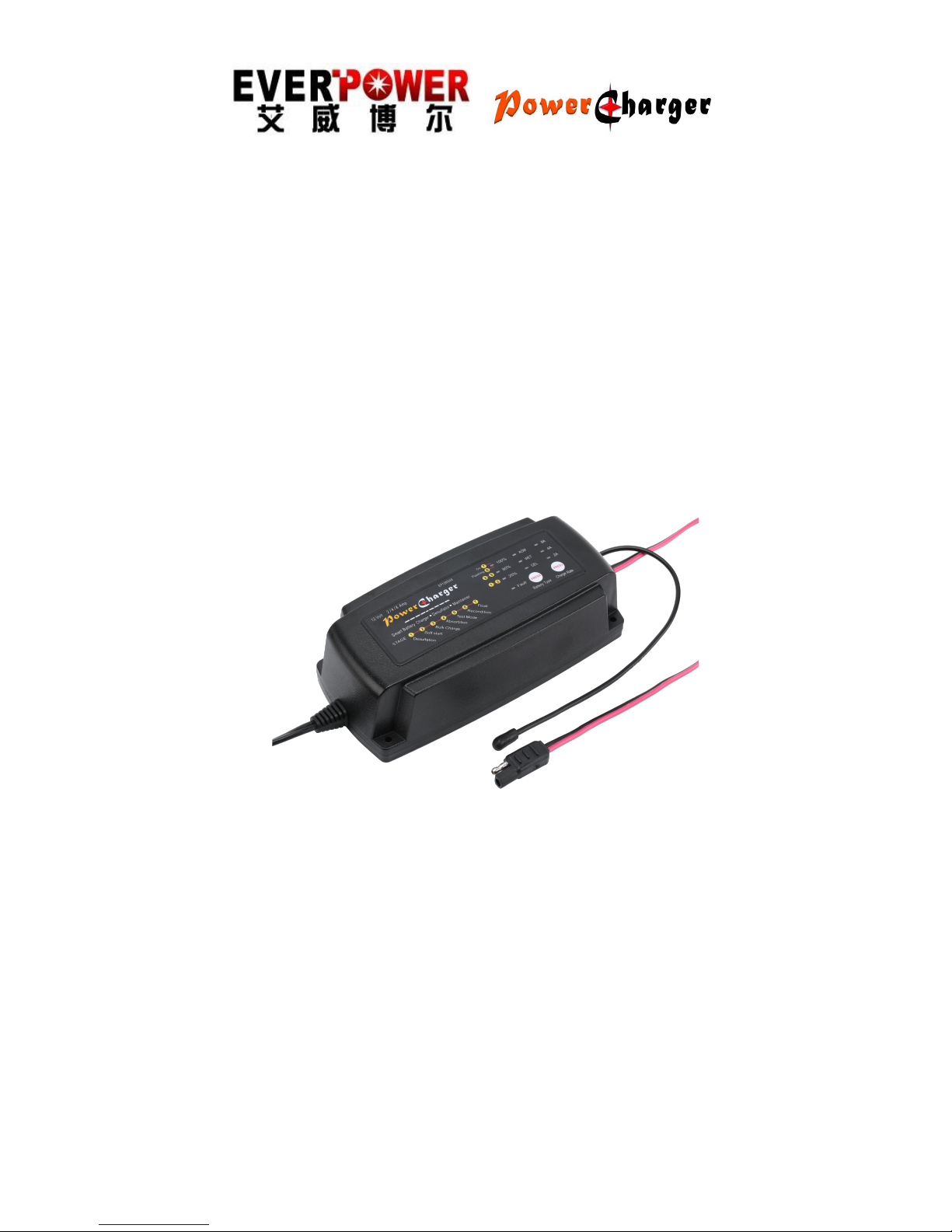

Ever Power EP12M248 User manual

1
EP12M248
7 Stage
Automatic Smart Battery
Charger, Desulphuration& Maintainer
12V, 2 / 4 / 8A
FOR AGM, GEL AND WET BATTERIES
USER MANUAL
THIS MANUAL CONTAINS IMPORTANT
SAFETY AND OPERATING INSTRUCTIONS

2
IMPORTANT SAFETY INSTRUCTIONS
Please read this manual and follow the instructions carefully
before using the charger .
WARNING：
。The EP12M248 charger is designed to charge 12V lead-acid
batteries from 6Ah to 160Ah and maintain batteries up to 200Ah.
.
。Checkbatterymanufacturerspecifications before usingthis charger.
。Explosivegases mayescapefromthe batteryduringcharging.
Provide ventilationtopreventflames and sparks.
。Donotexpose chargertorain,snowor liquids.
。Batteryacidis corrosive. Rinse immediatelywith water if acid comes
into contactwithskin oreyes.
。Donotcharge a frozenordamaged battery.
。Donotchargenon-rechargeable batteries.
。Donotplace the chargeronthe batterywhile charging.
。Be extra cautious toreduce riskofdroppingametaltoolonto
battery. Itmightspark orshort-circuitbatteryorotherelectricalpart
thatmaycause explosion.
。When workingwithalead-acid battery,removepersonal metal items
suchas rings,bracelets,necklaces,watch…
。Donotsmoke orallowa spark or flamewhile charging.
。In ordertoreduce riskofelectric shock,unplugcharger from AC
outletbefore doinganymaintenance orcleaning.
。Notforuse bychildrenorbyanyonewhois unabletofollow
instructions ofthismanual,unless theyare supervised byanadult
to ensuretheproperuse ofcharger.
MAIN FEATURES:
。Highefficiency (>85%).
。Selectable chargingrates to suitbatterycapacity.
。Selectable batterytype.
。Temperature self-compensation: Chargingvoltage adaptsto
temperaturetopreventoverorunderbatterycharging.
。Capable of rechargingseverelydischarged or heavilysulfated
battery.
。Reverse polarityprotection,shortcircuitprotection,sparksfree
contact.
。Ultralow inputpowerconsumption whilein standbymode.
。Ease ofuse.Clearchargingstatus display.
。Full microprocessorcontrolled.
。Does notoverchargeyourbatteryeven if itiskeptconnected in
maintenance floatmode.
.n
a
i
c
inh
ce
t
de
ifil
au
q
a
y
bdec
ivr
eseb
t
su
mr
e
g
r
a
h
ce
h
t
,
e
g
a
m
ad
l
ac
i
s
y
h
p
f
os
n
g
i
s
y
n
ae
r
ae
r
e
h
t
fir
o
,
de
g
a
m
ads
i
d
r
oc
r
e
w
o
p
e
h
t
fI
.
g
nin
ae
l
ce
lihw
r
e
w
o
p
e
h
t
m
o
rf
t
ce
nn
ocs
iD.
y
ll
a
n
o
i
saccode
n
ae
l
cebd
l
uo
h
sesace
hT
:E
C
NANETNIAM

3
。Multi Charge Stages:
oBattery desulphation charging
oSoft start charging
oBulk charging
oAbsorption charging
oBattery analysis
oRecondition charging
oFloat & maintenance charging
Temperature sensor
Temperature & Safety Protection:
。INTERNAL OVERHEAT PROTECTION: The charger is equipped
with built-in overheat and overload electronic circuit protection
。TIMER PROTECTION: Charger provides the maximum charging
time for each charging stage. In the event it is wired to recharge a
larger than recommended battery, charger will stop charging after
maximum stage recommended time and the RED LED will be FLASH
slowly. At this point, Battery must be disconnected.
。REVERSE POLARITY: Charger has reverse battery protection. (Red
LED ON, while output leads are connected backwards), Disconnect
and correct connection to battery.
。SHORT CIRCUIT PROTECTION: Charger will turn off upon
detectinga shortcircuit(Red LED ON.
RECOMMENDED SETTINGS:
ChargeRate:
Charge Current2A 4A 8A
Battery
Capacity:
Char
g
in
g
(
AH
)
6--4010--80 40--160
00
2
--
0
4
00
1
--
0
1
06
--
6
)
HA
(
g
nini
a
t
ni
a
M
:
y
t
i
ca
p
aC
y
r
e
tt
a
B

4
Batterytype:
Batterytype
(
V
o
l
t
a
g
e
v
a
l
u
e
a
t
2
5
℃
)
Absorption
Voltage
Float
VoltageMAX
GEL ForChargin gGEL batteries 1 4.1V 13.4V 14.4V
WET ForChargingFLOODED or
WET Batteries 1 4.4V 13.5V14.7V
AGMForChargingAGM,Sealed,
VRLA,Calciumbatteries 1 4.7V 13.6V15V
TECHNICAL SPECIFICATIONS:
ModelEP12M248
TypeSmart&Automatic
Input
(ULVersion)115Vac 50 /60Hz
Input
(CE
12V
2/4/ 8A
<0.5V
>2.0V
InputPower
W/Load 34-126W
InputPower
NoLoad 0.3-0.8W
Compensated
-
m
-
m
-
(L*W*H)8*3.5*2
(in)
1.87LB
ApprovalFCC &CE
)
n
o
i
s
r
e
V

5
ELECTRICAL PARTS:
。AC power cord: 6 feet SPT-2 with UL plug
。Output lead: 6 feet SPT-1 2X18AWG with insulated battery clamps.
ENVIRONMENTAL CHARACTERISTICS:
。Operating temperature range: 32 to 104° F
。Storage temperature range: 10 to 170°F
。Operating humidity range: 90% RH Max
ECO MODE:
If AC power is connected, and the battery is not connected, the charger
will automatically go into ECO mode. Input power draw in ECO mode is
less than 1.5W (0.04kWh per day).
Power consumption in maintenance mode is 0.05kWh per day.
CHARGING INSTRUCTIONS:
STEP 1 - Pre Charge:
Battery & Electrolyte Level Check
。Check the battery electrolyte level (Only for Flooded or WET
battery).
If necessary, remove the vent caps and add distilled water so the
levels are halfway between the upper and lower fill lines.
。
STEP 2 - Connect Charger to Battery
。If the battery is out of the vehicle:
。Connect the Red lead from the charger to the positive (+) battery
terminal.
。Connect the Black lead from the charger to the negative (-) battery
terminal.
。If battery is still in the vehicle, determine if the vehicle is positively
or negatively earthed.
。If Negatively earthed (Most Common) – First connect the Red (+)
battery charger lead to the Positive (+) battery post and then connect
the Black (-) battery charger lead to the vehicle’s chassis and away
from the fuel line.
。If Positively earthed – First connect the Black (-) battery charger
lead to the Negative (-) battery post and then connect the Red (+)
battery charger lead to the Vehicle’s chassis and far away from the fuel
line.
STEP 3 – Connect Charger to Power (115Vac / 230Vac)
。Connect the battery charger to AC mains powered socket.
。The Charger will automatically start when AC power is connected
and switched on.
(Note: If the Fault Indicator LED illuminates Red, please check your
connections as it’s likely that the Positive and Negative leads are
reversed. Refer to Trouble Shooting page for further information)
