INSTRUCTION MANUAL
EDSR-900
9 Channel Duplex Digital Video Recorder
V1.02
EDSR-1600
16 Channel Duplex Digital Video Recorder

?Refer all work related to the installation of this product to qualified service
personnel or system installers.
?Do not block the ventilation opening or slots on the cover.
?Do not drop metallic parts through slots.This could permanently damage
the appliance. Turn the power off immediately and contact qualified service
personnel for service.
?Do not attempt to disassemble the appliance.To prevent electric shock,
do not remove screws or covers. There are no user-serviceable parts
inside. Contact qualified service personnel for maintenance. Handle the
appliance with care. Do not strike or shake, as this may damage the
appliance.
?Do not expose the appliance to water or moisture, nor try to operate it in
wet areas. Do take immediate action if the appliance becomes wet.
Turn the power off and refer servicing to qualified service personnel.
Moisture may damage the appliance and also cause electric shock.
?Do not use strong or abrasive detergents when cleaning the appliance
body. Use a dry cloth to clean the appliance when it is dirty. When the
dirt is hard to remove,use a mild detergent and wipe gently.
?Do not overload outlets and extension cords as this may result in a risk of
fire or electric shock.
?Do not operate the appliance beyond its specified temperature, humidity
or power source ratings. Do not use the appliance in an extreme
environment where high temperature or high humidity exists. Use the
appliance at temperature within 0oC ~ +40oC and a humidity below 90%.
The input power source for this appliance is AC100~240V
Safety Precautions
Safety Precautions
CAUTION
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The exclamation point within an equilateral triangle is
intended to alert the user to presence of important
operating and maintenance(servicing)instructions in the
literature accompanying the appliance.
Safety Precautions
Warning :
To prevent fire or shock hazard, do not expose units not
specifically designed for outdoor use to rain or moisture.
The lightning flash with an arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated ”dangerous voltage”within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons
Attention:
Installation should be performed by qualified service personnel
only in accordance with the National Electrical Code or
applicable local codes.
AC100~240V Power Cords
Warning:
Electrostatic-sensitive device. Use proper
CMOS/MOSFET handing precautions to avoid
electrostatic discharge.
UNPACKING
Unpack carefully.
This is electronic equipment and should be
handled carefully.
Check to ensure that the following items are included;
•1. Digital Video Recorder unit
•2. User’s manual
•3. Power Cord
•4. HDD tray key and screws
•5 Alarm I/O board
If an item appears to have been damaged in shipment,
replace it properly in its carton and notify the shipper.
Safety Precautions
Do not place on uneven or unstable work surfaces.
Seek servicing if the casing.
Power Disconnect:
Units with or without ON-OFF switches have power
supplied to the unit whenever the power code is inserted
into the power source; however, the unit is operational
only when the ON-OFF switch is in the ON position.
The power cord is the main power disconnect for all units.
Note:
Before installing and using this unit, please read this manual carefully. Be sure to keep it handy for later
reference.
The information in this manual was current when published. The manufacturer reserves the right to revise
and improve its products. All specifications are therefore subject to change without notice.
Note:
This is a class A product. In a domestic environment this product may cause radio interference
In which case the user may be required to take adequate measures.

Important Safeguards
Read Instruction---All the safety and operating instructions should be read before the init is operated
Retain Instructions---The safety and operating instructions should be retained for future reference.
Heed Warnings—All warnings on the unit and in the operating instructions should be adhered to.
Follow Instructions—All operating and use instructions should be followed
Cleaning—Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning
Attachments—Do not use attachment not recommended by the product manufacturer as they may
cause hazards.
Water and Moisture—Do not use this unit near water-for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, near a swimming pool, in an
unprotected outdoor installation, or any area which is classified as a wet location.
Servicing—Do not attempt to service this unit yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Power Cord Protection—Power supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them, playing particular
attention to cords and plugs, convenience receptacles, and the point where
they exit from the appliance.
Object and Liquid Entry—Never push objects of any kind into this unit through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or
electric shock, Never spill liquid of any kind on the unit.
Important Safeguards

Table of Contents
1. Product Overview…………………………………….………………..…..…..Page 1
1.1 Main features………………………………………………………………….....…..….1
1.2 Specifications………………………………………………………………..…………..2
2. Back panel connections……………………………………………......………3~4

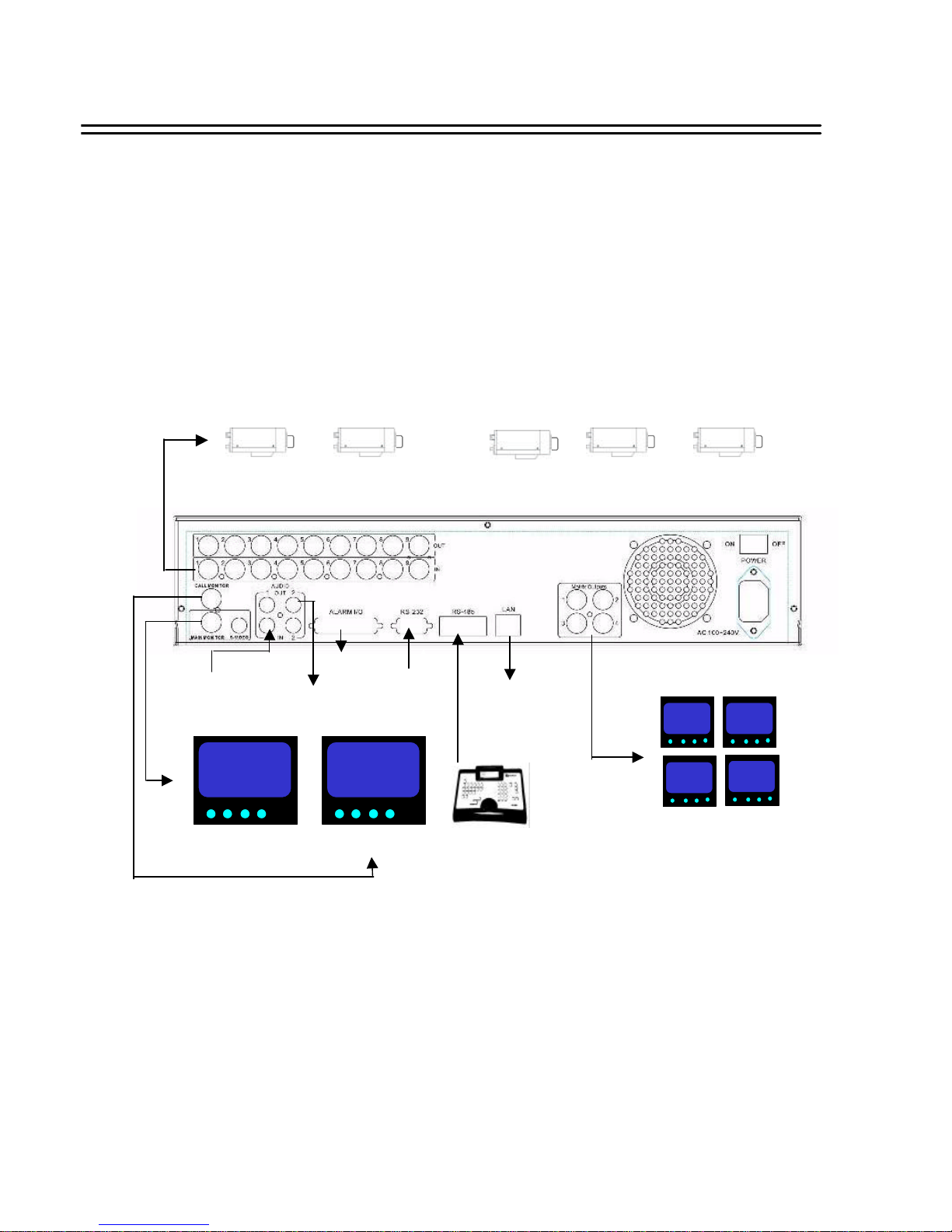

3. System connection………………………….………………………………………..5
Before installation……..……………………………………………………………………..5

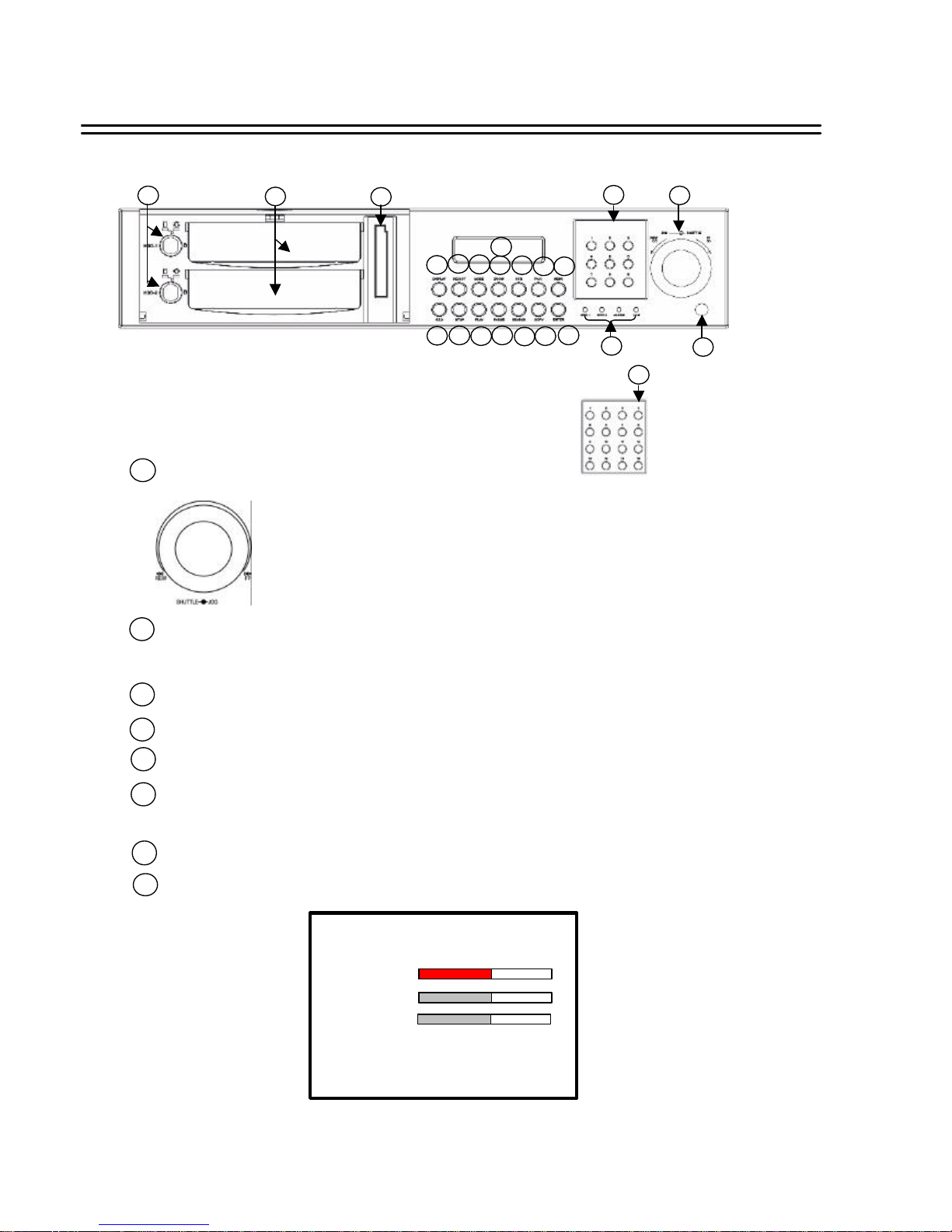

4. Front panel keypads……………………………………………….…………..…6~7
5. Operation…………………………………………………………..……………………..8
6. Menu flow………………………………………………………..…………………...9~10
6.1 Clock setting menu………………………………………...…………………………..11
6.2 Timer setting menu…………………………………...……………………………..…12
6.3 Sequence setting menu……………………………..………………………………...13
6.4 Title setting menu…………………………………..…………………………………..14
6.5 Covert setting menu………………………………..……………………………….…15
6.6 Alarm record setting menu………………………..…………………………………..16
6.7 Motion setting menu…………………………………………………………………...17
6.8 Record setting menu…………………………………………………………………..19
6.9 Network setting menu……………………………………………………………….…20
6.10 Control setting menu………………………………………………………….………21
6.11 Buzzer setting menu……………………………………………………………….…22
6.12 Archive setting menu…………………………………………………………………23
6.13 Matrix setting menu…………………………………………………………………..24
6.14 System setting menu…………………………………………………………………25
7. Recording……………………………………………………………………………..…26
7.1 Instant recording……………………………………………………………….……….26
7.2 Alarm recording…………………………………………………………………...…….26
8. Playing back…………………………………………………………….………...……27
8.1 Normal playback…………………………………………………….……………...…..27
8.2 Search playback………………………………………………….………...……...28~30
9. Copy………………………………………………………………….…………….……….31
9.1 Still image copy…………………………………………………….………….….…….31
9.2 Copy to movie file………………………………………………….…………...……...32
9.3 Export event log list..............................................................................................33
10. Monitor Views / Operation..............................................................34
10.1 Main monitor.......................................................................................................34
10.2 Call / Matrix monitors..........................................................................................35
11.Remote Control.............………………………………………..………….…… .36
11.1 RS-485 remote control …………………………………………..………….……….36
11.2 IR –remote control ……………………………………………..……….………..…37
12. View from Internet/Intranet…………………………………………….…....38~41
Appendix-A LAN functional specification………..………………………42
Appendix-B Time lapse recording time table………....…….…..….43~44
Appendix-C Serial Interface Specifications ……..……………………...45
1. RS-232 Pin assignment..........................................................................................45
2. Transmission settings.............................................................................................45
3. Remote control protocol...................................................................................46~50
Appendix-D Alarm I/O pin assignment.......……………………………....51

1. Product Overview
The EDSR-900 / EDSR1600 Duplex Digital Video Recorder (DVR) a full-featured DVR designed
specifically for use in security industry.
The DVR incorporates all the benefits of digital video recording, is simple to install, and operates
just like a VCR.
Highly efficient compression technology and superior resolution of recorded images make the DVR
stand out from the competition as the best choice for security surveillance.
The 16 (in) x 5 (out) Matrix Outputs make it powerful for 5 call monitor outputs to be set as you wish.
The real time audio recording at any video recording speed that makes it as perfect as your
security demand.
1.1 Main Features
Product Overview
?Easy-to-use control panel with common VCR and Multiplexer functions
?Shuttle/Jog dial for picture-by-picture or fast/slow viewing
?No tapes to manage, clean or replace
?Instant retrieval of stored video
?On-screen setup menu and system timer
?Ethernet TCP/IP connectivity for remote viewing and controlling
?Pre-Alarm recording
?Built-in M-JPEG compression/decompression with configurable video quality
?Programmed with various time-lapse speeds
?Two 3.5”IDE Type Hard Disks for storage with Hot-Swap trays
?RS232 and RS485 for Remote Control
??IR remote control (optional)
?Real-Time Live Display for all cameras
?Variable recording speeds up to 60/50 fields per second for NTSC/PAL
?Alarm-and motion activated recording
?Data export to compact flash card
?2 channel real time audio recording capabilities
1

Specifications
2
1.2 Specifications
9 (EDSR900) / 16 (EDSR1600) camera inputs (BNC),1Vp-p/75ohm
430mm (W) x 88mm (H) x 300 (D)
Dimension
AC100~240V
Power Source
40W max.
Power Consumption
Video Input
M-JPEGVideo Compression
0°C ~ 40°C
Operating Temperature
2 x RJ45 SocketRS485
9-pin female D-SubRS-232
YesWatch Dog Timer
Built-in real time clockTimer
Front Panel KeypadUser Input Device
Menu DrivenUser Interface
On screen display setup (OSD)Setup
By Date/Time, Event, SegmentPlayback Search
Up to 60/50 fields per second for NTSC/PALPlayback Rate
Up to 60/50 fields per second for NTSC/PALRecording Rate
Continuous, Timer Schedule, Alarm-or Motion RecordingRecording Mode
Two 3.5”IDE type, hot-swappableHard Disk Storage
YesEvent Log
10BaseT Ethernet, RJ45 connectorEthernet
YesVideo Loss Detection
EDSR-900: Full, 4, 6, 7, 8, 9, PIP and 2x zoom for Live and Playback
EDSR-1600: Full, 4, 6, 7, 9, 10, 13, 16, PIP and 2x zoom for Live and
Playback
Video Display modes
1 alarm outputAlarm Output
9 (EDSR900) / 16 (EDSR1600) alarm inputs, 25 pin Sub-DAlarm Input
built-in Compact Flash card slotCompact Flash Memory
720x484 (NTSC); 720x576 (PAL)Recording Resolution
1 BNC video out (1Vp-p/75 ohm) for Main Monitor
1 S-Video out Mini DIN for Main Monitor
5 BNC video out (1Vp-p/75 ohm) for Matrix / CALL Monitor output
9 (EDSR900) / 16 (EDSR1600) video out (1Vp-p/ 75 Ohm)for looping
Video Output
NTSC/PALVideo Format
Audio 2 x Audio In / Out Cinch 500mV max., 10 KOhm impedance

Back Panel Connections
2. Back Panel Connections
1ON/OFF: Main on/off switch.
2AC100~240V power socket.
3
VIDEO IN: BNC-sockets for composite signal video inputs, automatic 75 Ohm
termination (EDSR-900: 1 ~ 9, EDSR-1600: 1 ~ 16).
4
VIDEO OUT: Loop through video outputs for each input channel.
(EDSR-900: 1 ~ 9, EDSR-1600: 1 ~ 16)
Matrix Outputs: These connectors are used for additional 4 programmable Call monitors.
With these outputs, there are totally 5 programmable call monitors.
These monitors can only display full screen as regular call monitor.
5
6CALL MONITOR: BNC-socket Call (Spot) Monitor, composite signal. (Full screen display only)
7
8
MAIN MONITOR: BNC-socket main monitor, composite signal. Main monitor provides
Full sreen, Multiscreen, Setup.
S-VIDEO: Mini-DIN socket main monitor, S-Video signal. Main monitor provides
Full sreen, Multiscreen, Setup.
3
1
2
5 4 3
6
789 10 11 12 13 14
AUDIO IN : 2x Cinch socket audio input 500 mV max., 10 KOhm impedance.
AUDIO OUT: 2x Cinch socket audio output 500 mV max. at 10 KOhm
9
1
2
5 4
3
6
789 10 11 12 13 14
EDSR-900
EDSR-1600

4
10
ALM-OUTPUT : Two-way contact relay alarm output. In normal condition, this N.C. contact
shorted to ALM-COM. In alarm status, it is open between ALM-NC and
ALM-COM, N.O. is shorted to ALM-COM.
ALM-INPUT : Normally Open (N.O) or Normally Close (N.C) type alarm sensor input.
The Alarm Input can be selected as N.O or N.C input in the setup
menu. When an alarm occurs, alarm recording will automatically start.
ALARM I/O: (Refer pin assignment in Appendix-C, Page 44)
LAN Connector : RJ-45 LAN connector for internal 10MBit LAN interface.
13
RS232 connector : D-Sub 9 pins connector to RS232 ports for remote control.
11
RS485 connector : 2 x RJ-45 connectors for RS-485 remote control, high impedance
Supported are keyboards KS-KBK, KS-KBJ.
Maximum units in RS-485 network are 32.
Following EverFocus products are compatible in RS-485 network:
-DVR´s EDSR100H, EDSR100M, EDSR400, EDSR400H,
EDSR400M, EDSR900, EDSR1600
-Keyboards KS-KBJ (with 3 -axis Joystick, DVR and telemetry control)
KS-KBK (only DVR control)
12
14 FAN:Cooling fan, do not cover.
Back Panel Connections

System Connection
5
3. System Connection
The installations described below should be made by qualified service personnel or system installers.
Before Installation
Please refer to the following diagram for the system connections.
Matrix Outputs
4 CALL Monitors
(Optional)
EDSR 900: Camera 1~9 / EDSR-1600: Camera 1 ~ 16
~
CALL Monitor
Audio Input
(camera Audio Out) Audio Out
(To Speaker)
MAIN Monitor
Ethernet
RS232
Alarm In/Out
RS485
Remote Keyboard(s)
KS-KBJ / KS-KBK
(optional)

Front Panel Keypads
4. Front Panel Keypads
SHUTTLE : In Playback mode, turn the shuttle ring to fast
forward/rewind the picture (600X maximum).
In Pause mode, turn the shuttle dial to slow forward/rewind
the picture (1/32 maximum).
JOG : In Pause mode, turn the jog dial to step forward/rewind the Picture.
In Menu mode turn the jog dial to select options.
1SHUTTLE Ring and JOG Dial
CHANEL KEYS:.
Press these keys (EDSR-900: 1 ~ 9, EDSR-1600: 1 ~ 16) to display video image in full screen
format, the picture of the corresponding camera will fill the whole screen of the monitor display.
2
MENU: Press this key to enter Setup Menu (Please refer to page 9~25 for details).
3
4CALL: Press this key to show picture of assigned camera to desired call monitor.
5SEQ : Press this key to enter the auto sequential switching mode for main monitor.
6ZOOM: Press this key while viewing the full screen image to display X2 zoom-in picture. To move
the zooming area, use JOG to move from left to right. Press ENTER for changing vertical /
horizontal movement.
MODE: Switch Full, 4, 6, 7, 8, 9, (10, 13 and 16 for EDSR-1600 only), PIP (picture in picture)
multiscreen for Live and Playback.
7
6
1
2
10
11
12
43
5
6
87
9
22
13 14 16
15 19 18
17 20 21
8SELECT: In Full screen mode: press this key to pop-up dialog as below:
DISPLAY SETTING MENU
CHANNEL 01
BRIGHTNESS
CONTRAST
COLOR
HIT SELECT TO DISCARD CHANGE
HIT MENU TO SAVE AND EXIT
EDSR-900
2
EDSR-1600

LEDs: LEDs for HDD1, HDD2 , ALARM and LAN access (from left to right).
IR Remote Controller receiver
7
Display: Press this key to switch ON/OFF for camera title, date/time and HDD status.
Hold this key longer than 2 seconds for displaying the event log list.
9
10 Compact Flash Card Slot: Insert a Compact Flash Card for archiving video.
Hard Disk Trays: 2 x Hard Disk holder for 3.5”HDD.
11
12 HDD locks: Turn on HDD power and protection from taking out the HDD without authority.
13 REC: Press this key to start recording.
14 STOP: Press this key to stop recording or playing back.
15 PLAY: Press this key to stat playing back recoded picture (Please refer to page 27 for details).
16 PAUSE: Press this key to pause the playback picture.
17 SEARCH: Press this key to enter the Search Menu (Please refer page 28~30 for details).
18 COPY: Under PAUSE or PLAYBACK, Press this key to start copying still picture or video
stream into Compact Flash card (Please refer page 31~33 for details).
19 ENTER: Press this key to enter sub-menu or confirm setup. When there is Alarm, Motion
or Video Loss occurs, press this key for alarm reset. The Event Log Dialog will show on
the display, then follow the instruction to continue.
20
21
22 LCD Panel: To display Date/Time, Recording/Playback and HDD status.
Front Panel Keypads
In Fullscreen mode this menu allows color adjustment for each video channel, all channels
are separately adjustable.
The selected item will show in red color bar. Use JOG to increase or decrease the value.
Press ENTER to confirm and move to next item. After finished setting, press SELECT key to
discard change or press MENU key to save and exit the dialog.
In Multiscreen mode:
In Multiscreen mode the SELECT key allows to define cameras in all multiscreen views.
Press SELECT. At the upper left camera in multiscreen appears “SELECT”.
Use the numeric camera keys to select a camera.
Press ENTER to switch in the multiscreen.
Press SELECT to exit this setting.
Note: Every camera can be selected only once for a multiscreen view.

Operation
8
(1) Insert a HDD (IDE) for Video Storage
(2) Connect cable for video/audio input and video/audio out,
The detail connection is described in SYSTEM CONNECTION.
(3) Switch Power On
(4) Press MENU key to enter SET UP MENU.
Once inside the main menu you will find there are 14 set up pages as below:
Selected item will be surrounded by a white block.
MENU
(5) Turn the JOG dial clockwise or counter-clockwise to select the item,
press ENTER key for detail set up for each item.
5. Operation
Insert one or two HDD (3.5”IDE) for Video Storage.
The HDD should be set as Cable Select.
(Normally the default setting of HDD is Master)
Note: After hard disk case is inserted into the hard disk tray, be sure to turn the tray key
in lock position.Otherwise, HDD will not be detected.
ATTENTION: Changing HDD´s and switching on HDD´s is not allowed in record mode!
MAIN MENU
TIMER
SEQUENCE
TITLE
COVERT
ALARM
MOTION
RECORD
NETWORK
CONTROL
BUZZER
ARCHIVE
MATRIX
SYSTEM
CLOCK
(6) Press MENU again to leave the set up menu.
The LCD panel in the front panel will light when you switch on the power.

MENU flow
6. MENU FLOW
CLOCK
( See page 11 )
: 2003/07/04 FRI
: 13:01:02
CLOCK SETTING MENU
DATE
TIME
MENU LANGUAGE: ENGLISH
VIDEO SYSTEM: NTSC
VERSION: 0.96 11/23
TIMER SETTING MENU
WEEK START STOP SPEED SET
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
SUN 00:00 23:59 60 IPS OFF
TIMER
( See page 12 )
SEQUENCE
( See page 13 )
SEQUENCE SETTING MENU
CH OP DWELL
1 ON 03 SECS
2 ON 03 SECS
3 ON 03 SECS
4 ON 03 SECS
5 ON 03 SECS
6 ON 03 SECS
7 ON 03 SECS
8 ON 03 SECS
9 ON 03 SECS
(10 ON 03 SECS)
(11 ON 03 SECS)
(12 ON 03 SECS)
(13 ON 03 SECS)
(14 ON 03 SECS)
(15 ON 03 SECS)
(16 ON 03 SECS)
TITLE SETTING MENU
CH TITLE
1 CH01:_ _ _ _ _
2 CH02:_ _ _ _ _
3 CH03:_ _ _ _ _
4 CH04:_ _ _ _ _
5 CH05:_ _ _ _ _
6 CH06:_ _ _ _ _
7 CH07:_ _ _ _ _
8 CH08:_ _ _ _ _
9 CH09:_ _ _ _ _
(10 CH010:_ _ _ _ _ )
(11 CH011:_ _ _ _ _ )
(12 CH012:_ _ _ _ _ )
(13 CH013:_ _ _ _ _ )
(14 CH014:_ _ _ _ _ )
(15 CH015:_ _ _ _ _ )
(16 CH016:_ _ _ _ _ )
TITLE
( See page 14 )
COVERT
( See page 15 )
COVER SETTING MENU
CH OP
1 OFF
2 OFF
3 OFF
4 OFF
5 OFF
6 OFF
7 OFF
8 OFF
9 OFF
(10 OFF)
(11 OFF)
(12 OFF)
(13 OFF)
(14 OFF)
(15 OFF)
(16 OFF)
ALARM
( See page 16 )
CH OP TYPE DURATION
1 ON N.O 05 SECS
2 ON N.O 05 SECS
3 ON N.O 05 SECS
4 ON N.O 05 SECS
5 ON N.O 05 SECS
6 ON N.O 05 SECS
7 ON N.O 05 SECS
8 ON N.O 05 SECS
9. ON N.O 05 SECS
(10 ON N.O 05 SECS)
(12 ON N.O 05 SECS)
(13 ON N.O 05 SECS)
(14 ON N.O 05 SECS)
(15 ON N.O 05 SECS)
(16 ON N.O 05 SECS)
RST ON N.O
MOTION
( See page 17 )
CH OP SEN DURATION
1 ON HIGH 07 SECS
2 ON HIGH 07 SECS
3 ON HIGH 07 SECS
4 ON HIGH 07 SECS
5 ON HIGH 07 SECS
6 ON HIGH 07 SECS
7 ON HIGH 07 SECS
8 ON HIGH 07 SECS
9 ON HIGH 07 SECS
(10 ON HIGH 07 SECS)
(11 ON HIGH 07 SECS )
(12 ON HIGH 07 SECS)
(13 ON HIGH 07 SECS)
(14 ON HIGH 07 SECS)
(15 ON HIGH 07 SECS)
(16 ON HIGH 07 SECS)
RECORD
( See page 19 )
RECORD SETTING MENU
NORMAL RECORD
SPEED
QUALITY
DISK FULL
: 60 IPS
: STANDARD
: REWRITE
ALARM RECORD
OPERATION
SPEED
QUALITY
ON
: 60 IPS
: STANDARD
PRE-ALARM RECORD
OPERATION ON
NETWORK
( See page 20)
NETWORK SETTING MENU
IP ADDRESS
NET MASK
GATEWAY
USER-MANE PASSWORD LEVEL
GUEST GUEST GUEST
GENERAL GENERAL GENERAL
SUPER SUPER SUPER
:192.168.010.005
:255.255.255.000
:192.168.010.001
9
Columns in brackets () only valid for EDSR-1600

CONTROL
( See page 21)
CONTROL SETTING MENU
RS232 BAUD RATE
RS232 STOP BIT
RS232 PARITY
RS232 DATA BIT
RS485 BAUD RATE
RS485 STOP BIT
RS485 PARITY
RS485 DATA BIT
RS232/RS485 ID
: 9600 BPS
: 1
: NONE
: 8
: 9600 BPS
: 1
: NONE
: 8
: 1
BUZZER
( See page 22 )
BUZZER SETTING MENU
BUZZER : ENABLE
RECORD-IN : ON
ALARM-IN : ON
MOTION-IN : ON
DISK FULL : ON
VIDEO LOSS: ON
TIMER : ON
ARCHIVE
( See page 23 )
PICTURE SIZE
TIME STAMP
TIME STAMP POS
WATER MARK
WATER MARK POS
ARCHIVE SETTING MENU
: 720 X 480
: ON
: TOP
: ON
: TOP
MATRIX
( See page 24 )
MONITOR-0
MONITOR-1
MONITOR-2
MONITOR-3
MONITOR-4
MATRIX SETTING MENU CH DWELL EVENT
1 07 SECS NONE
2 07 SECS NONE
3 07 SECS NONE
4 07 SECS NONE
5 07 SECS NONE
6 07 SECS NONE
7 07 SECS NONE
00 07 SECS NONE
00 07 SECS NONE
(00 07 SECS NONE)
(00 07 SECS NONE)
(00 07 SECS NONE)
(00 07 SECS NONE)
(00 07 SECS NONE)
(00 07 SECS NONE)
(00 07 SECS NONE)
MONITOR-3 SETTING MENU
MATRIX
SUB-MENU
SYSTEM
( See page 25 )
SYSTEM SETTING MENU
PLAY WITH AUDIO-1: ON
PLAY WITH AUDIO-2: ON
MULTI-EVENT DWELL: 02 SECS
PASSWORD ENABLE: DISABLE
PASSWORD: 888888
DISK RENEW: NO
SYSTEM UPDATE: NO
LOAD DEFAULT: NO
10
MENU flow
Columns in brackets () only valid for EDSR-1600

MENU
11
In CLOCK/LANGUAGE SETTING MENU , we define:
(1) DATE : Current date, format: YYYY/MM/DD
Year: 2000 ~ 2099, Month: 01~ 12, Date: 01~31, Week: Sunday~Saturday
(2) TIME : Current time, format: HH:MM:SS
Hour: 00 ~ 23, Minute : 00 ~ 59, Second: 00 ~ 59
(3) MENU LANGUAGE: ENGLISH or Others
(4) VIDEO SYSTEM: Factory default setting depend on machine “NTSC”or “PAL”.
(5) VERSION: Current S/W revision and release date.
6.1 CLOCK SETTING MENU
CLOCK SETTING MENU
DATE
TIME
MENU LANGUAGE
VIDEO SYSTEM
: 2003/07/04 FRI
: 13:01:02 : ENGLISH
: NTSC
VERSION: 0.79 11/23
Turn the JOG dial clockwise or counter-clockwise to select the options.
Press MENU key to return to Main Menu, press again to leave Set up Menu.
MENU
Press ENTER key to confirm the option and move to next column.
ENTER

MENU
6.2 TIMER SETTING MENU
12
Timer records can be defined for 12 individual start and end times.
(1) WEEK:This select the week day for the timer to record on schedule.
DLY means daily record.
(2) START: Enter the start time for timer recording.
(3) STOP: Enter the end time for timer recording.
NOTE: The recorder records till the end of the minute, which is set here.
EXAMPLE: START 07:00 END 08:00
The recorder records from 07:00:00 till 08:00:59
Each day has to be set separately:
EXAMPLE: Daily record from 20:00 till next day 07:00
WRONG: DLY START 20:00 STOP 07:00
CORRECT: DLY START 20:00 STOP 23:59
DLY START 00:00 STOP 06:59
(4) SPEED : Select recording speed. Maximum 60 (NTSC) / 50 (PAL).
(5) SET: Set “ON”when using timer recording.
Set “OFF”when not using timer recording.
In TIMER SETTING MENU we define automatic timer controlled records.
Turn the JOG dial clockwise or counter-clockwise to select the options.
Press MENU key to return to Main Menu, press again to leave Set up Menu.
MENU
Press ENTER key to confirm the option and move to next column.
ENTER
TIMER SETTING MENU
WEEK START STOP SPEED SET
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF
SUN 00:00 23:59 50 IPS OFF

MENU
(1) CH (Channel): Input channels. 1~9 for EDSR-900, 1~16 for EDSR-1600.
(2) OP (Operation): ON includes the camera in the sequence, OFF skips the camera in the
sequence.
(3) DWELL (DWELL TIME) : Dwell Time is individual adjustable for each channel. The dwelling
time for the sequencer can be set between 0-99 seconds.
Note: Sequences for Call monitors are defined in MATRIX menu.
13
6.3 SEQUENCE SETTING MENU
In the SEQUENCE SETTING MENU, we define for MAIN Monitor
SEQUENCE SETTING MENU
CH OP DWELL
1 ON 03 SECS
2 ON 03 SECS
3 ON 03 SECS
4 ON 03 SECS
5 ON 03 SECS
6 ON 03 SECS
7 ON 03 SECS
8 ON 03 SECS
9 ON 03 SECS
(10 ON 03 SECS)
(11 ON 03 SECS)
(12 ON 03 SECS)
(13 ON 03 SECS)
(14 ON 03 SECS)
(15 ON 03 SECS)
(16 ON 03 SECS)
Turn the JOG dial clockwise or counter-clockwise to select the options.
Press MENU key to return to Main Menu, press again to leave Set up Menu.
MENU
Press ENTER key to confirm the option and move to next column.
ENTER
Columns in brackets () only valid for EDSR-1600

MENU
14
6.4 TITLE SETTING MENU
In TITLE SETTING MENU , we define:
The Title Setting Menu allows you to assign a title to each camera input.
Title with up to 12 characters is supported in each channel.
The available alphanumeric characters are:
0,1,2,3,4,5,6,7,8,9,
A,B,C,D,…X,Y,Z.
/ ( ) . -* & @ : ”
Default setting is CH01~CH09 for EDSR-900, CH01~Ch16 for EDSR1600.
TITLE SETTING MENU
CH TITLE
1 CH01:_ _ _ _ _
2 CH02:_ _ _ _ _
3 CH03:_ _ _ _ _
4 CH04:_ _ _ _ _
5 CH05:_ _ _ _ _
6 CH06:_ _ _ _ _
7 CH07:_ _ _ _ _
8 CH08:_ _ _ _ _
(9 CH09:_ _ _ _ _
(10 CH010:_ _ _ _ _ )
(11 CH011:_ _ _ _ _ )
(12 CH012:_ _ _ _ _ )
(13 CH013:_ _ _ _ _ )
(14 CH014:_ _ _ _ _ )
(15 CH015:_ _ _ _ _ )
(16 CH016:_ _ _ _ _ )
Turn the JOG dial clockwise or counter-clockwise to select the options.
Press MENU key to return to Main Menu, press again to leave Set up Menu.
MENU
Press ENTER key to confirm the option and move to next column.
ENTER
Columns in brackets () only valid for EDSR-1600

6.5 COVERT SETTING MENU
COVERT SETTING MENU
CH OP
1 OFF
2 OFF
3 OFF
4 OFF
5 OFF
6 OFF
7 OFF
8 OFF
9 OFF
(10 OFF)
(11 OFF)
(12 OFF)
(13 OFF)
(14 OFF)
(15 OFF)
(16 OFF)
In COVERT SETTING MENU , we define:
The covert setting menu allows you hide the desired camera on the
display in a blue background. Change setting to ON for covering camera.
Camera is not visable in Live and Playback mode, unless this function is
deactivated in COVERT menu.
Default setting is OFF for all cameras.
Note: With network access a covert camera is only visable for users
with “ADMIN”password level. For users with “GENERAL”and
“GUEST”level the covered camera is not visable.
Turn the JOG dial clockwise or counter-clockwise to select the options.
Press MENU key to return to Main Menu, press again to leave Set up Menu.
MENU
Press ENTER key to confirm the option and move to next column.
ENTER
MENU
15
Columns in brackets () only valid for EDSR-1600
