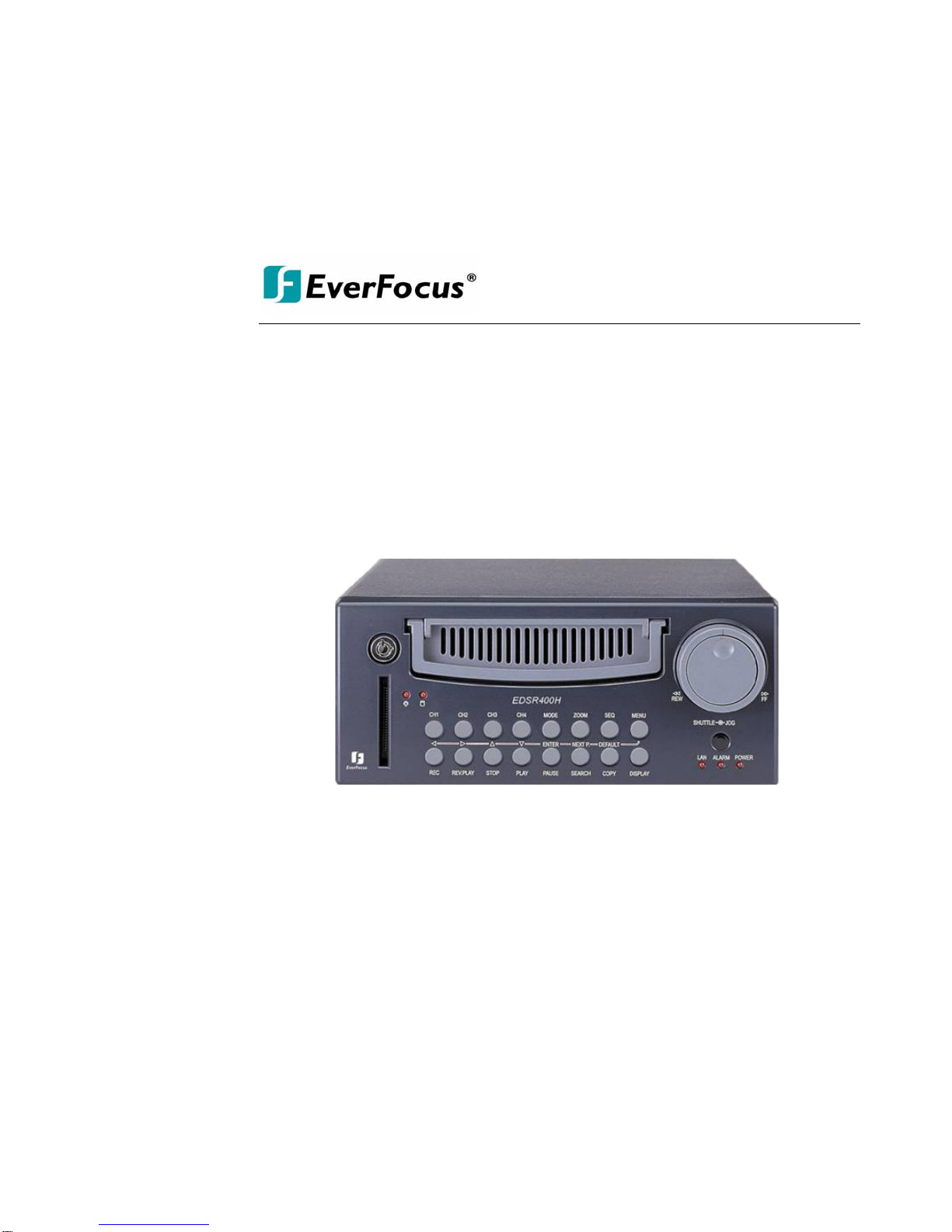

EverFocus EDSR400H User manual

Volume
1
Instruction Manual
E
ED DS SR R4 40 00 0H H

EVERFOCUS ELECTRONICS CORPORATION
EDSR 400h Instruction Guide
©2004 Everfocus Electronics Corp
2445 Huntington Drive
Phone [phone] • Fax [phone]
All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any
form or by any means without written permission of the Everfocus Electronics Corporation.
QuickTime is a registered trademark of the Apple Computer, Inc. Windows is a registered trademark
of the Microsoft Corporation in the United States and other countries. Linksys is a registered
trademark of the Linksys Corporation. D-Link is a registered trademark of the D-Link Corporation.
DynDNS is a registered trademark of the DynDNS.org Corporation. Other product and company
names mentioned herein may be the trademarks of their respective owners.

Table of Contents
Introduction I
CHAPTER 1
Product Overview 1
Features 1
Specifications 2
Front Panel Keys 3
Back Panel Keys 5
CHAPTER 2
Installation 8
Basic Wiring Instructions 9
Hard Disk Drive Installation 10
Final Install Process 10
CHAPTER 3
DVR Menu Setup 11
Clock/Language Setting Menu 12
Title Setting Menu 14
Daylight Setting Menu 15
Timer Setting Menu 17
Normal Record Setting Menu 19
Alarm Record Setting Menu 21
Buzzer Setting Menu 24
Archive Setting Menu 26
Network Setting Menu 28
Sequence Setting Menu 30
RS232/RS485 Setting Menu 32
Motion Setting Menu 35
System Setting Menu 38
CHAPTER 4
Recording Overview 40
Basic Recording Setup 40
Timer Recording Setup 41
Motion Recording Setup 42
Alarm Recording Setup 43
CHAPTER 5
Playback Overview 45
Basic Playback 45
Search Playback 46
Segment List Playback 46
Alarm List Playback 47
Date/Time Playback 48
CHAPTER 6
Copying Video 50
Still Image Copy 50
Copy as a MOV File 51
Other Archiving Methods 52
Viewing Copied Files 52
CHAPTER 7
Audio Overview 53
CHAPTER 8
How to Upgrade Firmware? 54
CHAPTER 9
Networking Overview 56
Introduction to TCP/IP 56
Subnet Masks 56

Gateway Address 57
Virtual Ports 57
Pre-Installation 58
What type of Network Connection 59
Simple One to One Connection 60
Direct High Speed Modem Connection 66
Router or LAN Connection 68
CHAPTER 10
Linksys Port Forwarding 71
Dynamic DNS 75
CHAPTER 11
D-Link Port Forwarding 77
Dynamic DNS 80
CHAPTER 12
DDNS 82
Creating a DDNS Account 82
CHAPTER 13
Viewing through Internet Explorer 85
CHAPTER 14
Interface Specifications 89
Transmission Setting 90
Remote Control Protocol 90
APPENDIX A
Remote Control 93
APPENDIX B
Time Lapse Recording Time 94
APPENDIX C
Alarm Board Configuration 96
TROUBLESHOOTING
Troubleshooting 99

EVERFOCUS ELECTRONICS CORPORATION Chapter
1
Product Overview
DVRs are the industry’s first full-featured digital video recorder designed specifically
for use within the security industry. The Digital Video Recorder incorporates all the
benefits of digital video recording, is simple to install, and operates just like a VCR.
Highly efficient compression technology and superior resolution of recorded images
make the Digital Video Recorder stand out from the competition as the best choice for
security surveillance.
Features
¾Easy-to-use control panel with common VCR and Multiplexer functions.
¾Shuttle/Jog dial for picture-by-picture or fast/slow viewing.
¾No tapes to manage, clean, or replace.
¾Instant retrieval of stored video.
¾On-screen setup menu and system timer.
¾Ethernet TCP/IP connectivity for remote viewing.
¾Pre-Alarm and Post-Alarm process.
¾Built-in M-JPEG compression/decompression with configurable quality.
¾Programmed with various time-lapse speeds.
¾3.5” IDE Type Hard Disks for storage with Hot-Swap tray.
¾RS232 and RS485 for Remote Control.
¾Real-Time Live Display for all Cameras.
¾Variable recording speeds up to 60/50 fps for NTSC/PAL.
¾Alarm-activated recording.
¾Data can be stored in a Compact Flash Card.
¾Audio recording capabilities.
1

EVERFOCUS ELECTRONICS CORPORATION
Specifications
Video Format NTSC/PAL
Video Input 4 camera inputs (BNC),1Vp-p/75ohm
Video Output 1 BNC video out (1Vp-p/75 ohm) for Main Monitor
1 BNC video out (1Vp-p/75 ohm) for CALL Monitor
4 video out (1Vp-p/75ohm)for looping
Video Compression M-JPEG
Recording Resolution 720x484 (NTSC); 720x576 (PAL)
Compact Flash Memory Yes, Built-in Compact Flash card slot
Alarm Input 4 alarm inputs
Alarm Output 1 alarm outputs
Video Display Full, PIP, Quad and 2x2 zoom for Live and Playback
Video Loss Detection Yes
Ethernet RJ45 connectors for network communications
Event Log Yes
Hard Disk Storage 3.5” IDE type, Hot- swappable
Recording Mode Continuous, Time-lapse recording, Schedule or Event
Recording
Recording Rate Up to 60/50 fps for NTSC/PAL
Playback Rate Up to 60/50 fps for NTSC/PAL
Playback Search By Date/Time or Event/Segment
Setup On screen display setup
User Interface Menu Driven
User Input Device Front Panel Keypad
Timer Built-in real time clock
Watch Dog Timer Yes
RS-232 9-pin female connector
RS485 RJ11 Connector
Dimension 320.8mm (L) x 215mm (W) x 100mm (H)
Operating Temperature 0C~+40C
60 WPower Consumption
Power Source AC100~240V
2

EVERFOCUS ELECTRONICS CORPORATION

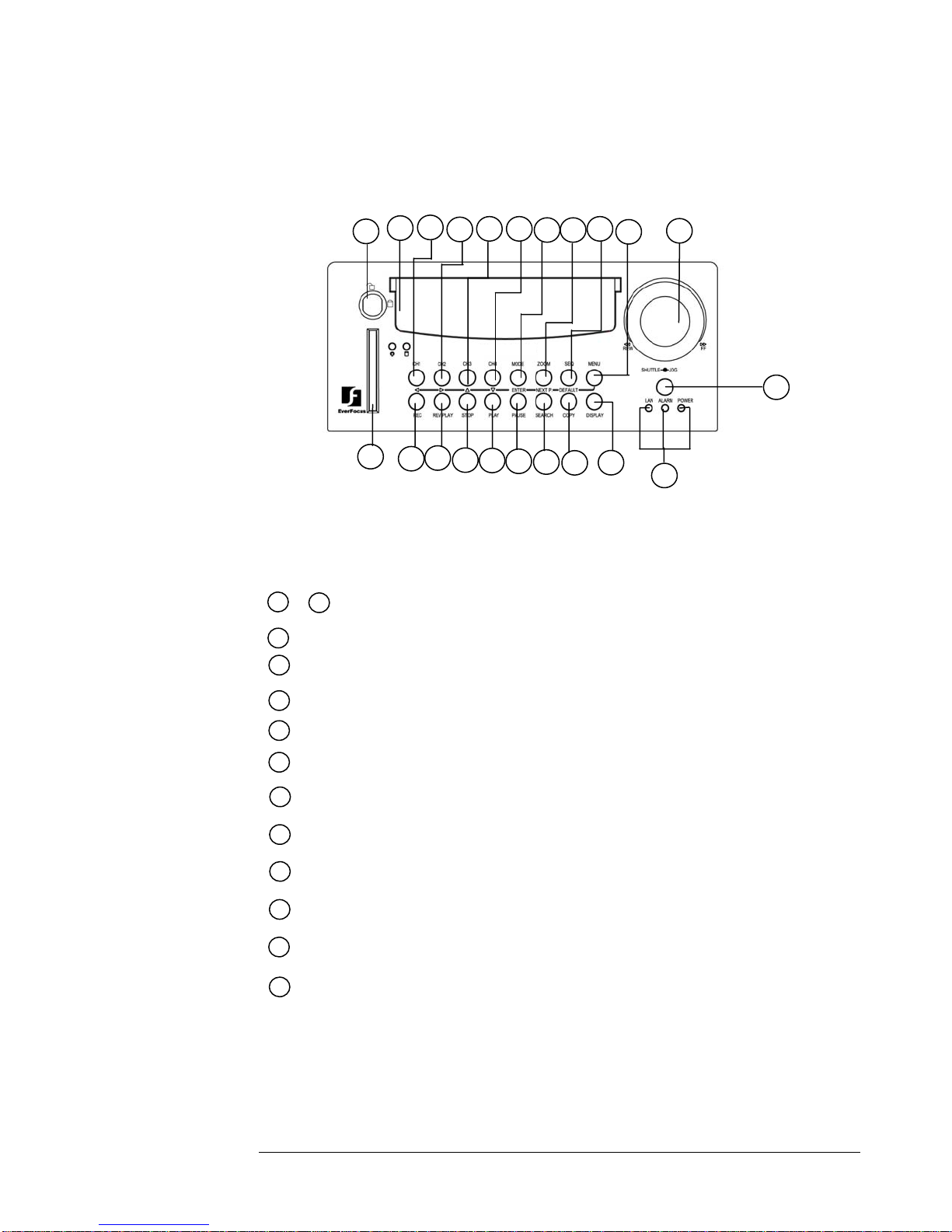

Front Panel Keypads
Keys:
20 10
912
11 13 14 16
21
19
18
17
15
22
2
143 7
5 6 8
CH1 ~CH4:
1 4
Press channel key (1~4) to display the video image in full screen
format for the channel specified.
~
SEQ: Press this key to enter the auto sequential switching mode.
7
6 ZOOM: Pressing this key while viewing a full screen image will display a magnified resolution
of the image on the monitor.
5 MODE:
8 MENU: Press this key to enter Setup menu.
STOP : Press this key to stop recording and playback.
PAUSE: Press this key to pause the playback picture.
SEARCH: Press this key to enter the Search Menu.
10
9
11
12
13
15
14
REC : Press this key to start recording.
COPY: Under PAUSE or PLAYBACK, Press this key to start copy still picture or video
stream onto a Compact Flash card.
REV. PLAY : Pressing this key will start reverse playback.
PLAY: Press this key to playback.
Press to switch between Picture-In-Picture and Quad modes.
3

EVERFOCUS ELECTRONICS CORPORATION
Display: Pressing this key once will turn the display on. Pressing it a second time will give you
Hard Disk Drive statistics.
16
Display OFF Display Date/Time and Titles
Shuttle and Jog Dia
l
Shuttle : In Playback mode, turn the shuttle dial can fast
forward/rewind the picture.
In Pause mode, turn the shuttle dial can slow forward/rewind
the picture.
Jog Dial :
19
In Pause mode, turn the jog dial can forward/rewind the
Picture.
In Menu mode turn the jog dial to change setting Menu
page.
17
18
20
21
22
Compact Flash Card Slot: Insert a Compact Flash Card.
Hard Disk Tray: Hard Disk holder for HDD.
LEDs: LEDs for system active power ,LAN and ALARM access.
Remote Control: IR Remote receiver
HDD KEY: Turning this key to the lock position will activate the Hard Drive for recording
and keep it securely locked into the DVR.
2003/04/22
10:41:00
Disk:120 GB(0)
CH1 CH2
CH3 CH4
CH1 CH2
CH3 CH4
2003/04/22
10:42:00
LIVE: 60IPS
DISK:80G
4

EVERFOCUS ELECTRONICS CORPORATION
Back Panel Connections

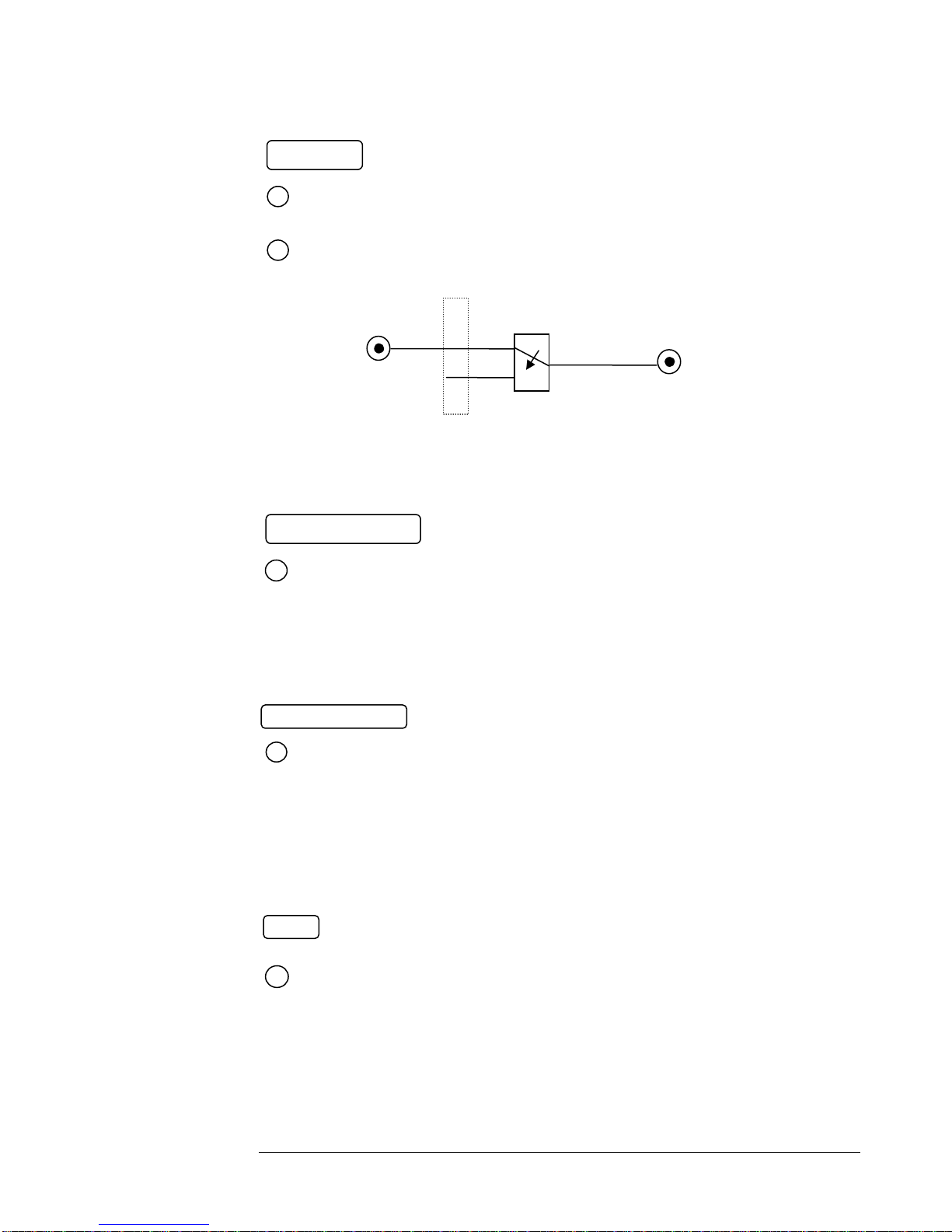

Audio IN:
A
udio input for recording.
Audio OUT: Audio output can be set to “ON” or “OFF” in Setup Menu.
W
hen in recording or standby mode, the out of
SW1 is connected to Audio IN.
Playback Audio
W
hen in playback mode the out of SW1 is
connected to SW2 Audio.
When Playback Audio is enabled then the output of SW2
will be connected to Playback Audio.
W
hen Playback Audio is disabled then there is no
audio output (MUTE).
2
Operation of SW1: Operation of SW2:
Audio IN
Audio OUT
OFF / Mute SW1
SW2
A
( Internal circuit )
5247 9
10 381
6
Video In
POWER
AUDIO
1
When Audio Out is enabled and machine is in Recording or Standby mode, the Audio IN is loop-
through to Audio Out connector. When Audio Out is enabled and machine is in Playback mode then the
Audio Out playback audio.
Main Power plug: Connect the DC12~24V power source to Adapter for AC100~240V.
5

EVERFOCUS ELECTRONICS CORPORATION
MONITOR
MAIN MONITOR:
T
his connector is used for the Main monitor display, a number of
different display modes may be selected for viewing. This output
must be used to display the menu settings.
3
( Internal circuit )
T
4 CALL MONITOR:
MAIN
MONITOR MONITOR OUT
INTERNAL
VIDEO
SW3
A
W
hen the machine is in Menu, Search or Copy mode, the internal Video is switched to Monitor Out, so that the user can view
full screen OSD. In other modes, the Video from multiplexer main monitor will be loop-through to the Monitor Out.
his connector is used for the Call (secondary) monitor.
This monitor can only display full screen pictures.
VIDEO IN (1~4):
T
he BNC connectors of video input enable the system to receive the
signals from each camera through the 75 ohm coaxial cables.
VIDEO OUT (1~4): Sends the signals from each camera to other external devices
(loop out).
5
VIDEO In/Output
ALARM-OUTPUT: Normal Close Alarm output. In normal condition, this terminal is
shorted to the terminal of ALARM-COM. In alarm status, it is
open between ALARM-NC and ALARM-COM terminals.
ALARM-INPUT: Normal Open or Normal Close type alarm sensor input. The Alarm Input
can be selected as Normal Open or Normal Close input in the setup menu.
When an alarm occurs, alarm recording will automatically start.
6
A
larm Input
LAN Connector:
T
he RJ-45 LAN connector used to connect to a local area
network.
7
A
larm Input/ Output
LAN
6

EVERFOCUS ELECTRONICS CORPORATION
RS232
RS232 connector: Connect D-Sub 9 pin connector to RS232 port for remote
control.
8
RS485
RS485 connector: RJ 45 Connector to Cascade multi Digital Video Recorder.
9
10 FAN: Cooling FAN.
7

EVERFOCUS ELECTRONICS CORPORATION
Chapter
Installation
The installations described below should be made by qualified service personnel or
system installers.
Please refer to the following diagram for the basic wiring connections.
¾Please note: Monitors and Cameras must be purchased separately.
Diagram 1
2
Audio Input
CALL Monitor
Camera 1~4
Main Monitor
RS232
Power Source
Alarm In/Out
Speaker
RS485
Ethernet
8

EVERFOCUS ELECTRONICS CORPORATION
Basic Wiring Instructions
Please refer to diagram 1 on page 9 to assist you with this portion of the ins
nect the power source or adapter into the power sock
me
ower source as the cameras.
¾Cameras: Connect each cameras video output to the video input (Top row
the system
¾Audio Input: Connect the according audio device refereed on chapter 7.
¾Speaker: Connect the according audio device refereed on chapter 7.
¾Ethernet: The digital video recorder may be viewed from a PC via the LAN
connector using a RJ45 Ethernet cable.
¾RS232/RS485: The digital video recorder may be controlled from a PC via
RS232/RS485.
Please note: This can be done using a serial cable.
¾Main Monitor: Connect the main monitor output connector to a main
monitor. The main monitor displays selected live or recorded cameras in any
available format.
Please note: The main monitor must be connected in order to make
configuration changes, enter the main menu, or do a playback at the
machine.
¾Call Monitor: Connect the call monitor output connector to a call monitor.
The call monitor displays selected live cameras in full screen format.
Please note: The call monitor will only display one full screen camera
at a time.
tallation.
et shown in¾Power: Con
diagram 1.
Please note: Do not plug the digital video recorder into the sa
p
connections) on the digital video recorder shown in diagram 1.
Please note: At least one camera must be connected before
is running for the auto detection of video standard to take effect.
9

EVERFOCUS ELECTRONICS CORPORATION
Hard Disk Drive Installation
to
the machine. The hard disk drive default setting is initially set to master or cable select.
The
If this process is ignored the hard disk drive will not be detected.
Final In
Please verify you have th
pro
1. Verify all the cameras are connected to the back of the DVR on the (
row) C
The first step in installing the hard drive is to insert the hard drive sleeve in
second step is to insert the key provided and turn the tray key to the lock position.
stallation Check List
e following connections before proceeding to the
gram the DVR.
Input Top
BN connections.
2. Verify the monitor is connected to the Main Monitor output
3. Hard Drive(s) are in position and locked with the key.
Fina
installation you are read to turn on the DVR. Simply plug the power source you
installed ear . is normal. The next
step is to se
l Install Process
Once you have completed the basic wiring installation and the hard disk drive
lier The POWER LED lights will light up if power
t up the menu options for the DVR.
10

EVERFOCUS ELECTRONICS CORPORATION
Chapter
3
DVR Menu Setup
Assuming you have completed the first two chapters of this manual. You are
now ready to begin setting up the digital video recorder menu. To begin this process
press the MENU key. Once inside the main menu you will find there are 13 setup
ion
4. TIMER SETTING MENU
RD SETTING MENU
8. ARCHIVE SETTING MENU
9. NETWORK SETTING MENU
10. SEQUENCE SETTING MENU
11. RS232/RS485 SETTING
12. MOTION RECORD SETTING MENU
13. SYSTEM SETTING MENU
opt pages as follows.
1. CLOCK/LANGUAGE SETTING MENU
2. TITLE SETTING MENU
3. DAYLIGHT SAVING SETTING MENU
5. NORMAL RECO
6. ALARM RECORD SETTING MENU
7. BUZZER SETTING MENU
Turning the jog dial clockwise or counter clockwise will allow you to
scroll through the different menu setup option pages.
11

EVERFOCUS ELECTRONICS CORPORATION
Clock/Language Setting Menu
Diagram 2
Diagram two is a screen shot of the Clock/Language Setting Menu. In the
Clock/Lang are defined as follows:
¾date on the DVR. To change this,
top four left buttons). Use the up
31 (Day of Week)
¾t time on the DVR which is in
use the arrow keys on the DVR
which also represent the CH1, CH2, CH3 and CH4 keys (These are the
to
se
is represented as follows:
Hour: 00~23 : Minute: 00~59 : Second: 00~59
uage Setting Menu the following fields
Date: This field represents the current
simply use the arrow keys on the DVR which also represent the CH1,
CH2, CH3 and CH4 keys (These are the
and down arrow keys to make your selection.
The date is represented as follows:
Year: 2000~2099 / Month: 01~12 / Date: 01~
Time: This field represents the curren
military time. To change this, simply
p four left buttons). Use the up and down arrow keys to make your
lection.
The date
12

EVERFOCUS ELECTRONICS CORPORATION
¾Menu Language: This field is set to English from factory and can not be
changed.
¾Video System: This field is set to NTSC from factory which is the North
American Video Standard and can not be changed. The European and
Asian Video Standards are PAL.
¾Version: This field represents the firmware version the digital video
recorder is using.
Please note: New firmware versions are available for download from
our ftp site. ftp://208.50.31.200/ (see page for firmware upgrade
instructions)
¾Release Date: This field represents the date the firmware was released.
: Press or to move the cursor to the left or right.
: Press or to change the value.
located at the top left row of keys (same keys
as channel 1-4).
These keys are
13

EVERFOCUS ELECTRONICS CORPORATION
Title Setting Menu
Diagram 3
Diagram three is a screen shot of the Title Setting Menu. In this menu you can set a
unique title for each of your cameras. To change this, simply use the arrow keys on the
DVR which also represent the CH1, CH2, CH3 and CH4 keys (These are the top four
left buttons). Use the up and down arrow keys to make your selection.
Example:
CH1 : FrontDoor
CH2 : BackDoor
CH3 : Hallway
CH4 : Closet
¾
: Press or to move the cursor to the left or right.
left row of keys (same keys
as channel 1-4).
: Press or to change the value.
These keys are located at the top
14

EVERFOCUS ELECTRONICS CORPORATION
Daylight Setting Menu
Diagram 4
function on or
off. To change this, simply use the arrow keys on the DVR which also
he CH1, CH2, CH3 and CH4 keys (These are the top four left
but up
¾Start Time: This field signifies the date the daylight savings will take affect.
he first field is set to “First”. This signifies the week of the month the
aylight savings time will change. Your options are: first, second, third,
urth, or last. Use the up and down arrow keys to make your
lection.
he next field is set to “Sun”. This represents the day of the week the
daylight savings time will take aff
Wed, Thurs, Fri, or
your selection.

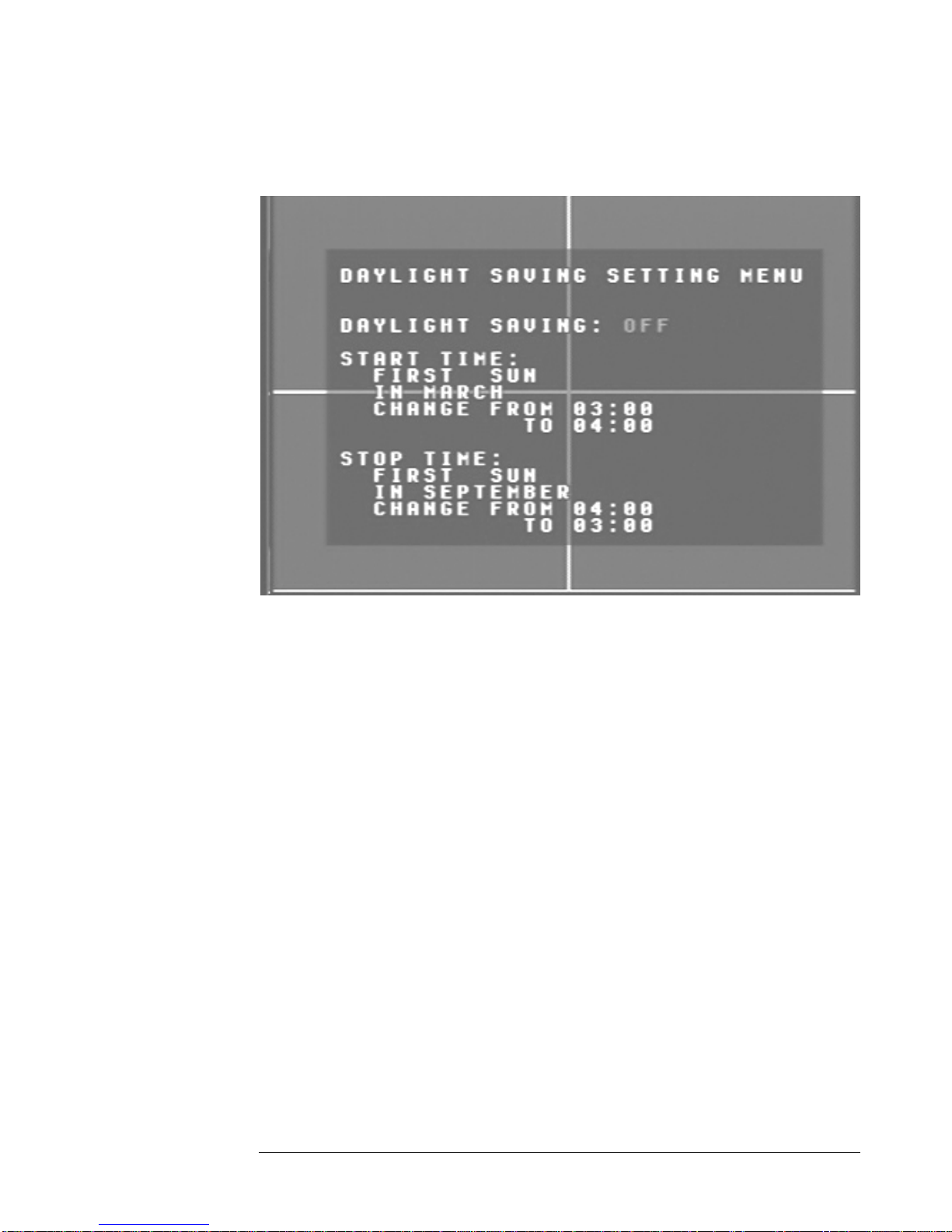

Diagram four is a screen shot of the Daylight Saving Setting Menu. In this menu you
can set the DVR to adjust the daylight savings time automatically for you.
¾Daylight saving: This field is to turn the daylight savings
represent t
tons). Use the and down arrow keys to make your selection.
T
d
fo
se
T
ect. Your options are: Sun, Mon, Tue,
Sat. Use the up and down arrow keys to make
15

EVERFOCUS ELECTRONICS CORPORATION
The third field is set to
daylight savings time w
“March”. This signifies the month in which the
ill occur. Your options are: Jan through Dec.
Use the up and down arrow keys to make your selection.
The last two fields represent the time. Use the up and down arrow
keys to choose the time you want to go from to the time you want it to
be.
¾Stop Time: This field represents when the daylight savings time will come
to an end. Use the same steps you used for the Start Time to make the
necessary changes for the Stop Time.
: Press or to move the cursor to the left or right.
: Press or to change the value.
These keys are located at the top left row of keys (same keys
as channel 1-4).
16
