EverFocus EMW930 User manual

EMW930 Mobile IR Vandal Resistant Camera
720p Analog HD True Day/Night, IP66
Quick Installation Guide
Copyright © EverFocus Electronics Corp,
Release Date: July, 2015

Precautions
1. Do not install the camera near electric or magnetic fields.
Install the camera away from TV/radio transmitters, magnets, electric motors, transformers
and audio speakers since the electromagnetic fields generated from these devices may distort
the video image.
2. Never disassemble the camera beyond the recommendations in this manual nor introduce
materials other than those recommended herein. Improper disassembly or introduction of
corrosive materials may result in equipment failure or other damage.
3. Try and avoid facing the camera toward the sun. In some circumstances, direct sunlight may
cause permanent damage to the sensor and/or internal circuits.
4. Keep the power cord away from water and other liquids and never touch the power cord
with wet hands. Touching a wet power cord with the hands or touching the power cord with
wet hands may result in electric shock.
5. Cleaning Use a damp soft cloth to remove any dirt from the camera body, being careful not to
scratch the covers over the lens and IR emitters. Use lens tissue or a cotton tipped applicator
and ethanol if it becomes necessary to clean the camera lens. Please do not use complex
solvents, corrosive or abrasive agents for cleaning.
6. Do not operate the camera beyond the specified temperature, humidity or power source
ratings.
Use the camera at temperatures within -40°C~50°C / -40°F~122°F. The input power source is 12
VDC.
Table of Contents
1. Introduction ......................................................................................................................2
2. Features .............................................................................................................................2
3. Packing List ........................................................................................................................2
4. Cable Description..............................................................................................................3
5. Installation ........................................................................................................................3
6. OSD Menu Tree .................................................................................................................7
7. Specification....................................................................................................................11

EMW930
2
1. Introduction
With a streamlined, vandal resistant, IP66 weatherproof wedge type chassis, the EMW930 is ideal
for transit/school bus and similar applications. The EMW930 fixed lens model comes with the IR
illuminator module. Users can select a side, rear, wall or ceiling mounting configuration for best
viewing angle, and mount the camera easily without brackets. The IR illuminators provide clear
images up to 15 meters / 50 feet away. The camera features a built-in visible light sensor to
monitor ambient light and provide IR illumination when needed.
2. Features
•720P with high flexibility and performance for astounding image
•1/3” Sony COMS, delivers high sensitivity
•Astounding image quality from the 3.6mm lens
•Dual-position IR illuminators provide clear images up to 15m/50ft.
•D-WDR to improve the visibility under high contrast scene
•Provides 3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images
even under low light environments
•Support 720p & 960H Analog signal output, which can be easily switched using OSD Joystick
•Vandal resistant, IP66 housing
•Built-in heater
•Side/Rear/Wall/Ceiling mounting options, no bracket required
3. Packing List
•
Camera unit
•
Power adapter pigtail
•
Mounting template
•
Desiccant pack with gummed tape to attach
•
Accessory kit containing: pack inside camera
-4 screws and plastic anchors
•
Rubber gasket for base of camera (attached
-4 rubber washers to the base of the camera)
-Torx wrench for cover screws •
Quick Installation Guide

EMW930
3

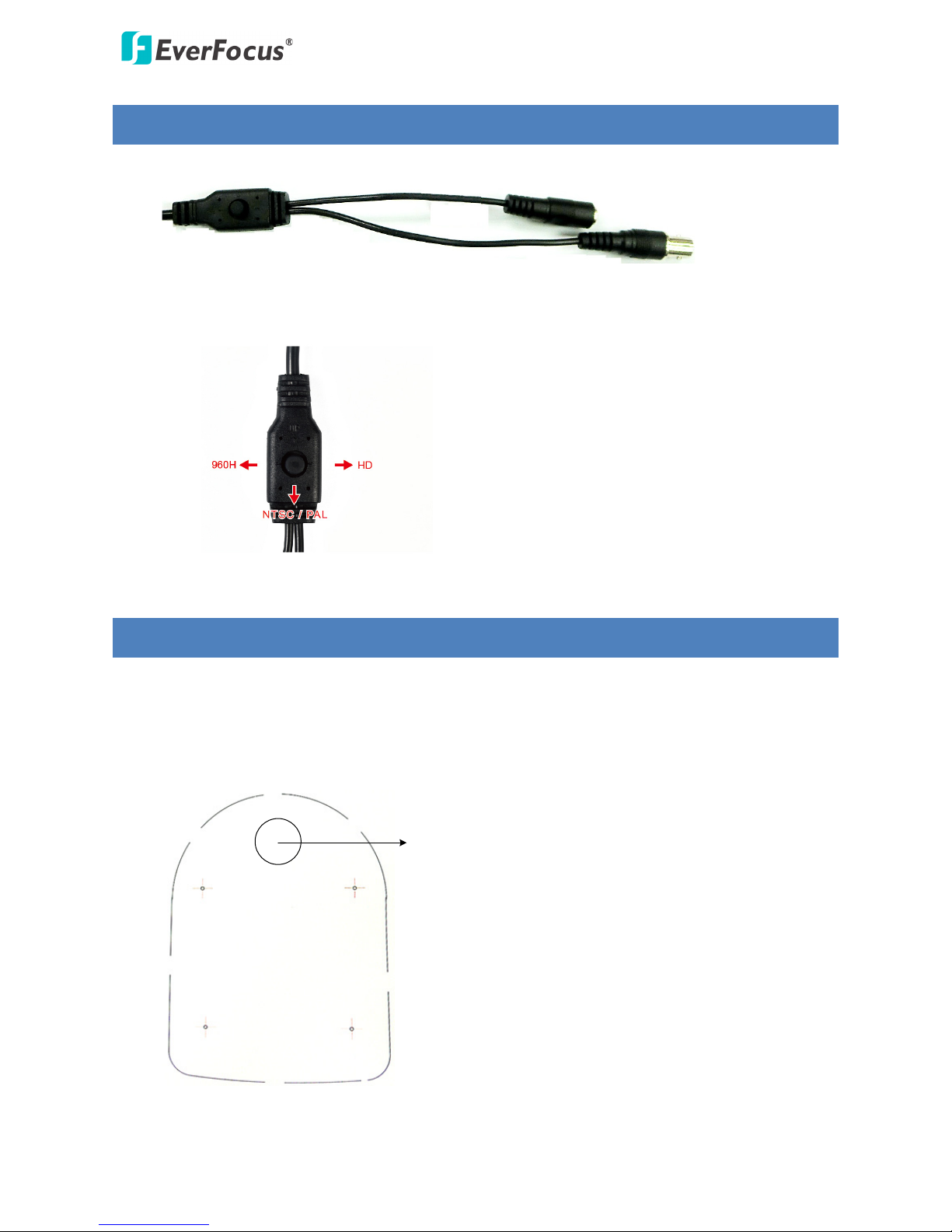

4. Cable Description
12VDC Power Cable
BNC CableOSD Joystick
You can use the OSD Joystick to switch between HD and 960H resolution (see image below).
NTSC / PAL
Press Left for 5 Seconds: Switch to 960H resolution
Press Right for 5 Seconds: Switch to HD resolution
Press Down for 5 Seconds: Switch between NTSC and PAL
5. Installation
1. Paste the supplied Mounting Template onto a desired location of the surface. Drill the four red
cross marks (3.7mm diameter if plastic anchors are not used) for the mounting screws. If you
wish to run the cable into the wall, drill another hole marked as a circle below.
Drill this hole if you want to
run the cable into the wall
2. Push the four supplied four Plastic Anchors into the four holes on the surface.

EMW930
4

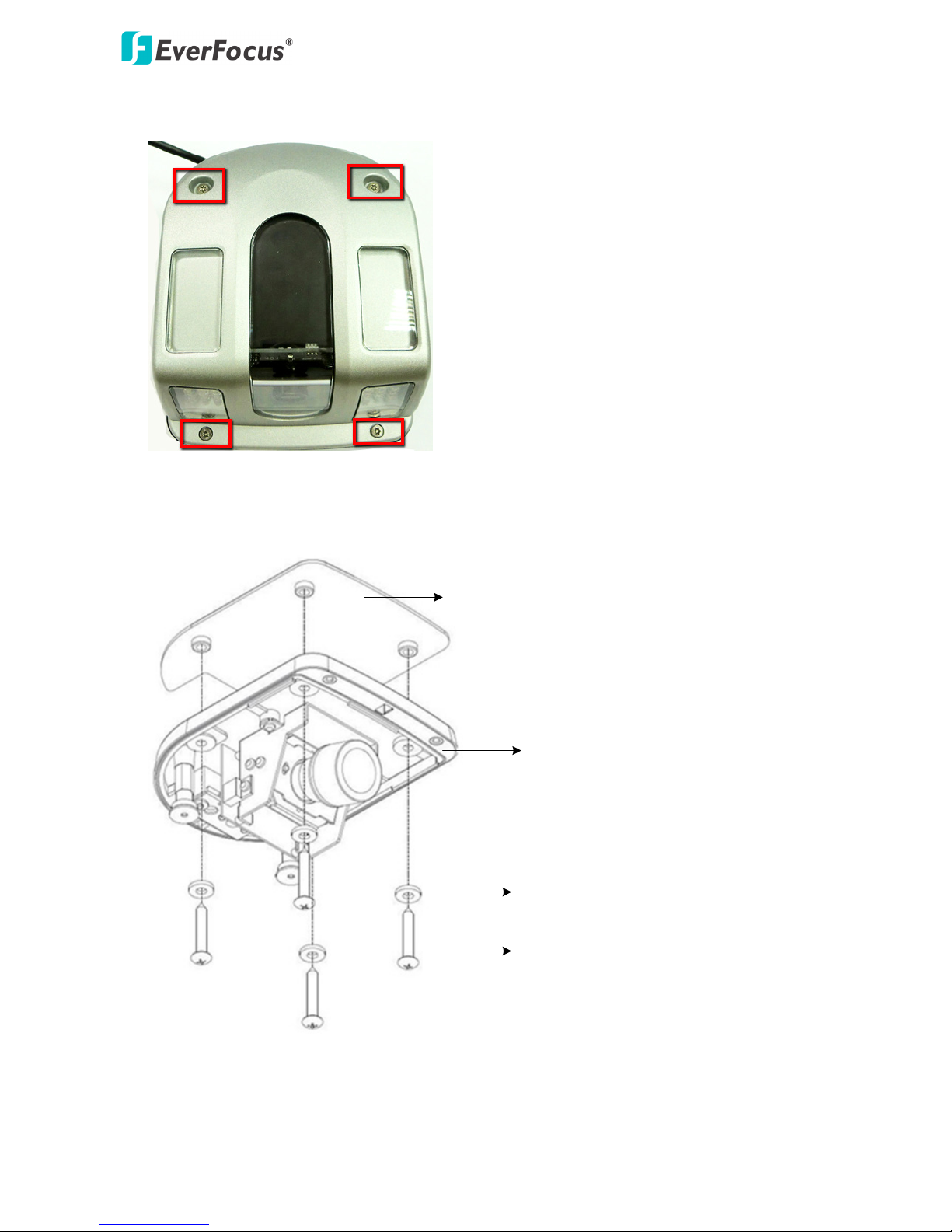

3. Loosen the four screws using the provided Torx Wrench to remove the cover from the camera.
4. Attach the camera and Rubber Gasket to align the mounting holes. Screw the camera base using
the supplied four Screws and Rubber Washers to the surface tightly. Apply sealant generously
around all holes.
Rubber Gasket
Rubber Washer
Screw
Camera Base

EMW930
5
5. To optionally rotate the Camera Module on-axis to change the camera view:
a. Remove the four screws from the Camera Module.
Camera Module
b. Rotate the Camera Module to the left or right by either 90, 180 or 270-degree and screw
back the Camera Module.
Rotate
Note: The red arrow on the top of the above image indicates proper orientation of camera
module. When the camera is installed, this arrow should point UP.

EMW930
6

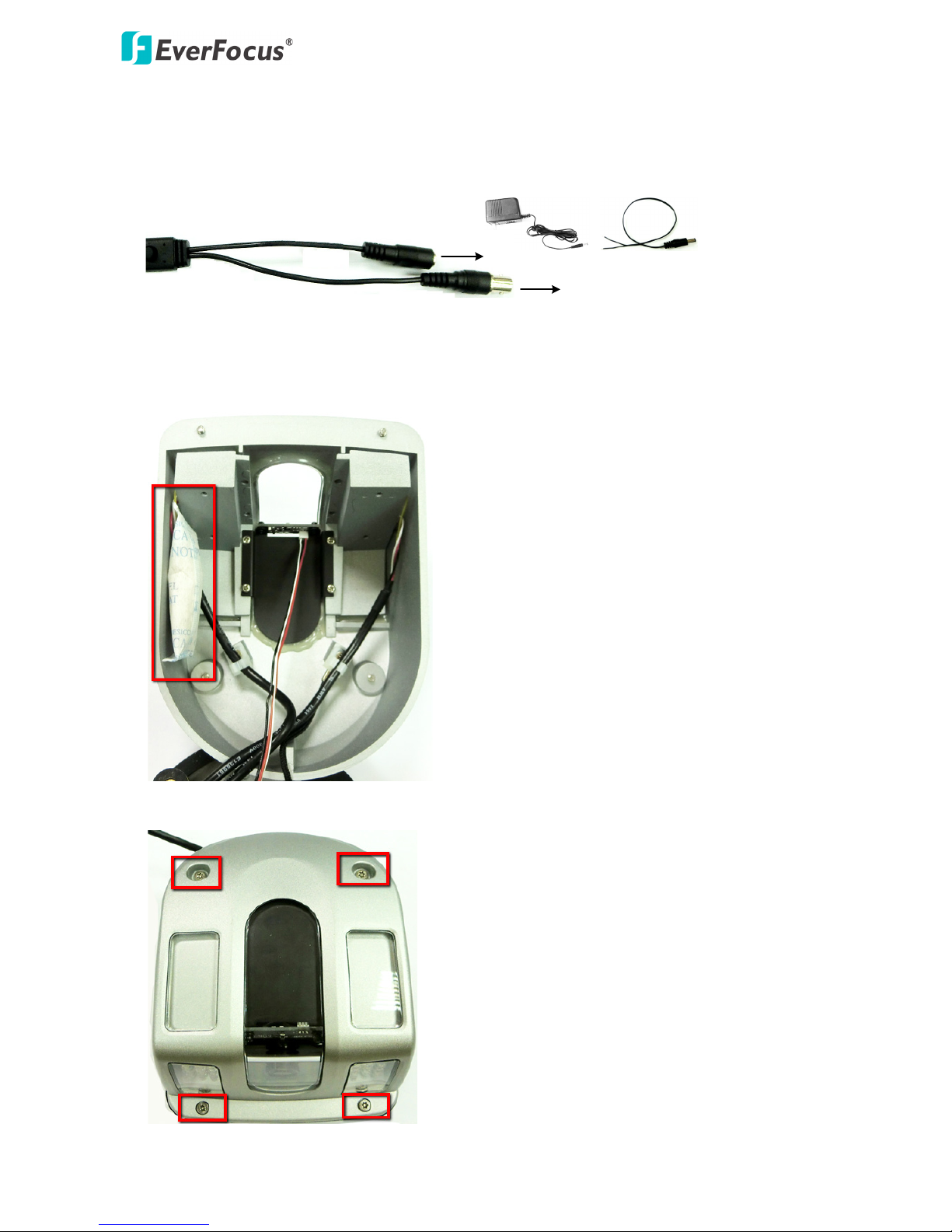

6. Connect the Power Cable to the 12VDC power source using the supplied Power Adaptor Pigtail
(black wire: negative - / black with white stripe wire: positive +) or a power adapter. Connect the
BNC Cable to a DVR or a Monitor.
Power Pigtail Cable
or
Power Adapter
BNC Cable
Power Cable Connect to a DVR or a Monitor
Black Wire: - (GND)
Black with White Stripe Wire: +
7. Stick the provided desiccant pack inside of the camera cover (Do this last just before closing the
housing when the installation is complete). The desiccant pack has glue on it; use the glue to
attach it on the left side of the inner co ve r.
8. Screw back the cover using the supplied Torx Wrench.

EMW930
7
6. OSD Menu Tree
You can use the OSD Joystick on the cable to configure camera settings in the OSD menu.
No. Main Sub Menu Sub Menu / Function
1 Lens Manual*
2 Exposure
Shutter
NTSC: 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000,
1/10000, 1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto*
PAL:
1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000,
1/10000, 1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto*
AGC 0 – 15(15*)
Sens-up
Off*
Auto Sens-up
X2, X4*, X6, X8, X10, X15, X20,
X25, X30
Brightness 1-100(30*)
D-WDR
Off*
On Level 0-8(8*)
Auto
Defog
Off*
Auto
Pos/Size Position, Size,↑,↓,→,←
Gradation 0-2(0*)
Default
3 Backlight
Off*
BLC
Level Middle*, High, Low
Area Position, Size,↑,↓,→,←
Default
HSBLC
Select Area1*, Area2, Area3, Area4
Display Off
On* Position, Size,↑,↓,→,←
Black Mask On*/Off
Level 0-100(70*)
Model All Day*
Night AGC Level 0-255(48*)
Default
4White
Balance
ATW*
AWC→SET
Indoor

EMW930
8
Outdoor
Manual Blue 1-500(50*)
Red 0-100(50*)
AWB
5 Day &
Night
Ext* D→N(Delay) 0-60(1*)
N→D(Delay) 0-60(1*)
Auto
D→N(AGC) 1-255(240*)
D→N(Delay) 0-60(1*)
N→D(AGC) 1-255(50*)
N→D(Delay) 0-60(5*)
Color
B/W
Burst Off*/On
IR Smart
Off
On* Level 0-15(4*)
Area Position, Size,↑,↓,→,←
IR PWM Off
0-100(100*)
6 NR 2DNR Middle*/Low/Off/High
3DNR Middle*/Low/Off/High
7 Special
Cam Title
Off*
On 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ▶→
←↑↓()ˉ-_▊/=&:~,.
D-effect
Freeze Off*/On
Mirror Off*, Mirror, V-flip, Rotate
Neg. Image Off*/On
Motion
Off*
On
Select Area1*,Area2,Area3,Area4
Display On* Position, Size,↑,↓,→,←
Off
Sensitivity 0-100(64*)
Color Green*, Blue, White, Red
Trans 1.00*,0.75,0.50,
0.25
Alarm
View Type Off, Block, Outline, All*
OSD View On*/Off
Alarm Out On*/Off
Alarm Sig High*, Low

EMW930
9
Time 1-15(3*)
Default
Privacy
Off*
On
Select Area1*,Area2,Area3,Area4
Display
Off
Color* Position, Size,↑,↓,→,
←
Mosaic Position, Size,↑,↓,→,
←
Inv Position, Size,↑,↓,→,
←
Color White*, Black, Red, Blue, CYAN,
Yellow, Green
Trans 1.00*,0.75,0.50,
0.25
Default
Language ENG*/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR
Defect
Live DPC
Off
On* AGC level 0-255(65*)
Level 0-100(100*)
White DPC
Off
On*
Pos/Size Position, Size,↑,↓,→,
←
Start Close the iris then press
DPC View Off*/On
Level 0-60(5*)
AGC 0-14(14*)
Sens-up x2*, x4, x6, x8,x10, x15,
x20, x25, x30
Black DPC
Off*
On
Pos/Siz Position, Size,↑,↓,→,
←
Start Press Enter
DPC View Off*/On
Level 0-255(255*)
RS485 CAM ID 0-255(1*)
ID Display Off*/On

EMW930
10
Baud Rate 2400,4800,9600,19200 ,38400
8 Adjust
Sharpness
Off
Auto*
Level 0-10(3*)
Start AGC 0-255(50*)
End AGC 0-255(200*)
Monitor
CRT
Black Level 0-60(0*)
Blue Gain 0-100(50*)
Red Gain 0-255(50*)
LCD*
Gamma
User*,0.45,0.50,0.55,0.6
0,0.65,0.70,0.75,0.80,0.8
5,0.90,
0.95,1.00
Blue Gain 0-100(50*)
Red Gain 0-100(50*)
LSC Off*/On
Video. Out PAL/NTSC
9 Exit Save& END /Reset/Not Saved

EMW930
11
7. Specification
Pickup Device 1/3” Sony COMS
Video Format NTSC/PAL (can be switched via OSD)
Effective Pixels 1280 (H) x 720 (V)
Scanning System Progressive Scan
Sensitivity 0.05 Lux, 0 Lux With IR On
S/N Ratio Over 48dB (AGC off)
Electronic Shutter Auto/Manual (x30~1/50,000) / Flk
Video Output BNC 1.0Vp-p 75Ω
Gamma Correction 0.45
Lens Type 3.6mm fixed lens with ICR
BLC OFF/BLC/HSBLC Selectable
AGC 0~15 Levels
White Balance ATW/AWC-SET/Indoor/Outdoor/Manual/AWB
Sync Mode Internal
Day/Night Ext, Auto, Color, B/W
IR LED 40 emitters in two arrays
IR Distance Up to 15m/50ft. (depending on scene IR reflectivity)
OSD Languages 12-Languages
DNR 2DNR, 3DNR, OFF
DEFOG Off/Auto (Under B/W Mode)
D-WDR On/Off
Sens-UP On/Off (x30~x2)
Mirror Off/Mirror/V-Flip/Rotate
Motion Detection Off/On for 4 selectable zones
Privacy Mask Off/On for 4 selectable zones
Environmental Vandal resistant, IP66 housing
Power Source 12VDC
Power Consumption 8.4W max at 12VDC (heater on & IR LED on)
Operating Temperature -40°C~50°C / -40°F~122°F (Built-in heater)
Humidity Less than 80%
Dimensions (L x W x H) 105 x 140 x 65mm / 4.2” x 5.6” x 2.6”
Weight 600g / 1.35lb
Certificates CE, FCC, RoHS

EMW930
12
EverFocus Electronics Corp.
EverFocus Taiwan:
12F-1, No.79, Sec. 1, Shin-Tai Wu Road,
Hsi-Chih, New Taipei City, Taiwan
TEL: [phone]
FAX: [phone]
www.everfocus.com.tw
mark[email protected]
EverFocus Europe - Germany:
Albert-Einstein-Strasse 1, D-46446
Emmerich, Germany
TEL: [phone]
FAX: [phone]
www.everfocus.de
[email protected]
EverFocus China - Beijing:
Room 609, Technology Trade Building,
Shangdi Information Industry Base,
Haidian District, Beijing 100085, China
TEL: [phone]~39
FAX: [phone]
www.everfocus.com.cn
[e-mail]
EverFocus China - Shenzhen:
4F, No. 2, D4 Building, Wan Yelong
Industrial Park, Tangtou Road, Shiyan,
Baoan, Shenzhen, Guangdong 518101, China
TEL: [phone]
FAX: [phone]
www.everfocus.com.cn
[e-mail]
EverFocus USA - California:
1801 Highland Avenue, Unit A, Duarte, CA 91010, USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[email protected]
EverFocus Japan:
3F, Kuramochi, Building II
2-2-3 Koto-Bashi, Sumida-Ku,
Tokyo, 130-0022, Japan
TEL: [phone]
FAX: [phone]
www.everfocus.co.jp
[e-mail]
Your EverFocus product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their
end-of-life, should be disposed of
separately from your household waste.
Please, dispose of this equipment at
your local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to conserve the
environment we live in!
Ihr EverFocus Produkt wurde entwickelt
und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte am
Ende ihrer Nutzungsdauer vom
Hausmüll getrennt entsorgt werden
sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben!
P/N: 4605PW0930B012B
