evertz 7700 Series User manual

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
TABLE OF CONTENTS
1. OVERVIEW......................................................................................................................................... 1
2. INSTALLATION.................................................................................................................................. 2
2.1. VIDEO CONNECTIONS ............................................................................................................ 2
2.2. AUDIO CONNECTIONS ............................................................................................................ 2
2.3. GENERAL PURPOSE OUTPUT CONNECTION ...................................................................... 3
3. SPECIFICATIONS.............................................................................................................................. 3
3.1. SDTI VIDEO INPUT ................................................................................................................... 3
3.2. HD SERIAL VIDEO OUTPUT.................................................................................................... 3
3.3. AES AUDIO OUTPUTS ............................................................................................................. 4
3.4. ANALOG AUDIO OUTPUTS..................................................................................................... 4
3.5. GPO ........................................................................................................................................... 4
3.6. SDTITO OUTPUT DELAY ........................................................................................................ 4
3.7. ELECTRICAL ............................................................................................................................ 5
3.8. PHYSICAL................................................................................................................................. 5
4. STATUS INDICATORS AND DISPLAYS .......................................................................................... 5
4.1. STATUS AND INDICATOR LEDS ............................................................................................ 5
4.1.1. Module Status LEDs.......................................................................................................5
4.1.2. SDTi Audio and VANC Present LEDs............................................................................ 6
4.1.3. HD Output Embedded Audio Present LEDs................................................................... 6
4.2. DOT-MATRIX DISPLAY ............................................................................................................ 6
4.3. GPO FUNCTION .......................................................................................................................... 7
5. CARD EDGE CONTROLS ................................................................................................................. 7
5.1. SELECTING THE OUTPUT VIDEO STANDARD ..................................................................... 8
5.2. SELECTING HOW THE AUDIO WILL BE OUTPUT................................................................. 8
Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
5.3. SELECTING VANC EMBEDDING INTO THE HD OUTPUT...............................................................8
5.4. SELECTING AUDIO DELAY.....................................................................................................8
5.5. SELECTING THE ANALOG AUDIO SOURCE CHANNEL ......................................................9
5.6. SELECTING HOW THE AUDIO WILL BE OUTPUT................................................................. 9
5.7. SELECTING IF AUDIO GROUP 2 IS ENABLED OR DISABLED ..........................................10
5.8. AUDIO OUTPUT AUTO/MANUAL SELECTION..................................................................... 10
5.9. ANALOG AUDIO MONITOR VOLUME ...................................................................................... 10
6. JUMPERS.........................................................................................................................................10
6.1. SELECTING WHETHER LOCAL FAULTS ON THE BOTTOM BOARD
WILL BE MONITORED BY THE GLOBAL FRAME STATUS ................................................11
6.2. SELECTING WHETHER LOCAL FAULTS ON THE TOP BOARD
WILL BE MONITORED BY THE GLOBAL FRAME STATUS ................................................11
6.3. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES ............................................12
Figures
Figure 1: 7770DS-HD Block Diagram ................................................................................................................. 1
Figure 2: 7770DS-HD Rear Panel....................................................................................................................... 2
Figure 3: LED and Switch Locations ................................................................................................................... 5
Figure 4: Location of Jumpers Bottom Board ................................................................................................... 11
Figure 5: Location of Jumpers Top Board......................................................................................................... 11
Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
Tables
Table 1: 9 Pin D Connector Pin Definitions......................................................................................................... 3
Table 2: Video Output Formats ........................................................................................................................... 4
Table 3: Bottom Board DIP Switch Functions ..................................................................................................... 7
Table 4: Top Board DIP Switch Functions .......................................................................................................... 7
Table 5: Video Standard Switch Settings ............................................................................................................ 8
Table 6: AES Output Sample Rate Converter Enable/Disable Switch Settings ................................................. 8
Table 7: VANC embedder enable/disable Switch Settings ................................................................................. 8
Table 8: Audio delay Switch Settings .................................................................................................................. 9
Table 9: Video Standard Switch Settings ............................................................................................................ 9
Table 10: Audio Group 1 Destination Selection Switch Settings ........................................................................ 9
Table 11: Audio Group 2 Destination Selection Switch Settings ........................................................................ 9
Table 12: Audio Group 2 Enable/Disable Switch Settings ................................................................................ 10
Table 13: Auto/Manual Audio Output Switch Settings ...................................................................................... 10
Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 Preliminary Version Sep 01
1.1 Rear panel changed, Jumper numbers updated, general cleanup Mar 02
1.2 First Release Apr 02
1.3 Menu structure and specifications updated Apr 02
1.4 DIP switch settings updated Sep 02
1.5 Added REF IN and removed 50i/25pSf Oct 02
1.6 Added 50i /25pSf, DIP switch settings updated Mar 03
1.7 Added pinout for 9 pin D connector, info on GPO function Mar 04
1.8 Remove Reference Input June 04
1.9 Minor corrections Nov 04
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be effected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either express or implied. The only warranty offered by
Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.
Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
1. OVERVIEW
The 7770DS-HD, HDTV Decompression Codec converts a 270Mb/s SDTi (SMPTE 305M) input signal
containing HDCAM compressed data with embedded AES audio, into a SMPTE 292M (1.485Gb/s)
component serial digital stream with embedded or separate AES audio. An additional stereo analog audio
channel is also available for local monitoring. The 7770DS-HD supports 1080i/59.94, 1080i/50,
1080p/29.97sF, 1080p/25sF, 1080p/23.97sF and 1035i/59.94 video formats.
The 7770DS-HD occupies two card slots and is housed in the standard Evertz 3RU frame that holds up to
15 modules.
Features:
Industry proven HDCAM video decompression for origination quality video•
•
•
•
•
•
•
•
•
Supports 1080i/59.94, 1080i/50, 1080p/29.97sF, 1080p/25sF 1080p/23.98sF and 1035i/59.94 formats
Automatic detection of 1035i/1080i active lines
Detection of uncompressed SD or compressed HD input stream and outputs GPO control for
downstream equipment.
Outputs up to four channels of uncompressed embedded AES audio
Audio delay processing to match video compression/decompression delay
Four separate stereo AES unbalanced outputs
One stereo analog audio output
Fully hot swappable from front of frame
AES
Output
HDCAM
Decoder
HD SDI
1.485 Gb/s
(SMPTE 292M)
HD
P/S
Audio
Embedder /
Deformatter
SDTI
Deformatter
CPU
S/P
Format
Display
SDTI Input
270 Mb/s
(SMPTE 305M)
AES I/F
Stereo
Analog Audio
and GPO
Output
DB9

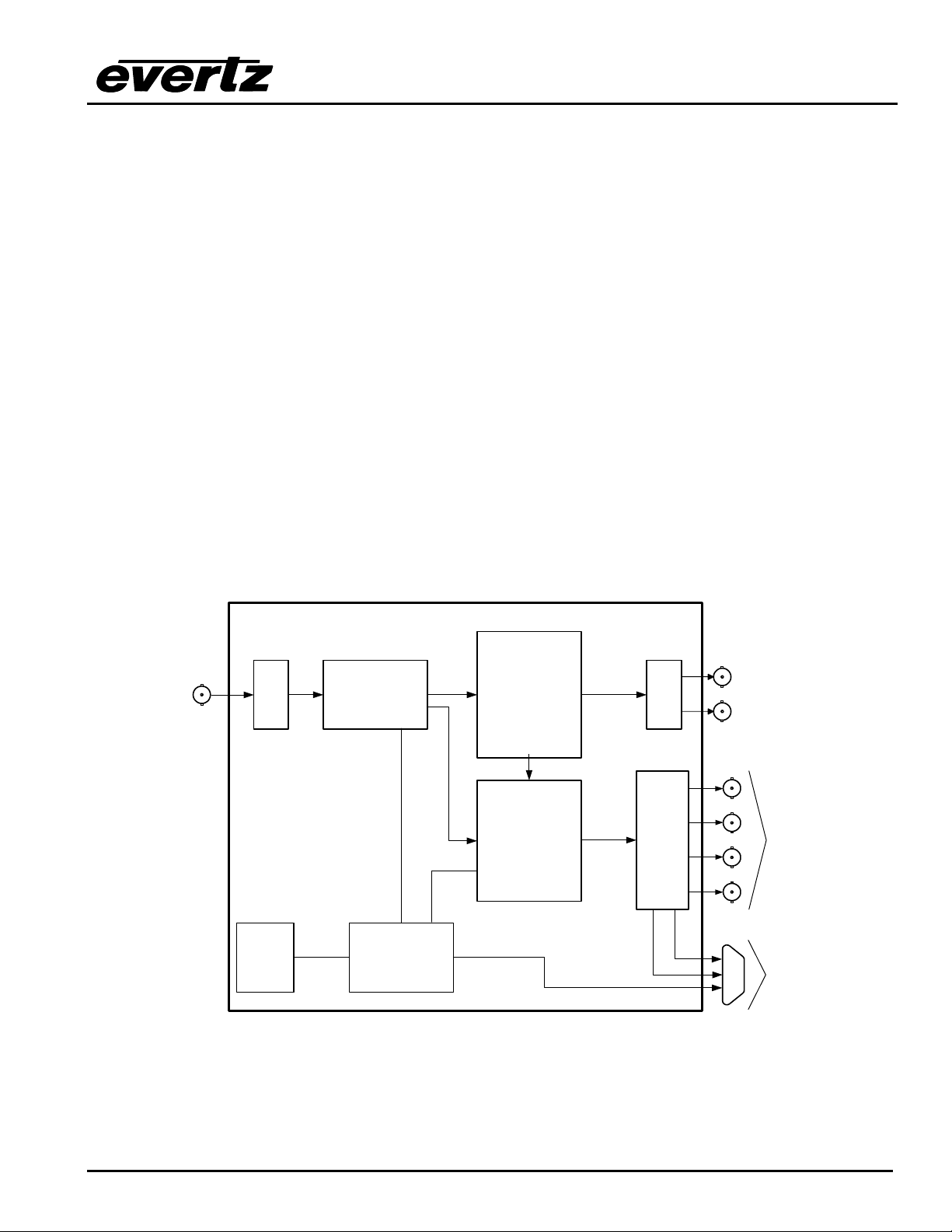

Figure 1: 7770DS-HD Block Diagram
Revision 1.9 7770DS-HD-1

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
2. INSTALLATION
The 7770DS-HD comes with a companion rear plate that has eight BNC connectors, occupying two slots
in the 7700FR frame. For information on mounting the rear plate and inserting the module into the frame
see the 7700FR chapter section 3.
Figure 2: 7770DS-HD Rear Panel
2.1. VIDEO CONNECTIONS
Connect a source of SDTi compressed HD serial component video, compatible with the SMPTE 259M and
SMPTE 305M standards, to the BNC labeled SDTi INPUT. See Table 2 for a list of the video formats
supported. Uncompressed HD video output, compatible with the SMPTE 292M standard, is available on
the HD OUTPUT BNCs.
2.2. AUDIO CONNECTIONS
The 7770DS-HD has the ability to de-embed up to 4 uncompressed AES audio streams (8 channels) from
2 groups on the compressed video input. The de-embedded audio can be either re-embedded on the HD
video output or output as AES audio on the 4 BNCs labeled AES OUTPUT. Selection of the audio
destination and embedding group is done by DIP switch (see section 5.6).
A 9 pin D connector labeled ANALOG AUDIO OUT contains 2 balanced analog audio outputs. The
connector pinout is shown in Table 1. See sections 5.5 and 5.9 for more information about the analog
audio outputs.
7770DS-HD-2 Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
Pin
#
Name Description
1 A1- Audio 1 (Left) - Output
2 Gnd Signal Ground
3 A2+ Audio 2 (Right) + Output
4 Gnd Signal Ground
5 Gnd Signal Ground
6 A1+ Audio 1 (Left) + Output
7 A2- Audio 2 (Right) - Output
8 GPO General Purpose Output
9 Gnd Signal Ground
Table 1: 9 Pin D Connector Pin Definitions
2.3. GENERAL PURPOSE OUTPUT CONNECTION
A pair of pins on the 9 pin D connector labeled ANALOG AUDIO OUT contains a general purpose output.
The connector pinout is shown in Table 1. See section 4.3 for more information about the operation of the
general purpose output.
3. SPECIFICATIONS
3.1. SDTI VIDEO INPUT
Standard: SMPTE 259M-C – 525 line component.
Video compressed in accordance with SMPTE 305M
Connector: BNC per IEC 169-8
Signal Level: 800mV nominal
DC Offset: 0V ±0.5V
Return Loss: > 15 dB at 270 Mb/s
3.2. HD SERIAL VIDEO OUTPUT
Standard: 1.485 Gb/sec SMPTE 292M – standards supported are shown in Table 2.
Number of Outputs: 2
Connectors: BNC per IEC 169-8
Signal Level: 800mV nominal
DC Offset: 0V ±0.5V
Rise and Fall Time: 200ps nominal
Overshoot: <10% of amplitude
Wide Band Jitter: < 0.2UI
Revision 1.9 7770DS-HD-3

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
SDTi
Input HD Output
Common
Name
Pixels /
Active Lines
Frame
Rate
Progressive
/Interlace
SMPTE
Standard
525/29.97 1080i/59.94 1920 x 1080 29.97 I 274M
525/29.97 1080p/29.97sF 1920 x 1080 29.97 P (sF) 274M
625/25 1080i/50 1920 x 1080 25 I 274M
625/25 1080p/25sF 1920 x 1080 25 P (sF) 274M
525/23.98 1080p/23.98sF 1920 x 1080 23.98 P (sF) 274M
525/29.97 1035i/59.94 1920 x 1035 29.97 I 260M
Table 2: Video Output Formats
3.3. AES AUDIO OUTPUTS
Standard: SMPTE 276M, single ended synchronous AES
Number of Outputs: 4
Connectors: BNC per IEC 169-8
Signal Level: 1V p-p ±0.1V
Resolution: 24 bits
Sampling Rate: 48 kHz
Impedance: 75 Ohms unbalanced
3.4. ANALOG AUDIO OUTPUTS
Number of Outputs: 2
Type: Balanced analog audio
Connector: 9 pin female D connector
Output impedance: 66Ω
Sampling Frequency: 48kHz
Signal Level: 0dB FS => 20dBu into high impedance loads (10 kOhms)
Not good for low impedance loads (i.e. 600 Ohm)
Frequency Response: 50Hz to 20kHz: +/- 0.20dB
SNR: >85dB (50Hz to 20 kHz)
THD+N: 65 dB @ 1kHz, 0 dBFS, typical
3.5. GPO
Number of GPO’s: 1
Type: TTL
Connector: 9 pin female D connector (same connector as analog audio output)
3.6. SDTI TO OUTPUT DELAY
Video: 2 frames
AES:
Evertz Source: 5 frames
Sony Source: 2 frames
VANC: 9 fields
7770DS-HD-4 Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
3.7. ELECTRICAL
Voltage: +12VDC
Power: 12 Watts.
EMI/RFI: Complies with FCC regulations for class A devices.
Complies with EU EMC directive.
3.8. PHYSICAL
7700 frame mounting: 2 slots
7701 frame mounting: 1 slots
4. STATUS INDICATORS AND DISPLAYS
The 7770DS-HD has 7 LED Status indicators and a 4 digit alphanumeric display on the front card edge to
show operational status of the card at a glance. Figure 3 shows the location of the LED’s, display and card
edge DIP switches.
Red Failure LED
Green OK LED
Alpha-numeric
Display
SDTi Audio Group LEDs
Card Extractor
Toggle switch
Red Failure LED
Green OK LED
1
DIP switches, set "B"
Video
Audio
1
DIP switches, set "A"
1 2 VANC
HD Embedded Audio LEDs
1234

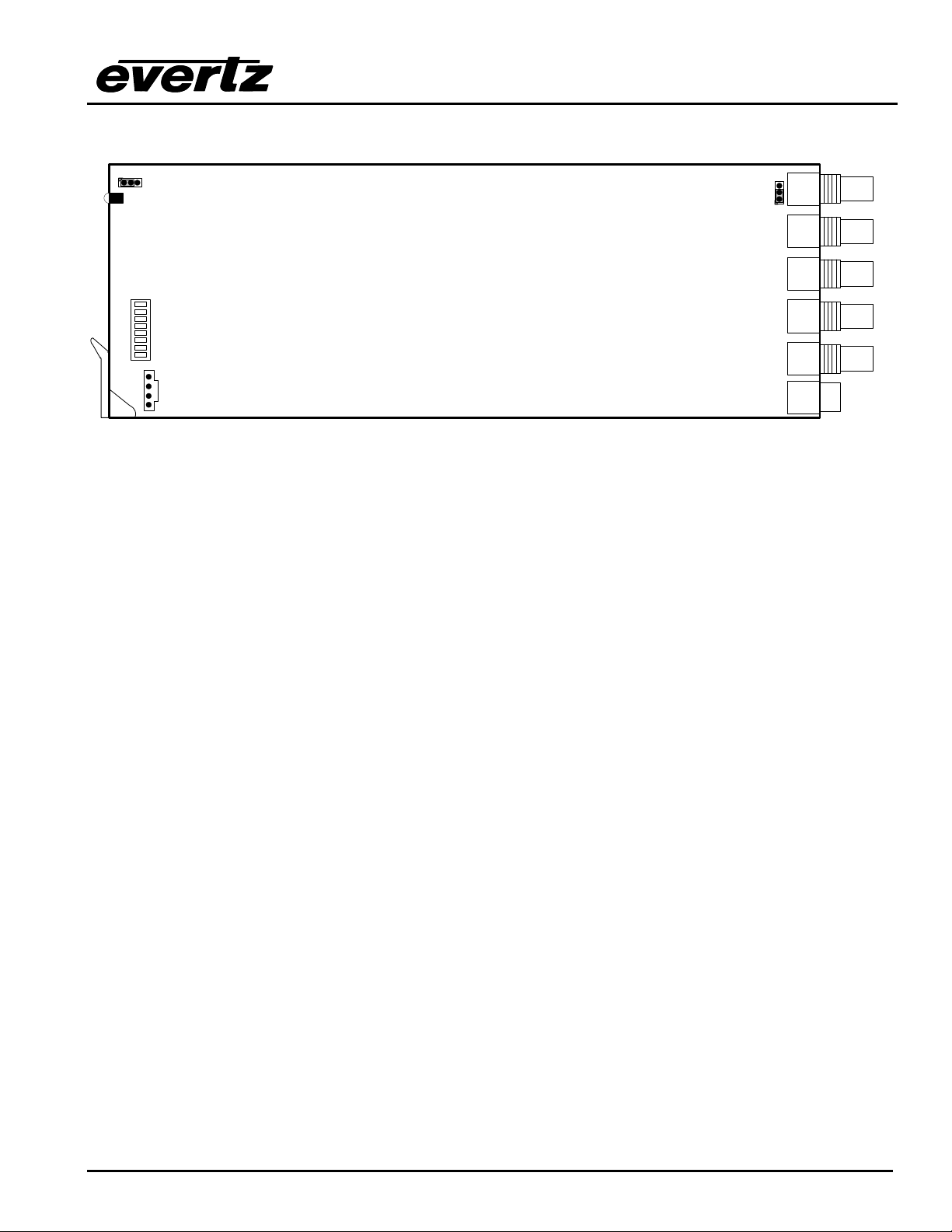

Figure 3: LED and Switch Locations
4.1. STATUS AND INDICATOR LEDS
4.1.1. Module Status LEDs
Two large LED’s on the front of the bottom board indicate the general health of the module
LOCAL FAULT: This Red LED indicates poor module health and will be On during the absence of
valid embedded audio in group 1 or group 2 of the SDTi input or if a local input
power fault exists on the bottom board (i.e.: a blown fuse). The LOCAL FAULT
indication can also be reported to the frame through the FRAME STATUS jumper on
the bottom board.
MODULE OK: This Green LED indicates good module health. It will be On when both audio groups
1 and 2 are present, and board power is good.
Revision 1.9 7770DS-HD-5

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
Two large LED's on the front of the top board indicate the presence of video to the module. DIP switches
1 to 3 on the top board are used to select the video standard (see section 5.1). The alphanumeric display
will show the video standard in use (see section 4.2).
VIDEO FAULT: This Red LED will be On during the absence of valid video input of the selected
standard or if a local input power fault exists on the top board (i.e.: a blown fuse).
This condition can also be reported to the frame through the FRAME STATUS
jumper on the top board.
VIDEO OK: This Green LED will be On when a valid video signal of the selected standard is
present.
4.1.2. SDTi Audio and VANC Present LEDs
There are three small LED's on the back side of the top board that indicate the presence of embedded
audio groups 1 and 2 and embedded VANC on the SDTi input.
GROUP 1 PRESENT: This Green LED indicates the presence of Group 1 embedded audio.
GROUP 2 PRESENT: This Green LED indicates the presence of Group 2 embedded audio.
VANC PRESENT: This Green LED indicates the presence of VANC data in either Group 3 or group 4.
4.1.3. HD Output Embedded Audio Present LEDs
There are four small LED’s on the backside of the bottom board that indicate the presence of embedded
audio on the HD video output.
GROUP 1 PRESENT: This Green LED indicates the presence of Group 1 embedded audio.
GROUP 2 PRESENT: This Green LED indicates the presence of Group 2 embedded audio
GROUP 3 PRESENT: This Green LED indicates the presence of Group 3 embedded audio
GROUP 4 PRESENT: This Green LED indicates the presence of Group 4 embedded audio
4.2. DOT-MATRIX DISPLAY
The 4-digit alphanumeric display located on the card edge of the top board is used to display the video
standard in use. If manual video standard selection is set (DIP switch 1 On) then the display will always
display the selected standard. If auto standard selection is set (DIP switch 1 Off) the alpha-numeric
display will read AUTO until a valid input standard is detected. When valid input video is detected the
detected standard will be displayed. The following messages will be displayed.
AUTO Auto video standard selected, and no video present
59 1080i/59.94 or 1080p/29.97sF
50 1080i/50 or 1080p/25sF
35 1035i/59.94
23 1080p/23.98sF
SD SDI input, not an SDTi compressed stream
7770DS-HD-6 Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
4.3. GPO FUNCTION
The GPO output (pin 8 on the 9 pin D connector) is for use in switching downstream equipment between
SD and HD mode. When the 7770DS-HD detects a non SDTi (i.e. SDI) video in it will set this output to 5V.
At this time “SD” will be displayed on the dot-matrix display. When SDTi input video is found this output
will be 0V (ground).
5. CARD EDGE CONTROLS
The 7770DS-HD is equipped with two 8 position DIP switches to allow the user to select various functions.
The DIP switch on the bottom card is used control the embedding of audio on the SDTi output. The DIP
switch on the top card is used to set the input video standard. All positions are assigned sequentially such
that the first position is located at the top of the DIP switch (farthest from to the card ejector). The On
(closed) position is down, or closest to the printed circuit board. The Off (open) position is up, or farthest
from the printed circuit board.
Table 3and Table 4 give an overview of the DIP switch functions. Sections 5.1 to 5.9 give detailed
descriptions of each of the DIP switch functions. A three position, return to center toggle switch is used to
control the volume of the analog audio output.
DIP Switch Function
1 Group 1 Source Select
2
3 Group 1 mapping from Input Embedded Groups
4 Group 2 Source Select
5
6
Group 2 mapping from Input Embedded Groups
7 Group 2 enable/disable
8 Auto/Manual Audio selection
Table 3: Bottom Board DIP Switch Functions
DIP Switch Function
1 Auto/Manual Video Format Selection
2
3 Video Standard Selection
4 AES input’s Sample Rate Converter enable/disable
5 VANC embed to HD enable/disable
6 Audio delay Evertz/Sony
7
8
Analog monitor audio channel source
Table 4: Top Board DIP Switch Functions
Revision 1.9 7770DS-HD-7

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
5.1. SELECTING THE OUTPUT VIDEO STANDARD (TOP BOARD)
DIP switches 1 to 3 on the top card control the selection of the output video format. DIP switch 1 selects
whether the input video format will be automatically detected or set using DIP switches 2 and 3.
DIP 1 DIP 2 DIP 3 Video Standard
Off --- --- Auto
On Off Off 1080p/23.98sF
On Off On 1035i/59.95
On On Off 1080i/50 or
1080p/25sF
On On On
1080i/59.94 or
1080p/29.97sF
Table 5: Video Standard Switch Settings
5.2. SELECTING HOW THE AUDIO WILL BE OUTPUT (TOP BOARD)
DIP switch 4 on the top card controls whether sample rate conversion is enabled on the AES outputs.
DIP 4 AES output sample rate converter
Off Disabled
On Enabled
Table 6: AES Output Sample Rate Converter Enable/Disable Switch Settings
5.3. SELECTING VANC EMBEDDING INTO THE HD OUTPUT (TOP BOARD)
DIP switch 5 on the top card controls whether VANC data, if present in the SDTi stream (see 7770CS
manual) will be embedded into the HD stream.
DIP 5 VANC embedder
Off Disabled
On Enabled
Table 7: VANC embedder enable/disable Switch Settings
5.4. SELECTING AUDIO DELAY (TOP BOARD)
DIP switch 6 on the top card controls the audio delay through the card. Since the Evertz 7770CS does not
delay the audio to synchronize it with the video a longer delay is needed in the 7770DS when the 7770CS
is it’s SDTi source. If a Sony generated SDTi source is used a shorter audio delay is needed since the
SDTi input to the 7770DS will then have the audio and video in sync.
7770DS-HD-8 Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
DIP 6 SDTi source
Off Sony SDTi source (short delay)
On Evertz 7770CS (long delay)
Table 8: Audio delay Switch Settings
5.5. SELECTING THE ANALOG AUDIO SOURCE CHANNEL (TOP BOARD)
The 7770DS supports two groups of audio or 4 stereo pairs however only has one stereo pair of analog
monitor output. DIP switches 7 and 8 on the top card select which of the four stereo channels transported
is output to the analog monitor channels.
DIP 8 DIP 7 Monitor source
On On Group one, channel one
On Off Group one, channel two
Off On Group two, channel one
Off Off Group two, channel two
Table 9: Video Standard Switch Settings
5.6. SELECTING HOW THE AUDIO WILL BE OUTPUT (BOTTOM BOARD)
Up to 2 groups of 4 audio channels can be de-embedded from the 270 Mb/s SDTi bit stream and either be
re-embedded on the HD video output or output as AES audio. DIP switch 1 on the bottom board controls
whether group 1 will be output as AES1 and AES2 or embedded on the HD output. When DIP switch 1 is
set for HD embedded audio, DIP switches 2 and 3 are used to select which group on the HD output will be
used to embed the audio according to Table 10
DIP 1 DIP 2 DIP 3 Audio Group 1 Destination
Off --- --- AES outputs 1 and 2
On Off Off HD Output group 1
On Off On HD Output group 2
On On Off HD Output group 3
On On On HD Output group 4
Table 10: Audio Group 1 Destination Selection Switch Settings
DIP switch 4 on the bottom board controls whether group 2 will be output as AES3 and AES4 or
embedded on the HD output. When DIP switch 4 is set for HD embedded audio, DIP switches 5 and 6 are
used to select which group on the HD output will be used to embed the audio according to Table 11.
DIP 4 DIP 5 DIP 6 Audio Group 2 Destination
Off --- --- AES Outputs 3 and 4
On Off Off HD Output group 1
On Off On HD Output group 2
On On Off HD Output group 3
On On On HD Output group 4
Table 11: Audio Group 2 Destination Selection Switch Settings
Revision 1.9 7770DS-HD-9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
5.7. SELECTING IF AUDIO GROUP 2 IS ENABLED OR DISABLED (BOTTOM BOARD)
DIP switch 7 on the top board allows the second audio group to be output or not (whether embedded in
HD or output as AES). When audio selection is manually controlled this switch should reflect the encoders
setting.
DIP 7 Audio Group output
Off Disabled
On Enabled
Table 12: Audio Group 2 Enable/Disable Switch Settings
5.8. AUDIO OUTPUT AUTO/MANUAL SELECTION (BOTTOM BOARD)
DIP switch 8 on the top board controls whether the destination for the embedded audio data is determined
automatically or by DIP switches 1 through 7 on the bottom board. Note: if VANC transport on the
encoder is turned off or an SDTi stream from another product is input and this switch is set to auto (off)
then group 1 will be embedded to group 1 of the HD output video and group 2 if it is present will be
embedded to group 2 of the HD output video.
DIP 8 Auto Audio destination
Off enabled
On disabled
Table 13: Auto/Manual Audio Output Switch Settings
5.9. ANALOG AUDIO MONITOR VOLUME
The toggle switch is used to control the volume of the analog audio outputs. Pressing the switch up (away
from the card ejector) increases the volume, and pressing the switch down (towards the card ejector)
decreases the volume.
6. JUMPERS
Several jumpers, located at the front of the module are used to preset various operating modes. Figure 4
and Figure 5 show the location of the jumpers on the bottom and top boards respectively.
MODULE STATUS
SFF POWER +12V
Run
Upgrade
J16
J24
J22
FRAME
STATUS
ON
OFF
GND
EVERTZ (C) 7700PB3
7770DS-HD-10 Revision 1.9

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
Figure 4: Location of Jumpers Bottom Board
MODULE STATUS
SFF POWER
+12V
FRAME STATUS
ON OFF
GND
J8
EF IN
TERMINATION
Figure 5: Location of Jumpers Top Board
6.1. SELECTING WHETHER LOCAL FAULTS ON THE BOTTOM BOARD
WILL BE MONITORED BY THE GLOBAL FRAME STATUS
The FRAME STATUS jumper J4 on the bottom board determines whether local faults (as shown by the
Local Fault indicator) on the bottom board will be connected to the 7700FR frame's global status bus.
FRAME STATUS To monitor faults on this module with the frame status indicators (on the Power
Supply FRAME STATUS LED's and on the Frame's Fault Tally output) install this jumper in the
On position. (Default)
When this jumper is installed in the Off position local faults on this module will not be
monitored.
6.2. SELECTING WHETHER LOCAL FAULTS ON THE TOP BOARD
WILL BE MONITORED BY THE GLOBAL FRAME STATUS
The FRAME STATUS jumper J4 on the top board determines whether local faults (as shown by the Local
Fault indicator) on the top board will be connected to the 7700FR frame's global status bus.
FRAME STATUS To monitor faults on this module with the frame status indicators (on the Power
Supply FRAME STATUS LED's and on the Frame's Fault Tally output) install this jumper in the
On position. (Default)
When this jumper is installed in the Off position local faults on this module will not be
monitored.
Revision 1.9 7770DS-HD-11

7700 MultiFrame Manual
7770DS-HD HD Decompression Codec
6.3. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES
"The UPGRADE jumper J16 is installed on the underside of the bottom board.
UPGRADE The UPGRADE jumper J5 on the bottom board is used when firmware upgrades are being
done to the module. For normal operation it should be installed in the RUN position. See the
Upgrading Firmware chapter of this manual for more information.
To upgrade the firmware in the module unit pull it out of the frame. Move the UPGRADE
jumper into the UPGD position. Install the Upgrade cable provided (located in the vinyl pouch
in the front of this manual) onto the SERIAL header at the card edge. Re-install the module
into the frame. Run the upgrade as described in the Upgrading Firmware section of this
manual. Once the upgrade is completed, remove the module from the frame, move the
UPGRADE jumper into the RUN position, remove the upgrade cable and re-install the module.
The module is now ready for normal operation.
7770DS-HD-12 Revision 1.9
